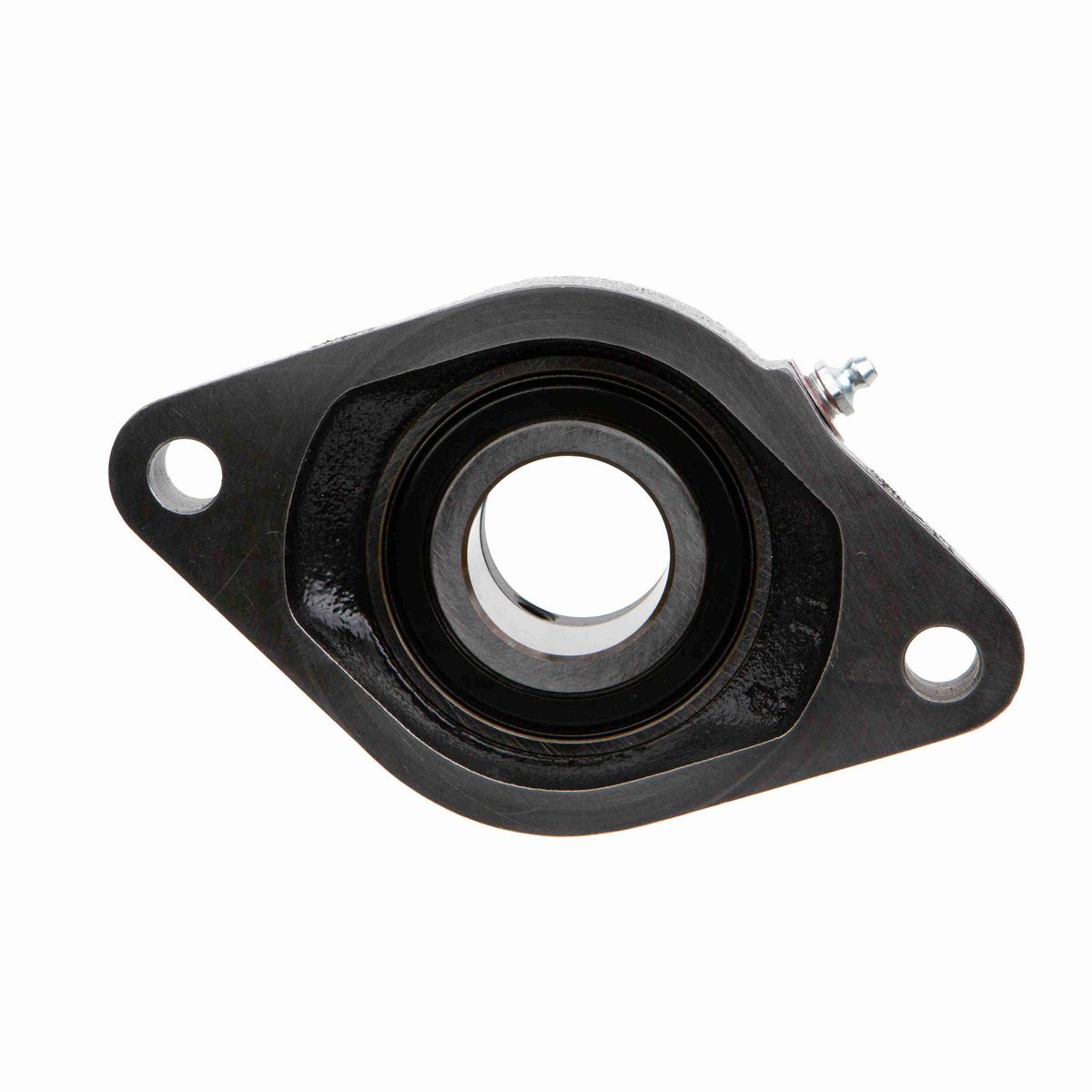

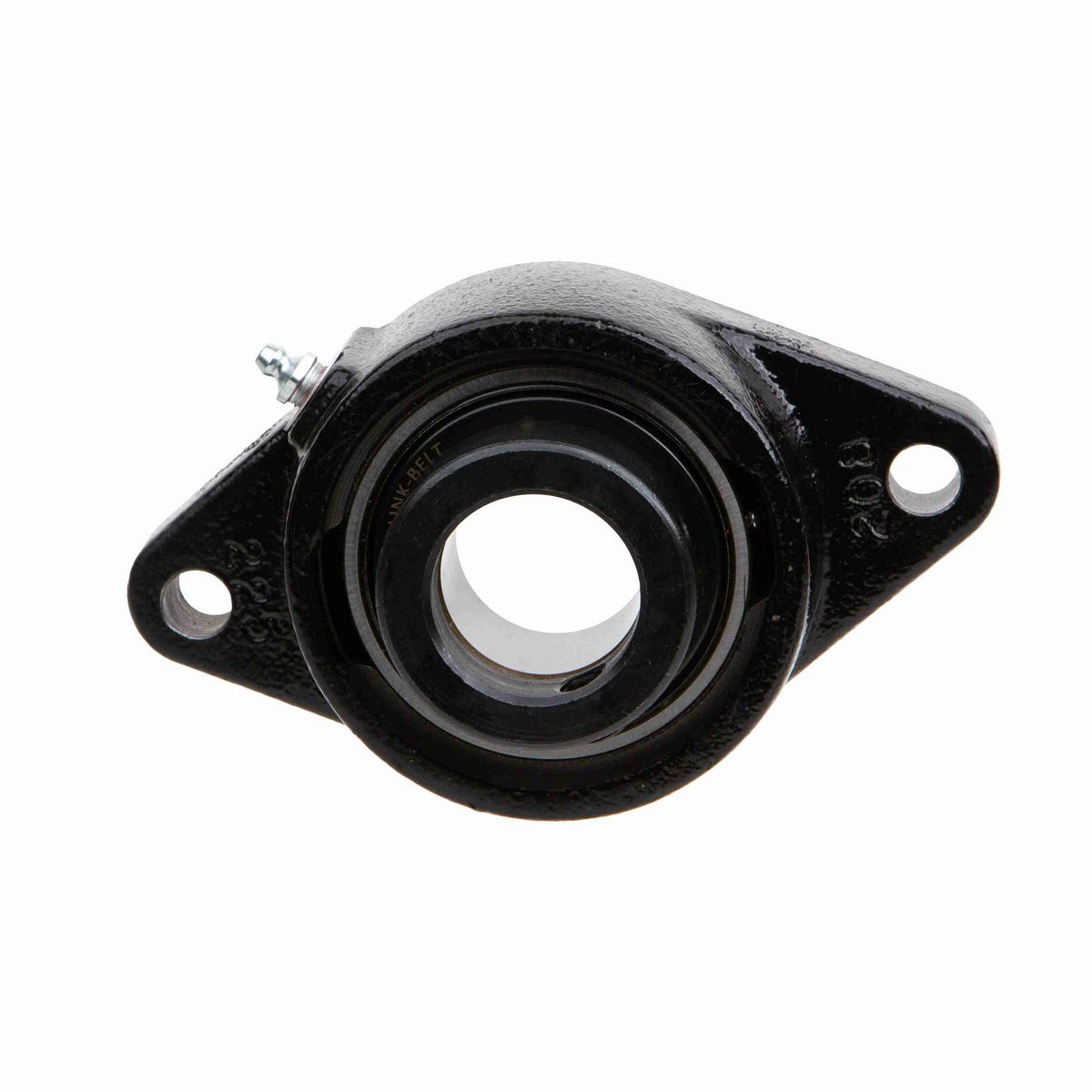

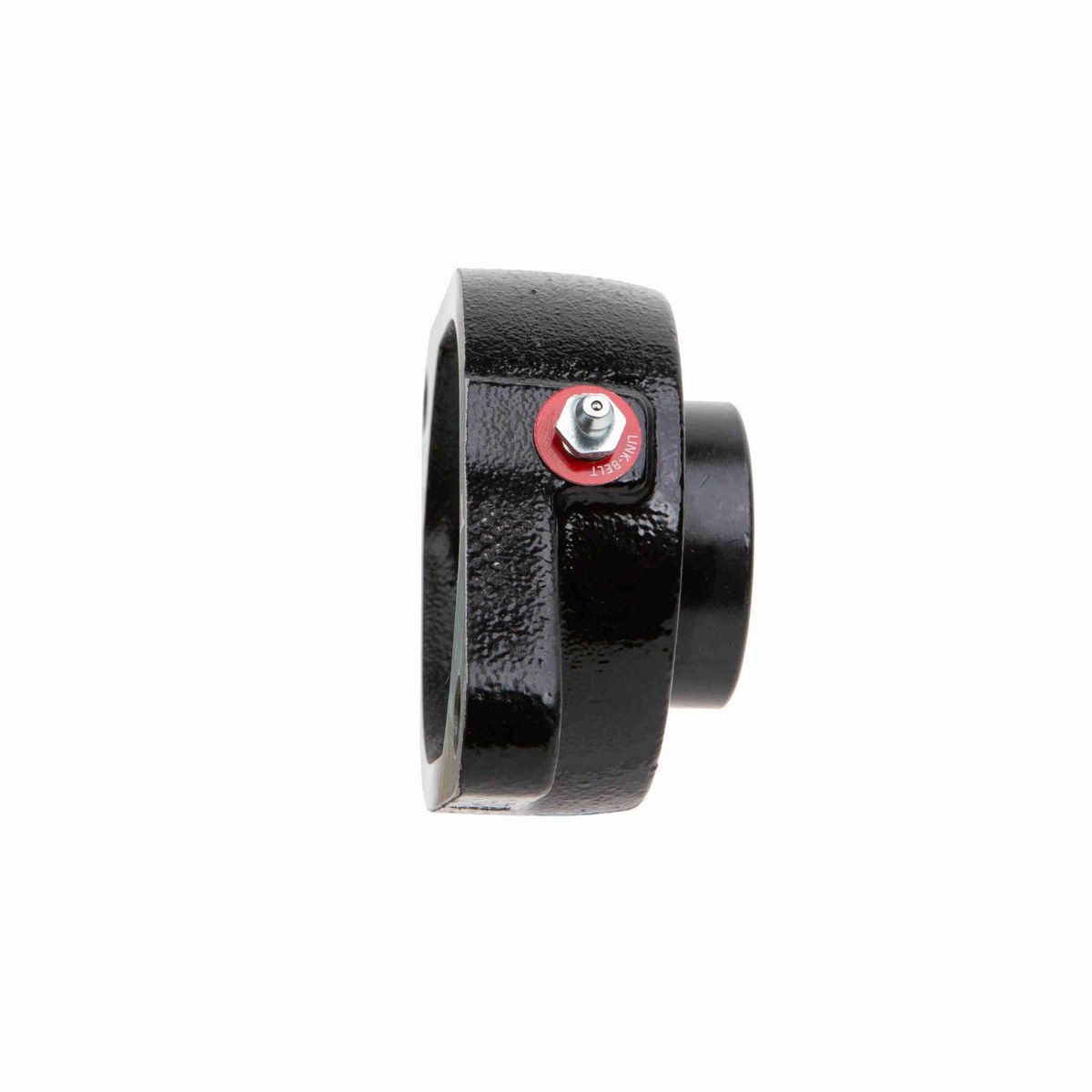

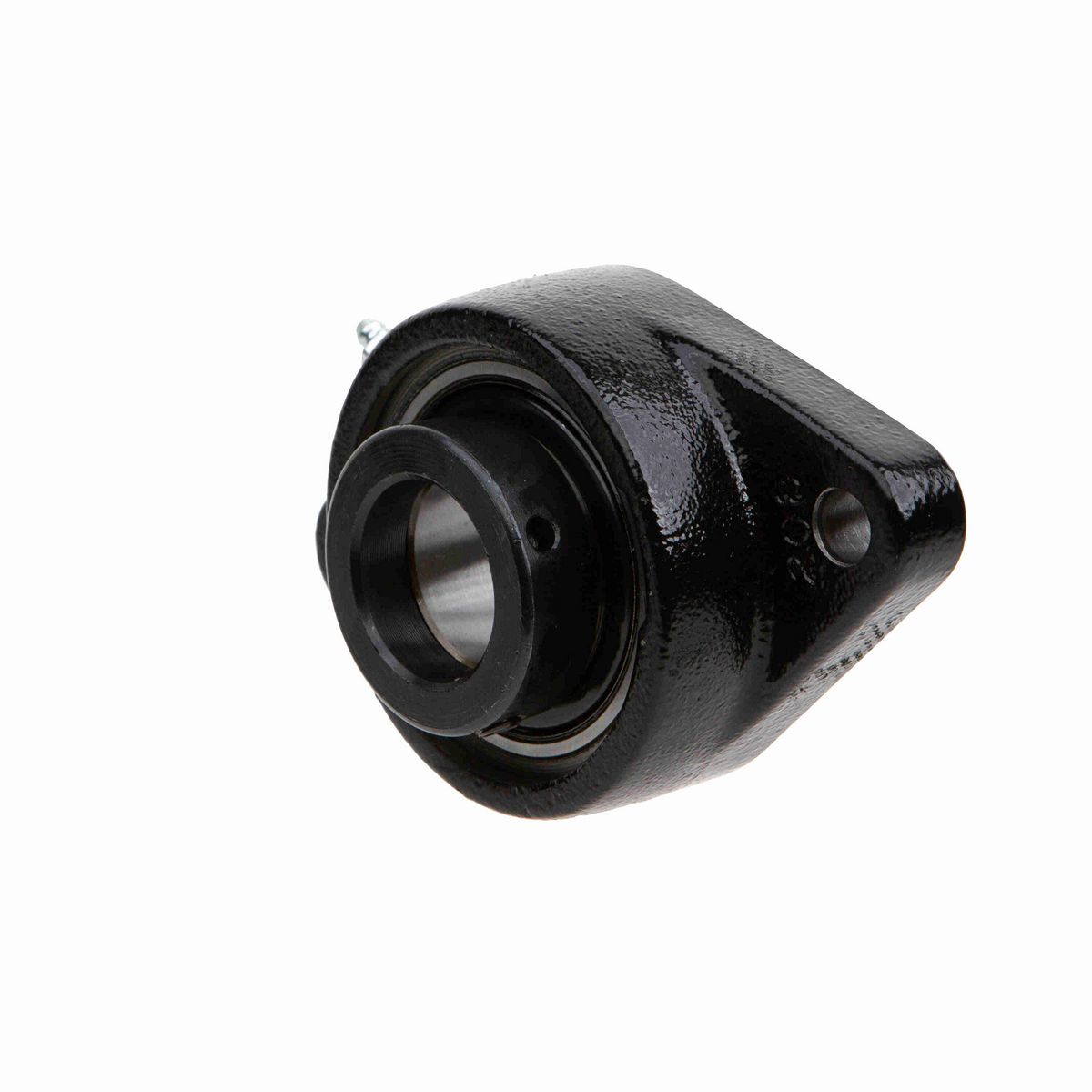

• 1 1/2" Mounted Ball Bearing, Intermediate Duty, Cast Iron 2-Bolt Flange Block, Eccentric Cam Locking Collar, Single Lip Contact Seal

Dimensions

Bore Diameter (in)	1.5 in
Bolt Size (in)	1/2 in
Overall Height to End Cap (in)	2.55 in
Overall Length (in)	6.78 in
Overall Width (in)	4.00 in
Foot Height (in)	0.63 in
Length Through Bore (in)	1.72 in
Overall Height (in)	2.19 in
Bolt Spacing (in)	5.6363 in

Technical Specifications

Pilot Configuration	No Pilot
Outer Ring Land Profile	Standard
Housing Type	Flange, Two Bolt
Housing Style	Flange Block
Cage Material	Molded fiber glass reinforced nylon
Bore Shape	Straight
Housing Construction	One Piece
Rolling Element	Ball Bearing
Seal Type	Single Lip Contact Seal
Misalignment Type	Static Only
Housing Color	Black
Locking Collar Outside Diameter (in)	2.38 in
Ability to Relubricate	Yes
Setscrew Torque (in-lbs)	290-325 in/lbs
Insert	WG224EL
Cage Type	Ball Riding Retainer
Vibration Frequency Inner Ring Defect	0.0912 cps
Size Code	208
Dynamic Load Rating (lb)	7,330 lb
Fixed vs. Expansion	Fixed
End Cap Available	Yes
Bearing Type	Intermediate Duty
Grease Fitting Thread Size	1/8 NPT
Max Operating Temperature (F)	225 °F
Radial Clearance	C3 STANDARD
Vibration Frequency Outer Ring Defect	0.0588 cps
Max Operating Temperature (C)	107 °C
End Cap	Y2256N
Vibration Frequency Fundamental Train	0.0065 cps
Lubricant	EXXON RONEX MP STD
Maximum Speed (RPM)	4500 rpm
Locking Device Kit	W2245S
Housing Material	Cast Iron
Bearing Brand	LINK-BELT 200 SERIES BALL
Housing Coating	Powder Coated
Static Load Rating (lb)	4,460 lb
Inner Ring Outside Diameter (in)	2.083 in
Shaft Locking Type	Eccentric
Bearing Insert Material	52100 Bearing Steel
Misalignment Capability	±1.5° Misalignment - Static Only
Vibration Frequency Roller Spin	0.0367 cps

General Specifications

UPC	662327034924
Weight	3.96 LB
Packaged Length	5.75 IN
Packaged Width	5.75 IN
Packaged Height	2.25 IN
HTC	8483204040
Country of Origin	Mexico
