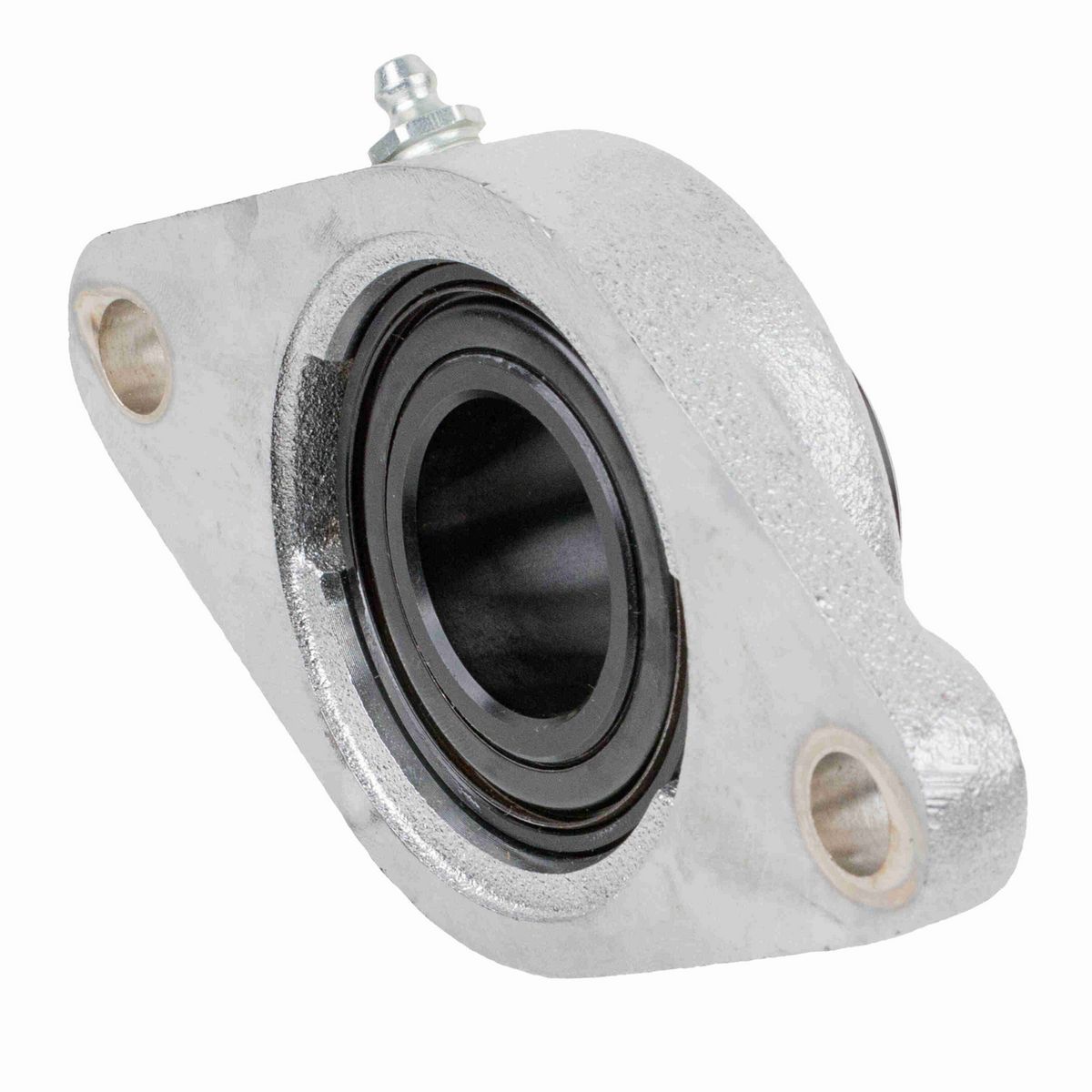

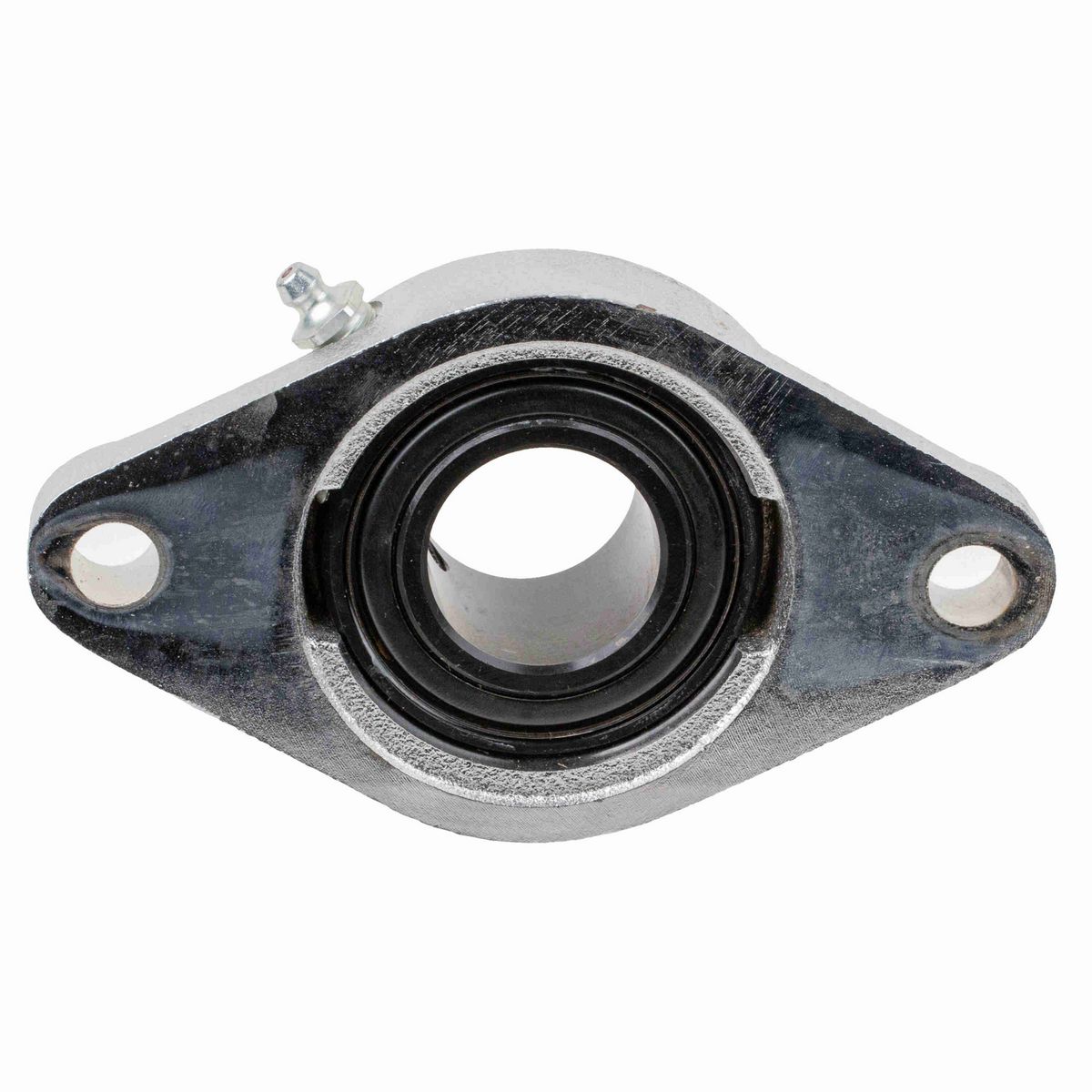

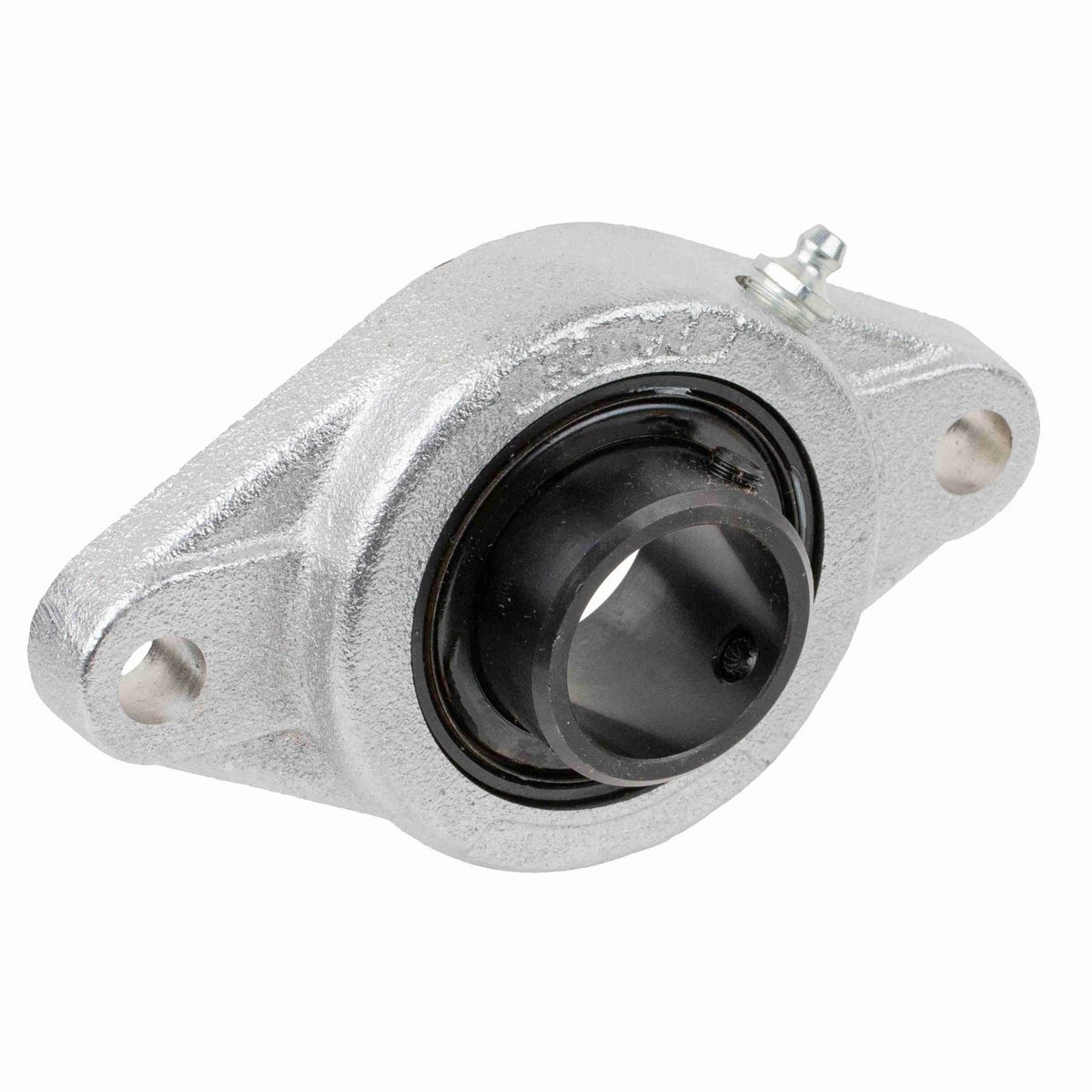

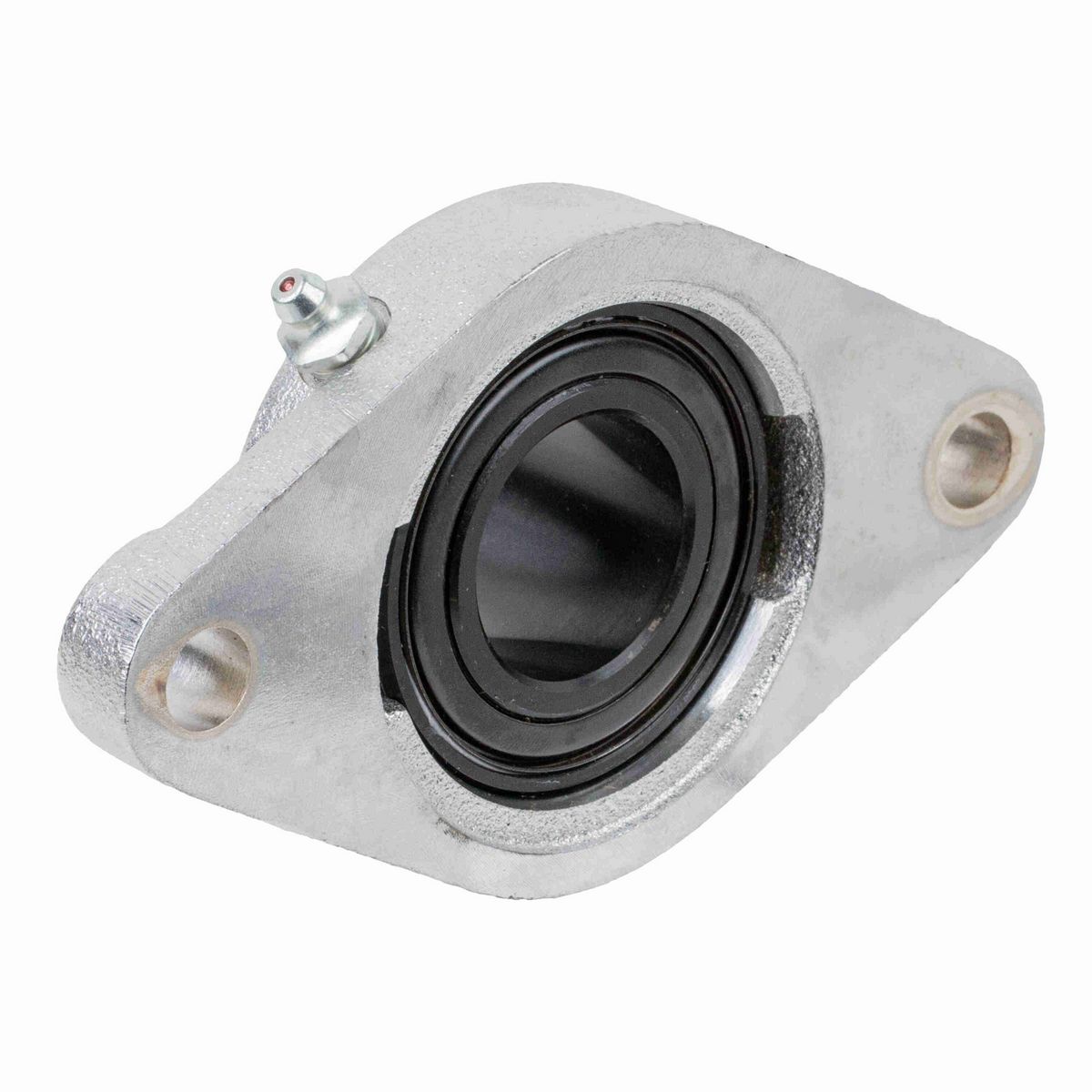

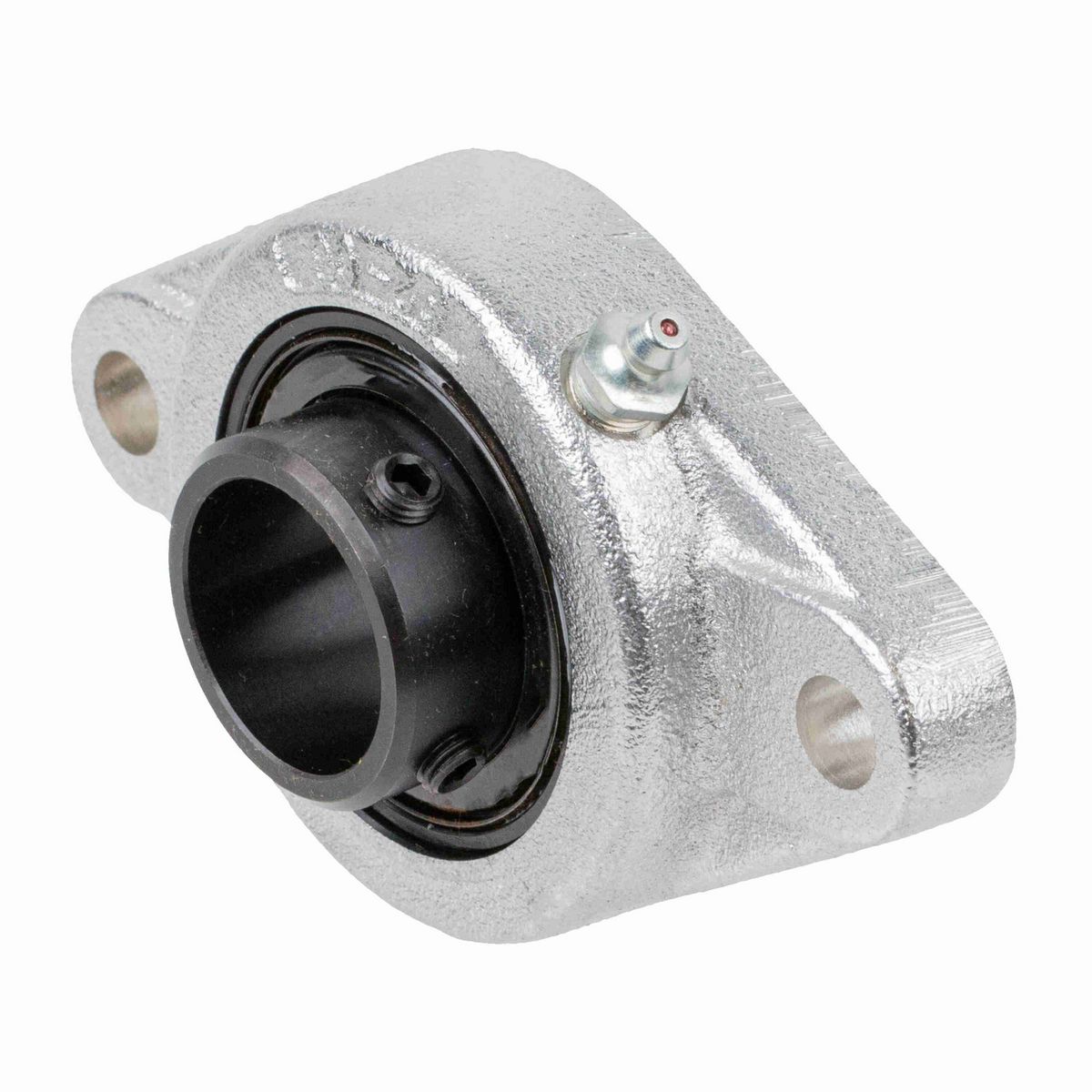

• 1 15/16" Mounted Ball Bearing, Standard Duty, Cast Iron 2-Bolt Flange Block, Setscrew Locking, Single Lip Contact Seal, Nickel Plated Housing

Dimensions

Bore Diameter (in)	1.9375 in
Overall Width (in)	4.56 in
Foot Height (in)	0.75 in
Overall Height to End Cap (in)	2.89 in
Bolt Size (in)	9/16 in
Overall Length (in)	7.44 in
Length Through Bore (in)	2.094 in
Overall Height (in)	2.391 in
Bolt Spacing (in)	6.1875 in

Technical Specifications

Cage Material	Molded fiber glass reinforced nylon
Housing Construction	One Piece
Housing Color	Silver
Seal Type	Single Lip Contact Seal
Housing Type	Flange, Two Bolt
Housing Style	Flange Block
Misalignment Type	Static Only
Rolling Element	Ball Bearing
Pilot Configuration	No Pilot
Outer Ring Land Profile	Standard
Bore Shape	Straight
Ability to Relubricate	Yes
Setscrew Torque (in-lbs)	290-325 in/lbs
Shaft Locking Type	Set Screw
Lubricant	EXXON RONEX MP STD
Maximum Speed (RPM)	4800 rpm
Housing Material	Cast Iron
Static Load Rating (lb)	5,220 lb
Vibration Frequency Fundamental Train	0.0068 cps
Vibration Frequency Outer Ring Defect	0.0682 cps
Max Operating Temperature (F)	225 °F
Bearing Type	Standard Duty
End Cap	Y2316N
Housing Coating	Nickel Plated
Insert	UG231NL
Vibration Frequency Roller Spin	0.0445 cps
Bearing Insert Material	52100 Bearing Steel
Bearing Brand	LINK-BELT 200 SERIES BALL
Vibration Frequency Inner Ring Defect	0.0985 cps
Misalignment Capability	±1.5° Misalignment - Static Only
Cage Type	Ball Riding Retainer
End Cap Available	Yes
Radial Clearance	C3 STANDARD
Grease Fitting Thread Size	1/8 NPT
Fixed vs. Expansion	Fixed
Dynamic Load Rating (lb)	7,920 lb
Inner Ring Outside Diameter (in)	2.475 in
Size Code	210
Max Operating Temperature (C)	107 °C

General Specifications

UPC	662327034740
Weight	5.80 LB
Packaged Length	5.88 IN
Packaged Width	5.88 IN
Packaged Height	2.56 IN
HTC	8483204040
Country of Origin	Mexico
