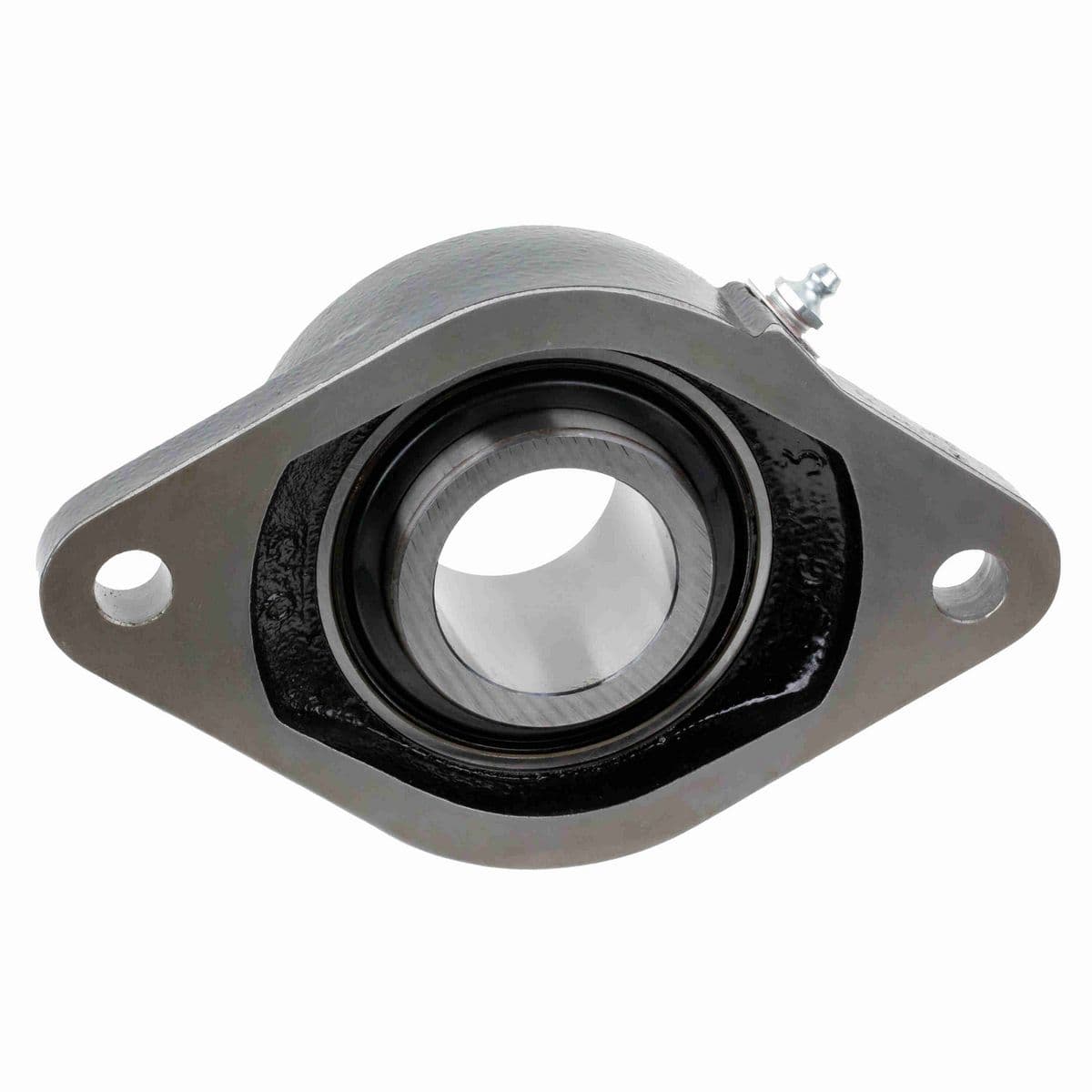

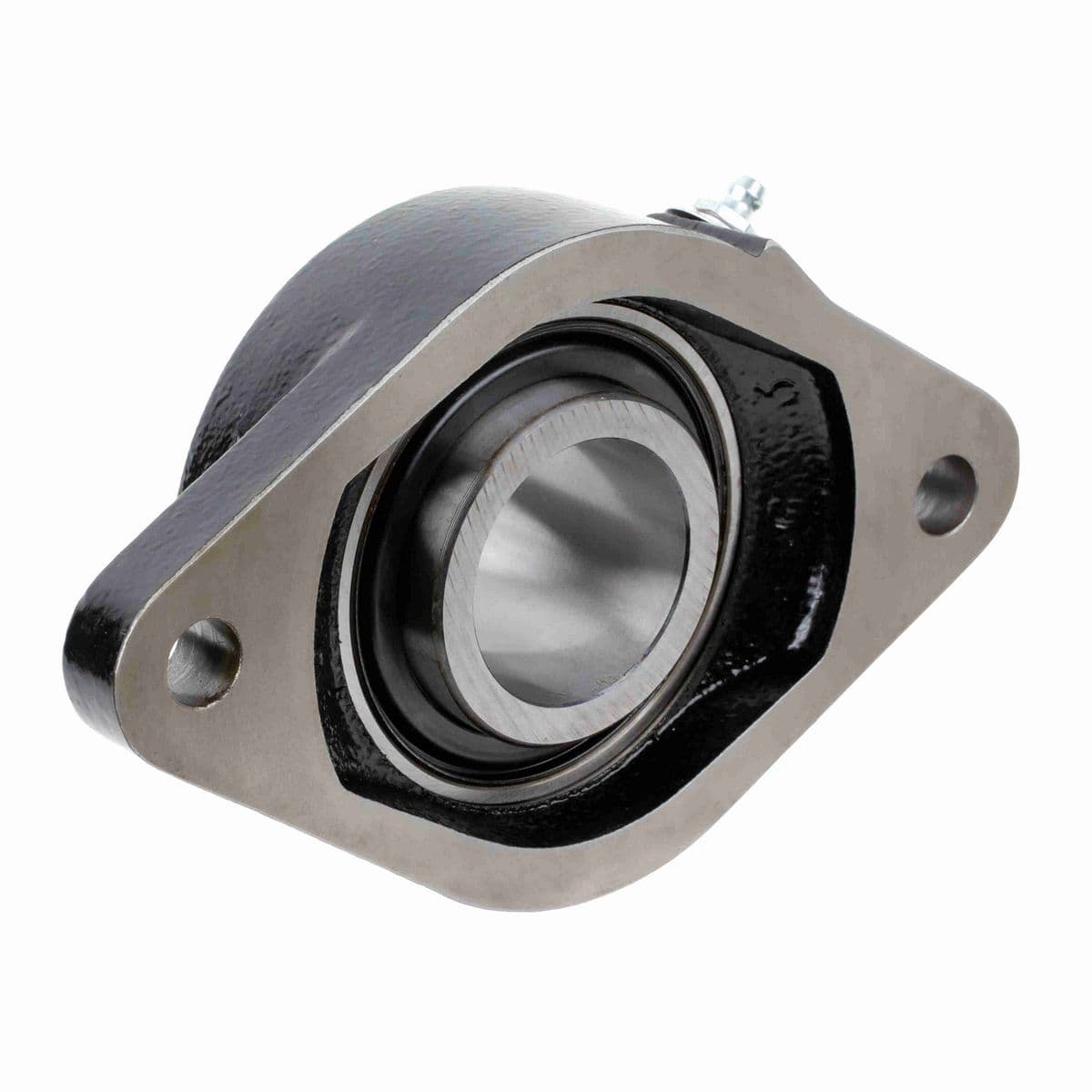

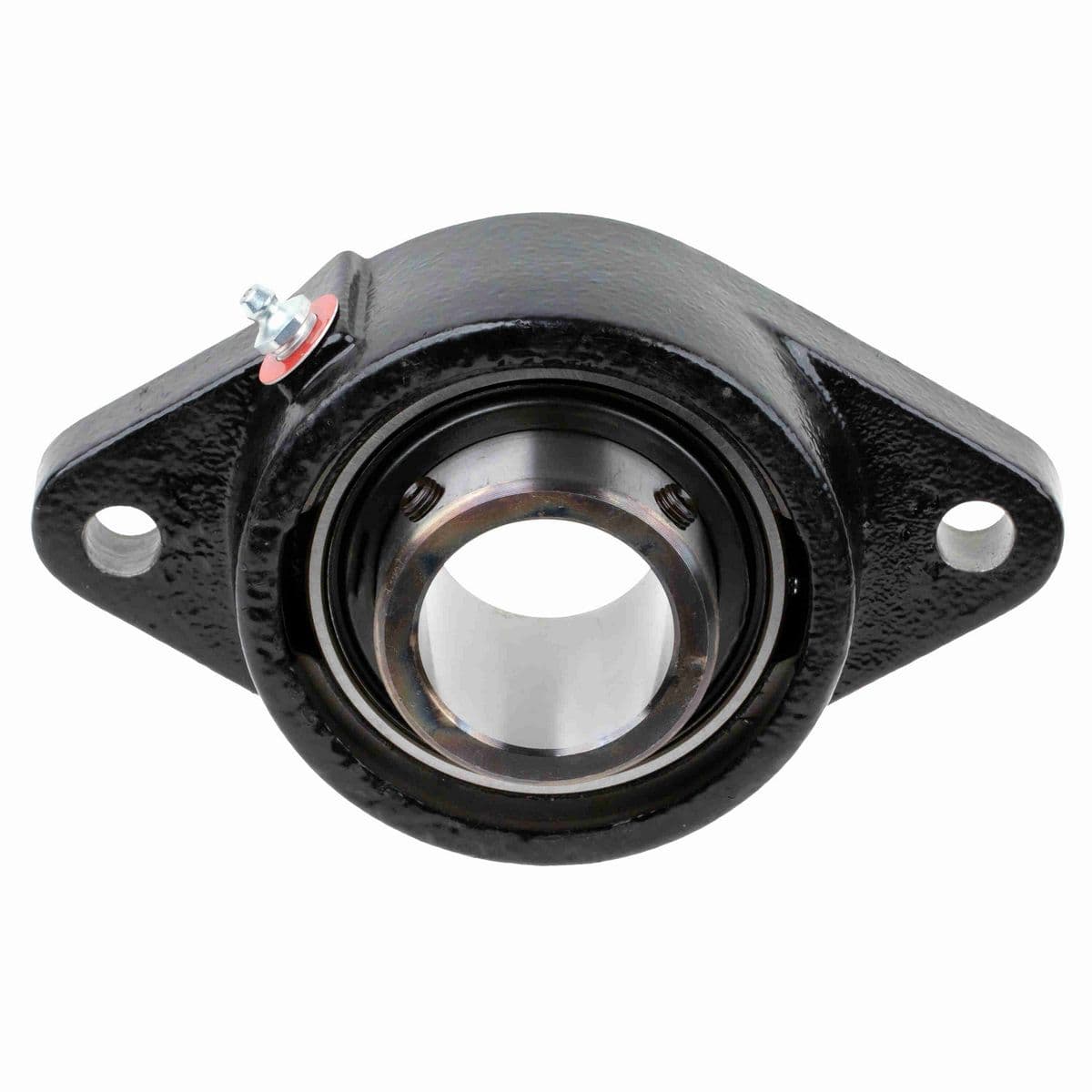

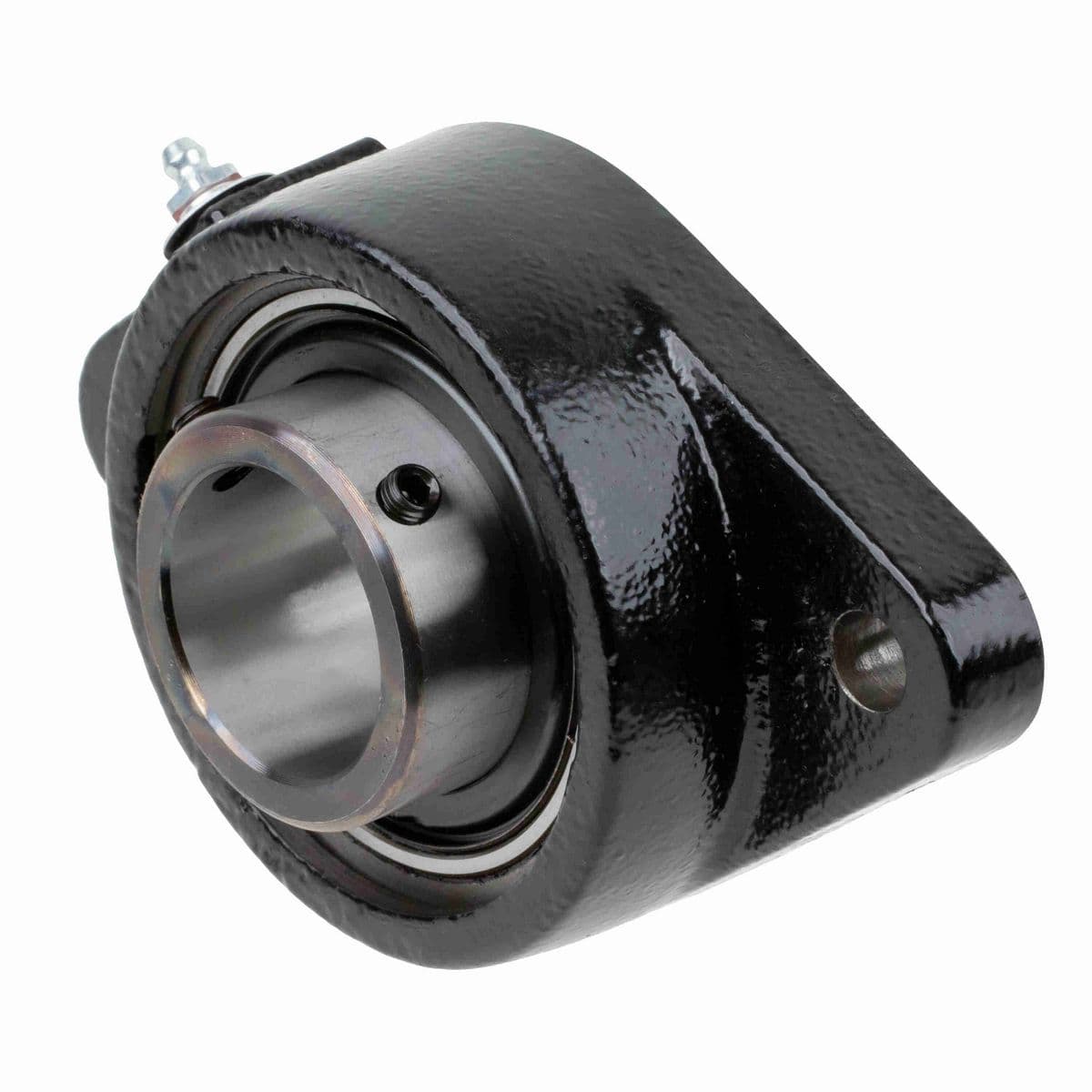

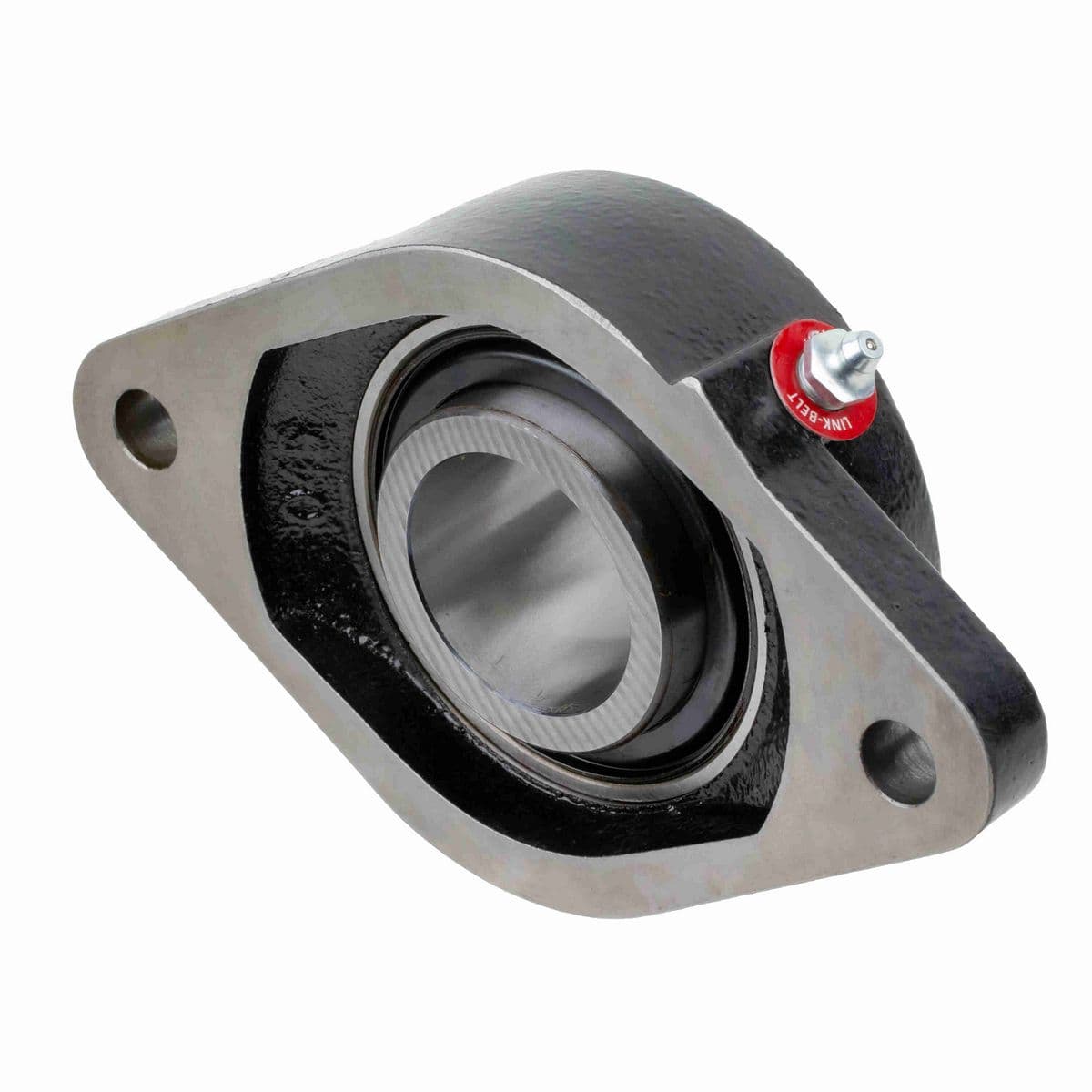

• 1 11/16" Mounted Ball Bearing, Standard Duty, Cast Iron 2-Bolt Flange Block, Setscrew Locking, Single Lip Contact Seal

Dimensions

Overall Width (in)	4.38 in
Bolt Size (in)	1/2 in
Overall Height (in)	2.141 in
Length Through Bore (in)	2.031 in
Foot Height (in)	0.63 in
Bore Diameter (in)	1.6875 in
Overall Height to End Cap (in)	2.56 in
Overall Length (in)	7.09 in
Bolt Spacing (in)	5.8438 in

Technical Specifications

Housing Construction	One Piece
Cage Material	Molded fiber glass reinforced nylon
Housing Type	Flange, Two Bolt
Rolling Element	Ball Bearing
Misalignment Type	Static Only
Bore Shape	Straight
Housing Color	Black
Pilot Configuration	No Pilot
Outer Ring Land Profile	Standard
Housing Style	Flange Block
Seal Type	Single Lip Contact Seal
Ability to Relubricate	Yes
Setscrew Torque (in-lbs)	165-185 in/lbs
Vibration Frequency Outer Ring Defect	0.0592 cps
Maximum Speed (RPM)	5330 rpm
Max Operating Temperature (F)	225 °F
Inner Ring Outside Diameter (in)	2.281 in
Housing Coating	Powder Coated
Misalignment Capability	±1.5° Misalignment - Static Only
Lubricant	EXXON RONEX MP STD
Fixed vs. Expansion	Fixed
Vibration Frequency Fundamental Train	0.0065 cps
Bearing Type	Standard Duty
Max Operating Temperature (C)	107 °C
Housing Material	Cast Iron
Static Load Rating (lb)	4,590 lb
End Cap Available	Yes
Cage Type	Ball Riding Retainer
Dynamic Load Rating (lb)	7,370 lb
Bearing Insert Material	52100 Bearing Steel
Insert	UG227NL
Vibration Frequency Inner Ring Defect	0.0908 cps
Bearing Brand	LINK-BELT 200 SERIES BALL
Size Code	209
Vibration Frequency Roller Spin	0.0377 cps
Grease Fitting Thread Size	1/8 NPT
Shaft Locking Type	Set Screw
End Cap	Y2286N
Radial Clearance	C3 STANDARD

General Specifications

UPC	662327034665
Weight	4.60 LB
Packaged Length	5.31 IN
Packaged Width	5.31 IN
Packaged Height	2.19 IN
HTC	8483204040
Country of Origin	Mexico
