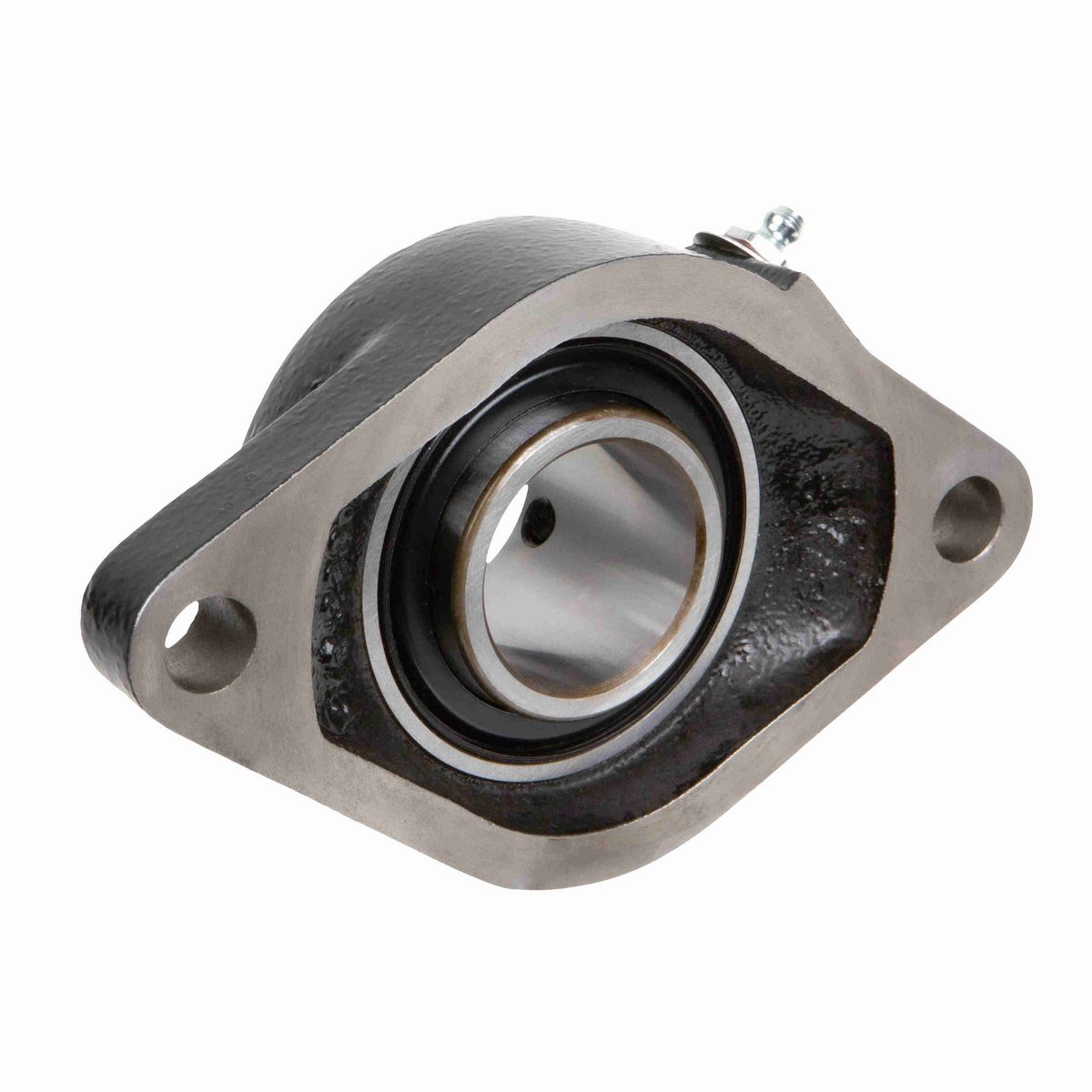

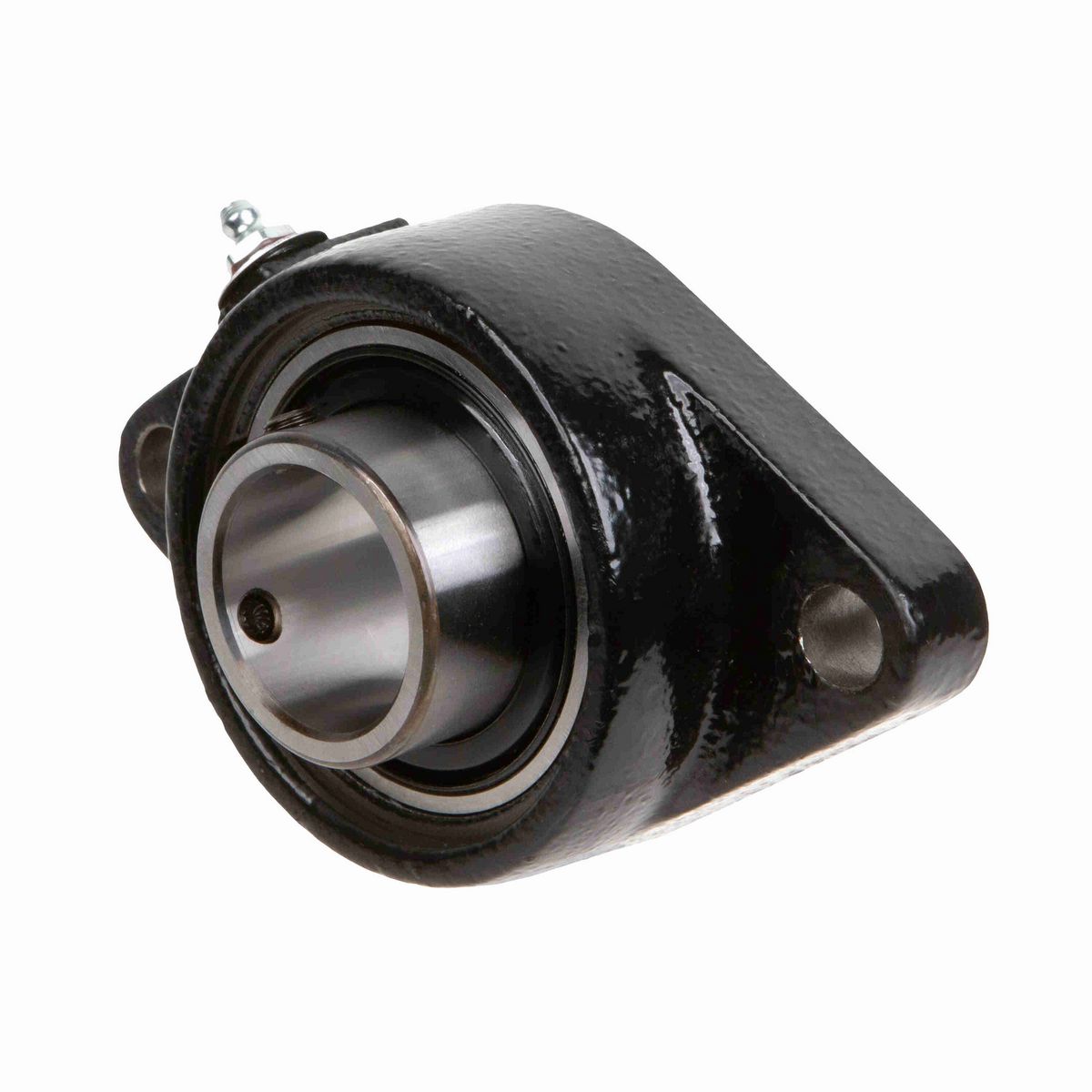

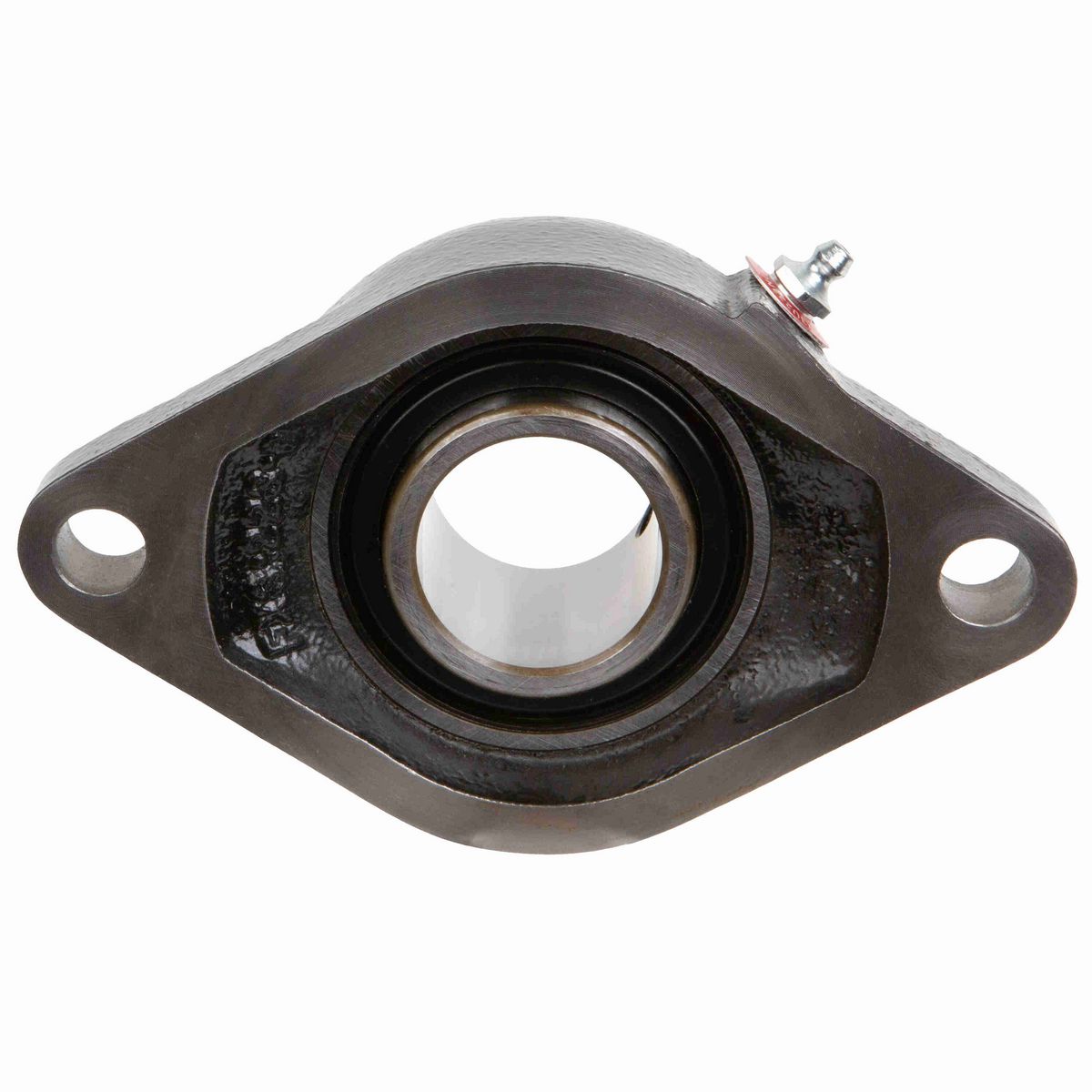

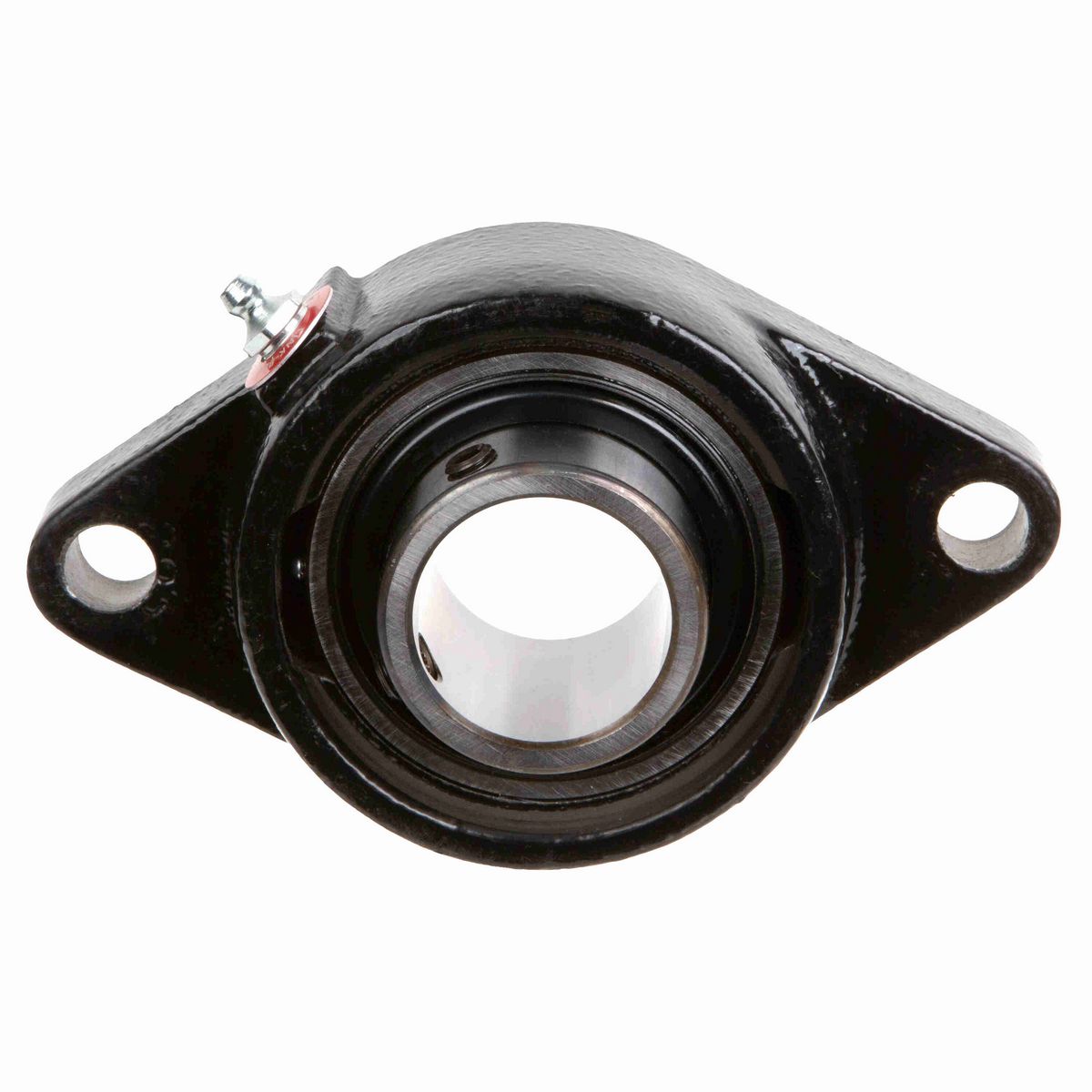

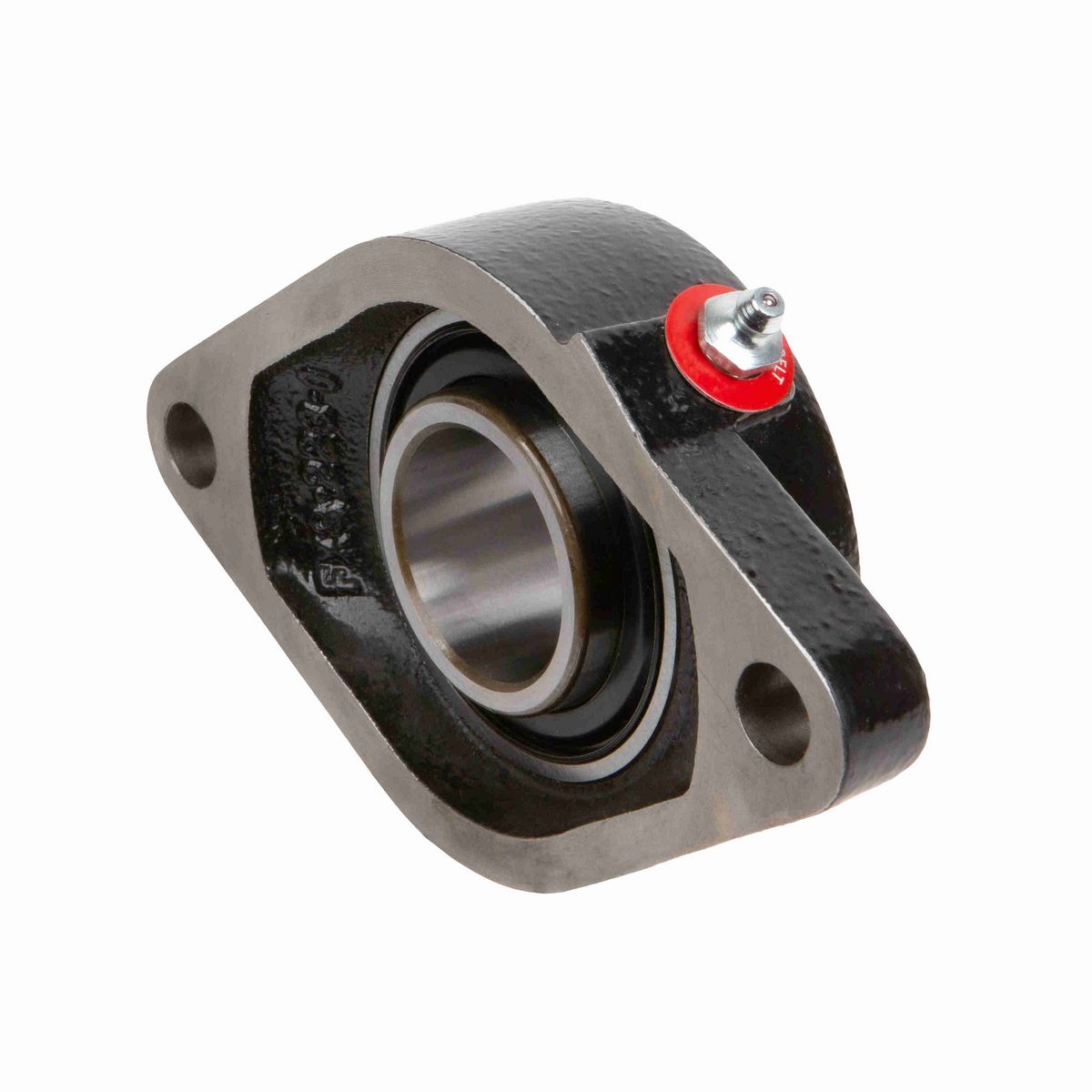

• 1 7/16" Mounted Ball Bearing, Standard Duty, Cast Iron 2-Bolt Flange Block, Setscrew Locking, Single Lip Contact Seal, Closed End Cap

Dimensions

Overall Height (in)	1.922 in
Overall Height to End Cap (in)	2.36 in
Foot Height (in)	0.63 in
Bolt Size (in)	1/2 in
Overall Length (in)	6.13 in
Length Through Bore (in)	1.766 in
Bore Diameter (in)	1.4375 in
Overall Width (in)	3.63 in
Bolt Spacing (in)	5.125 in

Technical Specifications

Rolling Element	Ball Bearing
Housing Construction	One Piece
Pilot Configuration	No Pilot
Seal Type	Single Lip Contact Seal
Bore Shape	Straight
Housing Type	Flange, Two Bolt
Housing Style	Flange Block
Cage Material	Molded fiber glass reinforced nylon
Housing Color	Black
Misalignment Type	Static Only
Outer Ring Land Profile	Standard
Ability to Relubricate	Yes
Setscrew Torque (in-lbs)	165-185 in/lbs
Inner Ring Outside Diameter (in)	1.847 in
Shaft Locking Type	Set Screw
Cage Type	Ball Riding Retainer
Max Operating Temperature (F)	225 °F
Misalignment Capability	±1.5° Misalignment - Static Only
Vibration Frequency Roller Spin	0.0383 cps
Grease Fitting Thread Size	1/8 NPT
Size Code	207
Dynamic Load Rating (lb)	5,810 lb
Vibration Frequency Outer Ring Defect	0.0595 cps
Bearing Brand	LINK-BELT 200 SERIES BALL
Lubricant	EXXON RONEX MP STD
Fixed vs. Expansion	Fixed
Housing Coating	Powder Coated
Vibration Frequency Inner Ring Defect	0.0905 cps
Max Operating Temperature (C)	107 °C
Bearing Type	Standard Duty
Insert	UG223NL
Bearing Insert Material	52100 Bearing Steel
End Cap Available	Yes
Static Load Rating (lb)	3,440 lb
Vibration Frequency Fundamental Train	0.0067 cps
End Cap	Y2236N
Housing Material	Cast Iron
Maximum Speed (RPM)	6850 rpm
Radial Clearance	C3 STANDARD

General Specifications

UPC	662327034542
Weight	3.00 LB
Packaged Length	4.69 IN
Packaged Width	7.94 IN
Packaged Height	2.44 IN
HTC	8483204040
Country of Origin	Mexico
