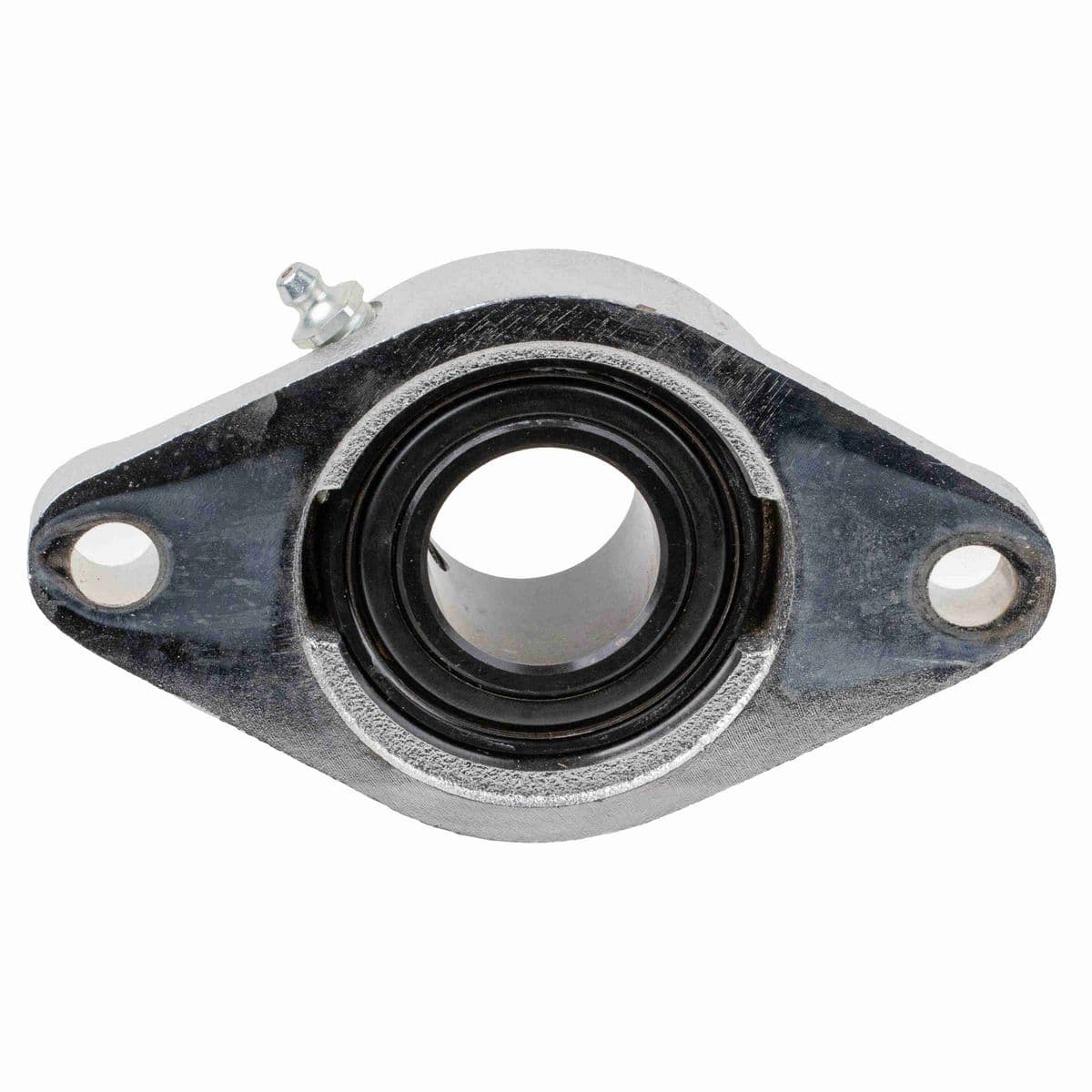

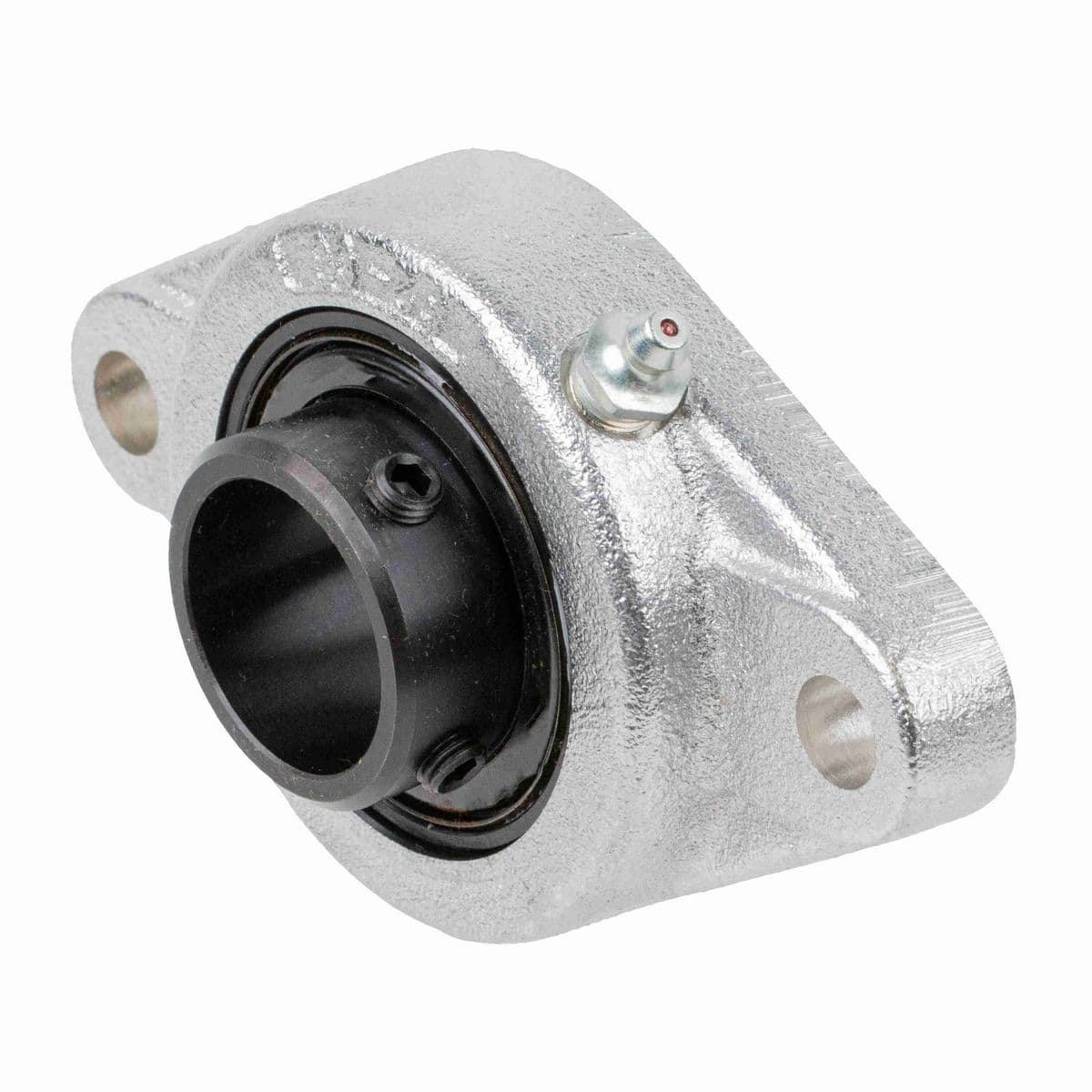

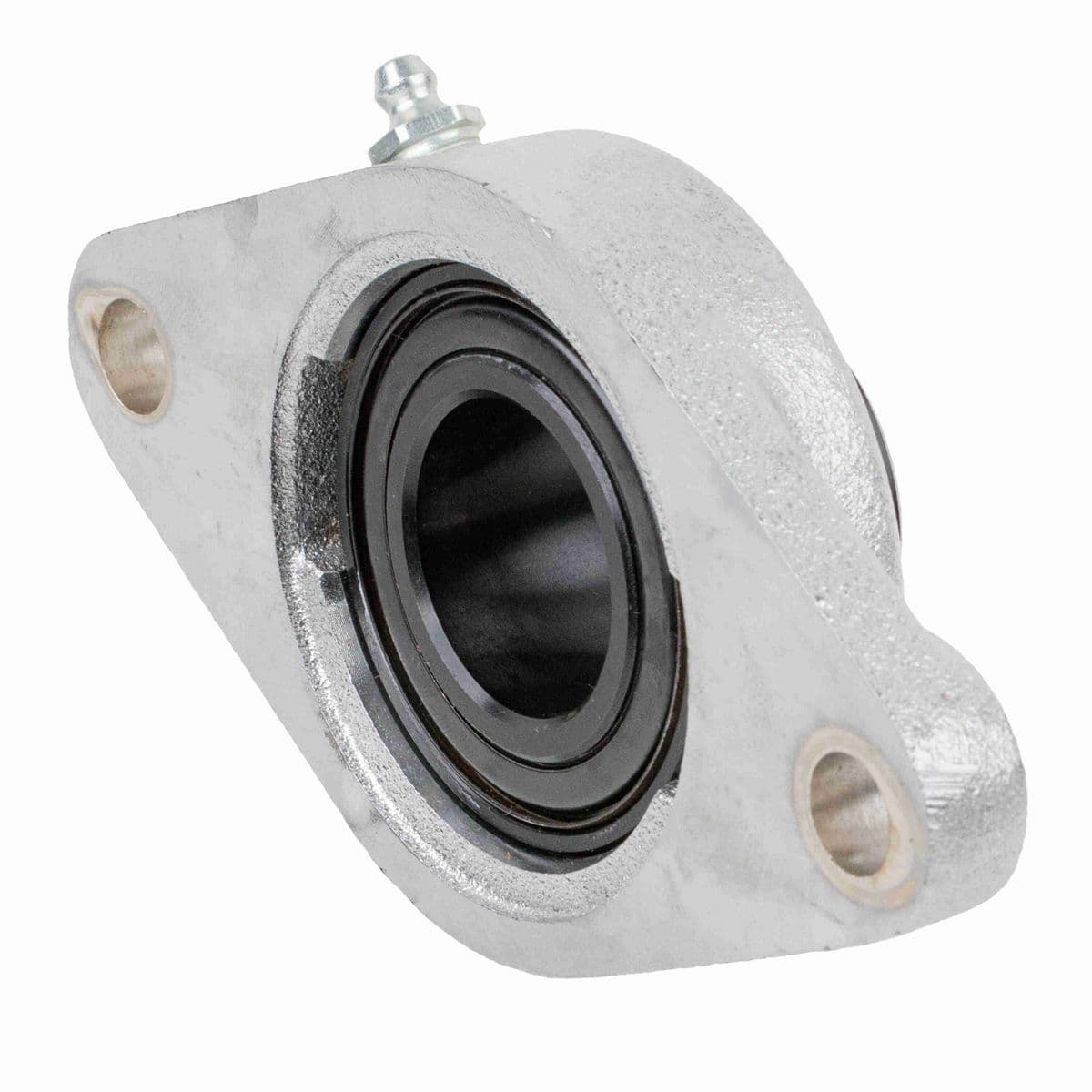

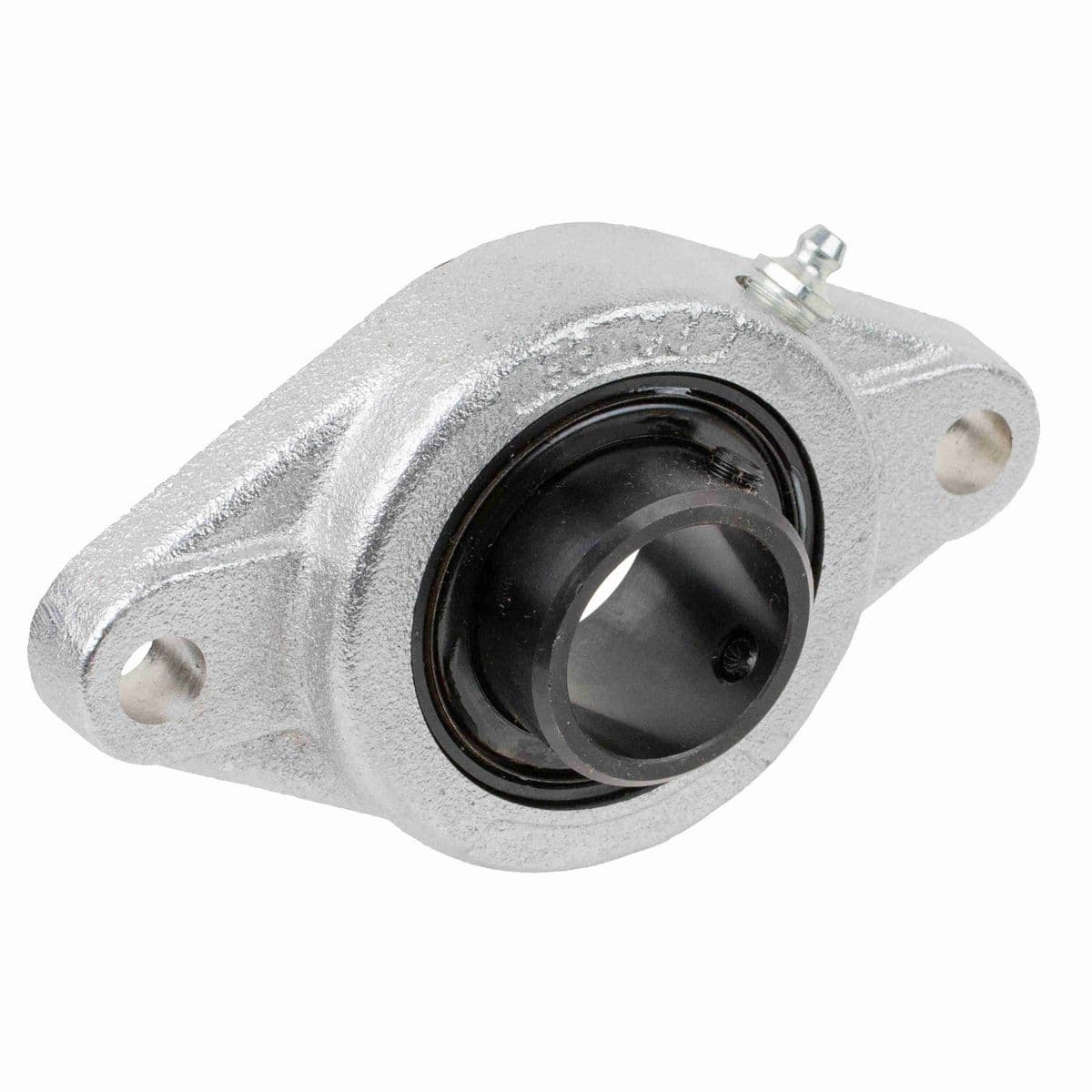

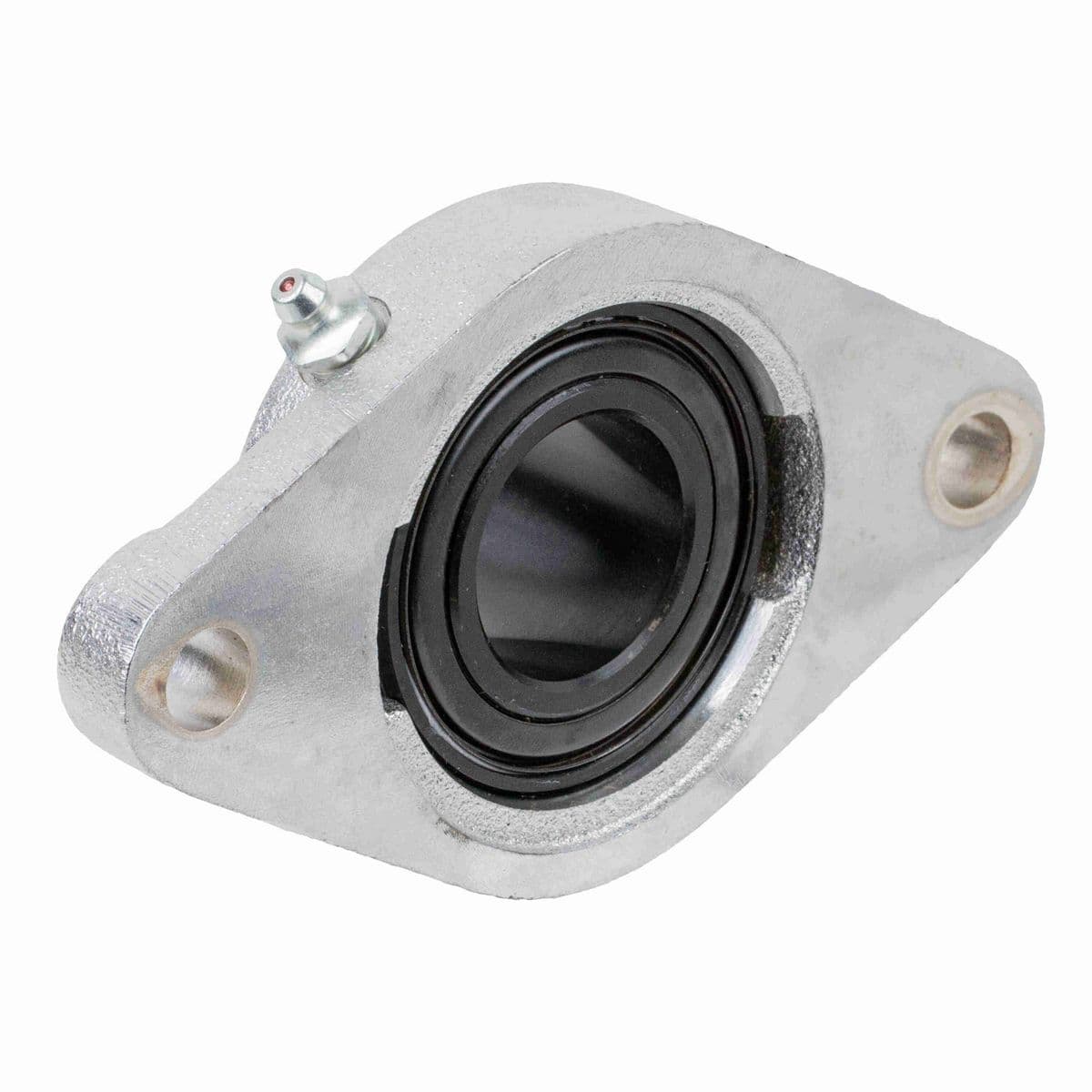

• 3/4" Mounted Ball Bearing, Intermediate Duty, Cast Iron 2-Bolt Flange Block, Setscrew Locking, Single Lip Contact Seal, Nickel Plated Housing, Food Grade Grease

Dimensions

Length Through Bore (in)	1.131 in
Bolt Size (in)	3/8 in
Overall Height (in)	1.281 in
Foot Height (in)	0.44 in
Overall Width (in)	2.38 in
Bore Diameter (in)	0.75 in
Overall Length (in)	4.41 in
Bolt Spacing (in)	3.5310 in

Technical Specifications

Rolling Element	Ball Bearing
Housing Construction	One Piece
Housing Style	Flange Block
Seal Type	Single Lip Contact Seal
Pilot Configuration	No Pilot
Cage Material	Molded fiber glass reinforced nylon
Housing Color	Silver
Bore Shape	Straight
Misalignment Type	Static Only
Housing Type	Flange, Two Bolt
Outer Ring Land Profile	Standard
Setscrew Torque (in-lbs)	87-92 in/lbs
Ability to Relubricate	Yes
Lubricant	MOBIL FM222 FOOD GRADE H1
Maximum Speed (RPM)	7500 rpm
Housing Coating	Nickel Plated
Max Operating Temperature (C)	107 °C
Bearing Brand	LINK-BELT 200 SERIES BALL
Vibration Frequency Roller Spin	0.0332 cps
Vibration Frequency Outer Ring Defect	0.0508 cps
Fixed vs. Expansion	Fixed
Misalignment Capability	±1.5° Misalignment - Static Only
Grease Fitting Thread Size	1/4-28
Bearing Insert Finish	BLACK OXIDE
Static Load Rating (lb)	1,480 lb
Size Code	204
Vibration Frequency Fundamental Train	0.0063 cps
Inner Ring Outside Diameter (in)	1.121 in
Max Operating Temperature (F)	225 °F
Cage Type	Ball Riding Retainer
Shaft Locking Type	Set Screw
Insert	SG212ELPAK8299A
Bearing Type	Intermediate Duty
Vibration Frequency Inner Ring Defect	0.0825 cps
End Cap Available	No
Bearing Insert Material	52100 Bearing Steel
Dynamic Load Rating (lb)	2,870 lb
Housing Material	Cast Iron
Radial Clearance	C3 STANDARD

General Specifications

UPC	662327401337
Weight	2.00 LB
Packaged Length	4.44 IN
Packaged Width	3.06 IN
Packaged Height	1.50 IN
HTC	8483204040
Country of Origin	Mexico
