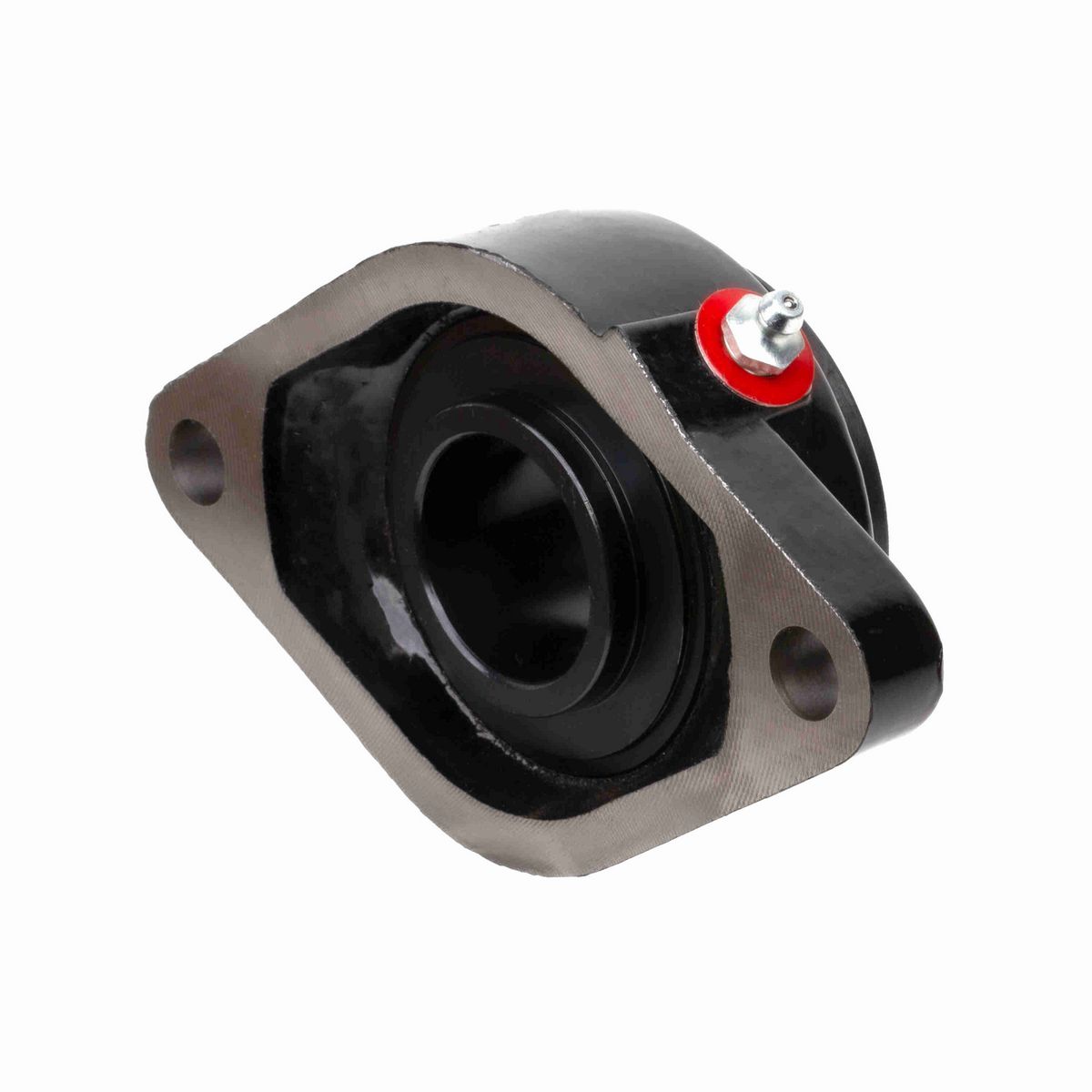

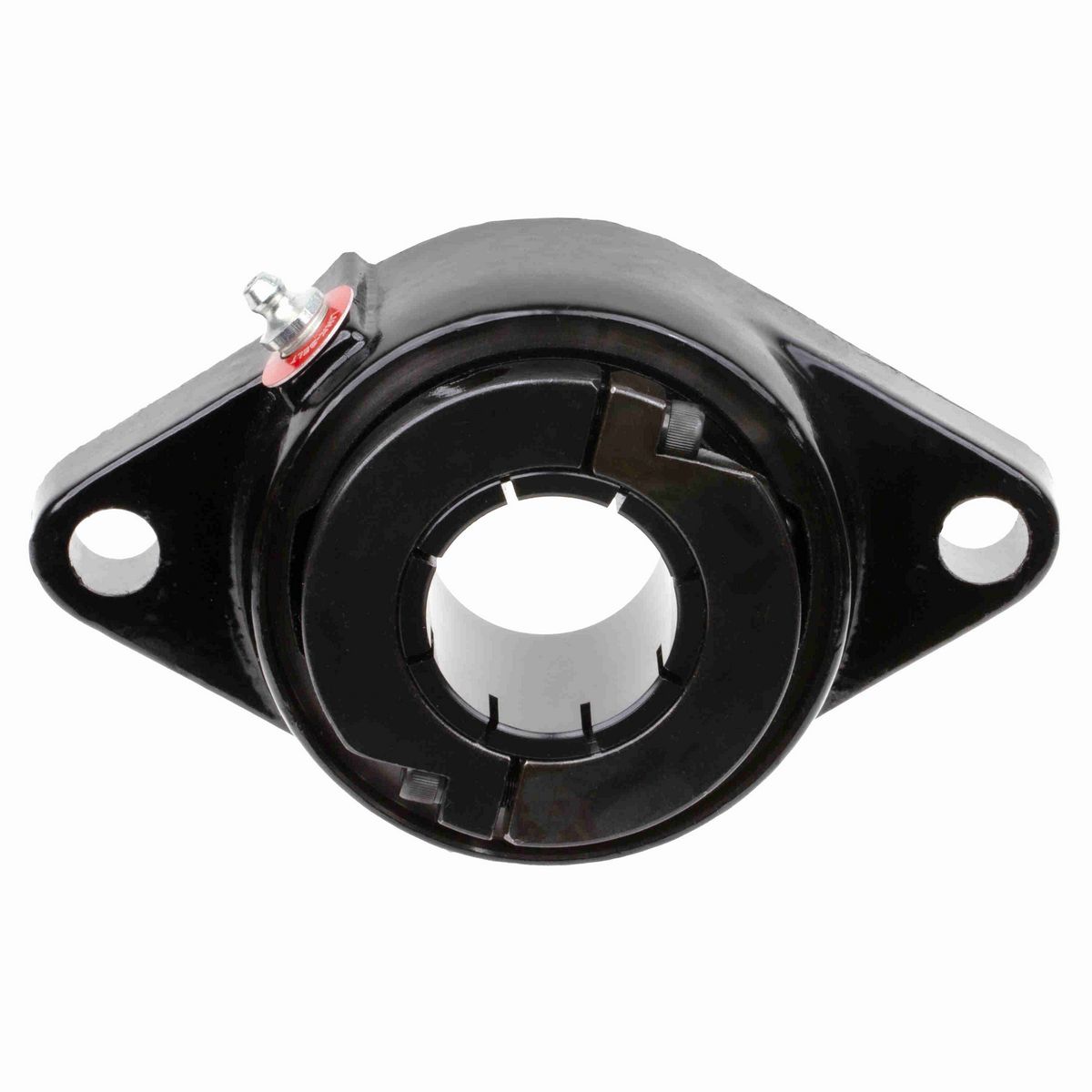

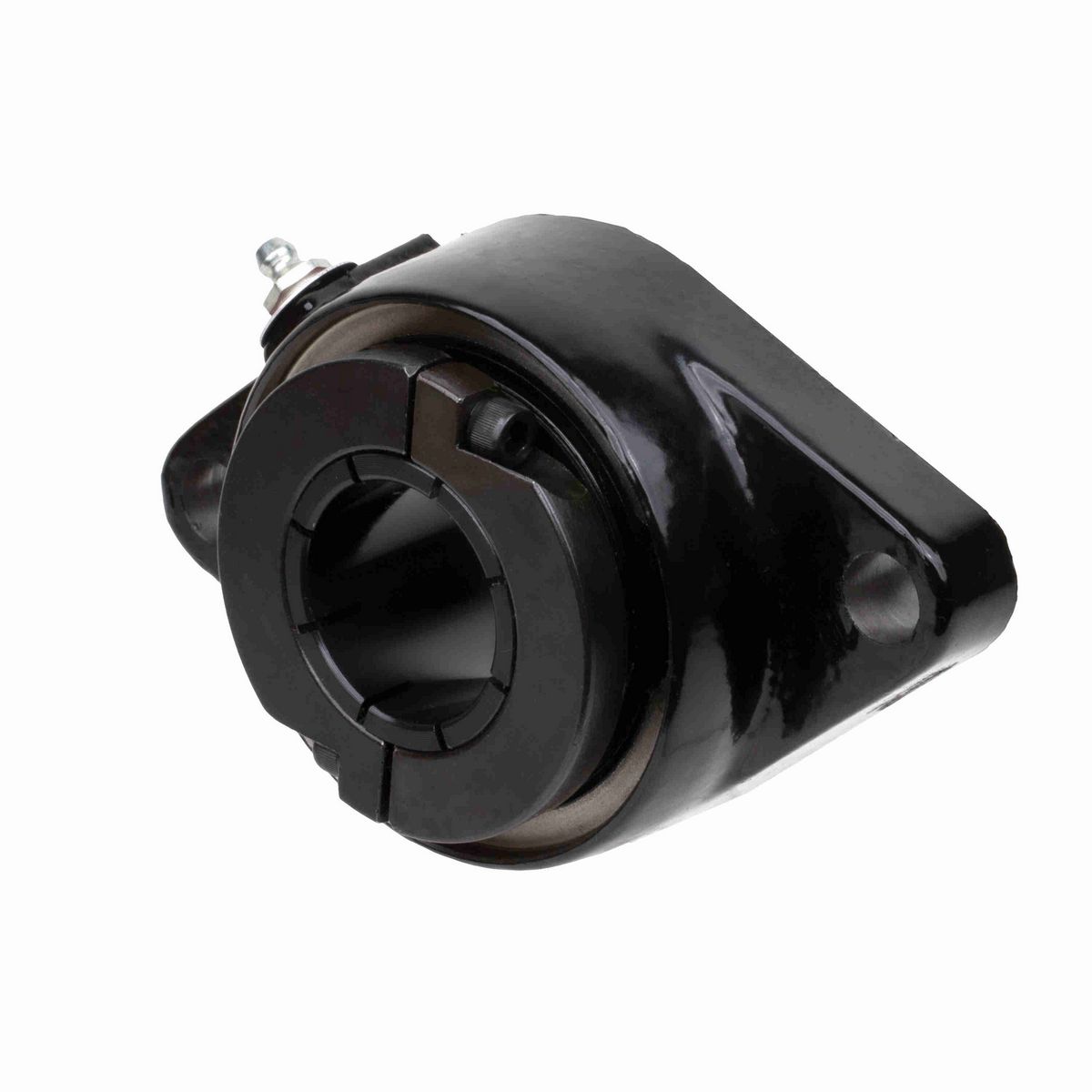

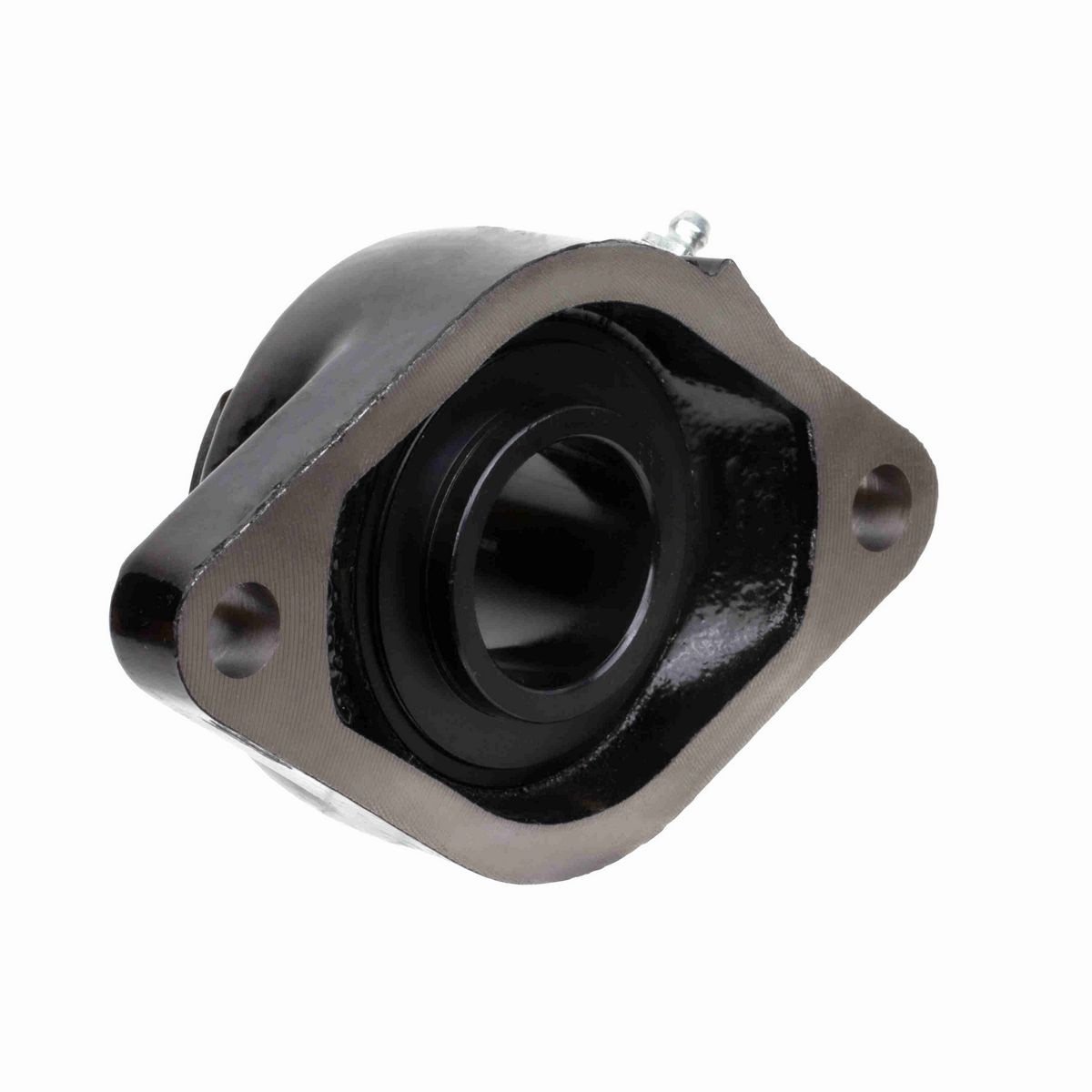

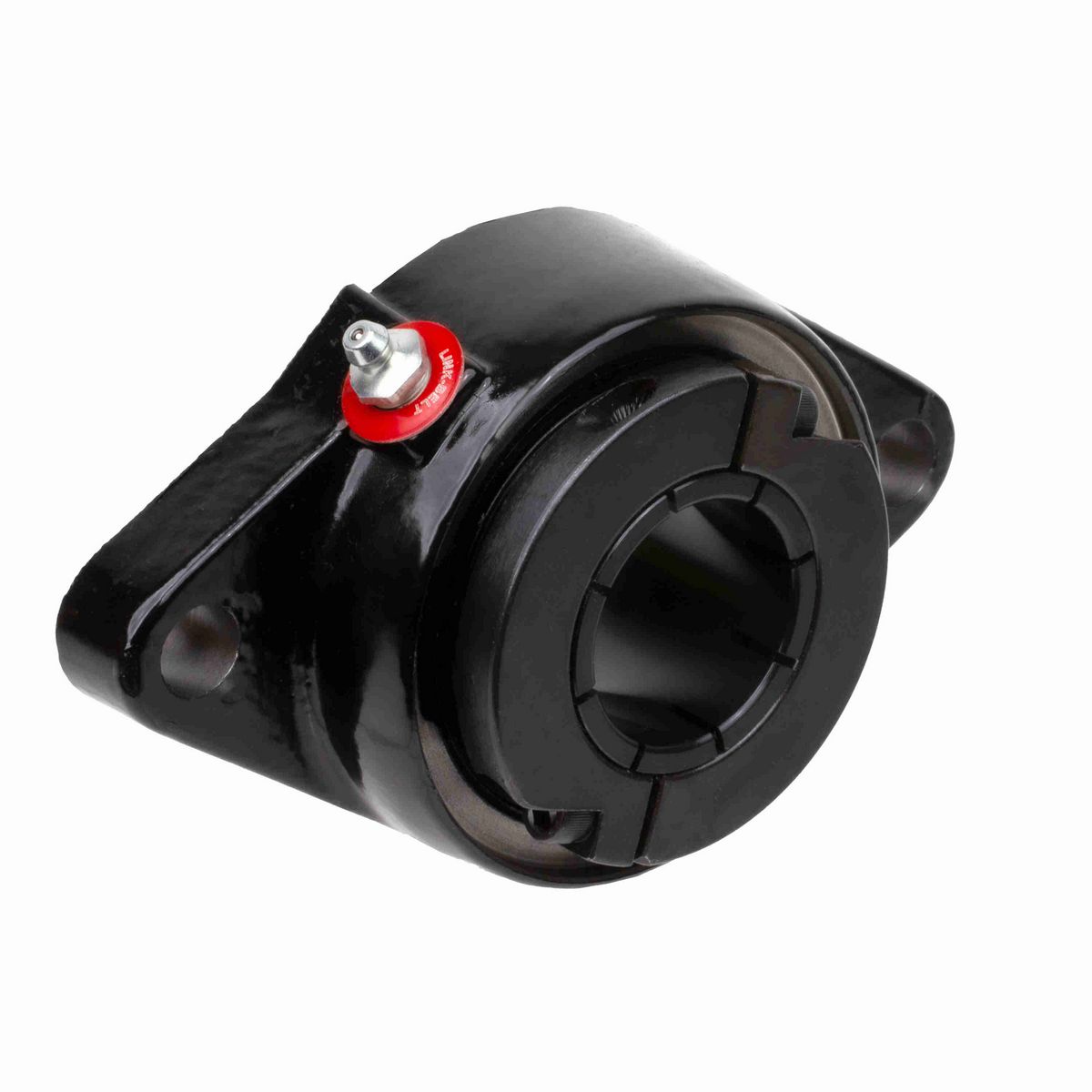

• 1 7/16" Mounted Ball Bearing, Standard Duty, Cast Iron 2-Bolt Flange Block, Centrik-Lok CL Locking Device, Single Lip Contact Seal

Dimensions

Overall Height to End Cap (in)	2 33/64 in
Overall Width (in)	3.63 in
Overall Length (in)	6.13 in
Overall Height (in)	1.81 in
Bolt Size (in)	1/2 in
Bore Diameter (in)	1.4375 in
Length Through Bore (in)	1.81 in
Foot Height (in)	0.63 in
Bolt Spacing (in)	5.125 in

Technical Specifications

Cage Material	Molded fiber glass reinforced nylon
Misalignment Type	Static Only
Housing Style	Flange Block
Seal Type	Single Lip Contact Seal
Outer Ring Land Profile	Standard
Rolling Element	Ball Bearing
Housing Construction	One Piece
Bore Shape	Straight
Housing Color	Black
Pilot Configuration	No Pilot
Housing Type	Flange, Two Bolt
Setscrew Torque (in-lbs)	151-168 in/lbs
Locking Collar Outside Diameter (in)	2.56 in
Ability to Relubricate	Yes
Max Operating Temperature (F)	225 °F
Size Code	207
Insert	CLG223NL
Max Operating Temperature (C)	107 °C
Bearing Insert Finish	BLACK OXIDE
Static Load Rating (lb)	3,440 lb
Misalignment Capability	±1.5° Misalignment - Static Only
Locking Device Kit	CL2235S
End Cap Available	Yes
Bearing Brand	LINK-BELT 200 SERIES BALL
Shaft Locking Type	Concentric
Radial Clearance	C3 STANDARD
Inner Ring Outside Diameter (in)	1.847 in
Cage Type	Ball Riding Retainer
Dynamic Load Rating (lb)	5,810 lb
Vibration Frequency Fundamental Train	0.0067 cps
Housing Material	Cast Iron
Vibration Frequency Inner Ring Defect	0.0905 cps
Fixed vs. Expansion	Fixed
Grease Fitting Thread Size	1/8 NPT
Vibration Frequency Outer Ring Defect	0.0595 cps
Bearing Type	Standard Duty
Vibration Frequency Roller Spin	0.0383 cps
Maximum Speed (RPM)	6850 rpm
Lubricant	EXXON RONEX MP STD
Housing Coating	Powder Coated
Bearing Insert Material	52100 Bearing Steel
End Cap	CL2236

General Specifications

UPC	662864289801
Weight	3.10 LB
Packaged Length	5.63 IN
Packaged Width	4.25 IN
Packaged Height	1.88 IN
HTC	8483204040
Country of Origin	Mexico
