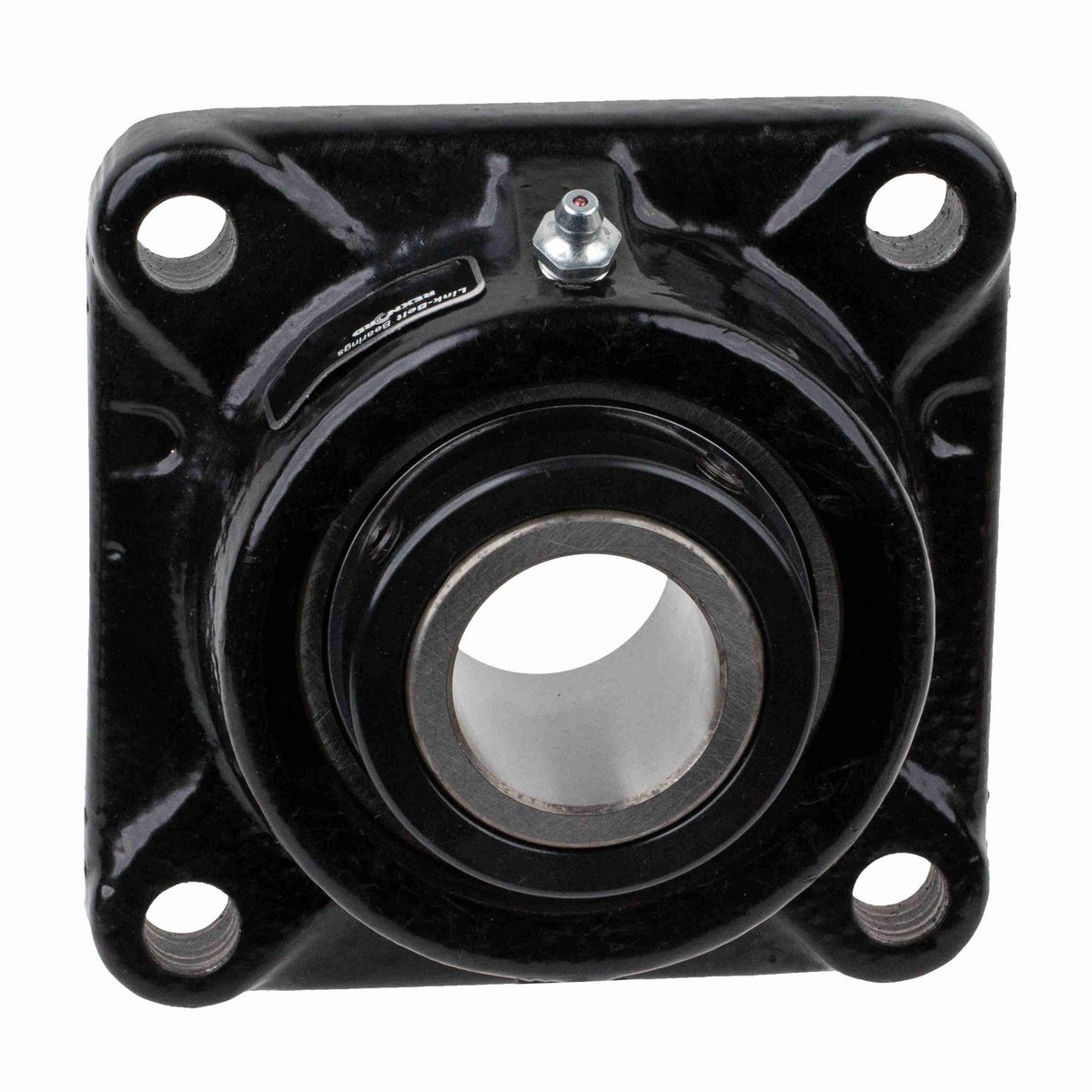

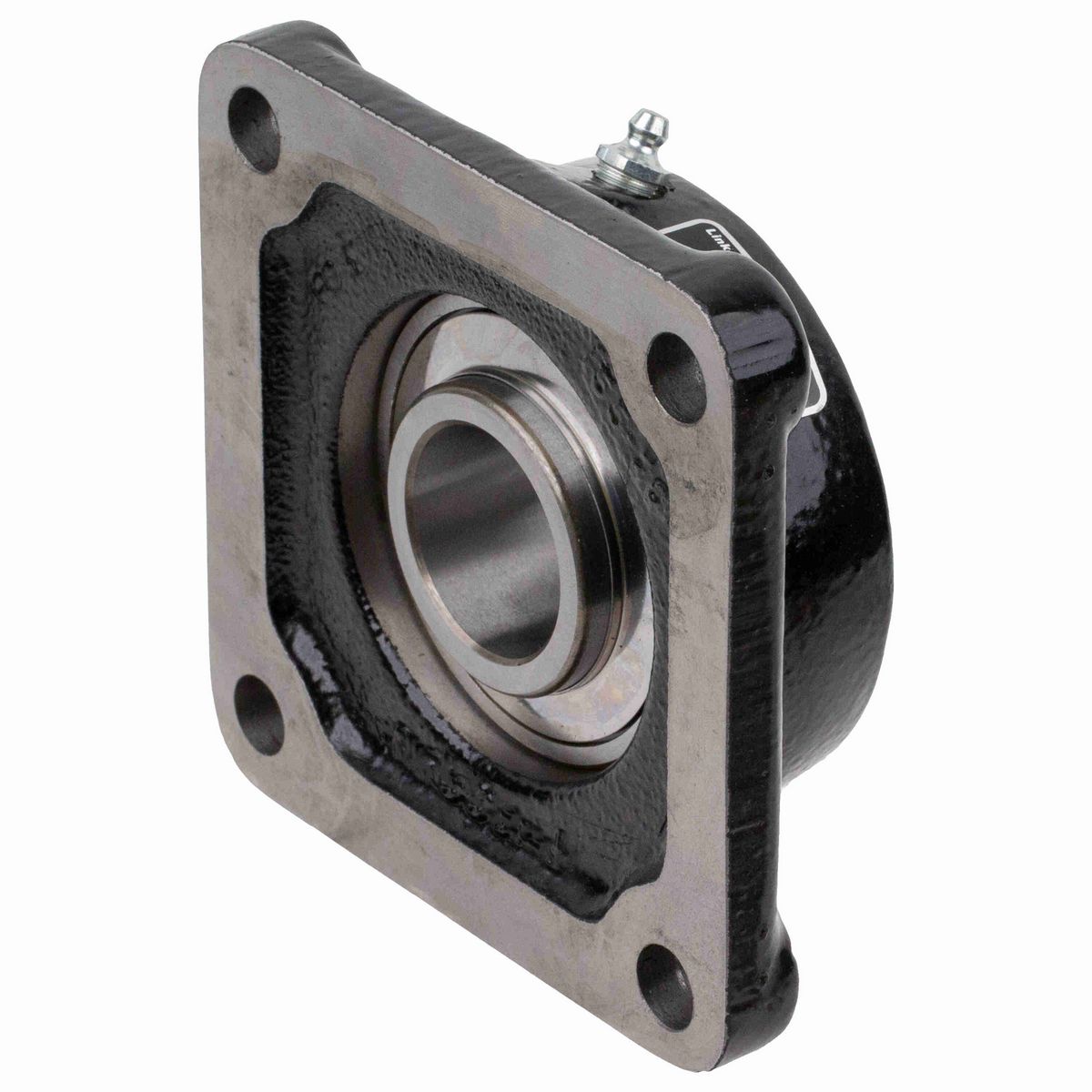

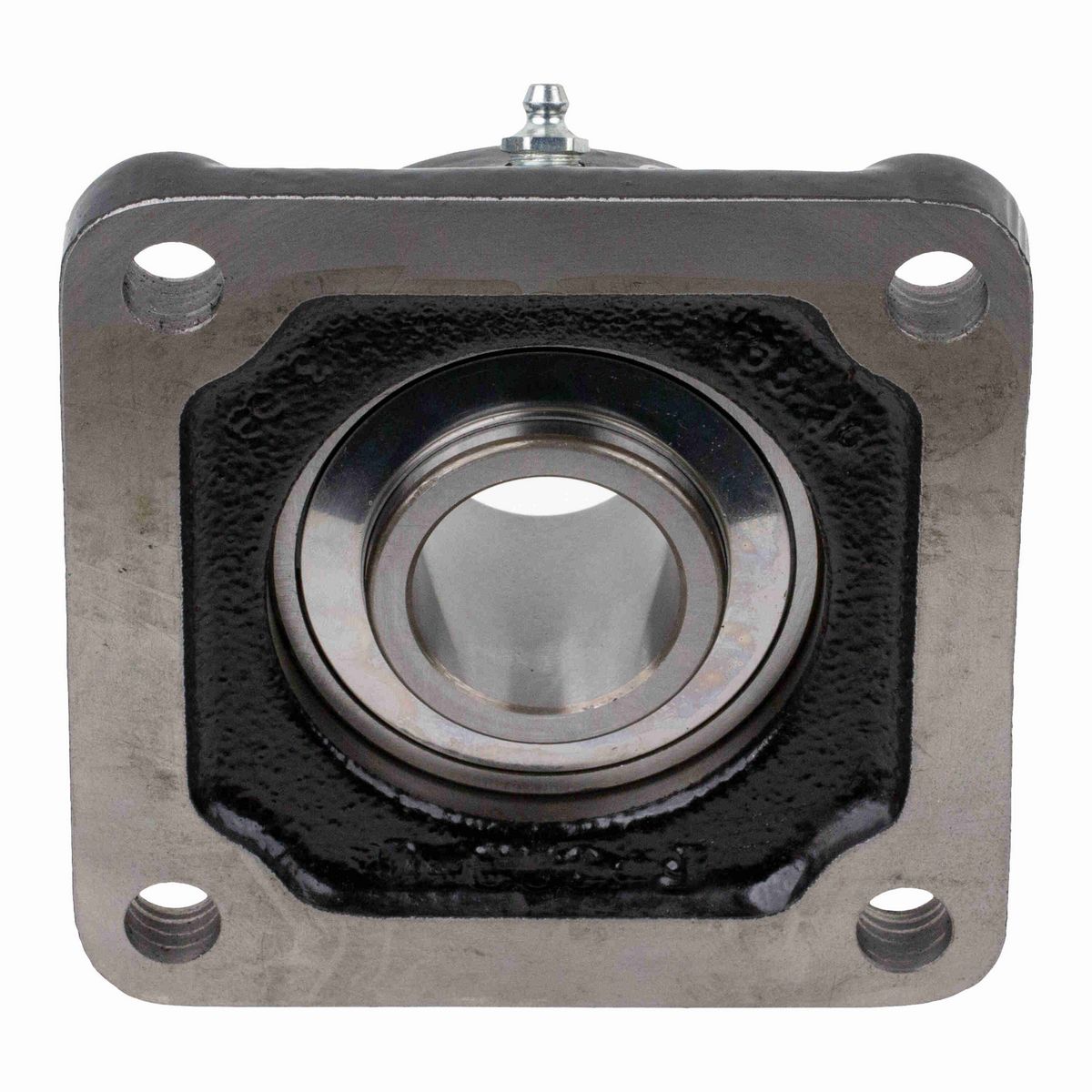

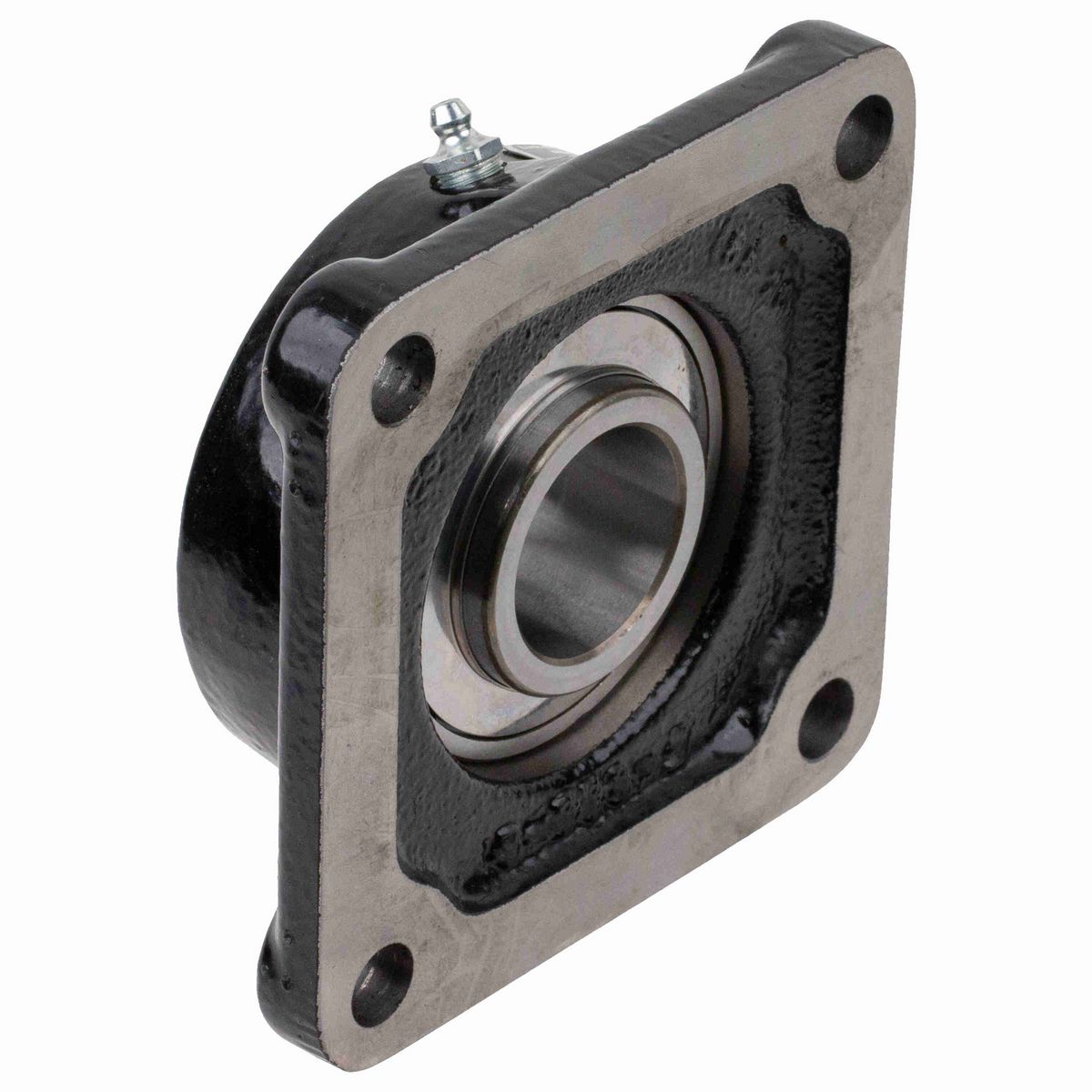

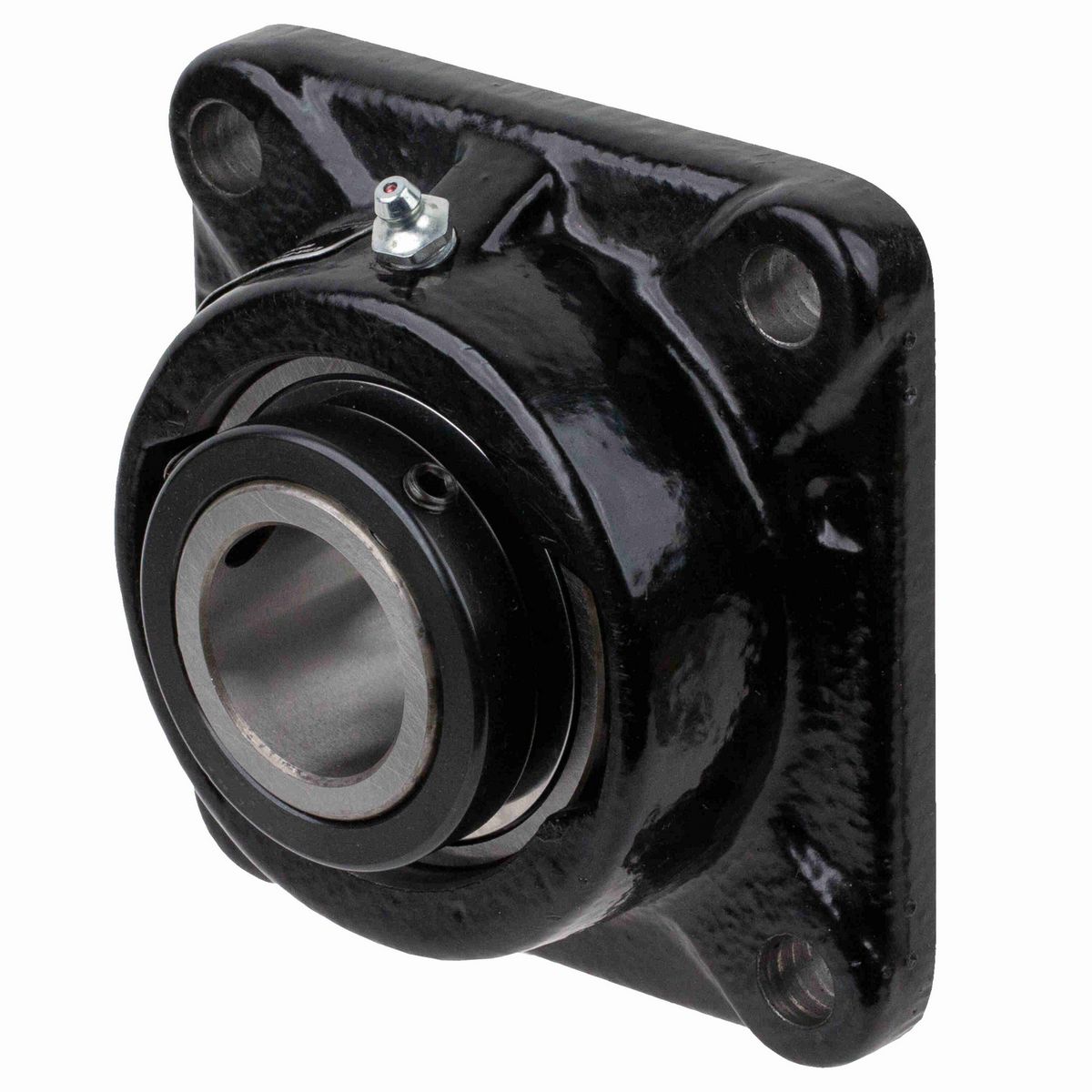

• 1 7/16" Mounted Ball Bearing, Heavy Duty, Cast Iron 4-Bolt Square Flange Block, Setscrew Locking, Clearance Seal

Dimensions

Bore Diameter (in)	1.4375 in
Length Through Bore (in)	2.1 in
Overall Width (in)	5.13 in
Bolt Size (in)	1/2 in
Foot Height (in)	0.63 in
Overall Height (in)	2.25 in
Overall Length (in)	5.13 in
Bolt Spacing (in)	4 in

Technical Specifications

Seal Type	Labryinth Seal
Misalignment Type	Static Only
Housing Type	Flange, Four Bolt
Pilot Configuration	No Pilot
Bore Shape	Straight
Outer Ring Land Profile	Standard
Housing Color	Black
Housing Style	Flange Block
Rolling Element	Ball Bearing
Cage Material	Molded fiber glass reinforced nylon
Ability to Relubricate	Yes
Locking Collar Outside Diameter (in)	2.54 in
Setscrew Torque (in-lbs)	165-185 in/lbs
Fixed vs. Expansion	Fixed
Vibration Frequency Inner Ring Defect	0.0823 cps
Vibration Frequency Roller Spin	0.0335 cps
End Cap	U3236C
Lubricant	EXXON RONEX MP STD
Cage Type	Ball Riding Retainer
Housing Material	Cast Iron
Locking Device Kit	U3235S
Vibration Frequency Outer Ring Defect	0.0510 cps
Max Operating Temperature (C)	107 °C
Max Operating Temperature (F)	225 °F
Grease Fitting Thread Size	1/8 NPT
Inner Ring Outside Diameter (in)	1.946 in
Vibration Frequency Fundamental Train	0.0063 cps
Shaft Locking Type	Set Screw
Expansion Capability (in)	3/16 in
Static Load Rating (lb)	4,290 lb
Misalignment Capability	±1.5° Misalignment - Static Only
Bearing Insert Material	52100 Bearing Steel
End Cap Available	Yes
Size Code	323
Dynamic Load Rating (lb)	7,490 lb
Bearing Type	Heavy Duty
Bearing Brand	LINK-BELT 300 SERIES HD BALL
Housing Coating	Powder Coated
Maximum Speed (RPM)	7550 rpm
Radial Clearance	C3 STANDARD
Insert	UG323L

General Specifications

UPC	662327734565
Weight	6.20 LB
Packaged Length	5.88 IN
Packaged Width	5.88 IN
Packaged Height	2.56 IN
HTC	8483204040
Country of Origin	Mexico
