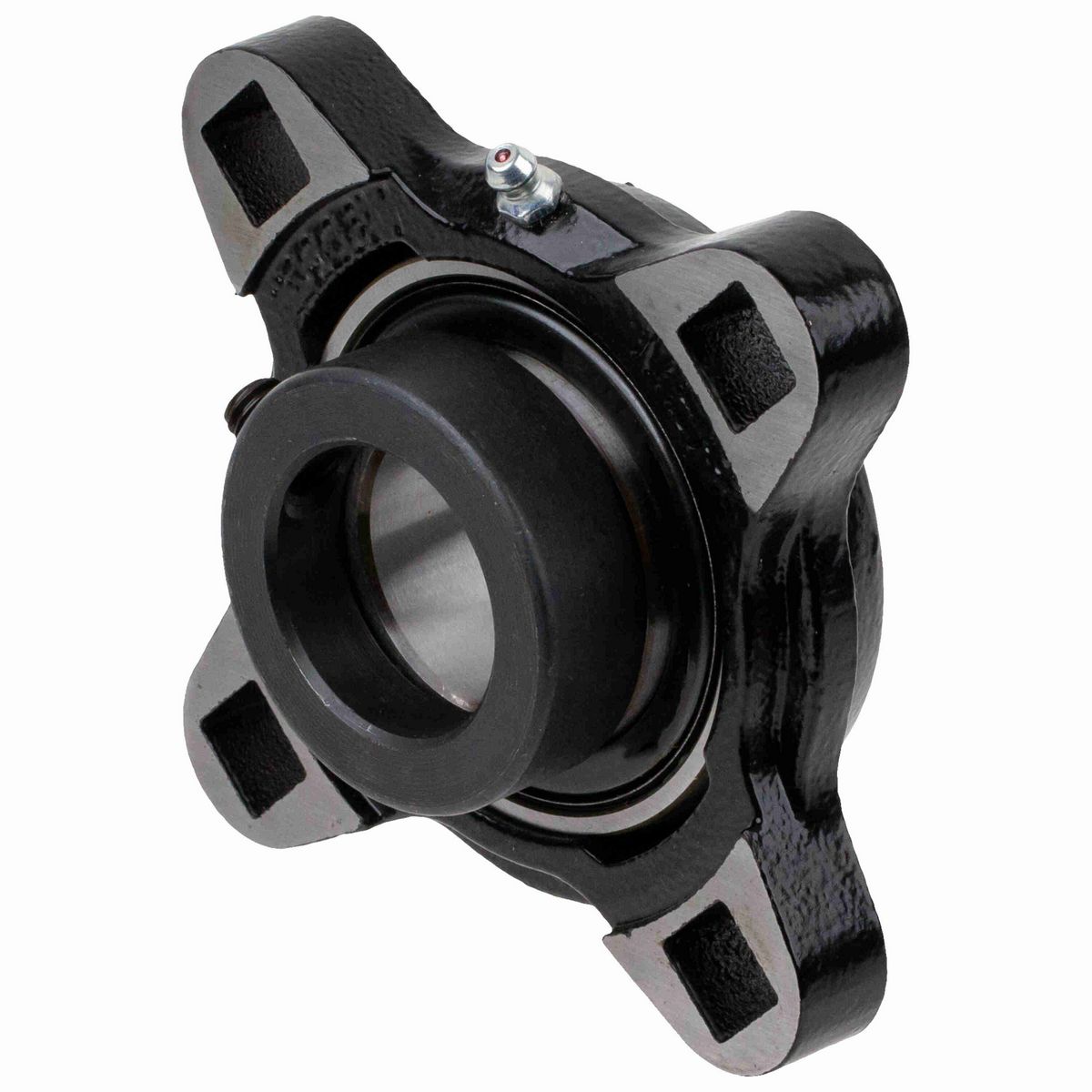

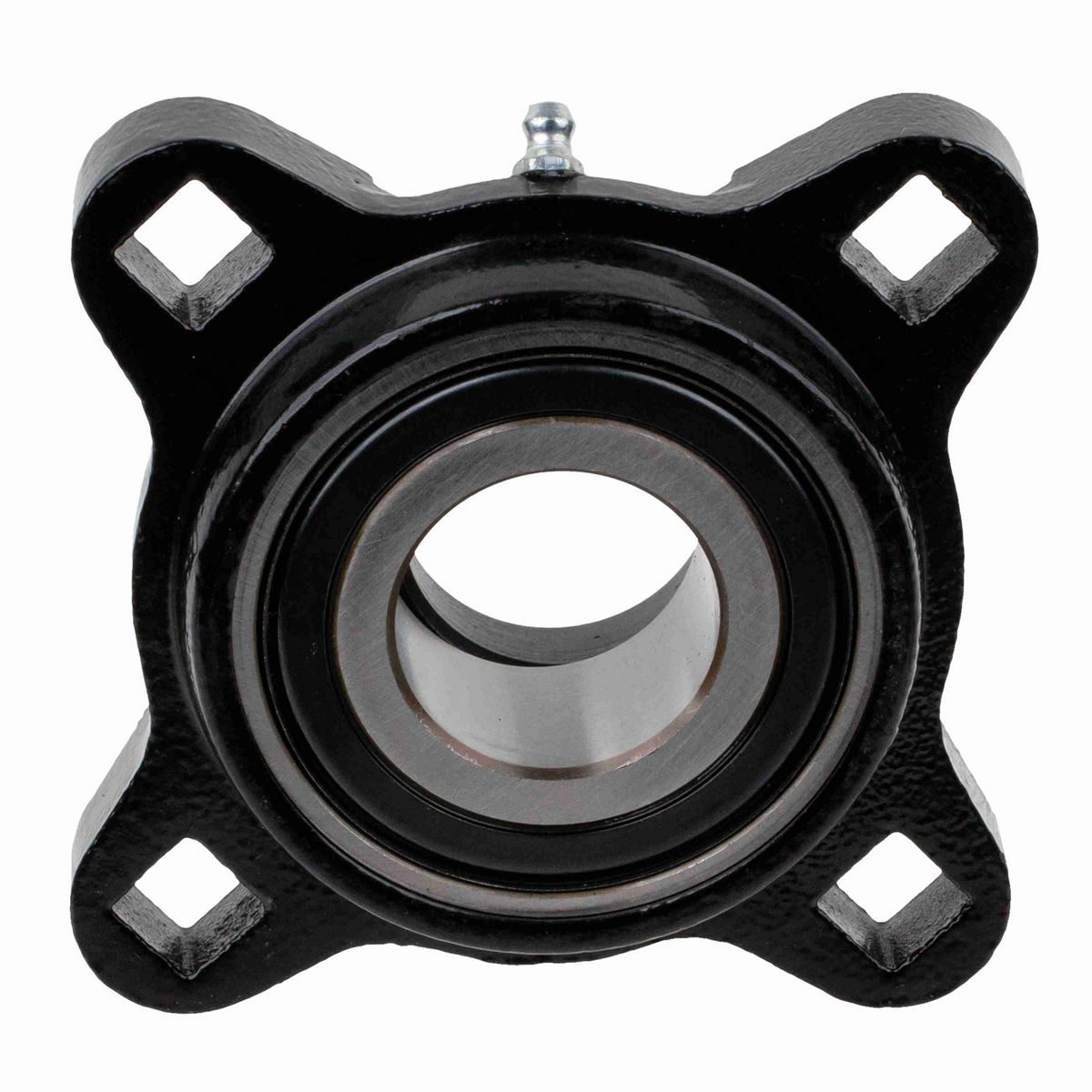

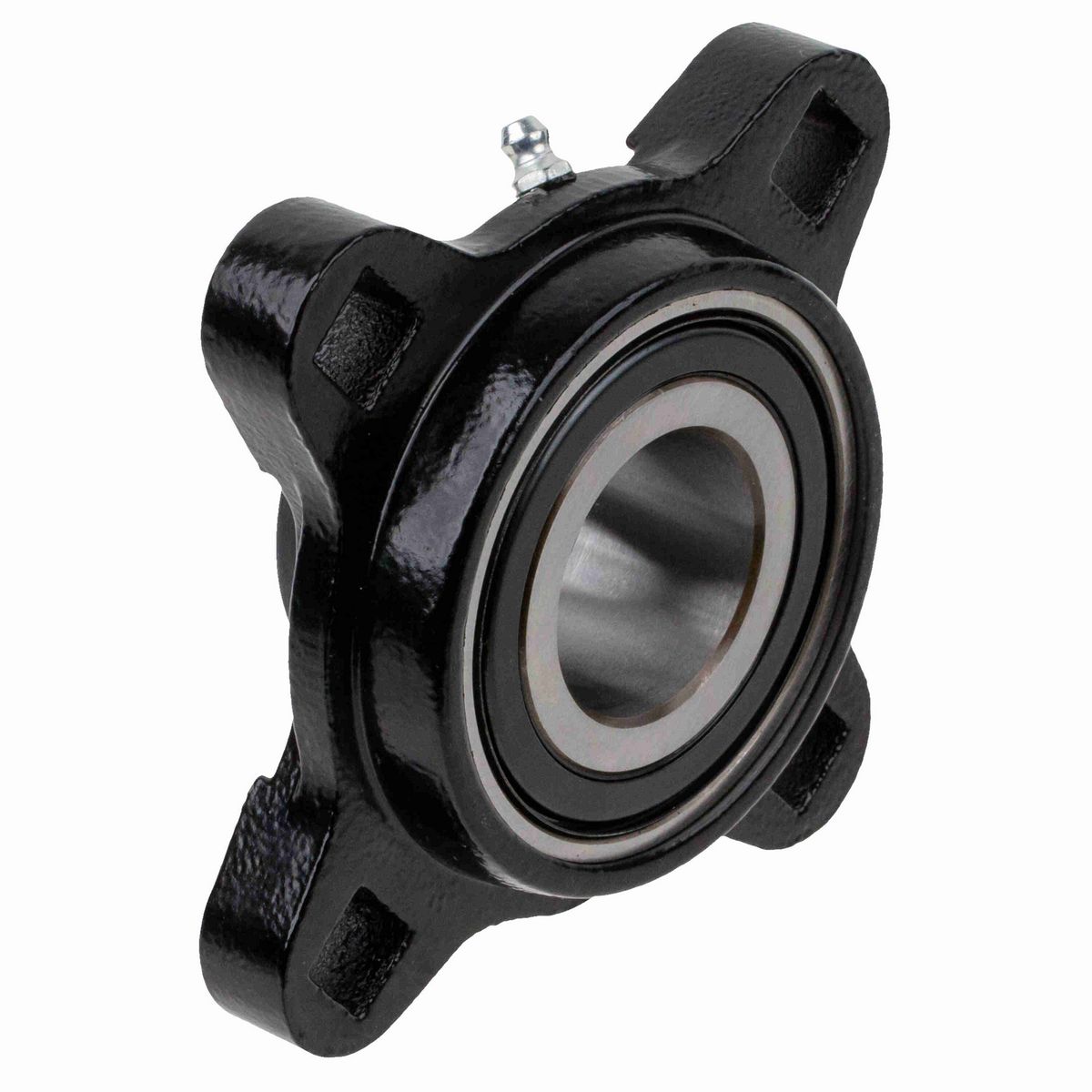

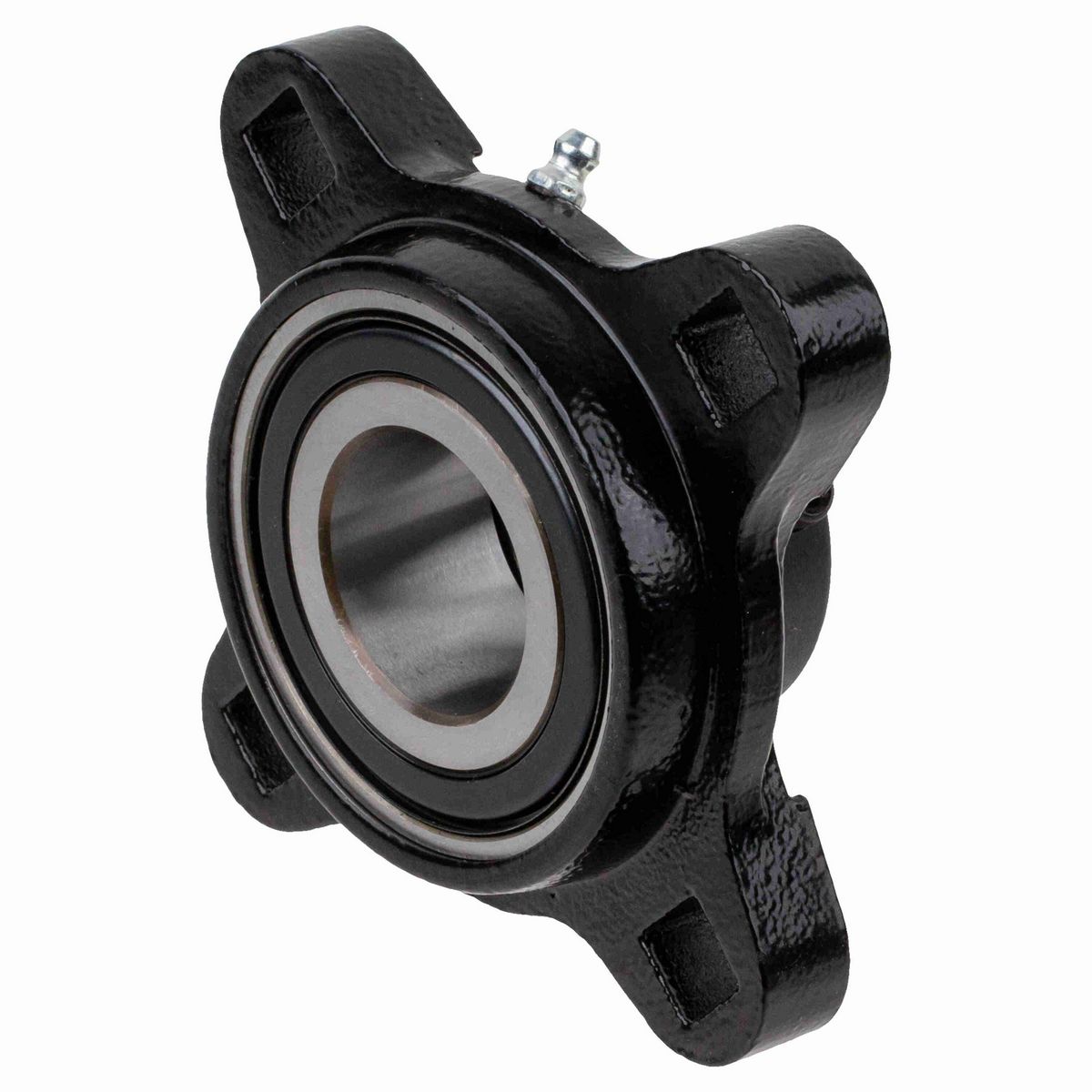

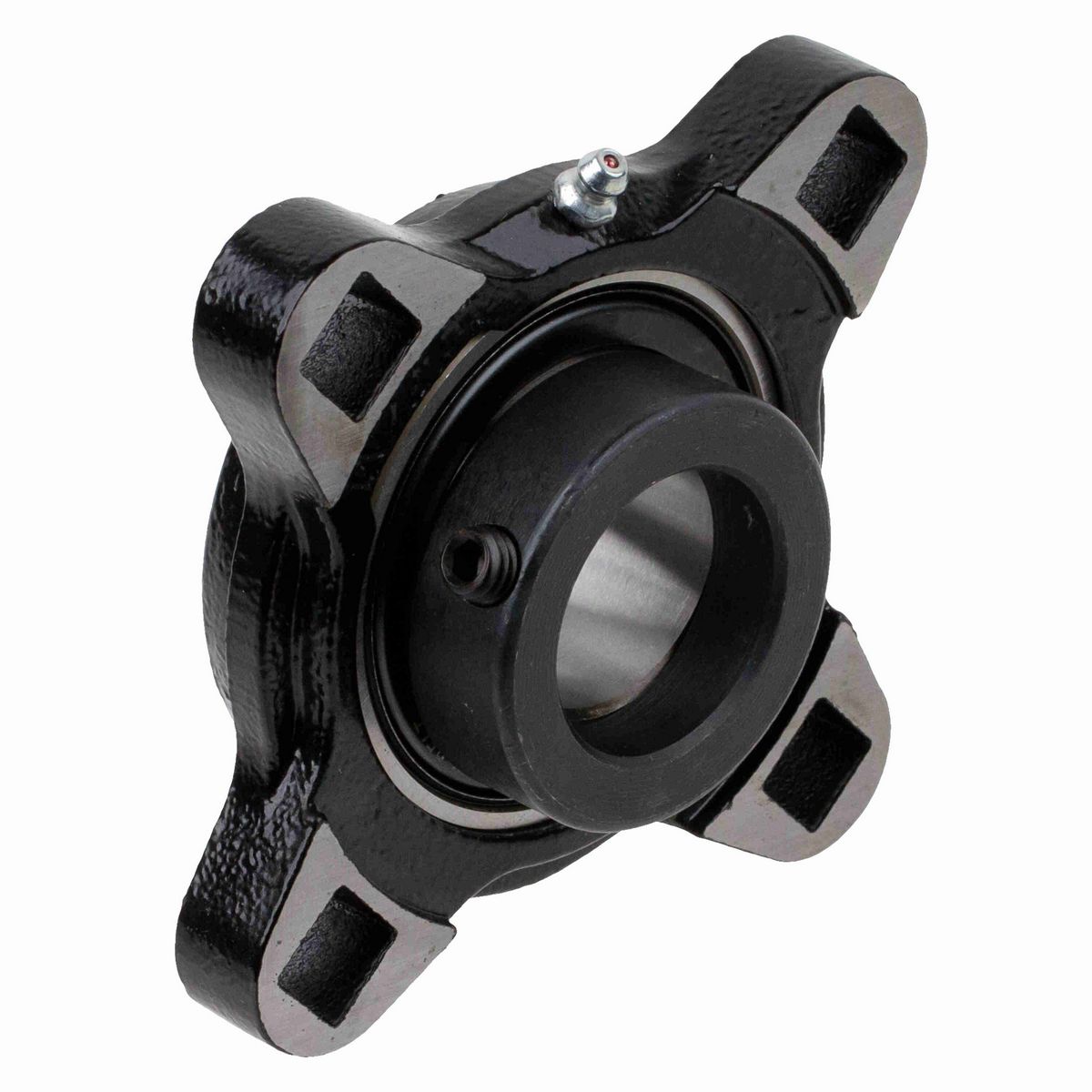

• 1 1/2" Mounted Ball Bearing, Intermediate Duty, High-Test Iron 4-Bolt Flange Block, Eccentric Cam Locking Collar, Single Lip Contact Seal, Relubricatable, Bearing/Housing Misalignment Torque to the High Side

Dimensions

Foot Height (in)	0.63 in
Overall Length (in)	3.88 in
Bolt Size (in)	1/2 in
Overall Height (in)	1.281 in
Bore Diameter (in)	1.5 in
Length Through Bore (in)	1.72 in
Overall Width (in)	3.88 in
Bolt Spacing (in)	4.6875 in

Technical Specifications

Housing Color	Black
Cage Material	Molded fiber glass reinforced nylon
Bore Shape	Straight
Housing Type	Flange, Four Bolt
Pilot Configuration	Pilot
Housing Style	Flange Block
Seal Type	Single Lip Contact Seal
Rolling Element	Ball Bearing
Misalignment Type	Static Only
Outer Ring Land Profile	Standard
Locking Collar Outside Diameter (in)	2.38 in
Setscrew Torque (in-lbs)	290-325 in/lbs
Pilot Depth (in)	1/2 in
Ability to Relubricate	Yes
Housing Material	Ductile Iron
Fixed vs. Expansion	Fixed
Static Load Rating (lb)	4,460 lb
Dynamic Load Rating (lb)	7,330 lb
Misalignment Capability	±1.5° Misalignment - Static Only
Lubricant	EXXON RONEX MP STD
Radial Clearance	C3 STANDARD
Maximum Speed (RPM)	4500 rpm
Vibration Frequency Roller Spin	0.0367 cps
Grease Fitting Thread Size	1/4-28
Shaft Locking Type	Eccentric
Vibration Frequency Fundamental Train	0.0065 cps
Bearing Type	Intermediate Duty
Cage Type	Ball Riding Retainer
Max Operating Temperature (C)	107 °C
Bearing Insert Material	52100 Bearing Steel
Size Code	208
Max Operating Temperature (F)	225 °F
End Cap Available	No
Housing Coating	Powder Coated
Locking Device Kit	W2245S
Vibration Frequency Inner Ring Defect	0.0912 cps
Inner Ring Outside Diameter (in)	2.084 in
Bearing Brand	LINK-BELT 200 SERIES BALL
Vibration Frequency Outer Ring Defect	0.0588 cps

General Specifications

UPC	662327668372
Weight	3.00 LB
Packaged Length	5.31 IN
Packaged Width	5.31 IN
Packaged Height	2.19 IN
HTC	8483204040
Country of Origin	Mexico
