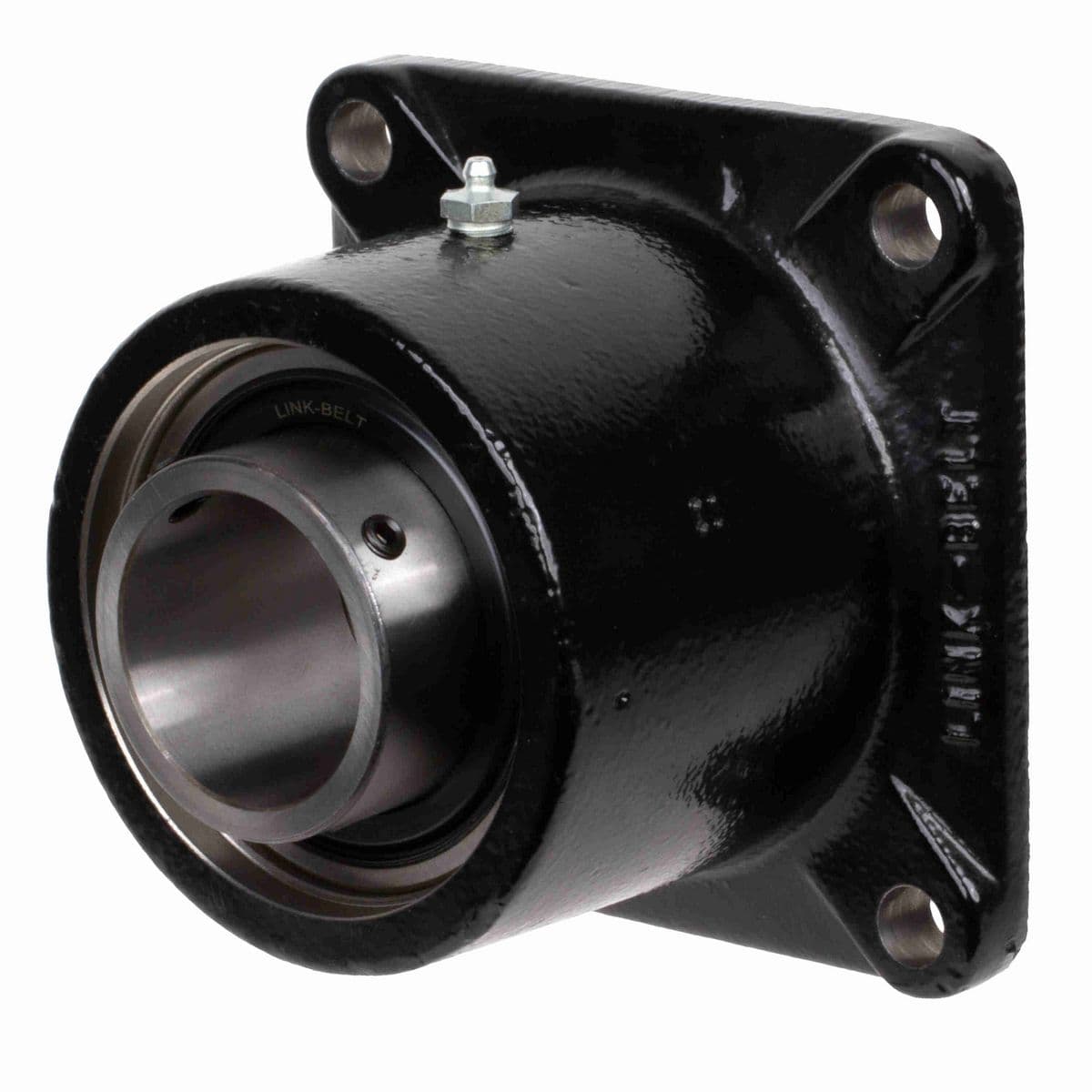

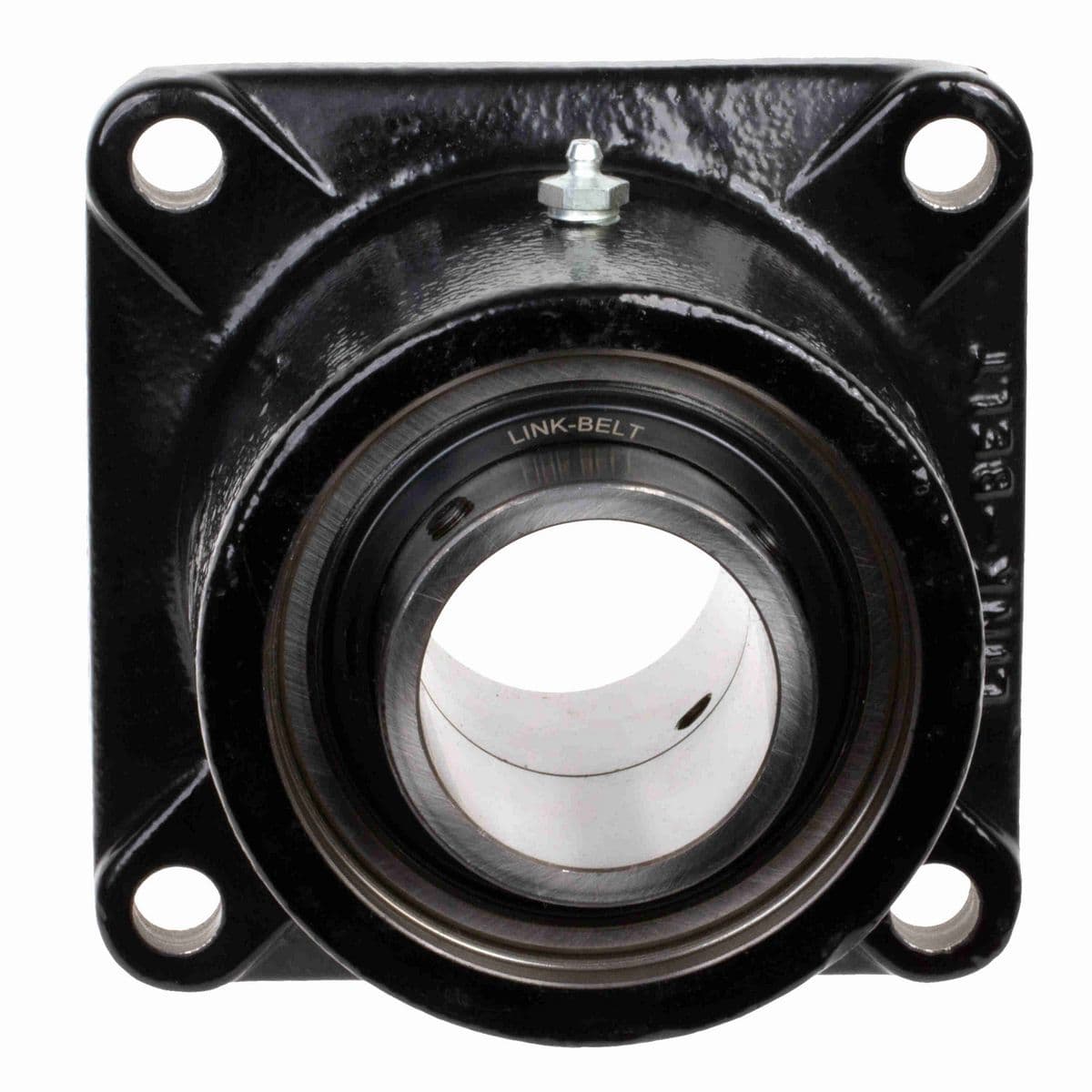

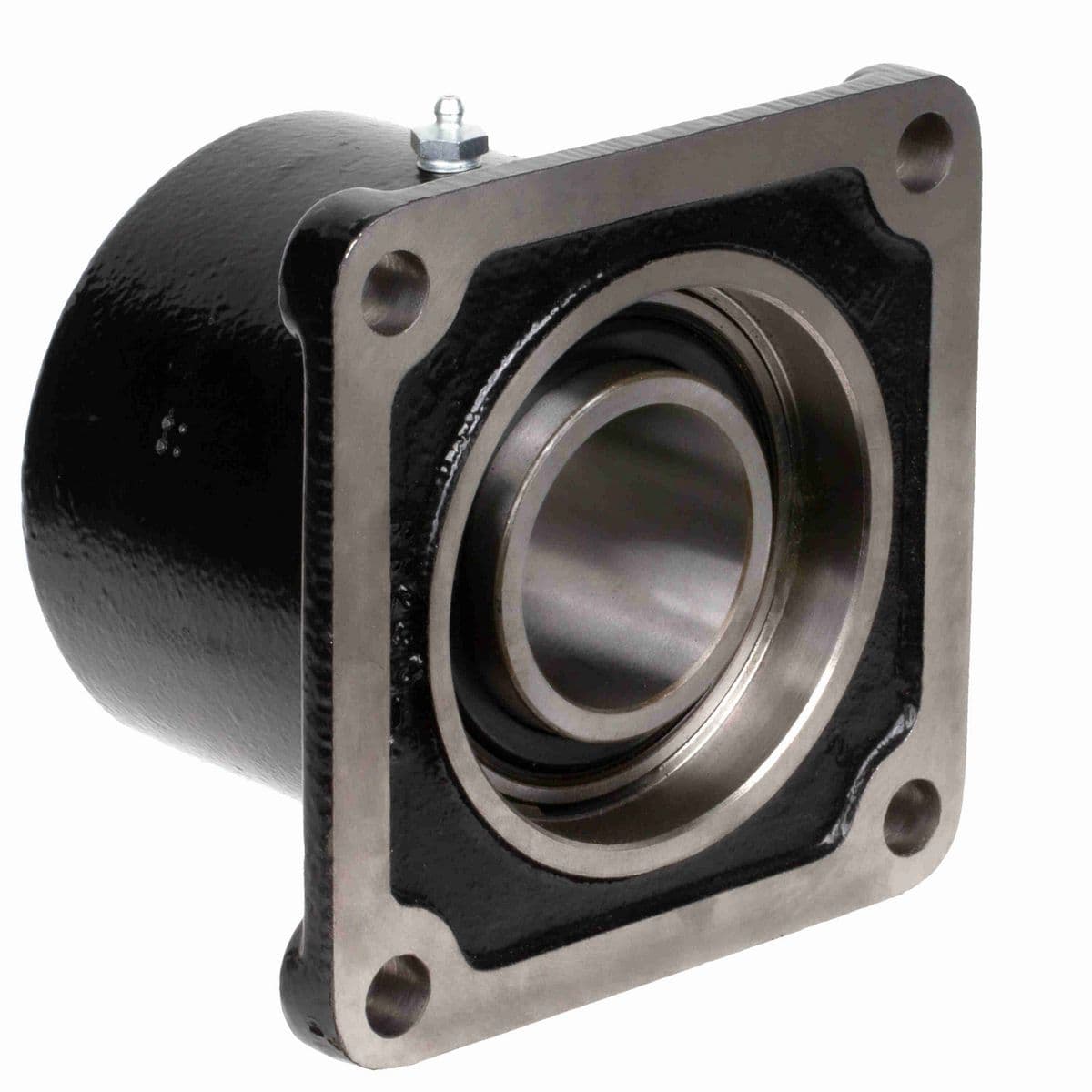

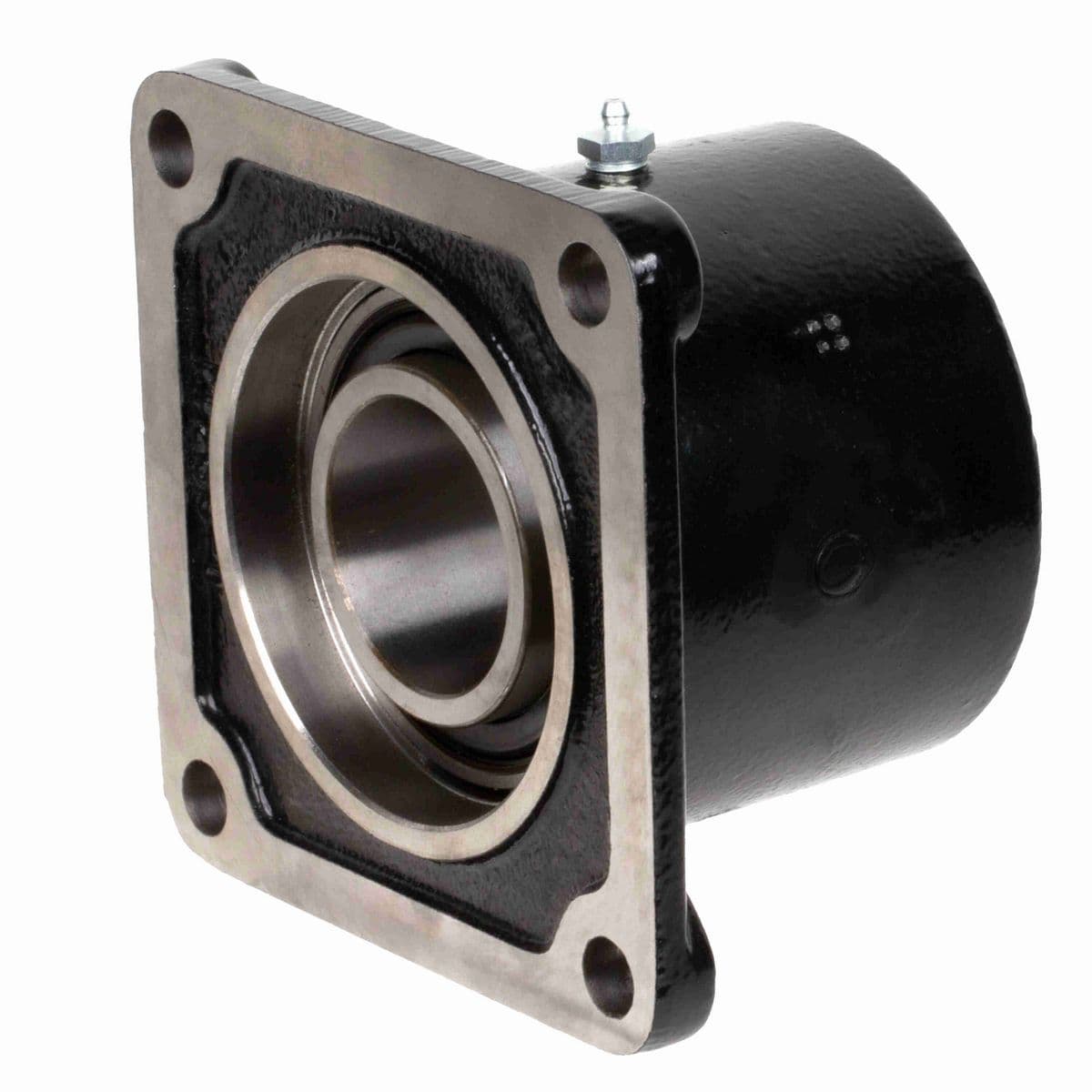

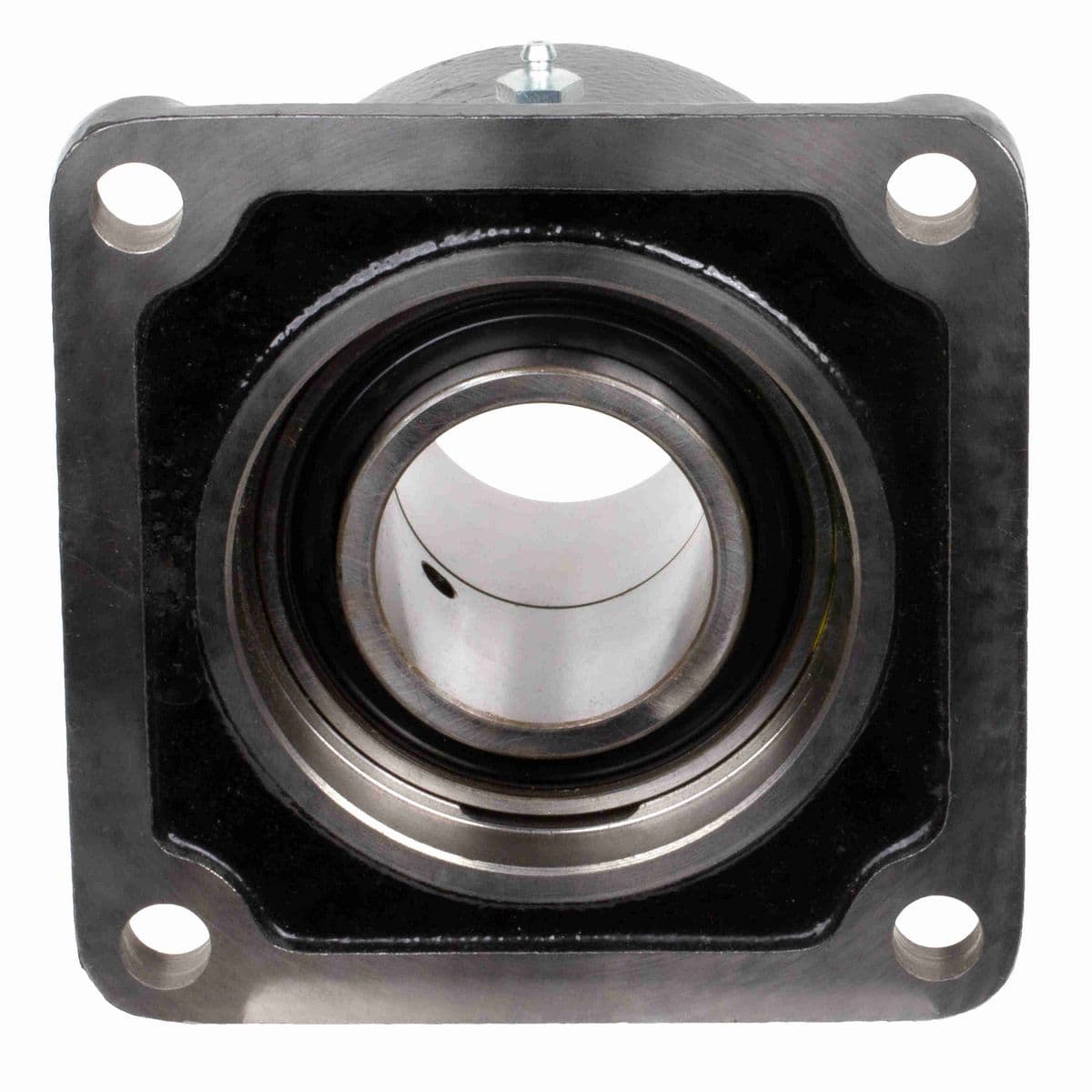

• 2" Mounted Ball Bearing, Standard Duty, Cast Iron 4-Bolt Square Trough End Flange Block, Setscrew Locking, Single Lip Contact Seal

Dimensions

Overall Height (in)	4.8125 in
Bore Diameter (in)	2 in
Foot Height (in)	11/16 in
Base Width (in)	6 3/8 in
Bolt Size (in)	5/8 in
Housing Outside Diameter (in)	8 1/2 in
Bolt Spacing (in)	5 1/8 in

Technical Specifications

Seal Type	Single Lip Contact Seal
Housing Style	Flange Block
Housing Type	Flange, Four Bolt, Trough
Setscrew Torque (in-lbs)	165 in/lbs
Cage Type	NYLON
Insert	UR232A
Vibration Frequency Outer Ring Defect	0.0680 cps
Size Code	211
Bearing Insert Material	52100 Bearing Steel
Max Operating Temperature (F)	225 °F
Vibration Frequency Fundamental Train	0.0068 cps
Fixed vs. Expansion	Fixed
Housing Coating	POWDER COATED
Dynamic Load Rating (lb)	9,800 lb
Radial Clearance	C3 STANDARD
Vibration Frequency Inner Ring Defect	0.0987 cps
Static Load Rating (lb)	6,570 lb
Lubricant	EXXON RONEX MP STD
Housing Material	Cast Iron
Vibration Frequency Roller Spin	0.0437 cps
Grease Fitting Thread Size	1/4 NPT
Maximum Speed (RPM)	4360 rpm
Max Operating Temperature (C)	107 °C
Shaft Locking Type	Set Screw
Bearing Type	Standard Duty
Bearing Brand	LINK-BELT 200 SERIES BALL

General Specifications

UPC	662327655808
Weight	16.96 LB
Packaged Length	6.88 IN
Packaged Width	4.88 IN
Packaged Height	6.88 IN
HTC	8483204040
Country of Origin	Mexico
