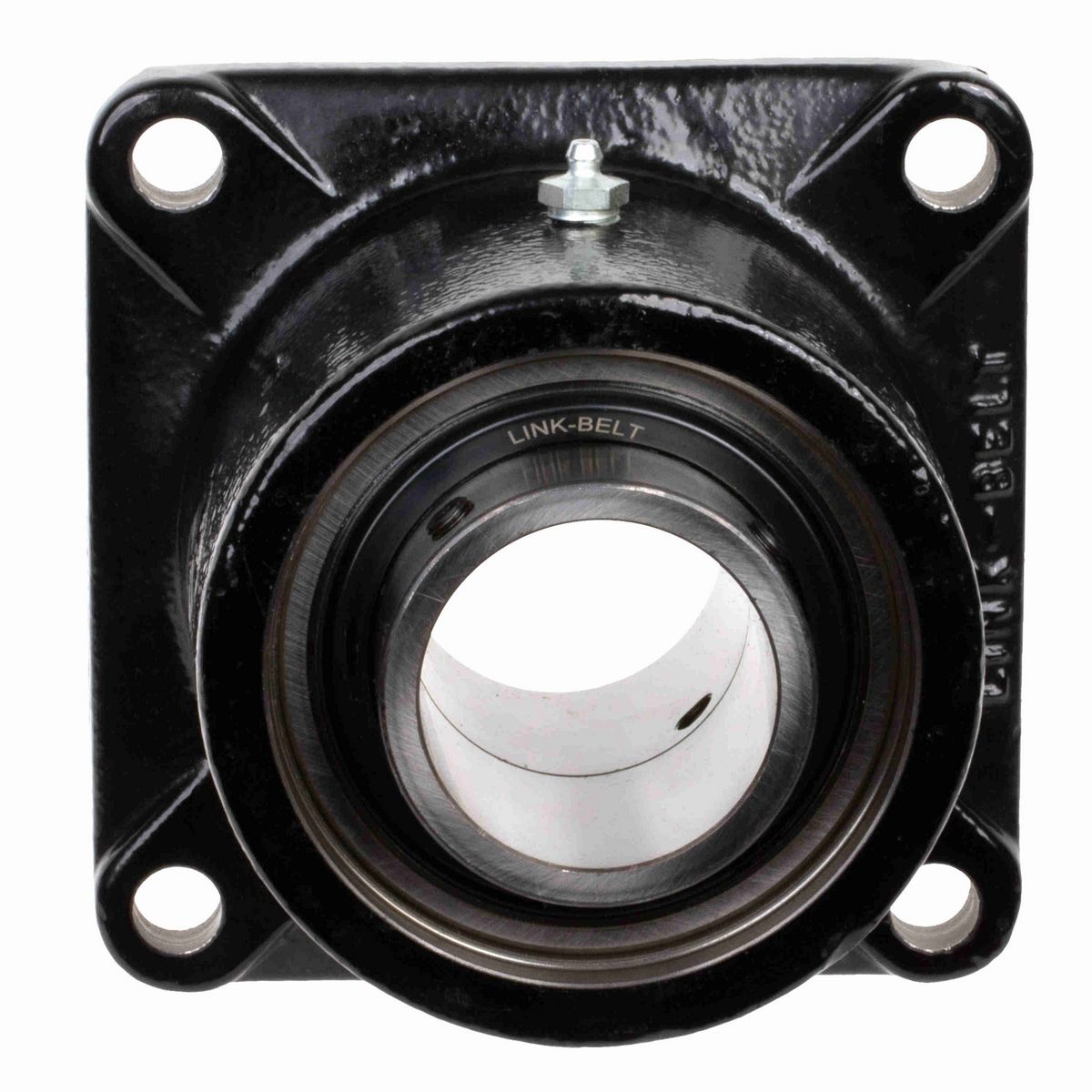

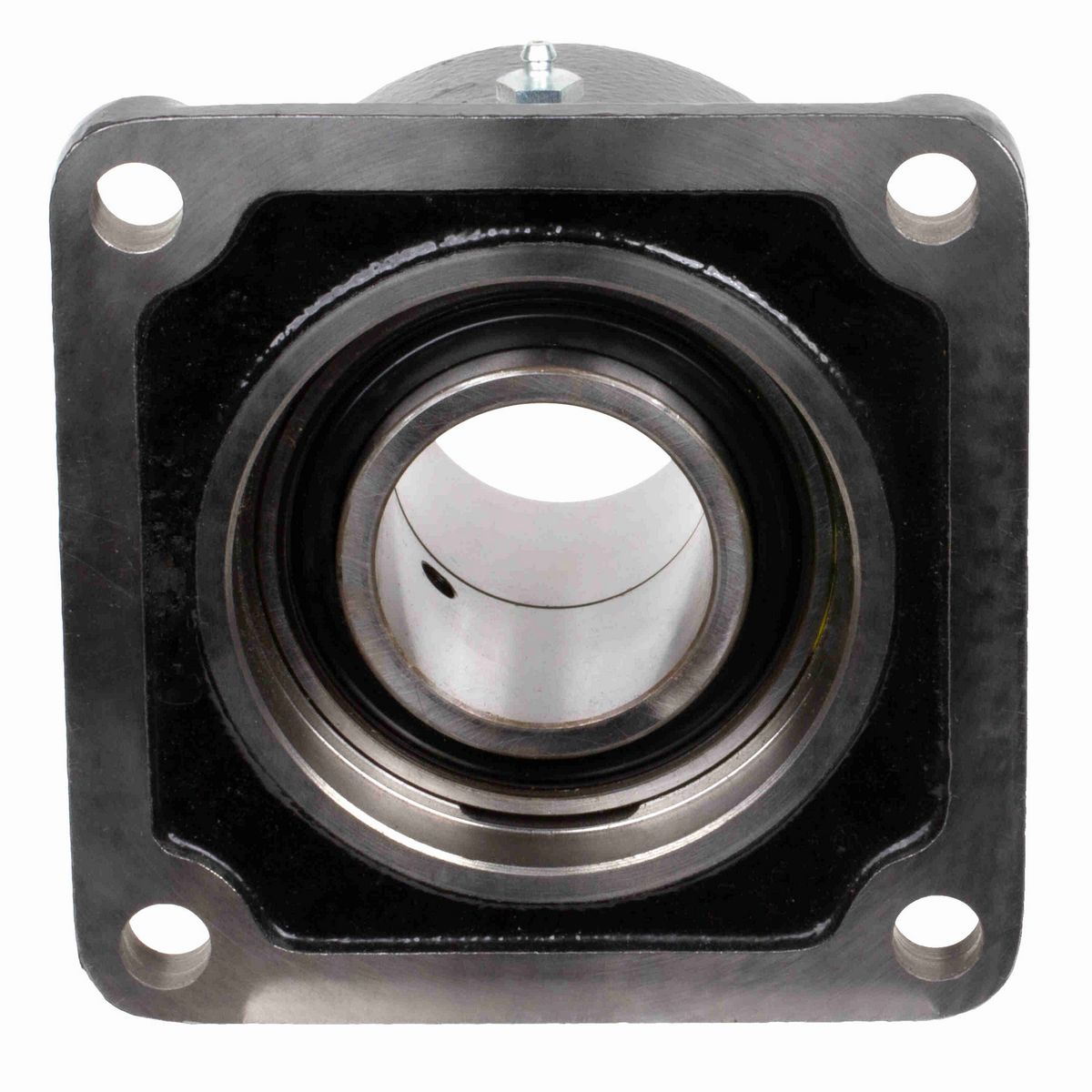

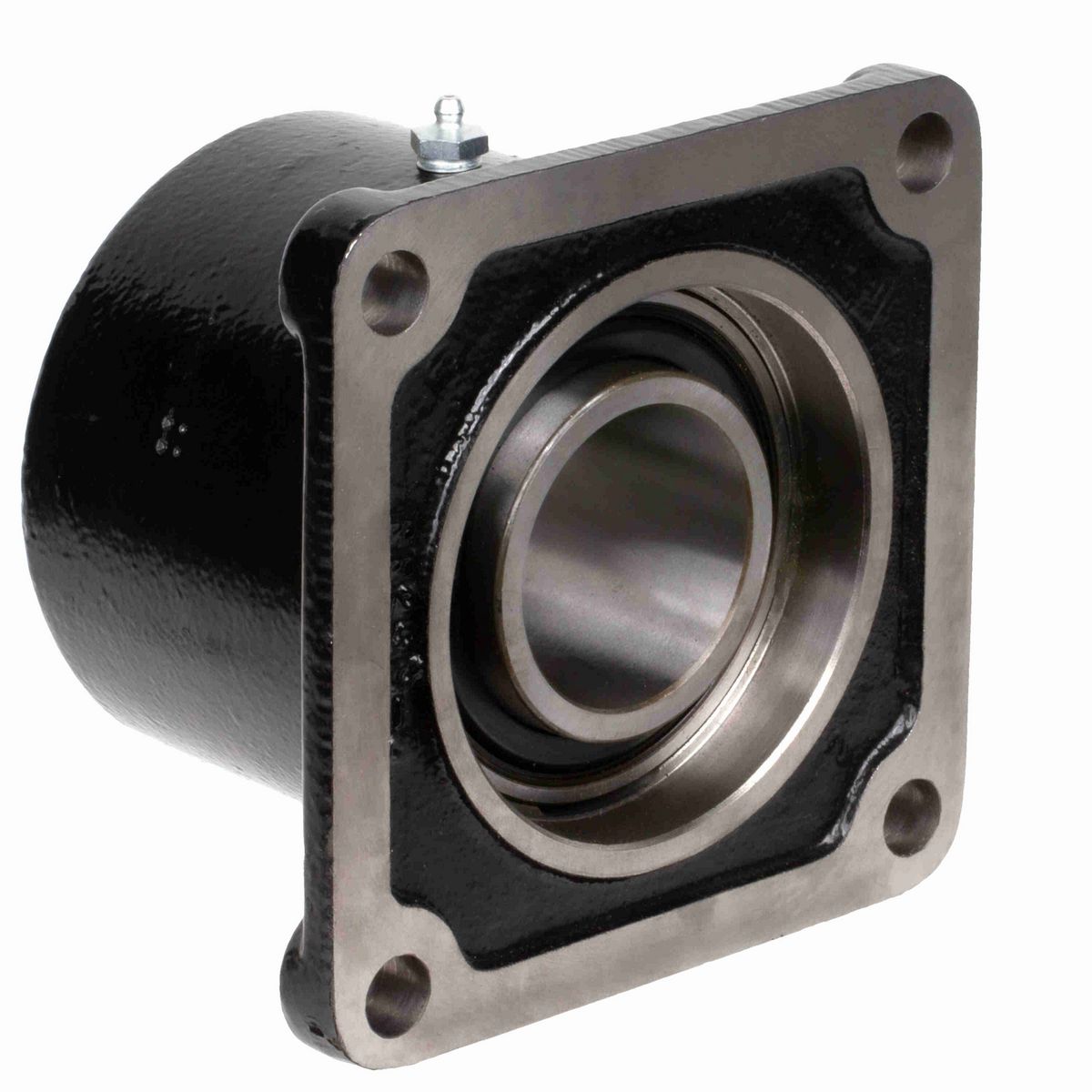

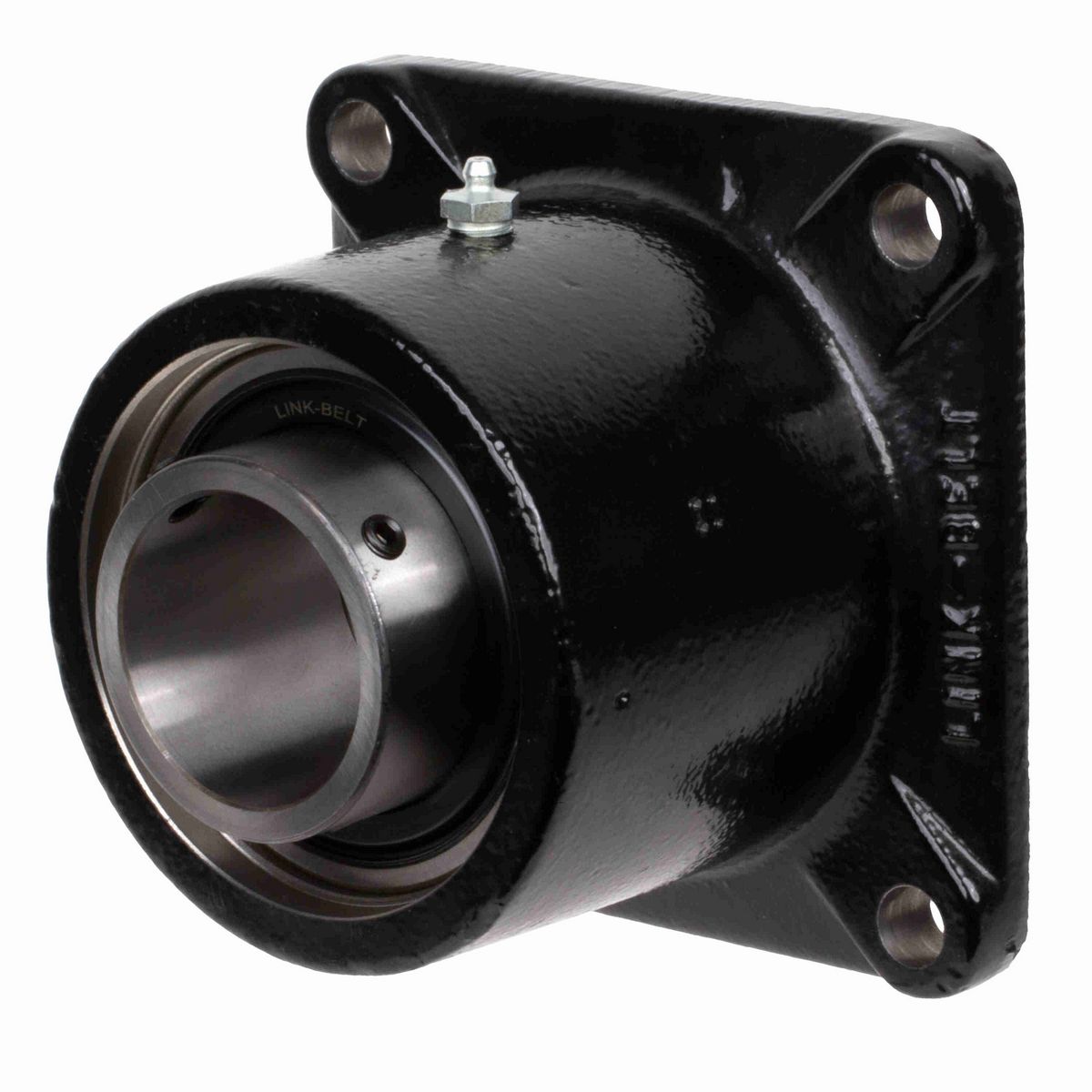

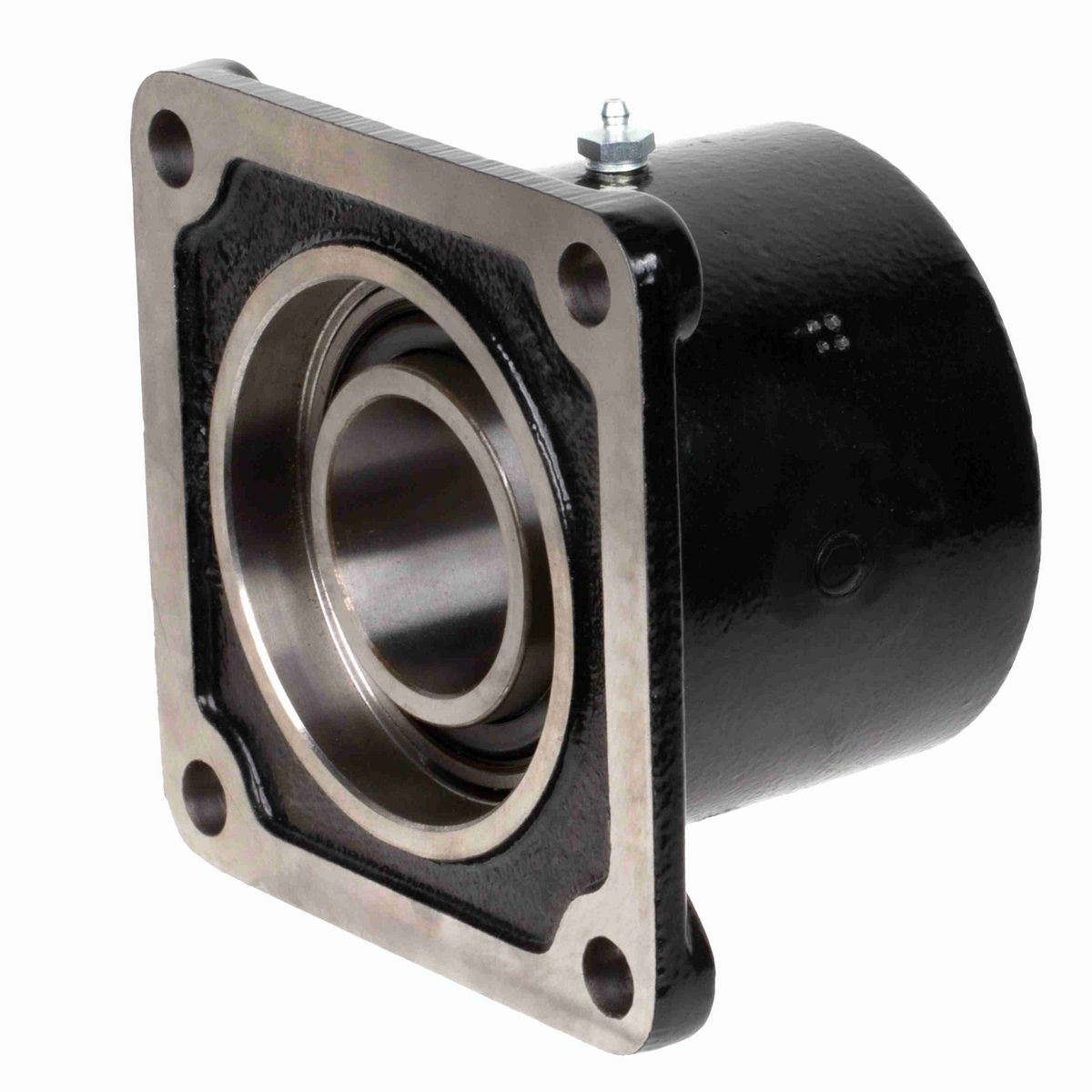

• 1 1/2" Mounted Ball Bearing, Standard Duty, Cast Iron 4-Bolt Square Trough End Flange Block, Setscrew Locking, Single Lip Contact Seal

Dimensions

Overall Height (in)	4.0625 in
Base Width (in)	5 1/8 in
Bore Diameter (in)	1.5 in
Foot Height (in)	9/16 in
Bolt Size (in)	1/2 in
Housing Outside Diameter (in)	6 25/32 in
Bolt Spacing (in)	4 in

Technical Specifications

Housing Style	Flange Block
Seal Type	Single Lip Contact Seal
Housing Type	Flange, Four Bolt, Trough
Setscrew Torque (in-lbs)	165 in/lbs
Dynamic Load Rating (lb)	7,330 lb
Maximum Speed (RPM)	6000 rpm
Fixed vs. Expansion	Fixed
Housing Material	Cast Iron
Static Load Rating (lb)	4,460 lb
Bearing Insert Material	52100 Bearing Steel
Bearing Brand	LINK-BELT 200 SERIES BALL
Vibration Frequency Fundamental Train	0.0065 cps
Vibration Frequency Roller Spin	0.0367 cps
Insert	UR224A
Max Operating Temperature (C)	107 °C
Housing Coating	POWDER COATED
Grease Fitting Thread Size	1/4 NPT
Vibration Frequency Inner Ring Defect	0.0912 cps
Shaft Locking Type	Set Screw
Max Operating Temperature (F)	225 °F
Vibration Frequency Outer Ring Defect	0.0588 cps
Radial Clearance	C3 STANDARD
Bearing Type	Standard Duty
Cage Type	NYLON
Size Code	208
Lubricant	EXXON RONEX MP STD

General Specifications

UPC	662327655822
Weight	9.50 LB
Packaged Length	5.50 IN
Packaged Width	4.13 IN
Packaged Height	5.50 IN
HTC	8483204040
Country of Origin	Mexico
