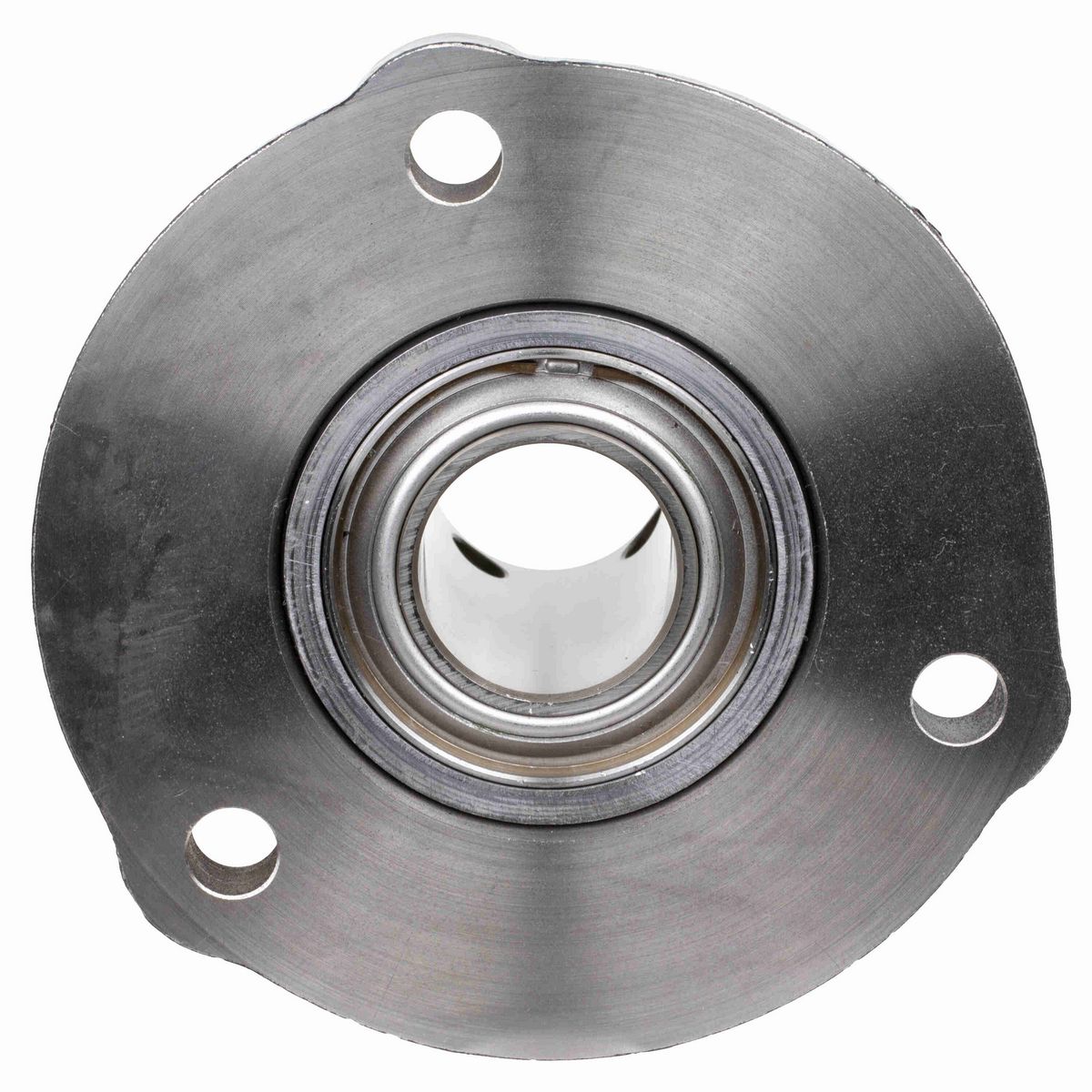

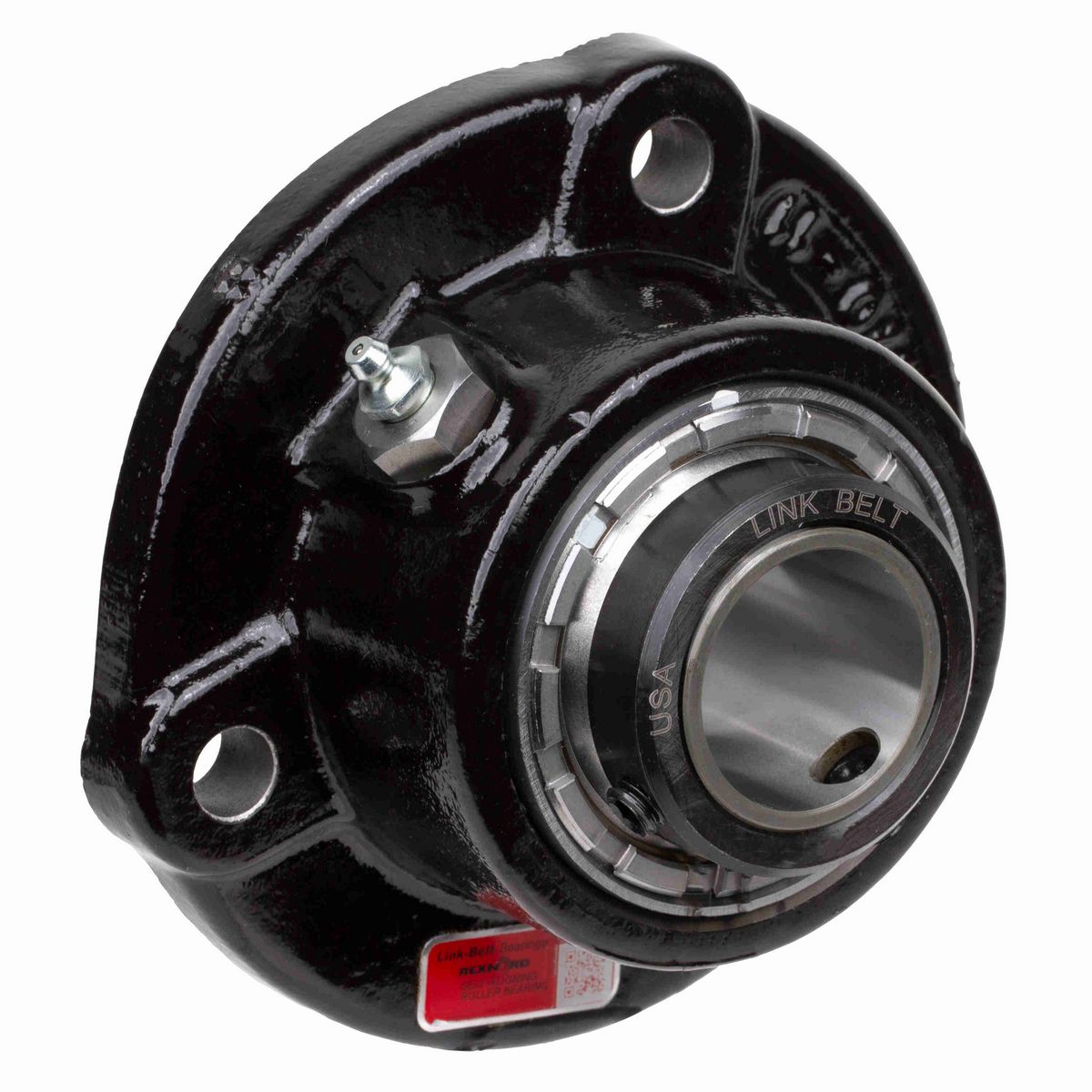

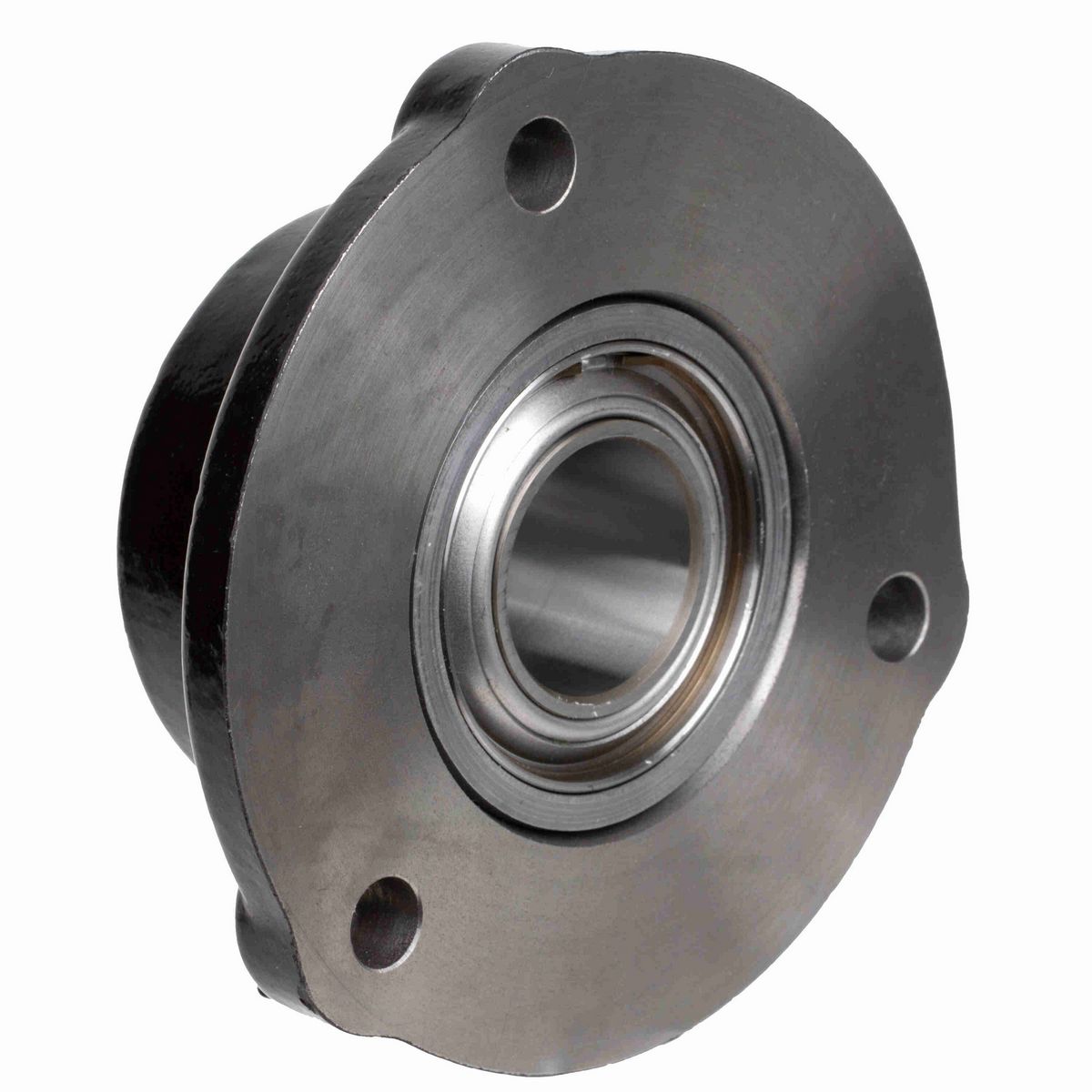

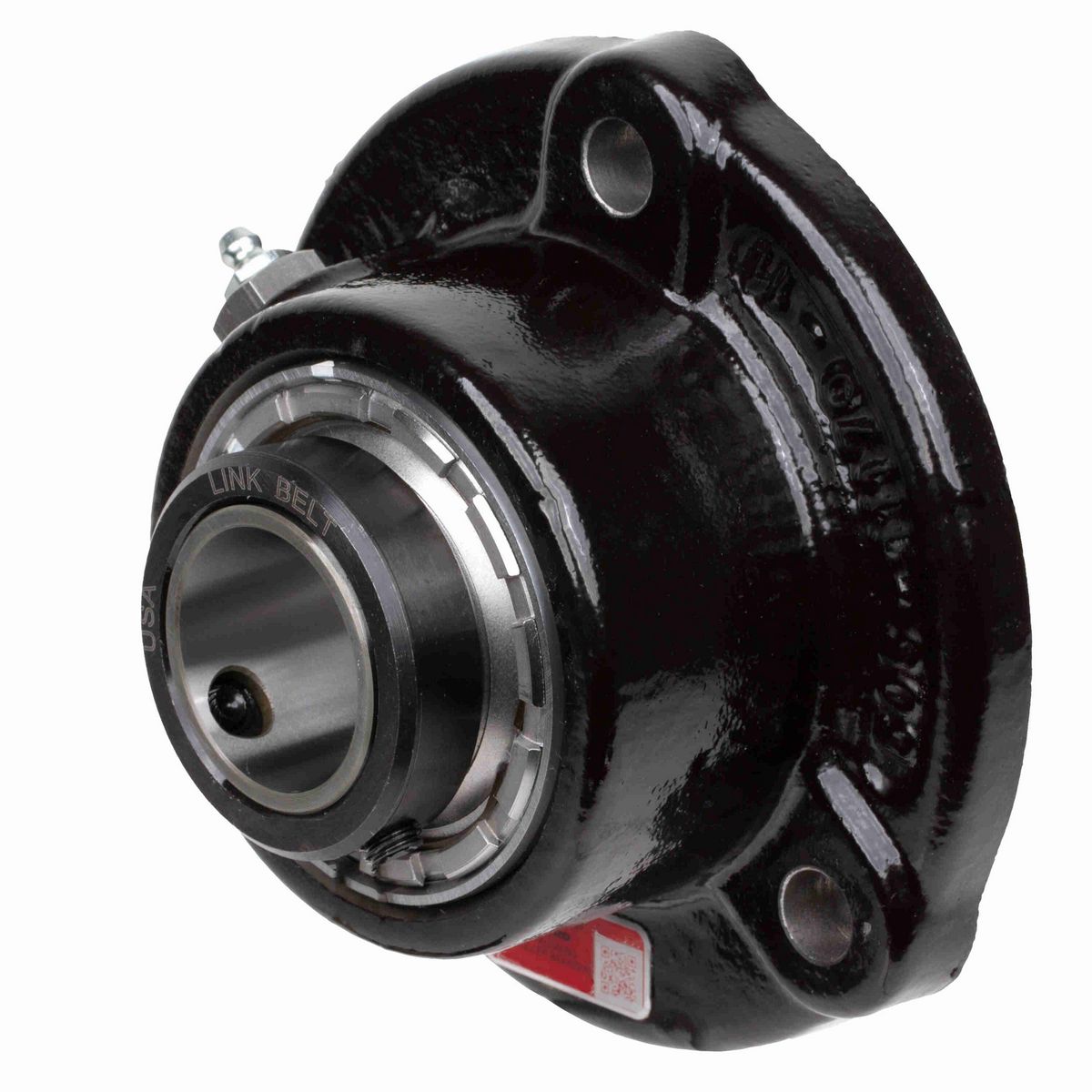

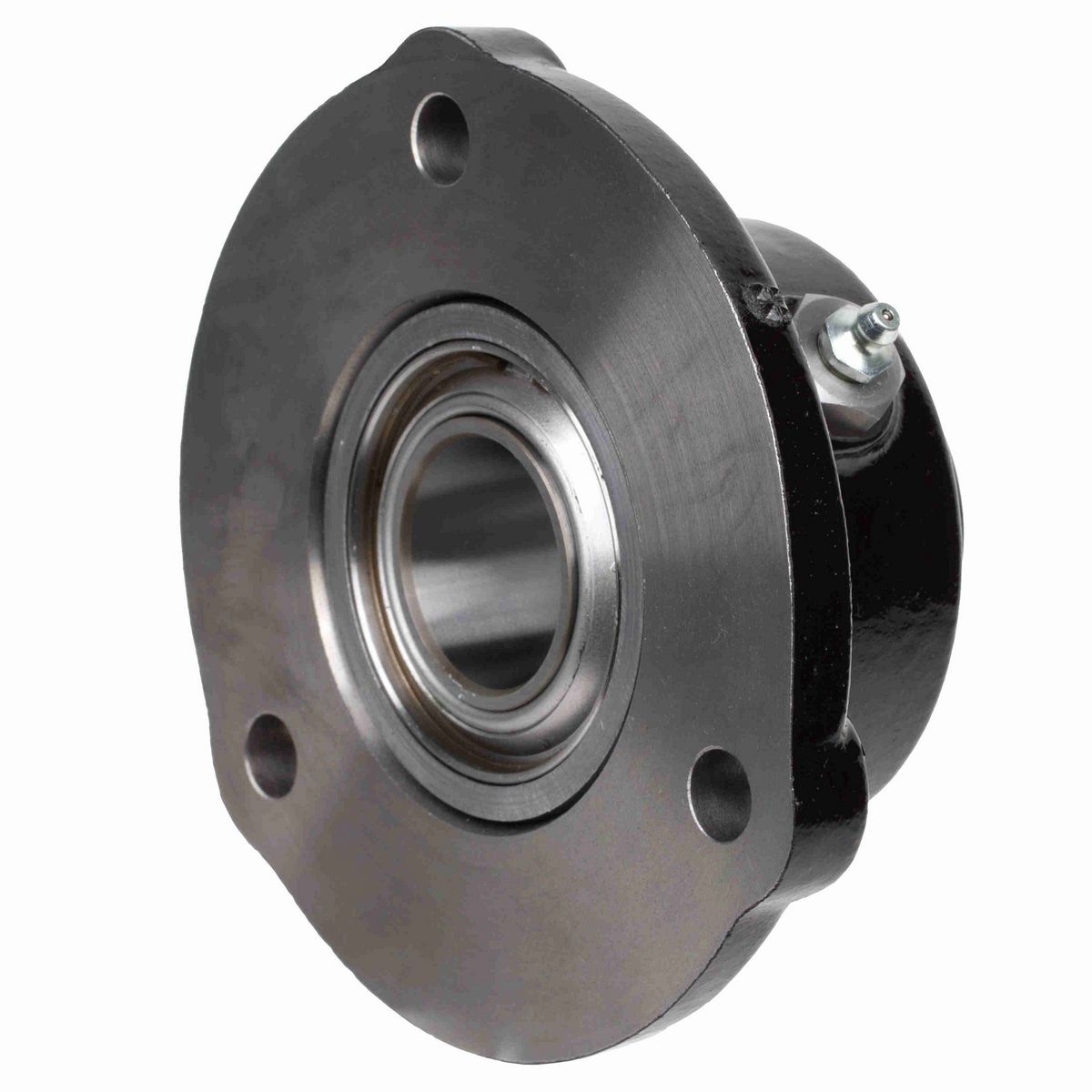

• 1-7/16" Mounted Spherical Roller Bearing, Expansion Cast Iron Flange Block, Single Setscrew Locking Collar, Clearance Seal

Dimensions

Overall Length (in)	6.25 in
Foot Height (in)	0.63 in
Overall Height (in)	2.91 in
Overall Width (in)	6.25 in
Bolt Size (in)	1/2 in
Bore Diameter (in)	1.4375 in
Locking Collar Outside Diameter (in)	2.31 in
Housing Outside Diameter (in)	6.25 in
Standoff Distance (in)	0.03 in
Inner Ring Outside Diameter (in)	1.745 in
Length Through Bore (in)	2.88 in
Expansion Capability (in)	0.38 in
Bolt Spacing (in)	4.33 in
Bolt Circle (in)	5 in
Housing Cast Face to Outermost Bearing Face (in)	0.66 in

Technical Specifications

Shaft Locking Type	Single Set Collar
Fixed/Expansion	Expansion
Seal Type	Clearance Seal
Housing Style	Flange Block
Cage Material	Steel
Product	FEB22400
Static Load Rating (lb)	20,900 lb
Housing Type	Flange, Three Bolt
Misalignment Type	Dynamic
Housing Construction	Solid
Series	Flange Blocks
Radial Dynamic Load Capacity (lb)	17,800 lb
Housing Material	Cast Iron
Rolling Element	Spherical Roller
Radial Clearance	C0 STANDARD
Ability to Relubricate	Yes
Maximum Speed (RPM)	3600 rpm
Available Seal Type	E Lip Seal; H Labyrinth Seal; E7 Triple Lip Seal
Setscrew Torque (in-lbs)	325 in/lbs
Seal Kit	B424HS
Vibration Frequency Outer Ring Defect	0.1055 cps
Misalignment Capability	±2.0° Misalignment - Dynamic
Vibration Frequency Fundamental Train	0.007 cps
Insert	CSEB22423H
Locking Device Kit	B424SC
Grease Fitting Thread Size	1/8 NPT
Vibration Frequency Inner Ring Defect	0.1445 cps
Primary Seal	STEEL CLEARANCE SEAL
Lubricant	EXXON RONEX MP STD
Max Operating Temperature (C)	107 °C
Housing Coating	POWDER COATED
Size Code	B424
Vibration Frequency Roller Spin	0.0499 cps
Max Operating Temperature (F)	225 °F
Expansion Lock Plug	B224408A

General Specifications

UPC	662327030148
Weight	8.00 LB
Packaged Length	6.50 IN
Packaged Width	3.13 IN
Packaged Height	6.50 IN
Country of Origin	Mexico
