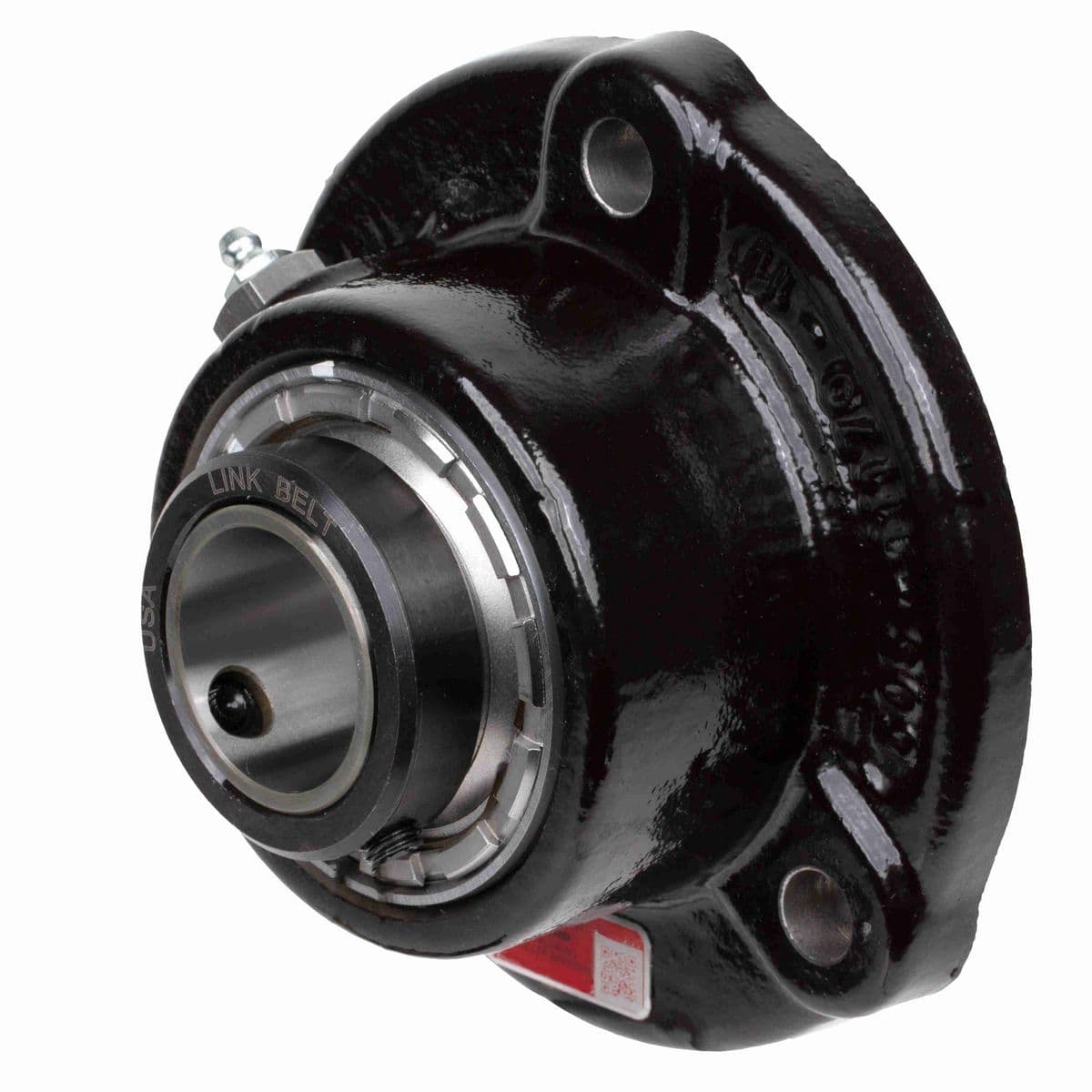

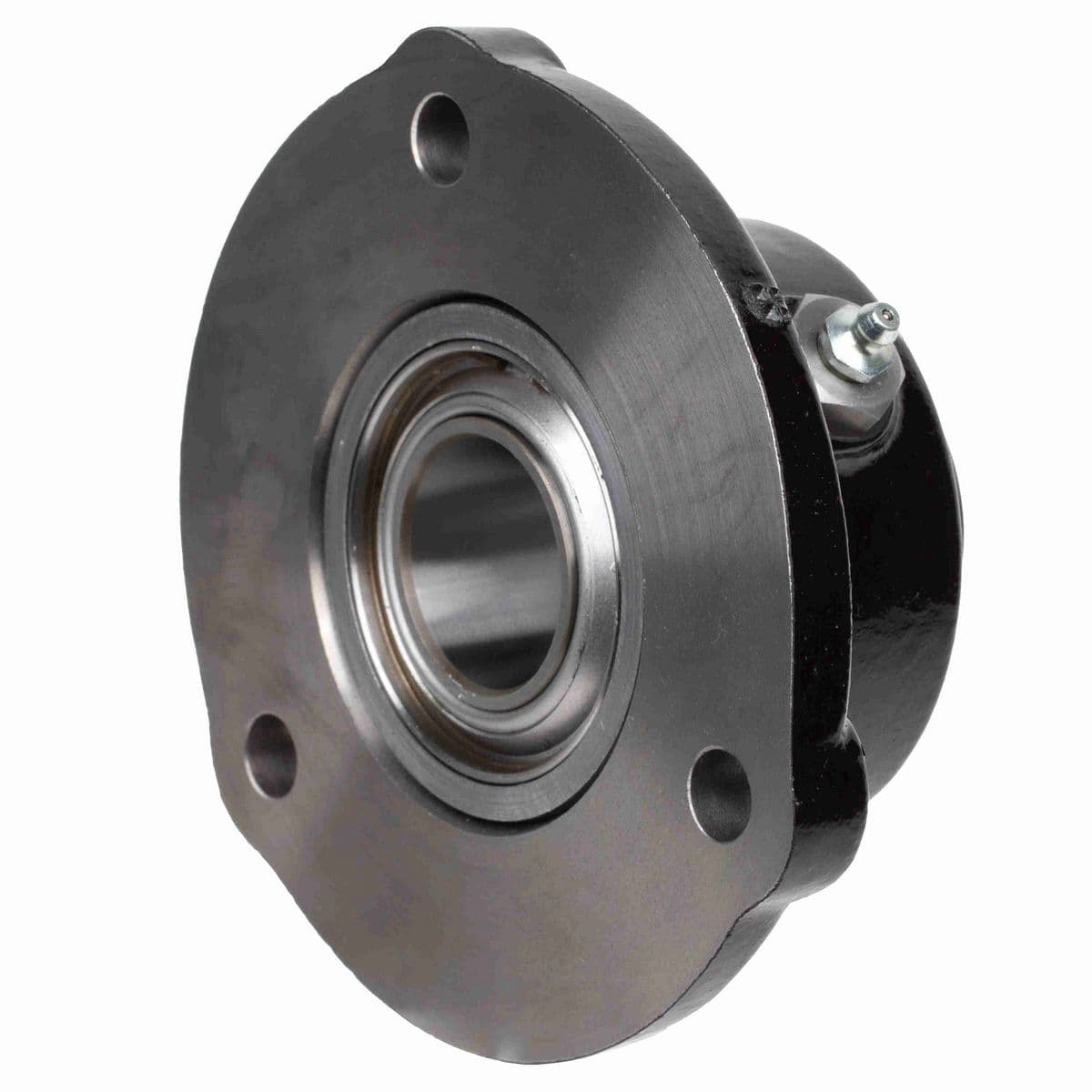

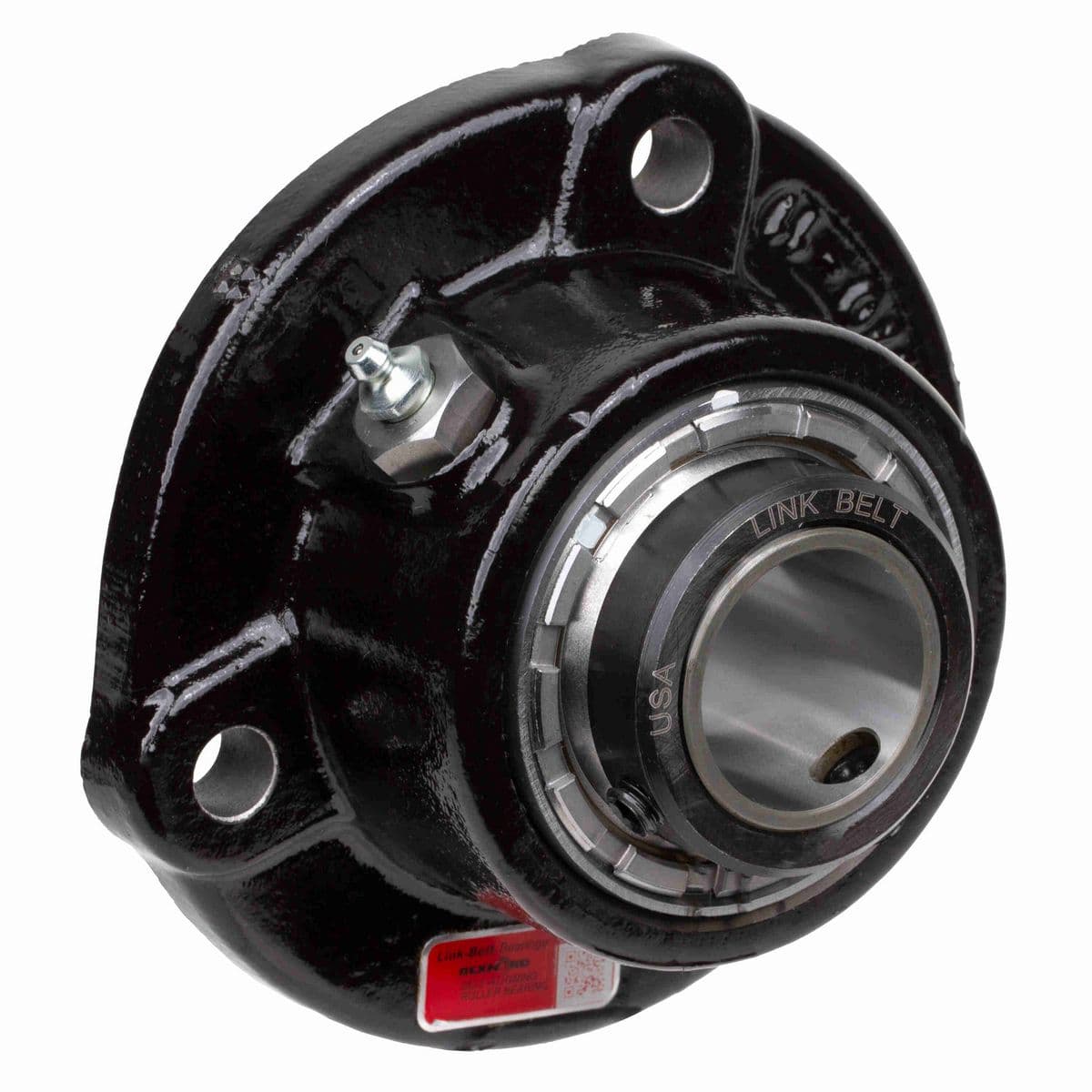

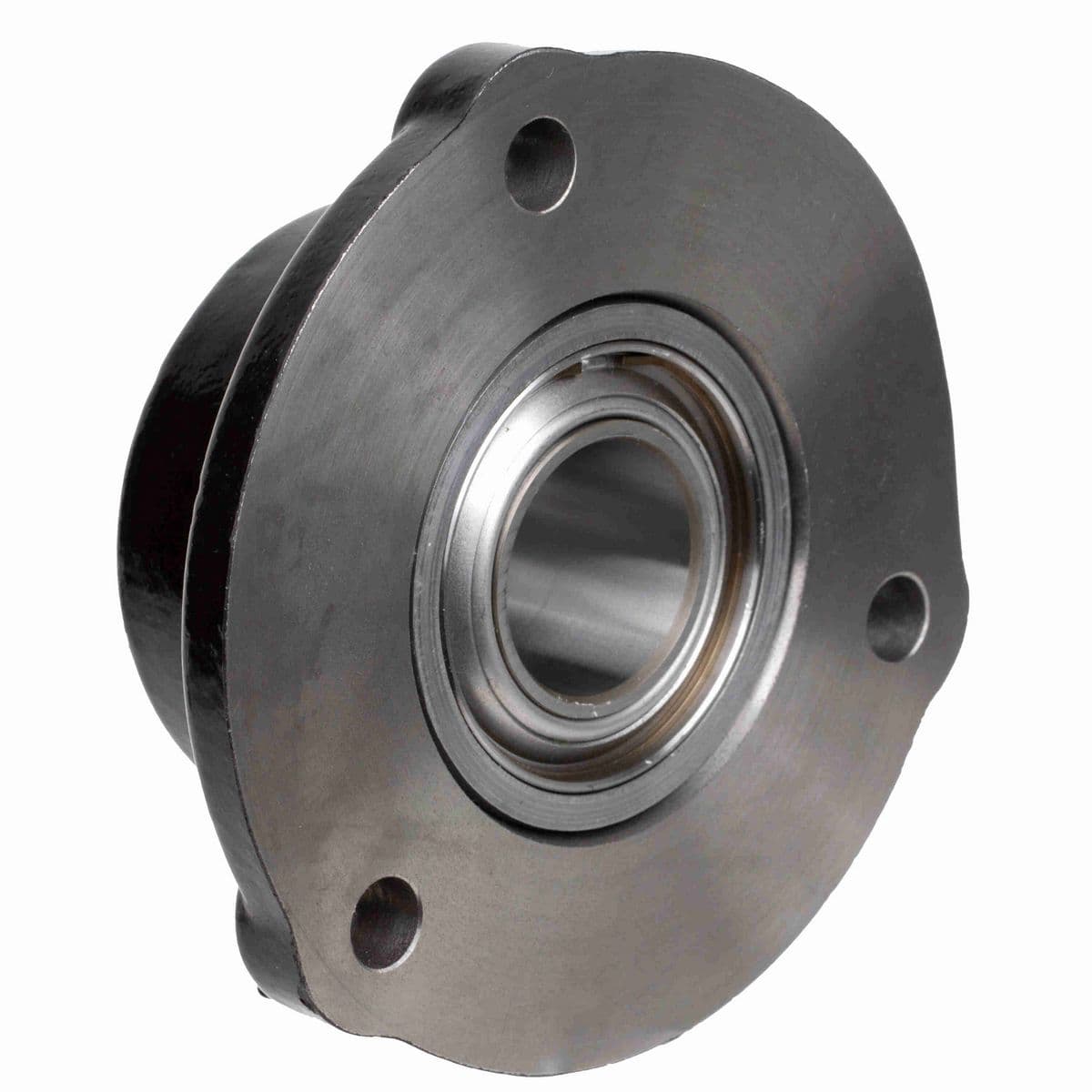

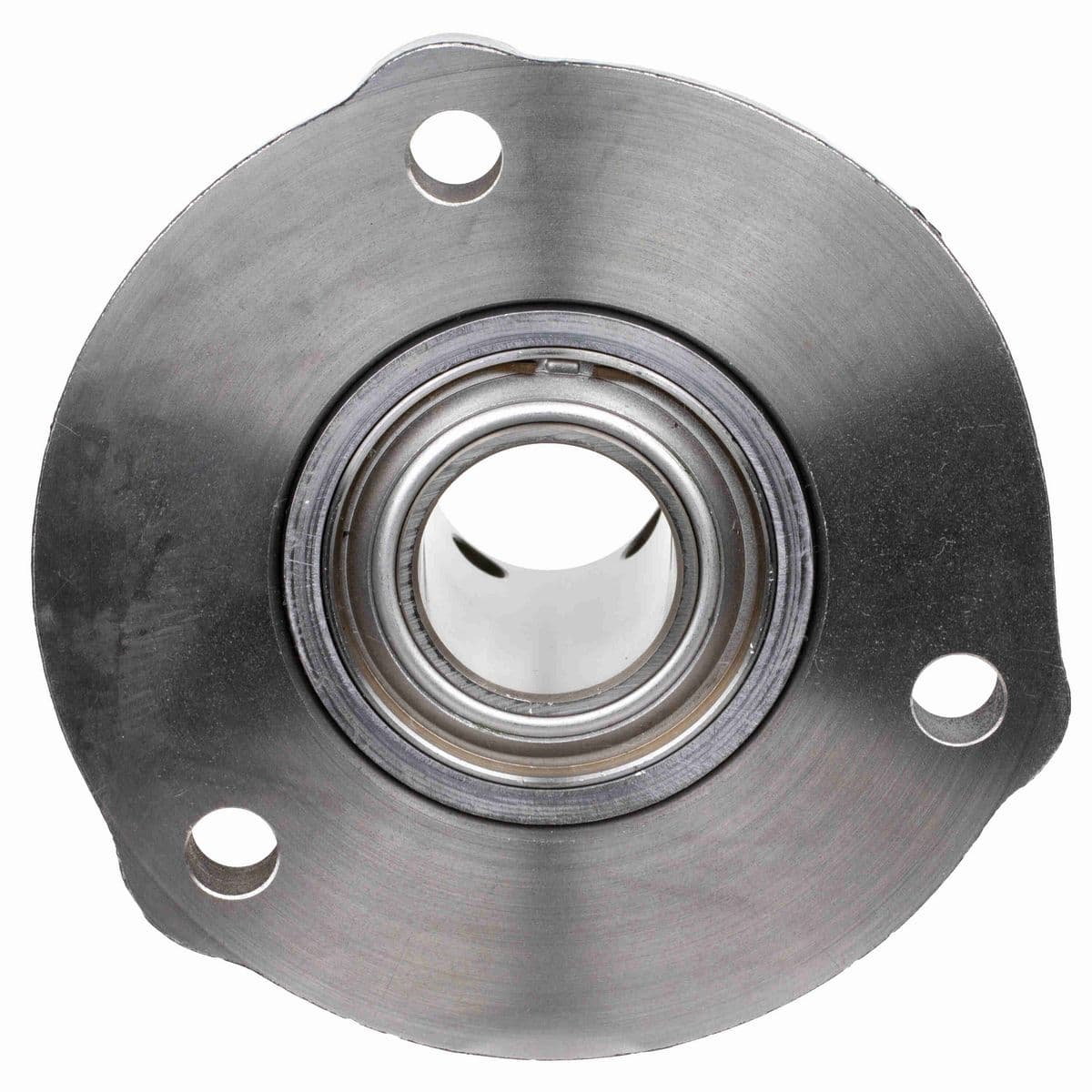

• 1-1/4" Mounted Spherical Roller Bearing, Expansion Cast Iron Flange Block, Single Setscrew Locking Collar, Triple Lip Contact Seal

Dimensions

Bolt Size (in)	3/8 in
Foot Height (in)	0.59 in
Overall Height (in)	2.72 in
Overall Length (in)	5.13 in
Overall Width (in)	5.13 in
Bore Diameter (in)	1.2500 in
Housing Outside Diameter (in)	5.5 in
Locking Collar Outside Diameter (in)	1.97 in
Standoff Distance (in)	0.03 in
Expansion Capability (in)	0.38 in
Length Through Bore (in)	2.69 in
Inner Ring Outside Diameter (in)	1.532 in
Housing Cast Face to Outermost Bearing Face (in)	0.53 in
Bolt Circle (in)	4.5 in

Technical Specifications

Radial Clearance	C0 STANDARD
Housing Style	Flange Block
Seal Type	Multi-Lip Contact Seal
Static Load Rating (lb)	18,300 lb
Series	Flange Blocks
Housing Construction	Solid
Product	FEB22400
Misalignment Type	Dynamic
Rolling Element	Spherical Roller
Housing Type	Flange, Three Bolt
Shaft Locking Type	Single Set Collar
Fixed/Expansion	Expansion
Housing Material	Cast Iron
Radial Dynamic Load Capacity (lb)	16,900 lb
Cage Material	Steel
Seal Kit	B420E7S
Setscrew Torque (in-lbs)	185 in/lbs
Maximum Speed (RPM)	1700 rpm
Ability to Relubricate	Yes
Available Seal Type	E Lip Seal; H Labyrinth Seal; E7 Triple Lip Seal
Housing Coating	POWDER COATED
Vibration Frequency Roller Spin	0.0424 cps
Primary Seal	BUNA TRIPLE LIP SEAL
Locking Device Kit	B420SC
Max Operating Temperature (C)	107 °C
Vibration Frequency Outer Ring Defect	0.0887 cps
Size Code	B420
Insert	CSEB22420E7
Expansion Lock Plug	B224408A
Vibration Frequency Inner Ring Defect	0.128 cps
Misalignment Capability	±2.0° Misalignment - Dynamic
Lubricant	EXXON RONEX MP STD
Max Operating Temperature (F)	225 °F
Vibration Frequency Fundamental Train	0.0068 cps
Grease Fitting Thread Size	1/8 NPT

General Specifications

UPC	793699540024
Weight	6.60 LB
Packaged Length	5.50 IN
Packaged Width	5.50 IN
Packaged Height	3.25 IN
Country of Origin	Mexico
