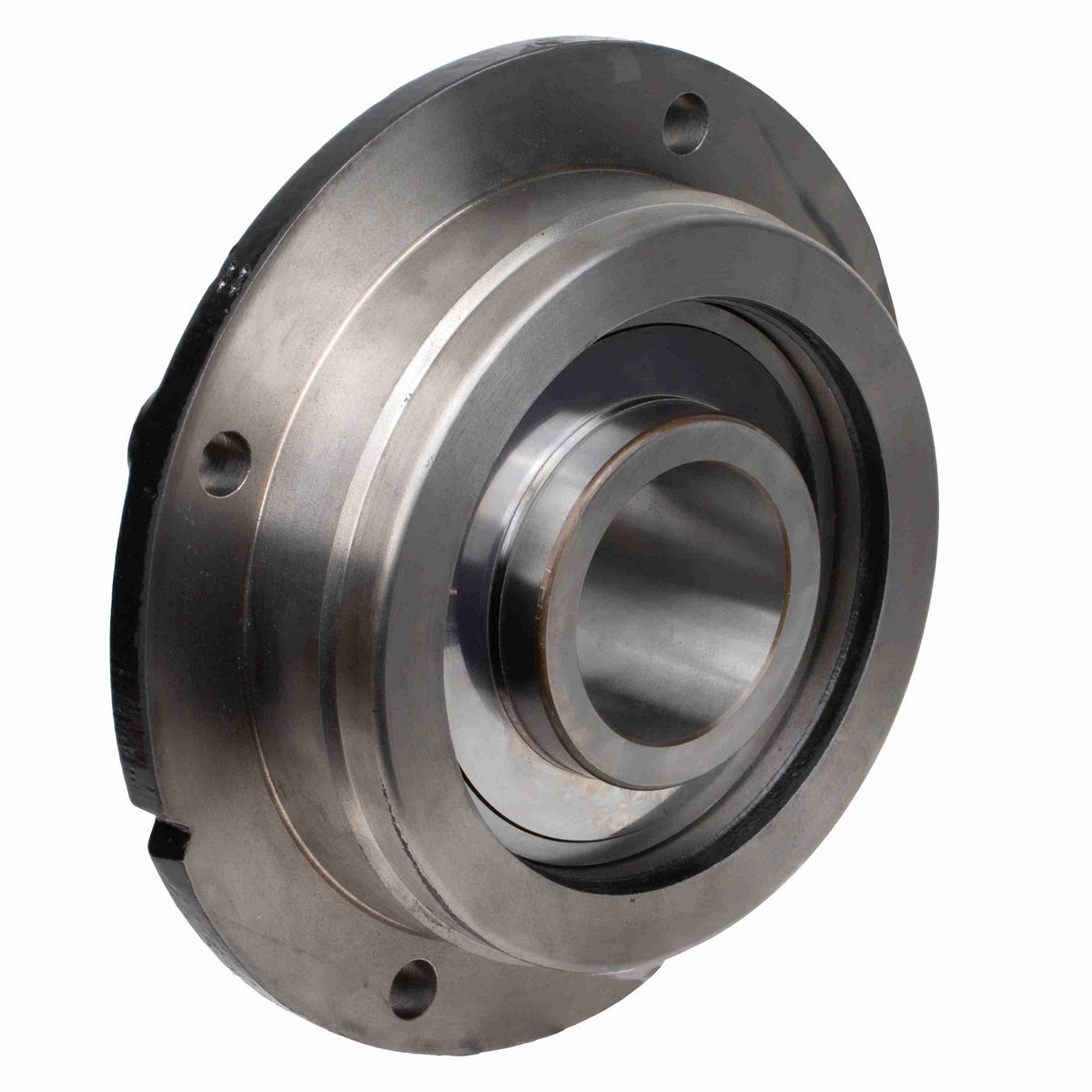

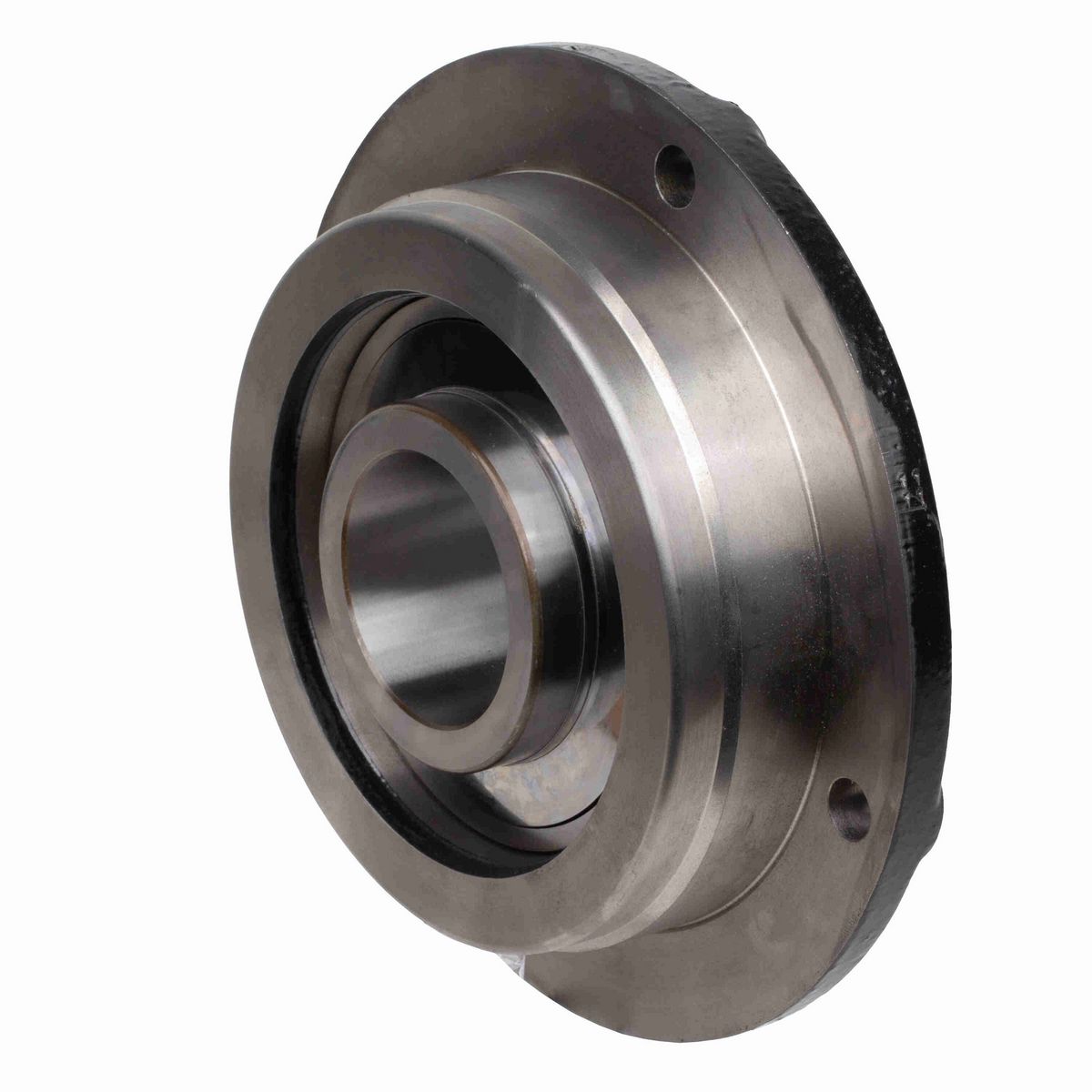

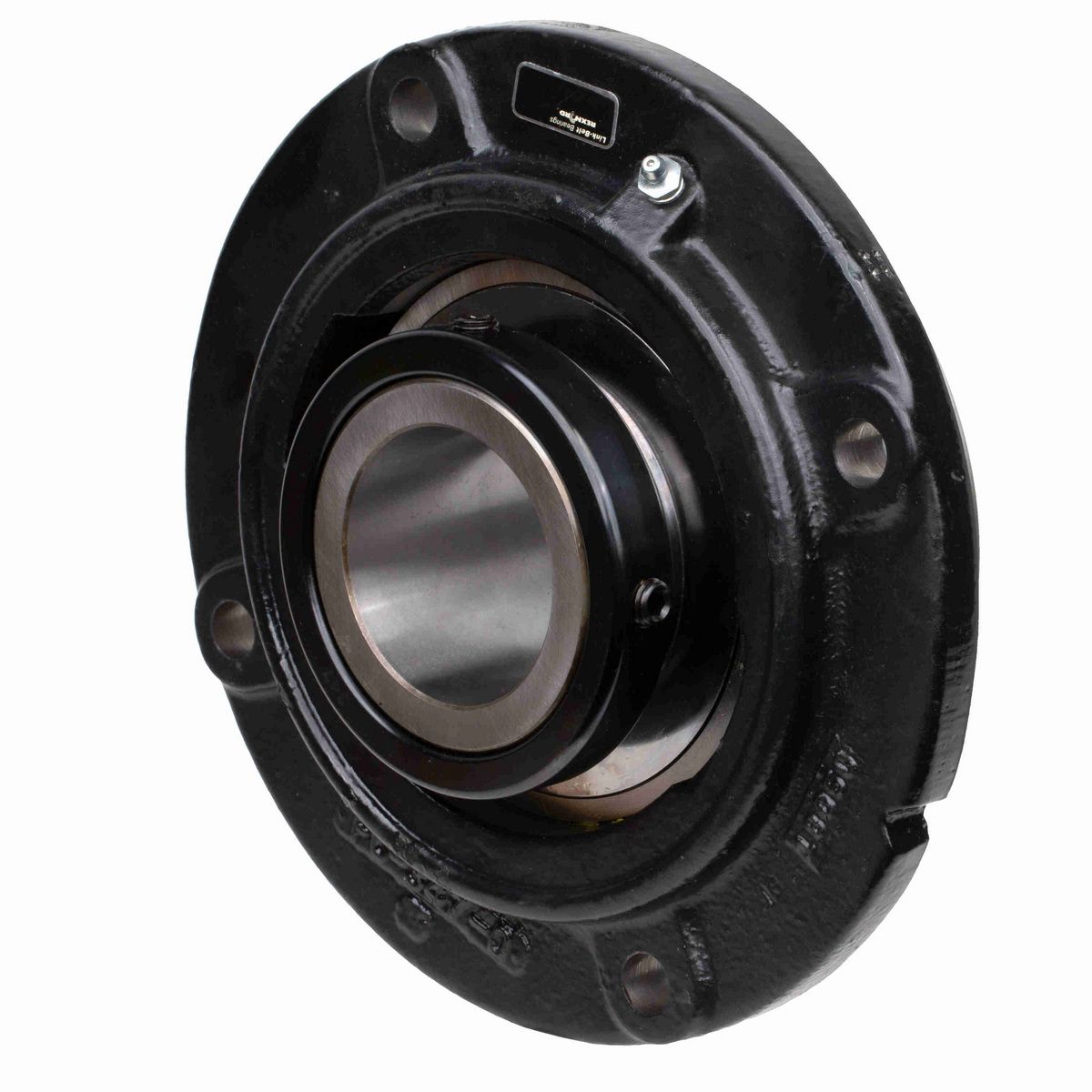

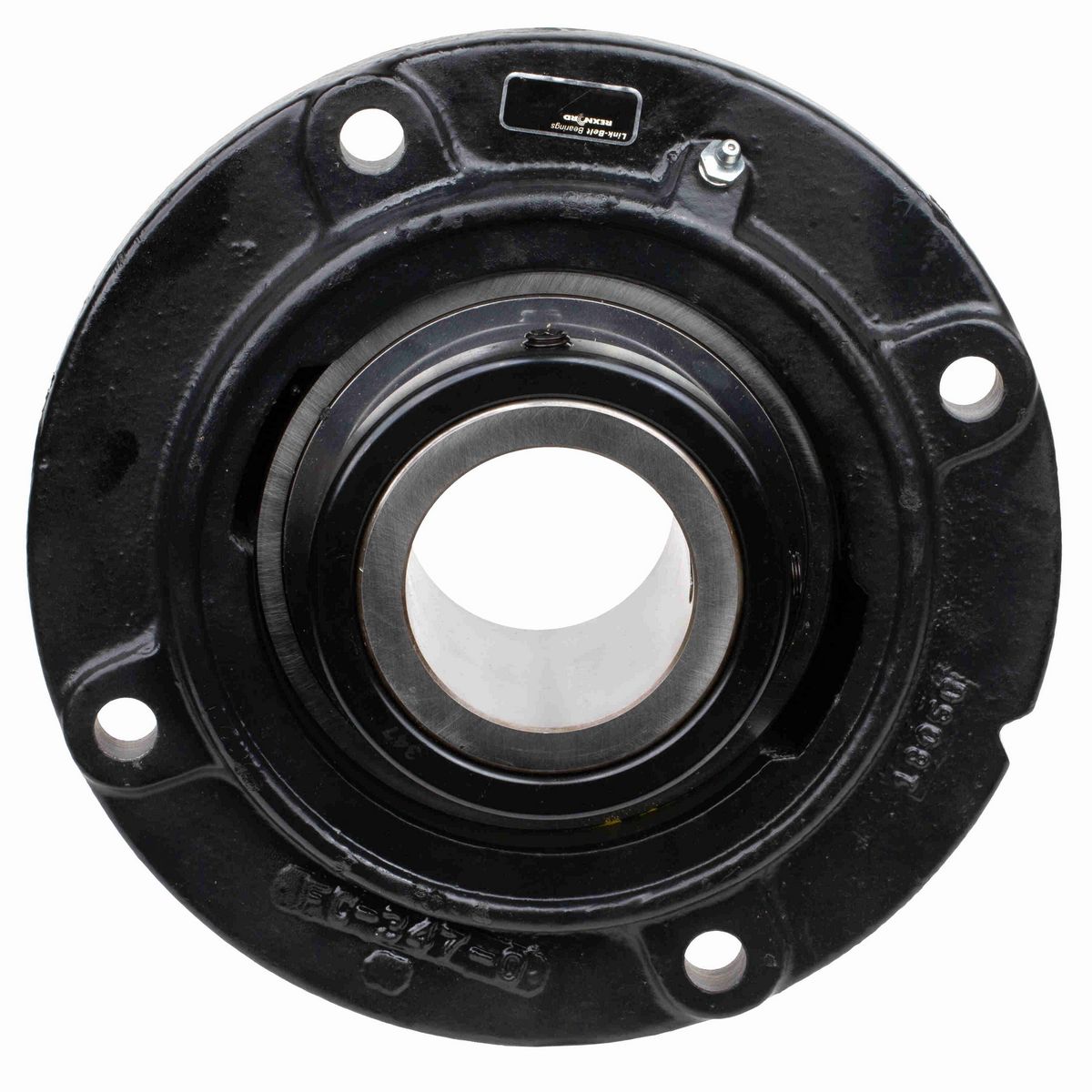

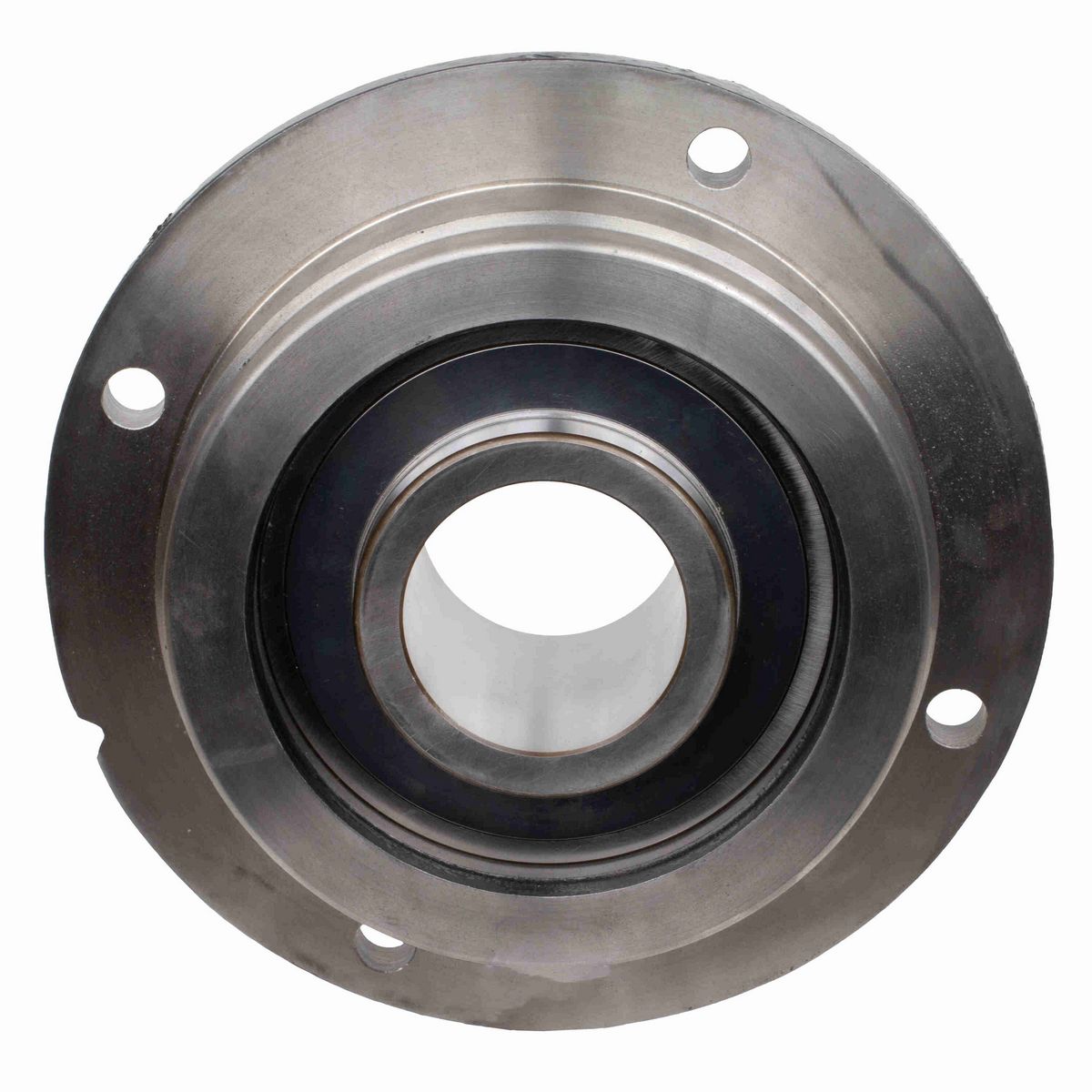

• 2 15/16" Mounted Ball Bearing, Heavy Duty, Cast Iron 4-Bolt Round Piloted Flange Cartridge Block, Setscrew Locking, Clearance Seal

Dimensions

Overall Width (in)	10.88 in
Overall Length (in)	10.88 in
Overall Height (in)	4.09 in
Pilot Diameter (in)	8.25 in
Bore Diameter (in)	2.9375 in
Length Through Bore (in)	4.094 in
Foot Height (in)	.75 in
Bolt Size (in)	5/8 in
Housing Outside Diameter (in)	10.875 in
Bolt Circle (in)	9.5 in

Technical Specifications

Bore Shape	Straight
Housing Color	Black
Housing Type	Flange Cartridge
Rolling Element	Ball Bearing
Outer Ring Land Profile	Standard
Seal Type	Labryinth Seal
Cage Material	Molded fiber glass reinforced nylon
Housing Construction	One Piece
Misalignment Type	Static Only
Housing Style	Flange Block
Pilot Configuration	Piloted
Pilot Depth (in)	1.125 in
Ability to Relubricate	Yes
Locking Collar Outside Diameter (in)	4.94 in
Setscrew Torque (in-lbs)	620-680 in/lbs
Vibration Frequency Roller Spin	0.0343 cps
Housing Material	Cast Iron
Locking Device Kit	U3475S
Housing Coating	Powder Coated
Max Operating Temperature (C)	107 °C
Dynamic Load Rating (lb)	26,140 lb
Vibration Frequency Outer Ring Defect	0.0513 cps
Misalignment Capability	±1.5° Misalignment - Static Only
Mounting Surface to End of Housing (in)	2.094 in
Grease Fitting Thread Size	1/8 NPT
Max Operating Temperature (F)	225 °F
End Cap	U3476C
Vibration Frequency Inner Ring Defect	0.0820 cps
Inner Ring Outside Diameter (in)	3.990 in
Lubricant	EXXON RONEX MP STD
Vibration Frequency Fundamental Train	0.0065 cps
Bearing Brand	LINK-BELT 300 SERIES HD BALL
Cage Type	Ball Riding Retainer
Maximum Speed (RPM)	3700 rpm
Fixed vs. Expansion	Fixed
Radial Clearance	C3 STANDARD
Size Code	347
Bearing Type	Heavy Duty
Insert	UG347L
End Cap Available	Yes
Static Load Rating (lb)	17,300 lb
Shaft Locking Type	Set Screw
Bearing Insert Material	52100 Bearing Steel

General Specifications

UPC	662327735364
Weight	37.00 LB
Packaged Length	11.00 IN
Packaged Width	5.00 IN
Packaged Height	10.75 IN
HTC	8483204040
Country of Origin	Mexico
