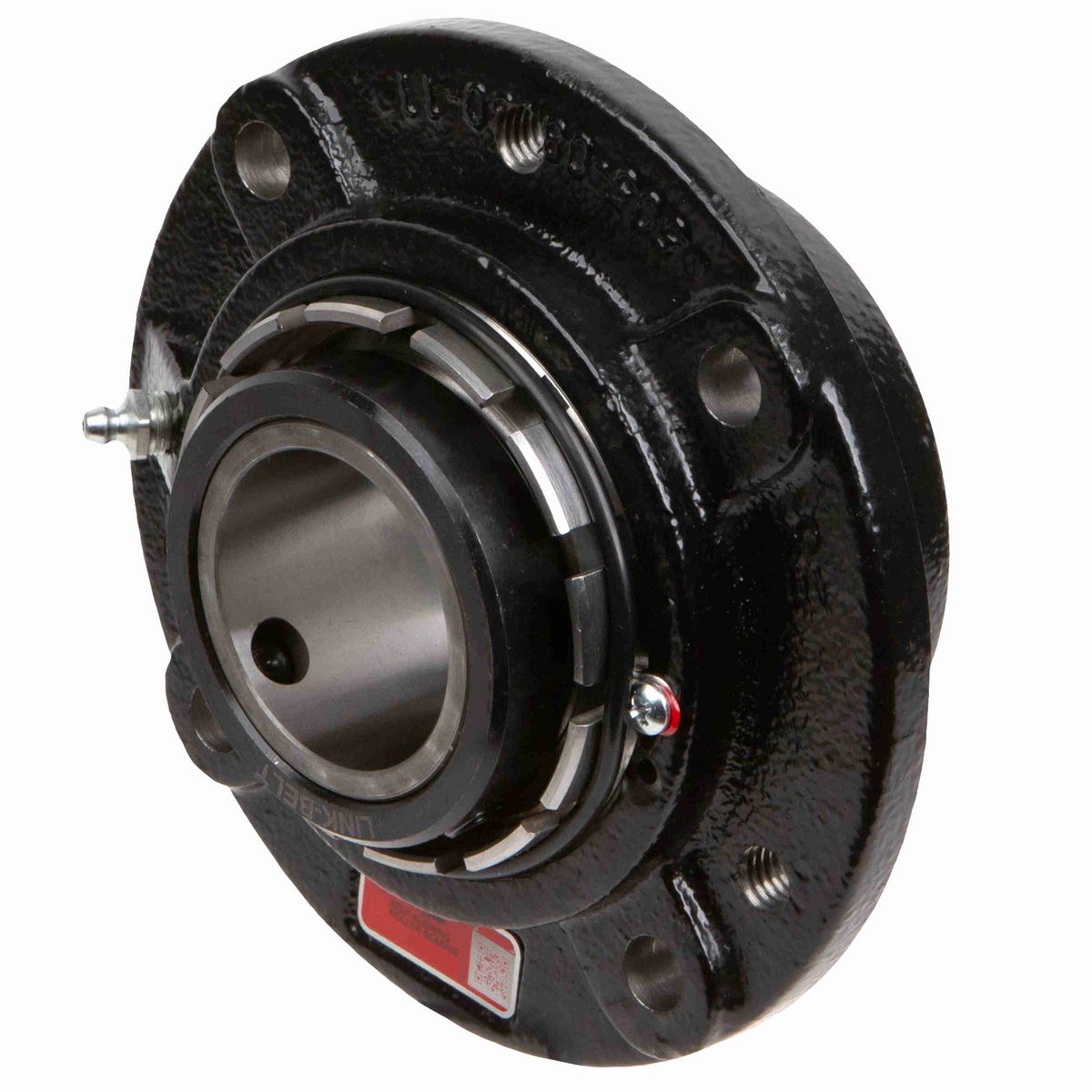

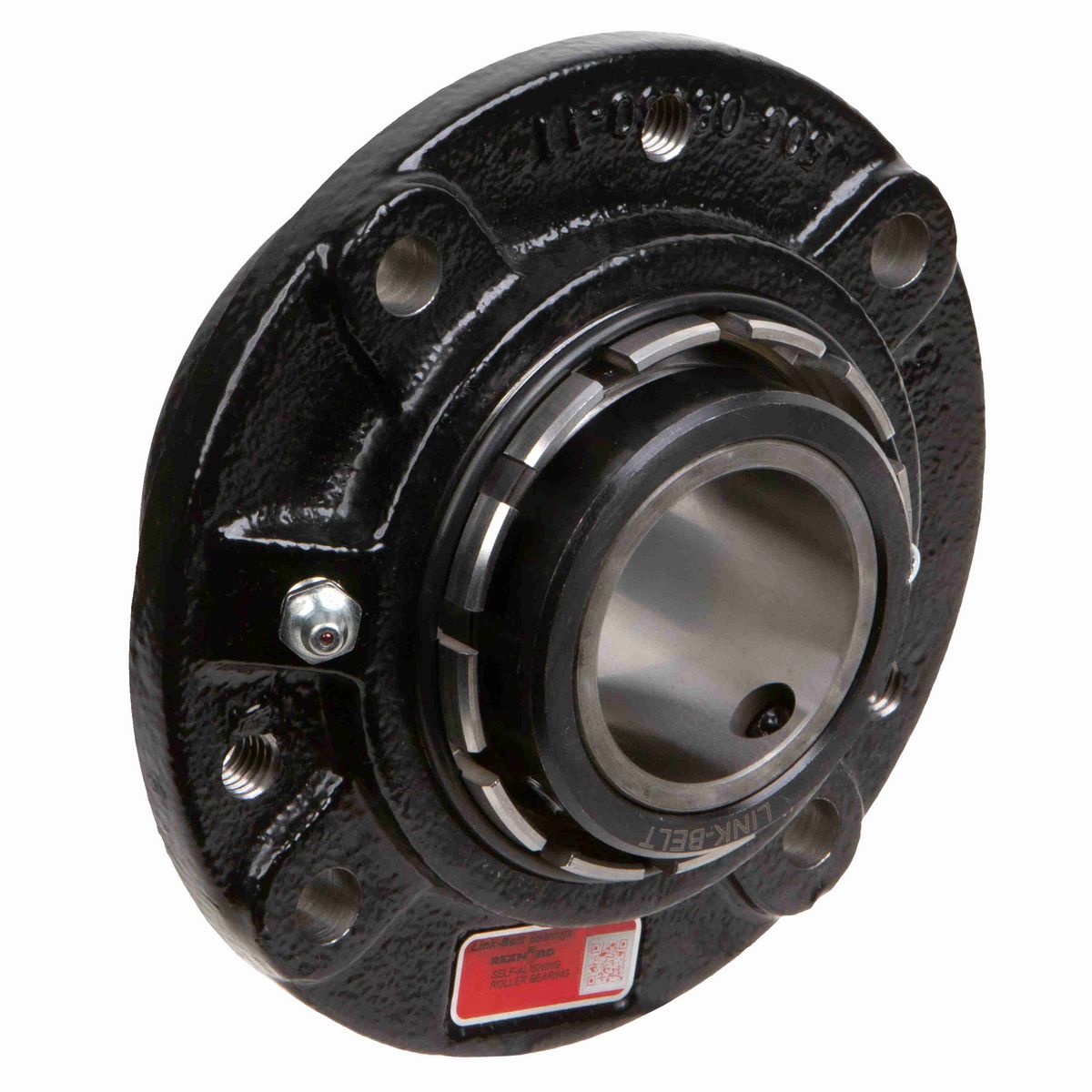

• 1 15/16" Mounted Spherical Roller Bearing, Fixed Cast Iron 4-Bolt Round Piloted Flange Block, Single Setscrew Locking Collar, Clearance Seal, Closed End Cap

Dimensions

Bolt Size (in)	7/16 in
Bore Diameter (in)	1.9375 in
Overall Length (in)	6.38 in
Foot Height (in)	0.56 in
Overall Width (in)	6.38 in
Pilot Diameter (in)	4.5 in
Overall Height to End Cap (in)	1.91 in
Overall Height (in)	3.13 in
Housing Height (in)	2.44 in
Pilot Depth (in)	0.88 in
Locking Collar Outside Diameter (in)	2.88 in
Housing Outside Diameter (in)	6.38 in
Mounting Plate to Collar Face (in)	1.56 in
Bolt Circle (in)	5.375 in
Mounting Surface to End of Housing (in)	1.56 in
Inner Ring Outside Diameter (in)	2.307 in
Bolt Spacing (in)	3.797 in
Length Through Bore (in)	3.13 in
Housing Cast Face to Outermost Bearing Face (in)	0.69 in

Technical Specifications

Radial Clearance	C0 STANDARD
Radial Dynamic Load Capacity (lb)	25,900 lb
Housing Style	Flange Block
Fixed/Expansion	Fixed
Housing Type	Flange, Cartridge
Series	Flanged Cartridge Blocks
Misalignment Type	Dynamic
End Cap	B432EC
Cage Material	Steel
Shaft Locking Type	Single Set Collar
Seal Type	Clearance Seal
Housing Construction	Solid
Rolling Element	Spherical Roller
Housing Material	Cast Iron
Product	FCB22400
Housing Color	Black
Static Load Rating (lb)	33,200 lb
Available Seal Type	E Lip Seal; H Labyrinth Seal; E7 Triple Lip Seal
Maximum Speed (RPM)	2800 rpm
Seal Kit	B432HS
Setscrew Torque (in-lbs)	325 in/lbs
Bolt Hole Shape	Round Hole
Ability to Relubricate	Yes
Vibration Frequency Inner Ring Defect	0.1617 cps
Misalignment Capability	±2.0° Misalignment - Dynamic
Grease Fitting Thread Size	1/8 NPT
Auxiliary Seals	1 LB STYLE CLOSED CAP STEEL
Vibration Frequency Fundamental Train	0.0072 cps
Locking Device Kit	B432SC
Housing Coating	POWDER COATED
Vibration Frequency Roller Spin	0.0559 cps
Vibration Frequency Outer Ring Defect	0.1217 cps
Primary Seal	STEEL CLEARANCE SEAL
Size Code	B432
Insert	B431L
Max Operating Temperature (F)	225 °F
Lubricant	EXXON RONEX MP STD
Max Operating Temperature (C)	107 °C

General Specifications

UPC	662327027377
Weight	10.00 LB
Packaged Length	6.50 IN
Packaged Width	3.13 IN
Packaged Height	6.50 IN
HTC	8483204080
Country of Origin	Mexico
