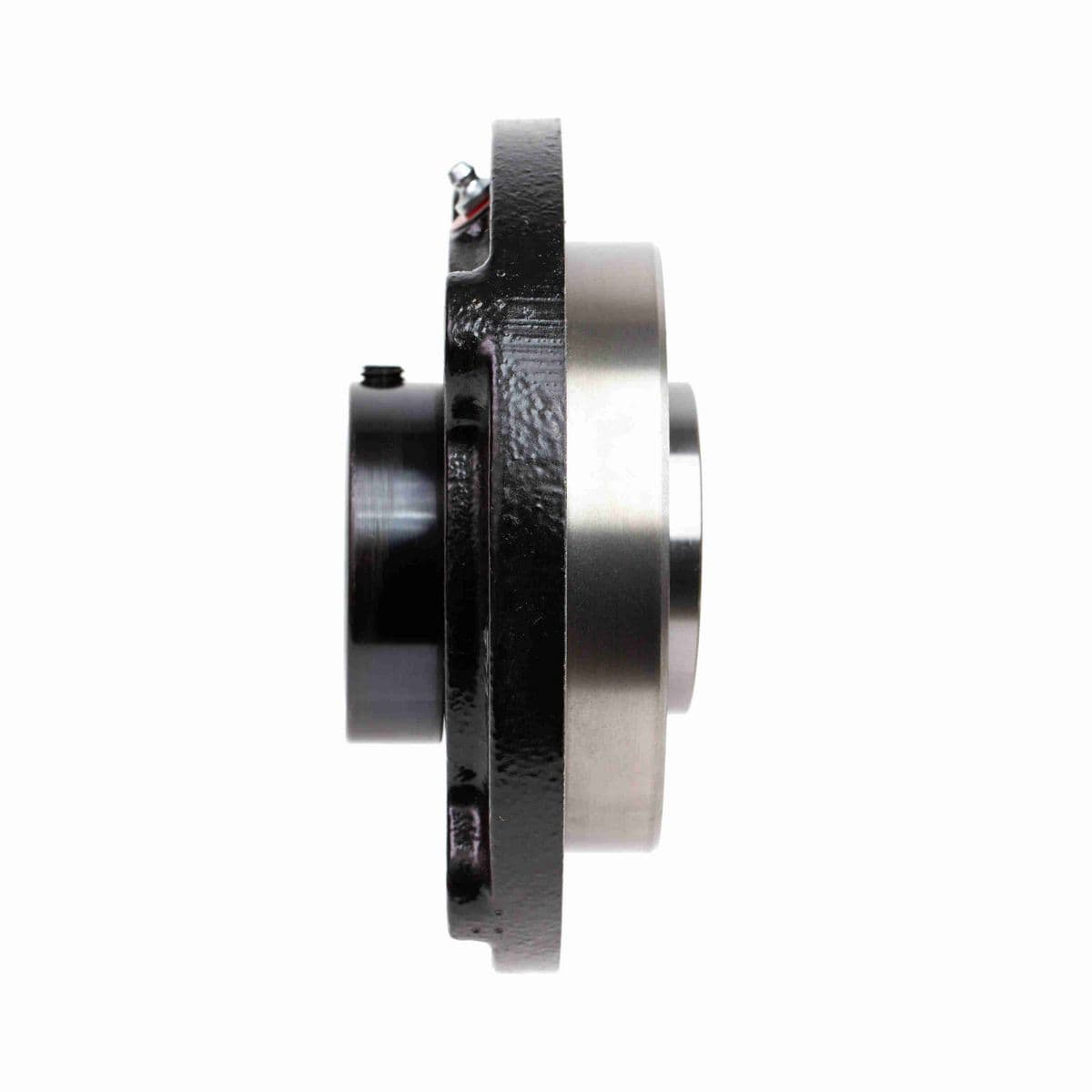

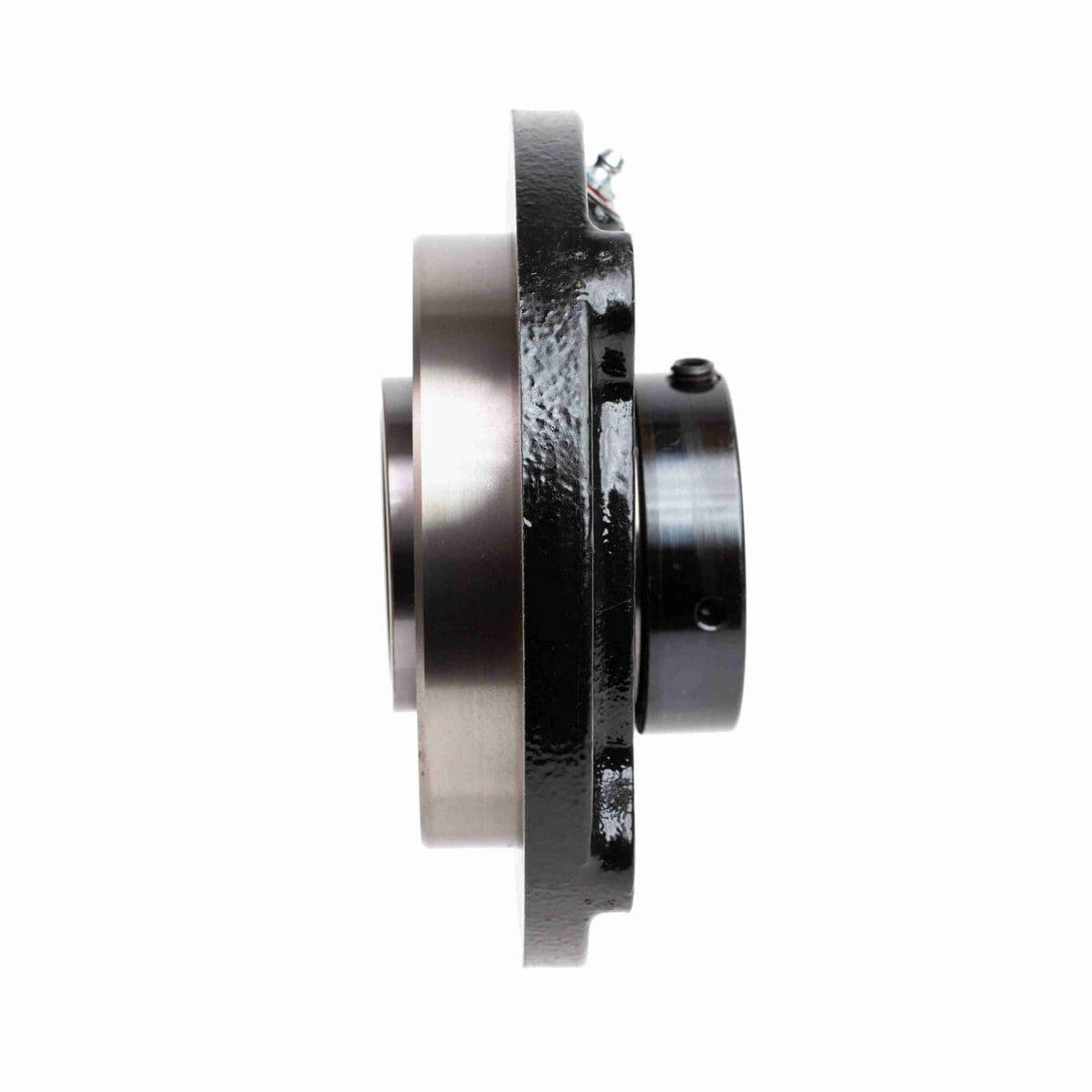

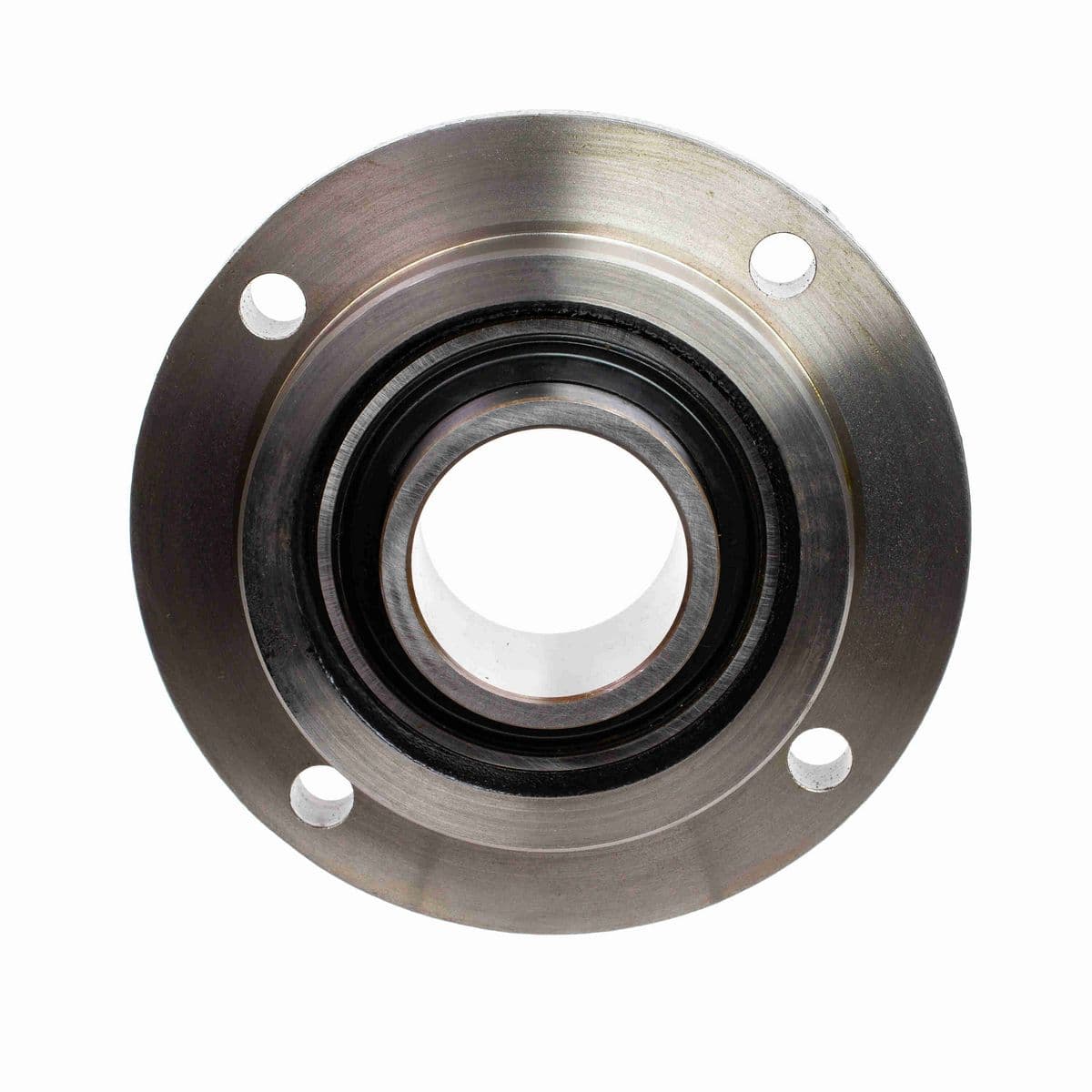

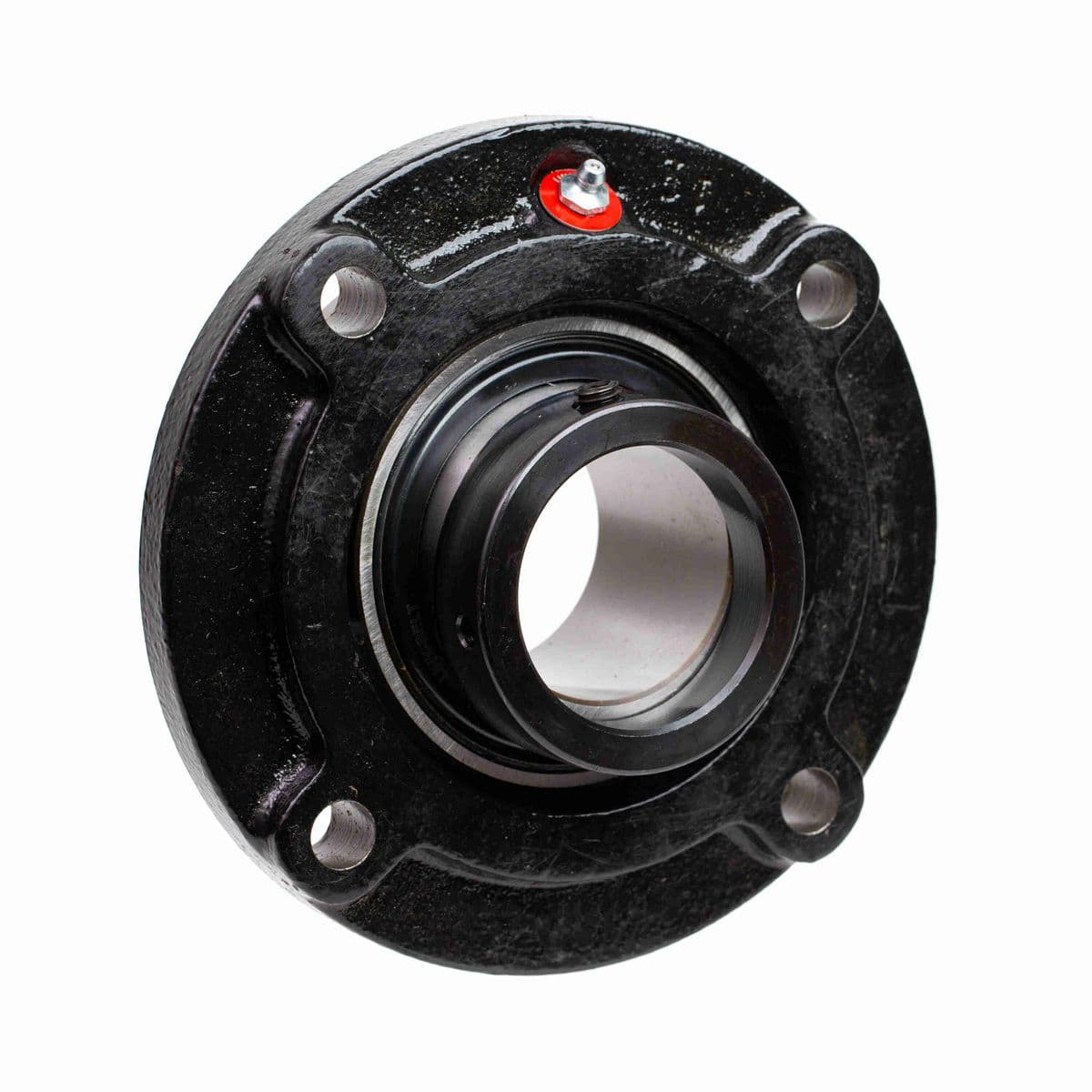

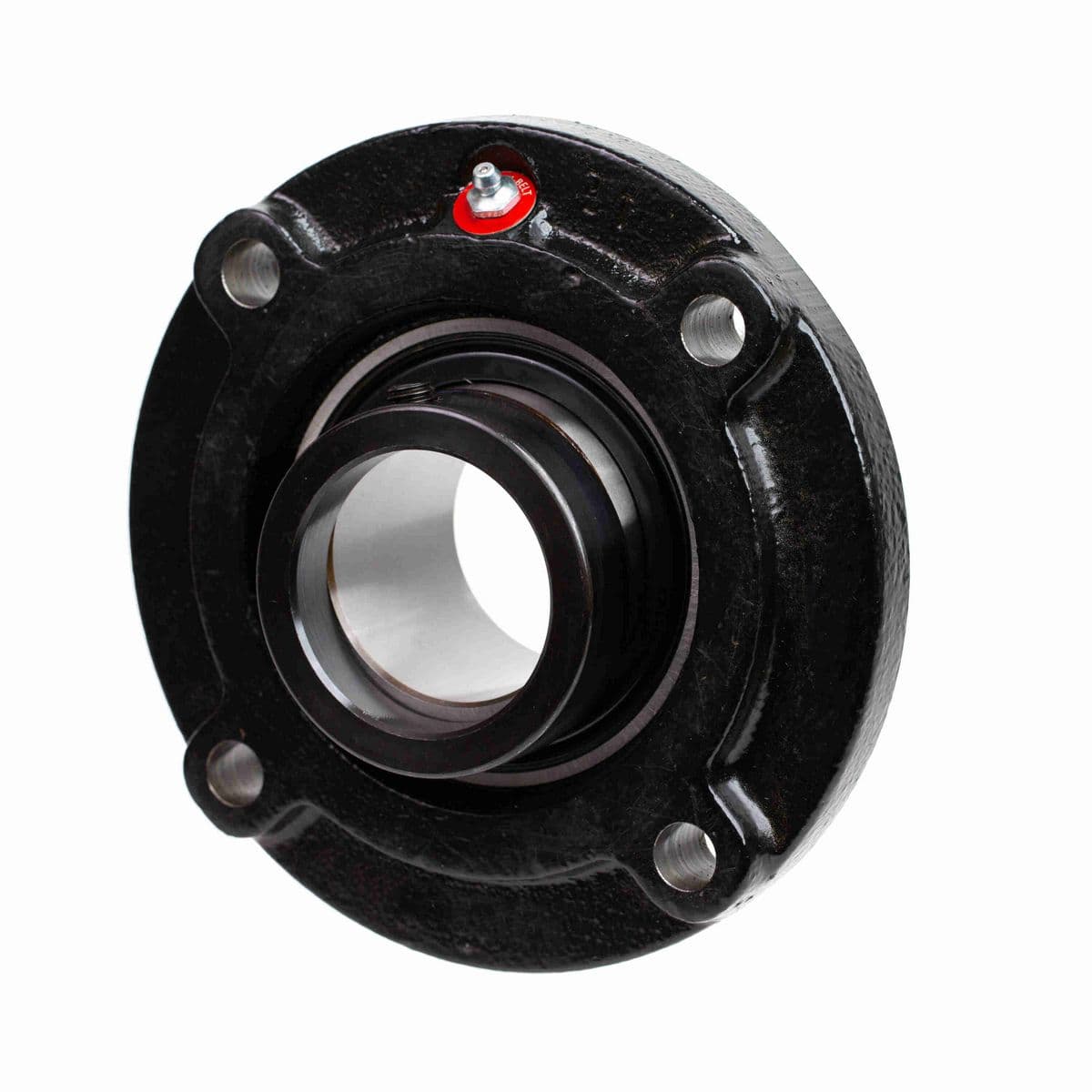

• 1 15/16" Mounted Ball Bearing, Standard Duty, Cast Iron 4-Bolt Round Piloted Flange Block, Eccentric Cam Locking Collar, Single Lip Contact Seal

Dimensions

Bore Diameter (in)	1.9375 in
Pilot Diameter (in)	4.500 in
Overall Length (in)	6.38 in
Overall Width (in)	6.38 in
Overall Height (in)	2.5 in
Bolt Size (in)	1/2 in
Length Through Bore (in)	2.47 in
Foot Height (in)	1.2 in
Housing Outside Diameter (in)	6.38 in
Bolt Circle (in)	5.375 in

Technical Specifications

Housing Type	Flange Cartridge
Bore Shape	Straight
Seal Type	Single Lip Contact Seal
Housing Color	Black
Rolling Element	Ball Bearing
Pilot Configuration	Piloted
Housing Construction	One Piece
Misalignment Type	Static Only
Cage Material	Molded fiber glass reinforced nylon
Housing Style	Flange Block
Outer Ring Land Profile	Standard
Locking Collar Outside Diameter (in)	2.69 in
Ability to Relubricate	Yes
Setscrew Torque (in-lbs)	290-325 in/lbs
Pilot Depth (in)	0.63 in
Vibration Frequency Outer Ring Defect	0.0682 cps
Vibration Frequency Inner Ring Defect	0.0985 cps
Max Operating Temperature (C)	107 °C
Dynamic Load Rating (lb)	7,920 lb
Housing Material	Cast Iron
Vibration Frequency Roller Spin	0.0445 cps
Maximum Speed (RPM)	4800 rpm
Fixed vs. Expansion	Fixed
Bearing Type	Standard Duty
End Cap	Y2316N
Shaft Locking Type	Eccentric
End Cap Available	Yes
Insert	YG231NL
Bearing Brand	LINK-BELT 200 SERIES BALL
Radial Clearance	C3 STANDARD
Size Code	210
Cage Type	Ball Riding Retainer
Misalignment Capability	±1.5° Misalignment - Static Only
Bearing Insert Material	52100 Bearing Steel
Static Load Rating (lb)	5,220 lb
Locking Device Kit	W2315S
Max Operating Temperature (F)	225 °F
Inner Ring Outside Diameter (in)	2.478 in
Vibration Frequency Fundamental Train	0.0068 cps
Lubricant	EXXON RONEX MP STD
Grease Fitting Thread Size	1/8 NPT
Housing Coating	Powder Coated

General Specifications

UPC	662327028992
Weight	7.53 LB
Packaged Length	6.50 IN
Packaged Width	3.13 IN
Packaged Height	6.50 IN
HTC	8483204040
Country of Origin	Mexico
