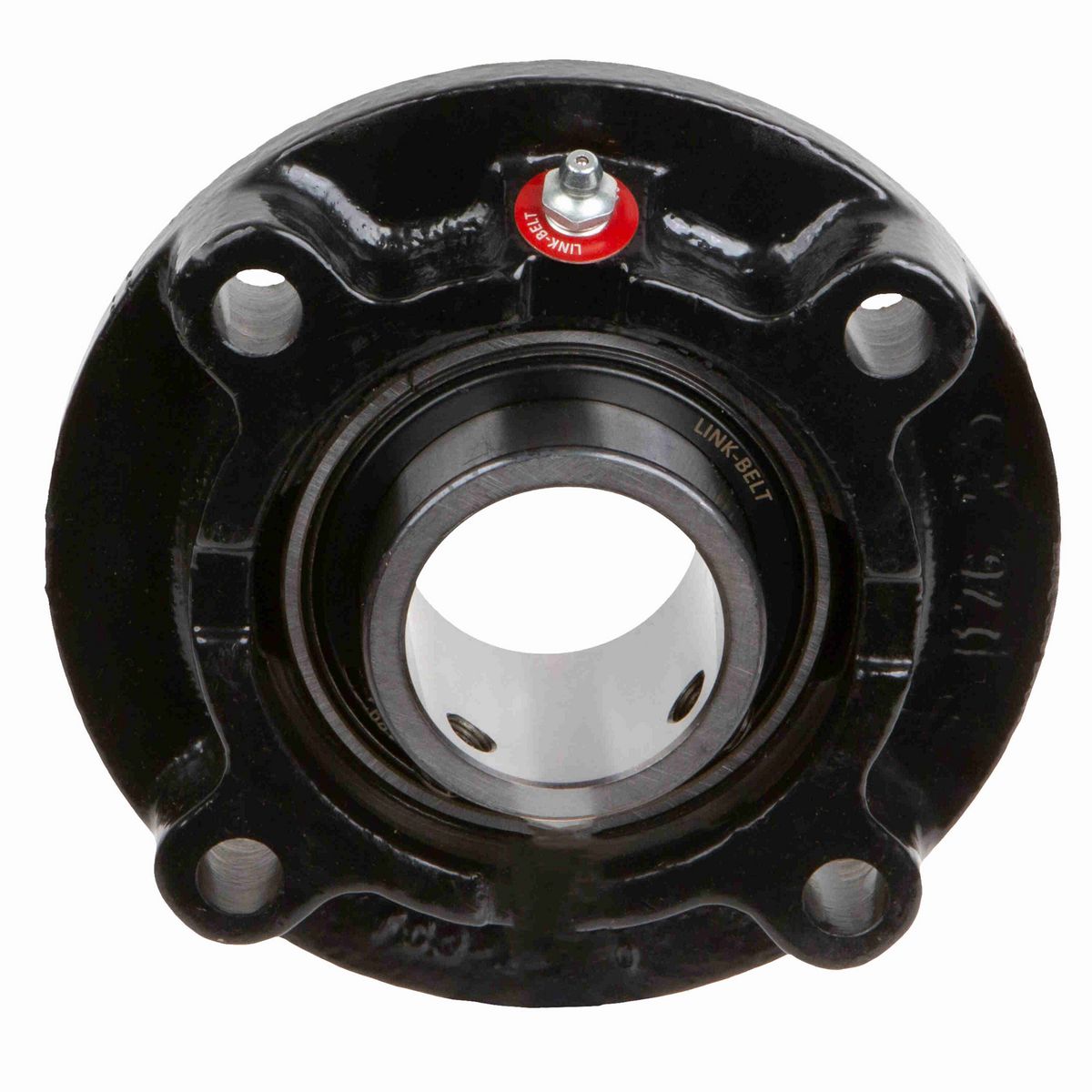

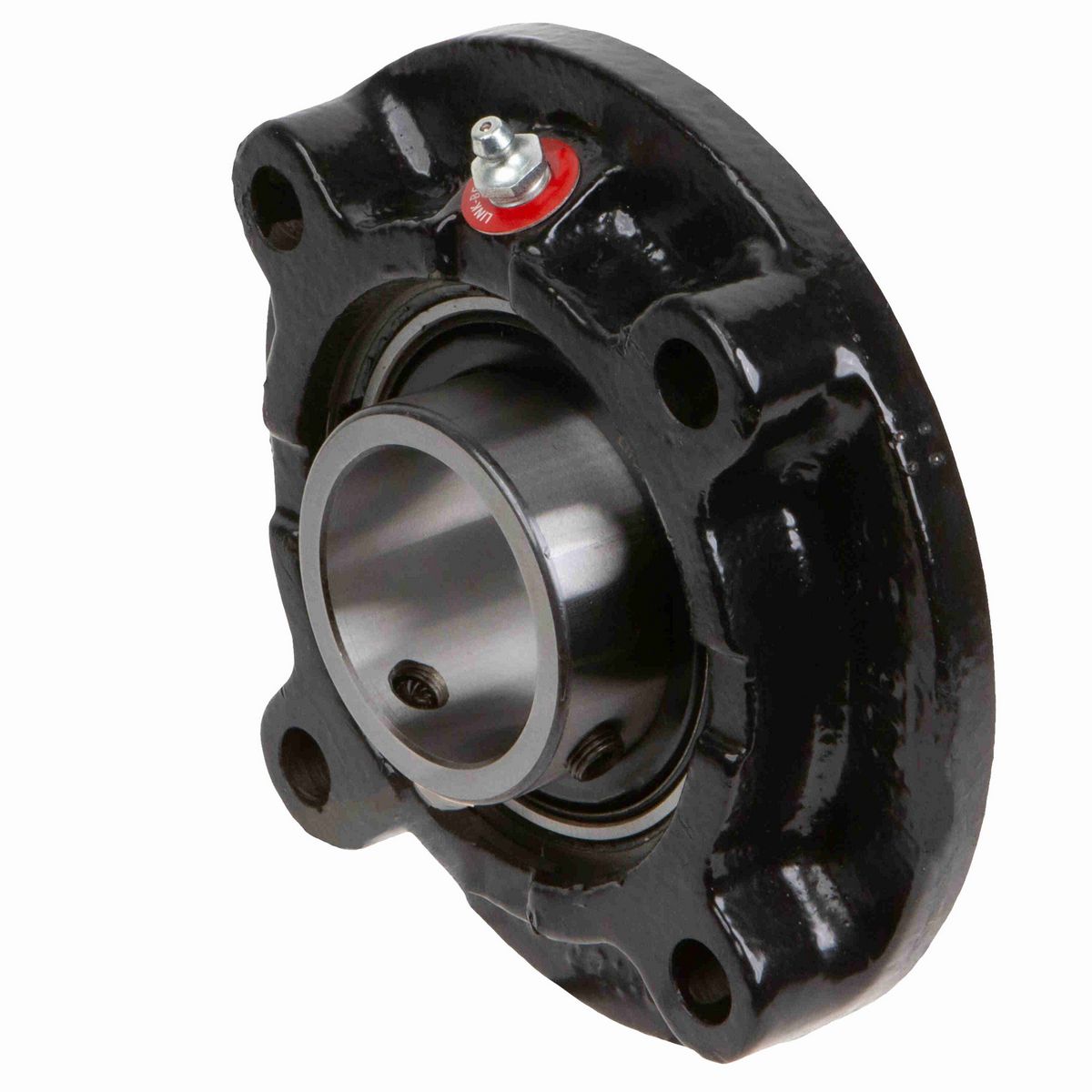

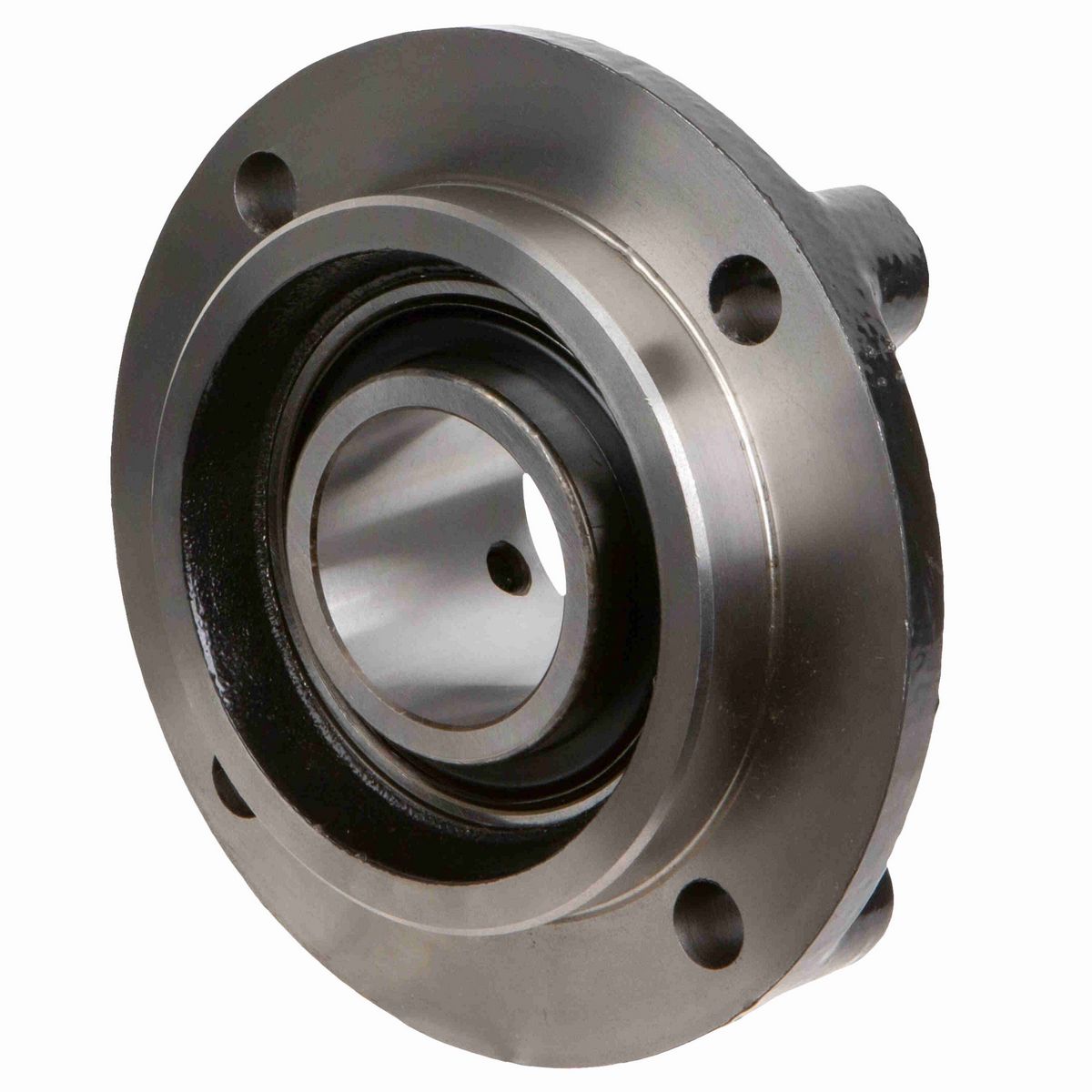

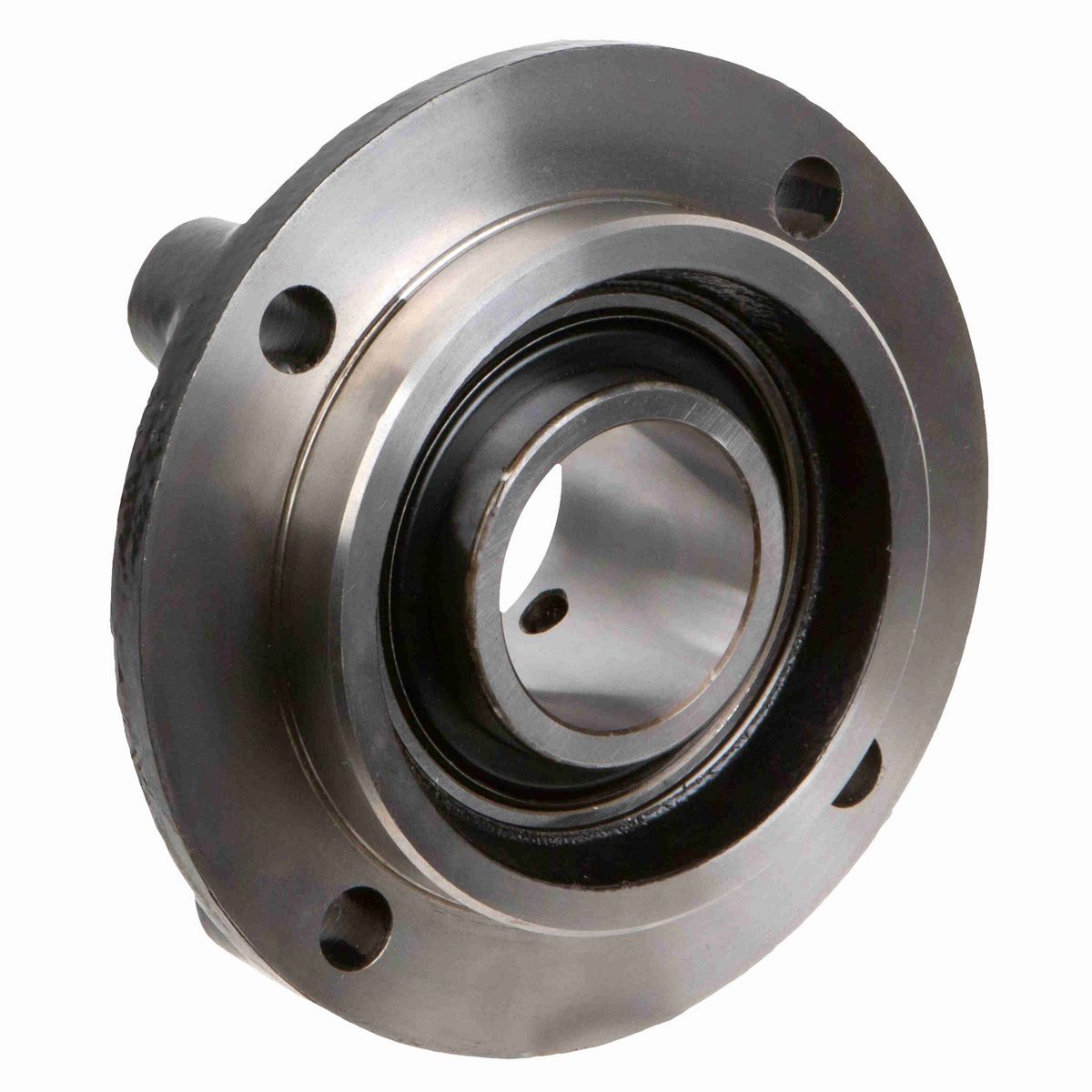

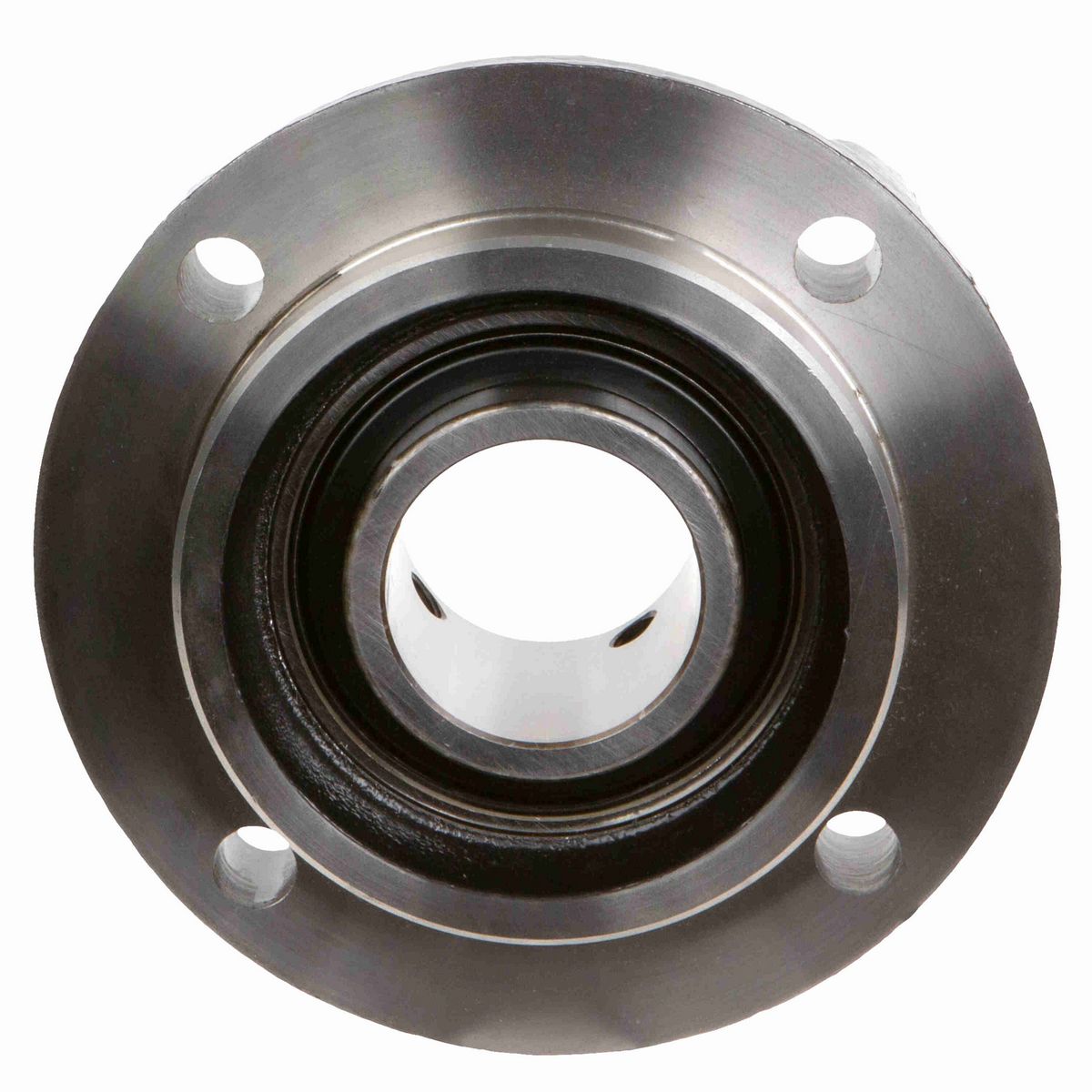

• 1 15/16" Mounted Ball Bearing, Standard Duty, Cast Iron 4-Bolt Round Piloted Flange Block, Setscrew Locking, Single Lip Contact Seal, End closure

Dimensions

Overall Width (in)	6.38 in
Foot Height (in)	1.2 in
Pilot Diameter (in)	4.500 in
Bolt Size (in)	1/2 in
Overall Length (in)	6.38 in
Bore Diameter (in)	1.9375 in
Length Through Bore (in)	2.098 in
Overall Height to End Cap (in)	2.88 in
Overall Height (in)	2.27 in
Housing Outside Diameter (in)	6.38 in
Bolt Circle (in)	5.375 in

Technical Specifications

Outer Ring Land Profile	Standard
Housing Color	Black
Housing Style	Flange Block
Rolling Element	Ball Bearing
Housing Type	Flange Cartridge
Housing Construction	One Piece
Bore Shape	Straight
Pilot Configuration	Piloted
Misalignment Type	Static Only
Seal Type	Single Lip Contact Seal
Cage Material	Molded fiber glass reinforced nylon
Setscrew Torque (in-lbs)	165 in/lbs
Pilot Depth (in)	0.63 in
Ability to Relubricate	Yes
Vibration Frequency Outer Ring Defect	0.0682 cps
Vibration Frequency Inner Ring Defect	0.0985 cps
Lubricant	EXXON RONEX MP STD
Dynamic Load Rating (lb)	7,920 lb
Bearing Type	Standard Duty
Cage Type	Ball Riding Retainer
Insert	UG231NL
Bearing Insert Material	52100 Bearing Steel
Vibration Frequency Roller Spin	0.0445 cps
Static Load Rating (lb)	5,220 lb
Vibration Frequency Fundamental Train	0.0068 cps
End Cap Available	Yes
Max Operating Temperature (F)	225 °F
Grease Fitting Thread Size	1/8 NPT
Shaft Locking Type	Set Screw
Misalignment Capability	±1.5° Misalignment - Static Only
Inner Ring Outside Diameter (in)	2.478 in
Radial Clearance	C3 STANDARD
Housing Material	Cast Iron
Housing Coating	Powder Coated
Bearing Brand	LINK-BELT 200 SERIES BALL
Maximum Speed (RPM)	4800 rpm
End Cap	Y2316N
Size Code	210
Fixed vs. Expansion	Fixed
Max Operating Temperature (C)	107 °C

General Specifications

UPC	662327028756
Weight	7.50 LB
Packaged Length	6.63 IN
Packaged Width	3.75 IN
Packaged Height	6.63 IN
HTC	8483204040
Country of Origin	Mexico
