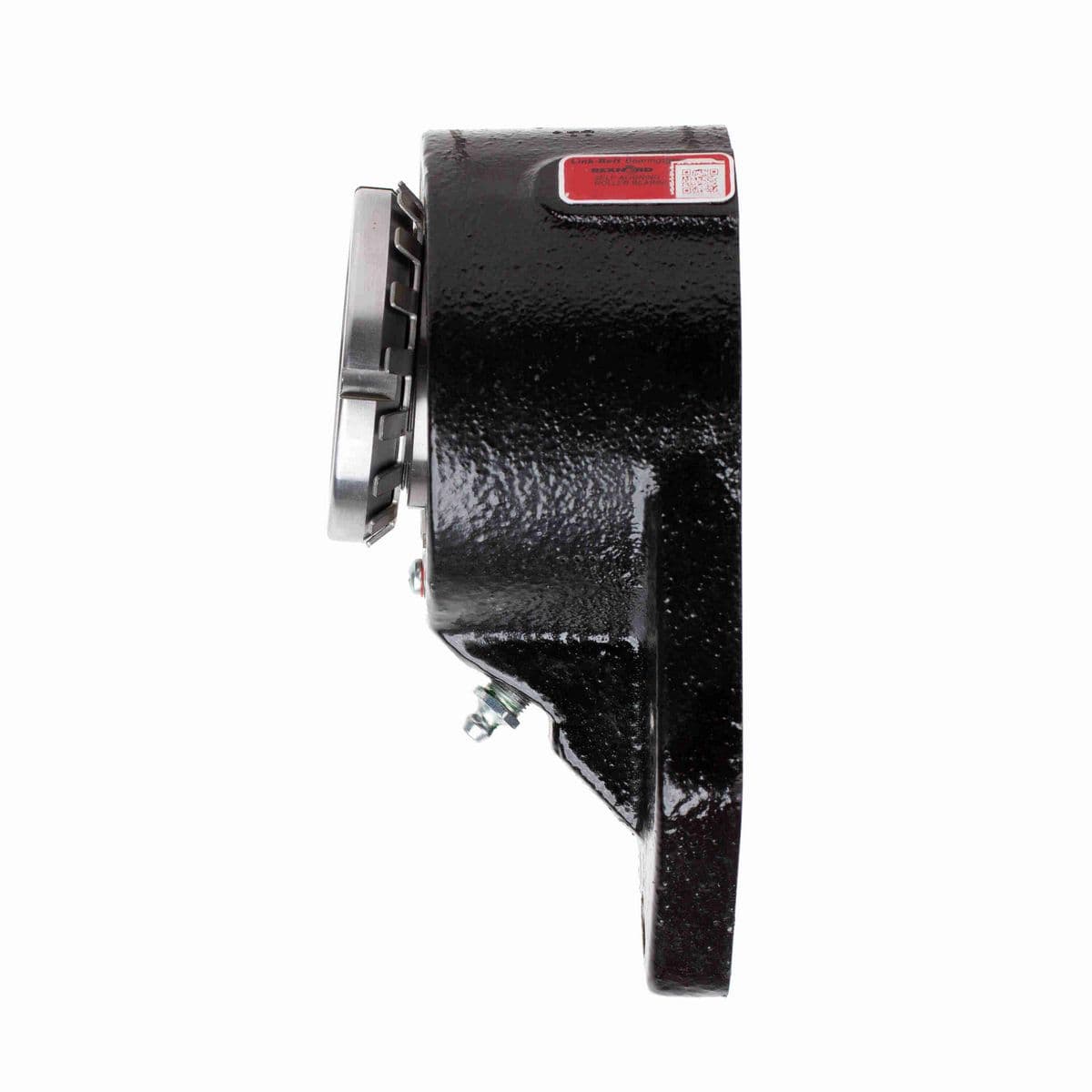

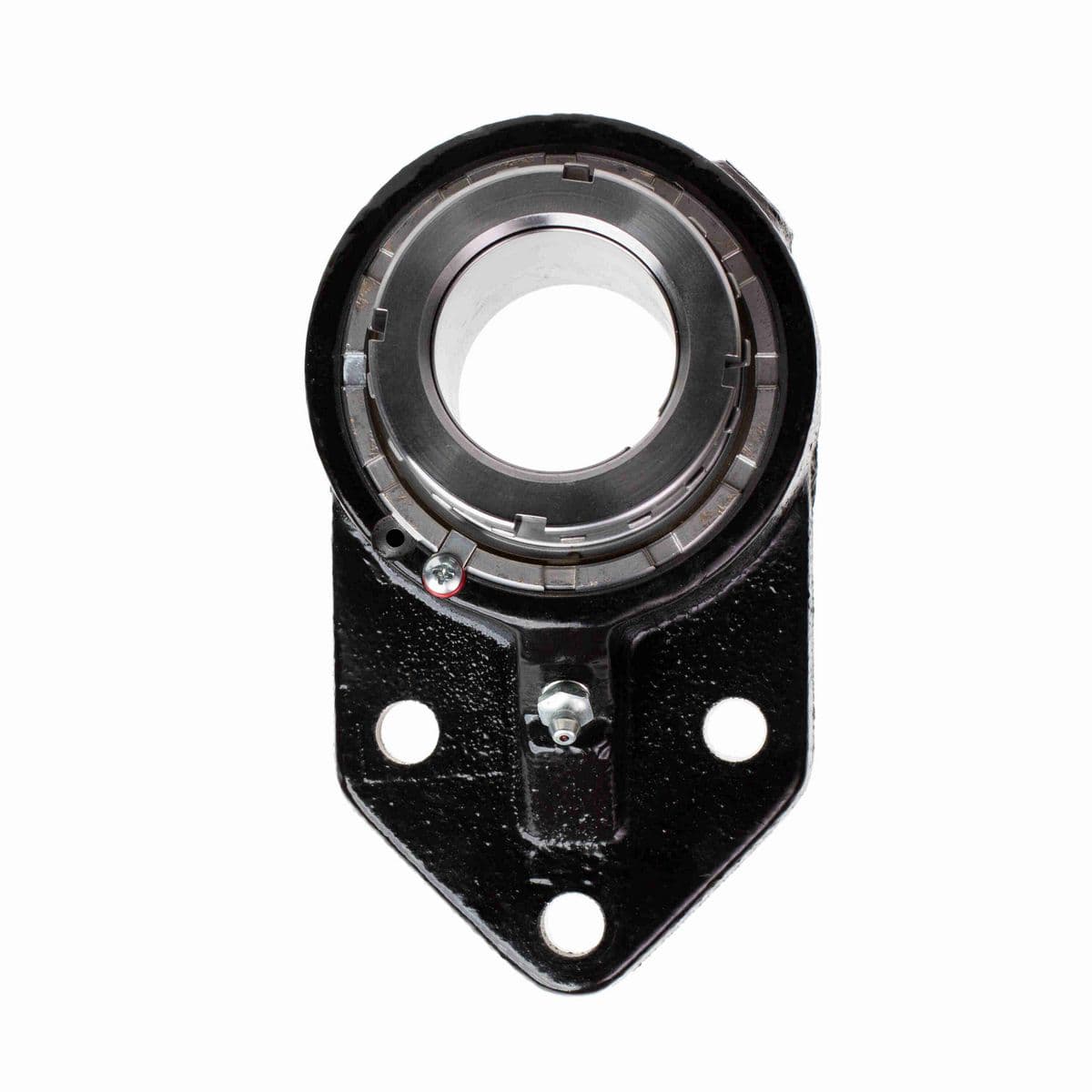

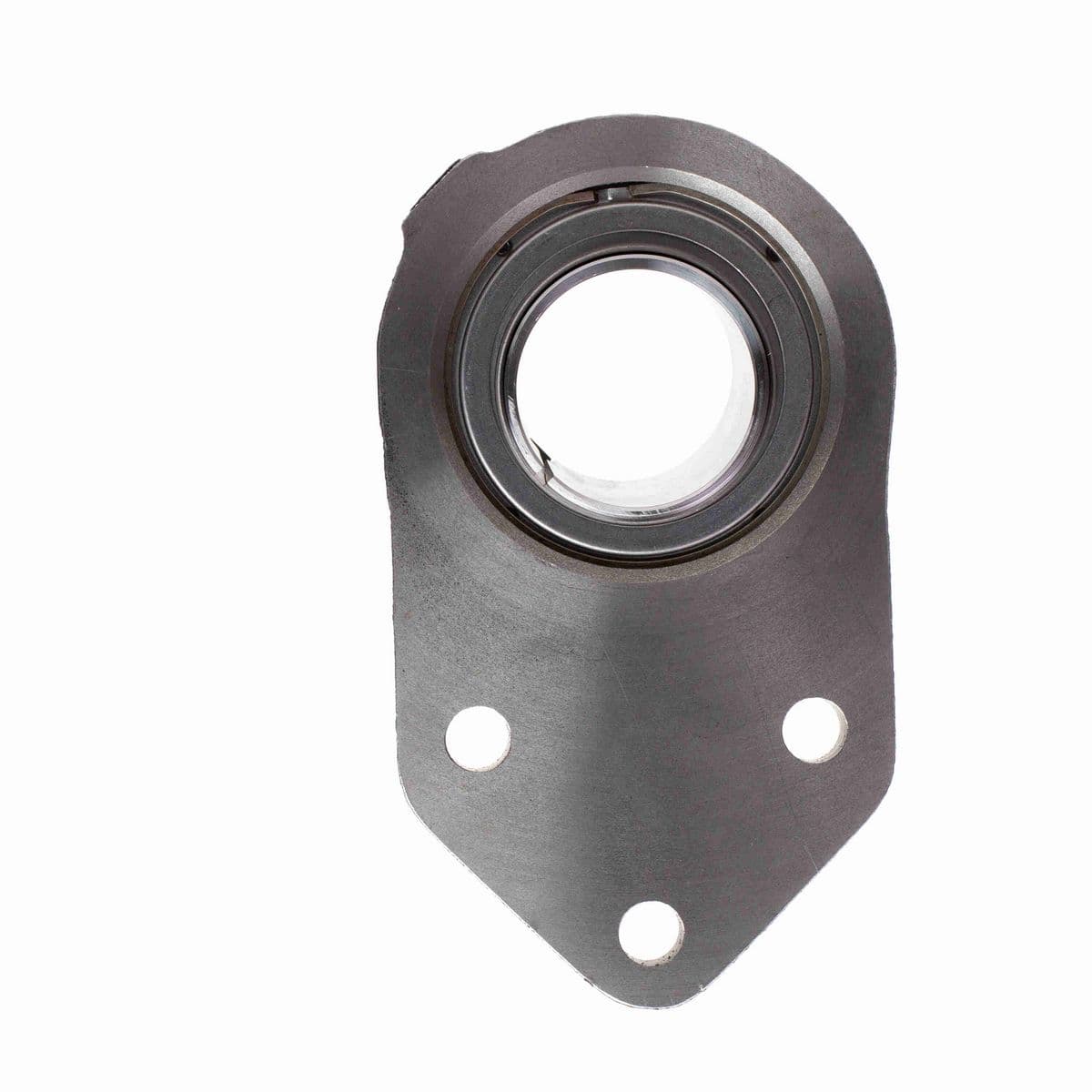

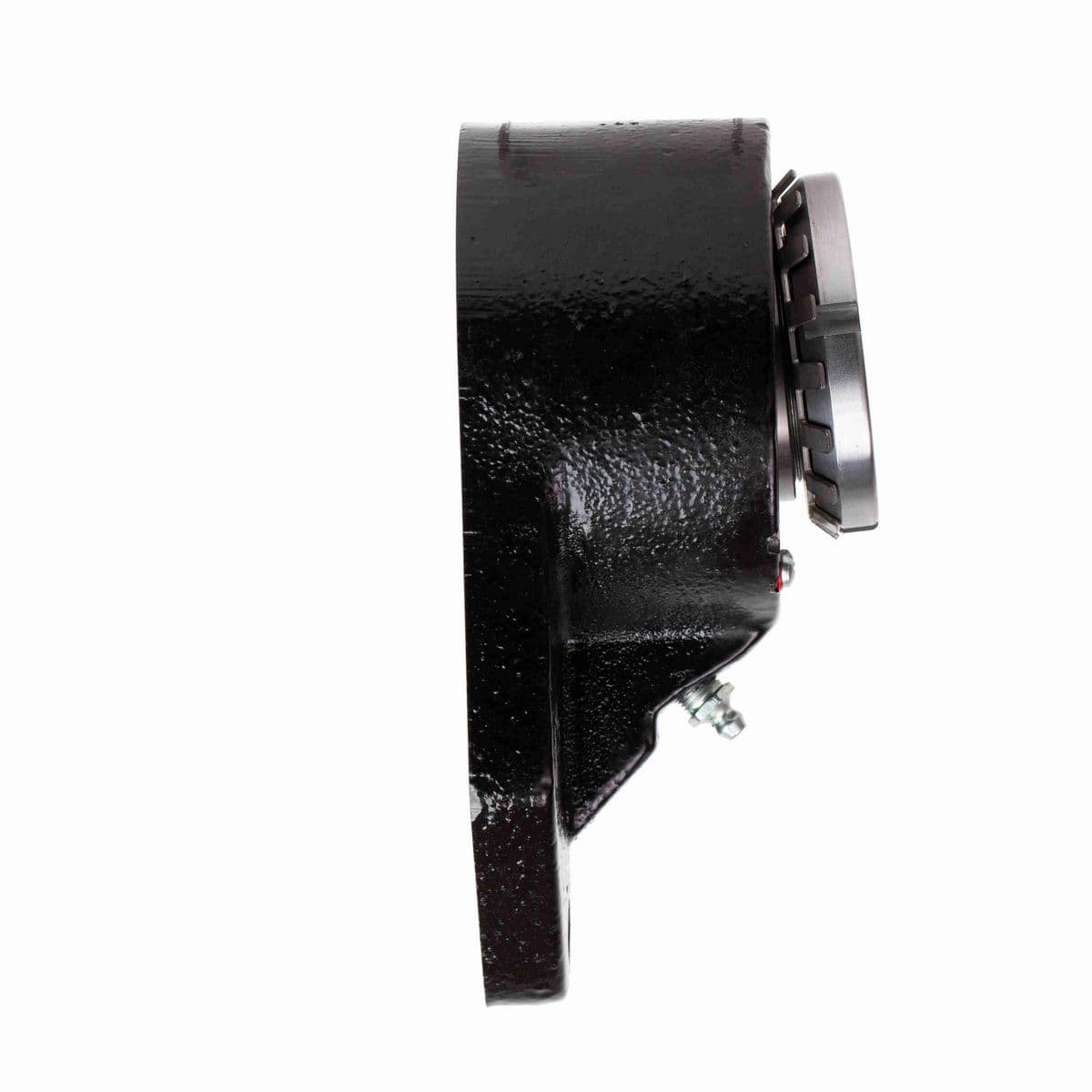

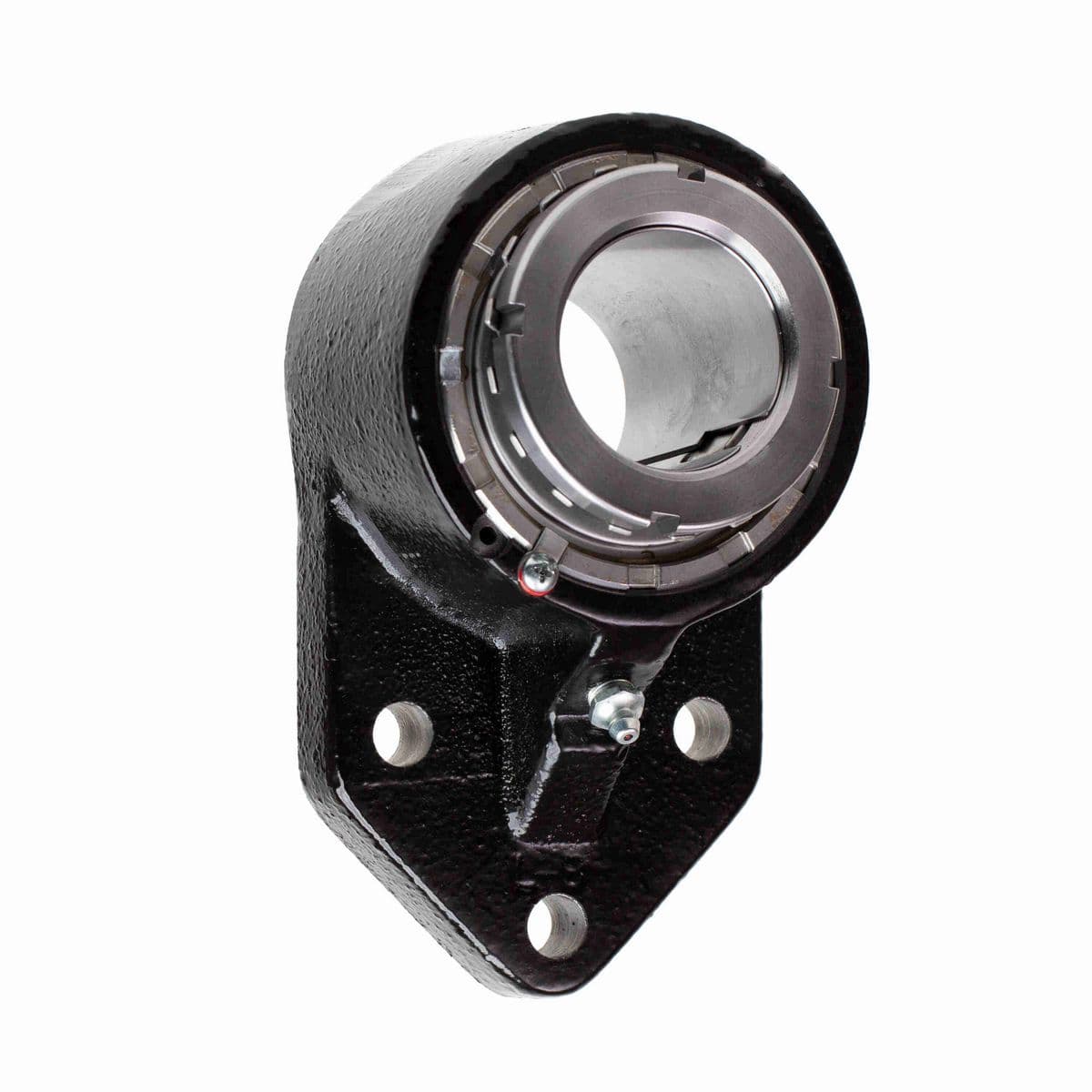

• 1-7/16" Mounted Spherical Roller Bearing, Fixed Cast Iron Flange Bracket Block, Adapter mounted, Clearance Seal

Dimensions

Overall Width (in)	2.75 in
Foot Height (in)	0.63 in
Overall Length (in)	5.97 in
Bore Diameter (in)	1.4375 in
Overall Height (in)	3.44 in
Bolt Size (in)	1/2 in
Housing Width (in)	3.25 in
Base to Center Height (in)	4.25 in
Housing Outside Diameter (in)	3.44 in
Locking Collar Outside Diameter (in)	2.25 in
Inner Ring Outside Diameter (in)	1.745 in
Length Through Bore (in)	2.71 in
Centerline to Bolt Hole Center (in)	2.38 in
Bolt Spacing Width (in)	2 in
Bolt Spacing (in)	1.25 in

Technical Specifications

Seal Type	Clearance Seal
Housing Construction	Solid
Housing Material	Ductile Iron
Radial Clearance	C0 STANDARD
Rolling Element	Spherical
Radial Dynamic Load Capacity (lb)	17,800 lb
Product	FBB22600
Housing Color	Black
Misalignment Type	Dynamic
Static Load Rating (lb)	20,900 lb
Series	Flange Blocks
Cage Material	Steel
Shaft Locking Type	Adapter Mount
Housing Style	Flange Block
Housing Type	Flange, Bracket, Three Bolt
End Cap	B424DTC
Fixed/Expansion	Fixed
Microlock Kit	B436MLK
Seal Kit	B424HS
Available Seal Type	E Lip Seal; H Labyrinth Seal; E7 Triple Lip Seal
Bolt Hole Shape	Round Hole
Maximum Speed (RPM)	3600 rpm
Ability to Relubricate	Yes
Shaft Locking Collar Kit/Adapter Assembly	SNW623
Housing Coating	POWDER COATED
Vibration Frequency Inner Ring Defect	0.1445 cps
Insert	B623L
Lubricant	EXXON RONEX MP STD
Locking Device Kit	SNW623
Size Code	B624
Vibration Frequency Fundamental Train	0.007 cps
Vibration Frequency Roller Spin	0.0499 cps
Vibration Frequency Outer Ring Defect	0.1055 cps
Misalignment Capability	±2.0° Misalignment - Dynamic
Grease Fitting Thread Size	1/8 NPT
Max Operating Temperature (C)	107 °C
Max Operating Temperature (F)	225 °F

General Specifications

UPC	793699501612
Weight	6.40 LB
Packaged Length	5.75 IN
Packaged Width	5.75 IN
Packaged Height	2.25 IN
