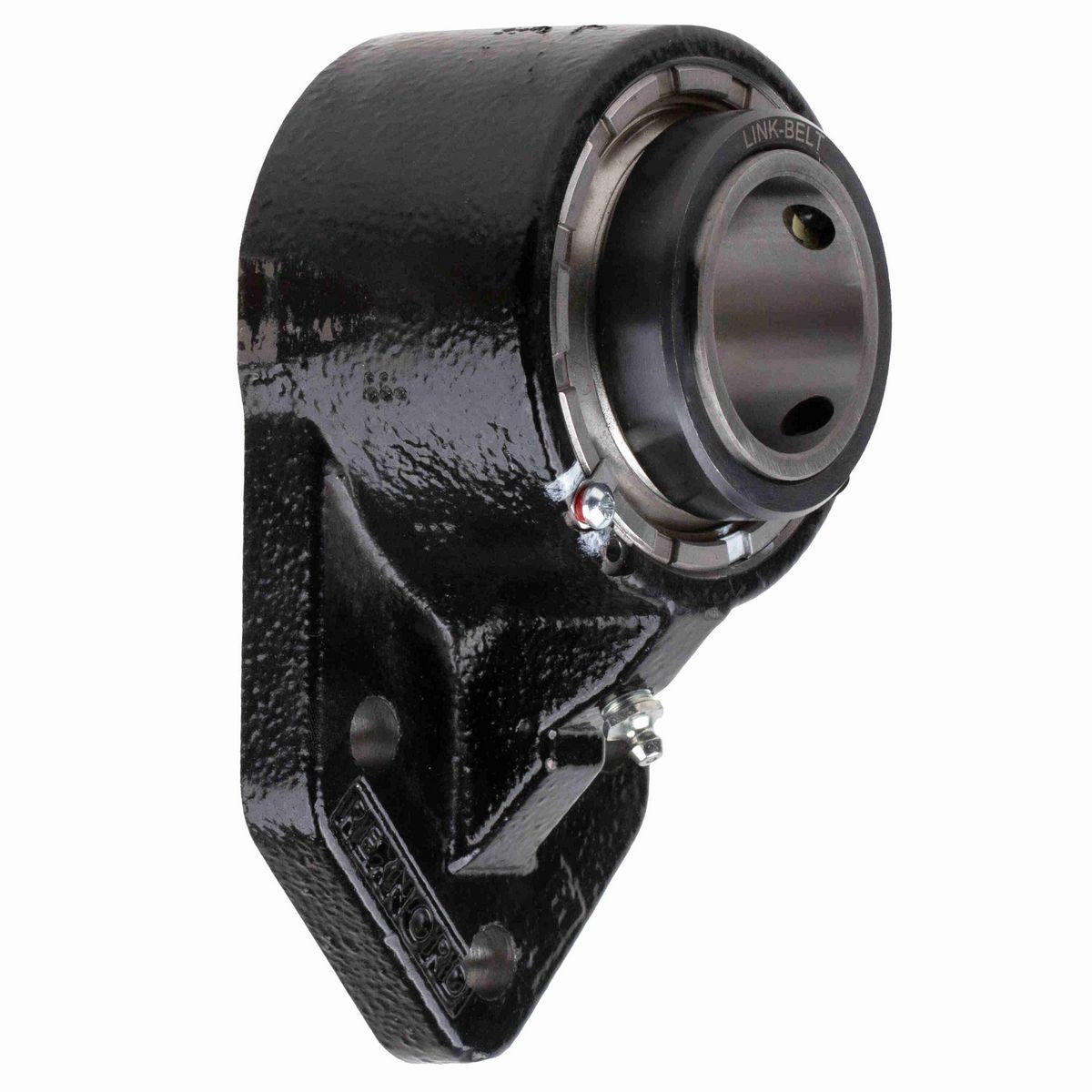

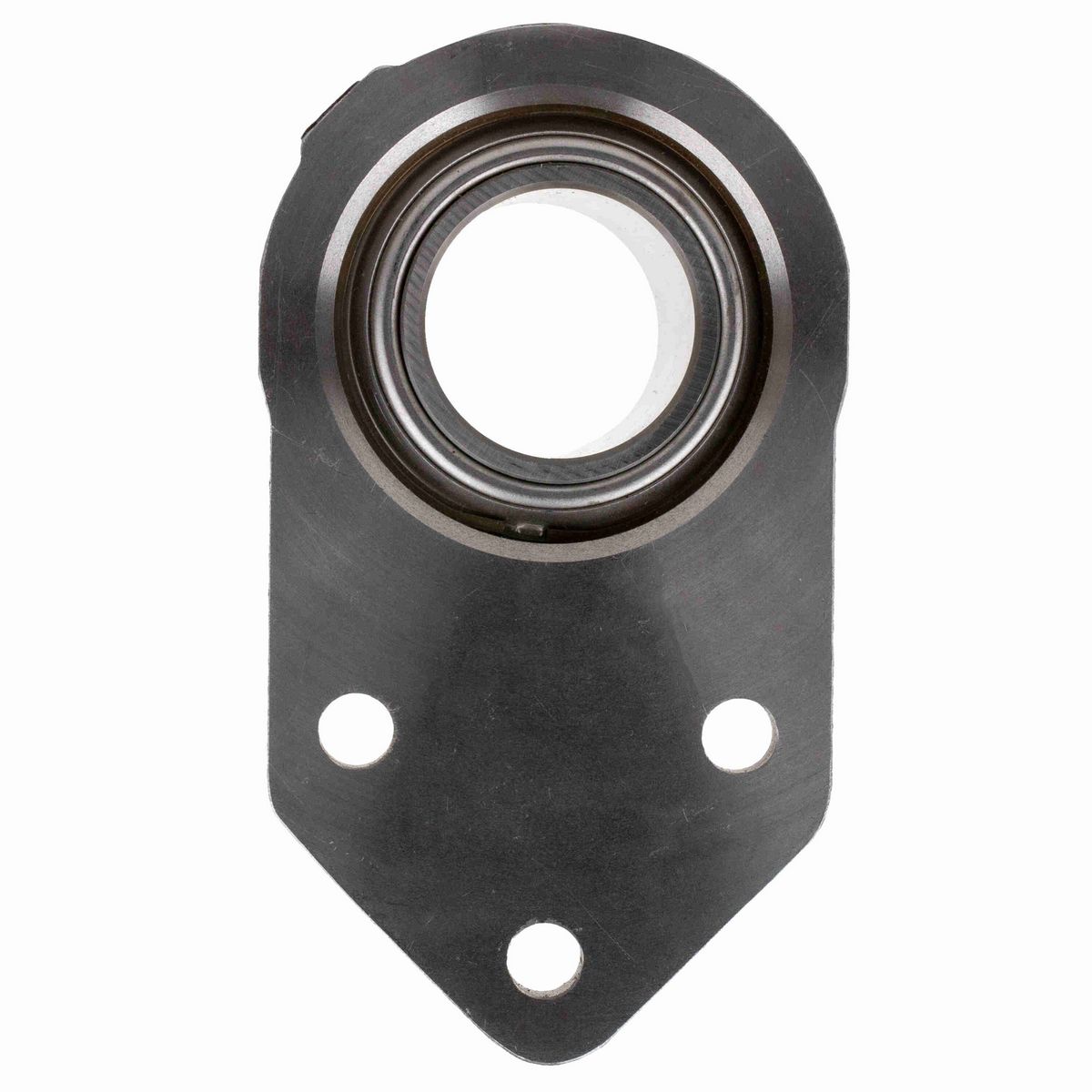

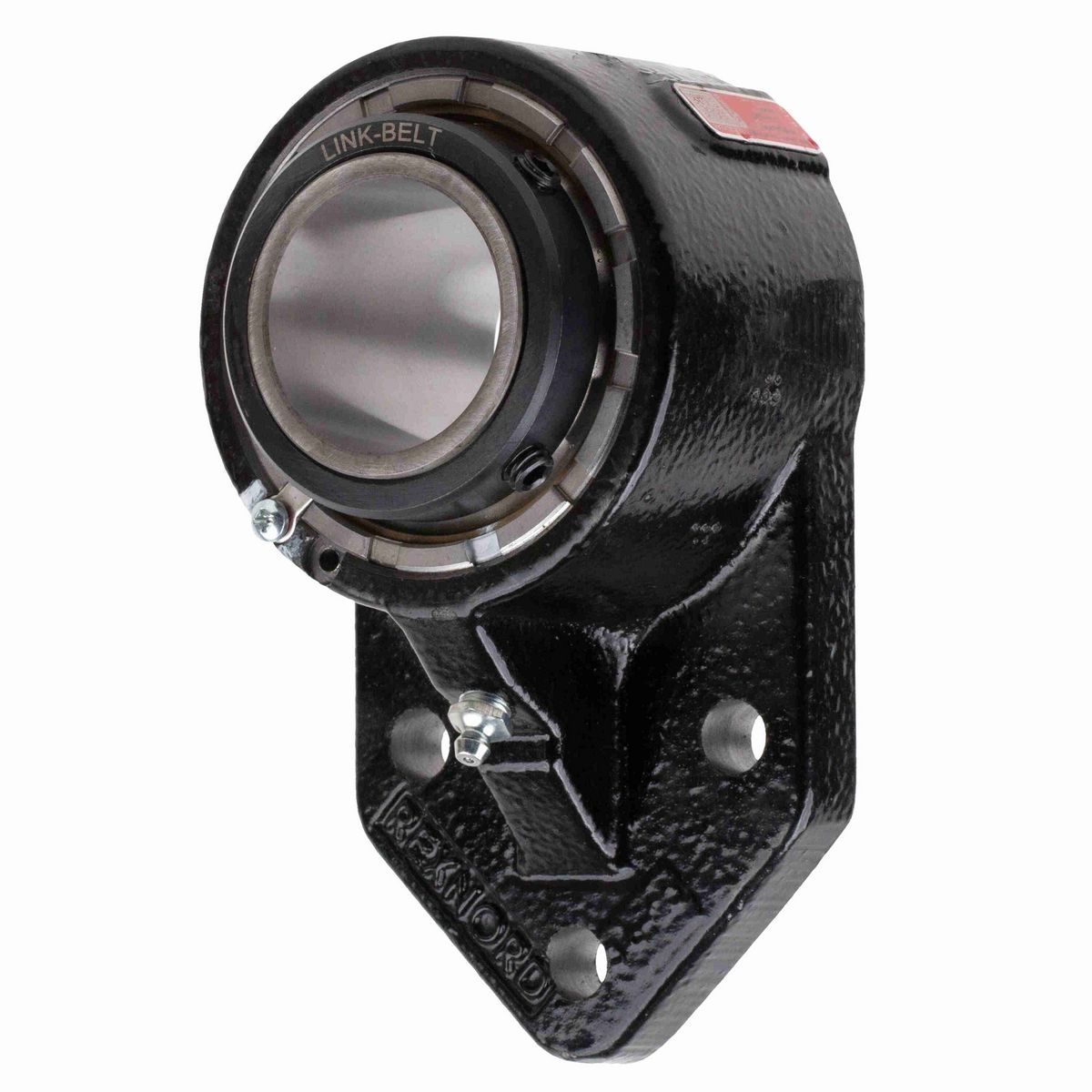

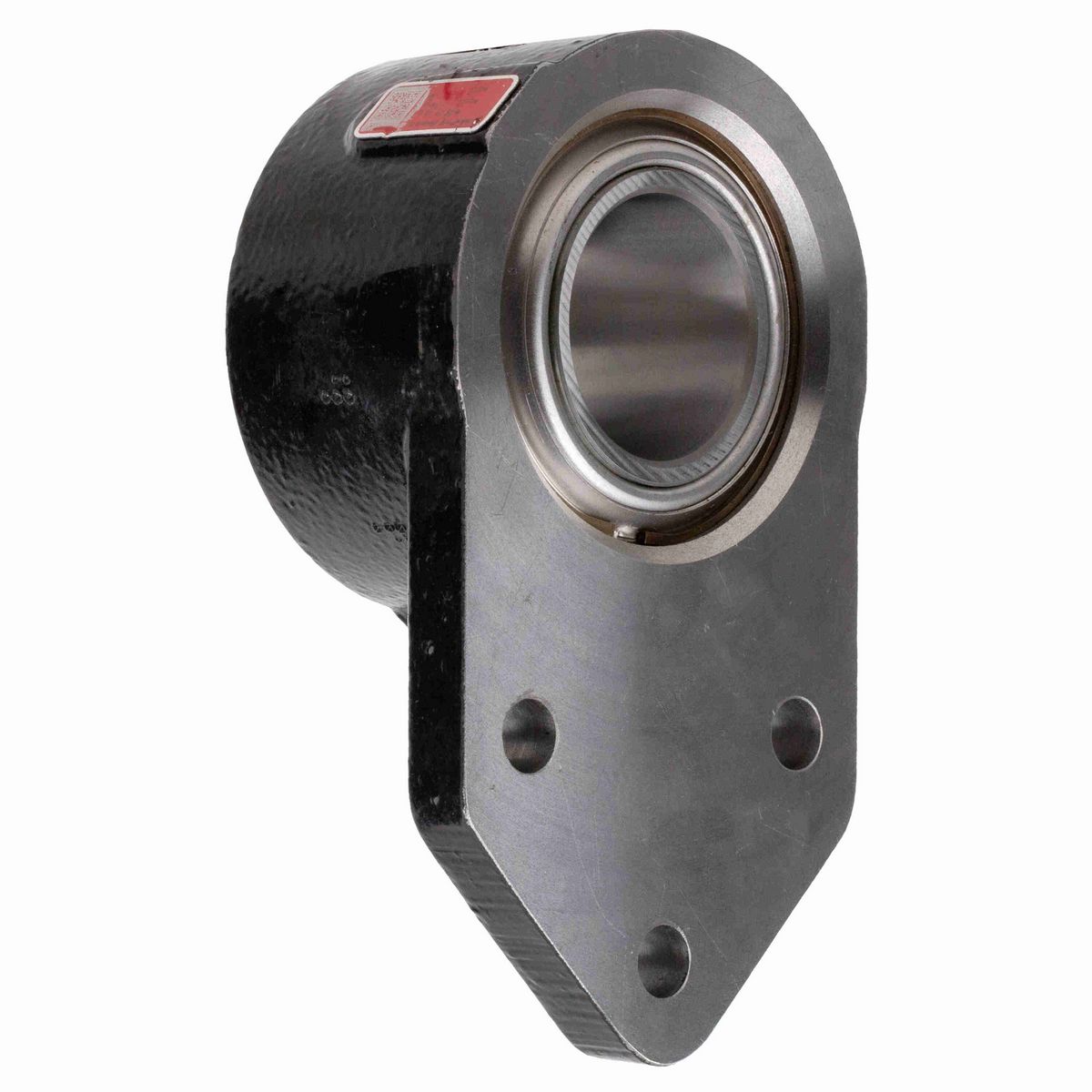

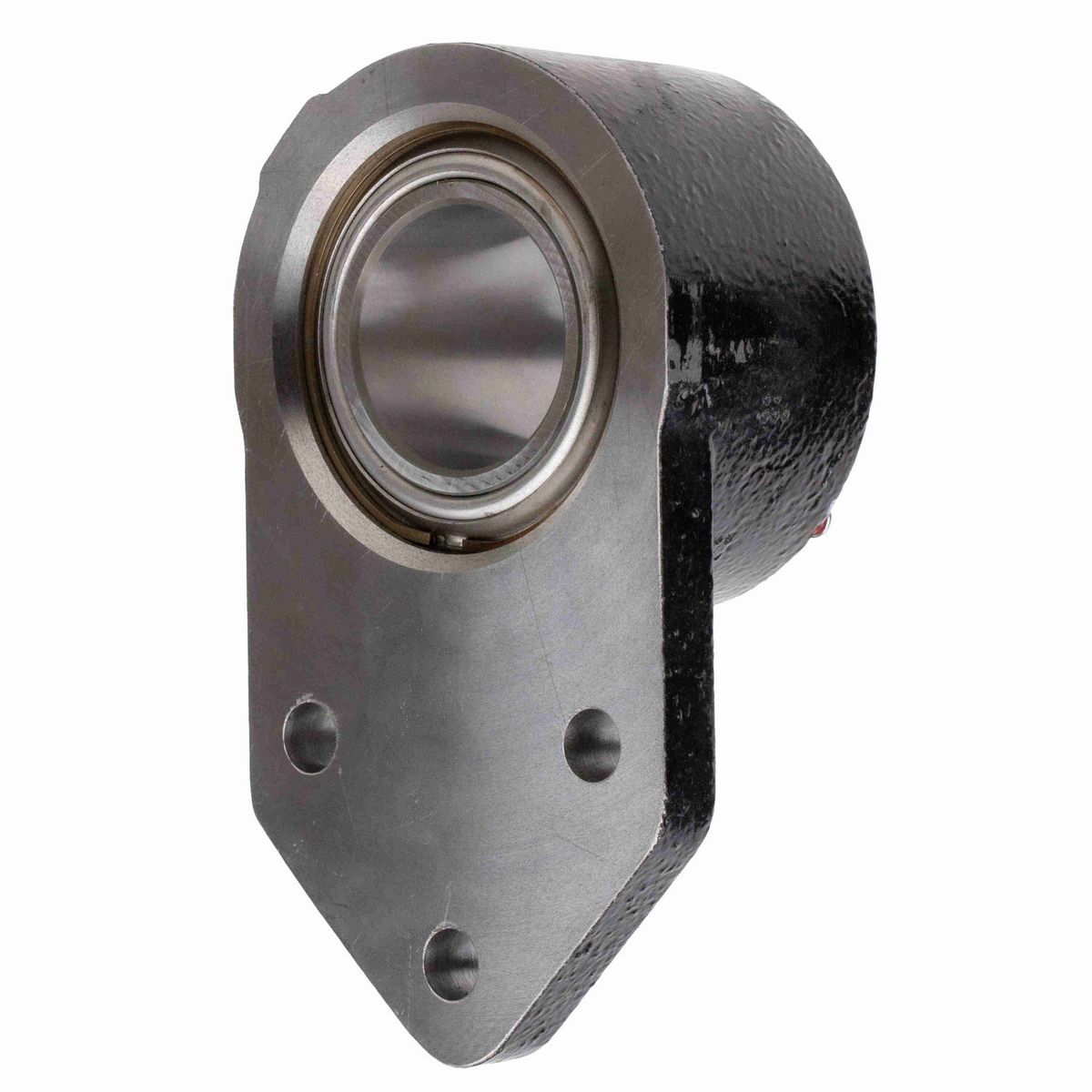

• 1 15/16" Mounted Spherical Roller Bearing, Fixed Cast Iron 3-Bolt Flange Bracket Block, Single Setscrew Locking Collar, Clearance Seal

Dimensions

Overall Length (in)	7.31 in
Overall Height (in)	4.25 in
Housing Width (in)	4 in
Bolt Size (in)	1/2 in
Bore Diameter (in)	1.9375 in
Base to Center Height (in)	5.188 in
Foot Height (in)	0.69 in
Overall Width (in)	3.19 in
Locking Collar Outside Diameter (in)	2.88 in
Housing Outside Diameter (in)	4.25 in
Standoff Distance (in)	0.06 in
Length Through Bore (in)	3.13 in
Inner Ring Outside Diameter (in)	2.307 in
Bolt Spacing (in)	1.63 in
Centerline to Bolt Hole Center (in)	2.94 in
Bolt Spacing Width (in)	2.75 in

Technical Specifications

Housing Construction	Solid
Fixed/Expansion	Fixed
End Cap	B432DTC
Misalignment Type	Dynamic
Static Load Rating (lb)	33,200 lb
Radial Dynamic Load Capacity (lb)	25,900 lb
Housing Type	Flange, Bracket, Three Bolt
Housing Material	Ductile Iron
Rolling Element	Spherical
Cage Material	Steel
Radial Clearance	C0 STANDARD
Product	FBB22400
Series	Flange Blocks
Housing Color	Black
Seal Type	Clearance Seal
Shaft Locking Type	Single Set Collar
Housing Style	Flange Block
Maximum Speed (RPM)	2800 rpm
Setscrew Torque (in-lbs)	325 in/lbs
Microlock Kit	B436MLK
Seal Kit	B432HS
Ability to Relubricate	Yes
Available Seal Type	E Lip Seal; H Labyrinth Seal; E7 Triple Lip Seal
Grease Fitting Thread Size	1/8 NPT
Locking Device Kit	B432SC
Max Operating Temperature (F)	225 °F
Vibration Frequency Fundamental Train	0.0072 cps
Vibration Frequency Roller Spin	0.0559 cps
Lubricant	EXXON RONEX MP STD
Vibration Frequency Outer Ring Defect	0.1217 cps
Size Code	B432
Misalignment Capability	±2.0° Misalignment - Dynamic
Max Operating Temperature (C)	107 °C
Vibration Frequency Inner Ring Defect	0.1617 cps
Housing Coating	POWDER COATED
Insert	B431L

General Specifications

UPC	793699354003
Weight	9.80 LB
Packaged Length	8.50 IN
Packaged Width	3.50 IN
Packaged Height	4.50 IN
HTC	8483204080
Country of Origin	Mexico
