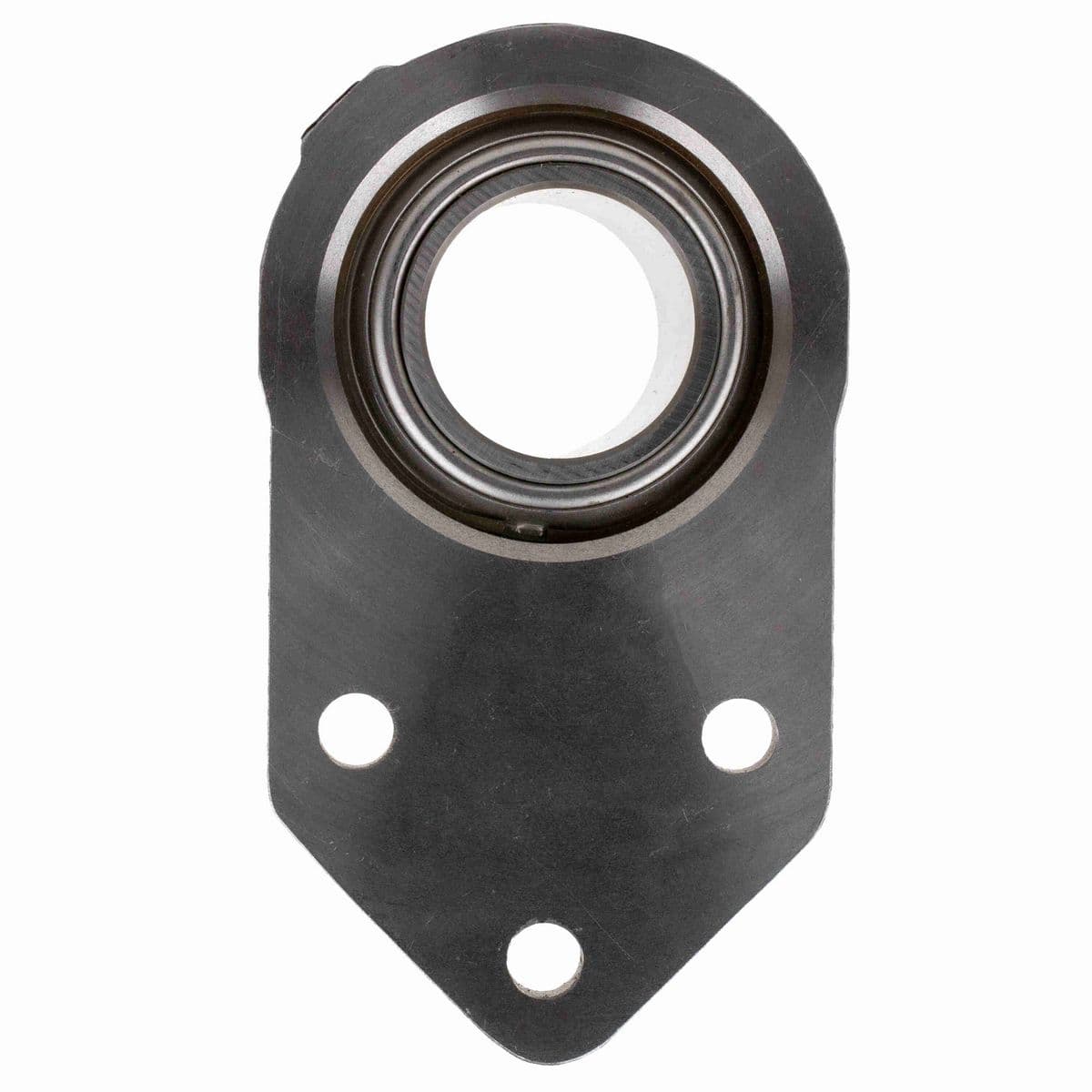

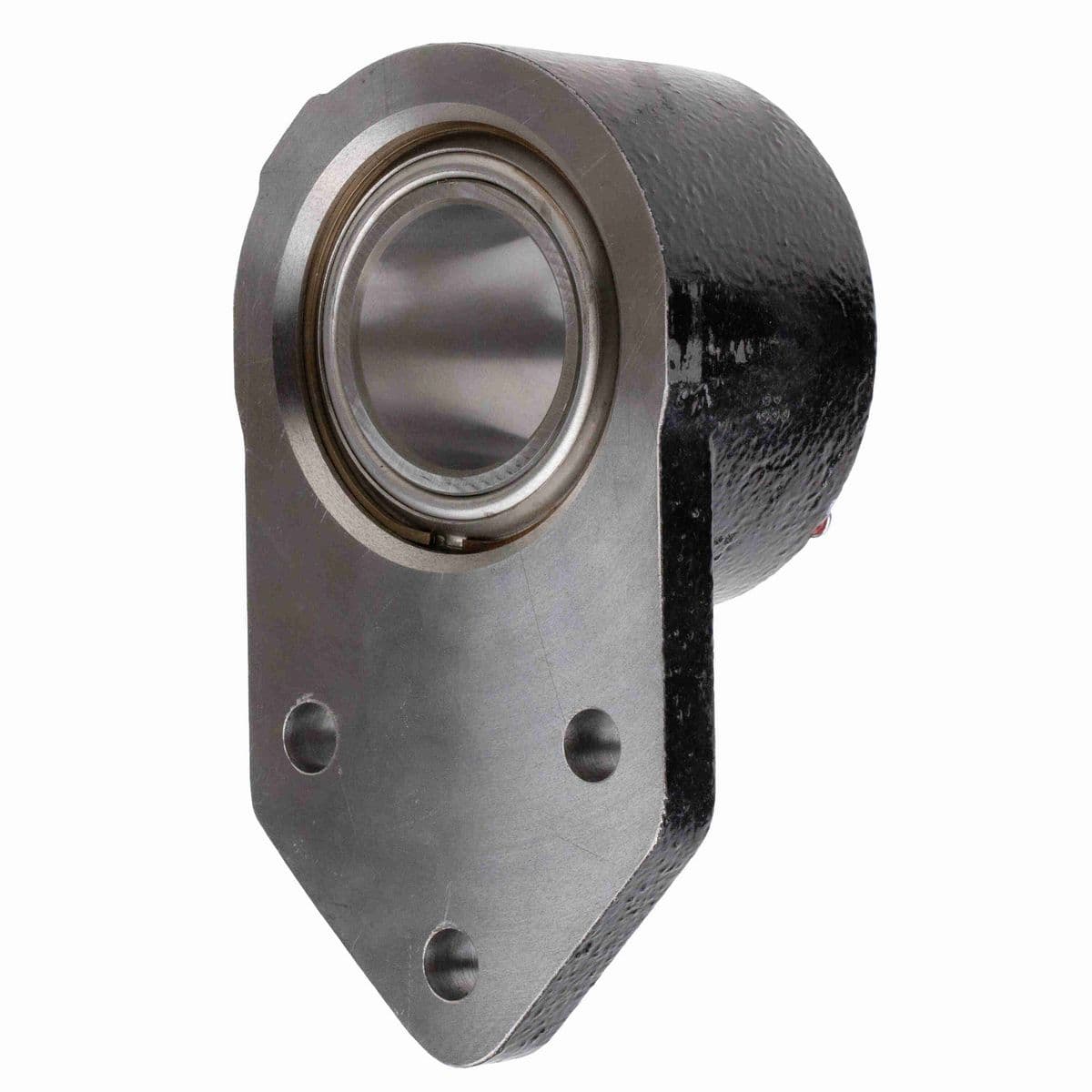

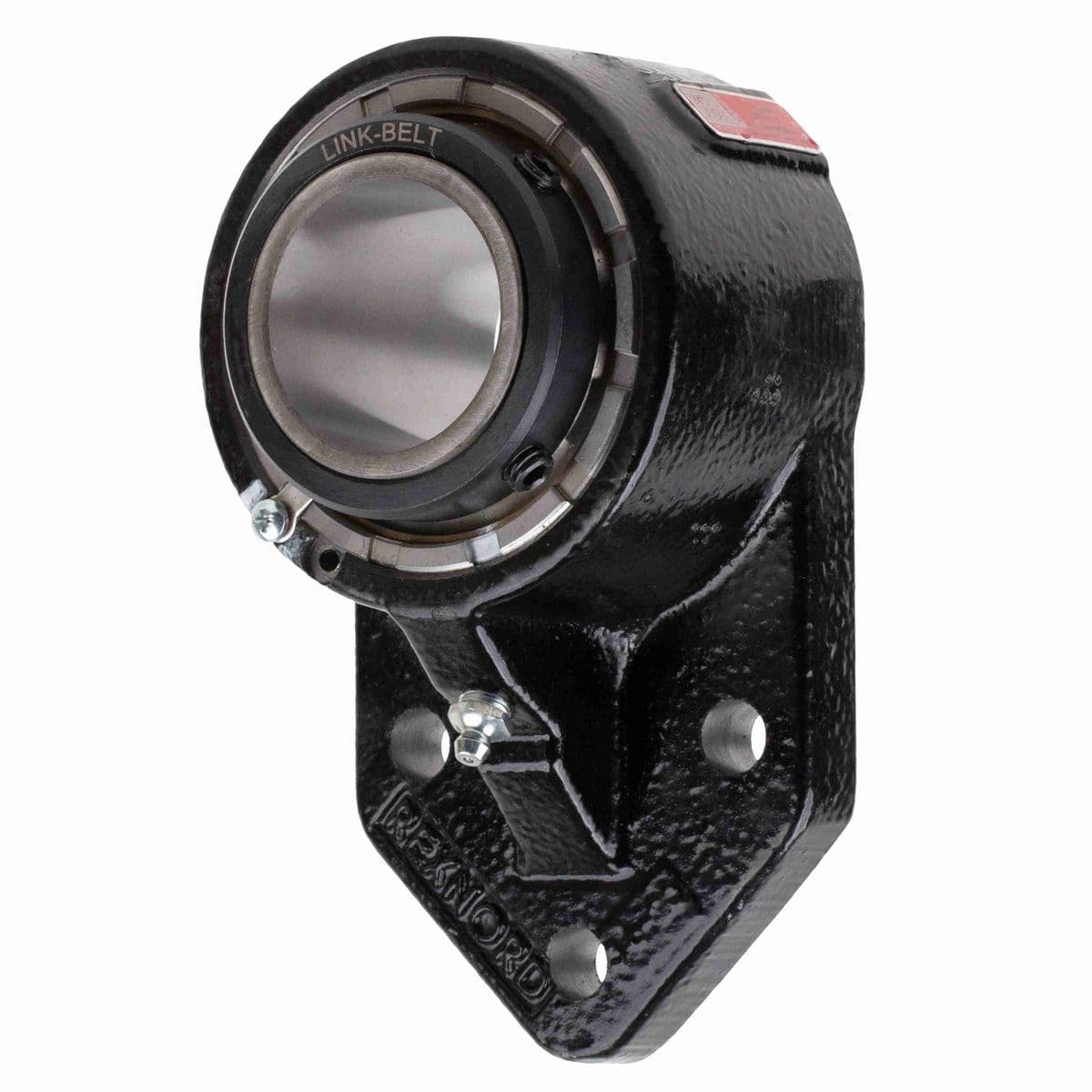

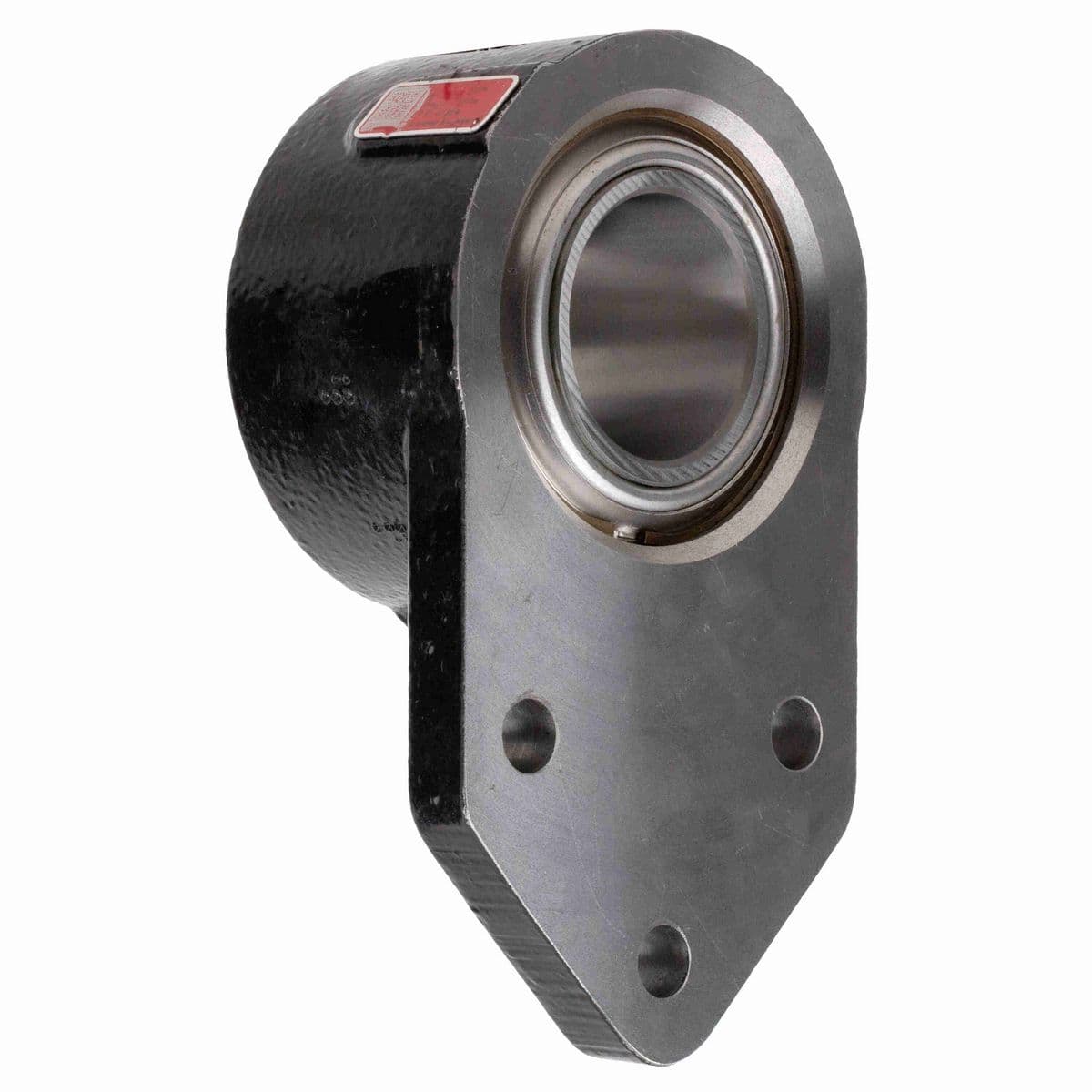

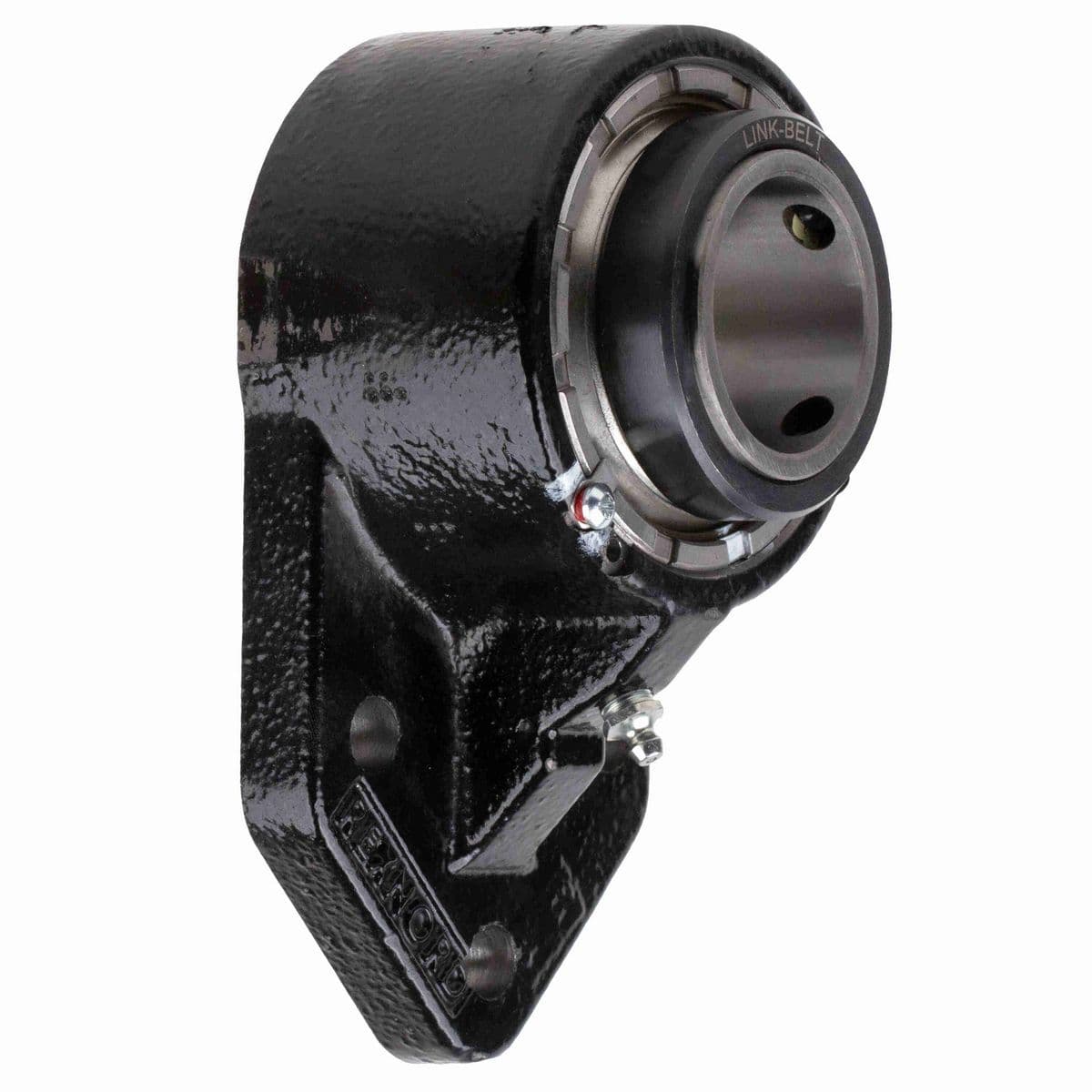

• 1-7/16" Mounted Spherical Roller Bearing, Fixed Cast Iron Flange Bracket Block, Single Setscrew Locking Collar, Spring Loaded Heavy Contact Seal

Dimensions

Base to Center Height (in)	4.25 in
Overall Height (in)	3.44 in
Overall Length (in)	5.97 in
Bolt Size (in)	1/2 in
Housing Width (in)	3.25 in
Overall Width (in)	2.91 in
Foot Height (in)	0.63 in
Bore Diameter (in)	1.4375 in
Locking Collar Outside Diameter (in)	2.31 in
Standoff Distance (in)	0.03 in
Housing Outside Diameter (in)	3.44 in
Bolt Spacing (in)	1.25 in
Bolt Spacing Width (in)	2 in
Length Through Bore (in)	2.88 in
Centerline to Bolt Hole Center (in)	2.38 in
Inner Ring Outside Diameter (in)	1.745 in

Technical Specifications

Radial Dynamic Load Capacity (lb)	17,800 lb
Series	Flange Blocks
Housing Construction	Solid
Cage Material	Steel
Housing Style	Flange Block
Shaft Locking Type	Single Set Collar
Housing Color	Black
End Cap	B424DTC
Misalignment Type	Dynamic
Radial Clearance	C0 STANDARD
Static Load Rating (lb)	20,900 lb
Product	FBB22400
Housing Type	Flange, Bracket, Three Bolt
Fixed/Expansion	Fixed
Seal Type	Heavy Contact Seal
Rolling Element	Spherical
Housing Material	Ductile Iron
Available Seal Type	E Lip Seal; H Labyrinth Seal; E7 Triple Lip Seal
Bolt Hole Shape	Round Hole
Seal Kit	B424ES
Ability to Relubricate	Yes
Setscrew Torque (in-lbs)	325 in/lbs
Microlock Kit	B436MLK
Maximum Speed (RPM)	2750 rpm
Grease Fitting Thread Size	1/8 NPT
Misalignment Capability	±2.0° Misalignment - Dynamic
Vibration Frequency Outer Ring Defect	0.1055 cps
Size Code	B424
Max Operating Temperature (C)	107 °C
Housing Coating	POWDER COATED
Insert	B423L
Vibration Frequency Inner Ring Defect	0.1445 cps
Vibration Frequency Roller Spin	0.0499 cps
Locking Device Kit	B424SC
Lubricant	EXXON RONEX MP STD
Vibration Frequency Fundamental Train	0.007 cps
Max Operating Temperature (F)	225 °F

General Specifications

UPC	793699504187
Weight	6.00 LB
Packaged Length	5.75 IN
Packaged Width	5.75 IN
Packaged Height	2.25 IN
Country of Origin	Mexico
