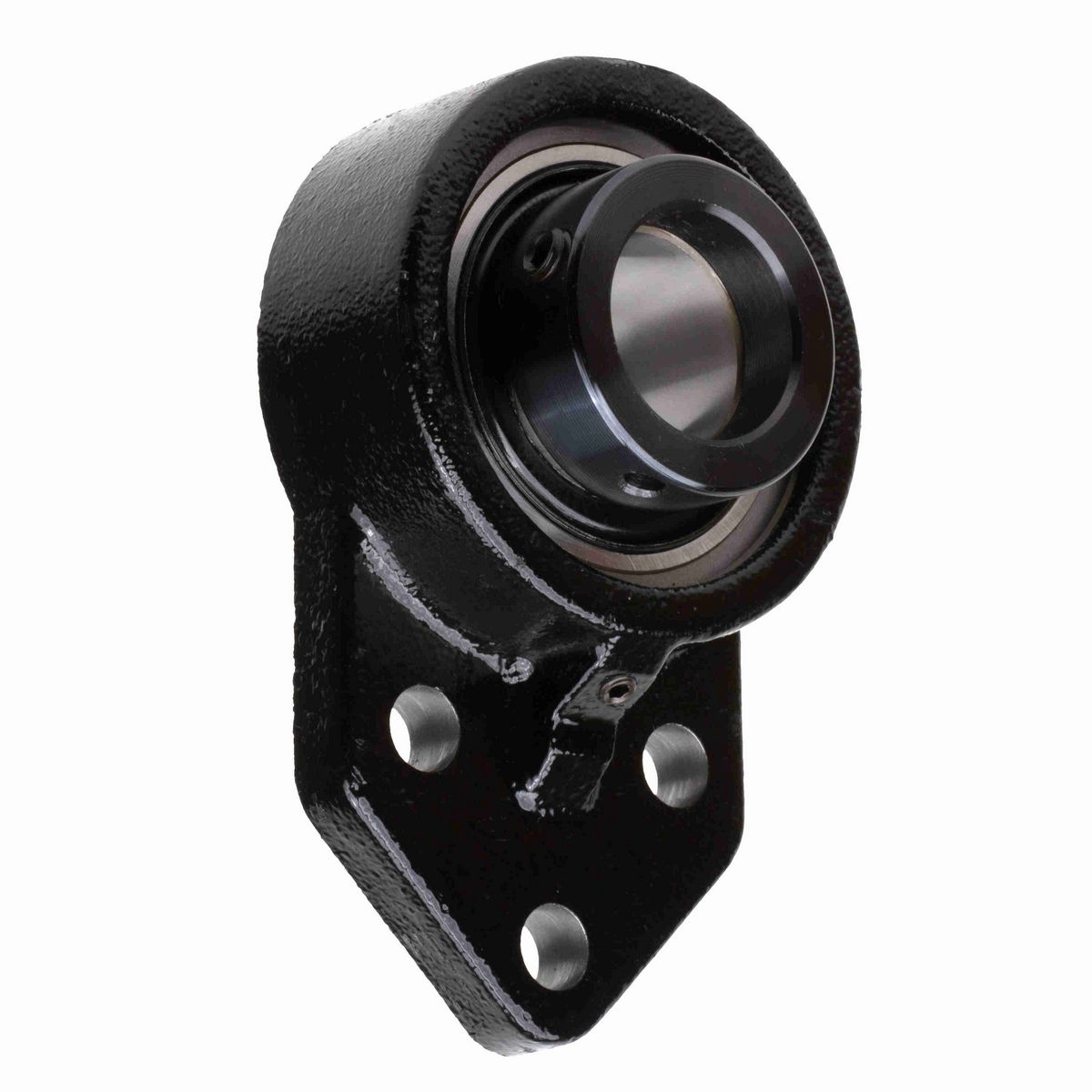

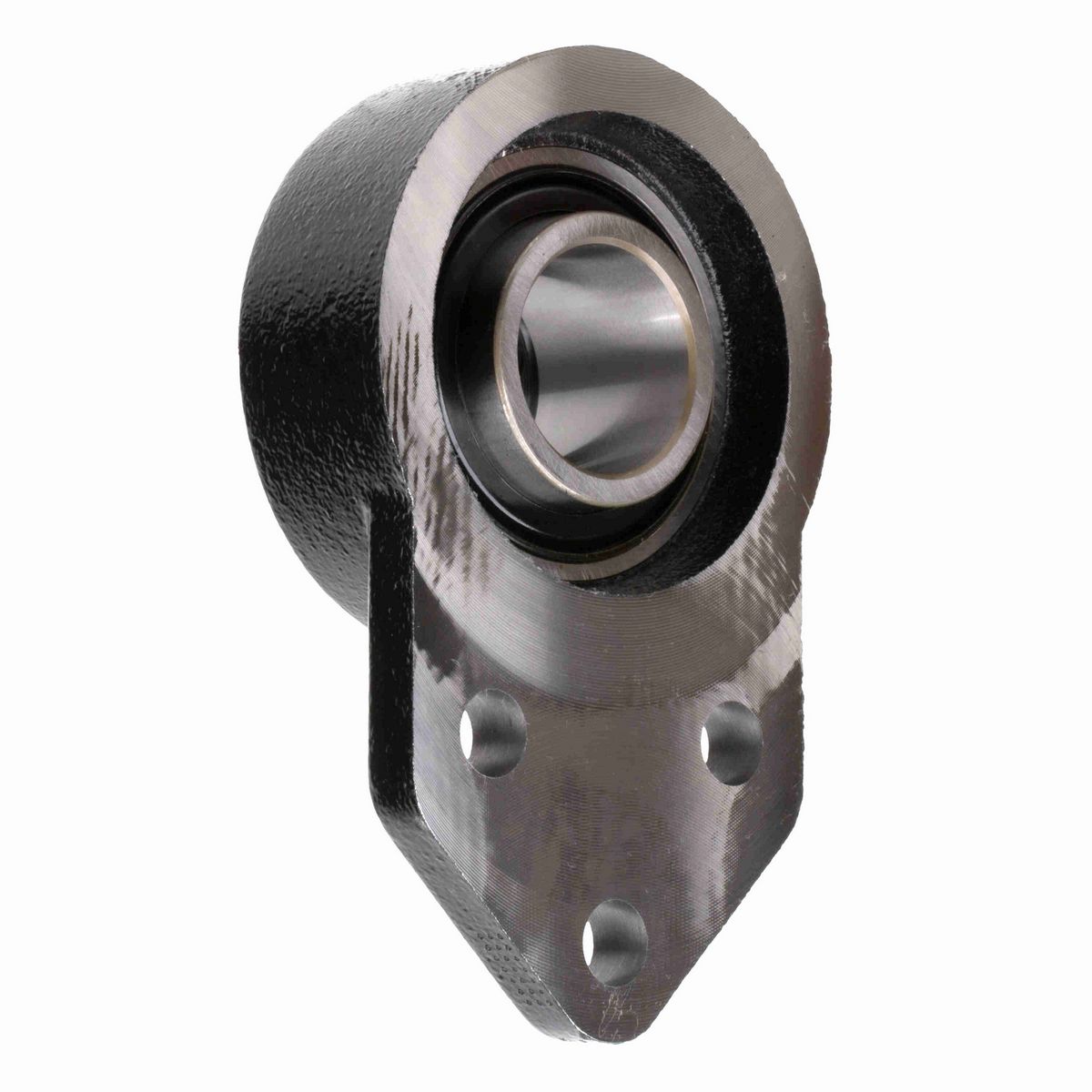

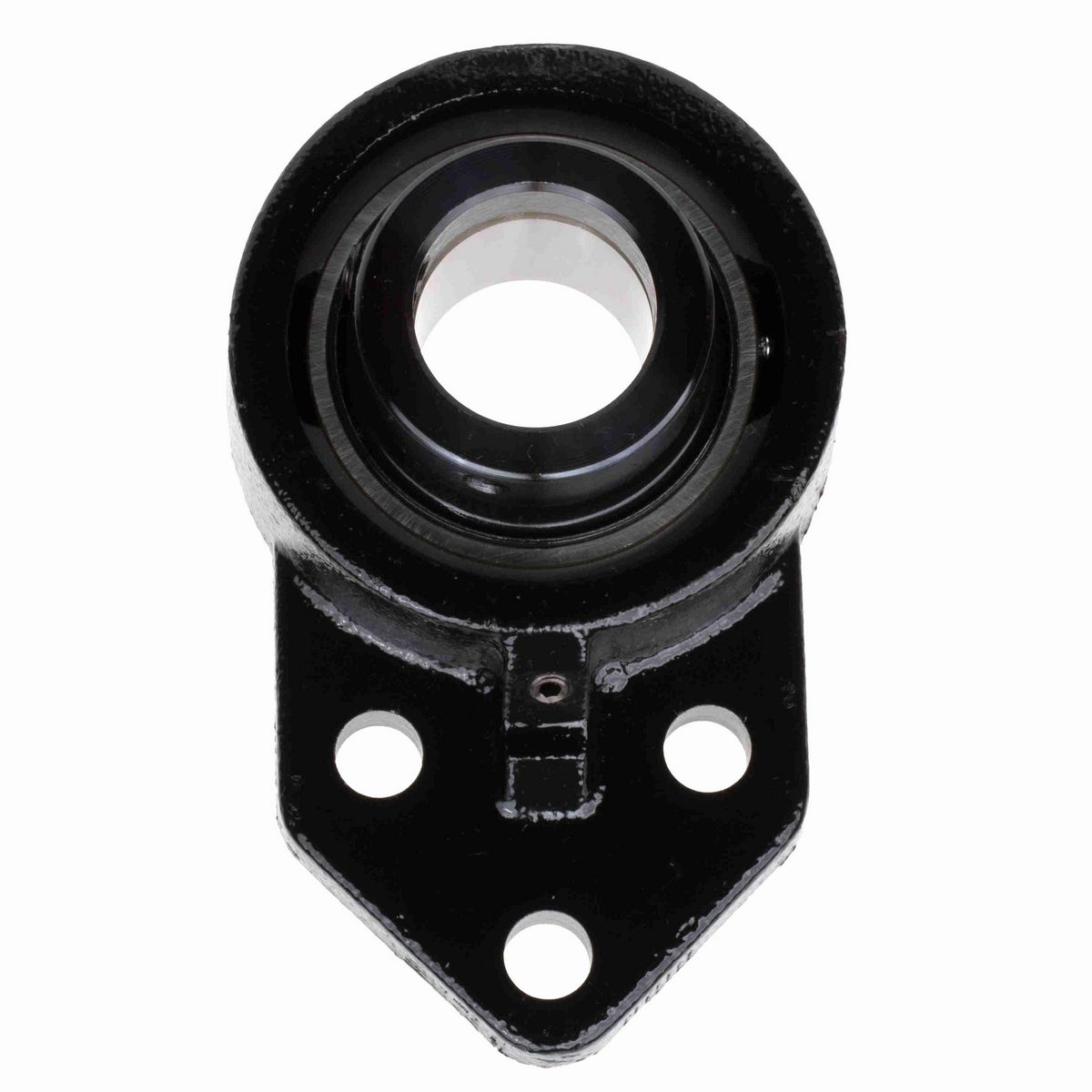

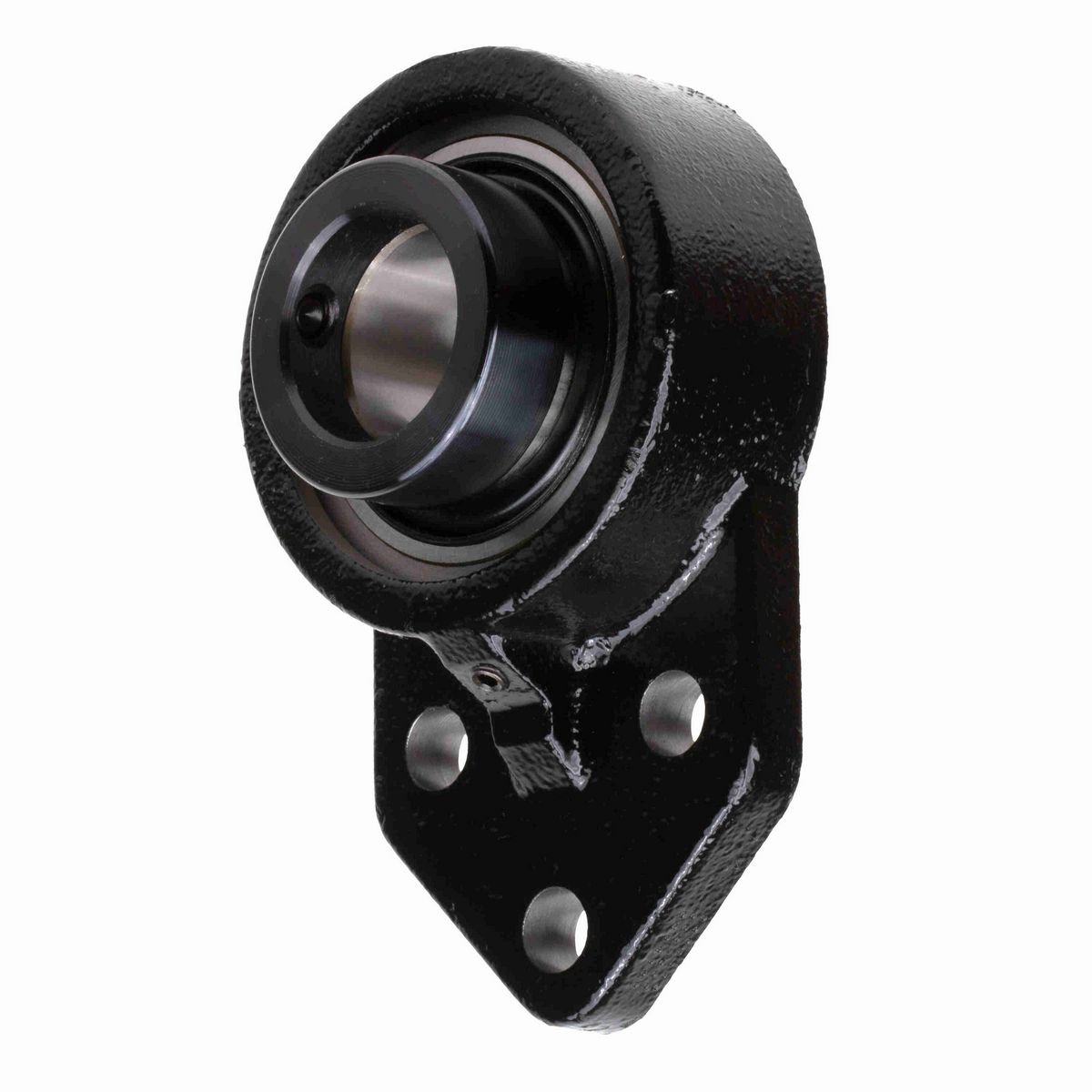

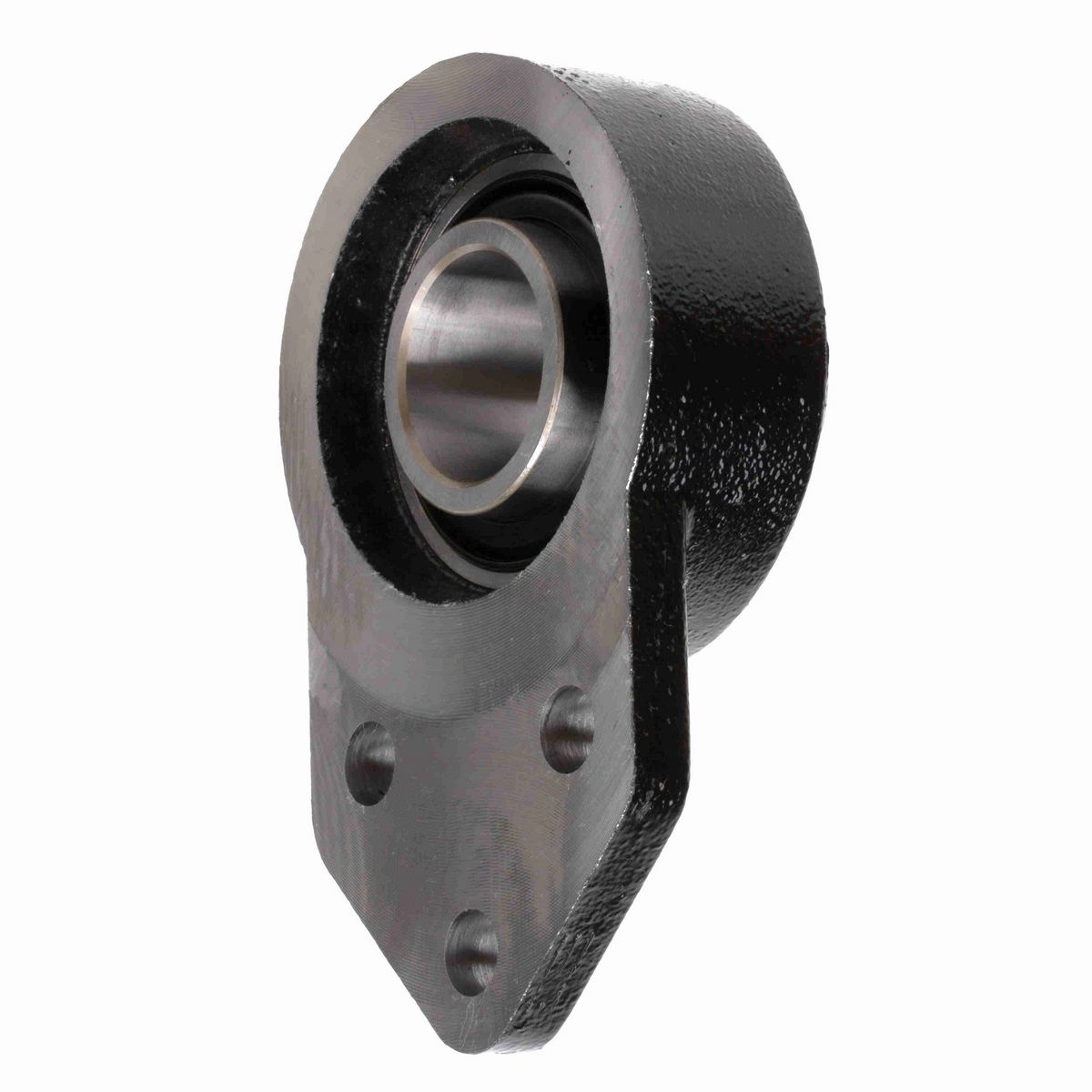

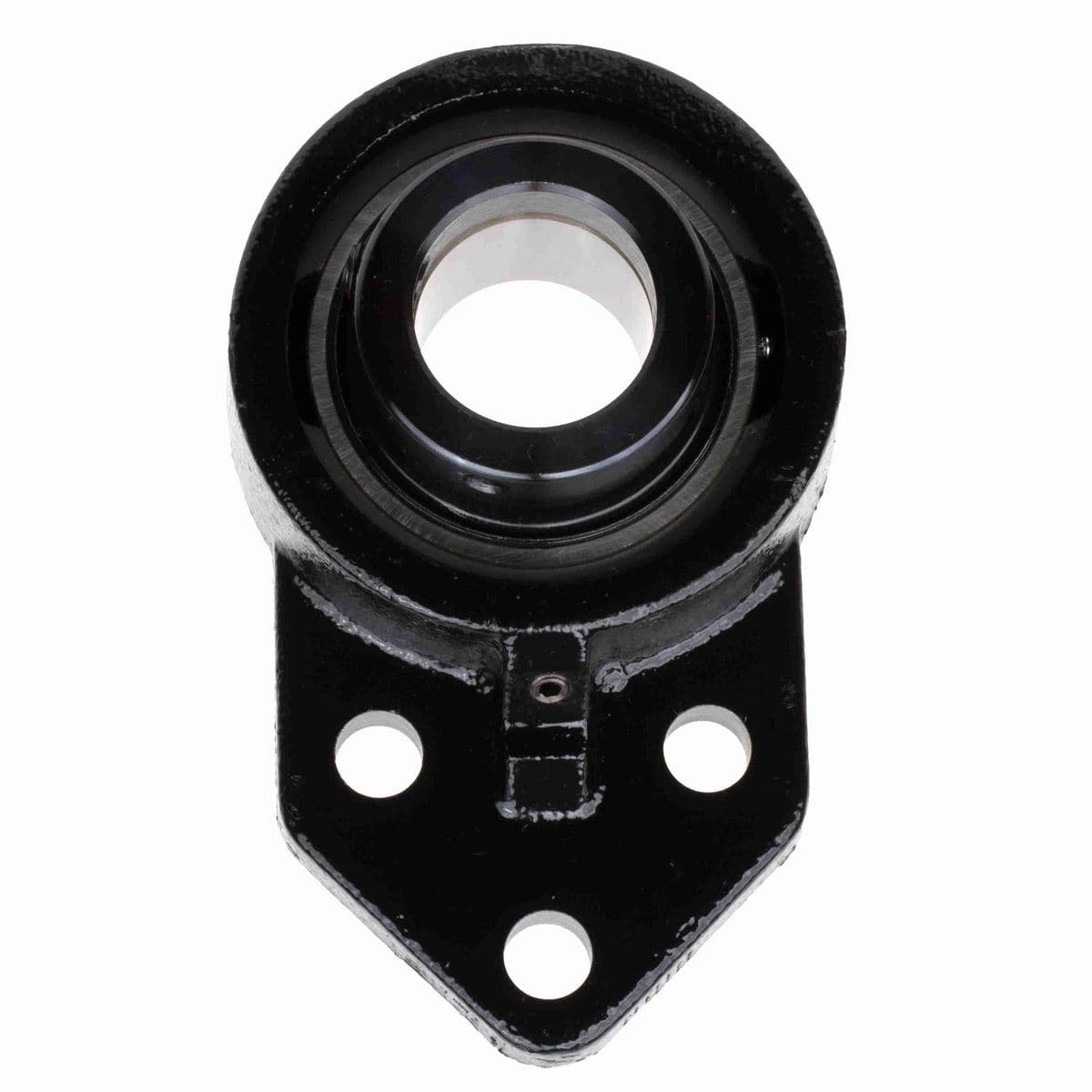

• 1 7/16" Mounted Ball Bearing, Intermediate Duty, Cast Iron 3-Bolt Bracket Flange Block, Eccentric Cam Locking Collar, Single Lip Contact Seal

Dimensions

Overall Width (in)	3.75 in
Overall Height (in)	1.97 in
Foot Height (in)	0.5 in
Bore Diameter (in)	1.4375 in
Bolt Size (in)	1/2 in
Length Through Bore (in)	1.53 in
Overall Length (in)	6.13 in
Base to Center Height (in)	4.25 in
Bolt Spacing (in)	2.0000 in

Technical Specifications

Housing Construction	One Piece
Bore Shape	Straight
Housing Color	Black
Pilot Configuration	No Pilot
Cage Material	Molded fiber glass reinforced nylon
Housing Type	Flange, Bracket, Three Bolt
Rolling Element	Ball Bearing
Seal Type	BUNA SINGLE LIP CONTACT SEAL
Outer Ring Land Profile	Standard
Housing Style	Flange Block
Misalignment Type	Static Only
Ability to Relubricate	Yes
Locking Collar Outside Diameter (in)	2.19 in
Inner Ring Outside Diameter (in)	1.847 in
Lubricant	EXXON RONEX MP STD
Grease Fitting Thread Size	1/4-28
Bearing Centerline to Bolt Hole Center (in)	2.375 in
Housing Coating	Powder Coated
Cage Type	Ball Riding Retainer
Max Operating Temperature (F)	225 °F
Radial Clearance	C3 STANDARD
Shaft Locking Type	Eccentric
Maximum Speed (RPM)	4800 rpm
Static Load Rating (lb)	3,440 lb
Dynamic Load Rating (lb)	5,810 lb
Bearing Type	Intermediate Duty
Max Operating Temperature (C)	107 °C
End Cap Available	Yes
Vibration Frequency Roller Spin	0.0383 cps
Vibration Frequency Outer Ring Defect	0.0595 cps
Size Code	207
Bolt Spacing Height Direction (in)	1.25 in
Vibration Frequency Inner Ring Defect	0.0905 cps
Fixed vs. Expansion	Fixed
Housing Material	Cast Iron
Bearing Insert Material	52100 Bearing Steel
Insert	WG223EL
End Cap	Y2236N
Locking Device Kit	W2235S
Bearing Brand	LINK-BELT 200 SERIES BALL
Misalignment Capability	±1.5° Misalignment - Static Only
Vibration Frequency Fundamental Train	0.0067 cps
Housing Width (in)	3.75 in

General Specifications

UPC	662327027063
Weight	3.67 LB
Packaged Length	6.88 IN
Packaged Width	4.06 IN
Packaged Height	2.13 IN
HTC	8483204040
Country of Origin	Mexico
