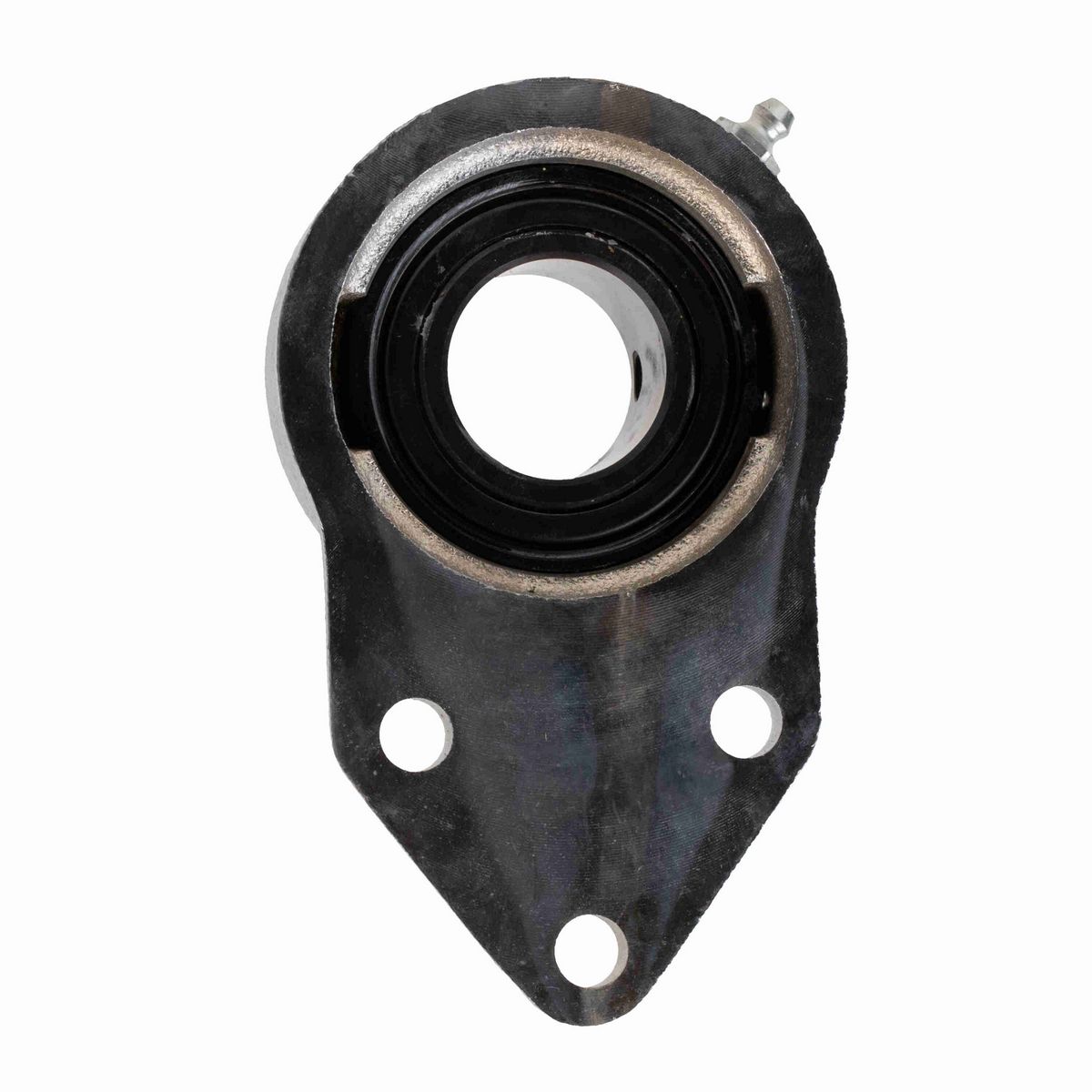

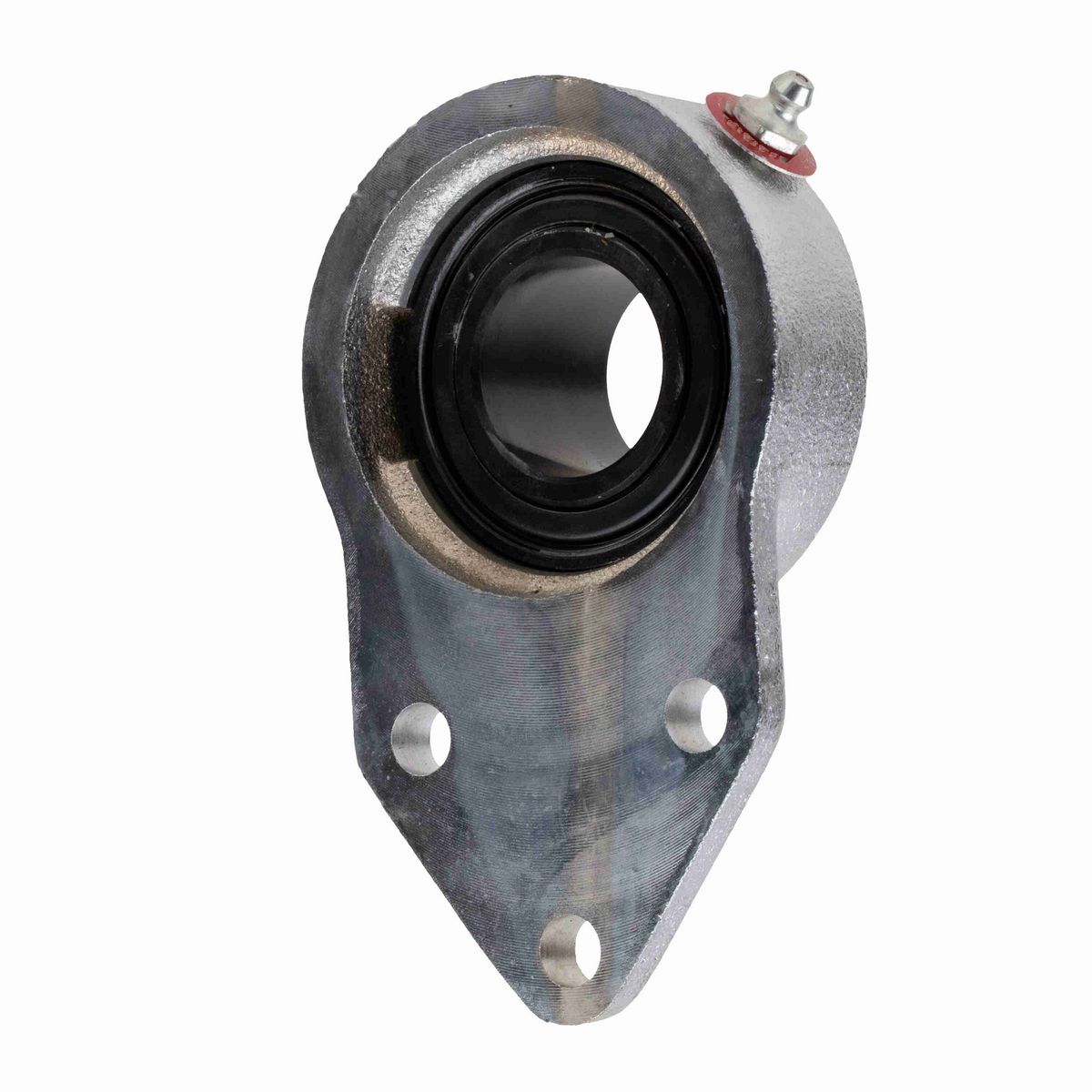

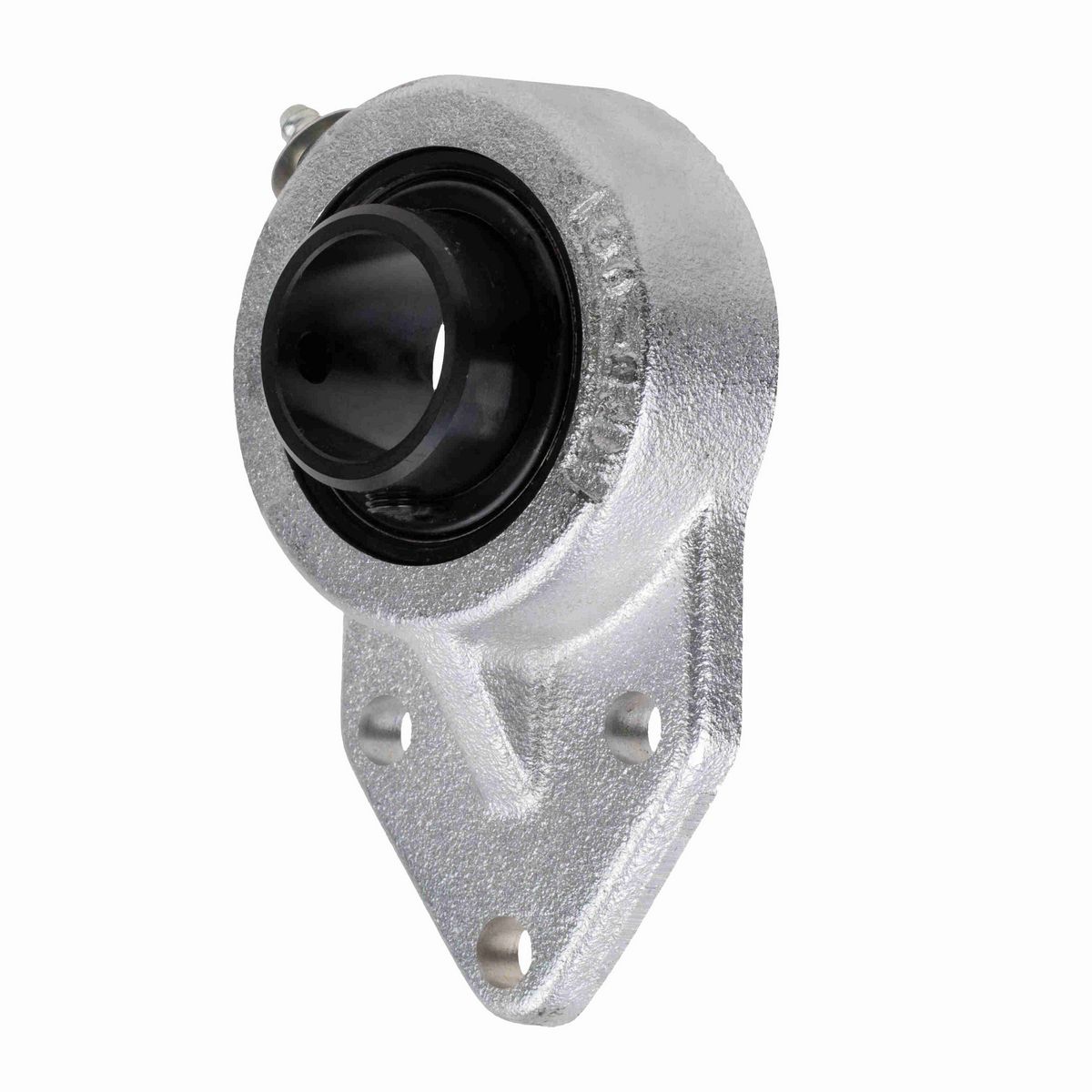

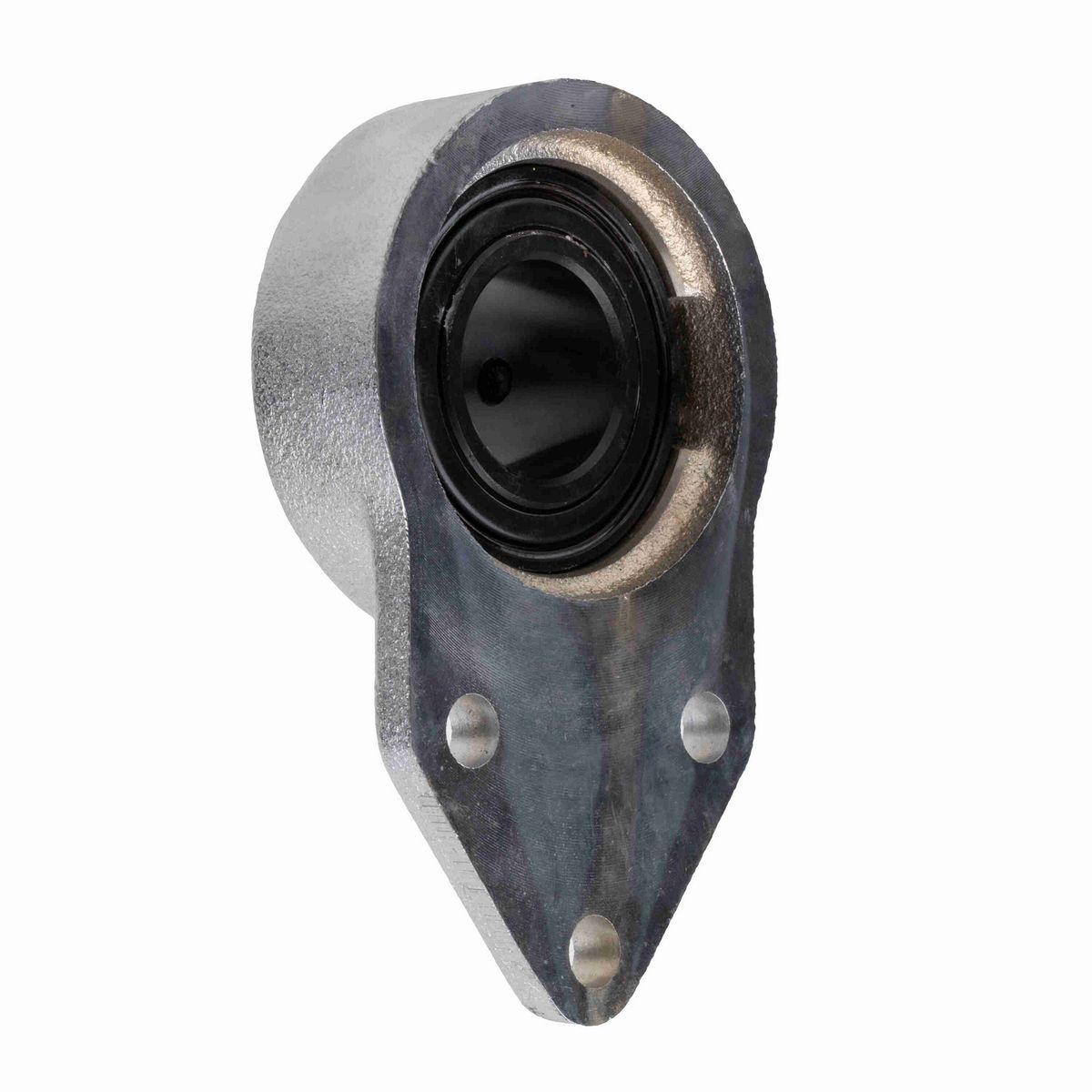

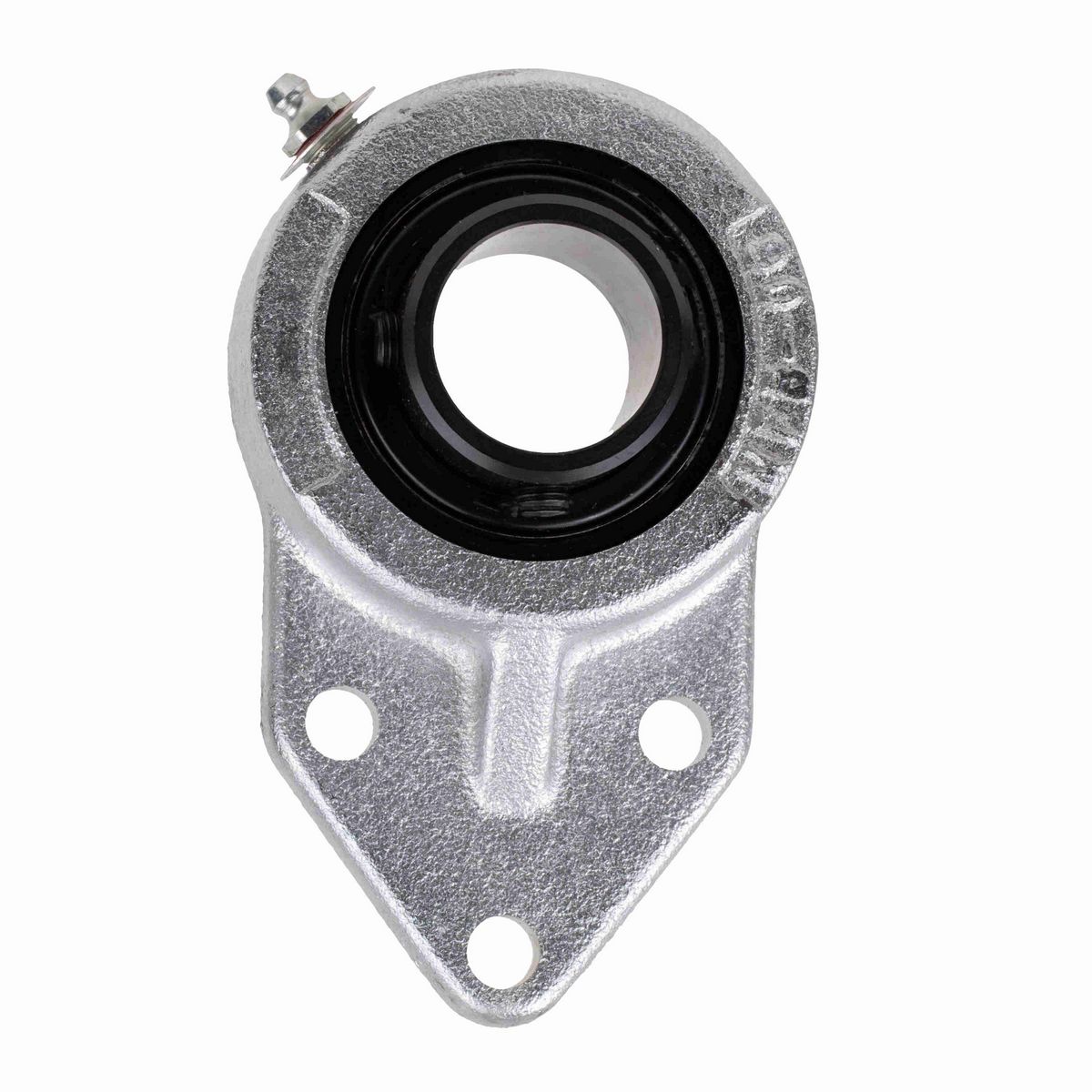

• 1 7/16" Mounted Ball Bearing, Intermediate Duty, Cast Iron 3-Bolt Bracket Flange Block, Setscrew Locking, Single Lip Contact Seal, Nickel Plated Housing

Dimensions

Foot Height (in)	0.5 in
Length Through Bore (in)	1.563 in
Overall Width (in)	3.75 in
Bore Diameter (in)	1.4375 in
Base to Center Height (in)	4.25 in
Overall Height (in)	1.95 in
Bolt Size (in)	1/2 in
Overall Length (in)	6.13 in
Bolt Spacing (in)	2.0000 in

Technical Specifications

Cage Material	Molded fiber glass reinforced nylon
Housing Construction	One Piece
Housing Style	Flange Block
Outer Ring Land Profile	Standard
Housing Type	Flange, Bracket, Three Bolt
Seal Type	Single Lip Contact Seal
Bore Shape	Straight
Pilot Configuration	No Pilot
Misalignment Type	Static Only
Housing Color	Silver
Rolling Element	Ball Bearing
Ability to Relubricate	Yes
Setscrew Torque (in-lbs)	165 in/lbs
Max Operating Temperature (C)	107 °C
Lubricant	MOBIL FM222 FOOD GRADE H1
Bearing Centerline to Bolt Hole Center (in)	2.375 in
Bearing Insert Finish	Black Oxide
Maximum Speed (RPM)	4800 rpm
Housing Coating	Nickel Plated
Size Code	207
Cage Type	Ball Riding Retainer
Bolt Spacing Height Direction (in)	1.25 in
Static Load Rating (lb)	3,440 lb
Radial Clearance	C3 STANDARD
Vibration Frequency Roller Spin	0.0383 cps
Shaft Locking Type	Set Screw
Misalignment Capability	±1.5° Misalignment - Static Only
Dynamic Load Rating (lb)	5,810 lb
Insert	SG223ELPAK8299A
Vibration Frequency Inner Ring Defect	0.0905 cps
Grease Fitting Thread Size	1/8 NPT
Bearing Brand	LINK-BELT 200 SERIES BALL
End Cap Available	No
Vibration Frequency Fundamental Train	0.0067 cps
Fixed vs. Expansion	Fixed
Max Operating Temperature (F)	225 °F
Inner Ring Outside Diameter (in)	1.847 in
Vibration Frequency Outer Ring Defect	0.0595 cps
Bearing Insert Material	52100 Bearing Steel
Housing Material	Cast Iron
Bearing Type	Intermediate Duty
Housing Width (in)	3.75 in

General Specifications

UPC	662327725587
Weight	3.60 LB
Packaged Length	6.88 IN
Packaged Width	4.06 IN
Packaged Height	2.13 IN
HTC	8483204040
Country of Origin	Mexico
