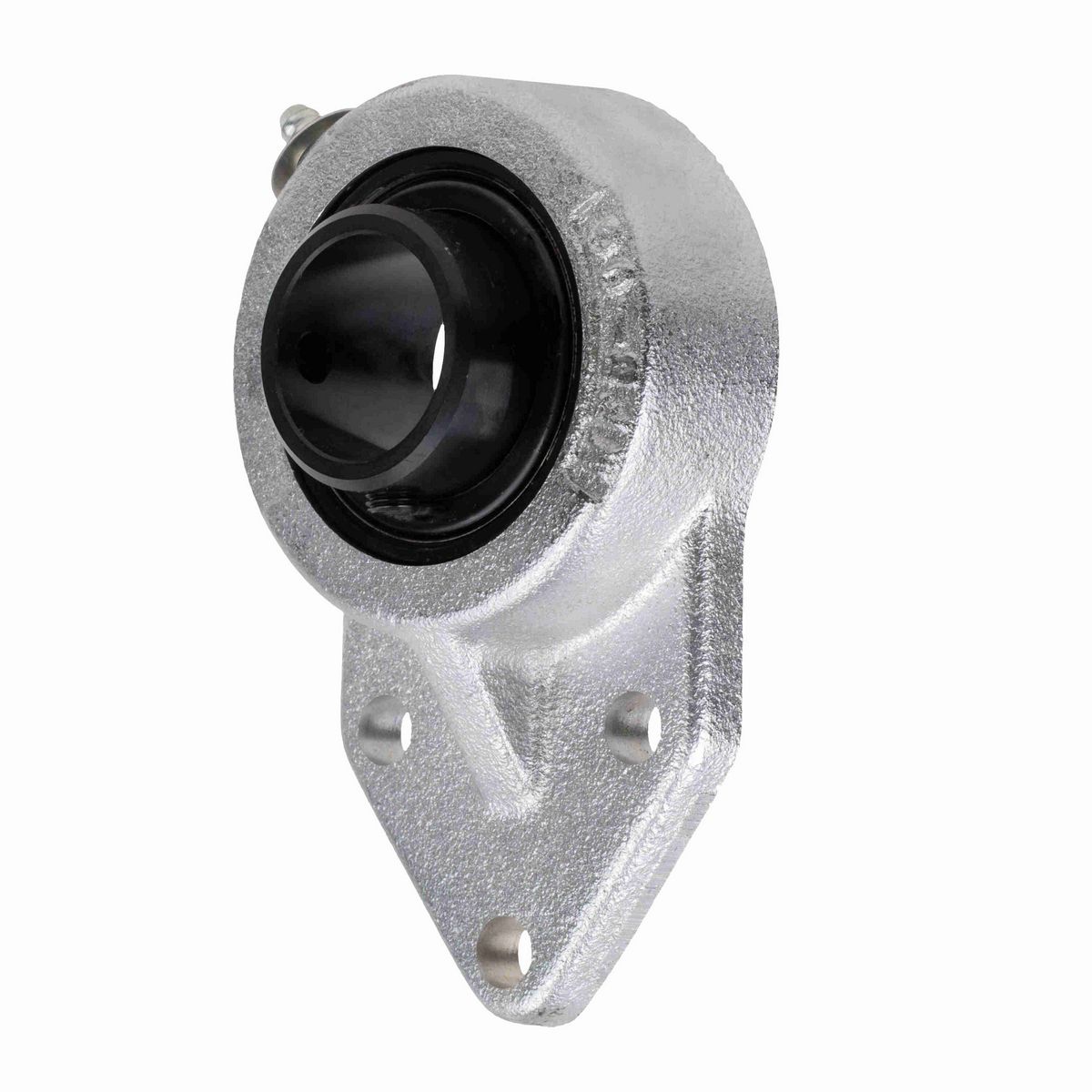

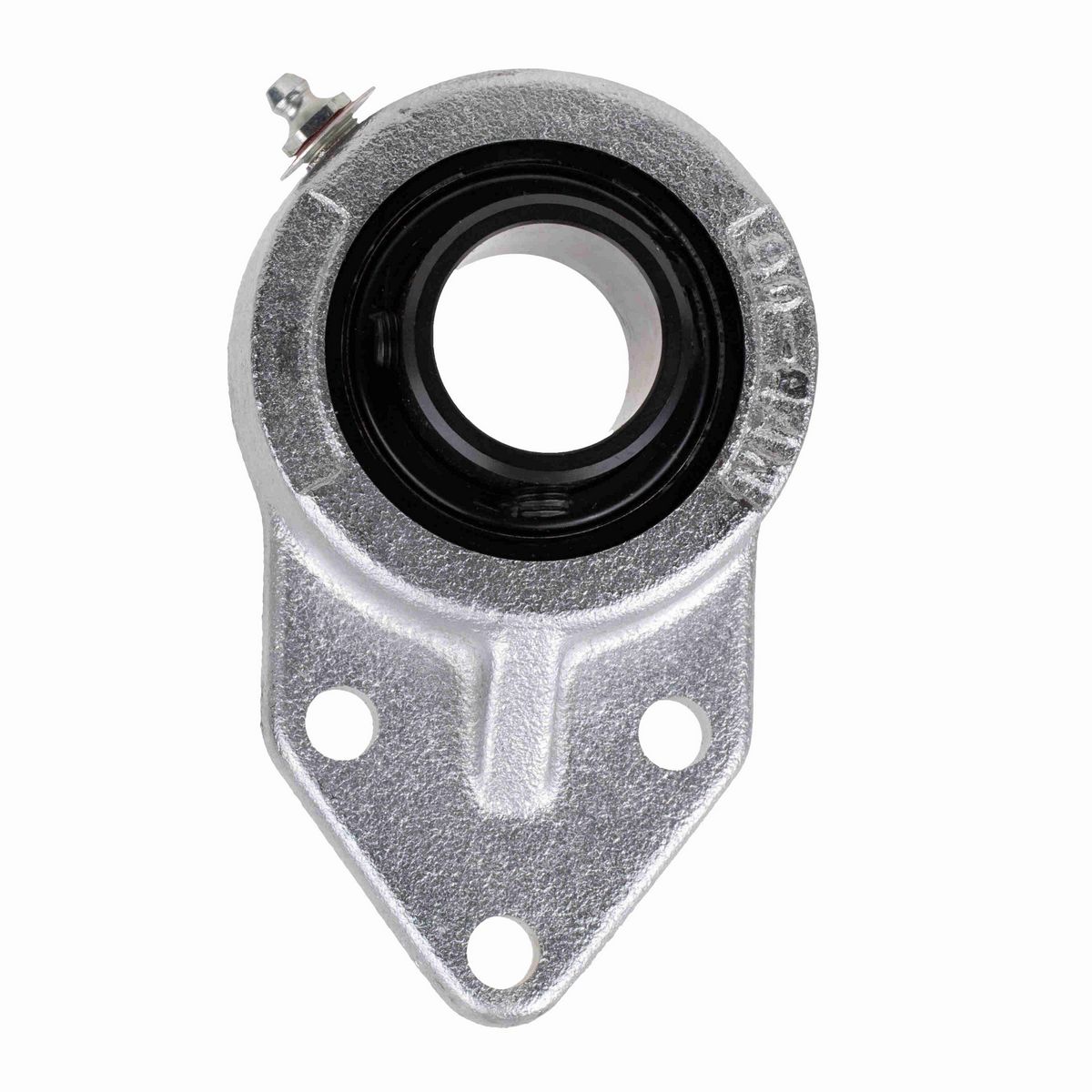

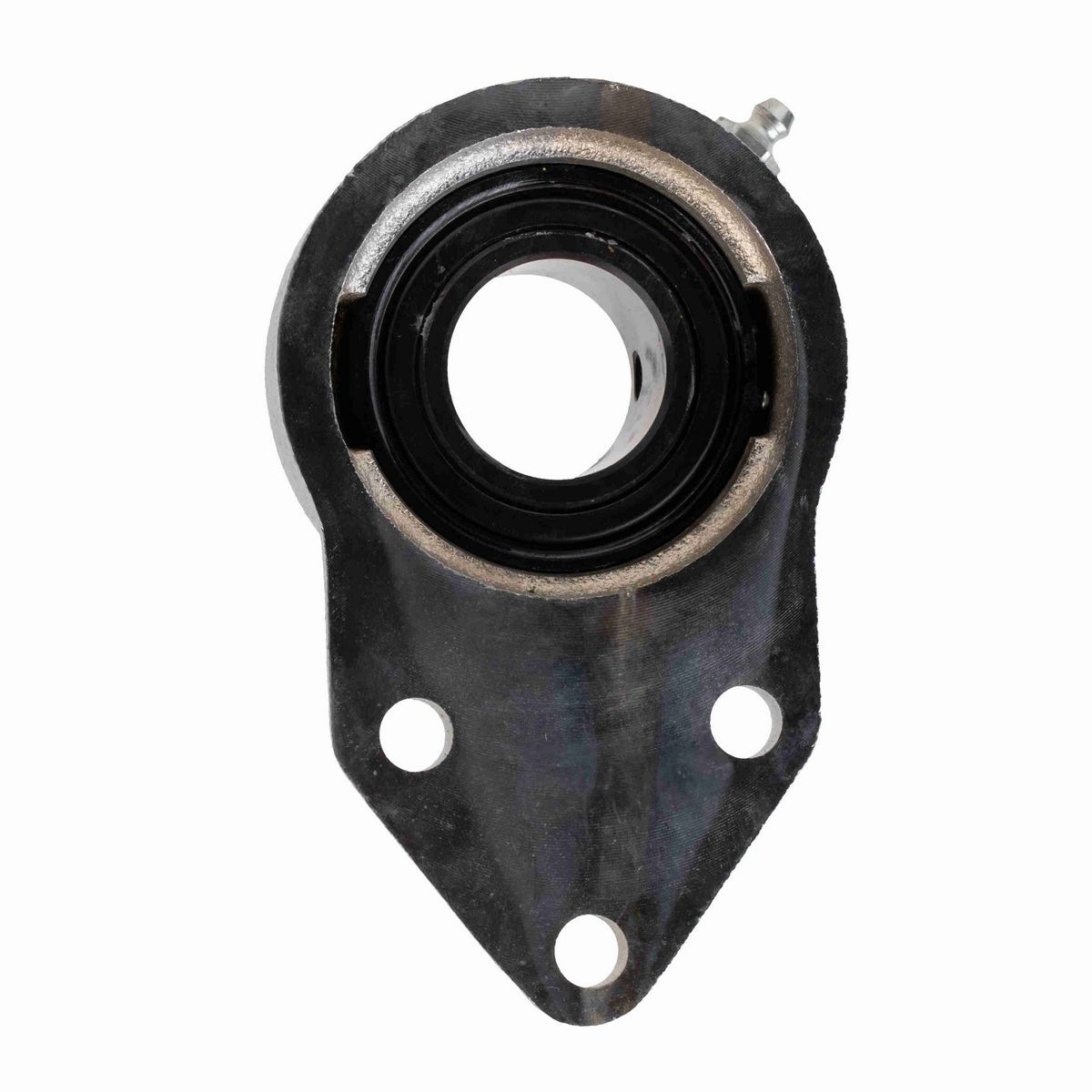

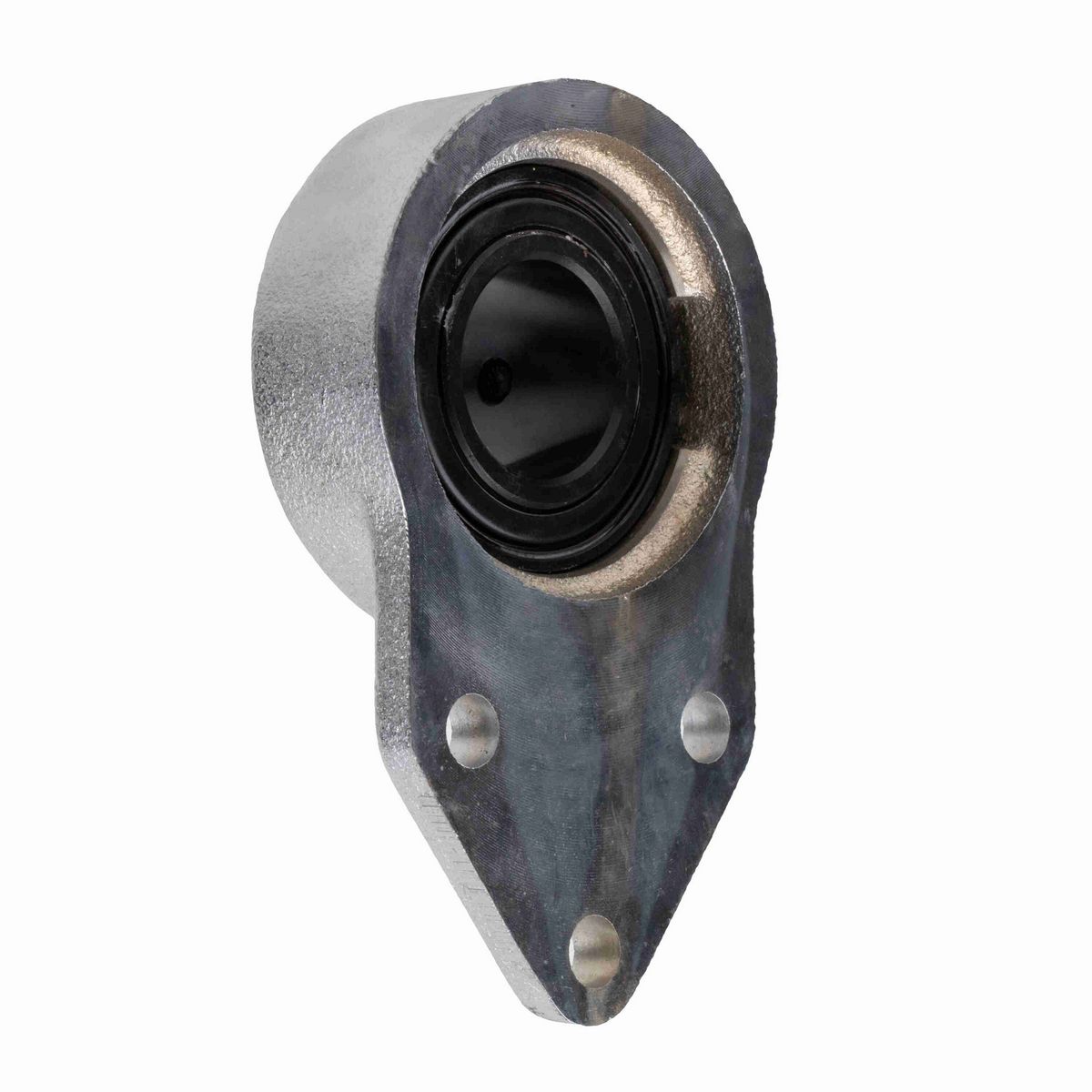

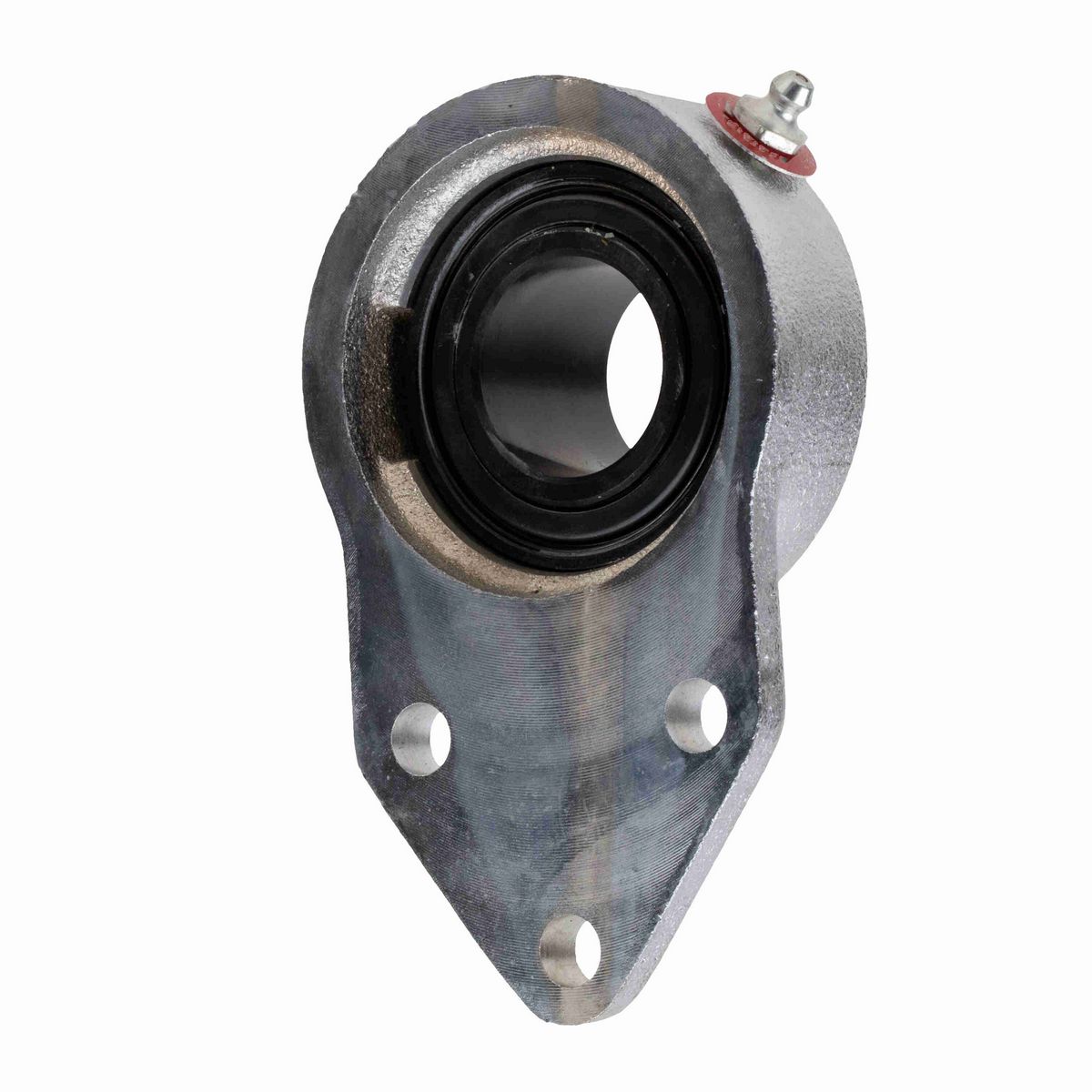

• 1 3/8" Mounted Ball Bearing, Intermediate Duty, Cast Iron 3-Bolt Bracket Flange Block, Setscrew Locking, Single Lip Contact Seal, Nickel Plated Housing

Dimensions

Length Through Bore (in)	1.563 in
Bolt Size (in)	1/2 in
Foot Height (in)	0.5 in
Base to Center Height (in)	4.25 in
Bore Diameter (in)	1.375 in
Overall Width (in)	3.75 in
Overall Length (in)	6.13 in
Overall Height (in)	1.95 in
Bolt Spacing (in)	2.0000 in

Technical Specifications

Cage Material	Molded fiber glass reinforced nylon
Housing Style	Flange Block
Bore Shape	Straight
Pilot Configuration	No Pilot
Outer Ring Land Profile	Standard
Seal Type	Single Lip Contact Seal
Housing Color	Silver
Housing Construction	One Piece
Housing Type	Flange, Bracket, Three Bolt
Misalignment Type	Static Only
Rolling Element	Ball Bearing
Ability to Relubricate	Yes
Setscrew Torque (in-lbs)	165 in/lbs
Insert	SG222ELPAK8299A
Bearing Insert Finish	Black Oxide
Dynamic Load Rating (lb)	5,810 lb
Vibration Frequency Fundamental Train	0.0067 cps
Bearing Insert Material	52100 Bearing Steel
Vibration Frequency Roller Spin	0.0383 cps
Max Operating Temperature (C)	107 °C
Shaft Locking Type	Set Screw
Bearing Centerline to Bolt Hole Center (in)	2.375 in
Housing Coating	Nickel Plated
Misalignment Capability	±1.5° Misalignment - Static Only
Radial Clearance	C3 STANDARD
Cage Type	Ball Riding Retainer
Static Load Rating (lb)	3,440 lb
Size Code	207
Vibration Frequency Outer Ring Defect	0.0595 cps
Fixed vs. Expansion	Fixed
Housing Material	Cast Iron
End Cap Available	No
Grease Fitting Thread Size	1/8 NPT
Inner Ring Outside Diameter (in)	1.847 in
Bearing Type	Intermediate Duty
Maximum Speed (RPM)	4800 rpm
Vibration Frequency Inner Ring Defect	0.0905 cps
Lubricant	MOBIL FM222 FOOD GRADE H1
Max Operating Temperature (F)	225 °F
Bolt Spacing Height Direction (in)	1.25 in
Bearing Brand	LINK-BELT 200 SERIES BALL
Housing Width (in)	3.75 in

General Specifications

UPC	662327725570
Weight	4.00 LB
Packaged Length	6.88 IN
Packaged Width	4.06 IN
Packaged Height	2.13 IN
HTC	8483204040
Country of Origin	Mexico
