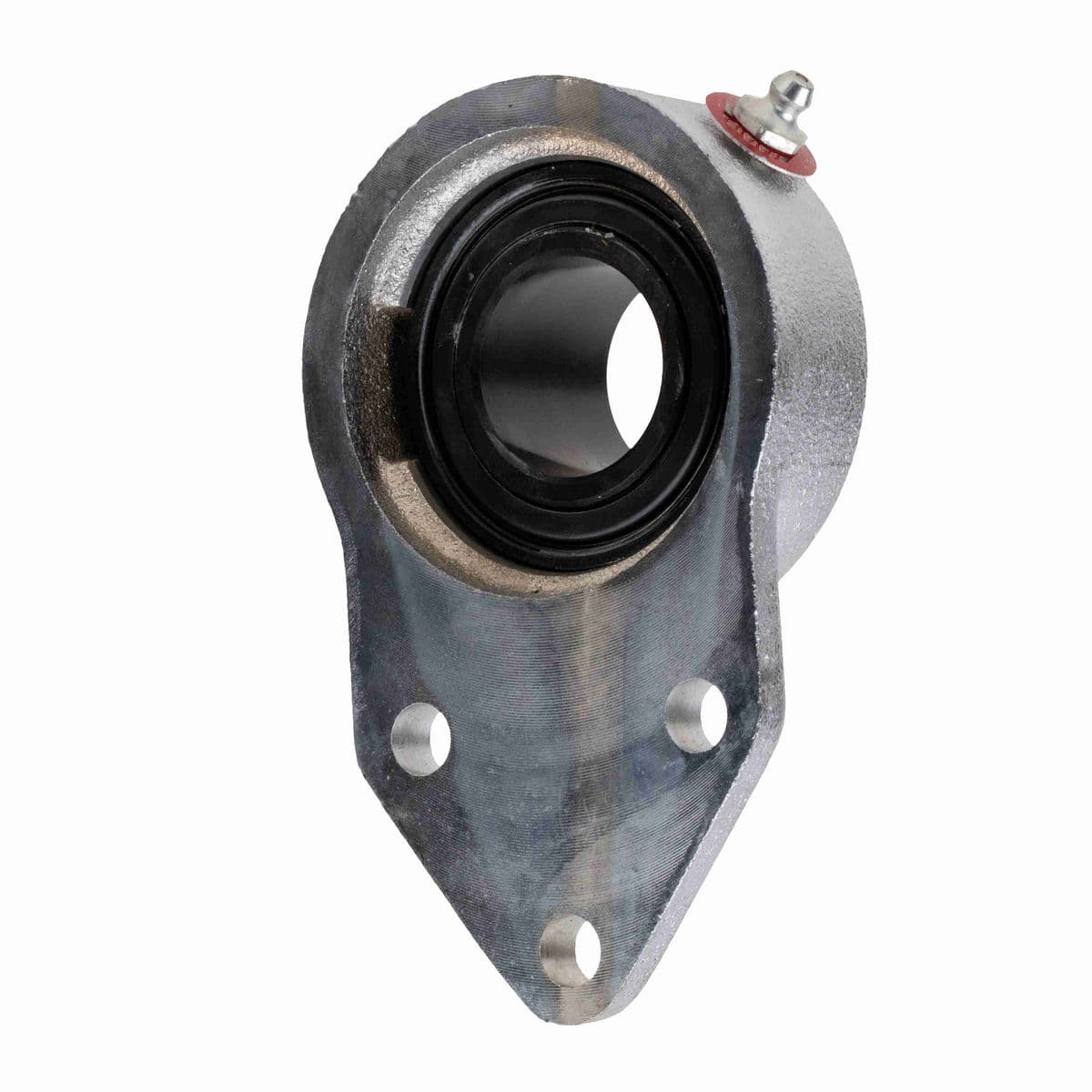

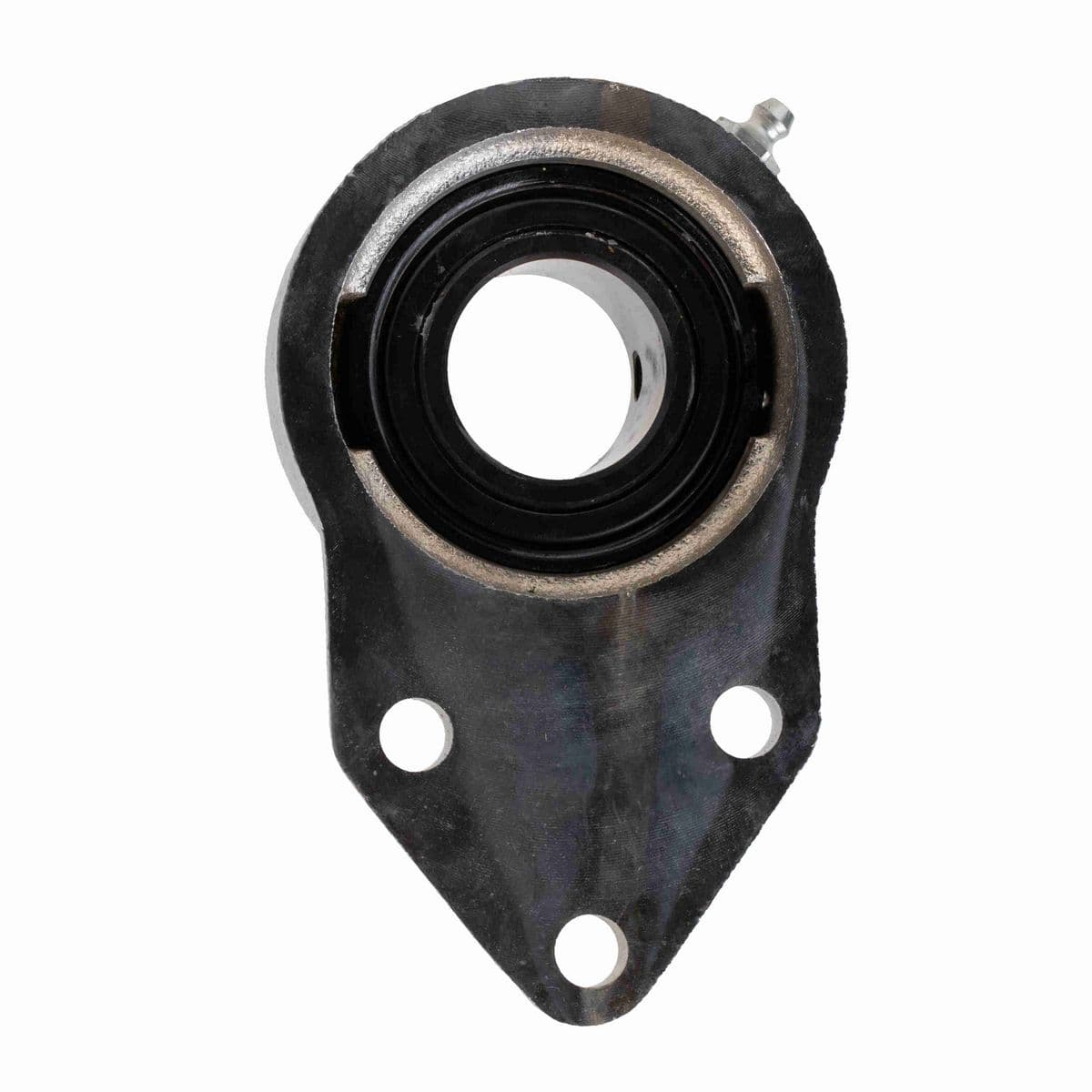

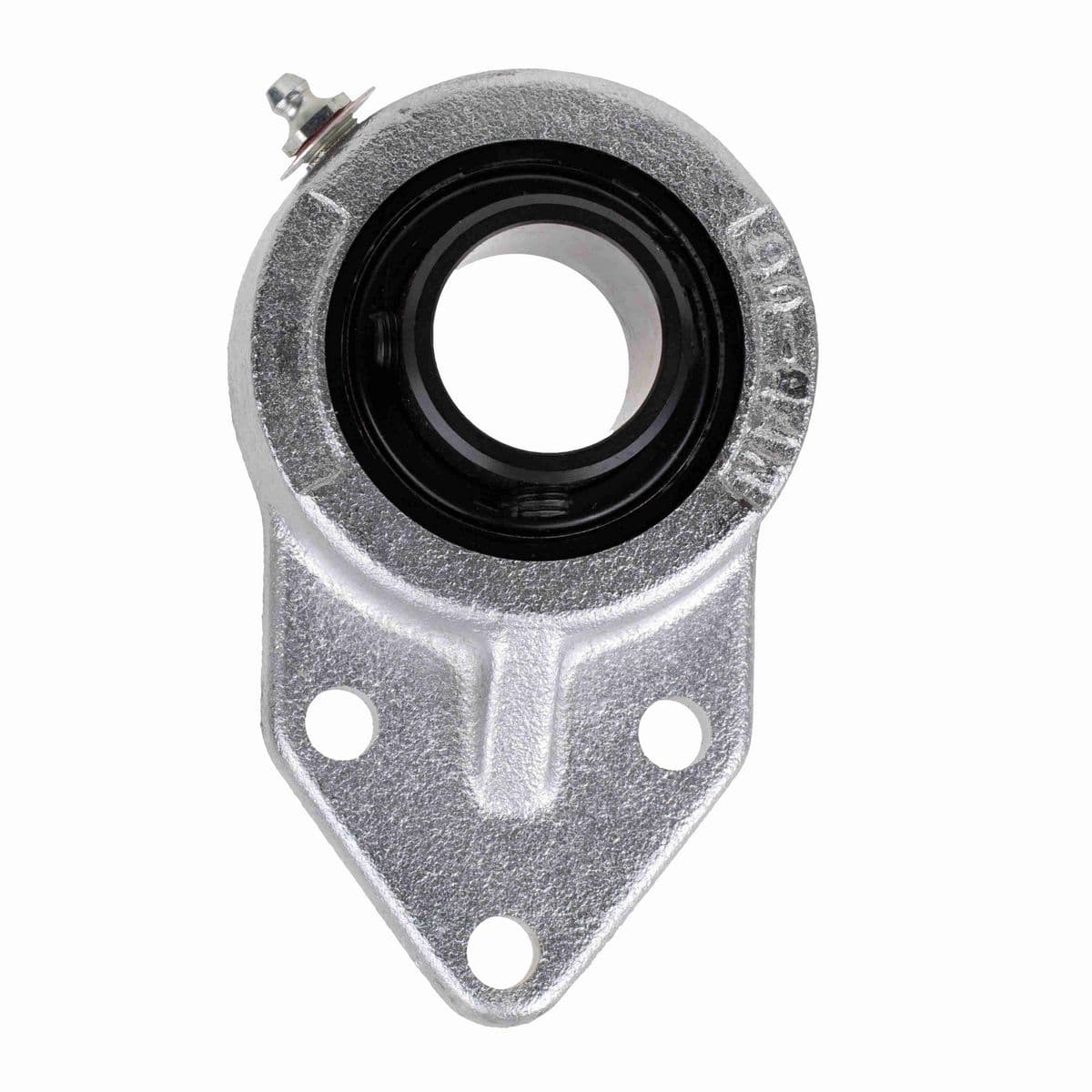

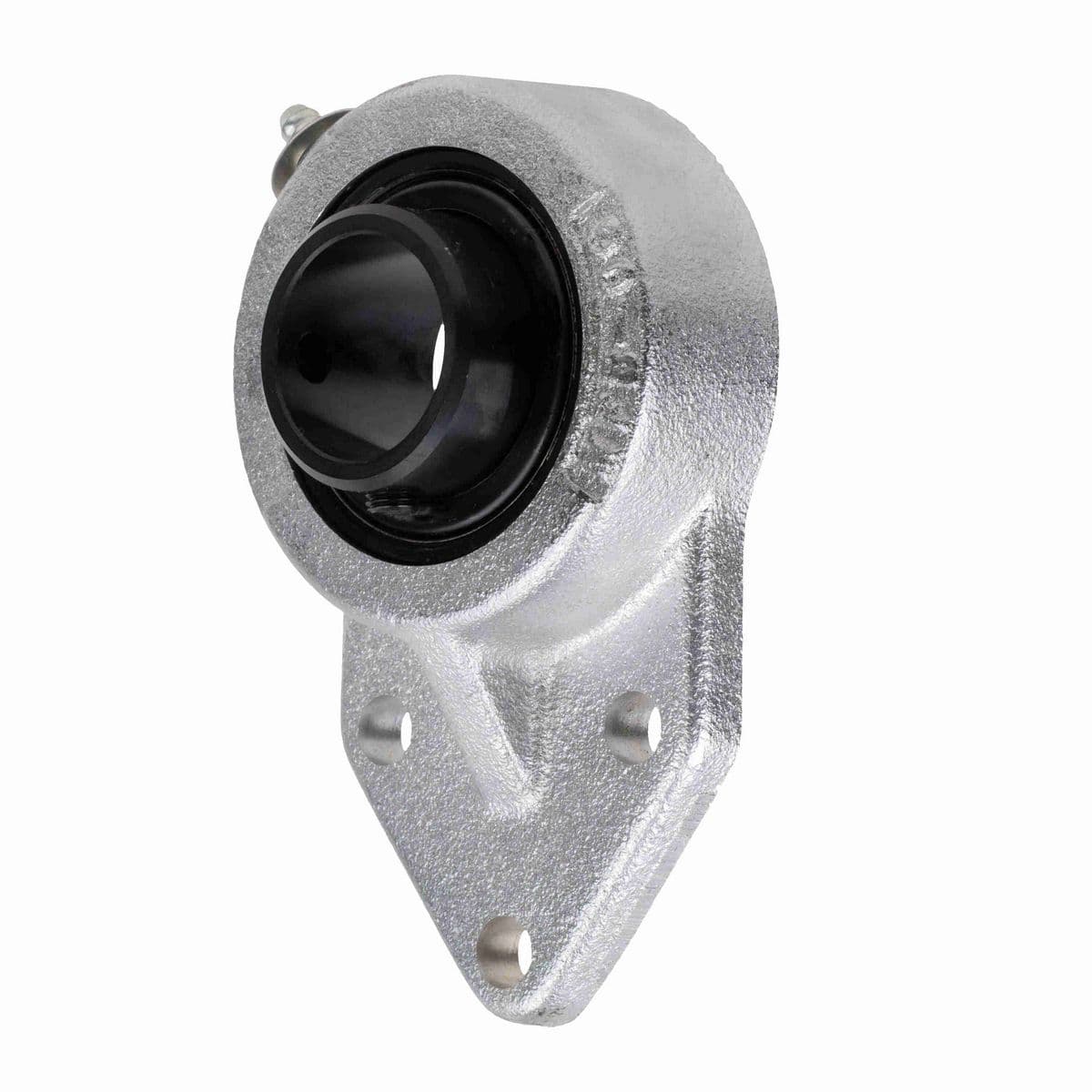

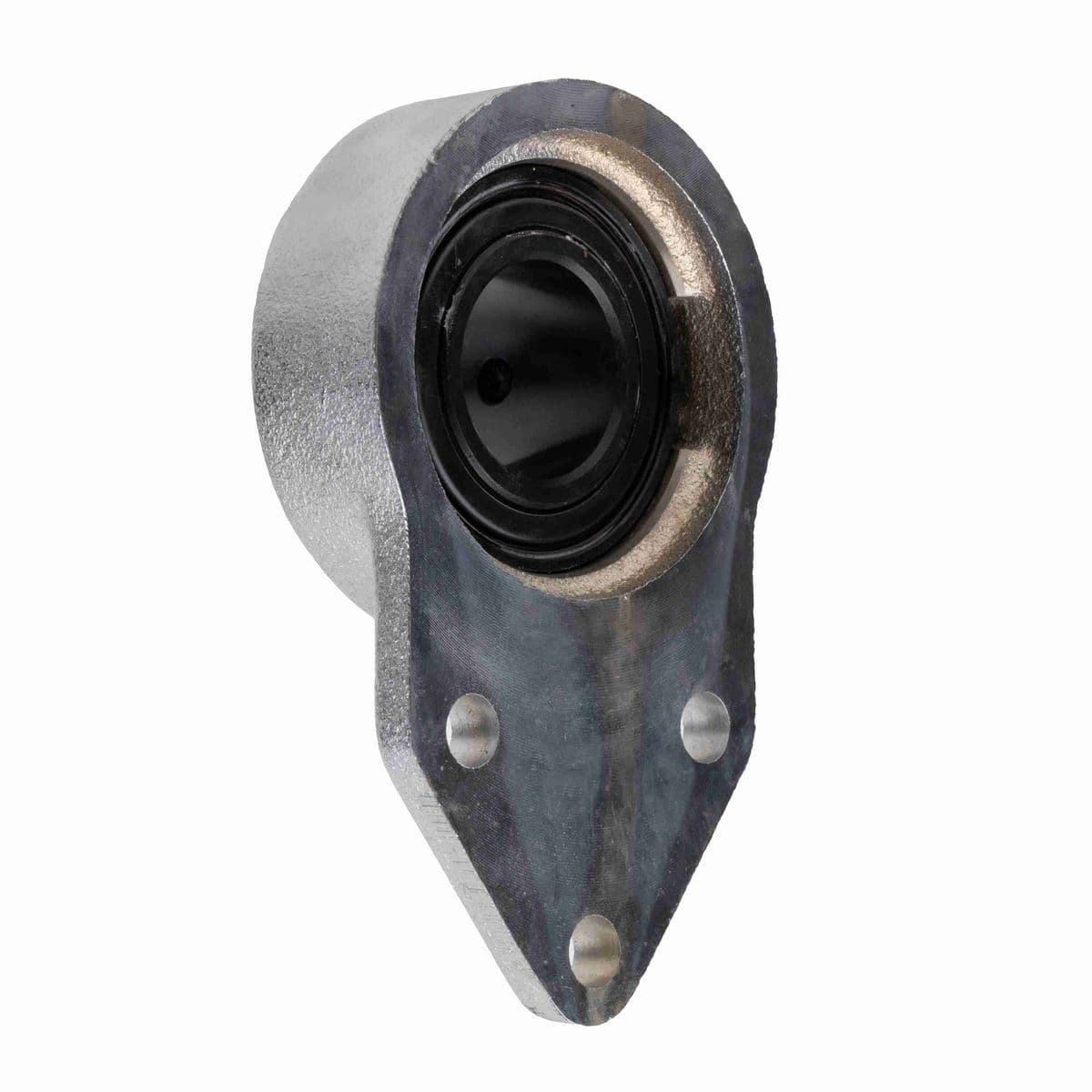

• 3/4" Mounted Ball Bearing, Intermediate Duty, Cast Iron 3-Bolt Bracket Flange Block, Setscrew Locking, Single Lip Contact Seal, Nickel Plated Housing, Food Grade Grease

Dimensions

Bore Diameter (in)	0.75 in
Overall Length (in)	4.25 in
Length Through Bore (in)	1.131 in
Base to Center Height (in)	3 in
Bolt Size (in)	3/8 in
Foot Height (in)	0.31 in
Overall Height (in)	1.38 in
Overall Width (in)	2.5 in
Bolt Spacing (in)	1.5 in

Technical Specifications

Cage Material	Molded fiber glass reinforced nylon
Rolling Element	Ball Bearing
Misalignment Type	Static Only
Bore Shape	Straight
Housing Color	Silver
Pilot Configuration	No Pilot
Housing Style	Flange Block
Housing Type	Flange, Bracket, Three Bolt
Housing Construction	One Piece
Seal Type	Single Lip Contact Seal
Outer Ring Land Profile	Standard
Setscrew Torque (in-lbs)	85 in/lbs
Ability to Relubricate	Yes
Max Operating Temperature (F)	225 °F
Housing Material	Cast Iron
Housing Coating	Nickel Plated
Radial Clearance	C3 STANDARD
Inner Ring Outside Diameter (in)	1.121 in
Grease Fitting Thread Size	1/4-28
Bearing Type	Intermediate Duty
Fixed vs. Expansion	Fixed
Vibration Frequency Fundamental Train	0.0063 cps
Max Operating Temperature (C)	107 °C
Vibration Frequency Inner Ring Defect	0.0825 cps
Bearing Brand	LINK-BELT 200 SERIES BALL
Size Code	204
Static Load Rating (lb)	1,480 lb
Shaft Locking Type	Set Screw
Maximum Speed (RPM)	7500 rpm
Bearing Centerline to Bolt Hole Center (in)	1.6875 in
Vibration Frequency Roller Spin	0.0332 cps
Bolt Spacing Height Direction (in)	0.875 in
Bearing Insert Material	52100 Bearing Steel
Dynamic Load Rating (lb)	2,870 lb
End Cap Available	No
Lubricant	MOBIL FM222 FOOD GRADE H1
Vibration Frequency Outer Ring Defect	0.0508 cps
Bearing Insert Finish	Black Oxide
Cage Type	Ball Riding Retainer
Misalignment Capability	±1.5° Misalignment - Static Only
Insert	SG212ELPAK8299A
Housing Width (in)	2.38 in

General Specifications

UPC	662327643430
Weight	1.21 LB
Packaged Length	4.44 IN
Packaged Width	3.06 IN
Packaged Height	1.50 IN
HTC	8483204040
Country of Origin	Mexico
