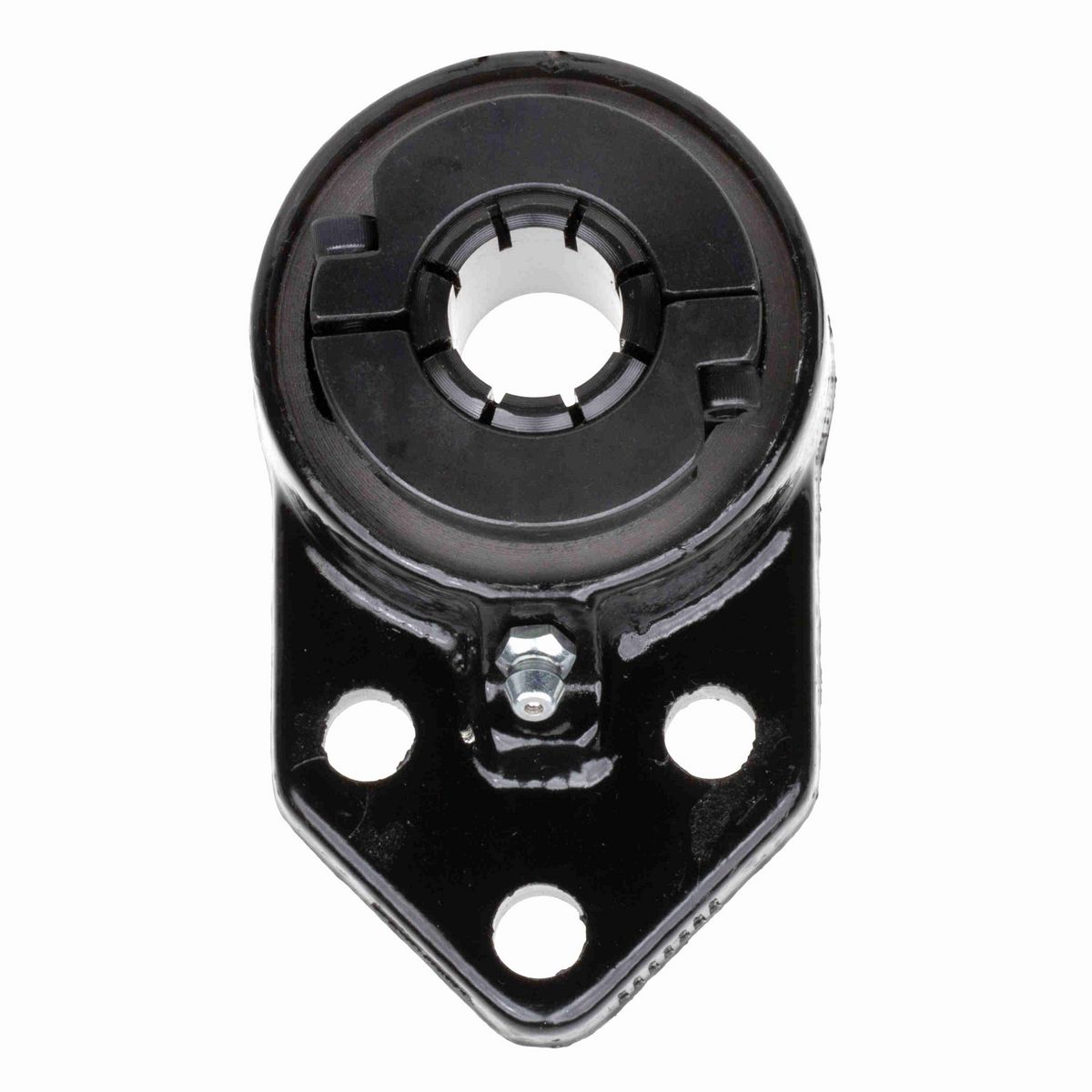

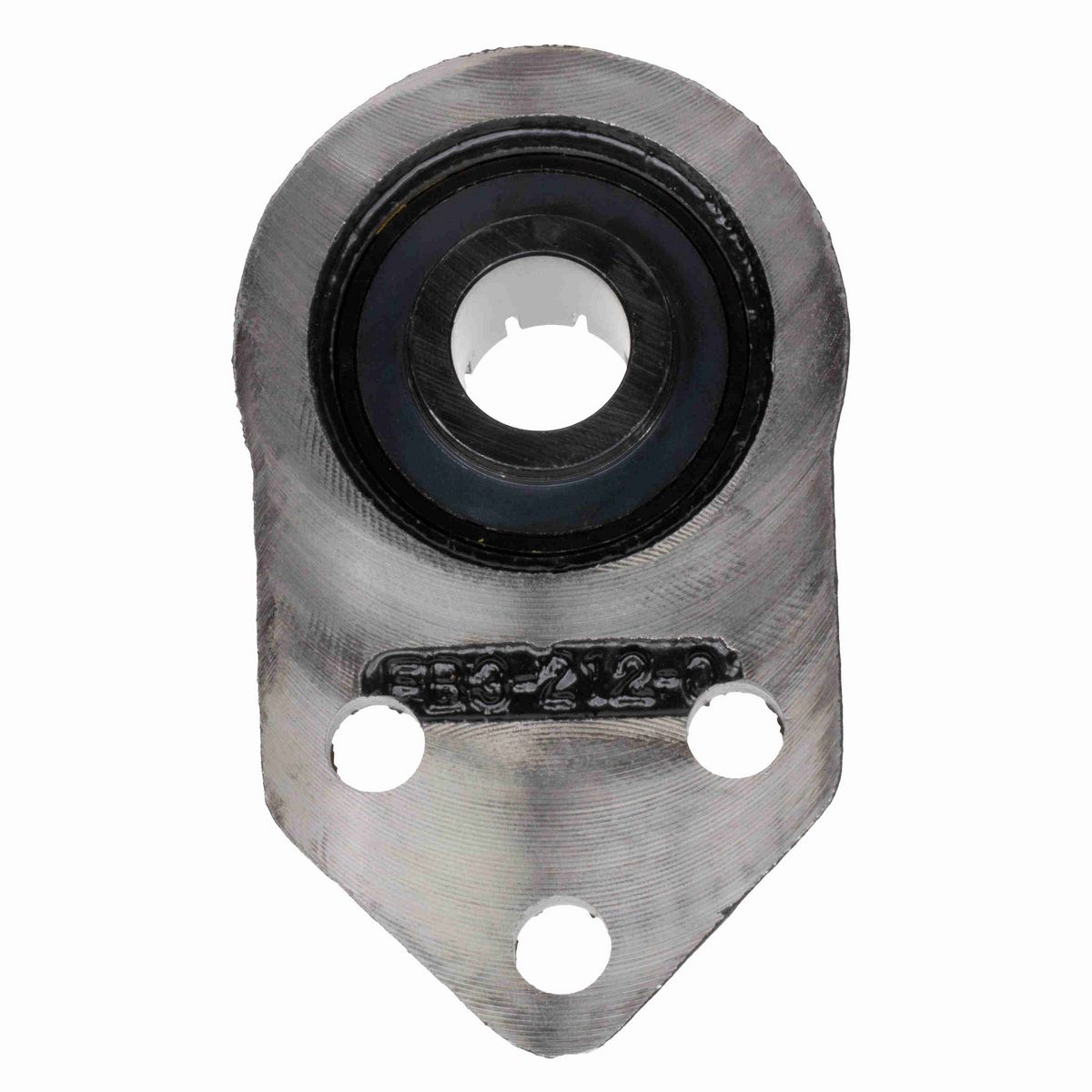

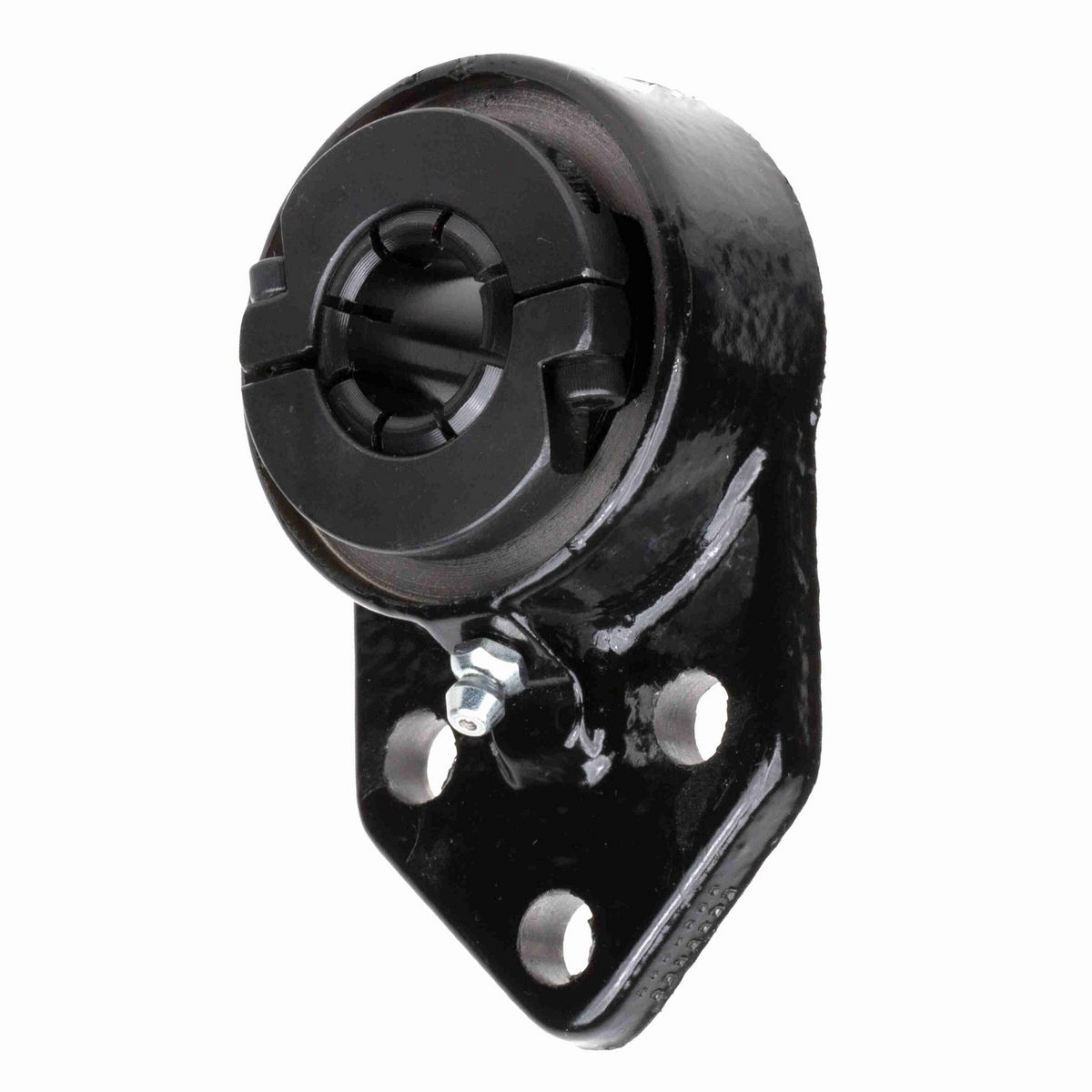

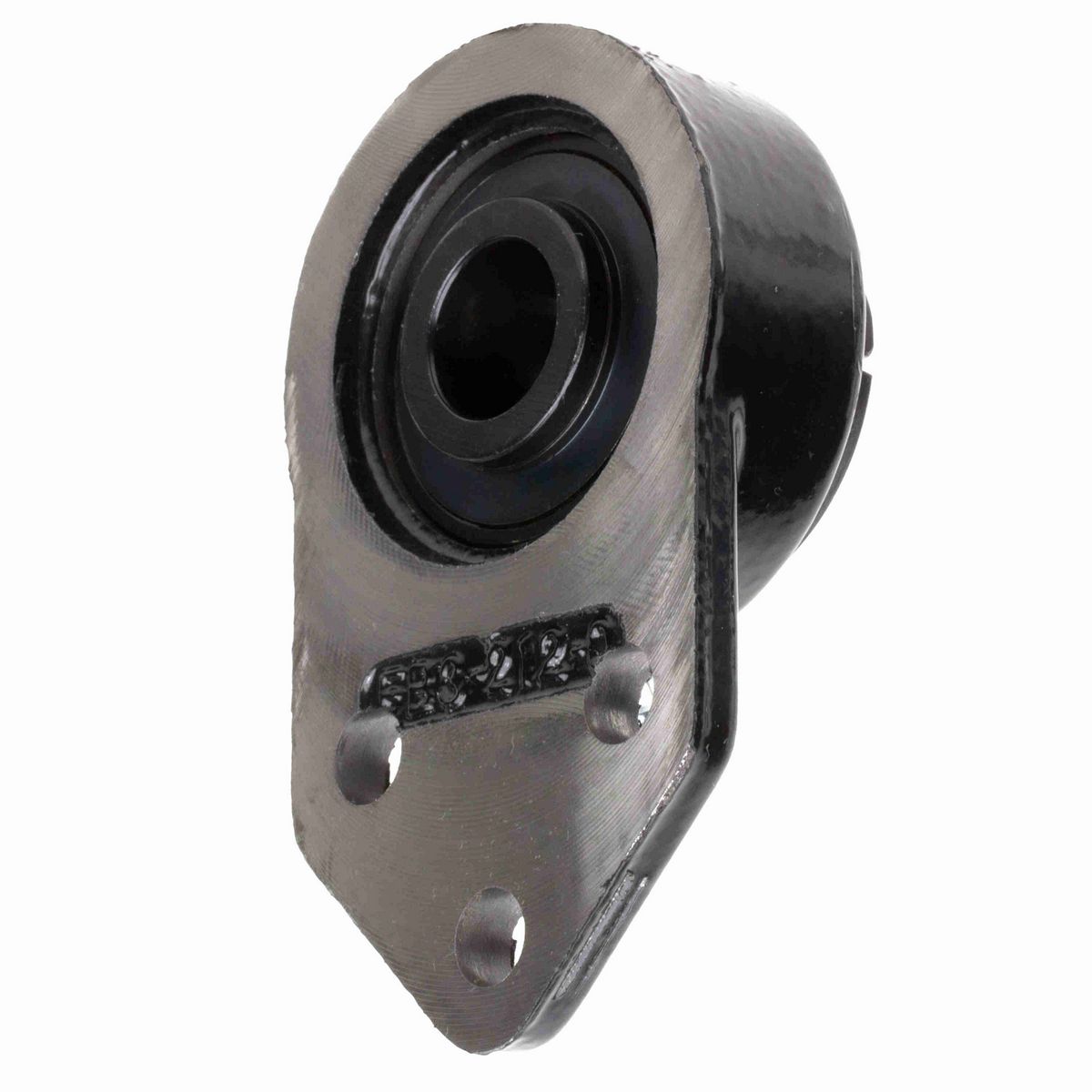

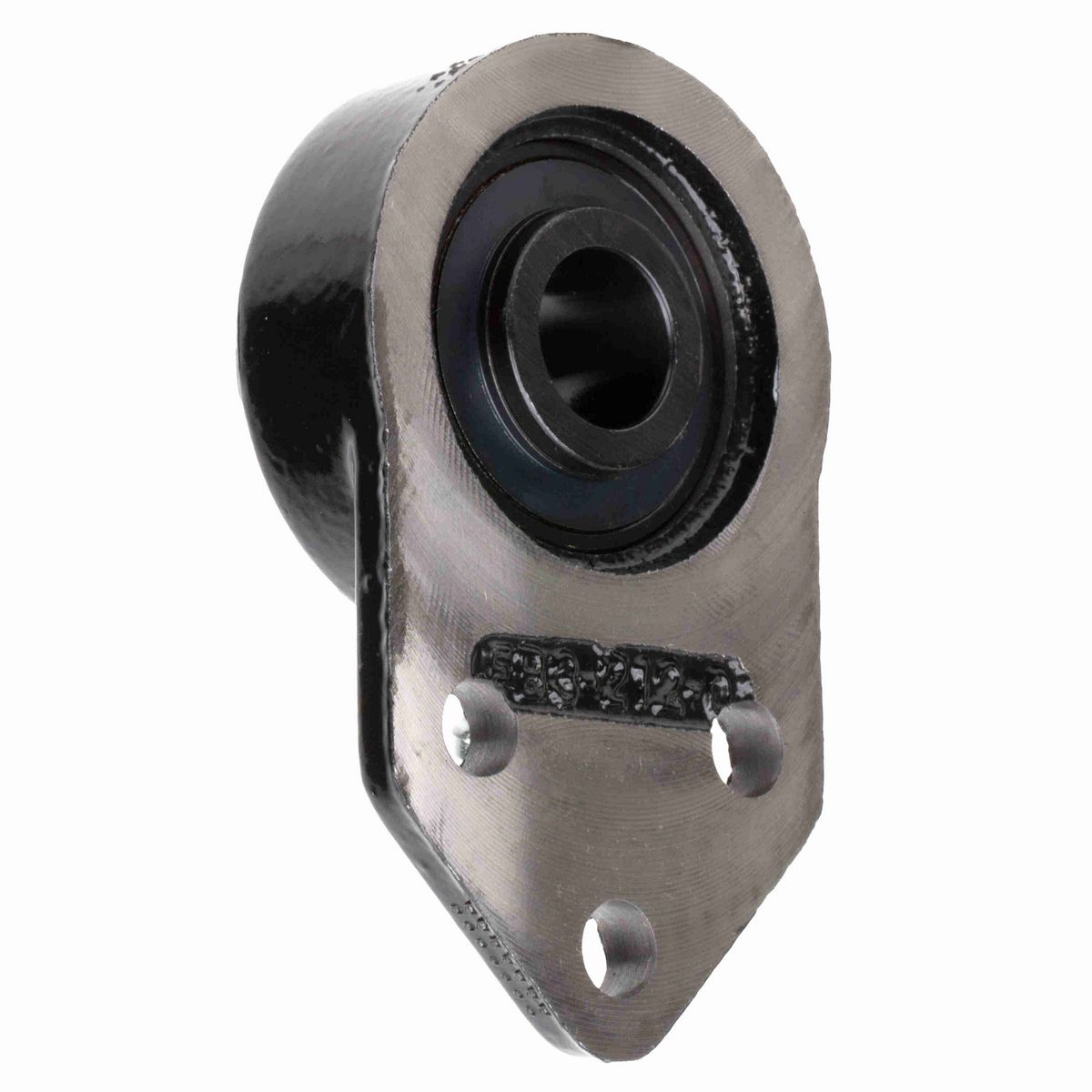

• 1 7/16" Mounted Ball Bearing, Standard Duty, Cast Iron 3-Bolt Bracket Flange Block, Centrik-Lok CL Locking Device, Single Lip Contact Seal

Dimensions

Base to Center Height (in)	4.25 in
Bore Diameter (in)	1.4375 in
Overall Height (in)	1.94 in
Foot Height (in)	0.5 in
Bolt Size (in)	1/2 in
Overall Width (in)	3.75 in
Overall Length (in)	6.13 in
Length Through Bore (in)	1.81 in
Bolt Spacing (in)	2.0000 in

Technical Specifications

Housing Construction	One Piece
Misalignment Type	Static Only
Bore Shape	Straight
Cage Material	Molded fiber glass reinforced nylon
Housing Type	Flange, Bracket, Three Bolt
Housing Color	Black
Housing Style	Flange Block
Seal Type	Single Lip Contact Seal
Pilot Configuration	No Pilot
Outer Ring Land Profile	Standard
Rolling Element	Ball Bearing
Locking Collar Outside Diameter (in)	2.50 in
Setscrew Torque (in-lbs)	151-168 in/lbs
Ability to Relubricate	Yes
Shaft Locking Type	Concentric
Lubricant	EXXON RONEX MP STD
Max Operating Temperature (F)	225 °F
Bearing Type	Standard Duty
End Cap	CL2236
Cage Type	Ball Riding Retainer
Size Code	207
Bearing Centerline to Bolt Hole Center (in)	2.375 in
Bearing Insert Finish	Black Oxide
Radial Clearance	C3 STANDARD
Locking Device Kit	CL2235S
Static Load Rating (lb)	3,440 lb
Maximum Speed (RPM)	6850 rpm
Vibration Frequency Roller Spin	0.0383 cps
Fixed vs. Expansion	Fixed
Vibration Frequency Fundamental Train	0.0067 cps
Max Operating Temperature (C)	107 °C
Vibration Frequency Outer Ring Defect	0.0595 cps
End Cap Available	Yes
Grease Fitting Thread Size	1/4-28
Bolt Spacing Height Direction (in)	1.25 in
Misalignment Capability	±1.5° Misalignment - Static Only
Vibration Frequency Inner Ring Defect	0.0905 cps
Housing Material	Cast Iron
Bearing Brand	LINK-BELT 200 SERIES BALL
Housing Coating	Powder Coated
Dynamic Load Rating (lb)	5,810 lb
Insert	CLG223NL
Inner Ring Outside Diameter (in)	1.847 in
Bearing Insert Material	52100 Bearing Steel
Housing Width (in)	3.75 in

General Specifications

UPC	662864642088
Weight	3.70 LB
Packaged Length	5.75 IN
Packaged Width	5.75 IN
Packaged Height	2.25 IN
HTC	8483204040
Country of Origin	Mexico
