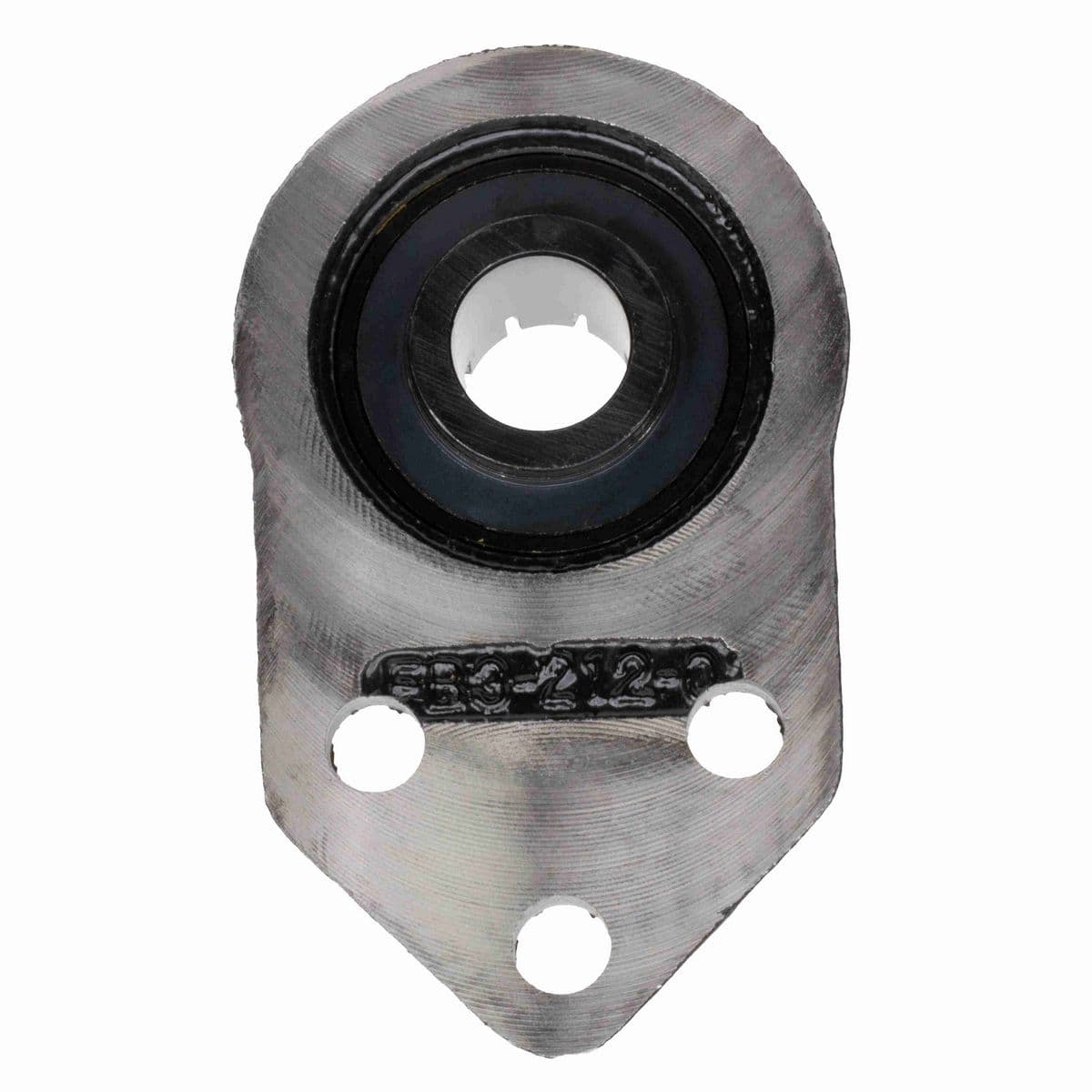

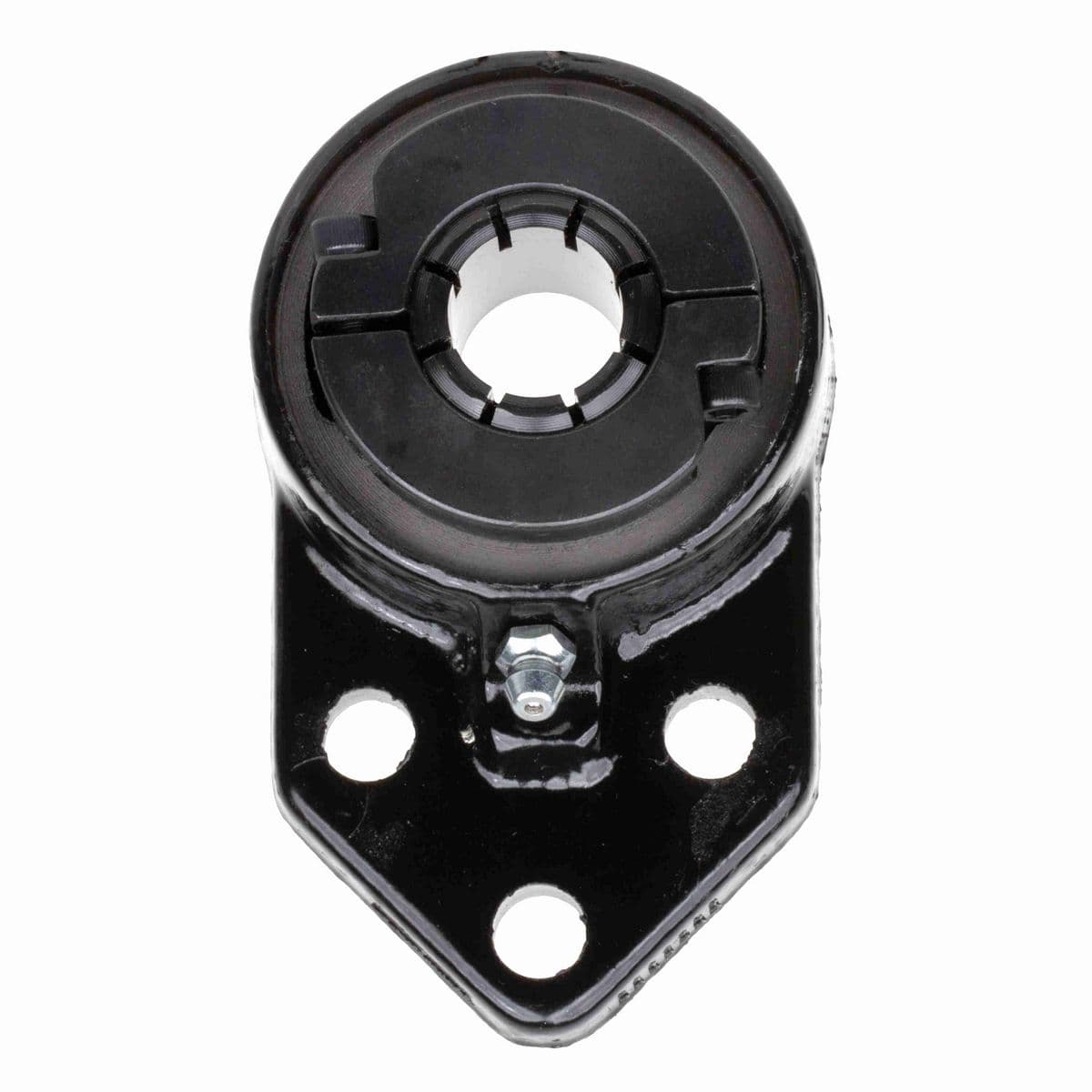

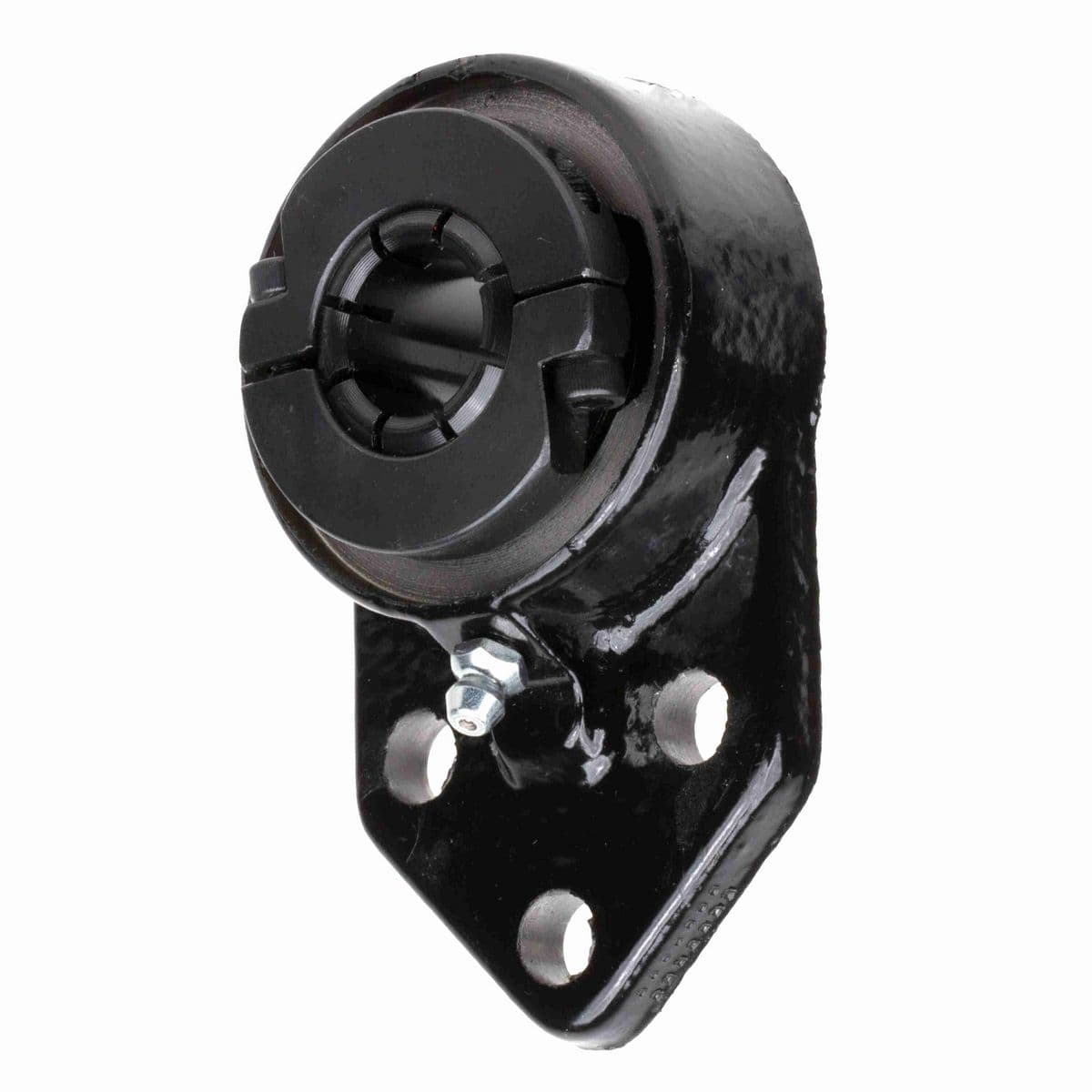

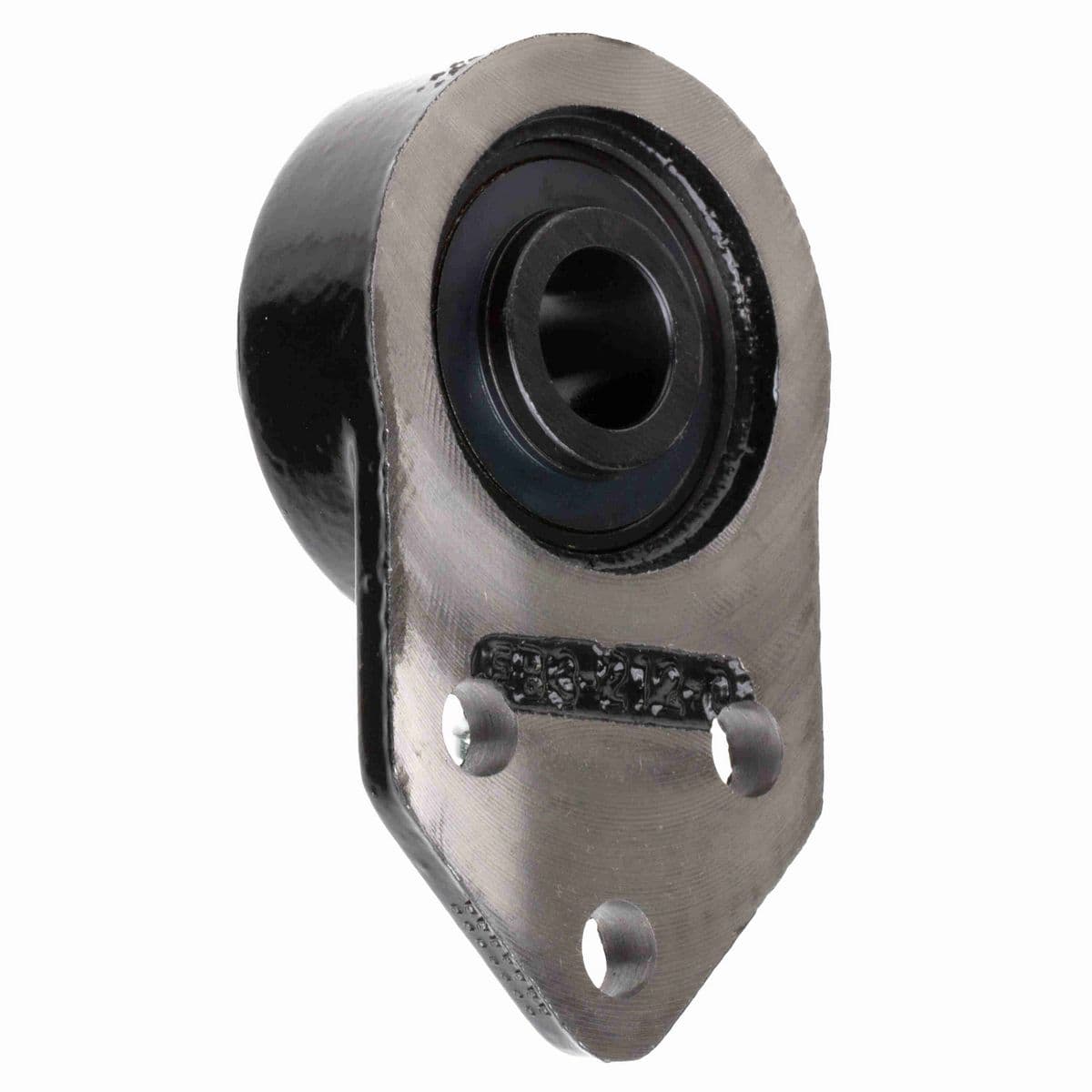

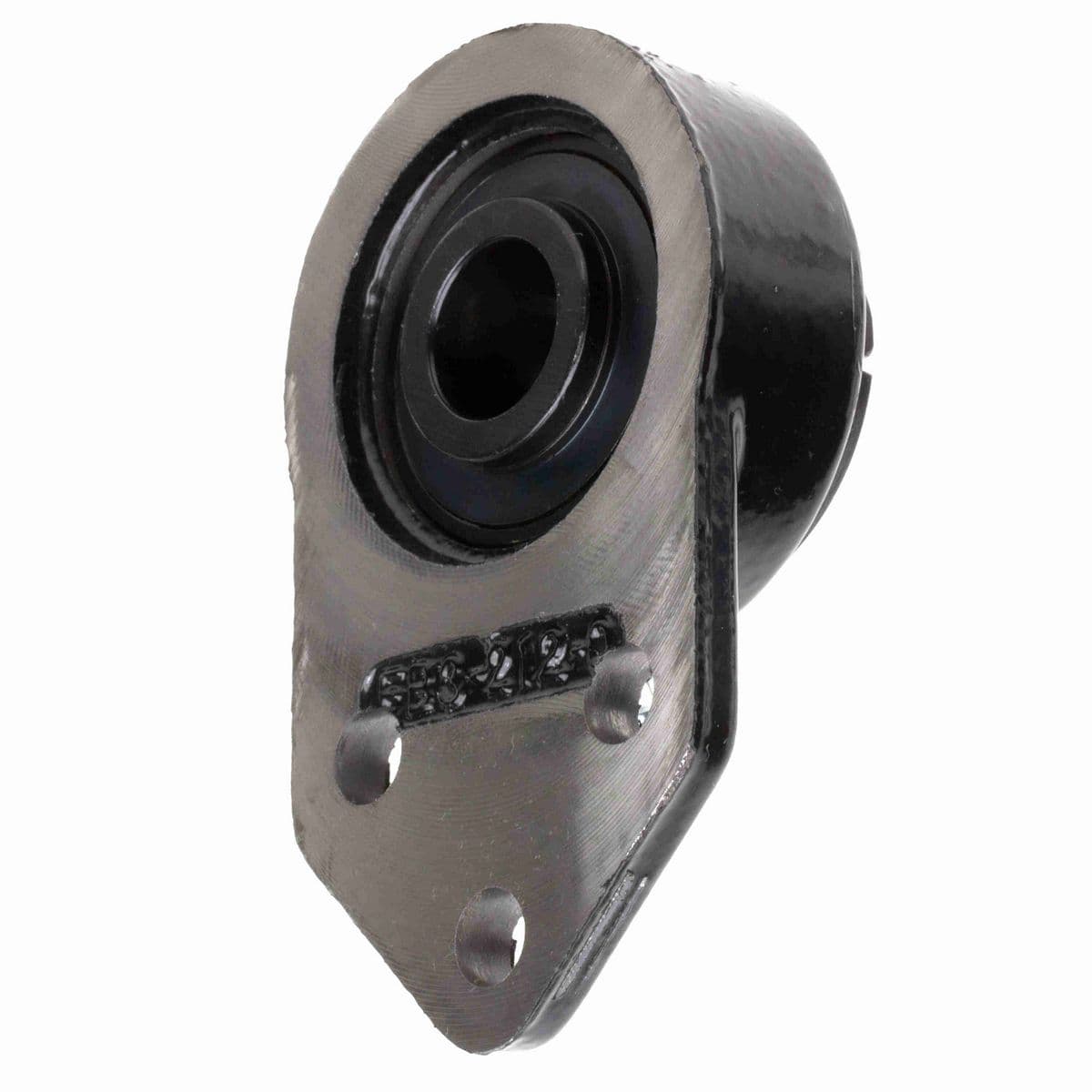

• 1" Mounted Ball Bearing, Standard Duty, Cast Iron 3-Bolt Flange Bracket Block, Centrik-Lok CL Locking Device, Single Lip Contact Seal

Dimensions

Overall Length (in)	4.75 in
Overall Width (in)	2.75 in
Overall Height (in)	1.61 in
Bore Diameter (in)	1 in
Foot Height (in)	0.38 in
Length Through Bore (in)	1.48 in
Base to Center Height (in)	3.38 in
Bolt Size (in)	3/8 in
Bolt Spacing (in)	1.6250 in

Technical Specifications

Housing Type	Flange, Bracket, Three Bolt
Housing Color	Black
Rolling Element	Ball Bearing
Cage Material	Molded fiber glass reinforced nylon
Housing Construction	One Piece
Seal Type	Single Lip Contact Seal
Housing Style	Flange Block
Bore Shape	Straight
Misalignment Type	Static Only
Pilot Configuration	No Pilot
Outer Ring Land Profile	Standard
Ability to Relubricate	Yes
Setscrew Torque (in-lbs)	65-72 in/lbs
Locking Collar Outside Diameter (in)	1.98 in
Bearing Insert Material	52100 Bearing Steel
Locking Device Kit	CL2165S
Size Code	205
End Cap	CL2166
End Cap Available	Yes
Bearing Centerline to Bolt Hole Center (in)	1.8125 in
Bolt Spacing Height Direction (in)	1.125 in
Max Operating Temperature (C)	107 °C
Grease Fitting Thread Size	1/4-28
Insert	CLG216NL
Max Operating Temperature (F)	225 °F
Vibration Frequency Inner Ring Defect	0.0905 cps
Vibration Frequency Outer Ring Defect	0.0595 cps
Dynamic Load Rating (lb)	3,150 lb
Bearing Insert Finish	Black Oxide
Cage Type	Ball Riding Retainer
Vibration Frequency Roller Spin	0.0387 cps
Vibration Frequency Fundamental Train	0.0067 cps
Housing Coating	Powder Coated
Inner Ring Outside Diameter (in)	1.313 in
Shaft Locking Type	Concentric
Maximum Speed (RPM)	9600 rpm
Bearing Type	Standard Duty
Misalignment Capability	±1.5° Misalignment - Static Only
Bearing Brand	LINK-BELT 200 SERIES BALL
Radial Clearance	C3 STANDARD
Fixed vs. Expansion	Fixed
Lubricant	EXXON RONEX MP STD
Static Load Rating (lb)	1,760 lb
Housing Material	Cast Iron
Housing Width (in)	2.75 in

General Specifications

UPC	662864875547
Weight	1.80 LB
Packaged Length	5.63 IN
Packaged Width	4.25 IN
Packaged Height	1.88 IN
HTC	8483204040
Country of Origin	Mexico
