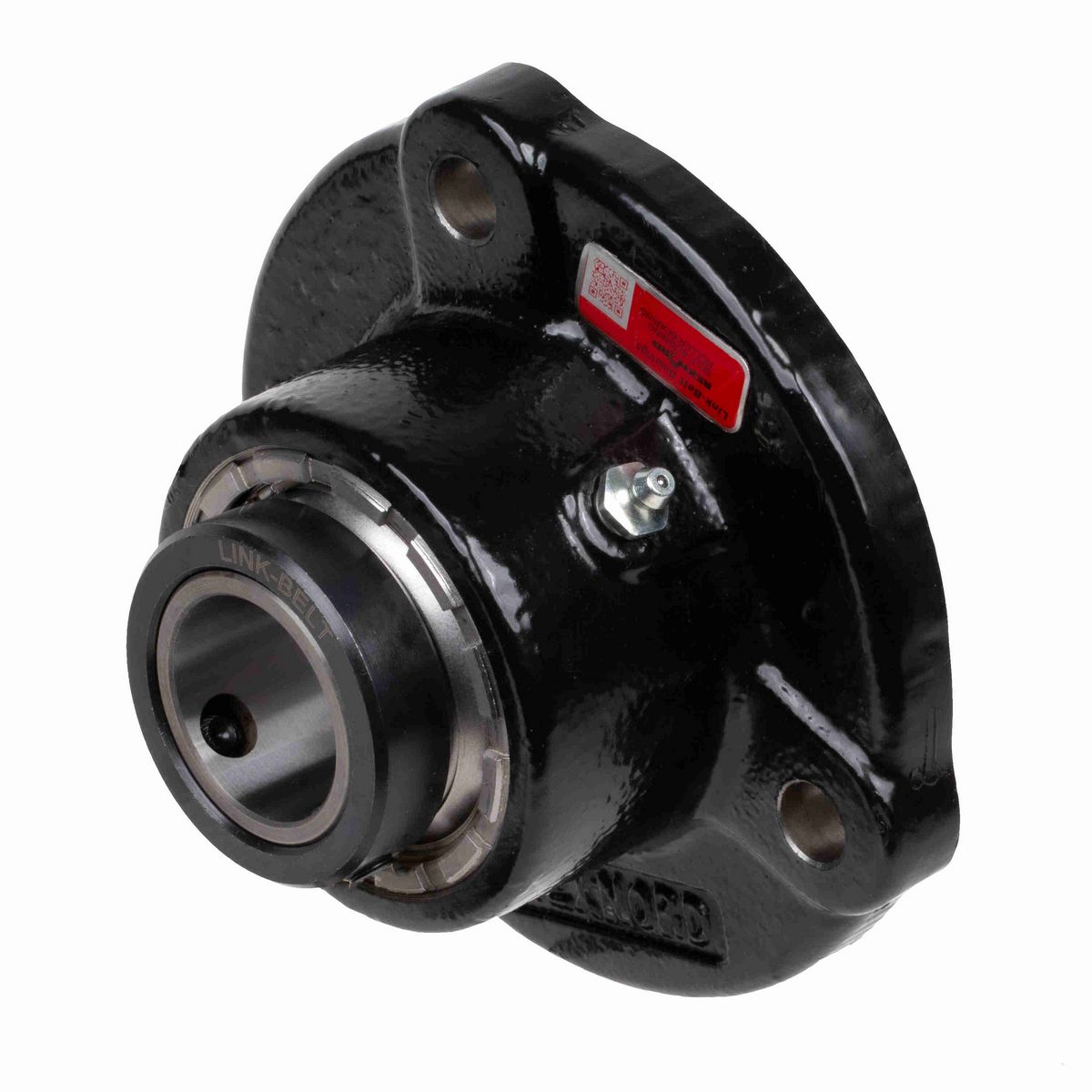

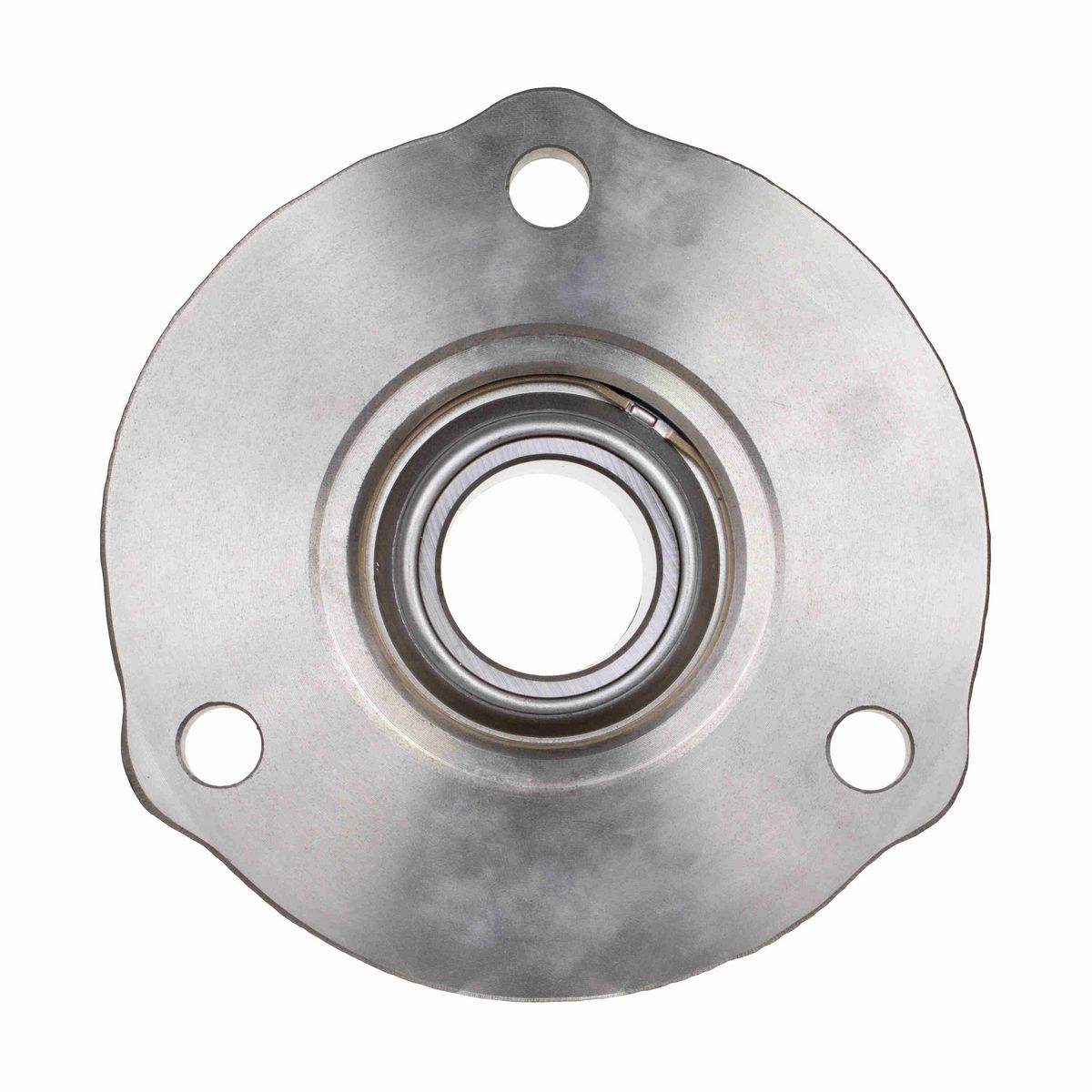

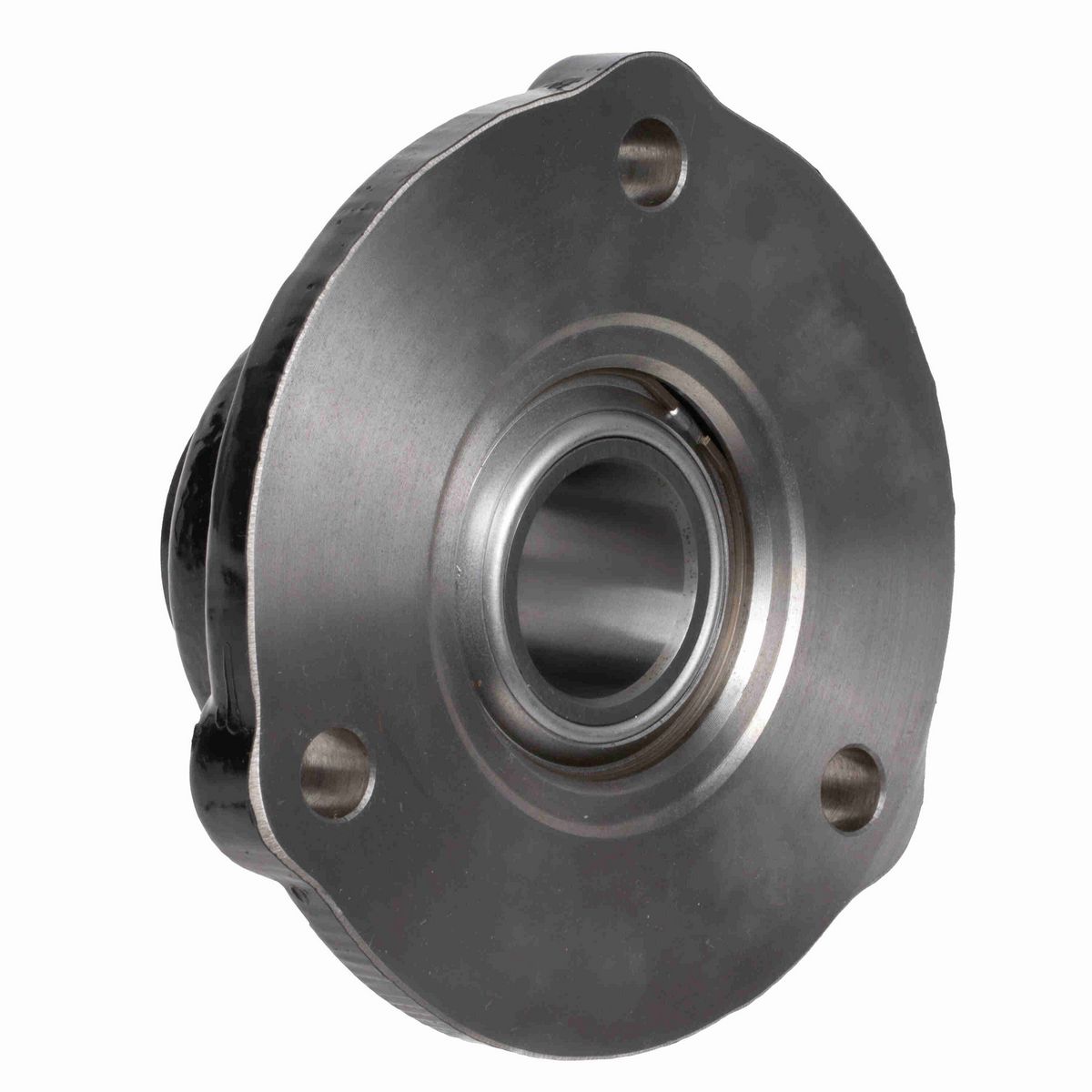

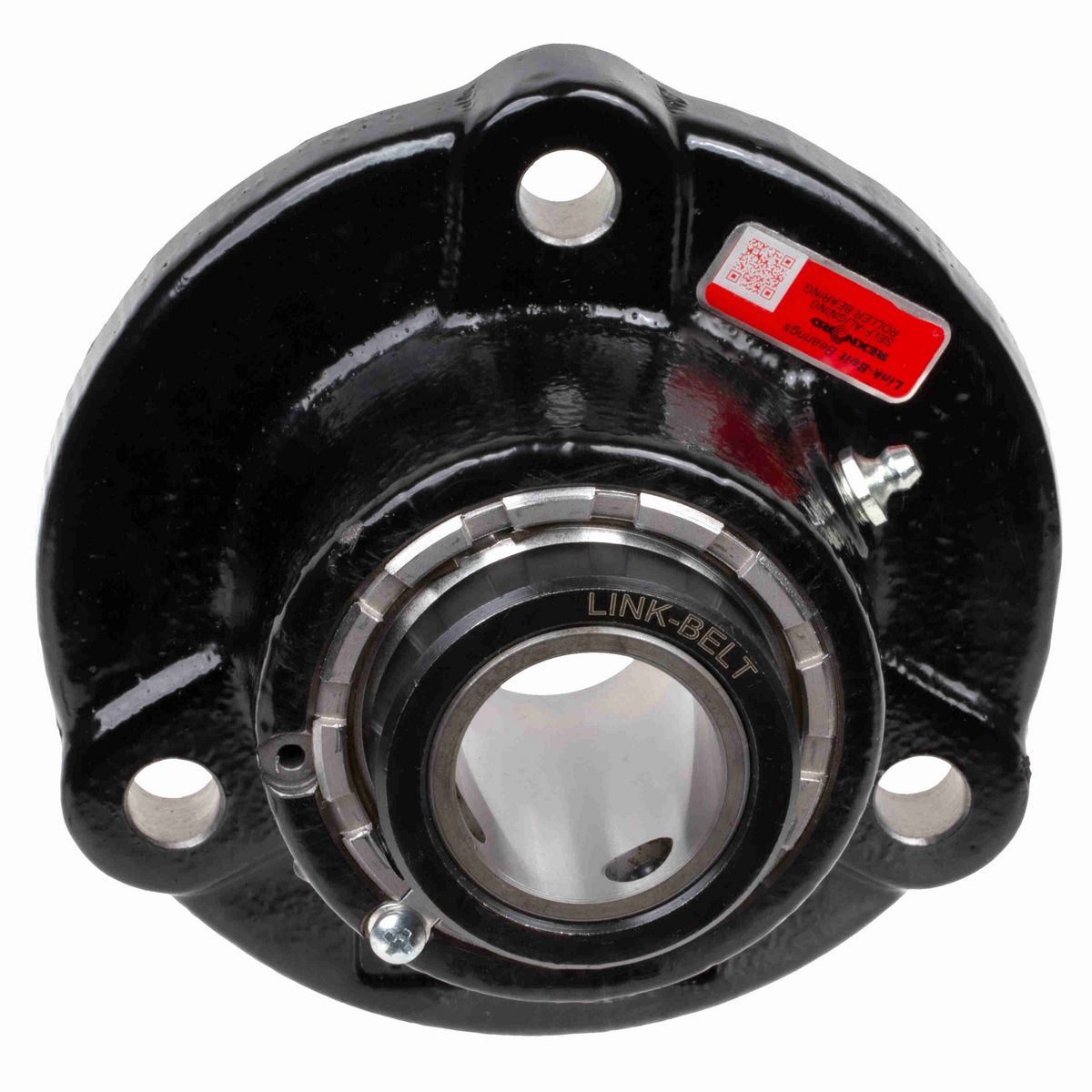

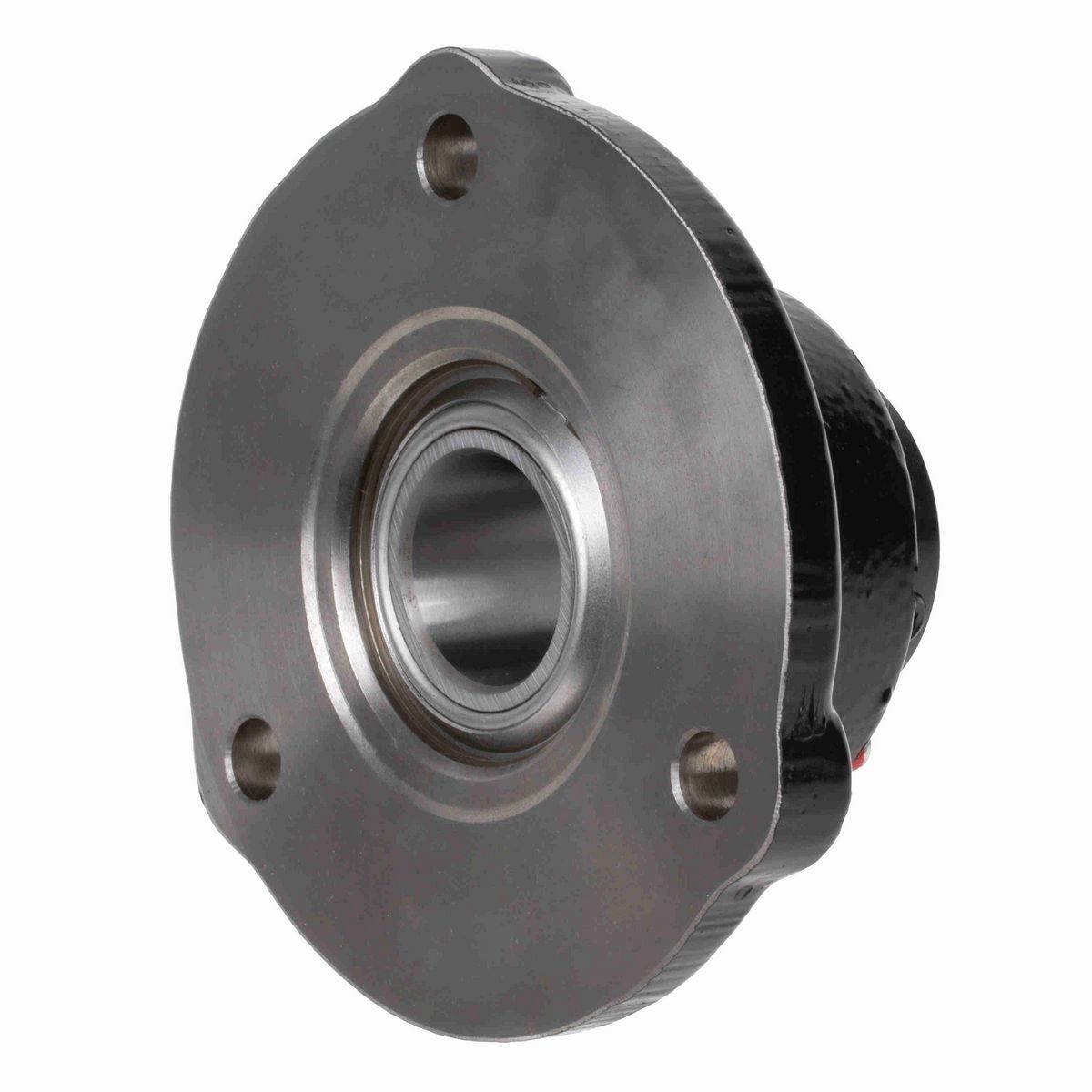

• 1 7/16" Mounted Spherical Roller Bearing, Fixed Cast Iron Flange Block, Adapter Mounted, Clearance Seal

Dimensions

Overall Length (in)	6.25 in
Overall Height (in)	2.75 in
Bolt Size (in)	1/2 in
Overall Width (in)	6.25 in
Bore Diameter (in)	1.4375 in
Foot Height (in)	0.63 in
Locking Collar Outside Diameter (in)	2.25 in
Housing Outside Diameter (in)	6.25 in
Bolt Circle (in)	5 in
Housing Cast Face to Outermost Bearing Face (in)	0.48 in
Length Through Bore (in)	2.71 in
Inner Ring Outside Diameter (in)	1.745 in
Bolt Spacing (in)	4.33 in

Technical Specifications

Housing Material	Cast Iron
Series	Flange Blocks
Shaft Locking Type	Adapter Mount
Seal Type	Clearance Seal
Cage Material	Steel
Fixed/Expansion	Fixed
Misalignment Type	Dynamic
Radial Dynamic Load Capacity (lb)	17,800 lb
End Cap	B424DTC
Housing Construction	Solid
Product	FB22600
Static Load Rating (lb)	20,900 lb
Rolling Element	Spherical Roller
Radial Clearance	C0 STANDARD
Housing Type	Flange, Three Bolt
Housing Style	Flange Block
Seal Kit	B424HS
Available Seal Type	E Lip Seal; H Labyrinth Seal; E7 Triple Lip Seal
Ability to Relubricate	Yes
Microlock Kit	B436MLK
Maximum Speed (RPM)	3600 rpm
Vibration Frequency Fundamental Train	0.007 cps
Locking Device Kit	SNW623
Housing Coating	POWDER COATED
Misalignment Capability	±2.0° Misalignment - Dynamic
Max Operating Temperature (F)	225 °F
Vibration Frequency Outer Ring Defect	0.1055 cps
Primary Seal	STEEL CLEARANCE SEAL
Grease Fitting Thread Size	1/8 NPT
Lubricant	EXXON RONEX MP STD
Shaft Locking Collar Kit/Adapter Assembly	SNW623
Vibration Frequency Inner Ring Defect	0.1445 cps
Size Code	B624
Insert	B623L
Max Operating Temperature (C)	107 °C
Vibration Frequency Roller Spin	0.0499 cps

General Specifications

UPC	662327985257
Weight	6.70 LB
Packaged Length	6.50 IN
Packaged Width	3.13 IN
Packaged Height	6.50 IN
Country of Origin	Mexico
