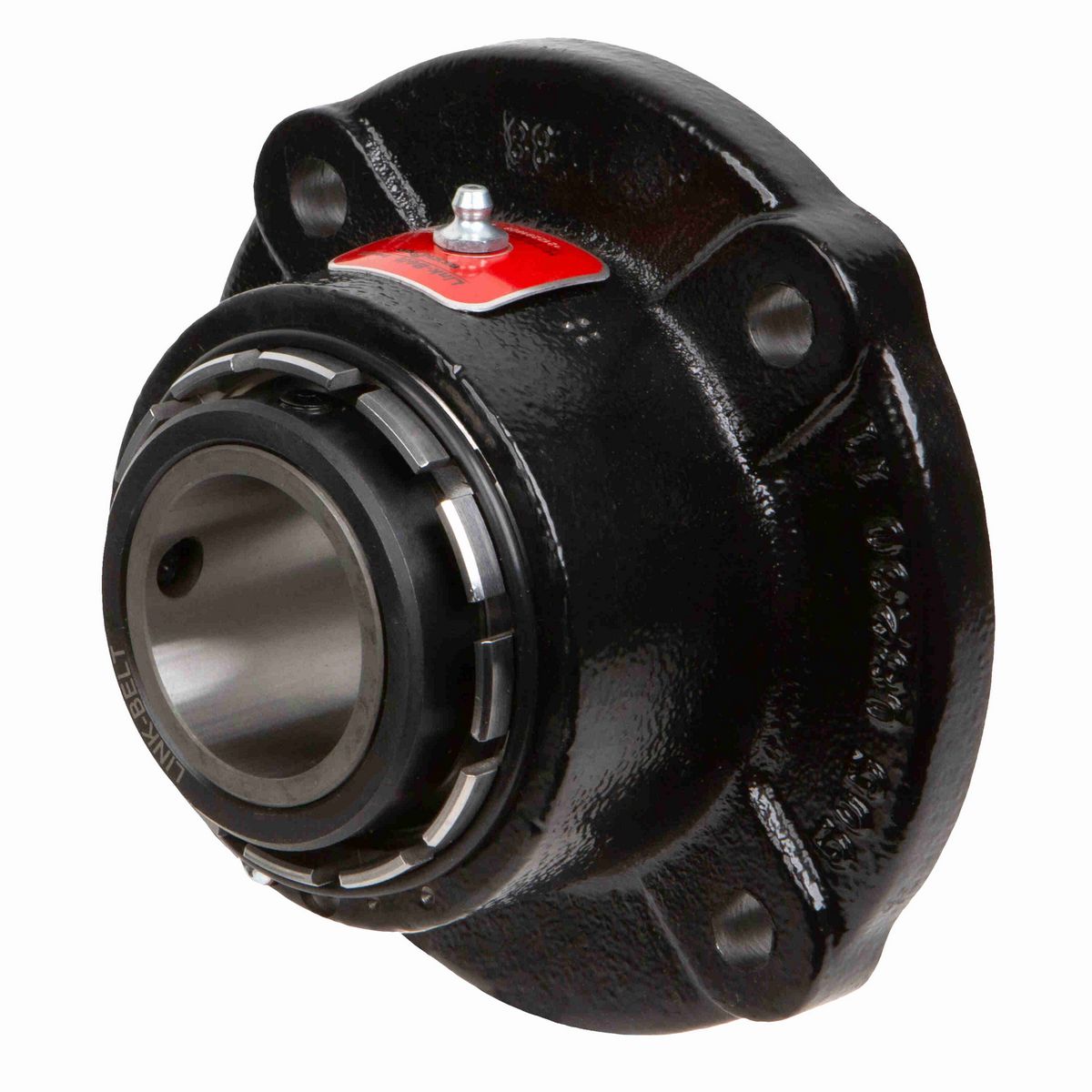

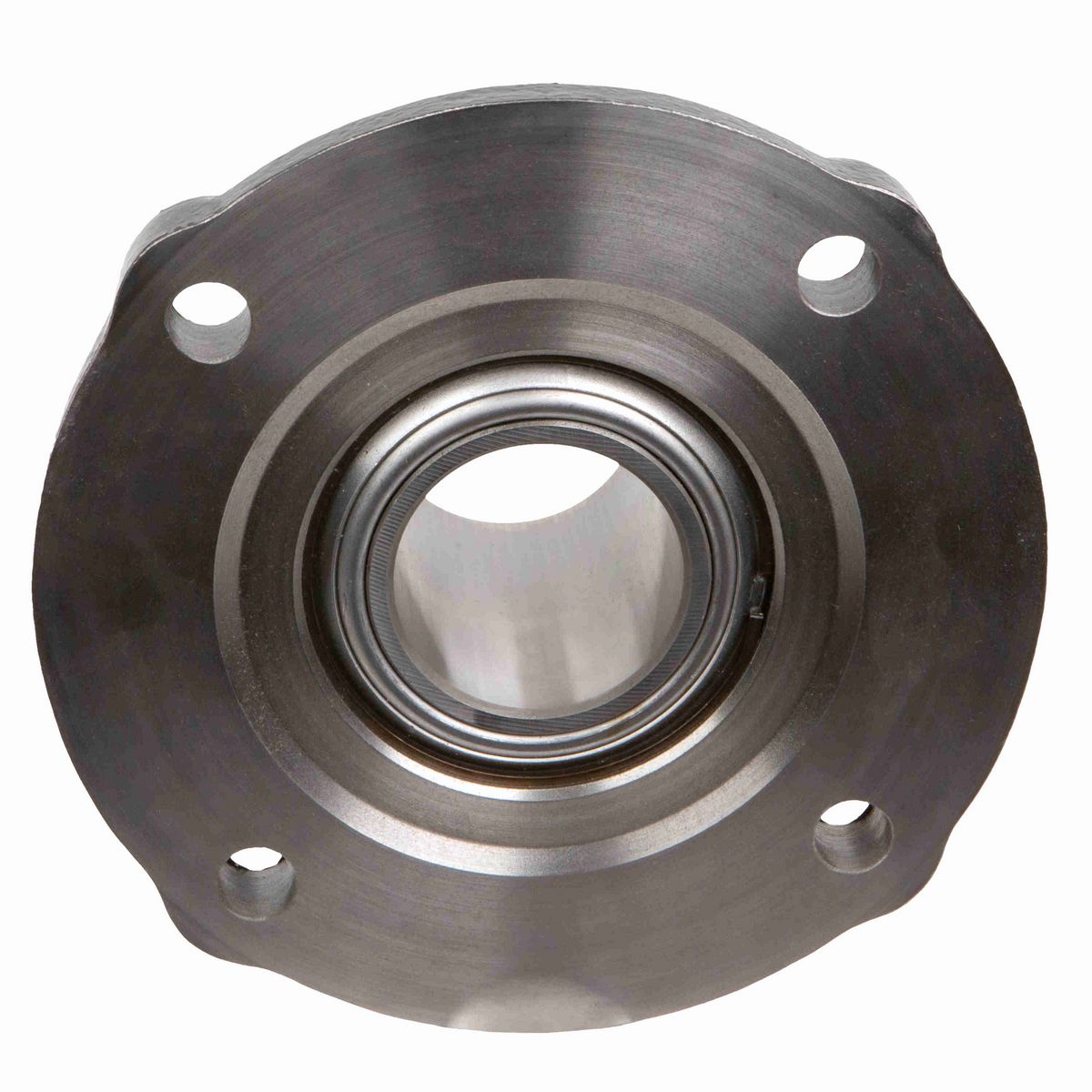

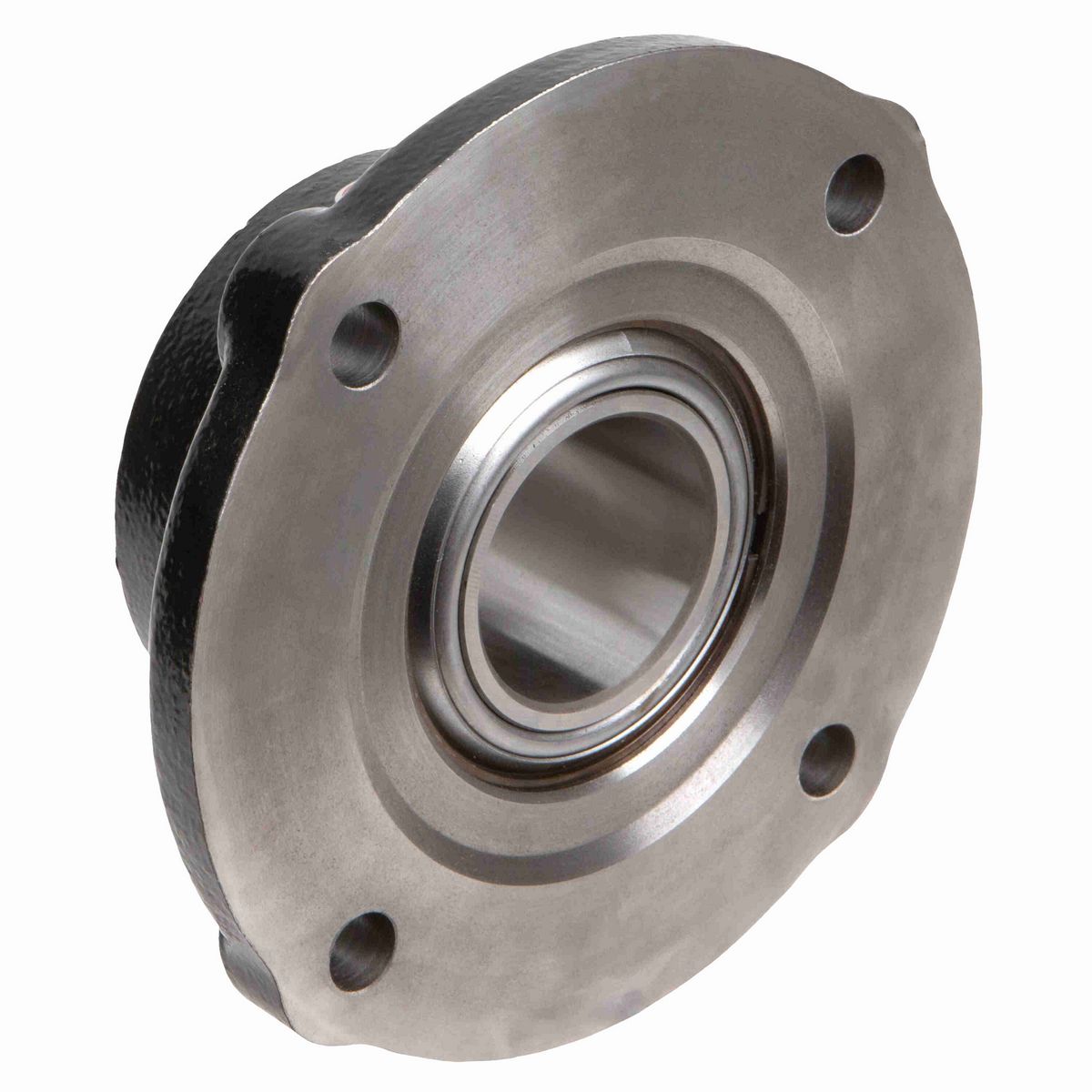

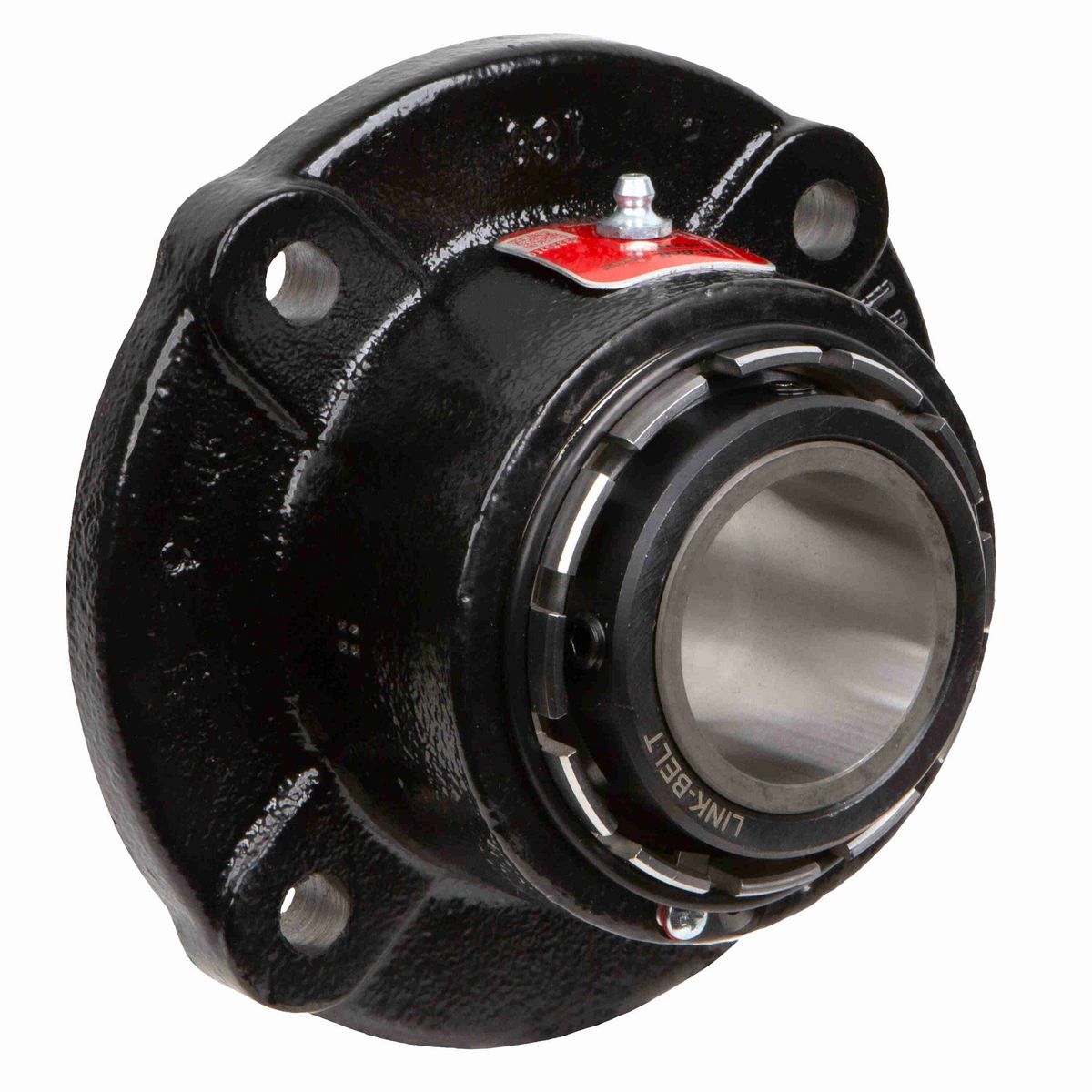

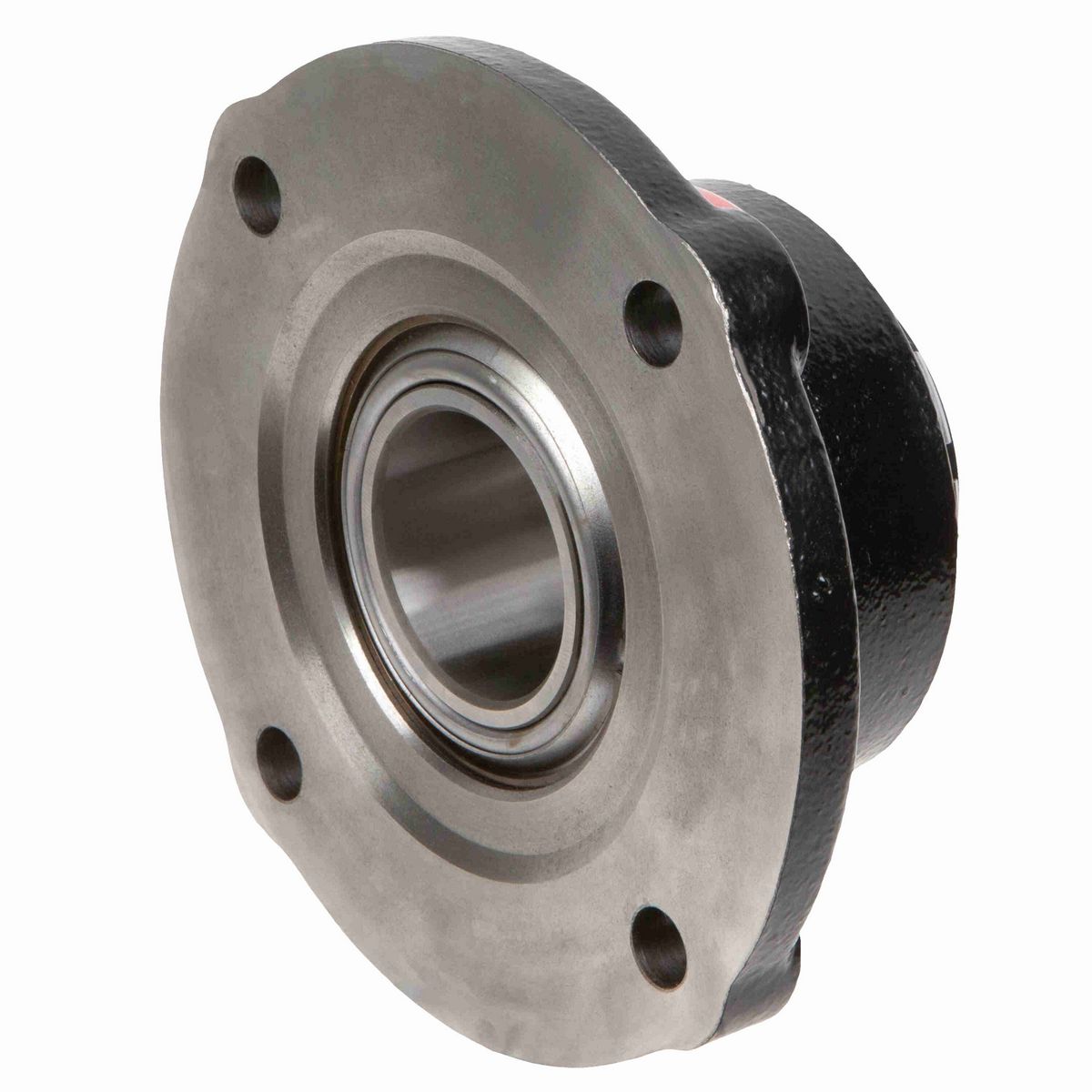

• Product Family: Roller Bearing; Line: Link-Belt Mounted

Dimensions

Overall Height to End Cap (in)	3.56 in
Overall Width (in)	7 in
Overall Height (in)	3.19 in
Bolt Size (in)	1/2 in
Overall Length (in)	7 in
Bore Diameter (in)	1.9375 in
Foot Height (in)	0.69 in
Housing Outside Diameter (in)	7 in
Standoff Distance (in)	0.06 in
Locking Collar Outside Diameter (in)	2.88 in
Bolt Spacing (in)	4.06 in
Housing Cast Face to Outermost Bearing Face (in)	0.66 in
Length Through Bore (in)	3.13 in
Inner Ring Outside Diameter (in)	2.307 in
Bolt Circle (in)	5.75 in

Technical Specifications

Housing Material	Cast Iron
Misalignment Type	Dynamic
End Cap	B432EC
Housing Construction	Solid
Shaft Locking Type	Single Set Collar
Radial Clearance	C0 STANDARD
Rolling Element	Spherical Roller
Seal Type	Clearance Seal
Cage Material	Steel
Product	FB22400
Fixed/Expansion	Fixed
Series	Flange Blocks
Static Load Rating (lb)	33,200 lb
Housing Style	Flange Block
Radial Dynamic Load Capacity (lb)	25,900 lb
Housing Type	Flange, Four Bolt
Setscrew Torque (in-lbs)	325 in/lbs
Maximum Speed (RPM)	2800 rpm
Ability to Relubricate	Yes
Seal Kit	B432HS
Microlock Kit	B436MLK
Locking Device Kit	B432SC
Housing Coating	POWDER COATED
Lubricant	EXXON RONEX MP STD
Vibration Frequency Fundamental Train	0.0072 cps
Primary Seal	STEEL CLEARANCE SEAL
Vibration Frequency Outer Ring Defect	0.1217 cps
Auxiliary Seals	1 LB STYLE CLOSED CAP STEEL
Vibration Frequency Inner Ring Defect	0.1617 cps
Max Operating Temperature (C)	107 °C
Max Operating Temperature (F)	225 °F
Grease Fitting Thread Size	1/8 NPT
Size Code	B432
Vibration Frequency Roller Spin	0.0559 cps
Misalignment Capability	±2.0° Misalignment - Dynamic
Insert	B431L

General Specifications

UPC	662327026448
Weight	12.00 LB
HTC	8483204080
