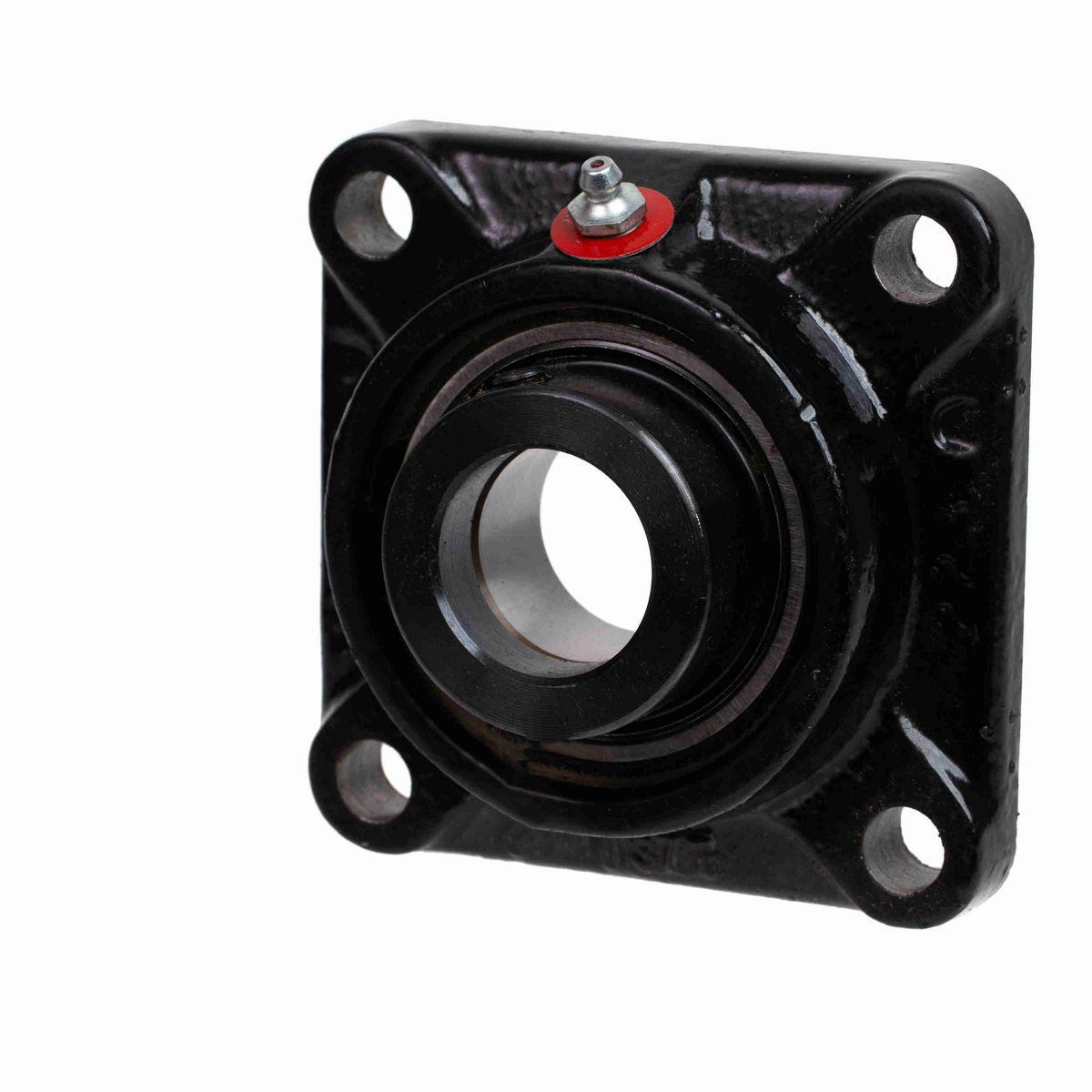

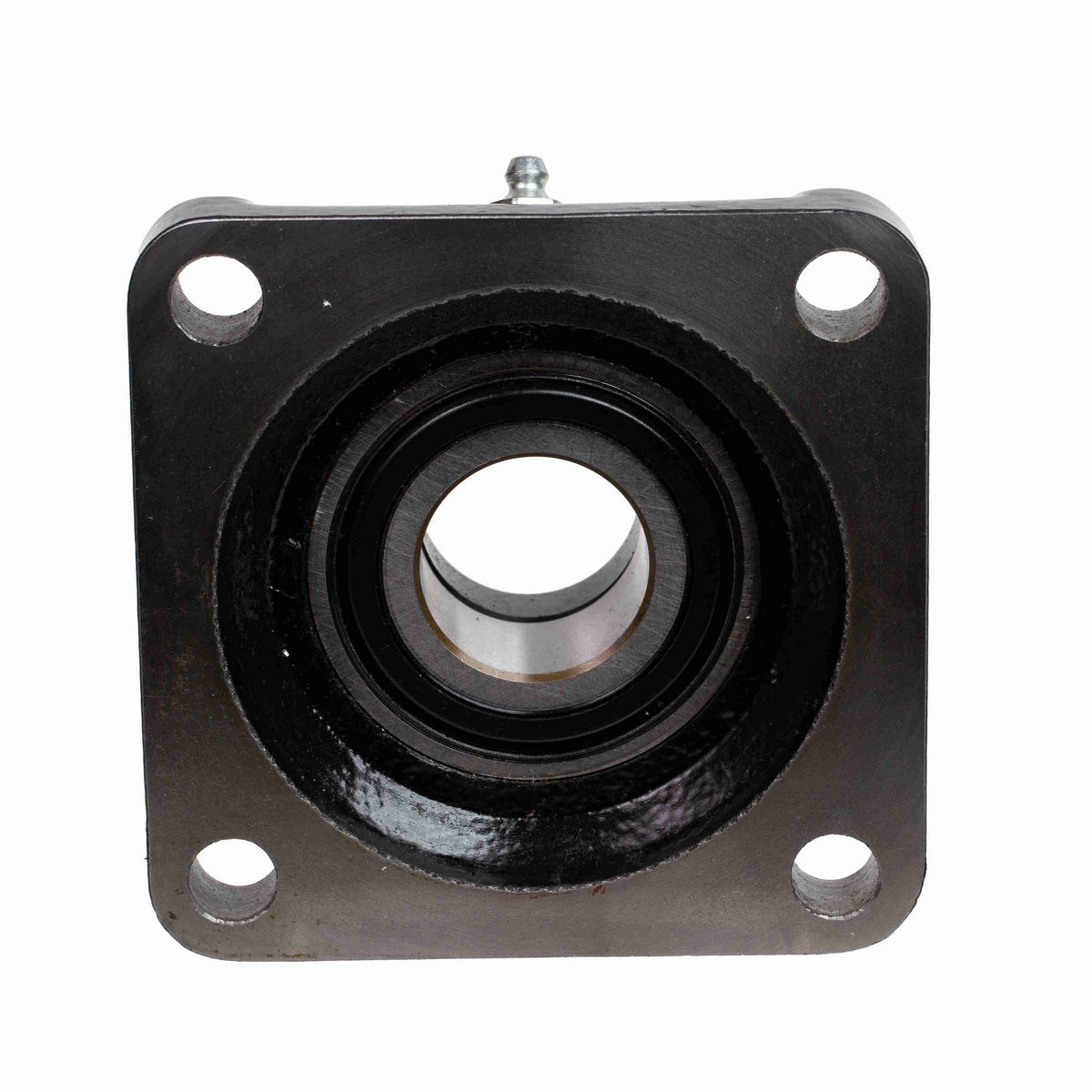

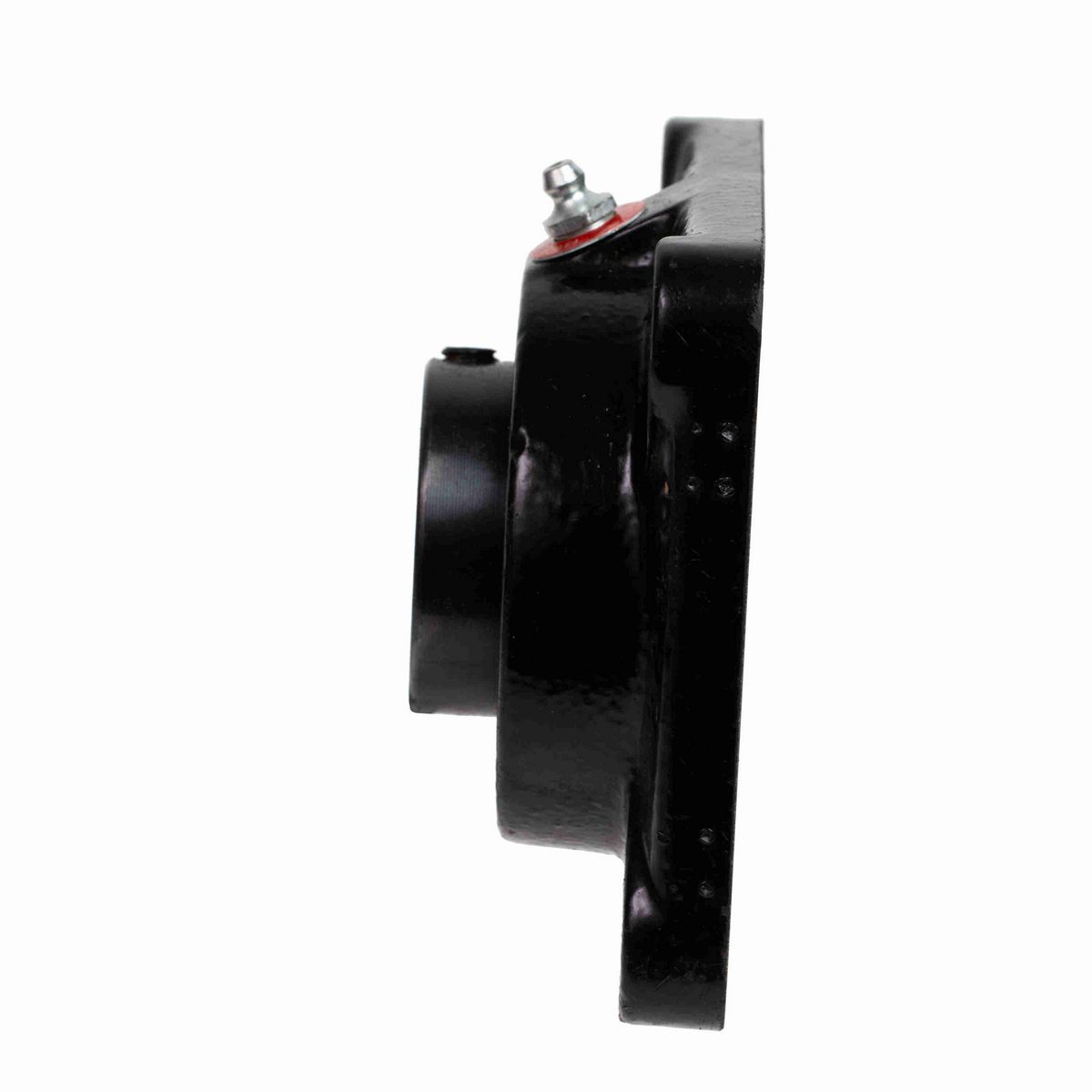

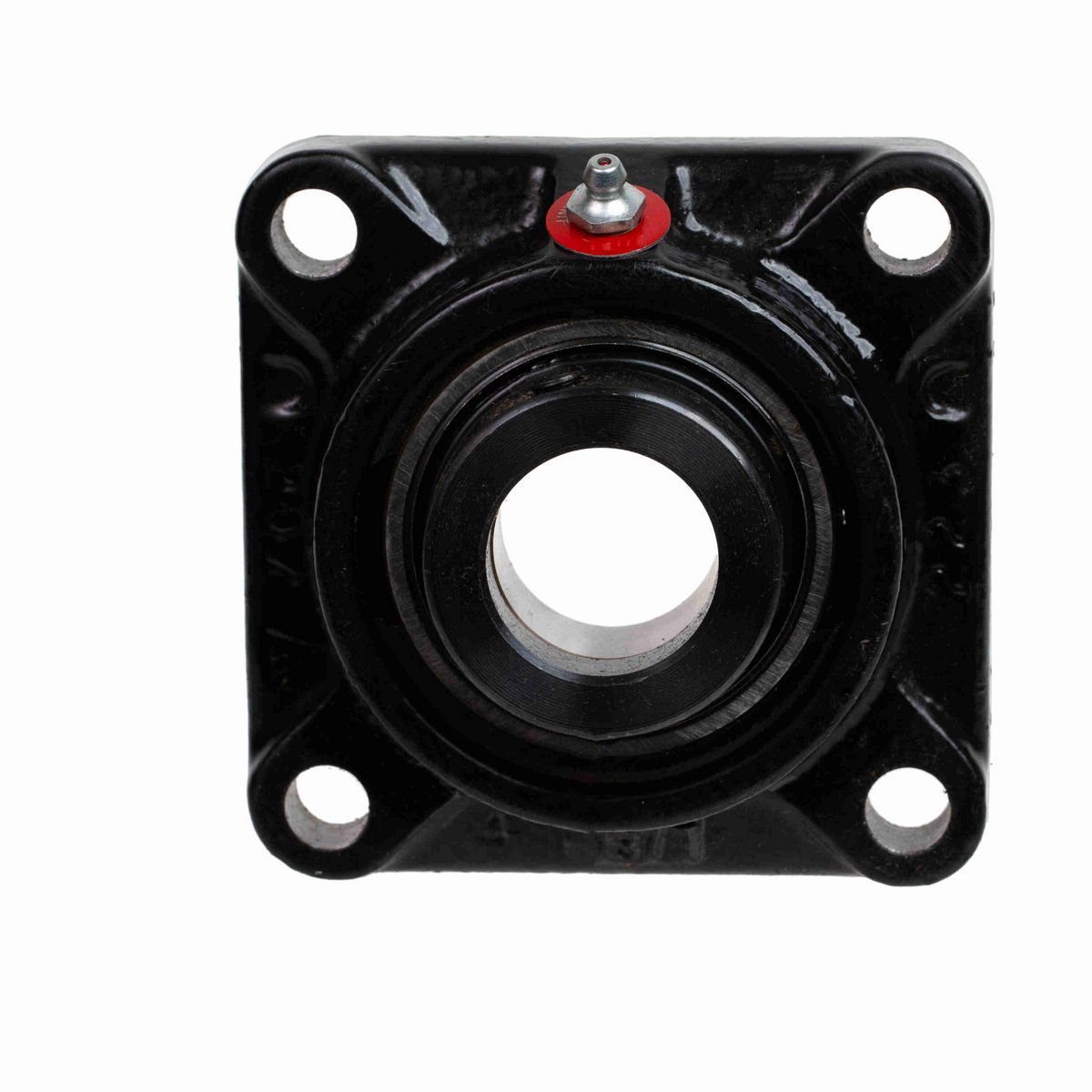

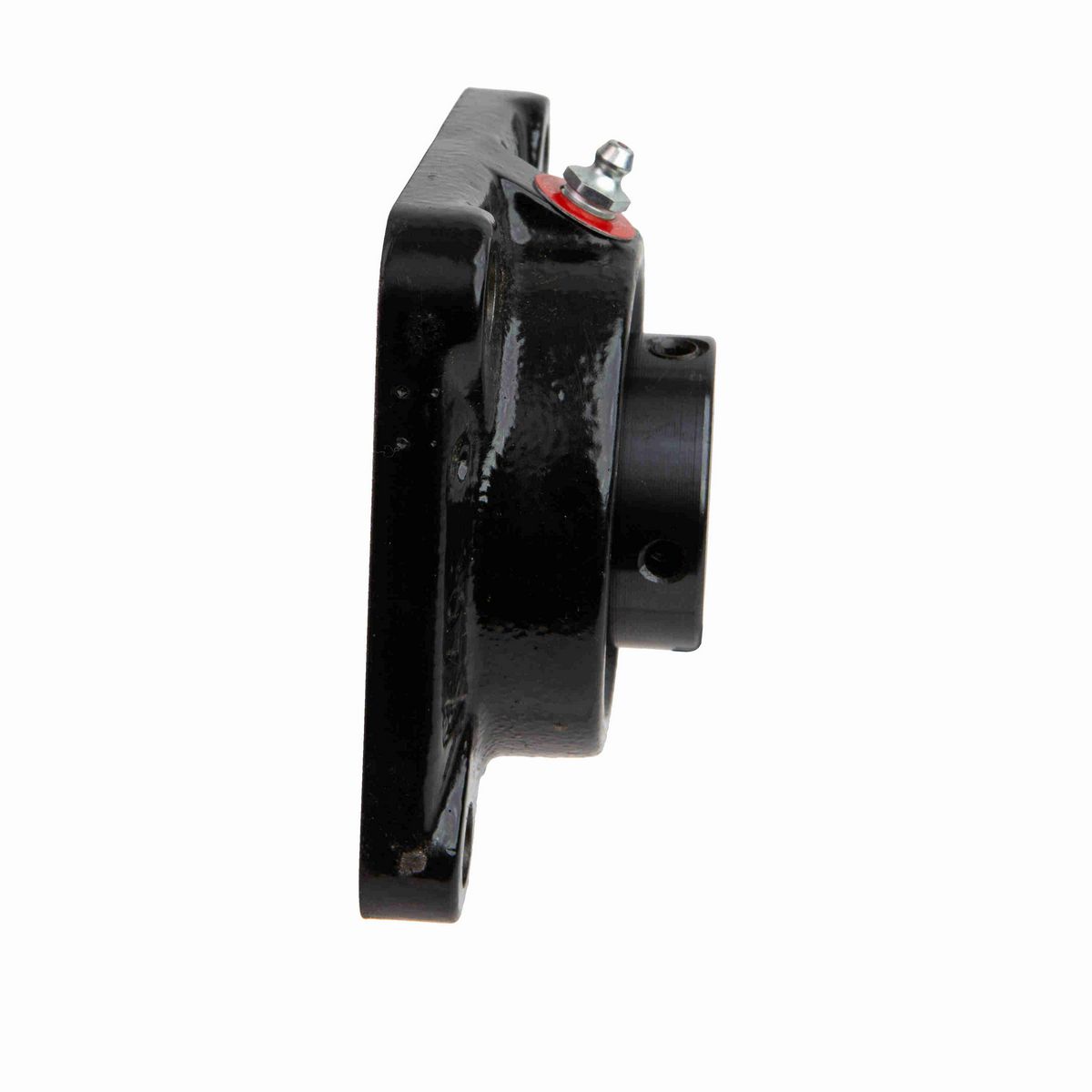

• 1 3/8" Mounted Ball Bearing, Intermediate Duty, Cast Iron 4-Bolt Square Flange Block, Eccentric Cam Locking Collar, Single Lip Contact Seal

Dimensions

Length Through Bore (in)	1.53 in
Overall Height (in)	1.97 in
Overall Width (in)	4.63 in
Bore Diameter (in)	1.375 in
Bolt Size (in)	1/2 in
Foot Height (in)	0.63 in
Overall Length (in)	4.63 in
Bolt Spacing (in)	3.6250 in

Technical Specifications

Housing Style	Flange Block
Seal Type	Single Lip Contact Seal
Outer Ring Land Profile	Standard
Cage Material	Molded fiber glass reinforced nylon
Rolling Element	Ball Bearing
Bore Shape	Straight
Housing Color	Black
Pilot Configuration	No Pilot
Housing Type	Flange, Four Bolt
Misalignment Type	Static Only
Ability to Relubricate	Yes
Locking Collar Outside Diameter (in)	2.19 in
Setscrew Torque (in-lbs)	290-325 in/lbs
Bearing Insert Material	52100 Bearing Steel
End Cap	Y2236N
Housing Coating	Powder Coated
Shaft Locking Type	Eccentric
Bearing Type	Intermediate Duty
Fixed vs. Expansion	Fixed
Vibration Frequency Roller Spin	0.0383 cps
Vibration Frequency Inner Ring Defect	0.0905 cps
Radial Clearance	C3 STANDARD
Size Code	207
Maximum Speed (RPM)	4800 rpm
Locking Device Kit	W2225S
Insert	WG222EL
Static Load Rating (lb)	3,440 lb
Misalignment Capability	±1.5° Misalignment - Static Only
Vibration Frequency Outer Ring Defect	0.0595 cps
Cage Type	Ball Riding Retainer
Inner Ring Outside Diameter (in)	1.847 in
Max Operating Temperature (F)	225 °F
End Cap Available	Yes
Max Operating Temperature (C)	107 °C
Bearing Brand	LINK-BELT 200 SERIES BALL
Vibration Frequency Fundamental Train	0.0067 cps
Grease Fitting Thread Size	1/8 NPT
Housing Material	Cast Iron
Dynamic Load Rating (lb)	5,810 lb
Lubricant	EXXON RONEX MP STD

General Specifications

UPC	662327037420
Weight	3.64 LB
Packaged Length	5.31 IN
Packaged Width	5.31 IN
Packaged Height	2.19 IN
HTC	8483204040
Country of Origin	Mexico
