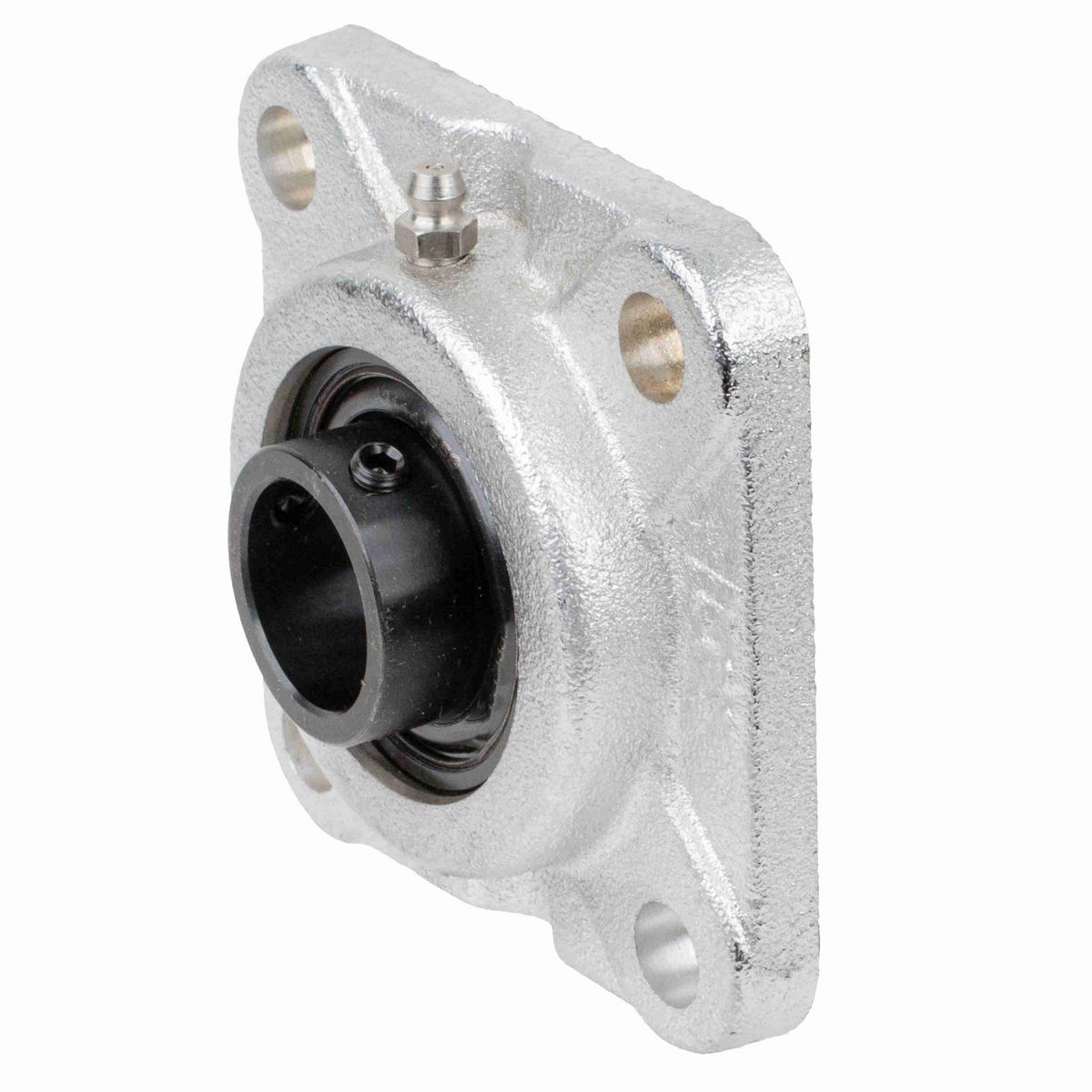

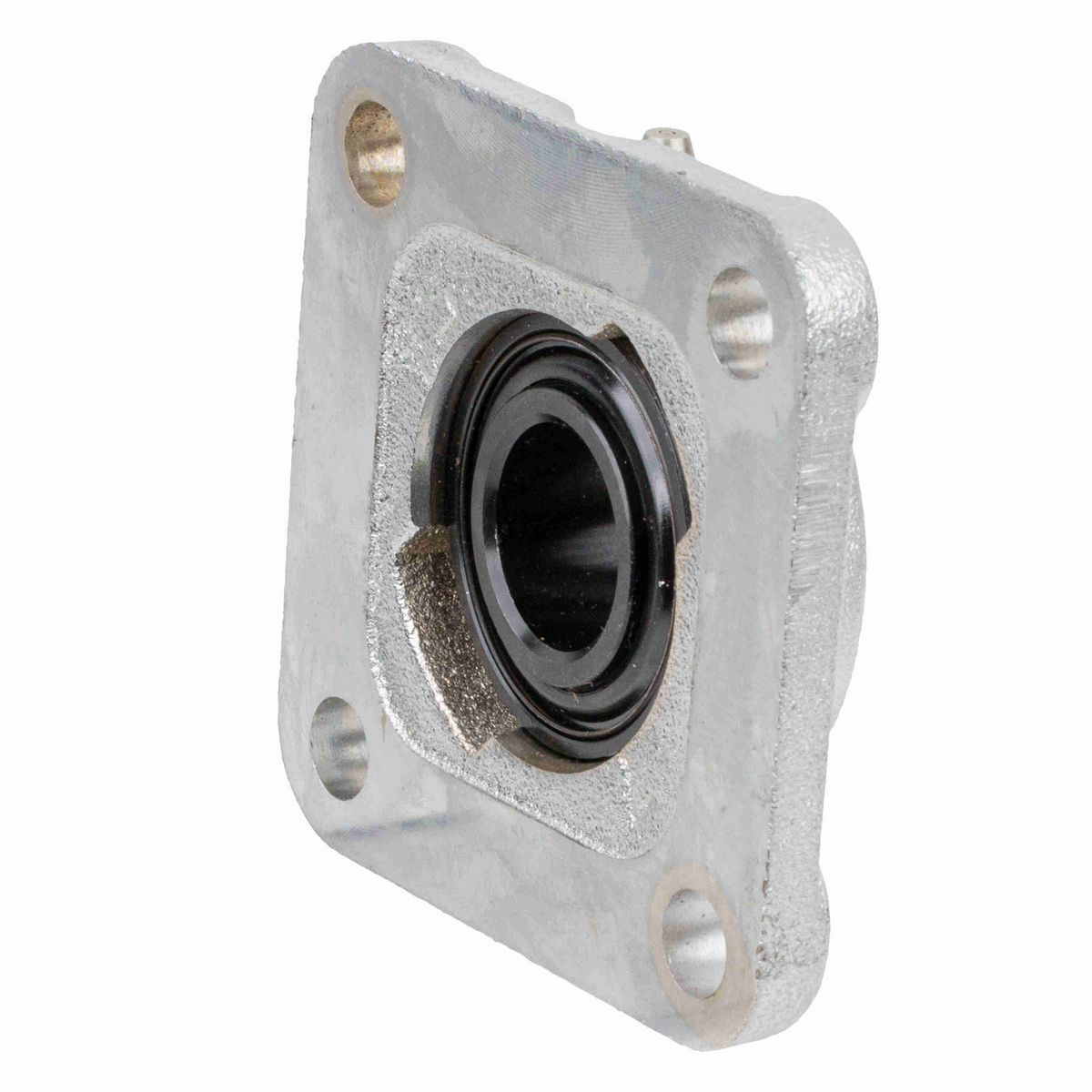

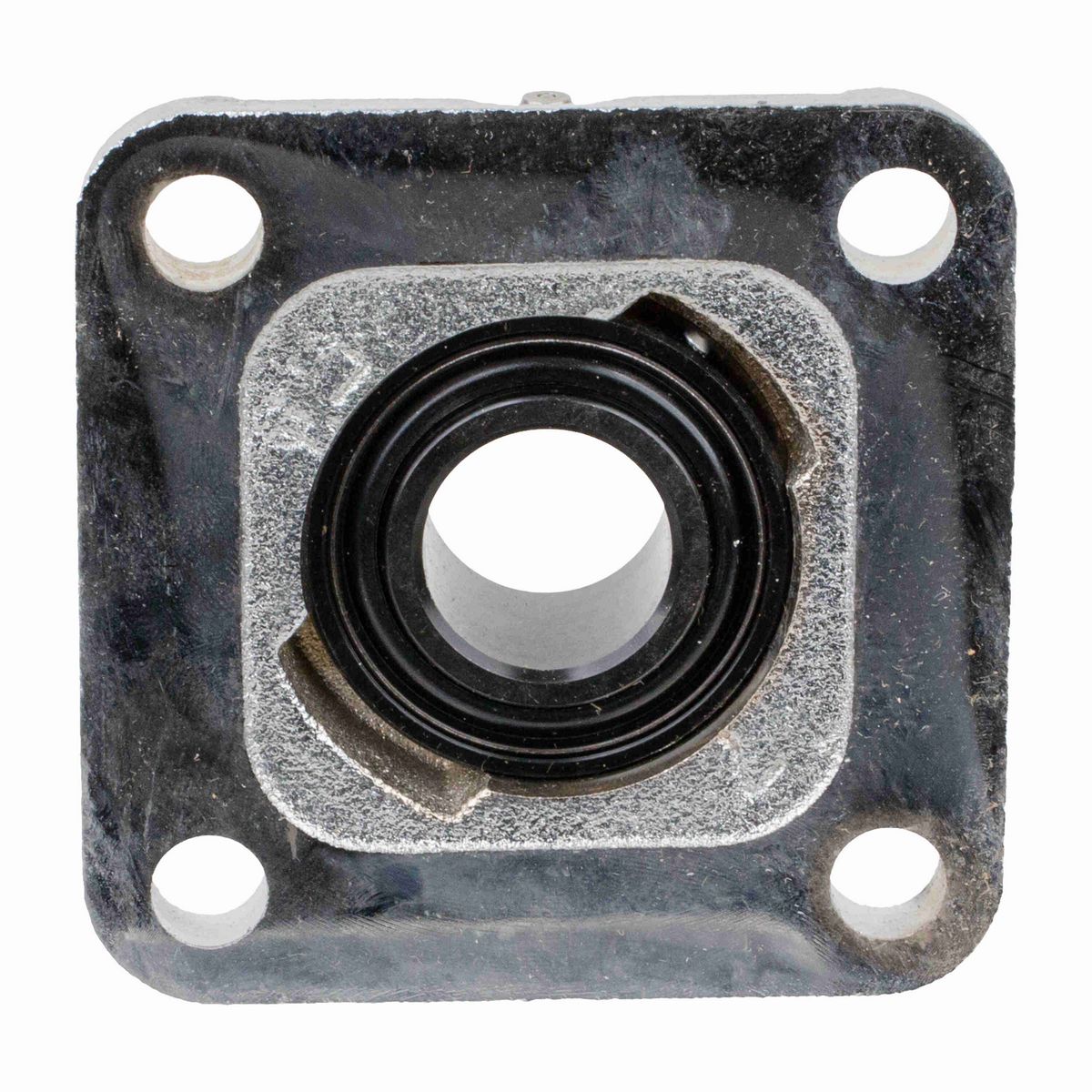

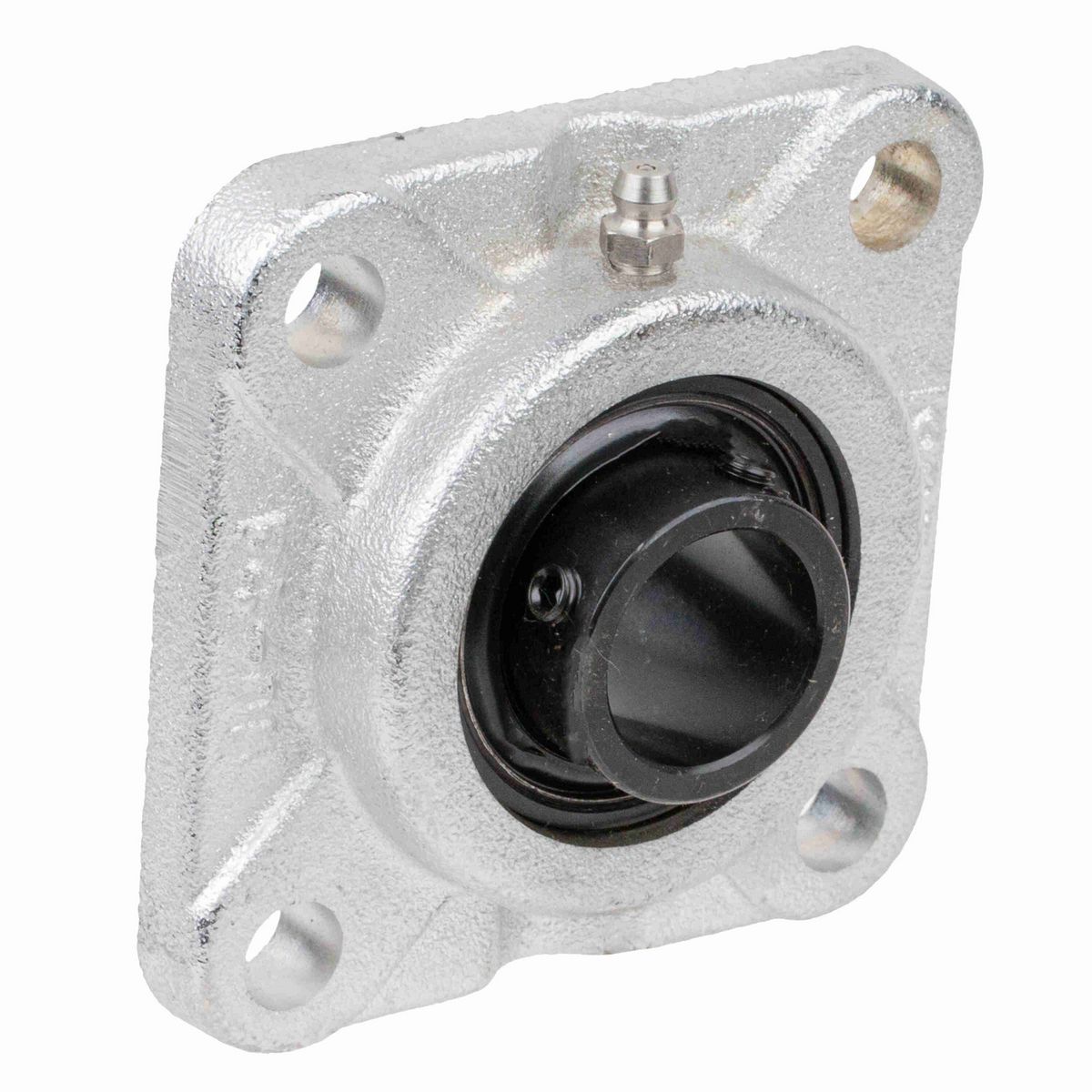

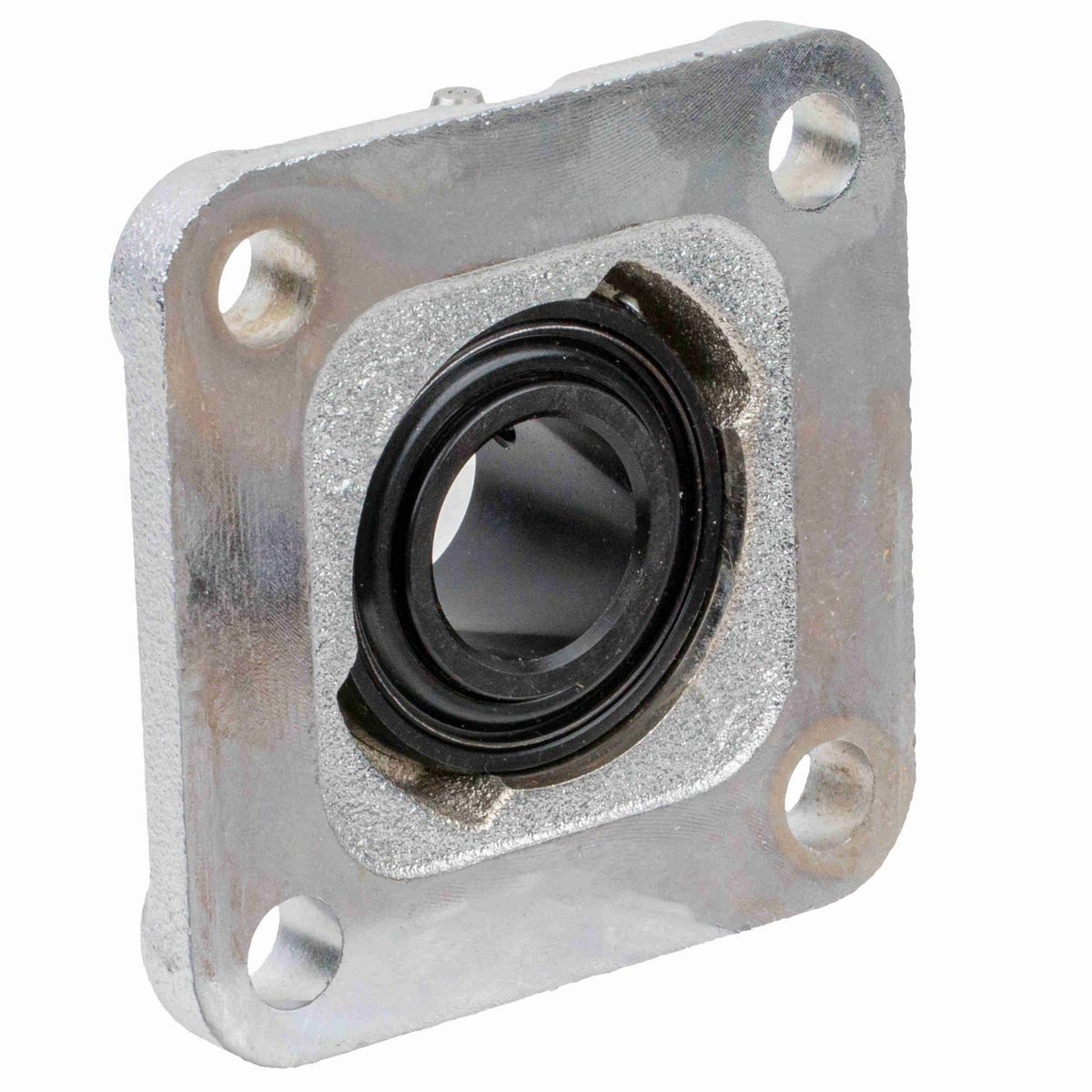

• 1 1/2" Mounted Ball Bearing, Intermediate Duty, Cast Iron 4-Bolt Square Flange Block, Setscrew Locking, Single Lip Contact Seal, Nickel Plated Housing

Dimensions

Bore Diameter (in)	1.5 in
Overall Width (in)	5.25 in
Foot Height (in)	0.56 in
Overall Height (in)	1.813 in
Length Through Bore (in)	1.656 in
Overall Length (in)	5.25 in
Bolt Size (in)	1/2 in
Bolt Spacing (in)	4.0000 in

Technical Specifications

Seal Type	Single Lip Contact Seal
Pilot Configuration	No Pilot
Housing Type	Flange, Four Bolt
Misalignment Type	Static Only
Rolling Element	Ball Bearing
Outer Ring Land Profile	Standard
Housing Style	Flange Block
Cage Material	Molded fiber glass reinforced nylon
Bore Shape	Straight
Housing Color	Silver
Setscrew Torque (in-lbs)	165 in/lbs
Ability to Relubricate	Yes
Bearing Insert Finish	Black Oxide
Misalignment Capability	±1.5° Misalignment - Static Only
Max Operating Temperature (F)	225 °F
End Cap Available	No
Bearing Insert Material	52100 Bearing Steel
Shaft Locking Type	Set Screw
Vibration Frequency Outer Ring Defect	0.0588 cps
Max Operating Temperature (C)	107 °C
Bearing Type	Intermediate Duty
Radial Clearance	C3 STANDARD
Vibration Frequency Roller Spin	0.0367 cps
Lubricant	MOBIL FM222 FOOD GRADE H1
Insert	SG224ELPAK8299A
Cage Type	Ball Riding Retainer
Vibration Frequency Inner Ring Defect	0.0912 cps
Inner Ring Outside Diameter (in)	2.084 in
Dynamic Load Rating (lb)	7,330 lb
Housing Material	Cast Iron
Grease Fitting Thread Size	1/8 NPT
Fixed vs. Expansion	Fixed
Size Code	208
Vibration Frequency Fundamental Train	0.0065 cps
Housing Coating	Nickel Plated
Bearing Brand	LINK-BELT 200 SERIES BALL
Static Load Rating (lb)	4,460 lb
Maximum Speed (RPM)	4500 rpm

General Specifications

UPC	662327401559
Weight	4.88 LB
Packaged Length	5.31 IN
Packaged Width	5.31 IN
Packaged Height	2.19 IN
HTC	8483204040
Country of Origin	Mexico
