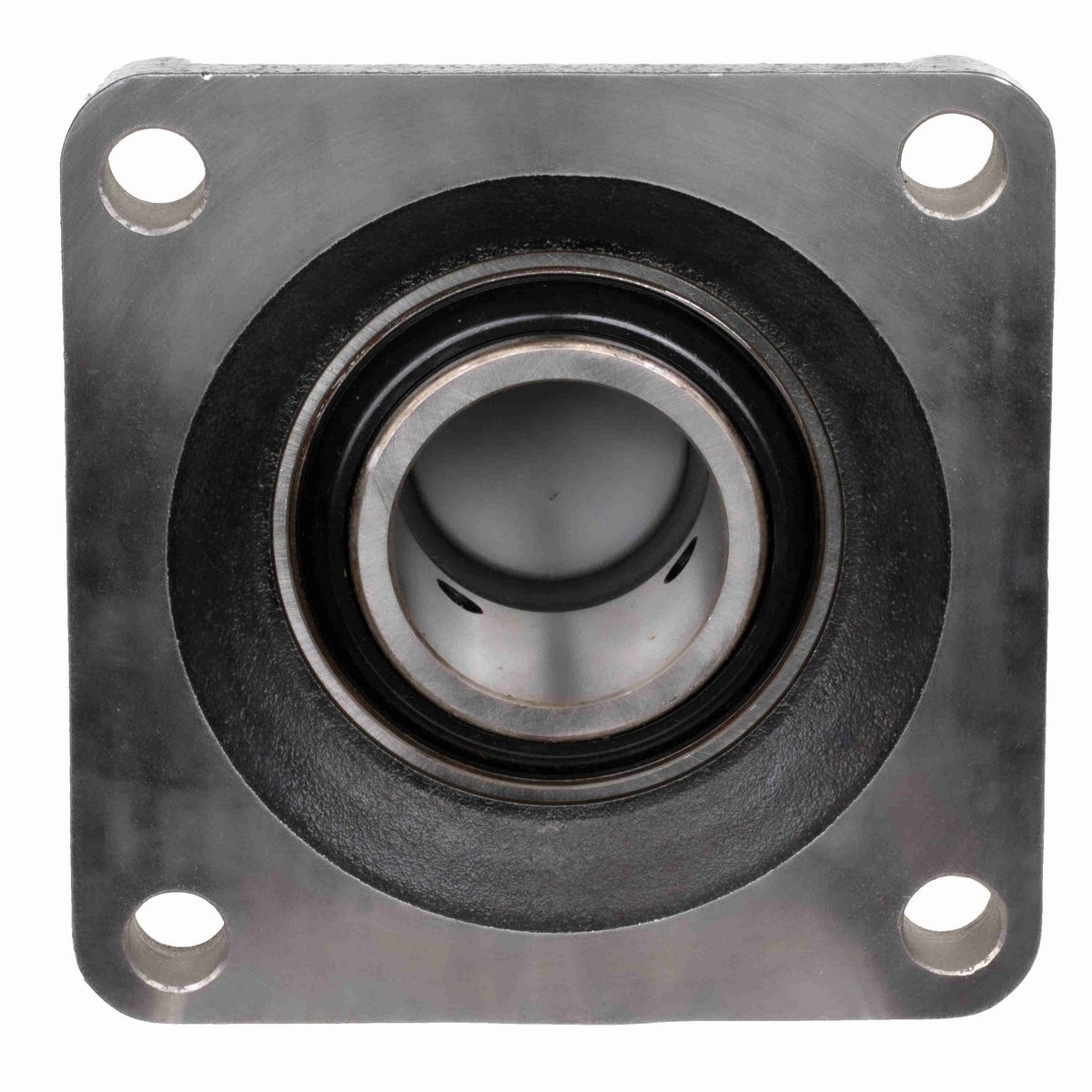

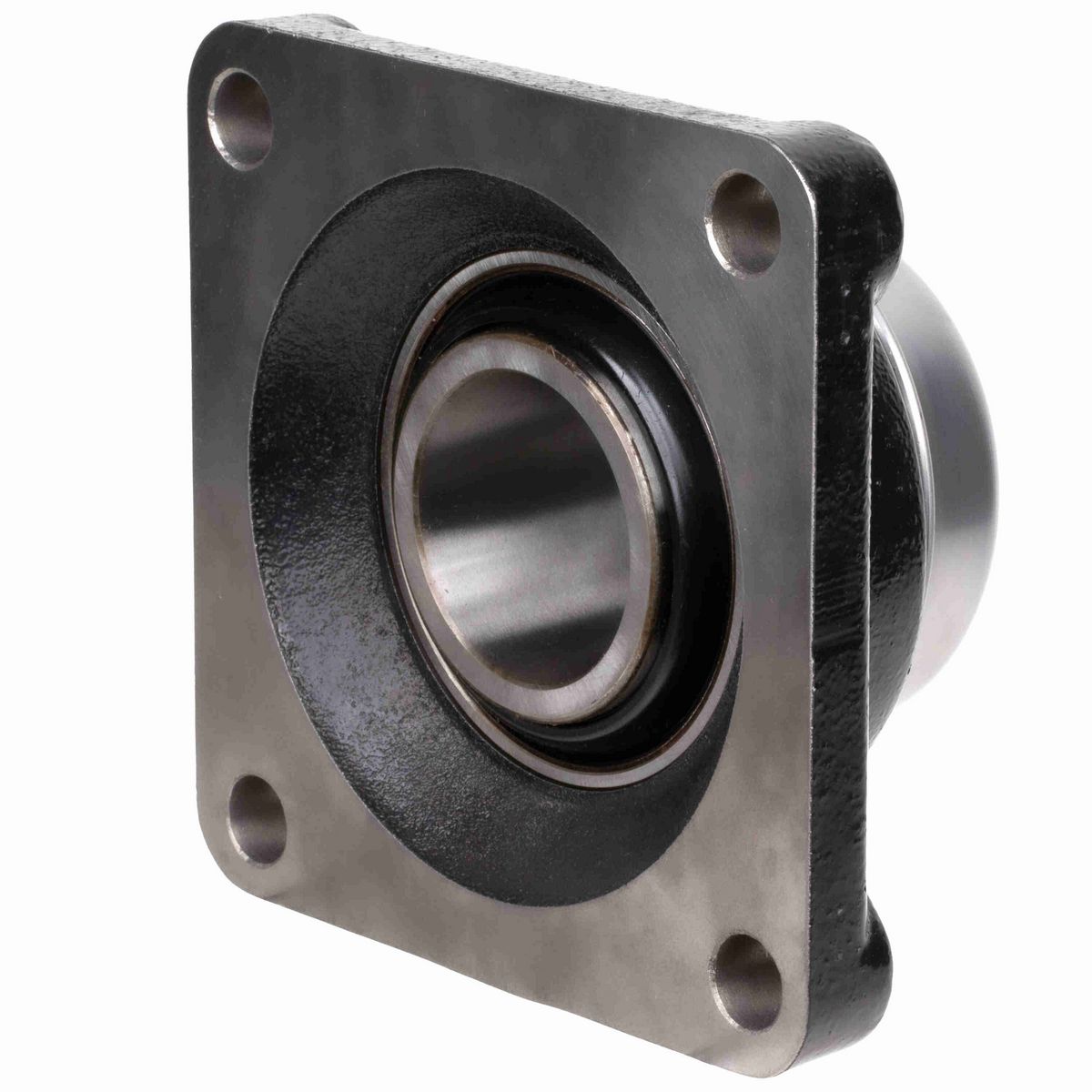

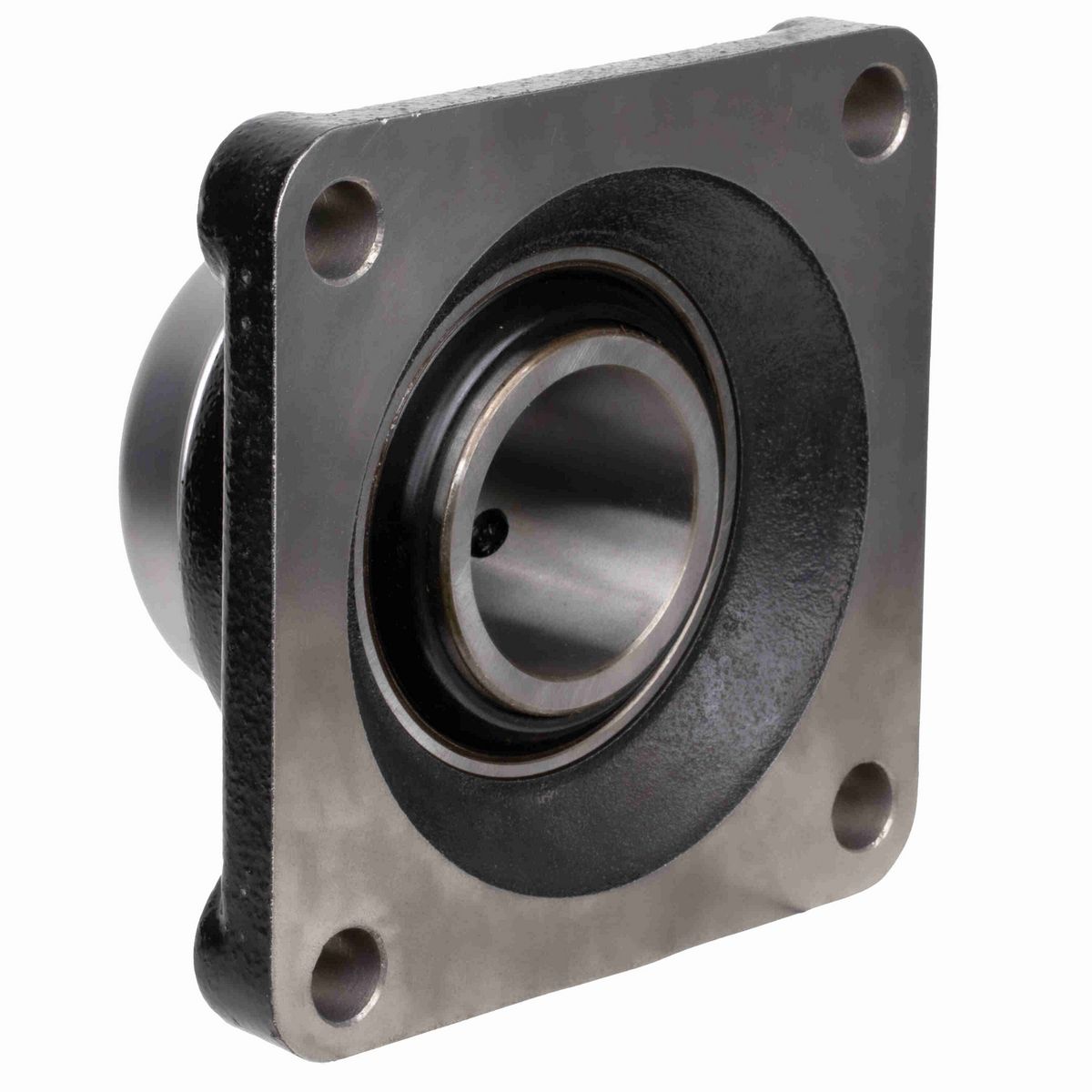

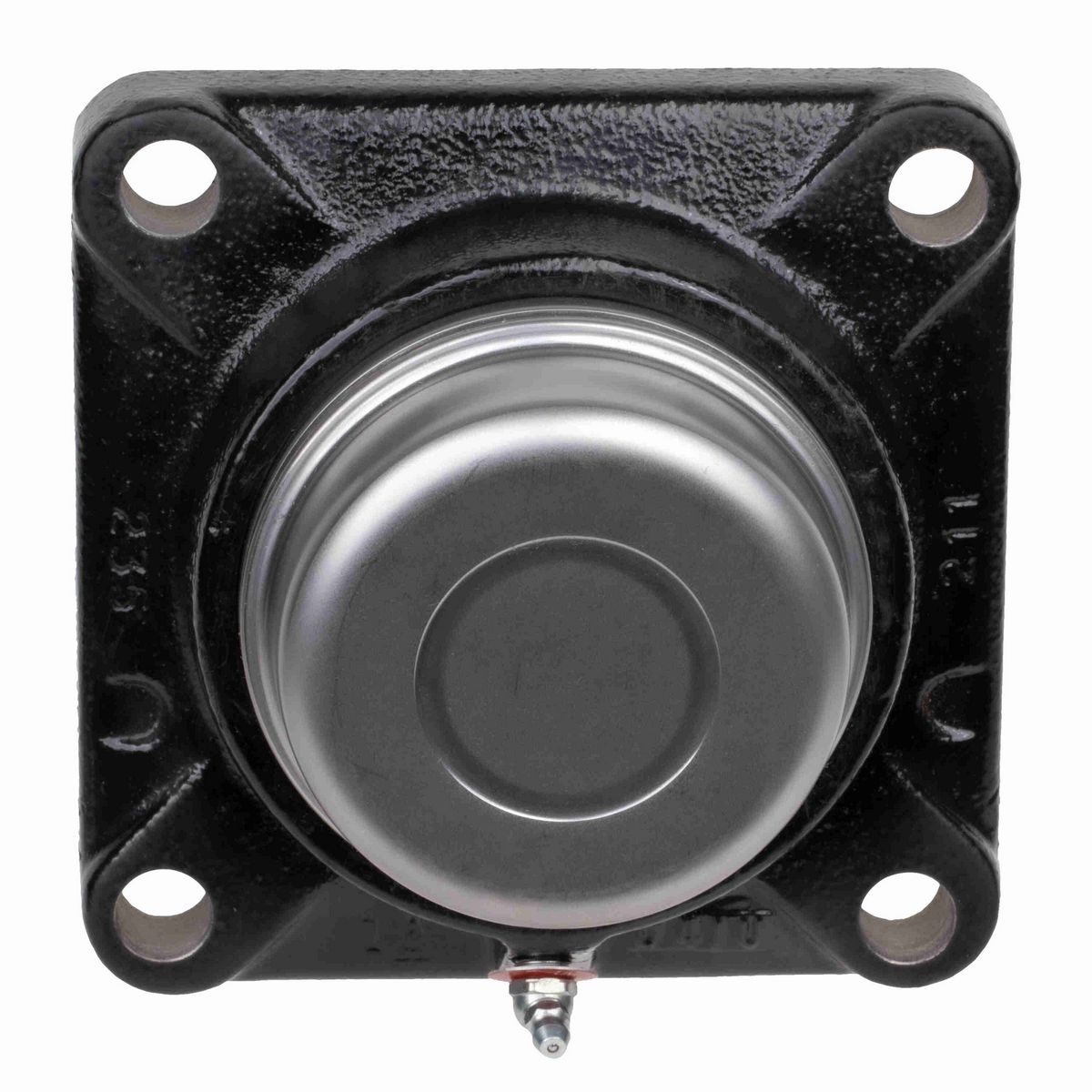

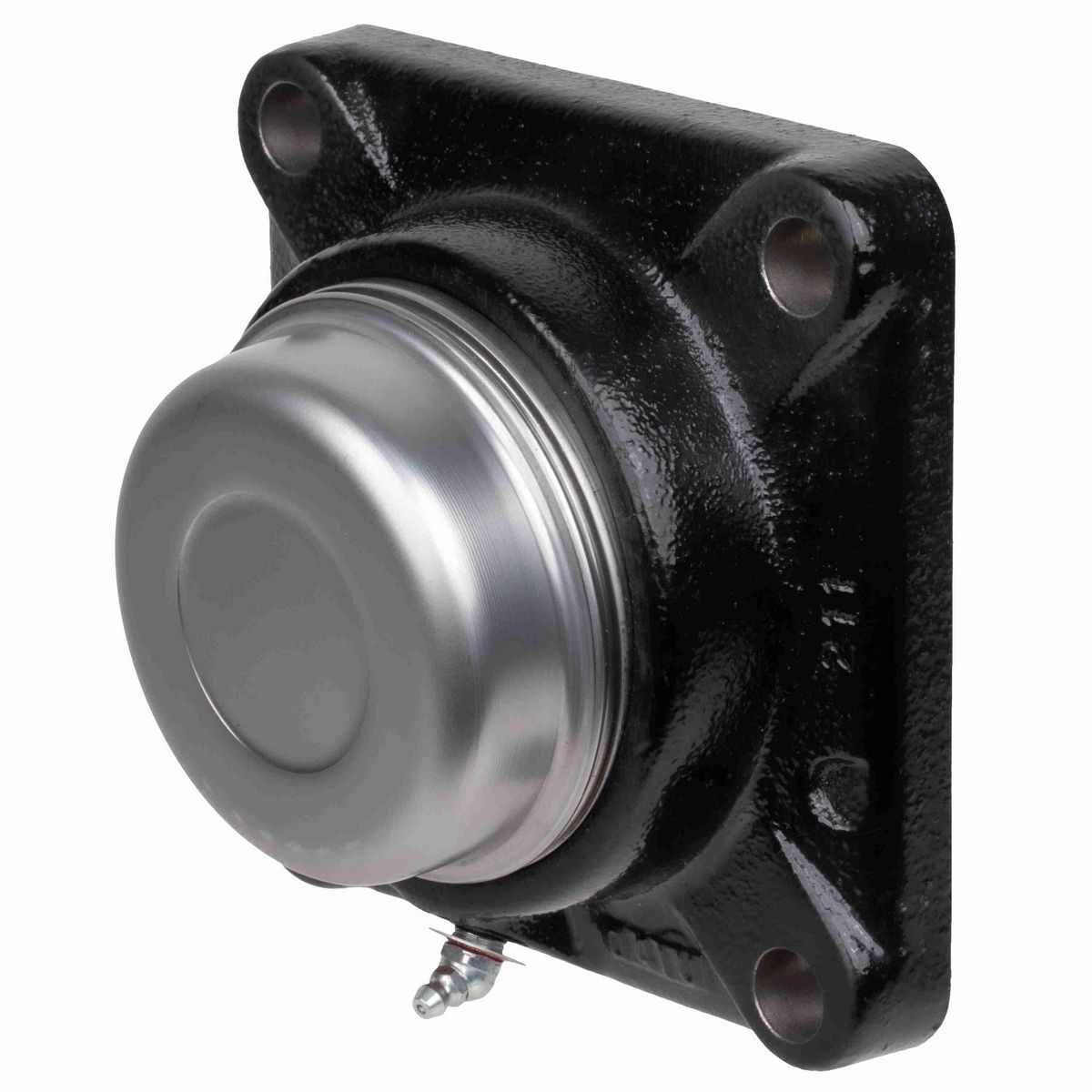

• 2 7/16" Mounted Ball Bearing, Standard Duty, Cast Iron 4-Bolt Square Flange Block, Centrik-Lok CL Locking Device, Single Lip Contact Seal, Closed End Cap

Dimensions

Overall Length (in)	6.88 in
Overall Height (in)	2.859375 in
Bolt Size (in)	5/8 in
Overall Width (in)	6.88 in
Bore Diameter (in)	2.4375 in
Overall Height to End Cap (in)	3.44 in
Foot Height (in)	0.94 in
Bolt Spacing (in)	5.6250 in

Technical Specifications

Seal Type	Single Lip Contact Seal
Cage Material	Molded fiber glass reinforced nylon
Bore Shape	Straight
Rolling Element	Ball Bearing
Housing Type	Flange, Four Bolt
Outer Ring Land Profile	Standard
Housing Color	Black
Pilot Configuration	No Pilot
Housing Style	Flange Block
Misalignment Type	Static Only
Setscrew Torque (in-lbs)	313-348 in/lbs
Locking Collar Outside Diameter (in)	4.22 in
Ability to Relubricate	Yes
Bearing Insert Finish	Black Oxide
Bearing Type	Standard Duty
Vibration Frequency Inner Ring Defect	0.0988 cps
Misalignment Capability	±1.5° Misalignment - Static Only
Bearing Insert Material	52100 Bearing Steel
Locking Device Kit	CL2395S
Max Operating Temperature (C)	107 °C
Housing Material	Cast Iron
Insert	CLG239NL
Size Code	212
Max Operating Temperature (F)	225 °F
End Cap Available	Yes
Shaft Locking Type	Concentric
Lubricant	EXXON RONEX MP STD
Static Load Rating (lb)	8,080 lb
End Cap	CL2396
Dynamic Load Rating (lb)	11,840 lb
Maximum Speed (RPM)	4000 rpm
Vibration Frequency Roller Spin	0.0430 cps
Fixed vs. Expansion	Fixed
Vibration Frequency Outer Ring Defect	0.0678 cps
Housing Coating	Powder Coated
Radial Clearance	C3 STANDARD
Grease Fitting Thread Size	1/8 NPT
Vibration Frequency Fundamental Train	0.0068 cps
Cage Type	Ball Riding Retainer
Bearing Brand	LINK-BELT 200 SERIES BALL
Inner Ring Outside Diameter (in)	3.012 in

General Specifications

UPC	662864296281
Weight	12.20 LB
Packaged Length	7.25 IN
Packaged Width	3.50 IN
Packaged Height	7.25 IN
HTC	8483204040
Country of Origin	Mexico
