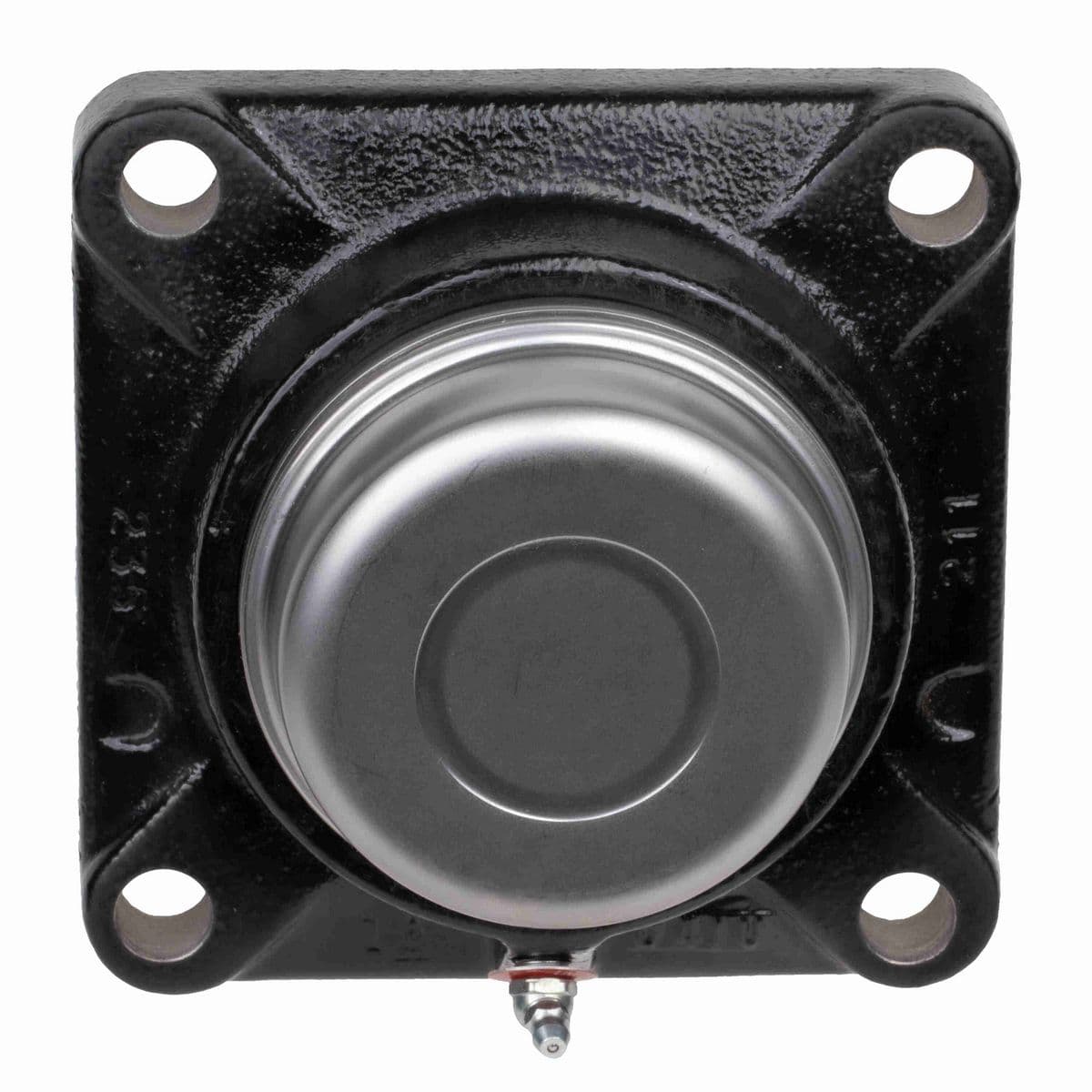

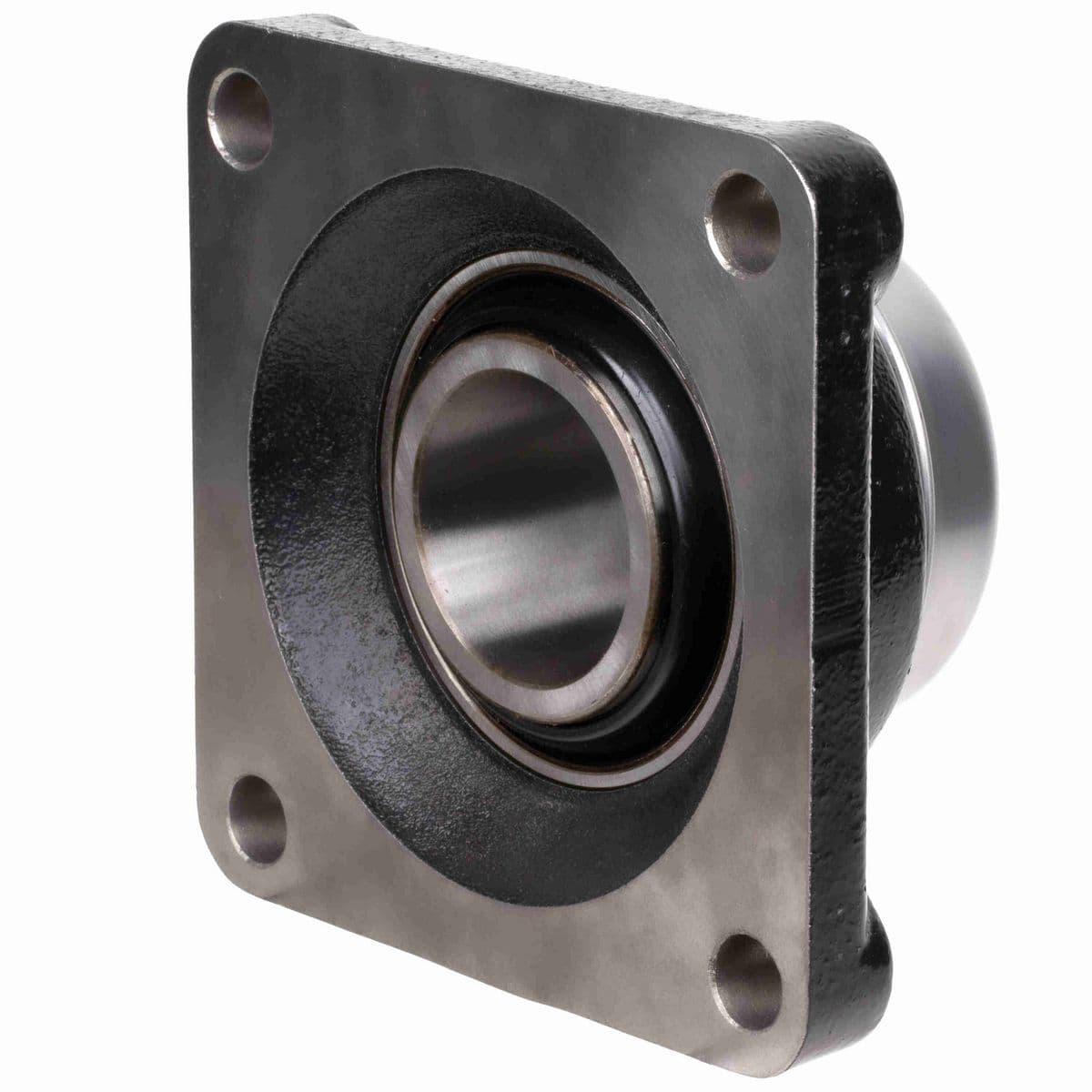

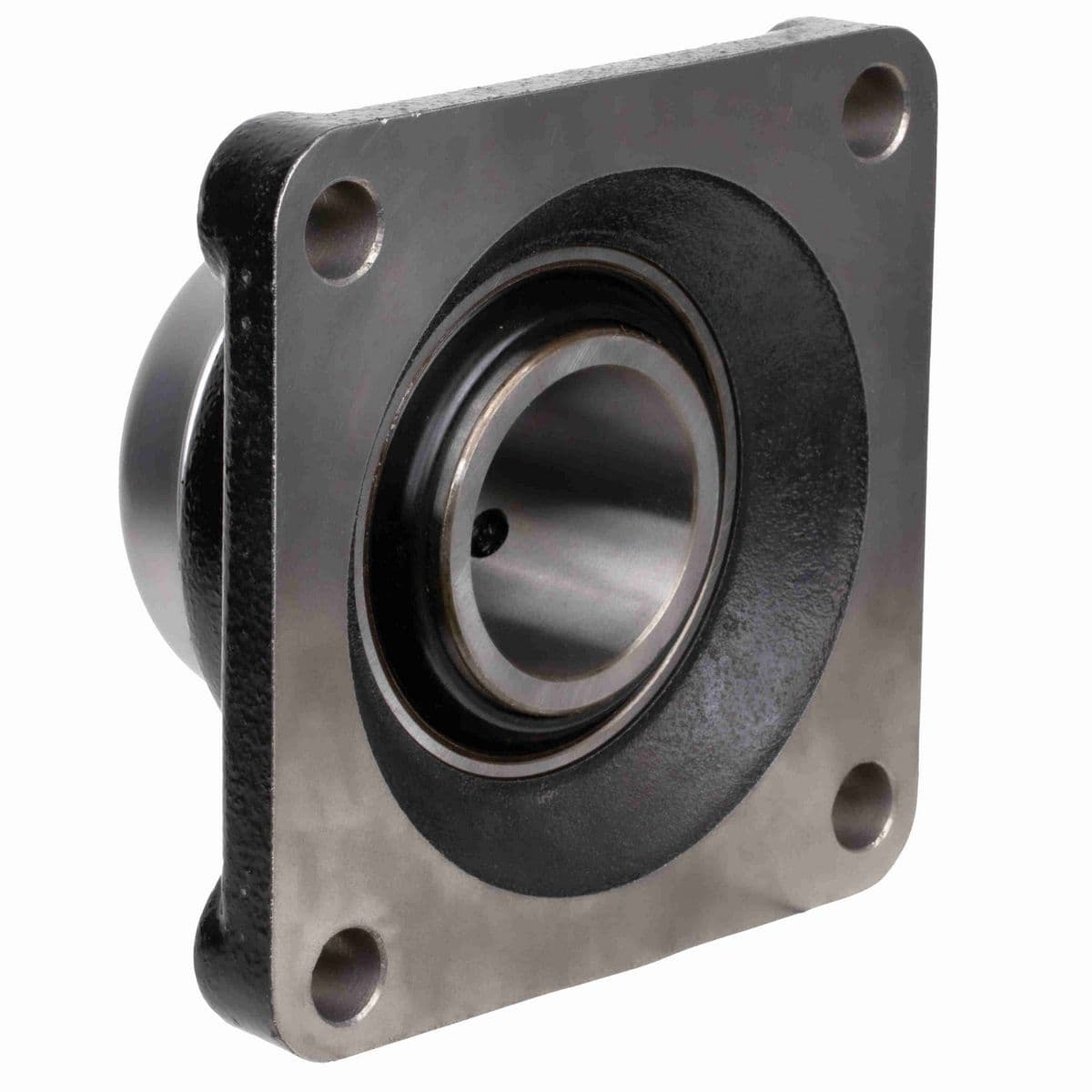

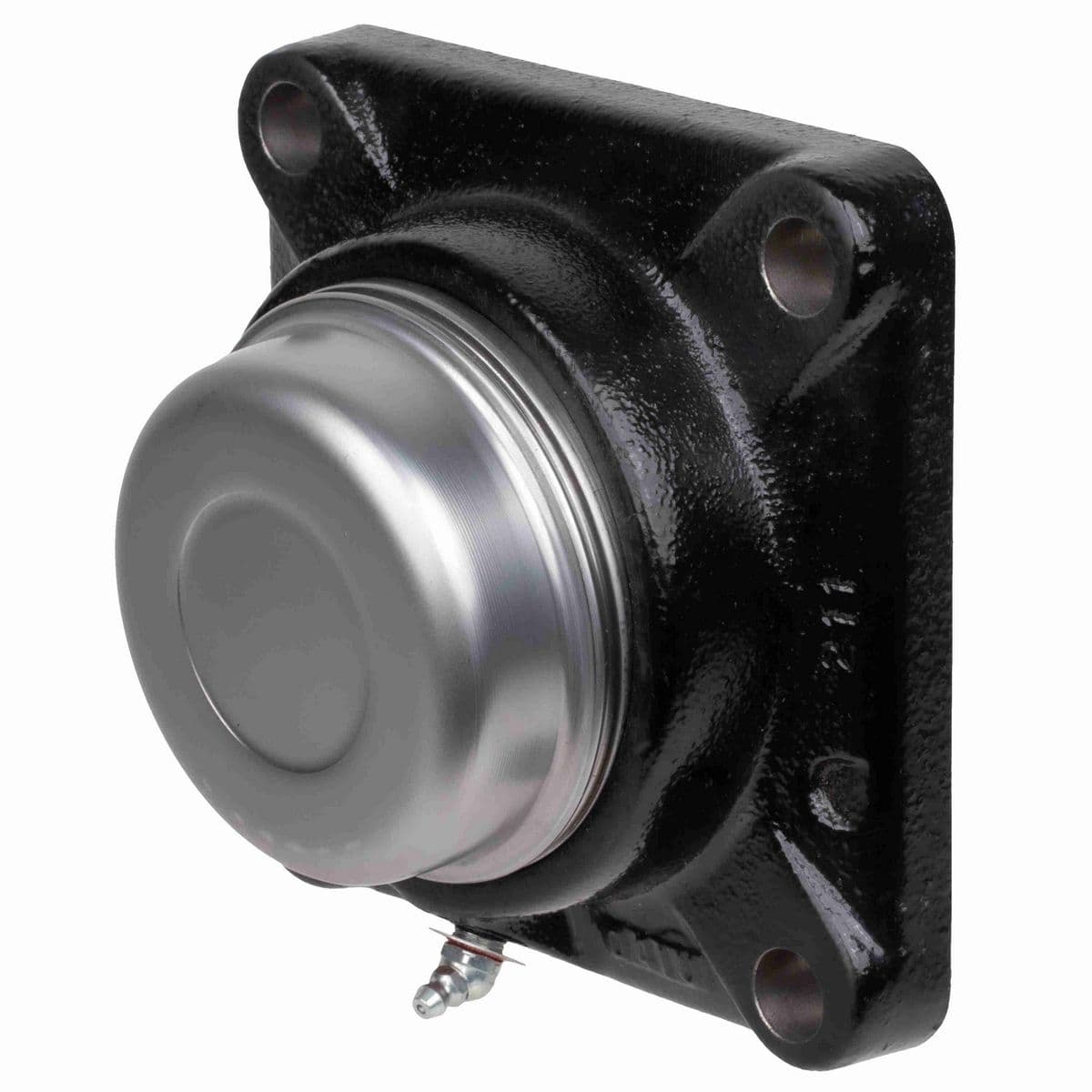

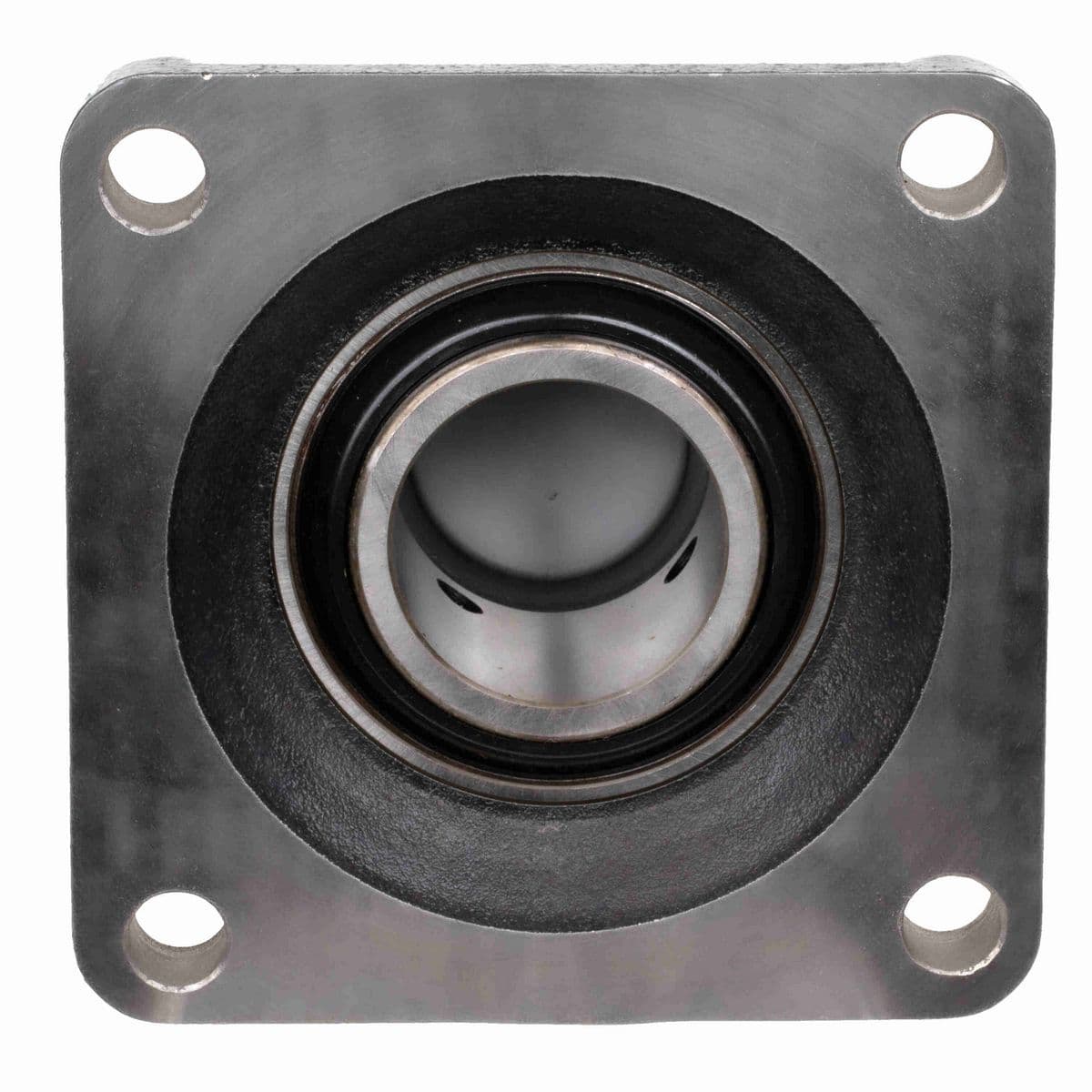

• 1 15/16" Mounted Ball Bearing, Standard Duty, Cast Iron 4-Bolt Square Flange Block, Centrik-Lok CL Locking Device, Single Lip Contact Seal, Closed end unit

Dimensions

Bolt Size (in)	1/2 in
Bore Diameter (in)	1.9375 in
Overall Height to End Cap (in)	2.83 in
Overall Width (in)	5.63 in
Foot Height (in)	0.75 in
Overall Height (in)	2.359375 in
Overall Length (in)	5.63 in
Bolt Spacing (in)	4.3750 in

Technical Specifications

Housing Color	Black
Cage Material	Molded fiber glass reinforced nylon
Seal Type	Single Lip Contact Seal
Rolling Element	Ball Bearing
Outer Ring Land Profile	Standard
Pilot Configuration	No Pilot
Housing Type	Flange, Four Bolt
Misalignment Type	Static Only
Bore Shape	Straight
Housing Style	Flange Block
Ability to Relubricate	Yes
Locking Collar Outside Diameter (in)	3.35 in
Setscrew Torque (in-lbs)	313-348 in/lbs
Bearing Insert Finish	Black Oxide
End Cap	CL2316
Bearing Insert Material	52100 Bearing Steel
Radial Clearance	C3 STANDARD
Max Operating Temperature (C)	107 °C
Locking Device Kit	CL2315S
Housing Coating	Powder Coated
Static Load Rating (lb)	5,220 lb
Misalignment Capability	±1.5° Misalignment - Static Only
Fixed vs. Expansion	Fixed
Vibration Frequency Inner Ring Defect	0.0985 cps
Insert	CLG231NL
Lubricant	EXXON RONEX MP STD
Vibration Frequency Roller Spin	0.0445 cps
Inner Ring Outside Diameter (in)	2.469 in
Vibration Frequency Outer Ring Defect	0.0682 cps
End Cap Available	Yes
Maximum Speed (RPM)	4800 rpm
Housing Material	Cast Iron
Cage Type	Ball Riding Retainer
Bearing Brand	LINK-BELT 200 SERIES BALL
Grease Fitting Thread Size	1/8 NPT
Bearing Type	Standard Duty
Size Code	210
Dynamic Load Rating (lb)	7,920 lb
Max Operating Temperature (F)	225 °F
Shaft Locking Type	Concentric
Vibration Frequency Fundamental Train	0.0068 cps

General Specifications

UPC	662864251983
Weight	7.10 LB
Packaged Length	6.50 IN
Packaged Width	3.13 IN
Packaged Height	6.50 IN
HTC	8483204040
Country of Origin	Mexico
