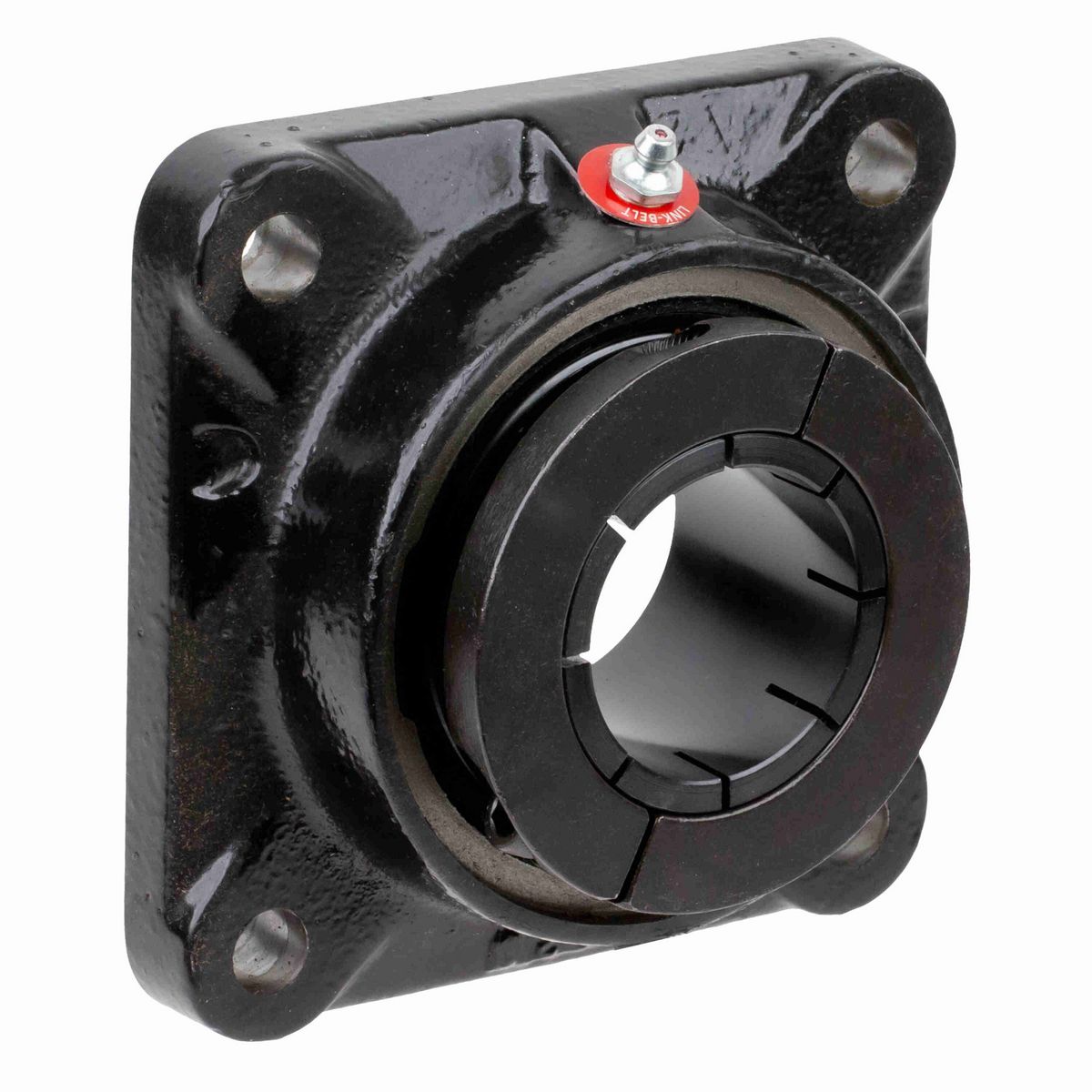

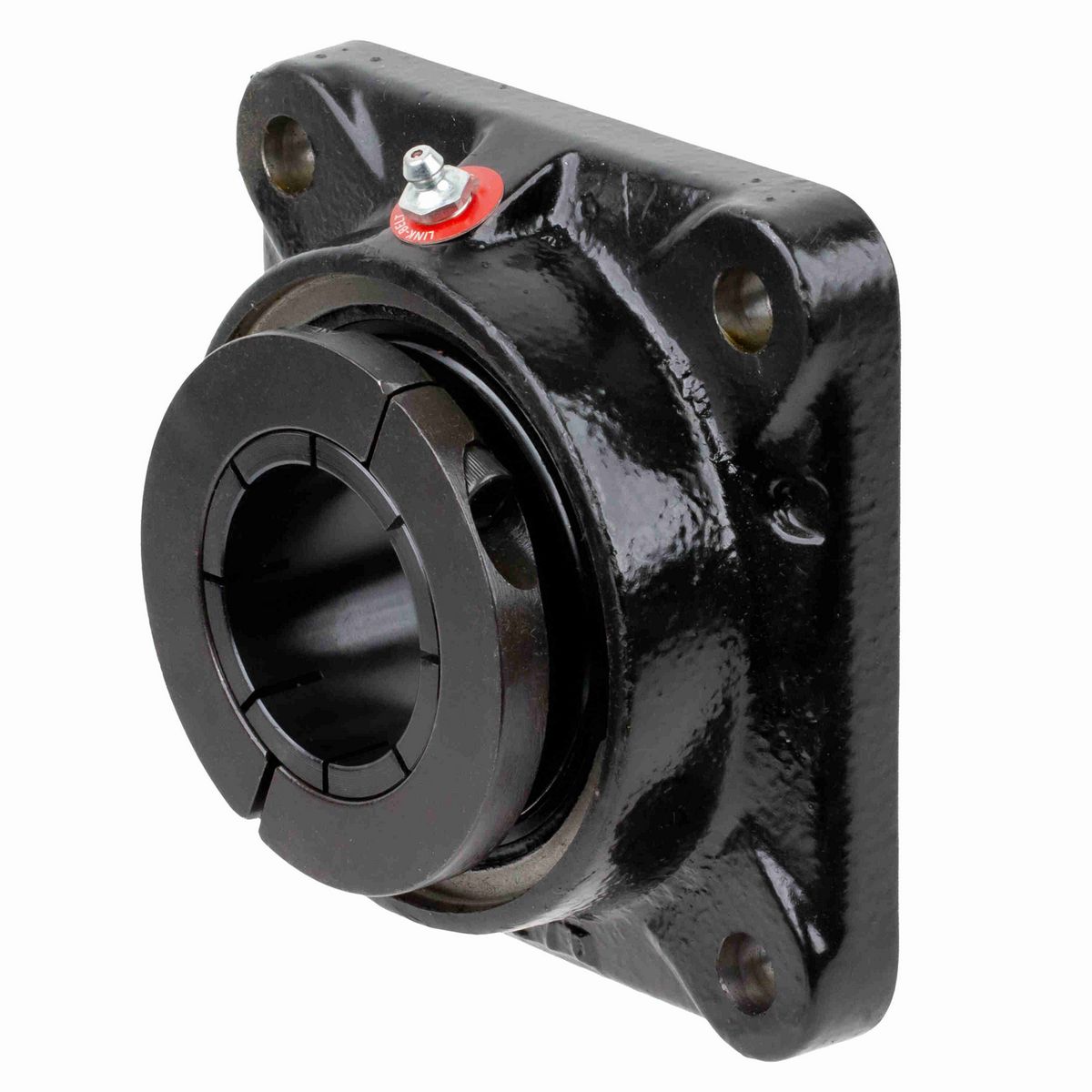

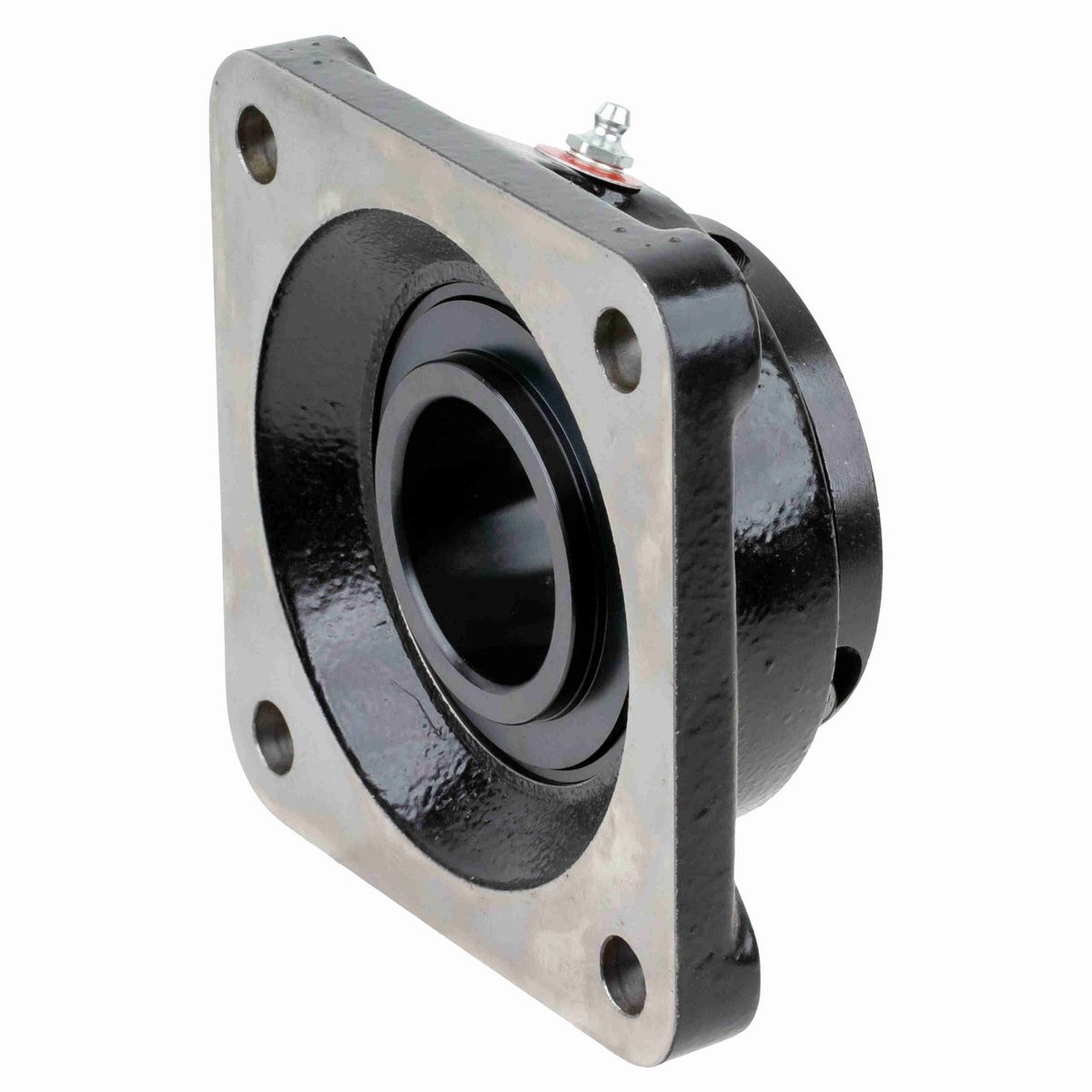

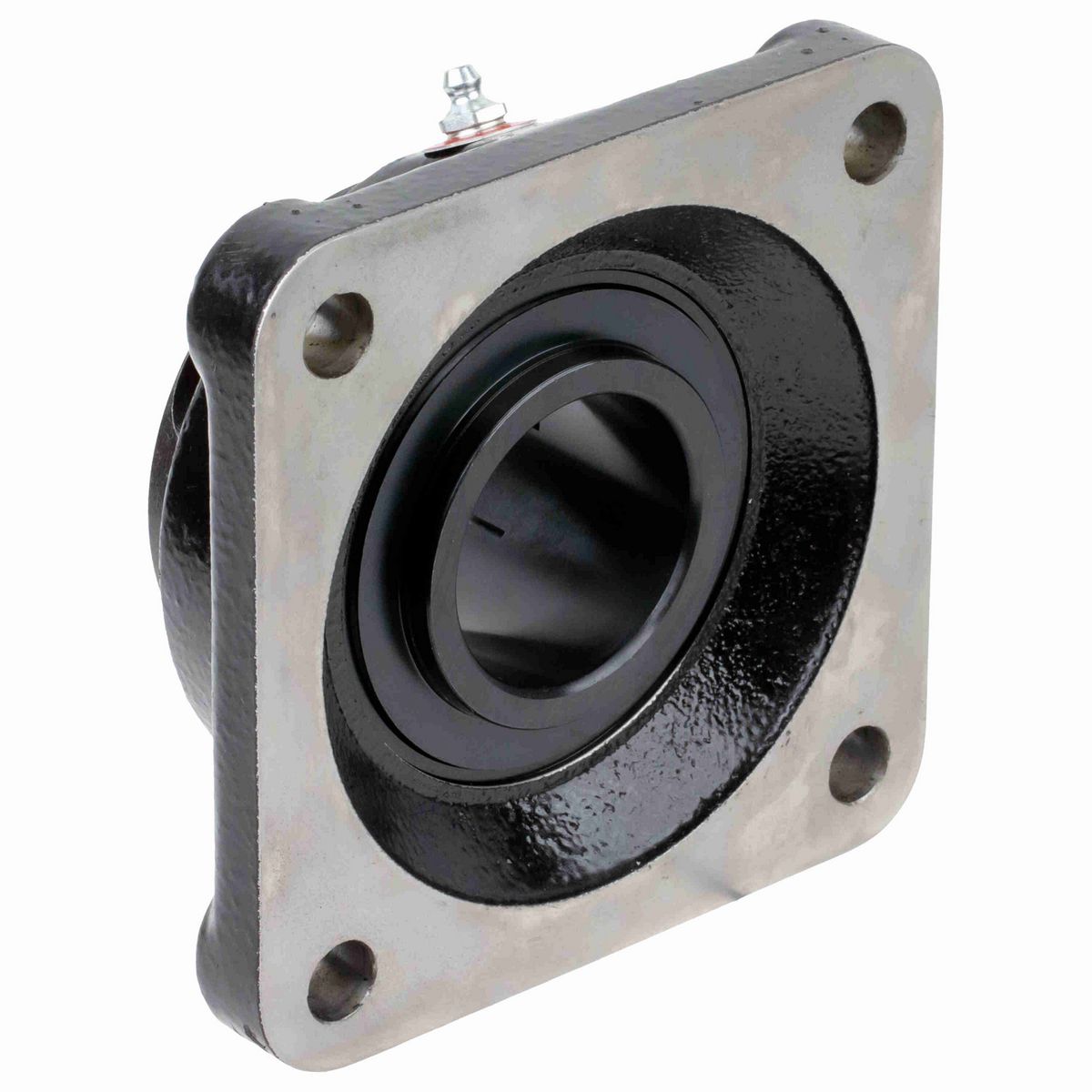

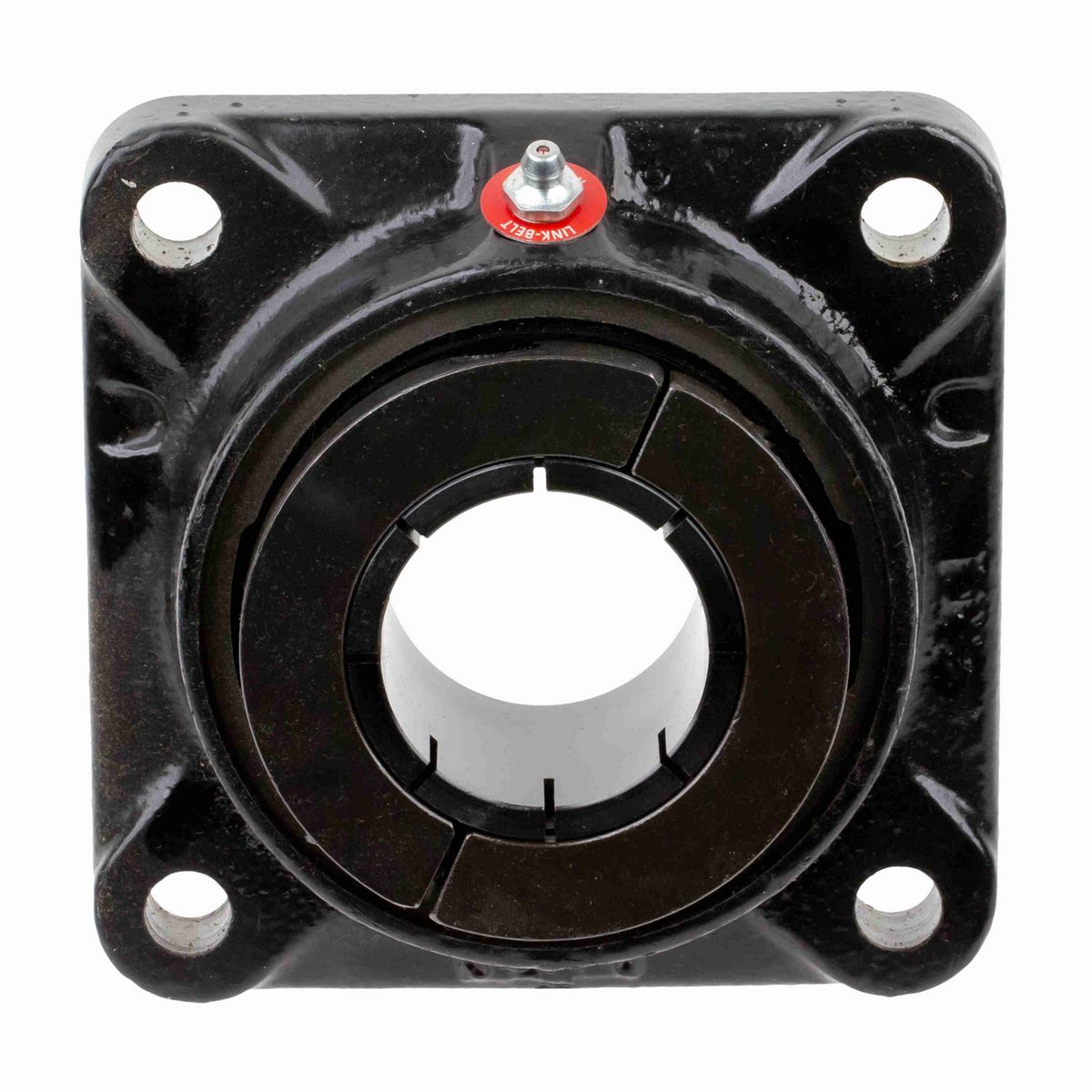

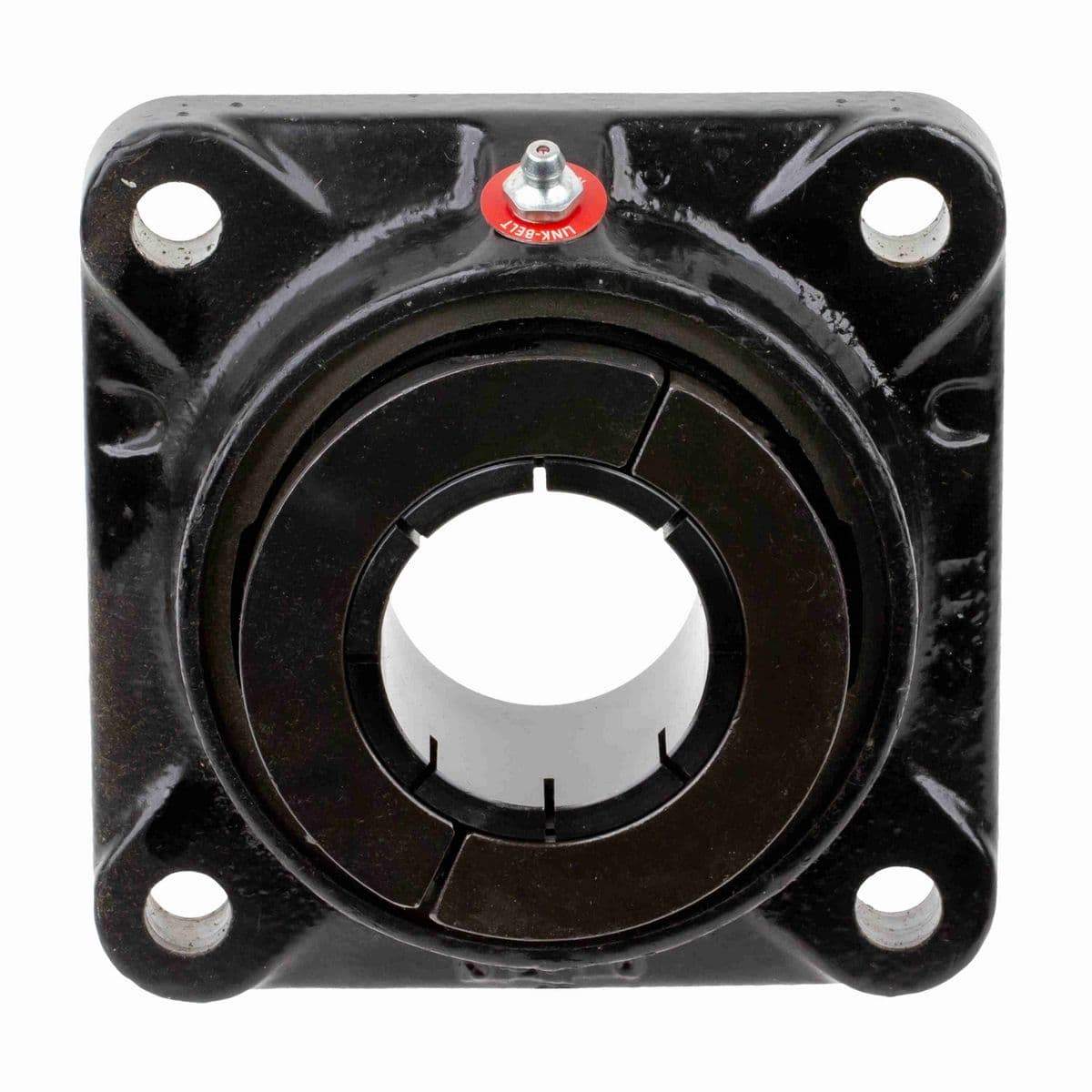

• 1 15/16" Mounted Ball Bearing, Standard Duty, Cast Iron 4-Bolt Square Flange Block, Centrik-Lok CL Locking Device, Single Lip Contact Seal

Dimensions

Bolt Size (in)	1/2 in
Foot Height (in)	0.75 in
Bore Diameter (in)	1.9375 in
Overall Length (in)	5.63 in
Overall Width (in)	5.63 in
Overall Height (in)	2.359375 in
Bolt Spacing (in)	4.3750 in

Technical Specifications

Pilot Configuration	No Pilot
Cage Material	Molded fiber glass reinforced nylon
Bore Shape	Straight
Housing Color	Black
Misalignment Type	Static Only
Housing Style	Flange Block
Rolling Element	Ball Bearing
Seal Type	Single Lip Contact Seal
Housing Type	Flange, Four Bolt
Outer Ring Land Profile	Standard
Locking Collar Outside Diameter (in)	3.35 in
Ability to Relubricate	Yes
Setscrew Torque (in-lbs)	313-348 in/lbs
Max Operating Temperature (C)	107 °C
Bearing Type	Standard Duty
Maximum Speed (RPM)	4800 rpm
Static Load Rating (lb)	5,220 lb
Vibration Frequency Outer Ring Defect	0.0682 cps
Radial Clearance	C3 STANDARD
Vibration Frequency Fundamental Train	0.0068 cps
Lubricant	EXXON RONEX MP STD
Locking Device Kit	CL2315S
Cage Type	Ball Riding Retainer
Bearing Brand	LINK-BELT 200 SERIES BALL
Insert	CLG231NL
Shaft Locking Type	Concentric
Misalignment Capability	±1.5° Misalignment - Static Only
Vibration Frequency Roller Spin	0.0445 cps
Bearing Insert Material	52100 Bearing Steel
Dynamic Load Rating (lb)	7,920 lb
Bearing Insert Finish	Black Oxide
Fixed vs. Expansion	Fixed
Size Code	210
End Cap	CL2316
Housing Coating	Powder Coated
Vibration Frequency Inner Ring Defect	0.0985 cps
Max Operating Temperature (F)	225 °F
Housing Material	Cast Iron
End Cap Available	Yes
Grease Fitting Thread Size	1/8 NPT
Inner Ring Outside Diameter (in)	2.469 in

General Specifications

UPC	662864289603
Weight	6.66 LB
Packaged Length	5.88 IN
Packaged Width	5.88 IN
Packaged Height	2.56 IN
HTC	8483204040
Country of Origin	Mexico
