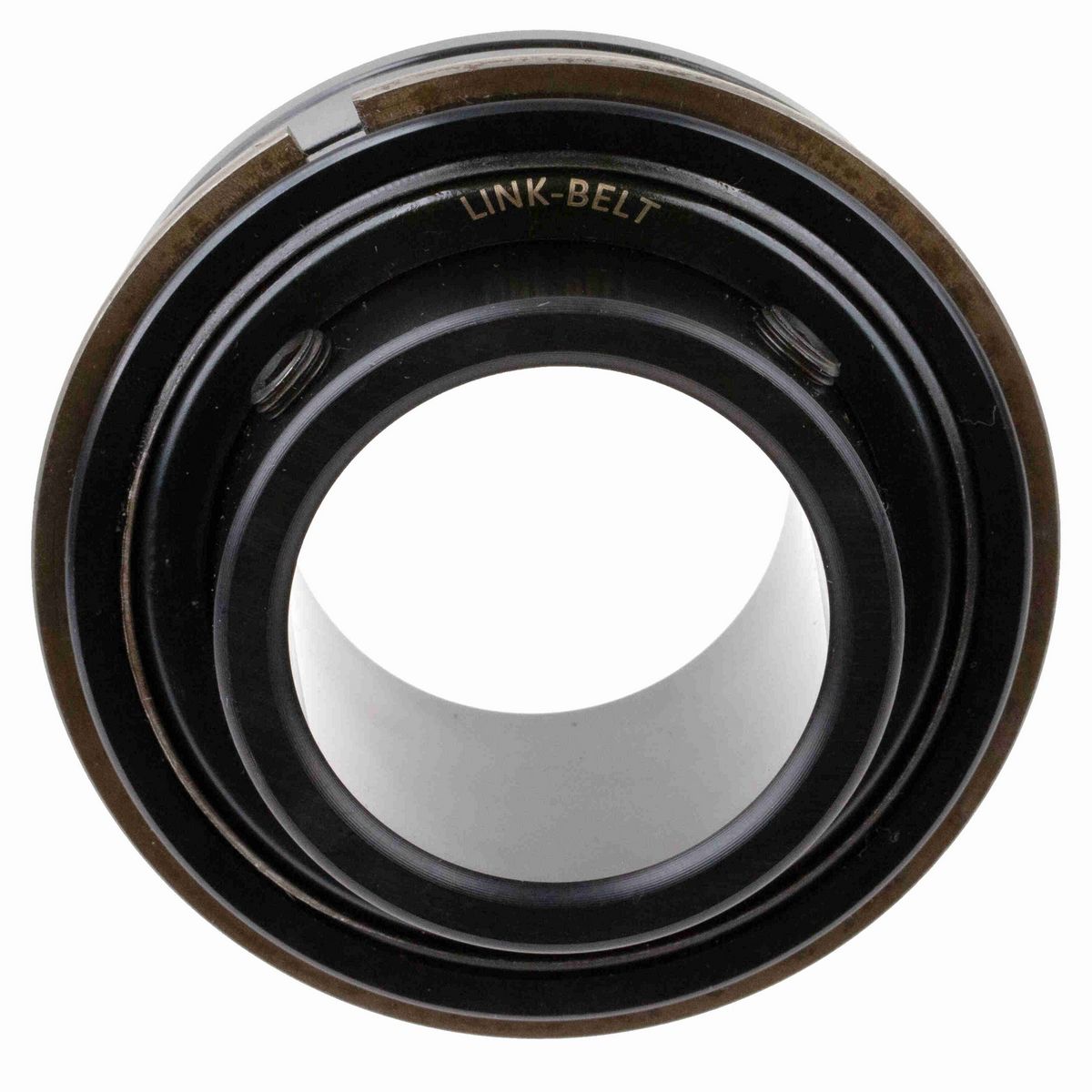

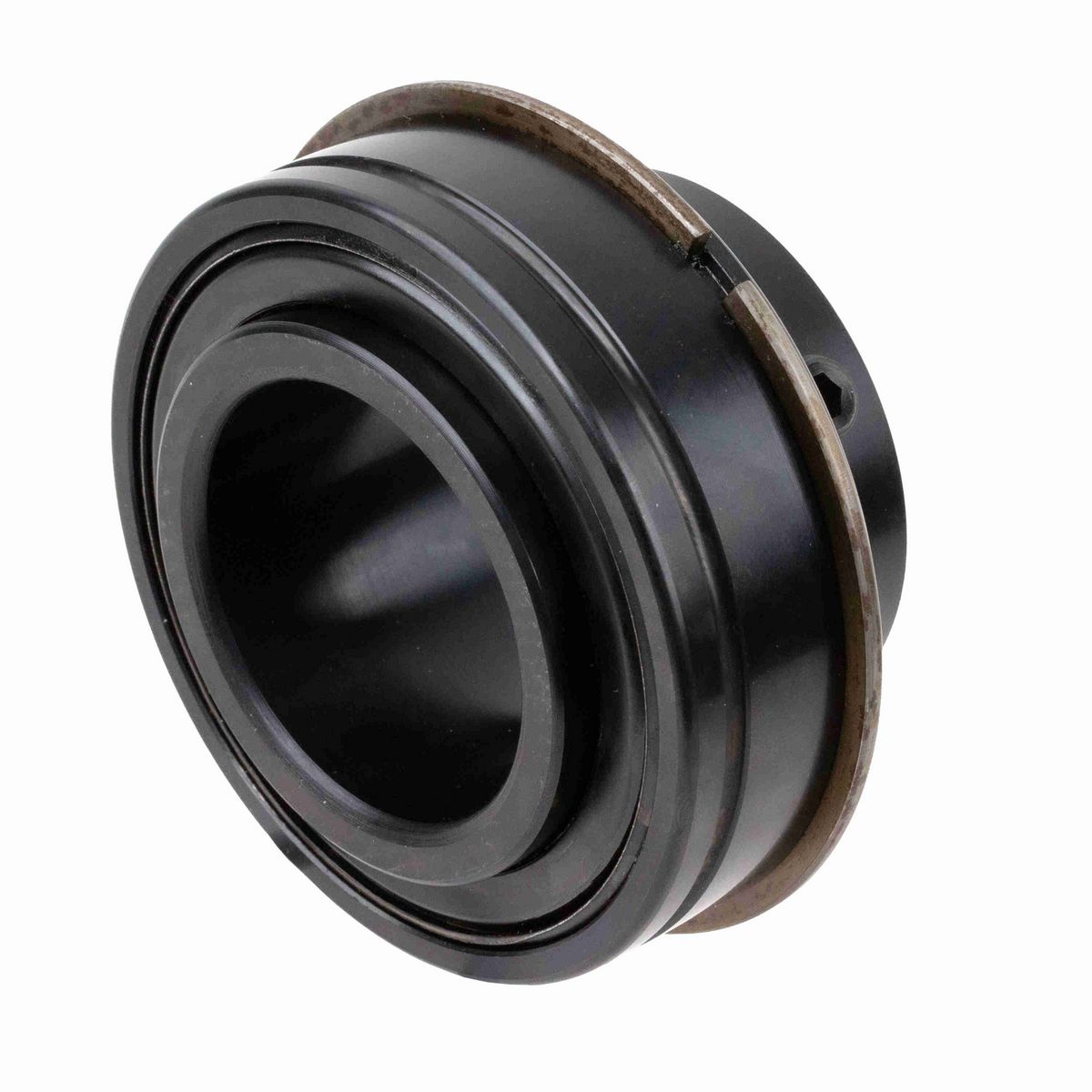

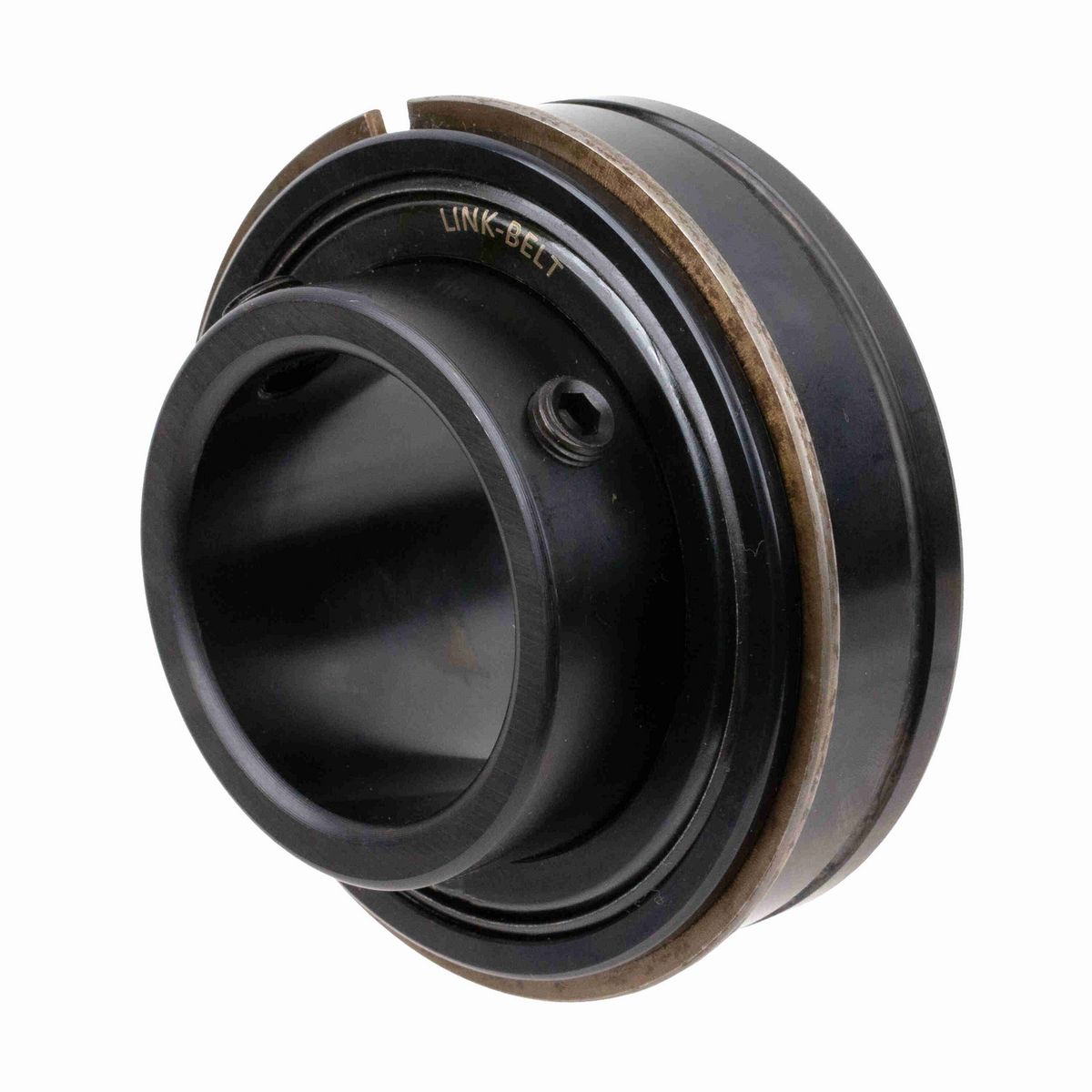

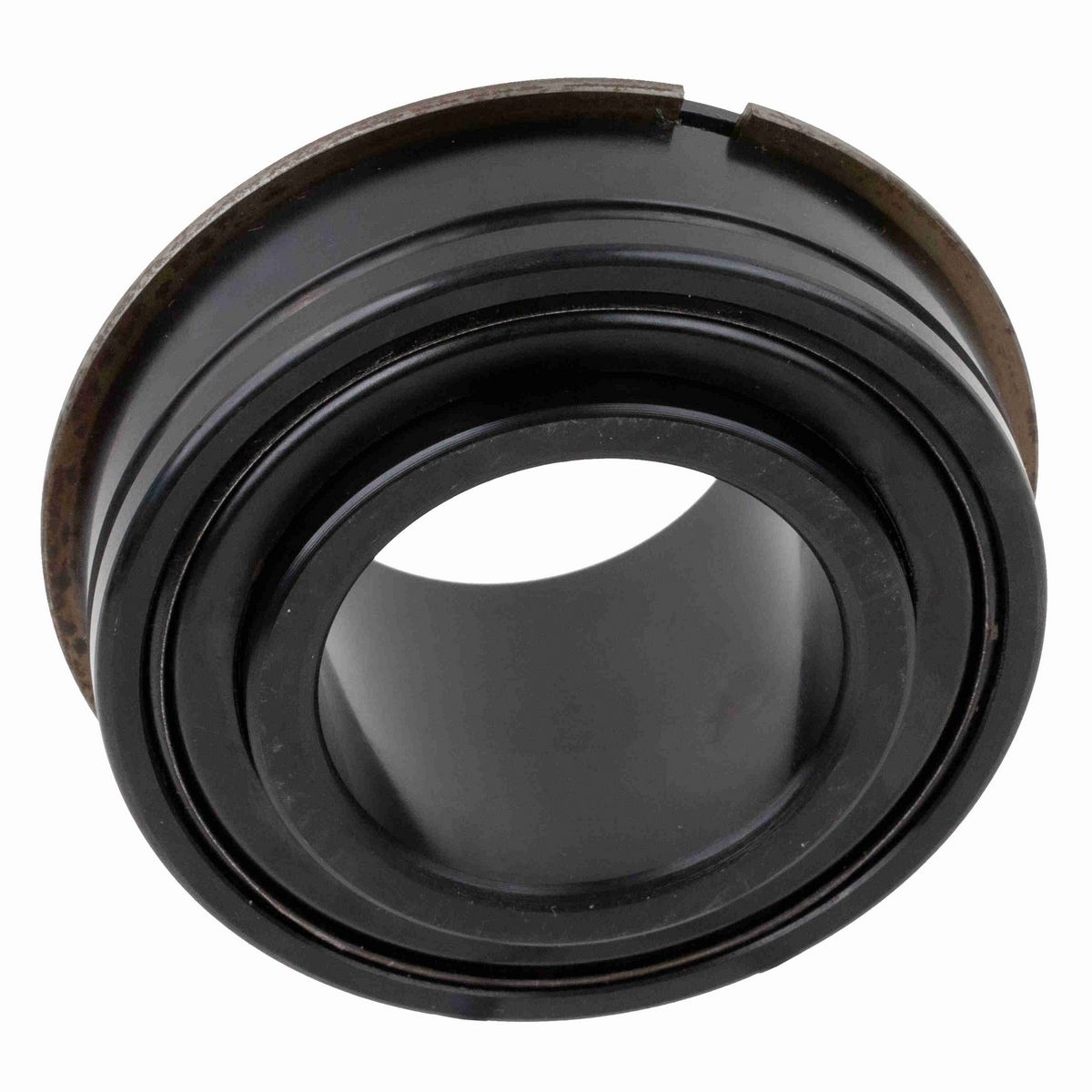

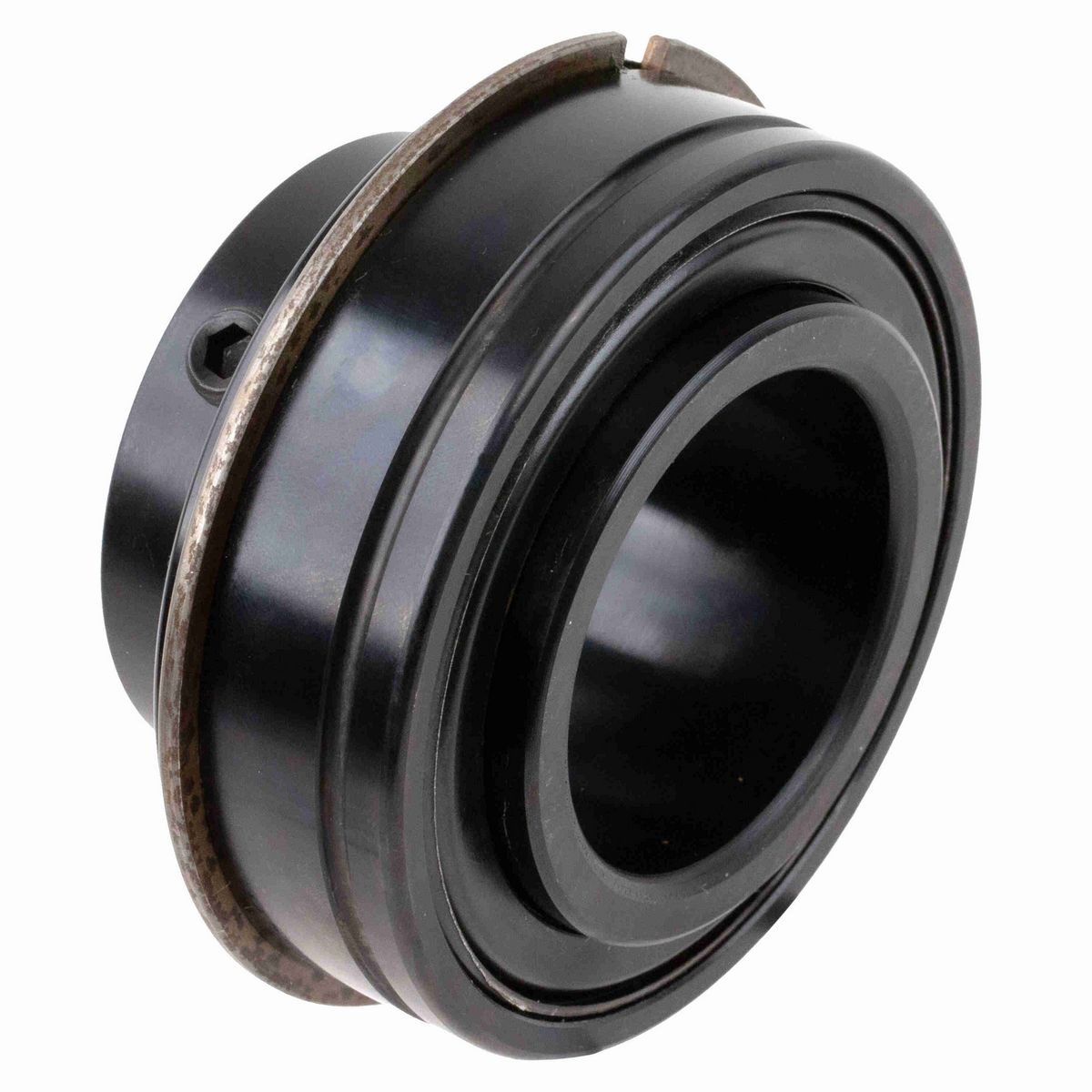

• 1 15/16" Unmounted Ball Bearing, Standard Duty, Setscrew Locking, Single Lip Contact Seal

Dimensions

Overall Width (in)	2.03 in
Bore Size (in)	1.9375 in
Outer Race OD (mm)	90 mm
Outer Race Width (in)	1.124 in
Length Through Bore (in)	2.032 in
Inner Ring OD (in)	2.475 in
Outer Race Width (mm)	28.6 mm
Outer Race OD (in)	3.5433 in

Technical Specifications

Set Screw Thread	3/8-24 UNF
Bearing Insert Coating	Black Oxide
Snap Ring Width (in)	0.09 in
Cage Material	Molded fiber glass reinforced nylon
Misalignment	None
Duty/Status	Standard
Inner Ring Fillet Radius (in)	0.06 in
Vibration Frequency Roller Spin	0.0445 cps
Size Code	210
Internal Clearance	C3 STANDARD
Lubrication Type	EXXON RONEX MP STD
Insert Material	52100 Bearing Steel
Inner Race Profile	Wide Inner Ring
Vibration Frequency Outer Ring Defect	0.0682 cps
Misalignment Type	Static Only
Primary Seal	BUNA SINGLE LIP CONTACT SEAL
Series	Unmounted Replacement Bearings
Outer Ring Land Profile	Standard
Short Hub Length (in)	0.75 in
Vibration Frequency Fundamental Train	0.0068 cps
Housing Type	Insert (ER Style)
Setscrew Torque (in-lbs)	290-325 in/lbs
Maximum Speed (rpm)	4800 rpm
Available Seal Type	N Lip Seal;E1 Viton Seal;FF Free Running;HFF Free Running;MHFF Free Running;NFF Lip Seal w/ Flinger
Vibration Frequency Inner Ring Defect	0.0985 cps
Outer Race Profile	Cylindrical
Seal Type	Single Lip Contact Seal
Rolling Element	Ball Bearing
Product	ER
Ability to Relubricate	Yes
Distance from Outer Ring Face to Snap Ring Face (in)	0.13 in
Distance from Inner Ring Long Hub Face to Centerline of Setscrew (in)	0.38 in
Maximum Operating Temperature (F)	225 °F
End Cap	No
Expansion	No
Bore Shape	Straight
Precision Rating	ABEC 1
Locking Type	Set Screw
Snap Ring Outside Diameter (in)	3.78 in
Dynamic Load Rating (lb)	7,920 lb
Maximum Operating Temperature (C)	107 °C
Cage Type	Ball Riding Retainer
Static Load Rating (lb)	5,220 lb

General Specifications

UPC	662864003254
Weight	2.34 LB
Packaged Length	4.25 IN
Packaged Width	2.06 IN
Packaged Height	4.38 IN
HTC	8482105052
Country of Origin	Mexico
