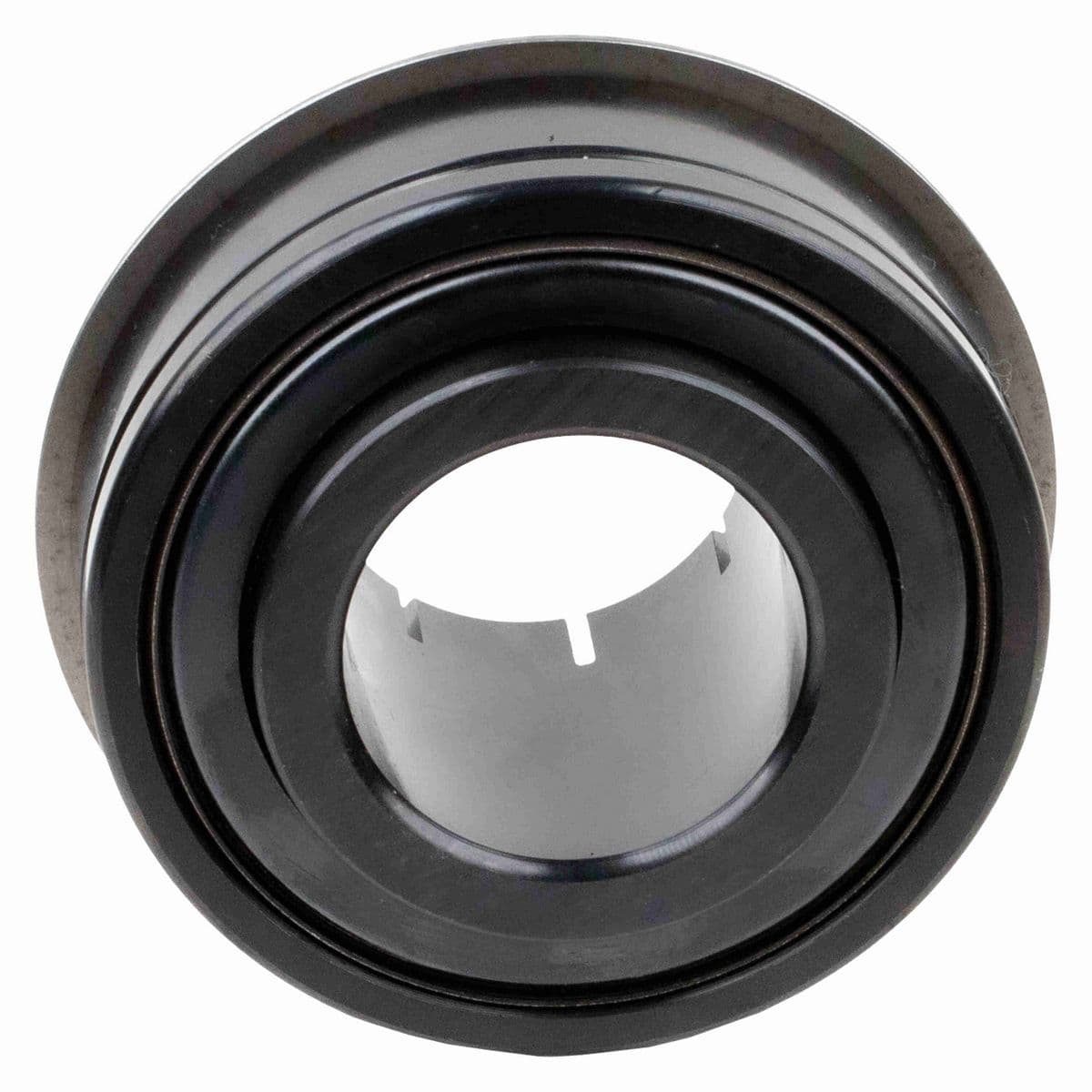

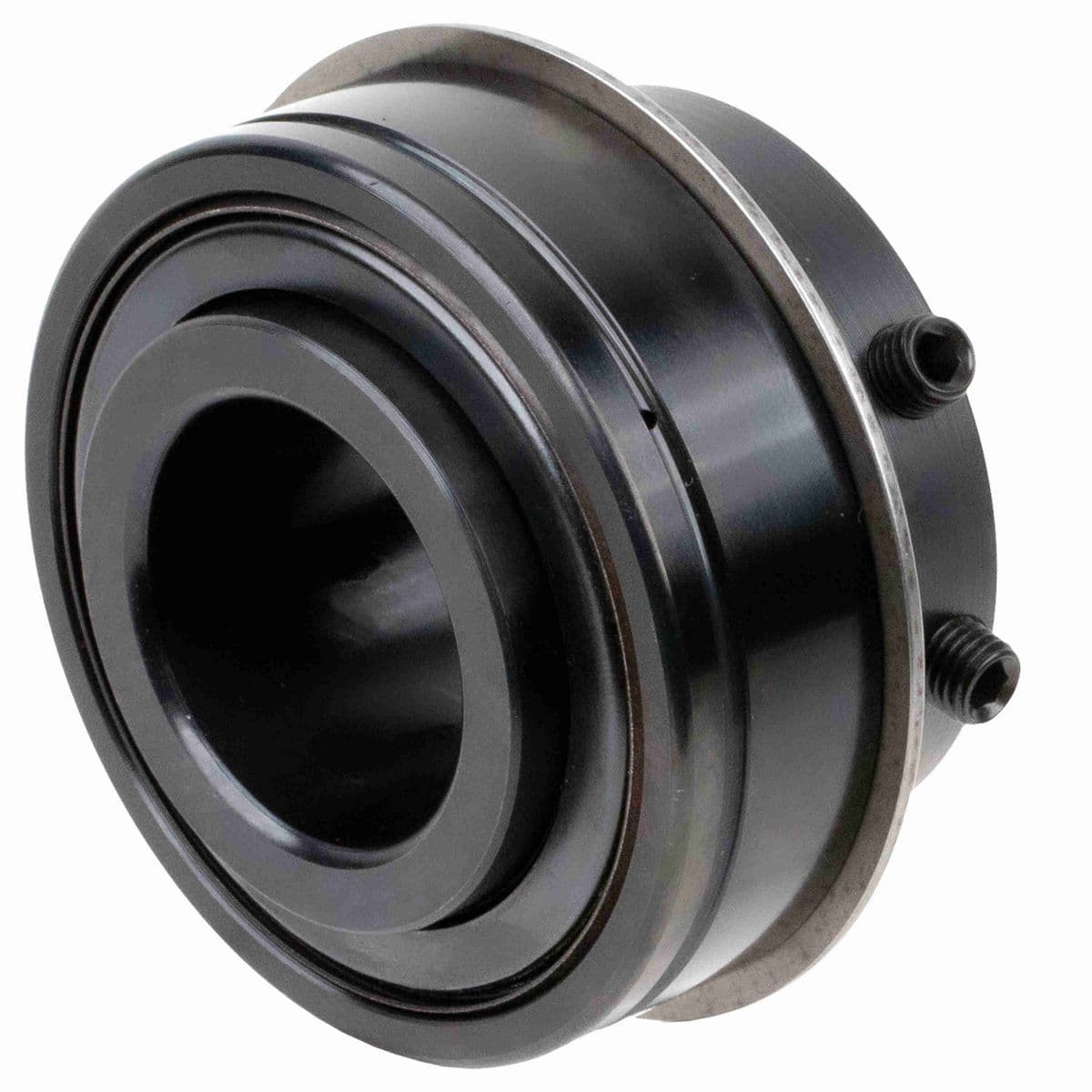

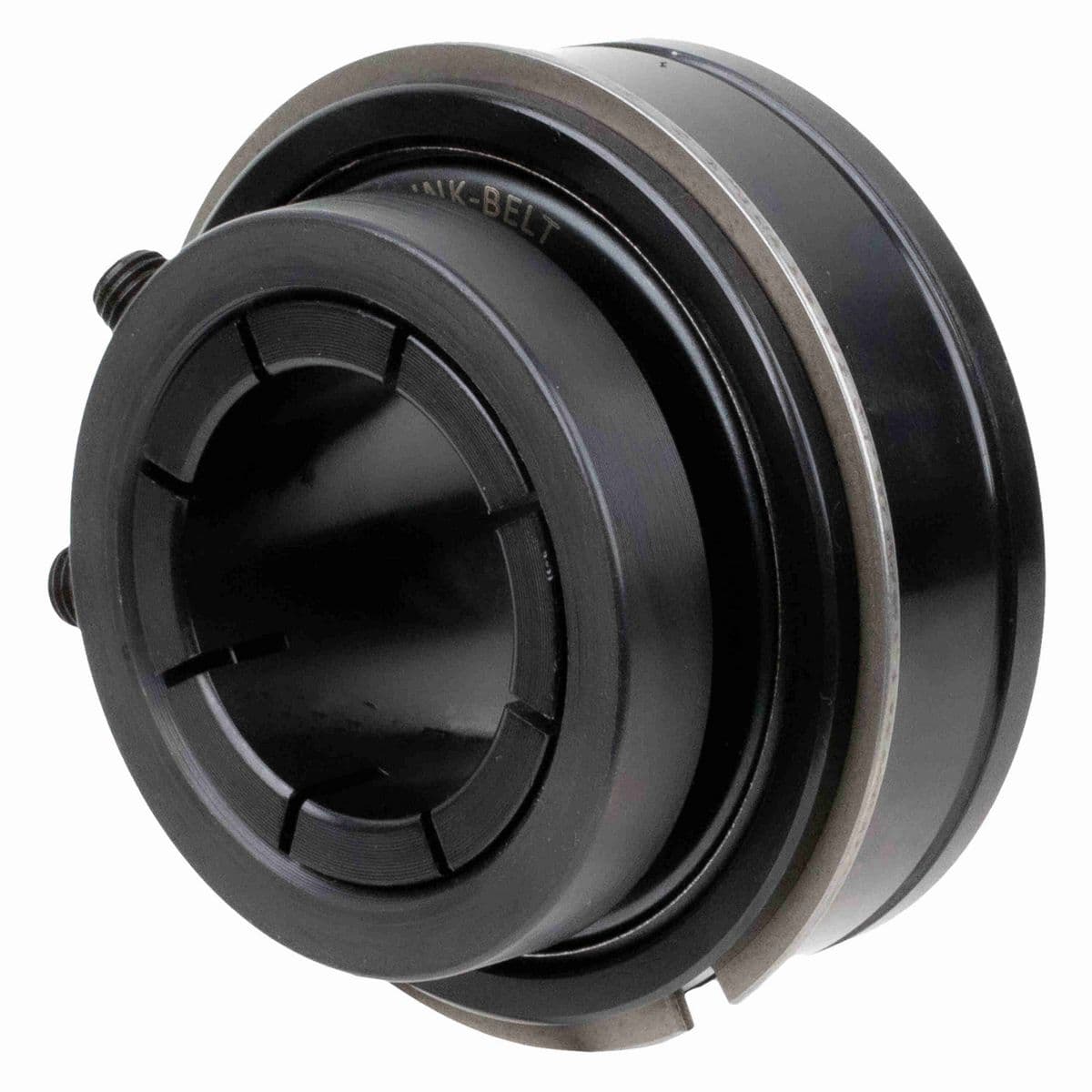

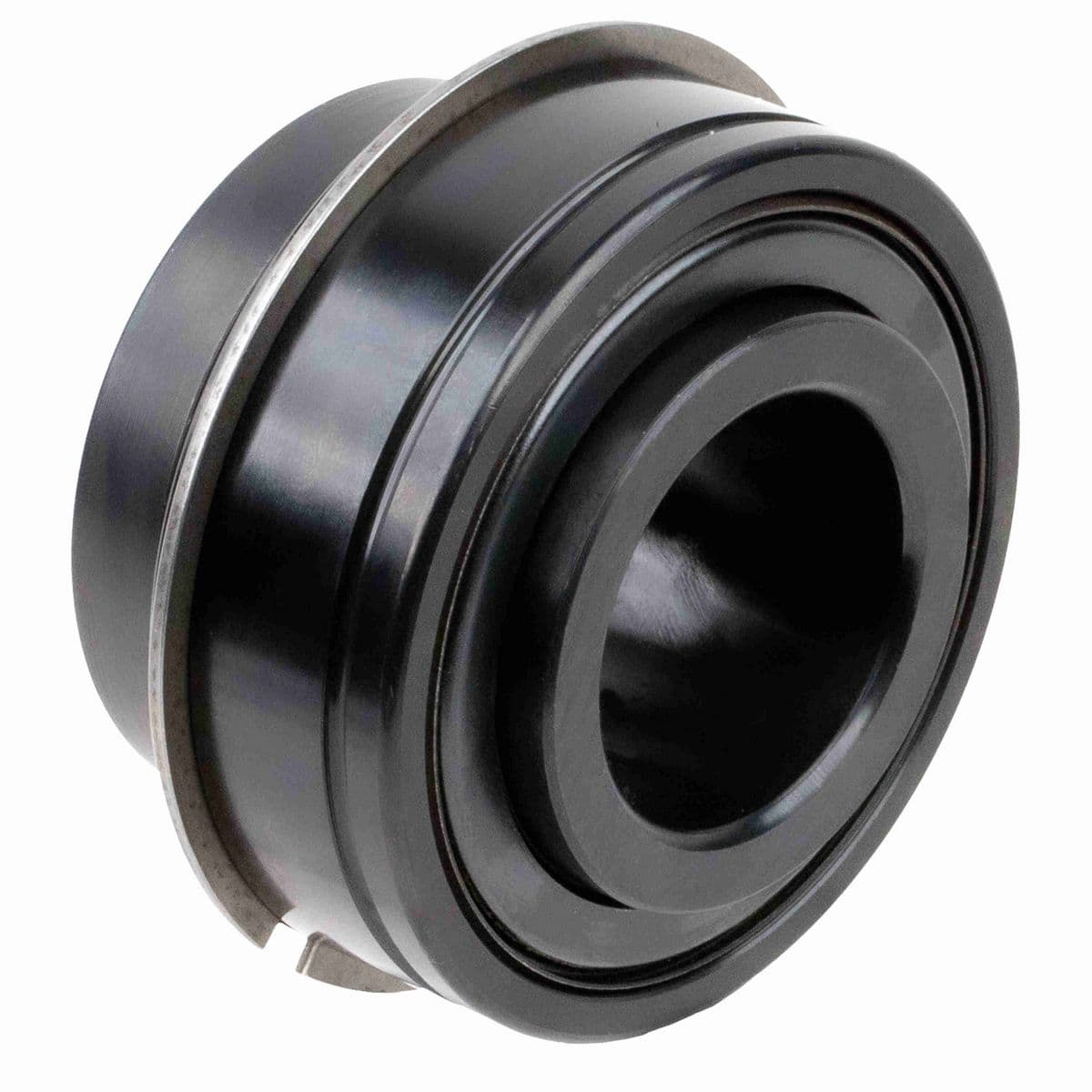

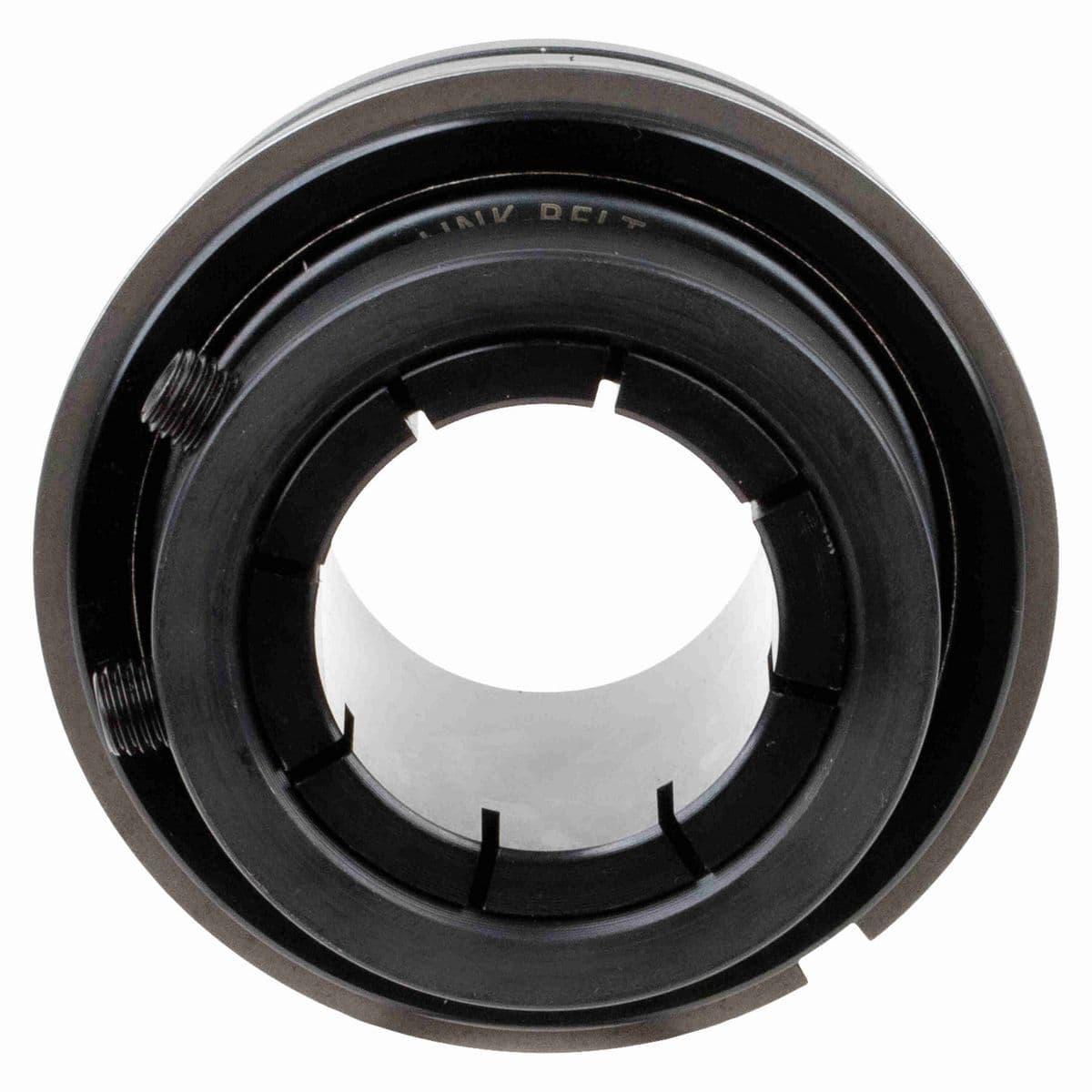

• 1 1/16" Unmounted Ball Bearing, Standard Duty, Centrik-Lok Locking Device, Single Lip Contact Seal

Dimensions

Outer Race Width (in)	0.875 in
Outer Race OD (mm)	62 mm
Collar OD (in)	2.23 in
Inner Ring OD (in)	1.594 in
Outer Race OD (in)	2.4409 in
Length Through Bore (in)	1.5 in
Overall Width (in)	1.5 in
Bore Size (in)	1.0625 in
Outer Race Width (mm)	22.2 mm

Technical Specifications

Setscrew Torque (in-lbs)	100 in/lbs
Rolling Element	Ball Bearing
Short Hub Length (in)	0.63 in
Inner Race Profile	Wide Inner Ring
Locking Type	Concentric
Outer Ring Land Profile	Standard
Precision Rating	ABEC 1
Vibration Frequency Fundamental Train	0.0066 cps
Distance from Inner Ring Long Hub Face to Centerline of Setscrew (in)	0.25 in
Misalignment	None
Ability to Relubricate	Yes
Housing Type	Insert (ER Style)
Locking Device Kit	CL2195BS
Maximum Speed (rpm)	8000 rpm
Snap Ring Width (in)	0.05 in
Outer Race Profile	Cylindrical
Insert Material	52100 Bearing Steel
Locking Collar Width (in)	0.44 in
Internal Clearance	C3 STANDARD
End Cap	No
Duty/Status	Standard
Vibration Frequency Outer Ring Defect	0.0595 cps
Maximum Operating Temperature (F)	225 °F
Cage Material	Molded fiber glass reinforced nylon
Bearing Insert Coating	Black Oxide
Vibration Frequency Inner Ring Defect	0.0905 cps
Distance from Outer Ring Face to Snap Ring Face (in)	0.09 in
Expansion	No
Snap Ring Outside Diameter (in)	2.66 in
Seal Type	Single Lip Contact Seal
Product	ER-K
Vibration Frequency Roller Spin	0.0385 cps
Available Seal Type	N Lip Seal;E1 Viton Seal;FF Free Running;HFF Free Running;MHFF Free Running;NFF Lip Seal w/ Flinger
Lubrication Type	EXXON RONEX MP STD
Misalignment Type	Static Only
Inner Ring Fillet Radius (in)	0.04 in
Size Code	206
Primary Seal	BUNA SINGLE LIP CONTACT SEAL
Bore Shape	Straight
Series	Unmounted Replacement Bearings
Dynamic Load Rating (lb)	4,390 lb
Static Load Rating (lb)	2,530 lb
Maximum Operating Temperature (C)	107 °C
Cage Type	Ball Riding Retainer

General Specifications

UPC	662864004268
Weight	0.98 LB
Packaged Length	3.00 IN
Packaged Width	3.00 IN
Packaged Height	2.00 IN
HTC	8482105052
Country of Origin	Mexico
