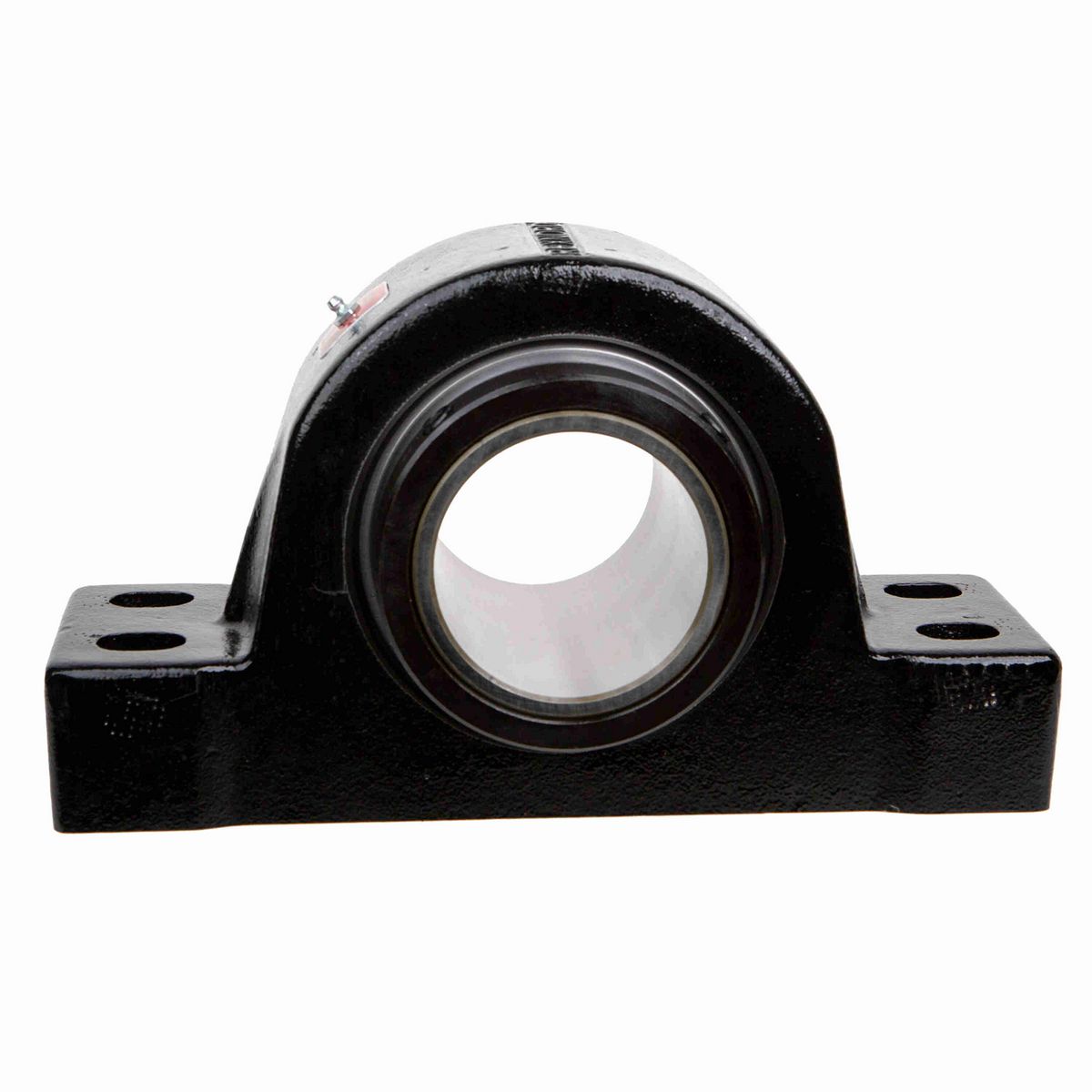

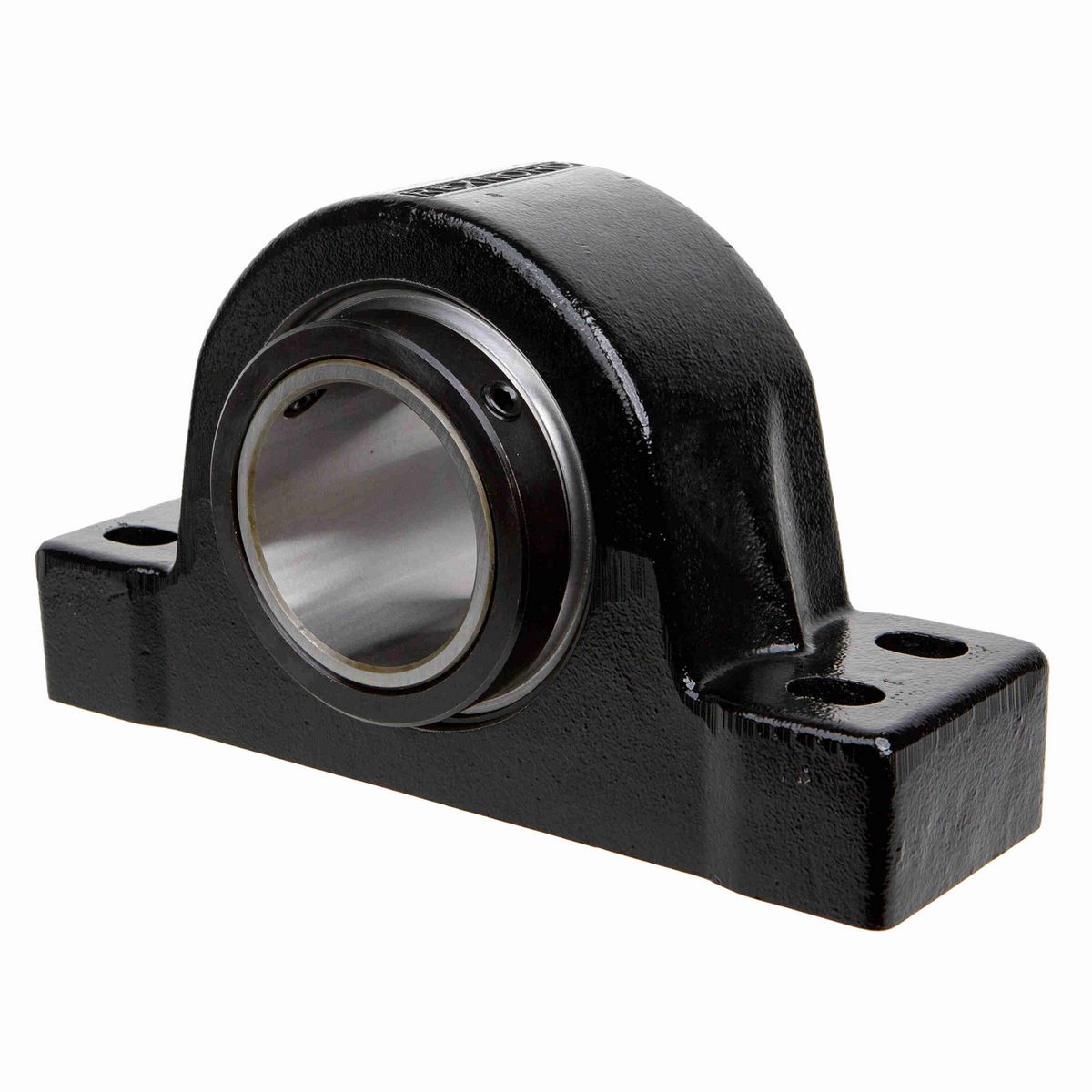

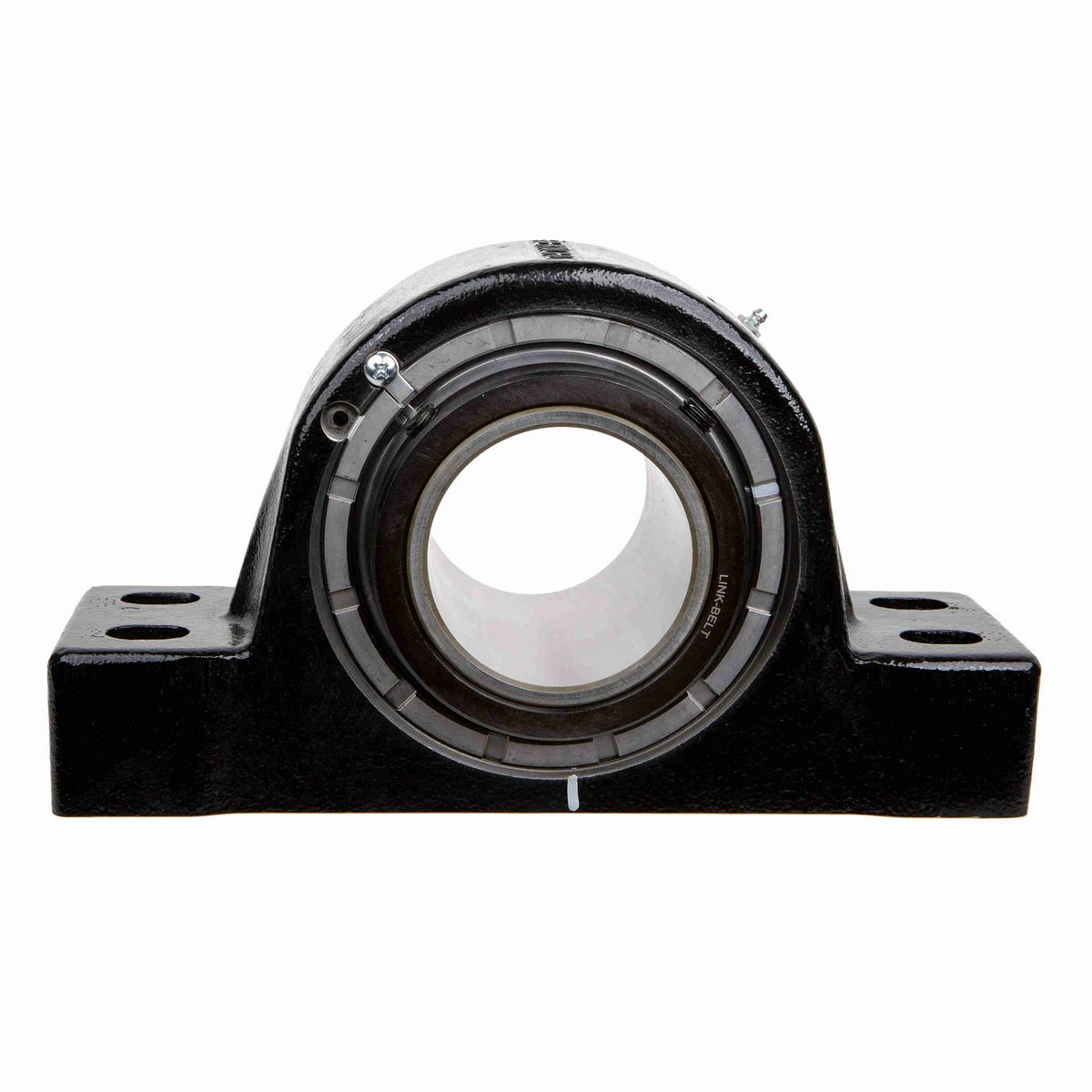

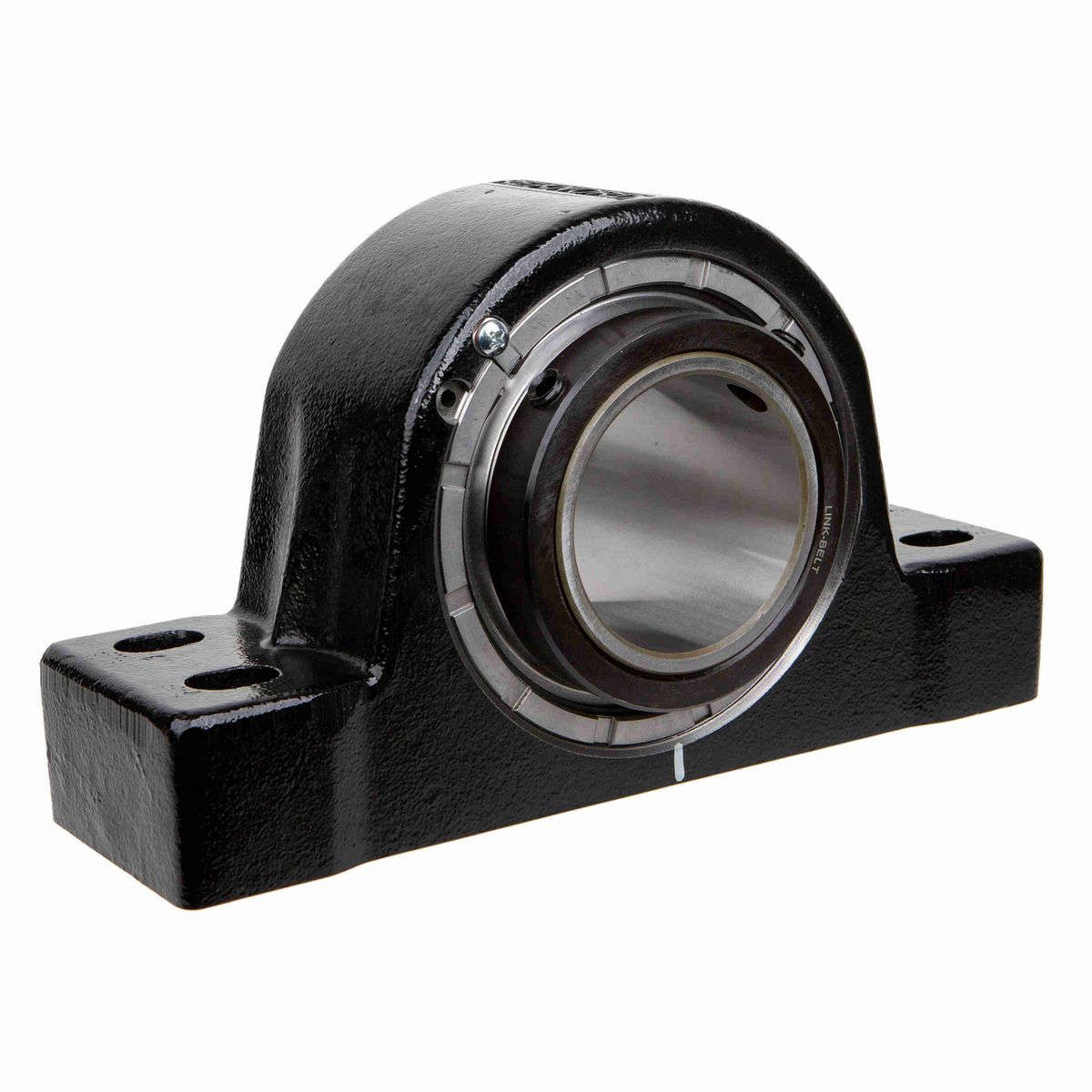

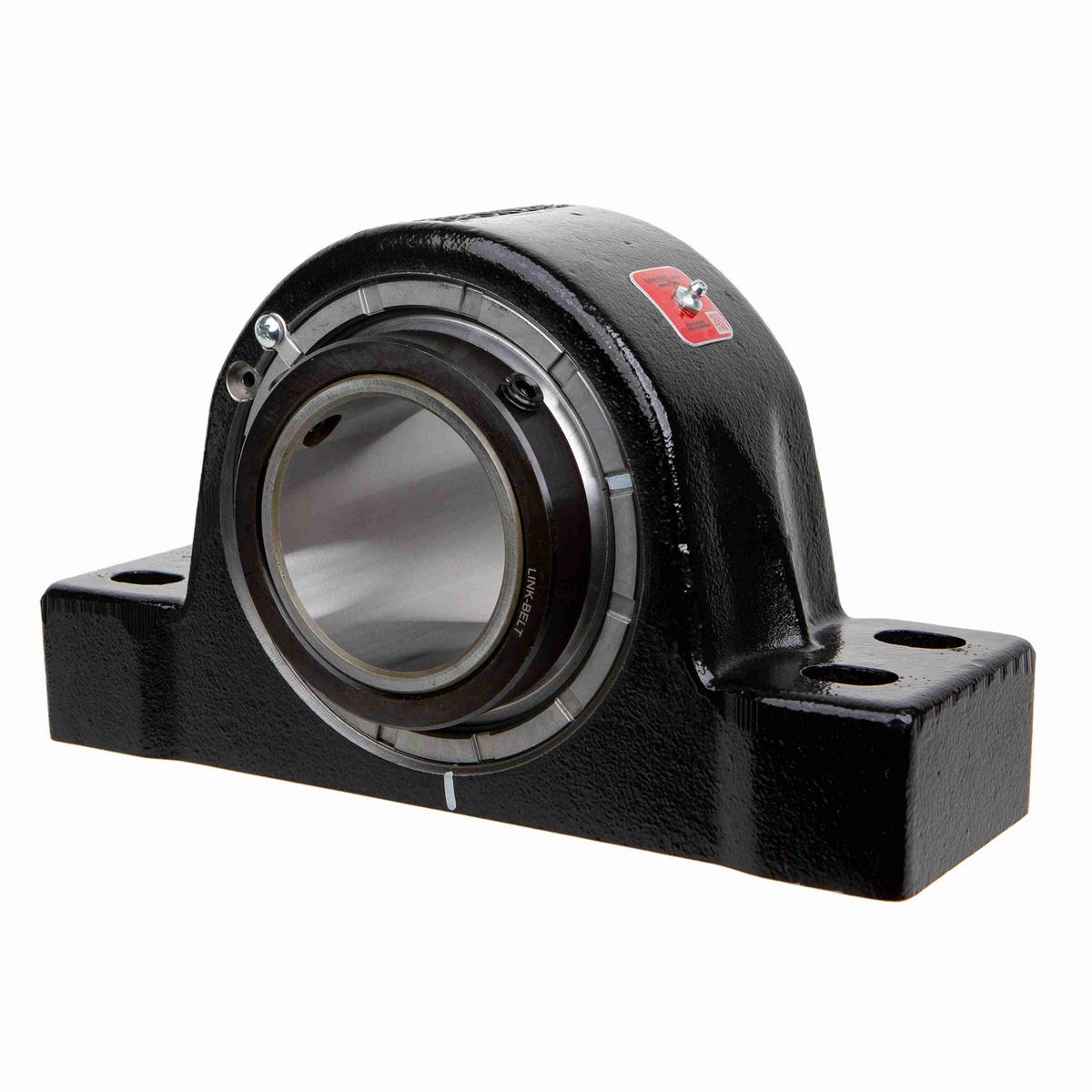

• 3 15/16" Mounted Spherical Roller Bearing, Fixed Cast Iron 4-Bolt Type E Pillow Block, Double Setscrew Locking Collar, Clearance Seal

Dimensions

Bolt Size (in)	3/4 in
Bore Diameter (in)	3.9375 in
Base Width (in)	4.5 in
Base to Center Height (in)	4.25 in
Overall Width (in)	6.13 in
Overall Height (in)	8.63 in
Foot Height (in)	2.63 in
Overall Length (in)	15.25 in
Locking Collar Outside Diameter (in)	5.63 in
Inner Ring Outside Diameter (in)	4.561 in
Length Through Bore (in)	6.13 in
Bolt Spacing Max (in)	13 in
Centerline to Outermost Bearing Face (in)	3.06 in
Bolt Spacing Min (in)	12 in
Bolt Spacing Width (in)	2.25 in
Housing Cast Face to Outermost Bearing Face (in)	1.06 in
Base Length (in)	15.25 in

Technical Specifications

Housing Type	Pillow Block, Four Bolt, Type E
Misalignment Type	Dynamic
Product	EPB22500F
Cage Material	Steel
Radial Clearance	C0 STANDARD
Fixed/Expansion	Fixed
Housing Construction	Solid
Housing Style	Pillow Block
End Cap	B464DTC
Housing Material	Cast Iron
Housing Color	Black
Radial Dynamic Load Capacity (lb)	96,500 lb
Rolling Element	Spherical Roller
Shaft Locking Type	Double Set Collar
Static Load Rating (lb)	137,000 lb
Seal Type	Clearance Seal
Series	Solid-housed Pillow Blocks
Microlock Kit	B580MLK
Ability to Relubricate	Yes
Maximum Speed (RPM)	1400 rpm
Available Seal Type	E Lip Seal; H Labyrinth Seal; E7 Triple Lip Seal
Seal Kit	B464HS
Setscrew Torque (in-lbs)	1350 in/lbs
Misalignment Capability	±2.0° Misalignment - Dynamic
Primary Seal	STEEL CLEARANCE SEAL
Size Code	B564
Vibration Frequency Fundamental Train	0.0071 cps
Housing Coating	POWDER COATED
Vibration Frequency Outer Ring Defect	0.1283 cps
Vibration Frequency Roller Spin	0.0548 cps
Max Operating Temperature (C)	107 °C
Max Operating Temperature (F)	225 °F
Lubricant	EXXON RONEX MP STD
Vibration Frequency Inner Ring Defect	0.1717 cps
Insert	B563L
Grease Fitting Thread Size	1/8 NPT
Locking Device Kit	B464SC QTY 2

General Specifications

UPC	662327025397
Weight	71.00 LB
Packaged Length	9.13 IN
Packaged Width	6.75 IN
Packaged Height	15.63 IN
HTC	8483204080
Country of Origin	Mexico
