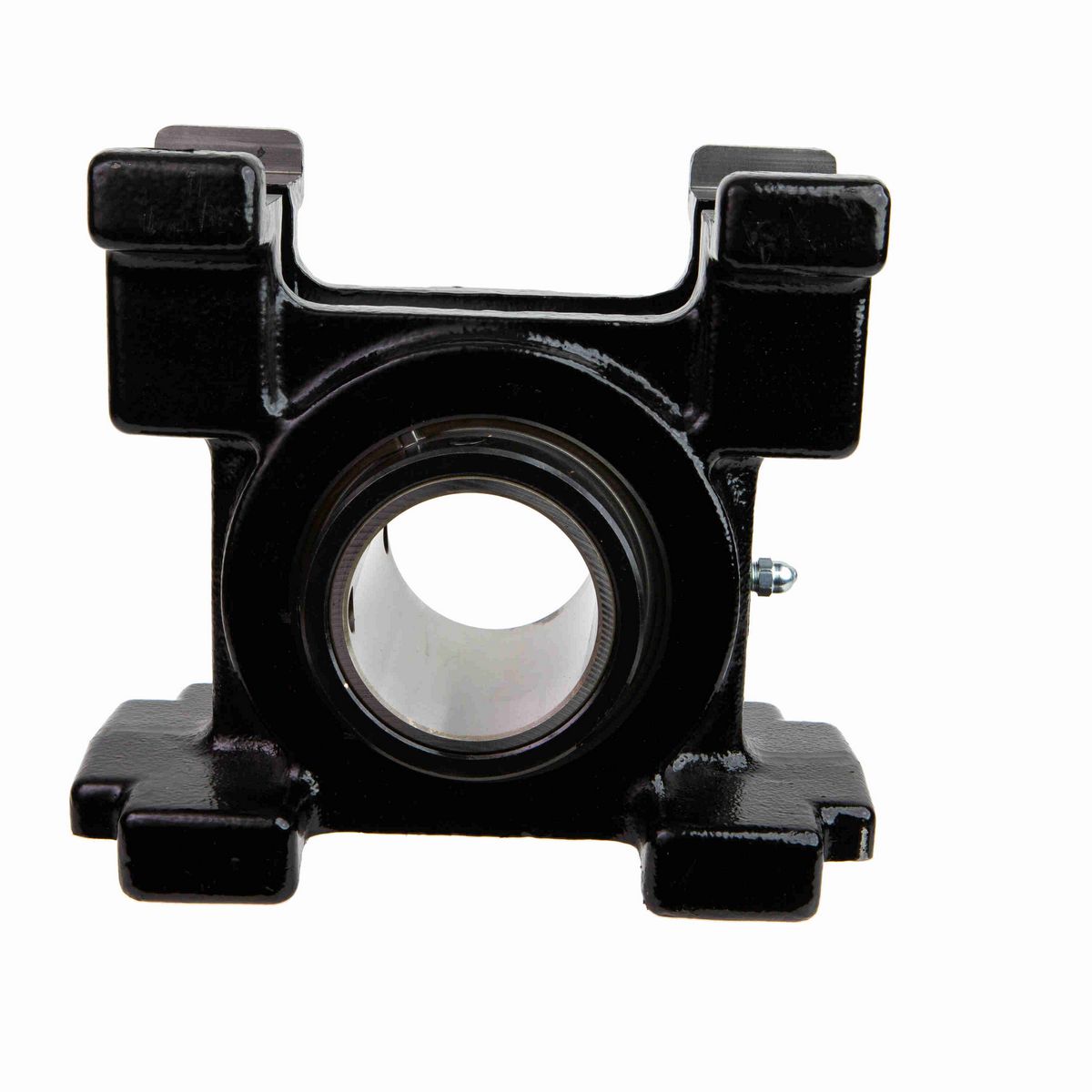

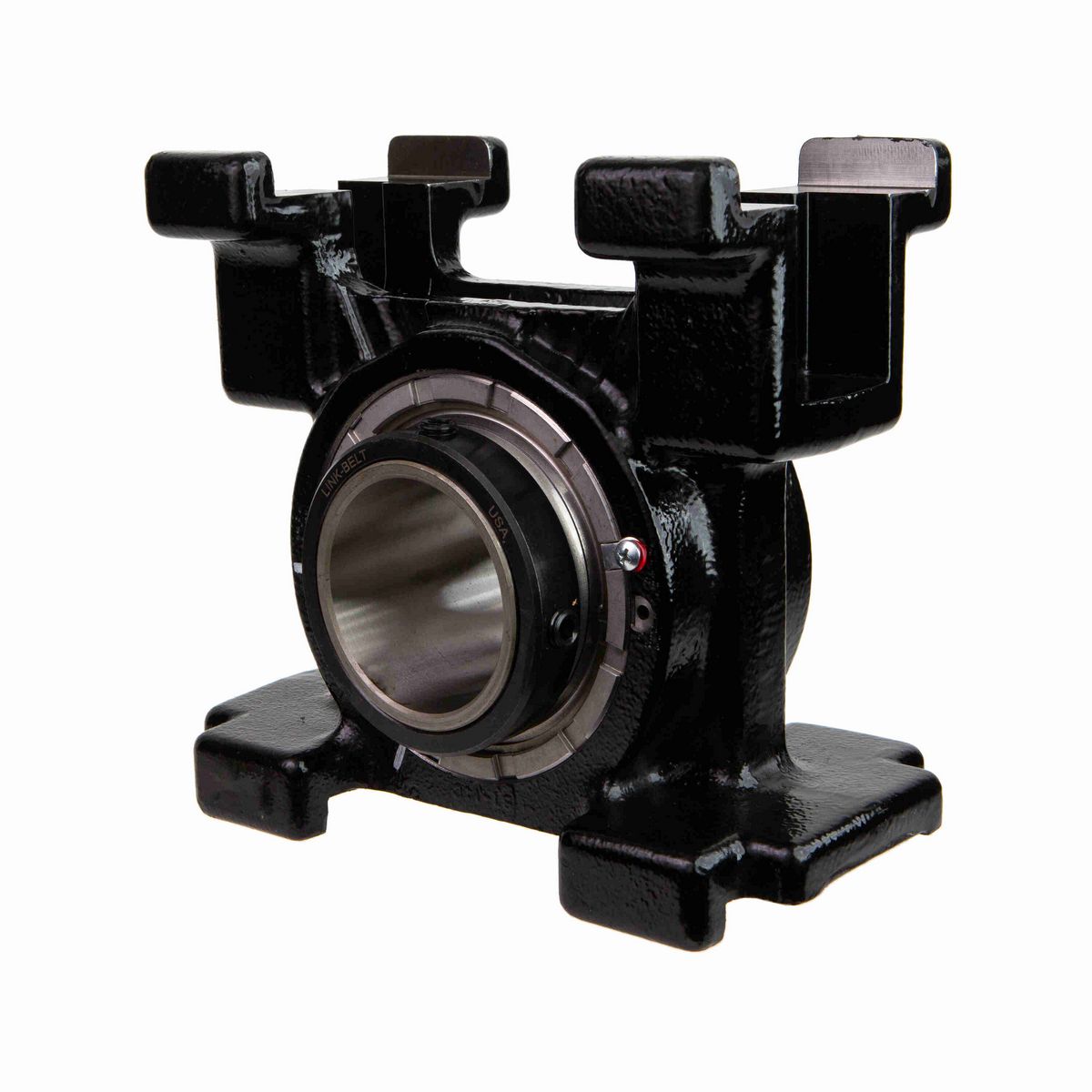

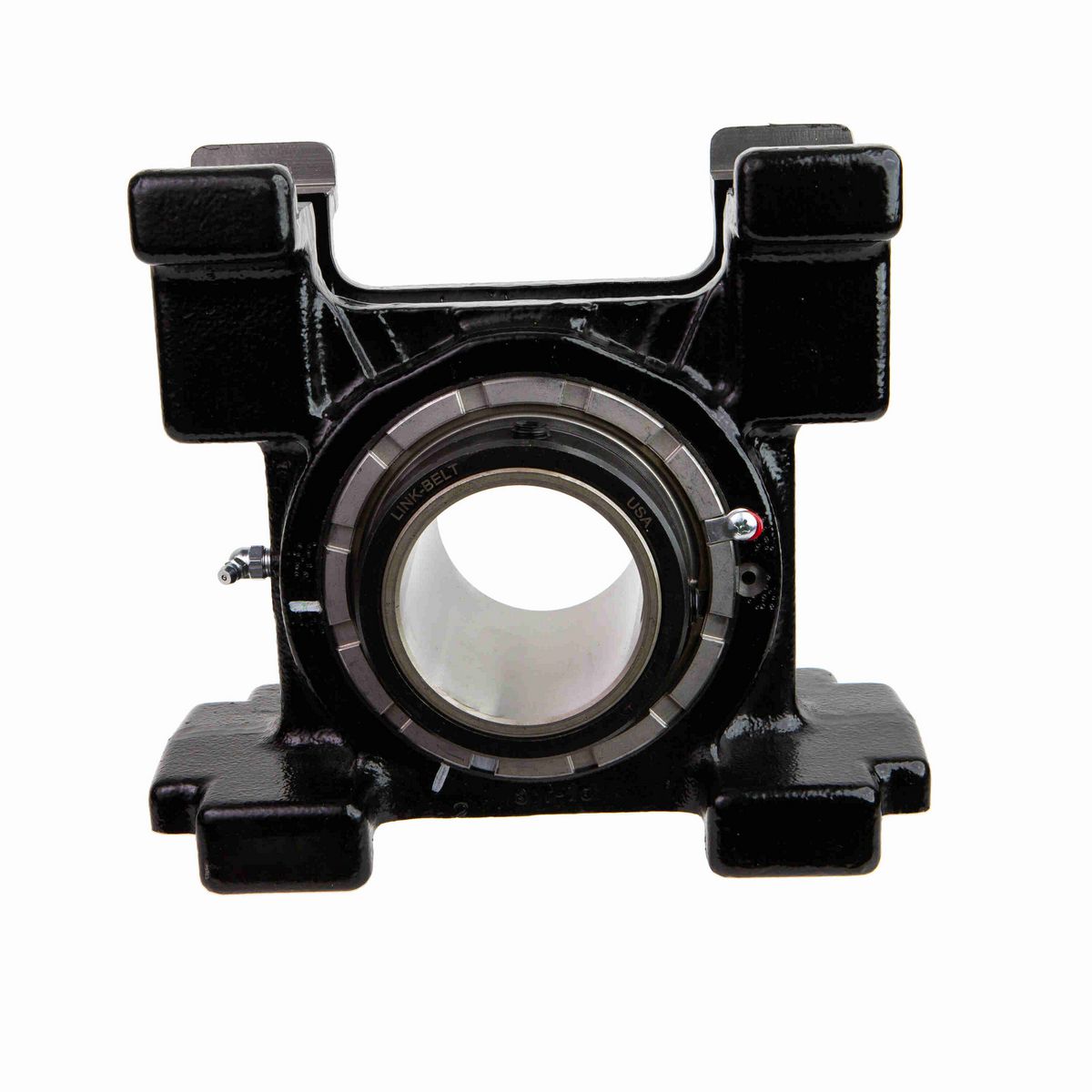

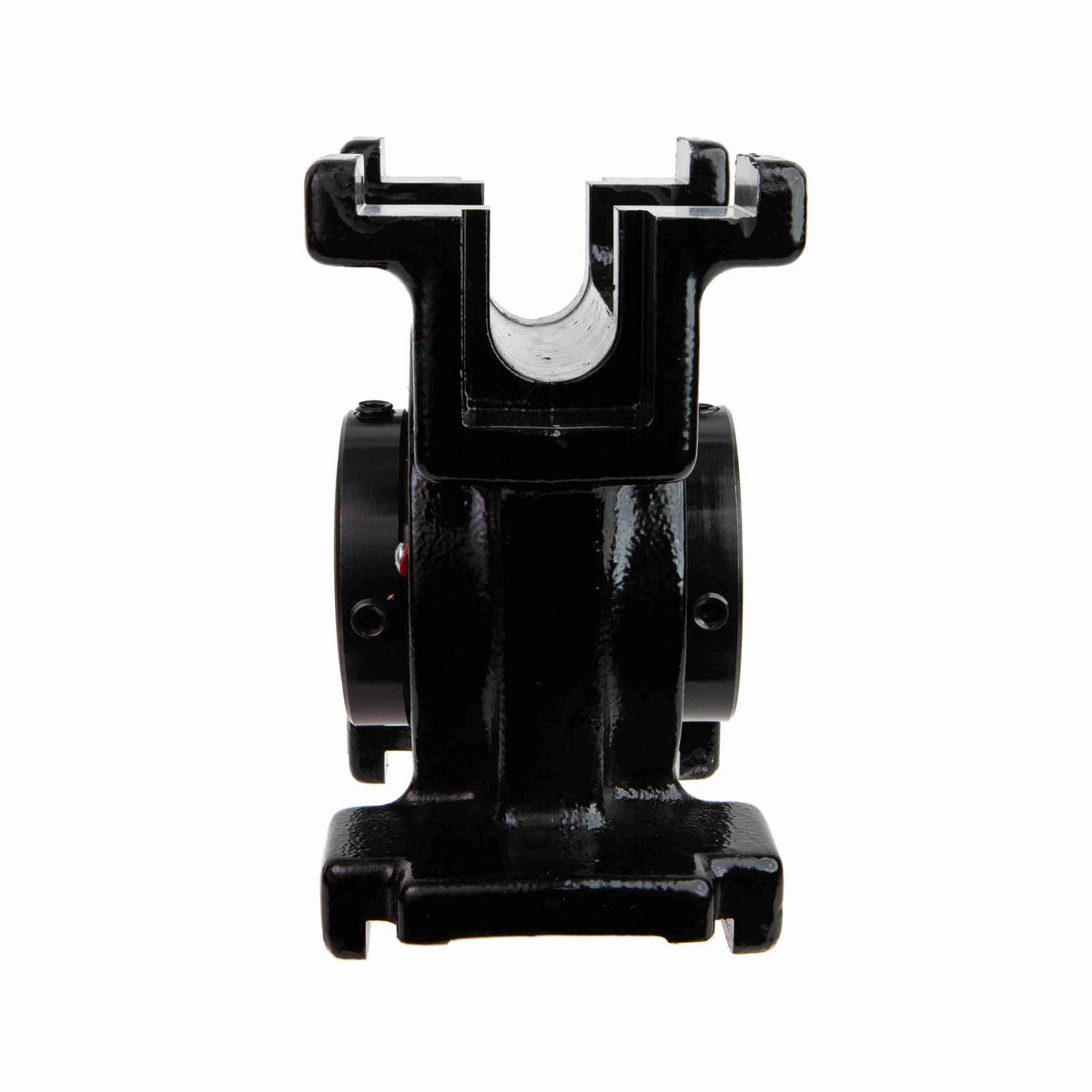

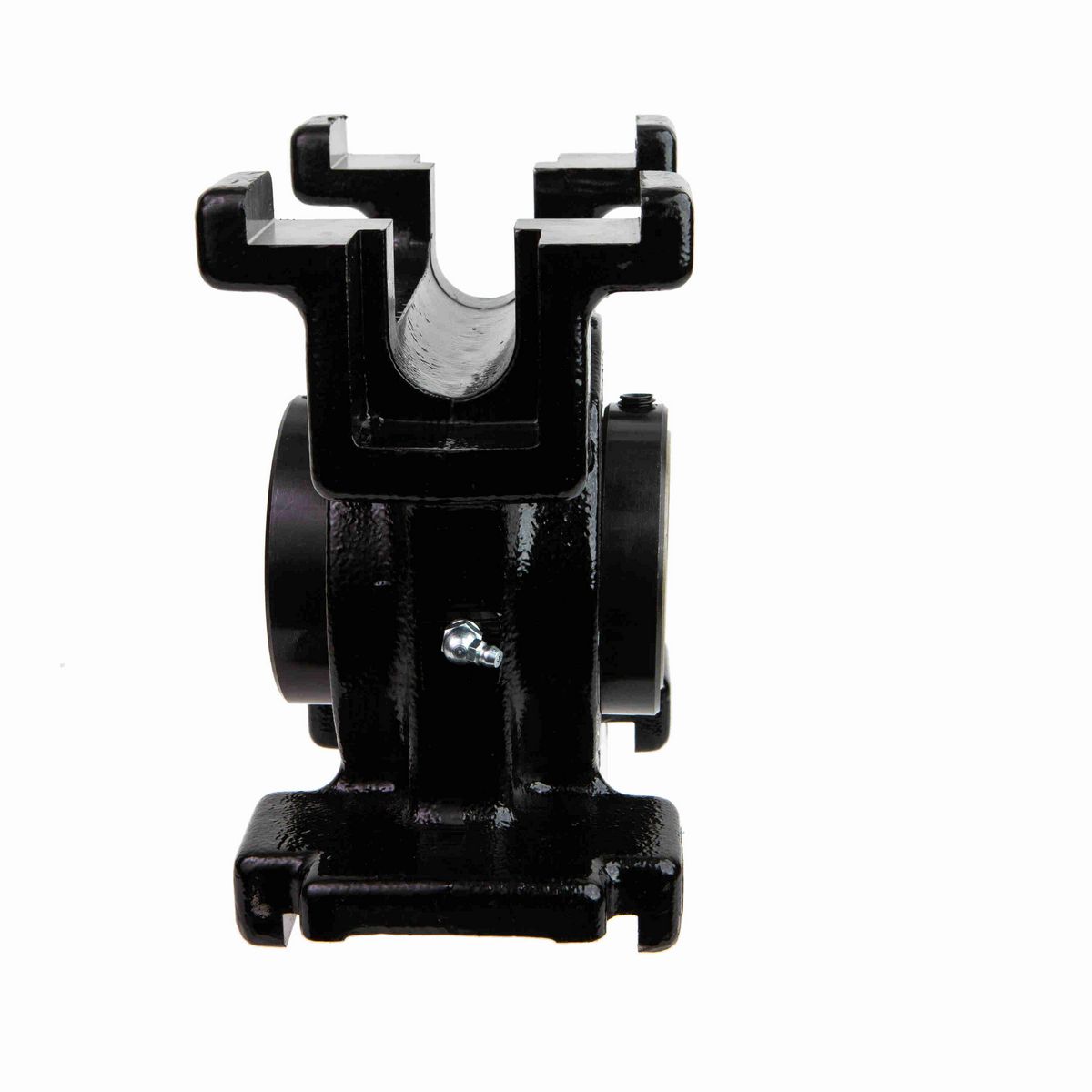

• 2 15/16" Mounted Spherical Roller Bearing, Cast Iron Take-up Block, Double Setscrew Locking Collar, Clearance Seal

Dimensions

Overall Height (in)	8.34 in
Bore Diameter (in)	2.9375 in
Overall Width (in)	5.25 in
Overall Length (in)	10 in
Slot Width (in)	1.38 in
Slot Length (in)	6.64 in
Bottom Channel Outside Width (in)	5.25 in
Housing Top Width (in)	5.25 in
Bottom Housing Length (in)	10 in
Top Housing Length (in)	8.88 in
Slot Spacing (in)	5.63 in
Adjustment Slot Width (in)	4.14 in
Locking Collar Outside Diameter (in)	4.04 in
Inner Ring Outside Diameter (in)	3.37 in
Bottom Take Up Slot to Centerline of Bearing (in)	3.13 in
Length Through Bore (in)	4.88 in

Technical Specifications

Shaft Locking Type	Double Set Collar
Product	DSHB22500
Radial Dynamic Load Capacity (lb)	51,100 lb
Housing Construction	Solid
Housing Style	Take-Up Block
Radial Clearance	C0 STANDARD
Seal Type	Clearance Seal
Misalignment Type	Dynamic
Housing Color	Black
End Cap	B448DTC
Rolling Element	Spherical Roller
Cage Material	Steel
Housing Type	Take Up, Top Angle
Housing Material	Cast Iron
Static Load Rating (lb)	71,500 lb
Fixed/Expansion	Fixed
Series	Take-up Blocks
Available Seal Type	E Lip Seal; H Labyrinth Seal; E7 Triple Lip Seal
Maximum Speed (RPM)	1950 rpm
Microlock Kit	B448MLK
Setscrew Torque (in-lbs)	680 in/lbs
Ability to Relubricate	Yes
Seal Kit	B448HS
Insert	B547L
Lubricant	EXXON RONEX MP STD
Vibration Frequency Inner Ring Defect	0.1701 cps
Locking Device Kit	B448SC QTY 2
Housing Coating	POWDER COATED
Vibration Frequency Fundamental Train	0.0072 cps
Grease Fitting Thread Size	1/8 NPT
Primary Seal	STEEL CLEARANCE SEAL
Misalignment Capability	±2.0° Misalignment - Dynamic
Max Operating Temperature (F)	225 °F
Size Code	B548
Vibration Frequency Outer Ring Defect	0.1299 cps
Vibration Frequency Roller Spin	0.0591 cps
Max Operating Temperature (C)	107 °C

General Specifications

UPC	662327022754
Weight	37.69 LB
Packaged Length	11.00 IN
Packaged Width	5.00 IN
Packaged Height	10.75 IN
HTC	8483204080
Country of Origin	Mexico
