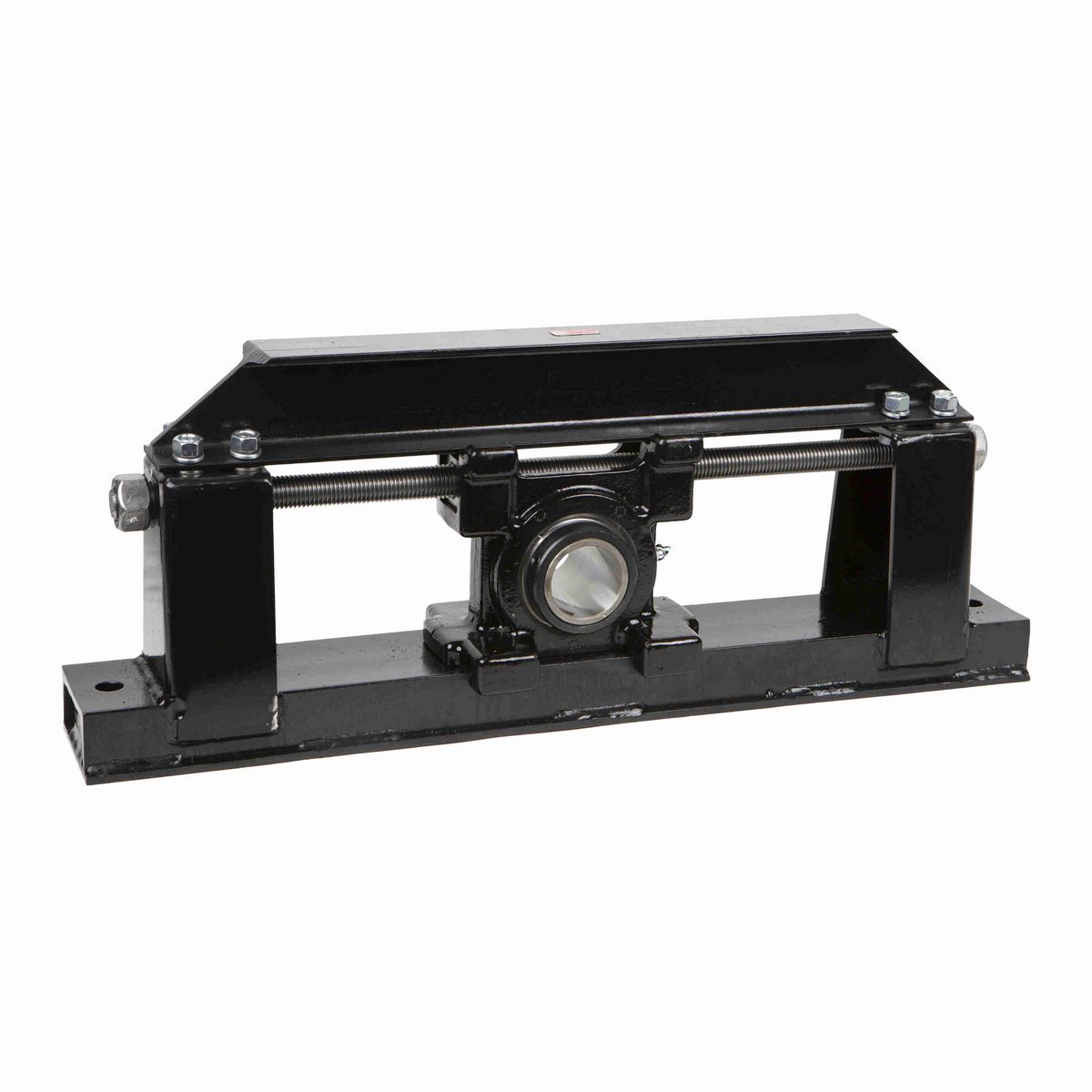

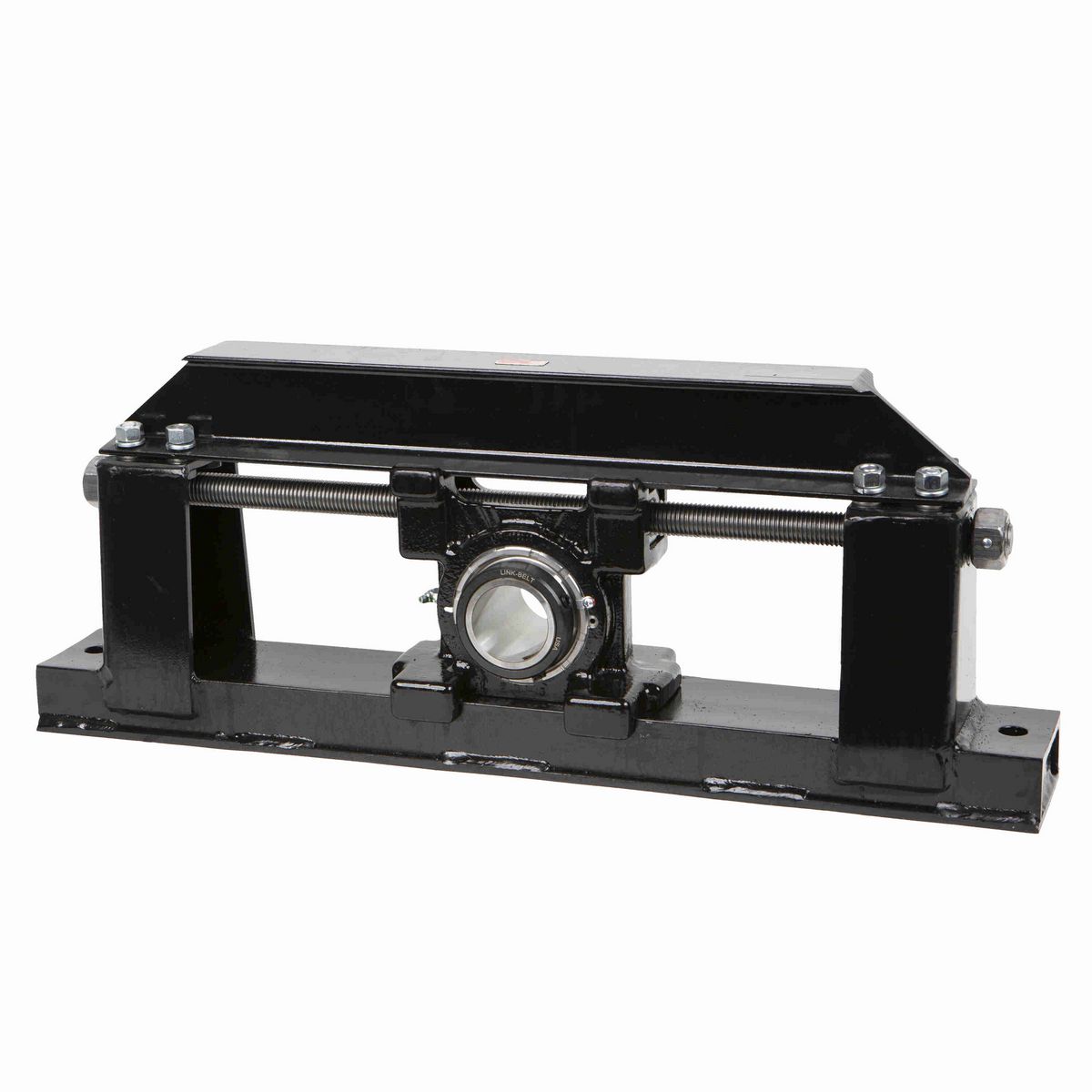

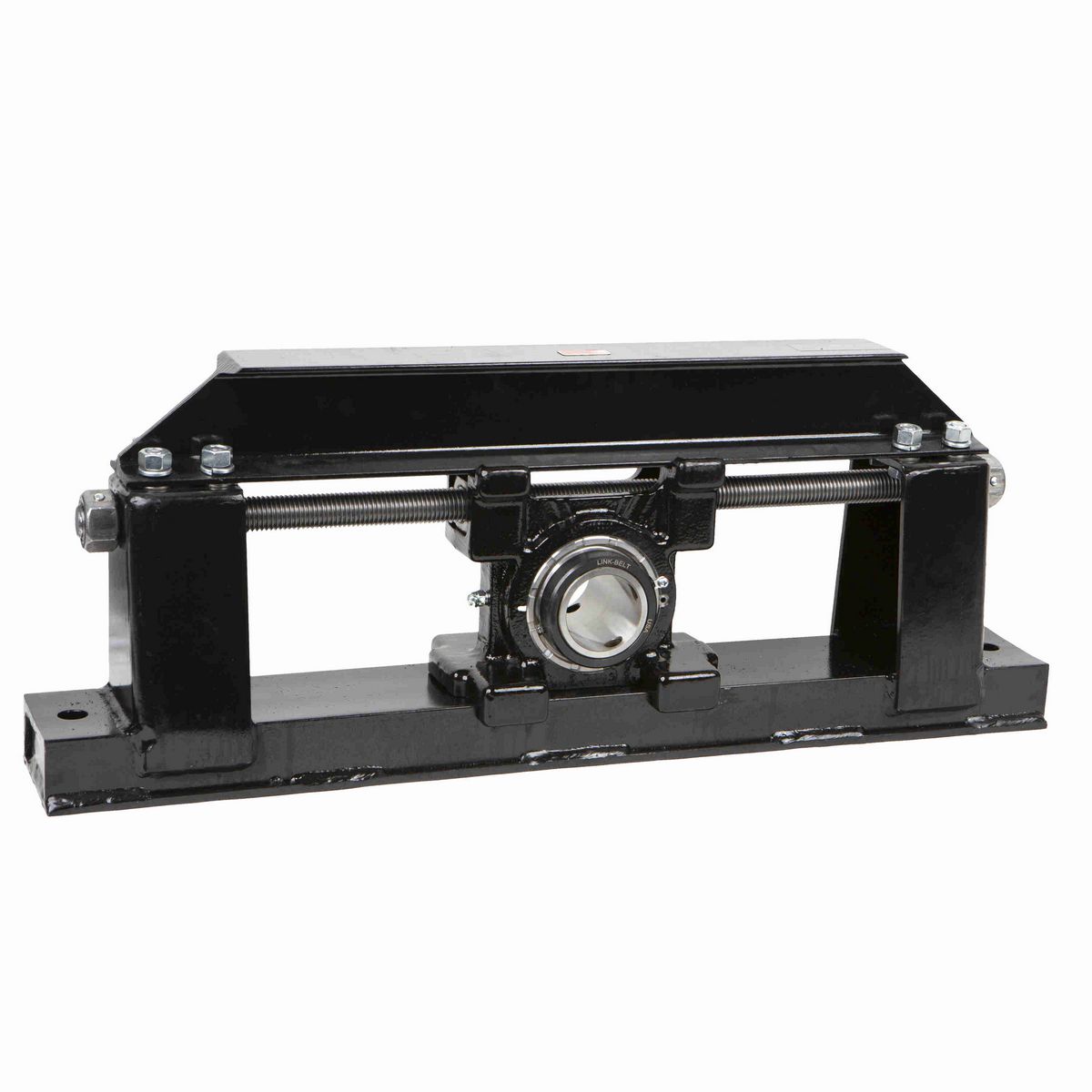

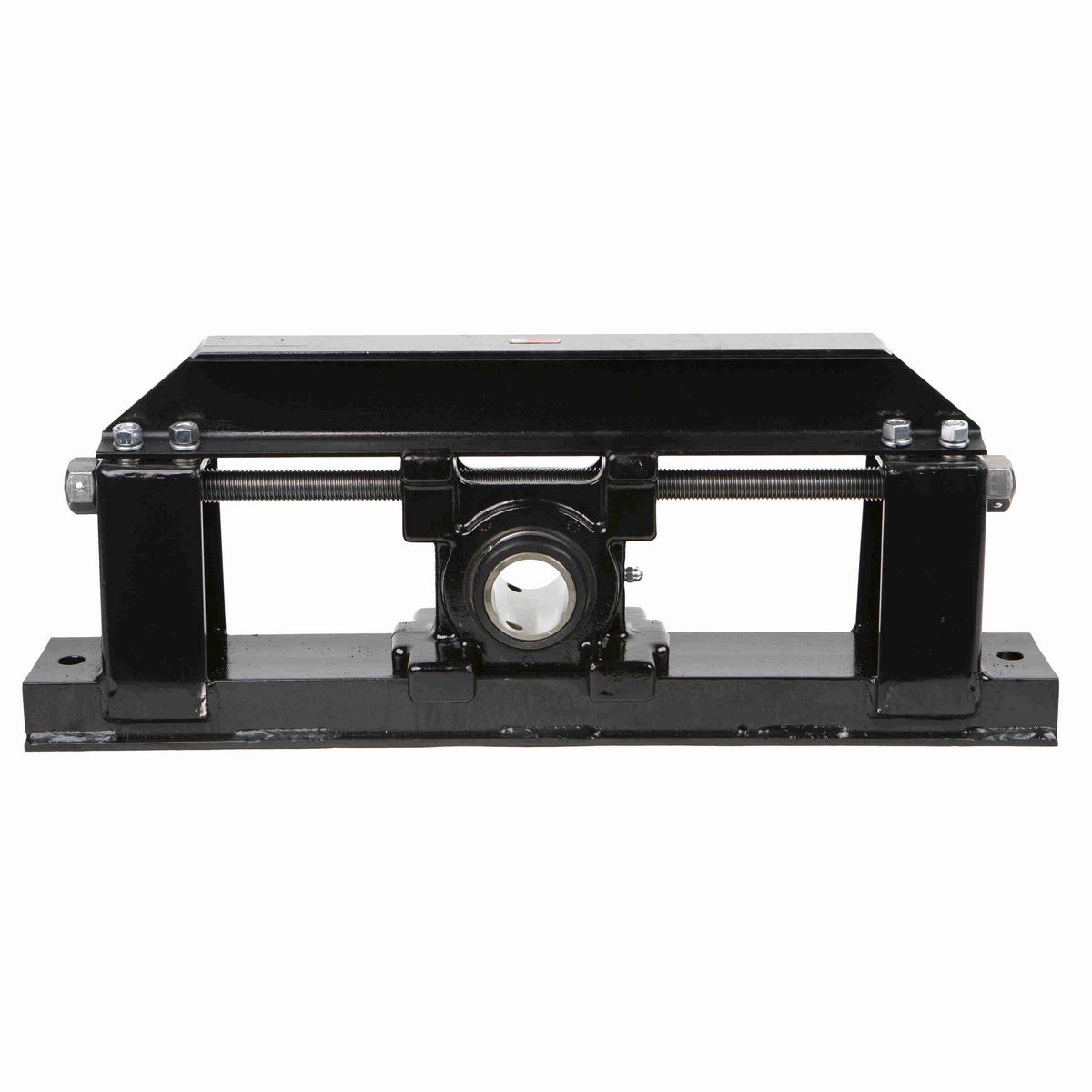

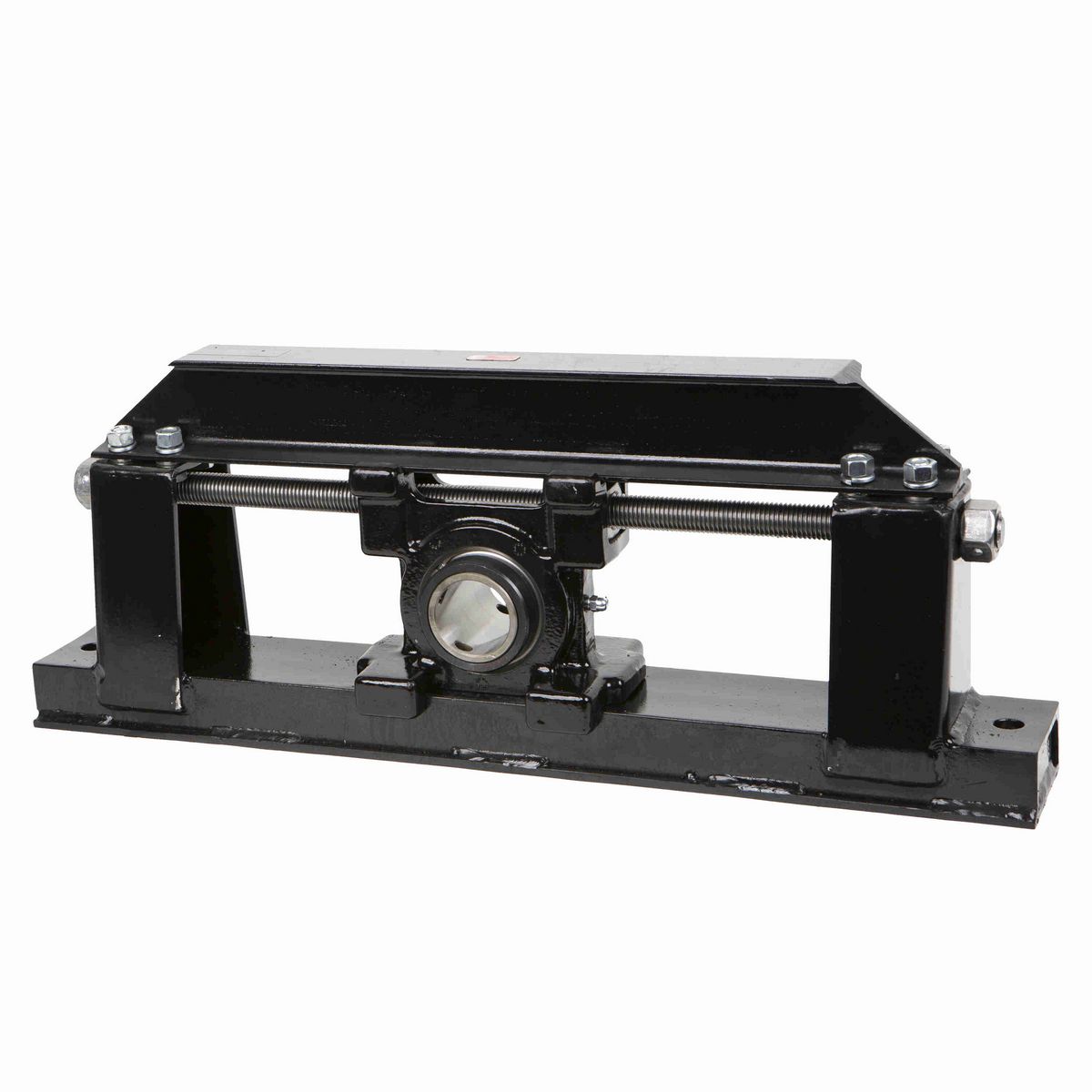

• 2 3/16" Mounted Spherical Roller Bearing, Extra Strength Conveyor Take-up Assembly, Double Setscrew Locking Collar, Clearance Seal

Dimensions

Bolt Size (in)	5/8 in
Bore Diameter (in)	2.1875 in
Foot Height (in)	2 in
Housing Width (in)	5.25 in
Overall Length (in)	29.5 in
Overall Height (in)	11.25 in
Overall Width (in)	4.5 in
Base to Center Height (in)	4.438 in
Frame Height (in)	11.25 in
Travel Length (in)	12 in
Frame Length (in)	29.5 in
Frame Width (in)	4.5 in
Length Through Bore (in)	4.13 in
Centerline to Outermost Bearing Face (in)	2.06 in
Frame Bolt Hole Center to Bearing Centerline (in)	7.75 in
Bolt Spacing (in)	27.5 in

Technical Specifications

Radial Clearance	C0 STANDARD
Rolling Element	Spherical Roller
End Cap	B436DTC
Housing Construction	Solid
Housing Style	Take-Up Assembly
Radial Dynamic Load Capacity (lb)	32,500 lb
Fixed/Expansion	Fixed
Static Load Rating (lb)	44,400 lb
Frame Material	Welded Steel
Housing Material	Cast Iron
Series	Take-up Assemblies
Frame Type	Protected Screw Take-up Assembly
Misalignment Type	Dynamic
Product	DSHB22500XX
Housing Type	Take-Up Assembly
Cage Material	Steel
Seal Type	Clearance Seal
Shaft Locking Type	Double Set Collar
Microlock Kit	B436MLK
Ability to Relubricate	Yes
Maximum Speed (RPM)	2500 rpm
Adjusting Screw Thread Size	1-8 NC
Setscrew Torque (in-lbs)	460 in/lbs
Available Seal Type	E Lip Seal; H Labyrinth Seal; E7 Triple Lip Seal
Seal Kit	B436HS
Frame	DSH5350412
Misalignment Capability	±2.0° Misalignment - Dynamic
Vibration Frequency Roller Spin	0.0606 cps
Replacement Take-up Block	DSHB22535H
Vibration Frequency Fundamental Train	0.0072 cps
Housing Coating	POWDER COATED
Size Code	B536
Max Operating Temperature (C)	107 °C
Locking Device Kit	B436SC QTY 2
Max Operating Temperature (F)	225 °F
Lubricant	EXXON RONEX MP STD
Grease Fitting Thread Size	1/8 NPT
Vibration Frequency Inner Ring Defect	0.179 cps
Vibration Frequency Outer Ring Defect	0.1377 cps
Insert	B535L
Primary Seal	STEEL CLEARANCE SEAL

General Specifications

UPC	662327022617
Weight	80.00 LB
HTC	8483204080
