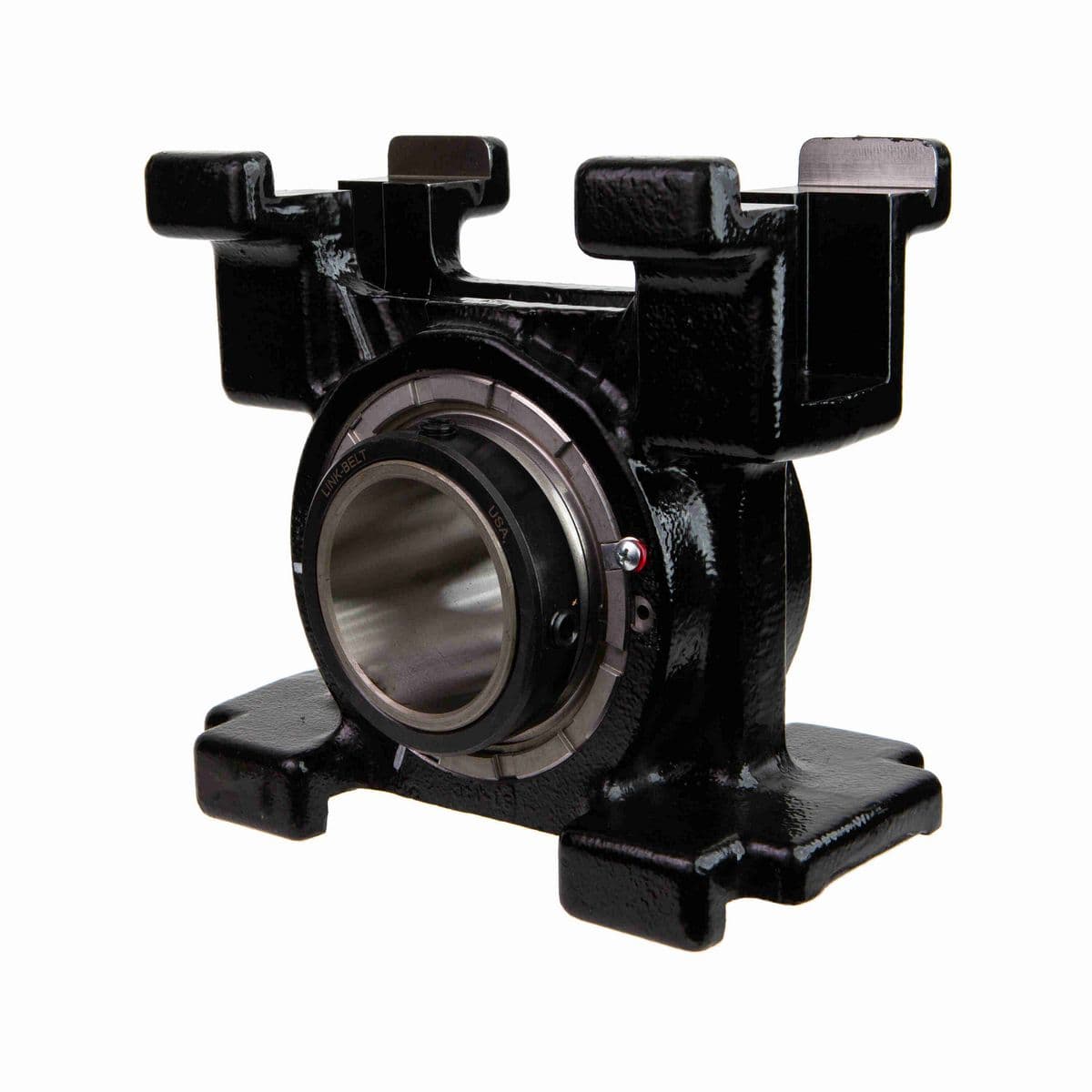

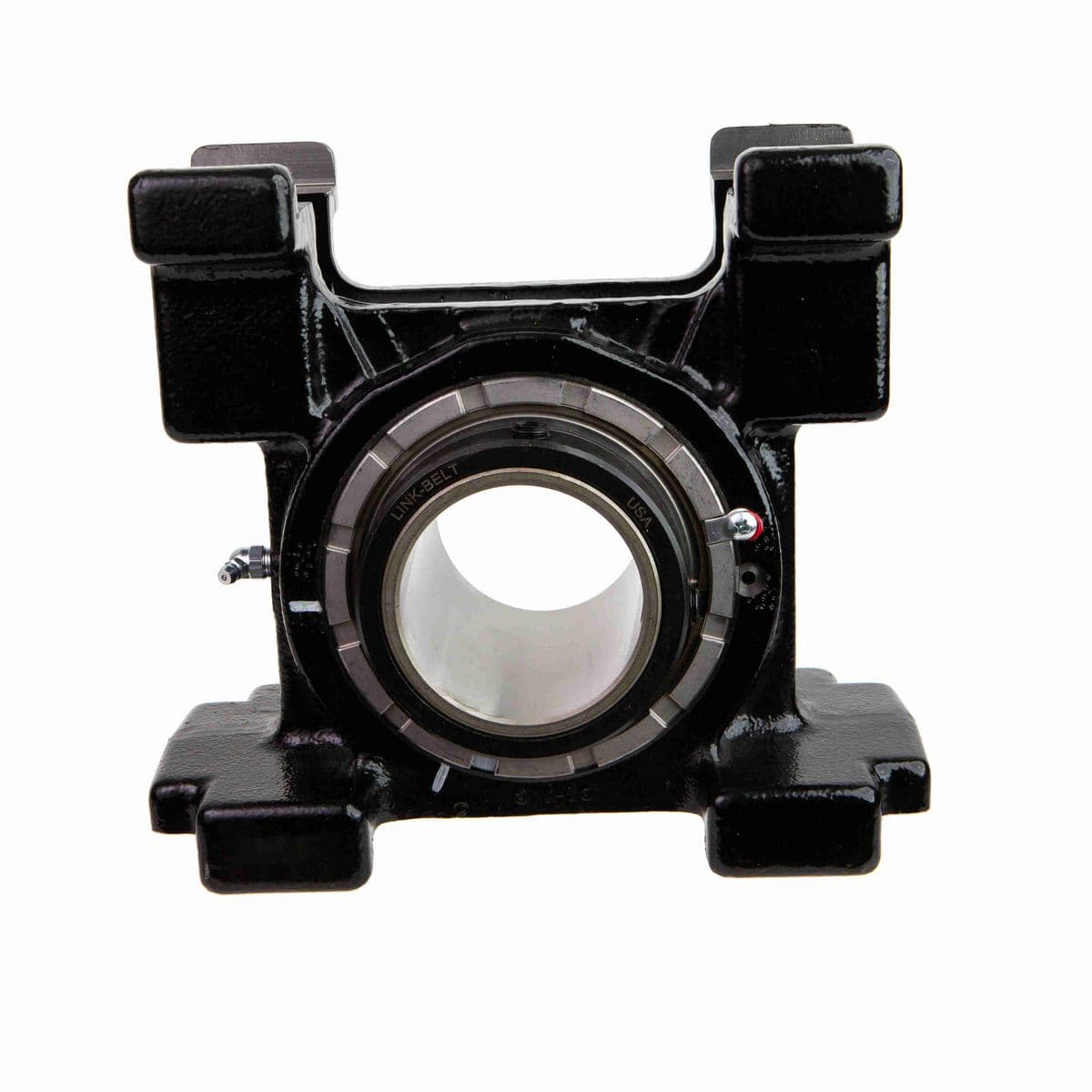

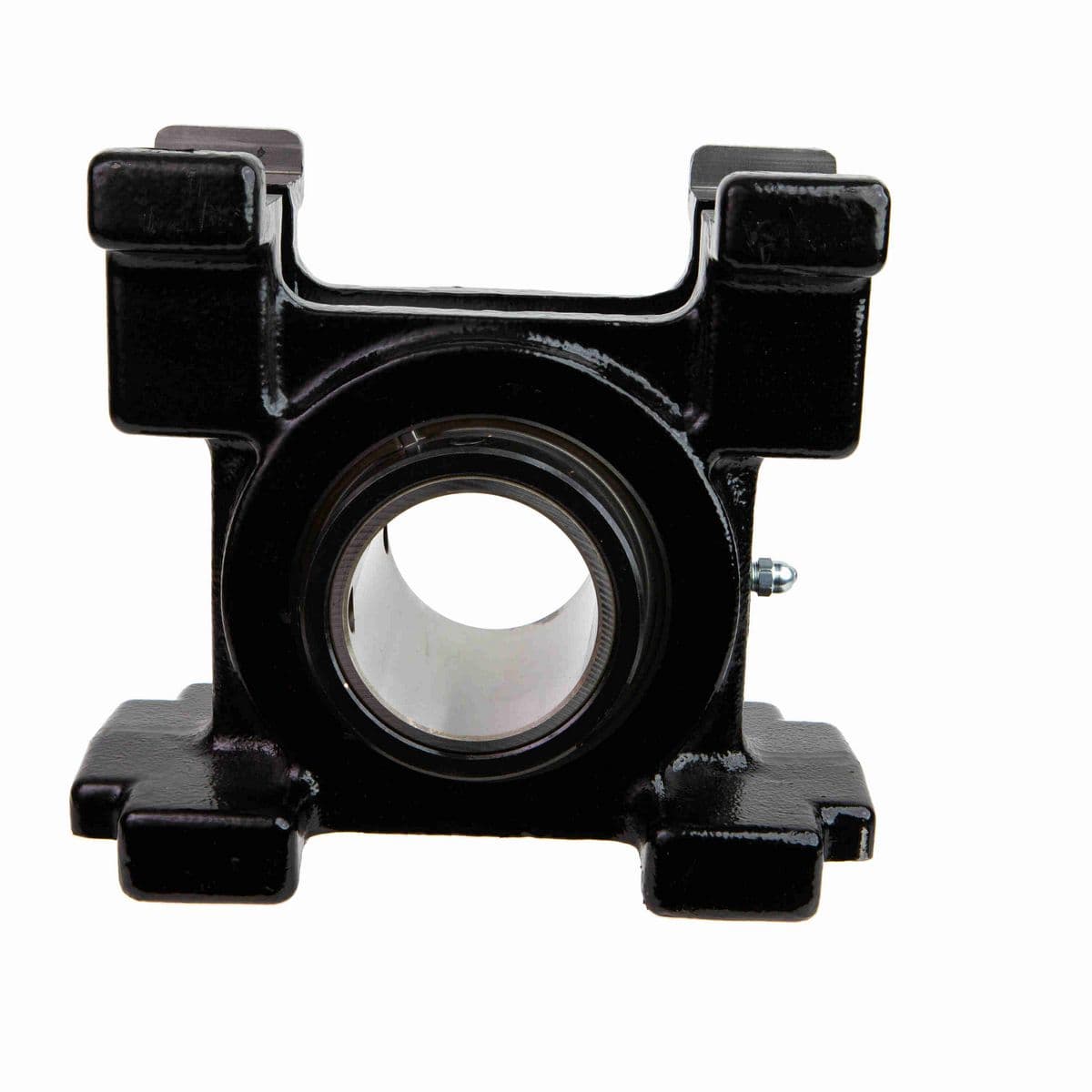

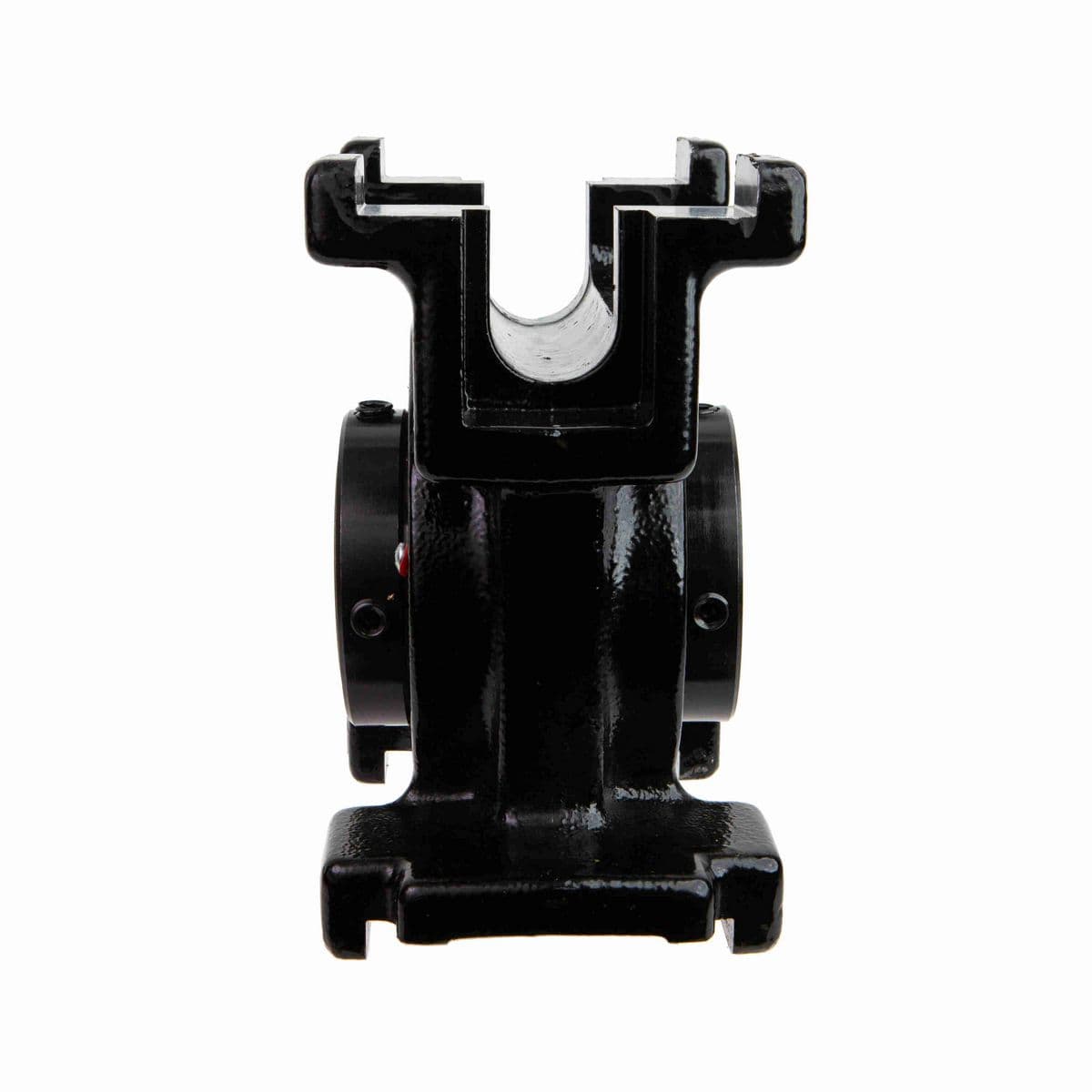

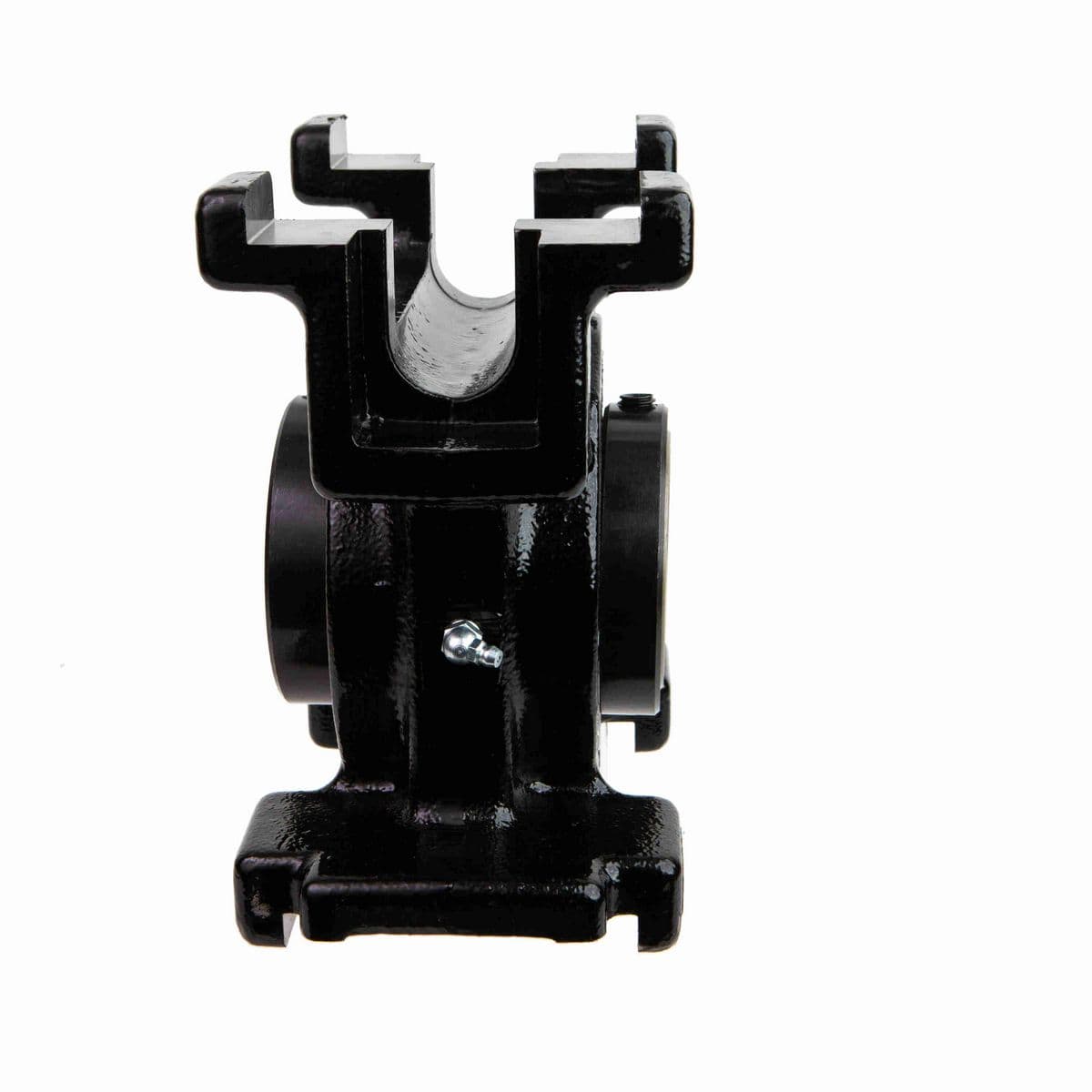

• 2 3/16" Mounted Spherical Roller Bearing, Cast Iron Take up Block, Double Setscrew Locking Collar, Clearance Seal

Dimensions

Overall Length (in)	7.56 in
Slot Width (in)	0.88 in
Overall Width (in)	5.25 in
Bore Diameter (in)	2.1875 in
Overall Height (in)	7.12 in
Slot Length (in)	7.25 in
Bottom Channel Outside Width (in)	5.25 in
Housing Top Width (in)	3.75 in
Bottom Housing Length (in)	8 in
Top Housing Length (in)	7.25 in
Slot Spacing (in)	4.44 in
Locking Collar Outside Diameter (in)	3.25 in
Adjustment Slot Width (in)	4.14 in
Length Through Bore (in)	4.13 in
Bottom Take Up Slot to Centerline of Bearing (in)	2.44 in
Inner Ring Outside Diameter (in)	2.62 in

Technical Specifications

Fixed/Expansion	Fixed
Misalignment Type	Dynamic
Rolling Element	Spherical Roller
Radial Clearance	C0 STANDARD
Housing Type	Take Up, Top Angle
Cage Material	Steel
Series	Take-up Blocks
Housing Construction	Solid
Shaft Locking Type	Double Set Collar
End Cap	B436DTC
Housing Style	Take-Up Block
Product	DSHB22500
Seal Type	Clearance Seal
Housing Color	Black
Housing Material	Cast Iron
Radial Dynamic Load Capacity (lb)	32,500 lb
Static Load Rating (lb)	44,400 lb
Setscrew Torque (in-lbs)	460 in/lbs
Microlock Kit	B436MLK
Maximum Speed (RPM)	2500 rpm
Available Seal Type	E Lip Seal; H Labyrinth Seal; E7 Triple Lip Seal
Ability to Relubricate	Yes
Seal Kit	B436HS
Primary Seal	STEEL CLEARANCE SEAL
Vibration Frequency Outer Ring Defect	0.1377 cps
Vibration Frequency Fundamental Train	0.0072 cps
Locking Device Kit	B436SC QTY 2
Lubricant	EXXON RONEX MP STD
Size Code	B536
Insert	B535L
Housing Coating	POWDER COATED
Misalignment Capability	±2.0° Misalignment - Dynamic
Max Operating Temperature (F)	225 °F
Vibration Frequency Inner Ring Defect	0.179 cps
Vibration Frequency Roller Spin	0.0606 cps
Grease Fitting Thread Size	1/8 NPT
Max Operating Temperature (C)	107 °C

General Specifications

UPC	662327022600
Weight	21.82 LB
Packaged Length	9.75 IN
Packaged Width	5.75 IN
Packaged Height	9.75 IN
HTC	8483204080
Country of Origin	United States of America
