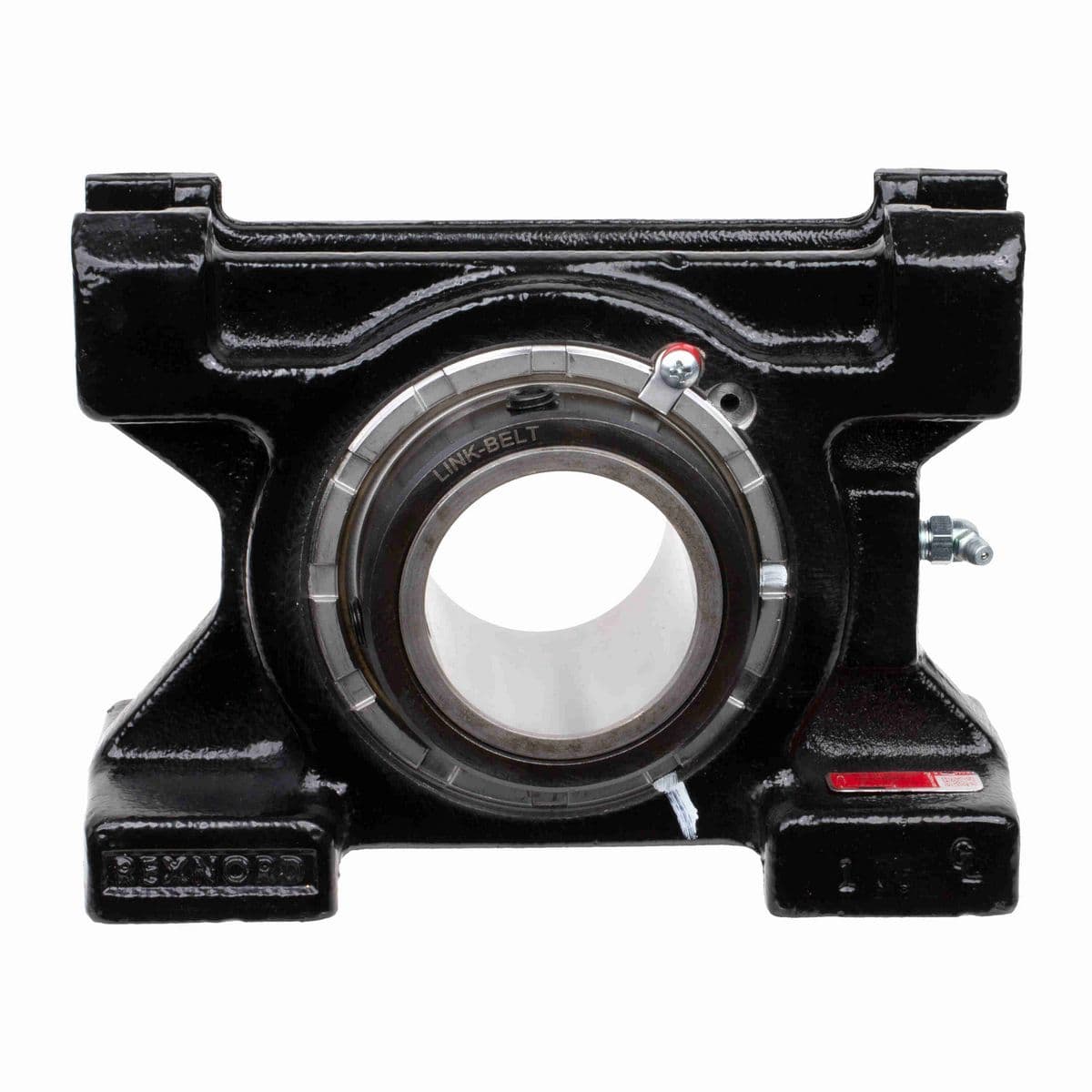

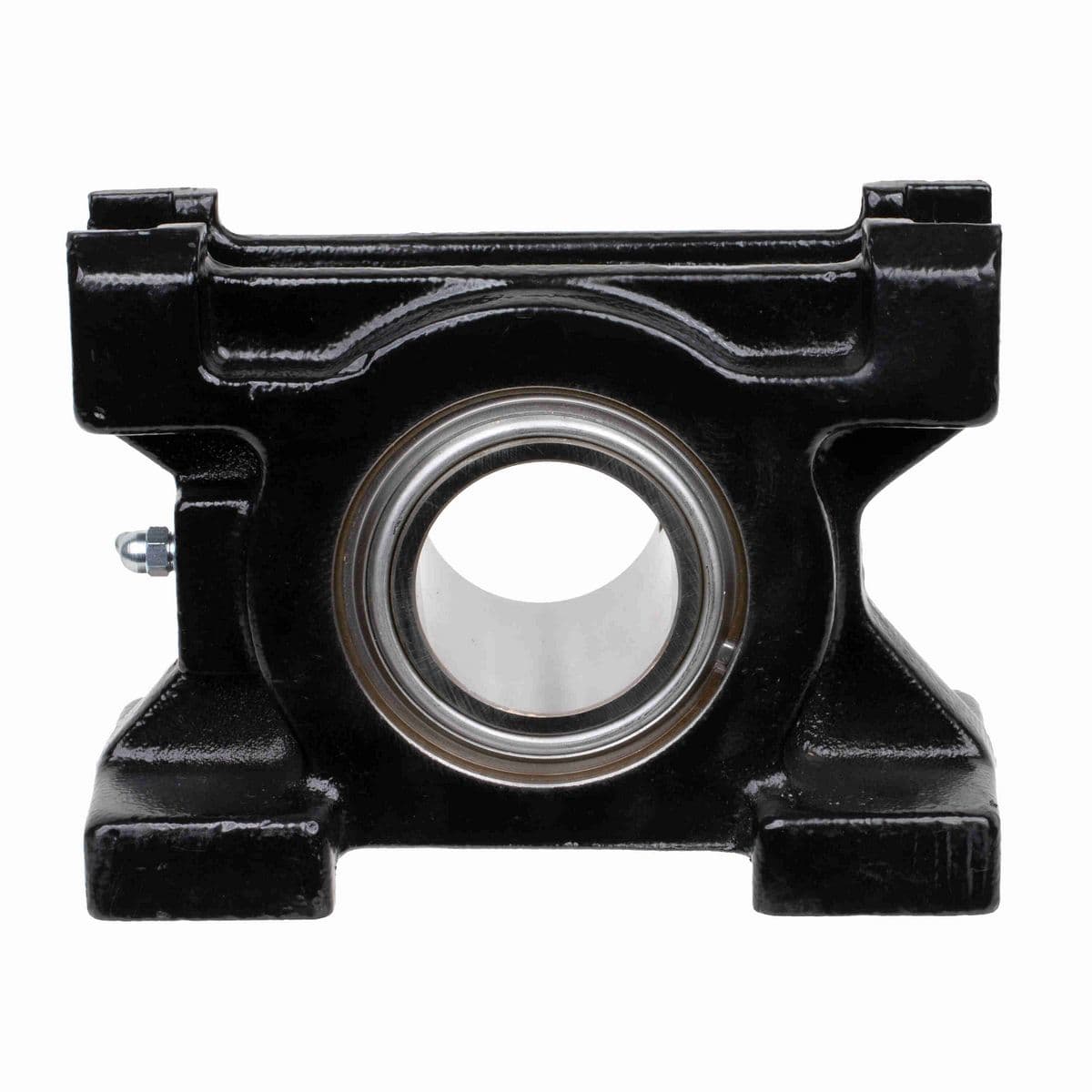

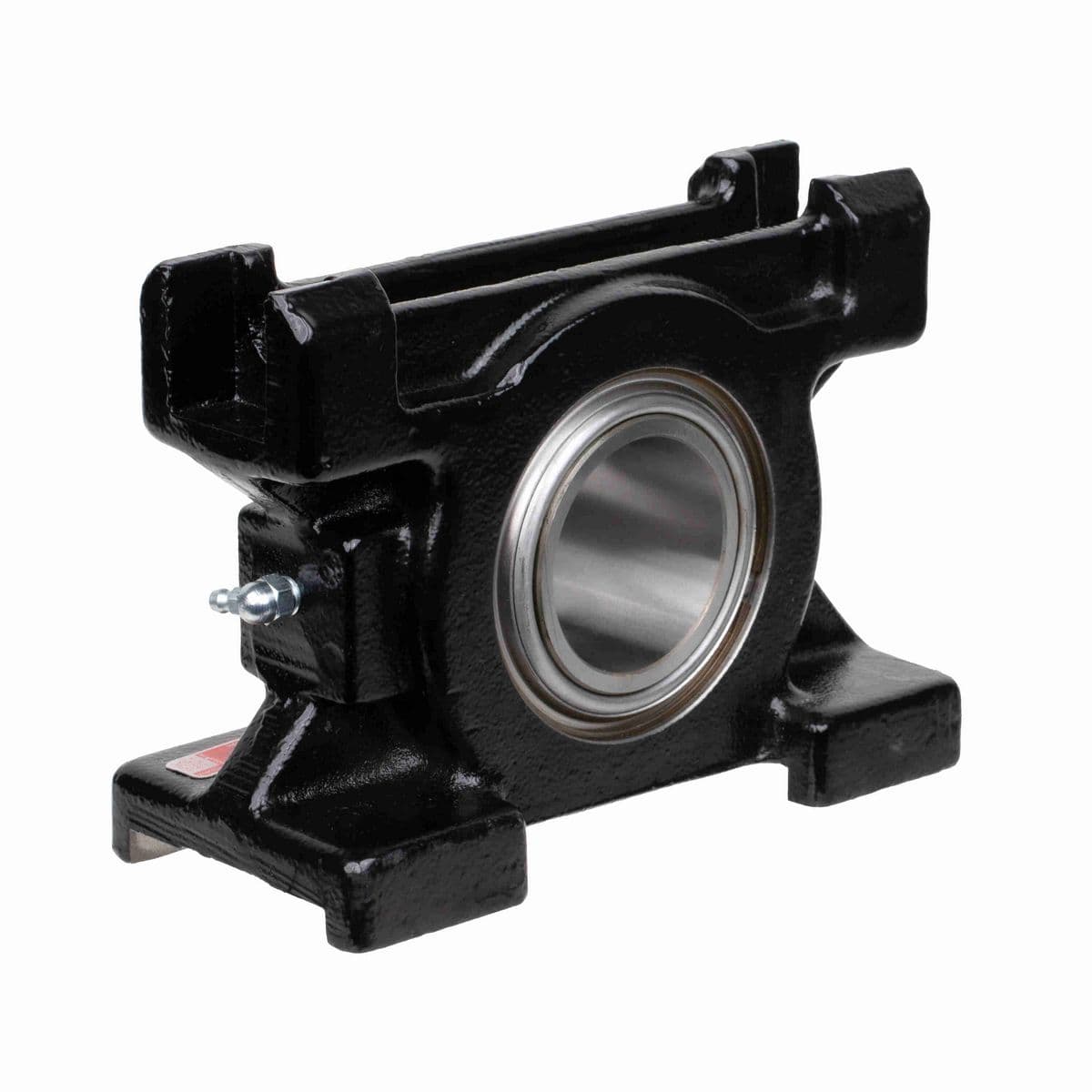

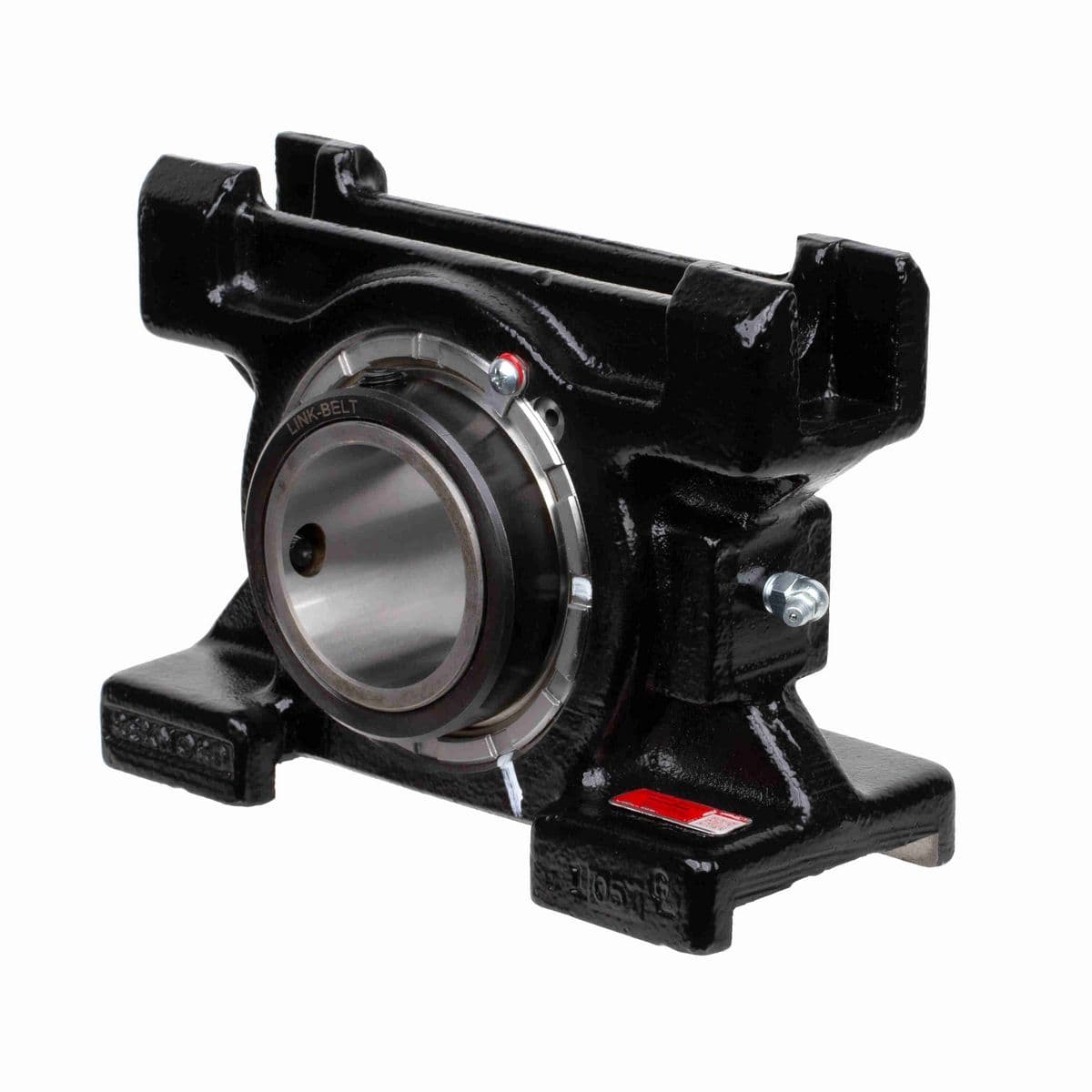

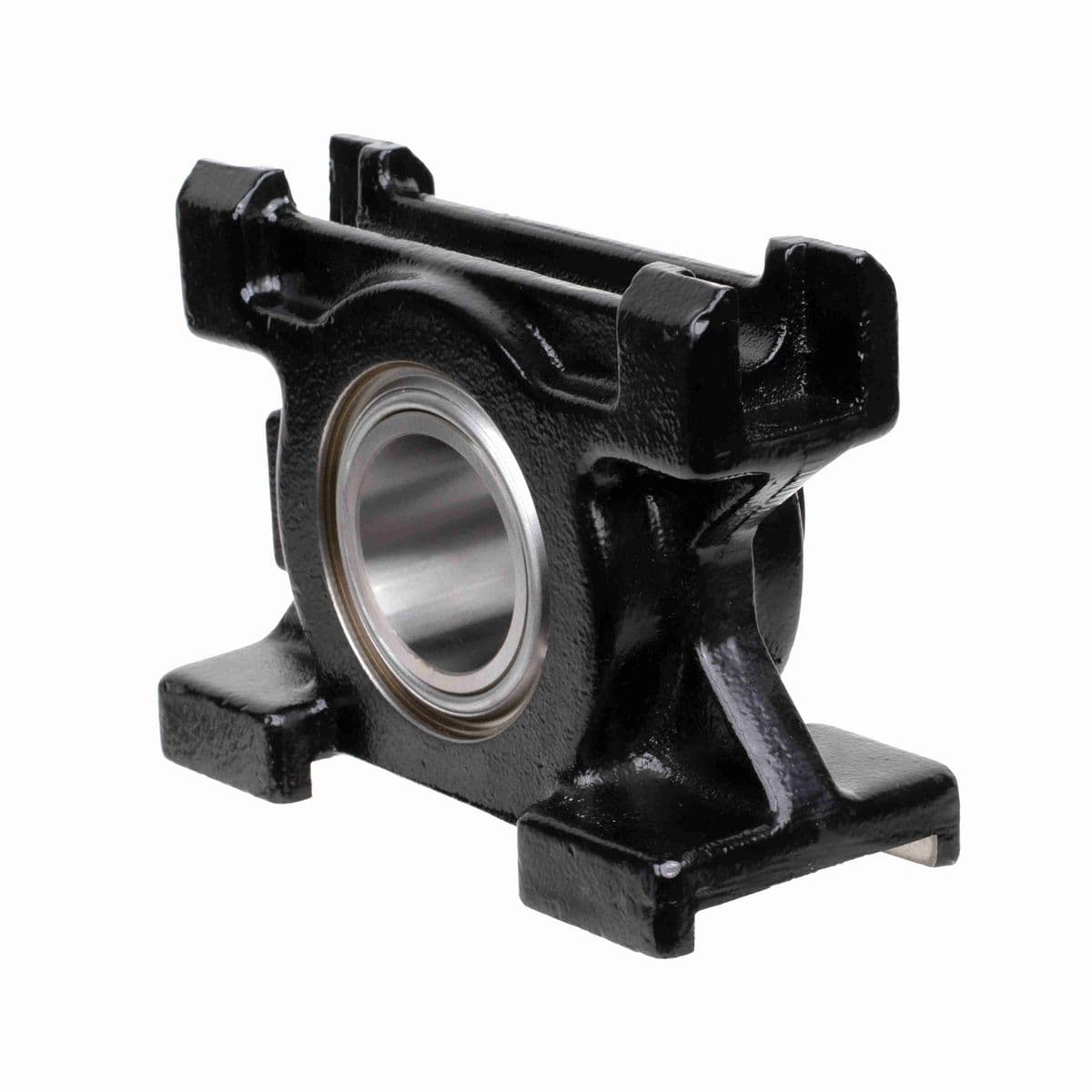

• 3 15/16" Mounted Spherical Roller Bearing, Fixed Cast Iron Take-up Block, Single Setscrew Locking Collar, Spring Loaded Heavy Contact Seal

Dimensions

Slot Length (in)	10.38 in
Overall Height (in)	11.19 in
Slot Width (in)	1.38 in
Bore Diameter (in)	3.9375 in
Overall Length (in)	12.5 in
Overall Width (in)	6.34 in
Locking Collar Outside Diameter (in)	5.63 in
Bottom Housing Length (in)	12.5 in
Adjustment Slot Width (in)	5.14 in
Top Housing Length (in)	12.5 in
Bottom Channel Outside Width (in)	6.34 in
Slot Depth (in)	2.19 in
Housing Top Width (in)	4.13 in
Inner Ring Outside Diameter (in)	4.561 in
Length Through Bore (in)	5.06 in
Bottom Take Up Slot to Centerline of Bearing (in)	4.75 in

Technical Specifications

Housing Material	Cast Iron
Radial Clearance	C0 STANDARD
Housing Style	Take-Up Block
Housing Color	Black
Seal Type	Heavy Contact Seal
Shaft Locking Type	Single Set Collar
Rolling Element	Spherical Roller
Radial Dynamic Load Capacity (lb)	96,500 lb
Cage Material	Steel
Series	Take-up Blocks
Misalignment Type	Dynamic
Product	DSB22400
End Cap	B464DTC
Static Load Rating (lb)	137,000 lb
Housing Type	Take Up, Top Angle
Fixed/Expansion	Fixed
Housing Construction	Solid
Microlock Kit	B580MLK
Ability to Relubricate	Yes
Seal Kit	B464ES
Maximum Speed (RPM)	1100 rpm
Setscrew Torque (in-lbs)	1350 in/lbs
Housing Coating	POWDER COATED
Vibration Frequency Inner Ring Defect	0.1717 cps
Size Code	B464
Insert	B463L
Max Operating Temperature (F)	225 °F
Primary Seal	BUNA SPRING LOADED LIP SEAL
Lubricant	EXXON RONEX MP STD
Misalignment Capability	±2.0° Misalignment - Dynamic
Vibration Frequency Fundamental Train	0.0071 cps
Max Operating Temperature (C)	107 °C
Locking Device Kit	B464SC
Vibration Frequency Outer Ring Defect	0.1283 cps
Grease Fitting Thread Size	1/8 NPT
Vibration Frequency Roller Spin	0.0548 cps

General Specifications

UPC	793699298185
Weight	84.00 LB
HTC	8483204080
Country of Origin	Mexico
