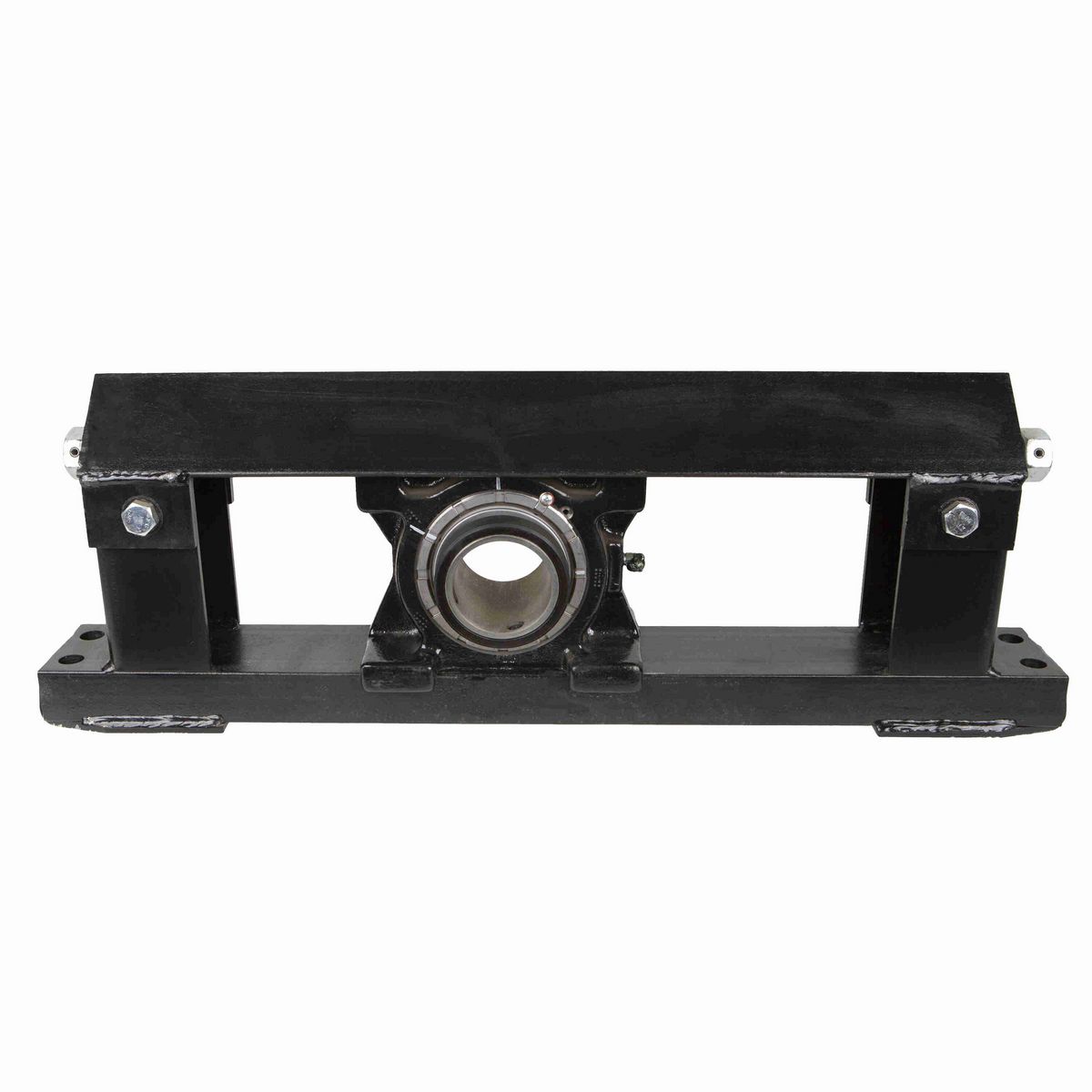

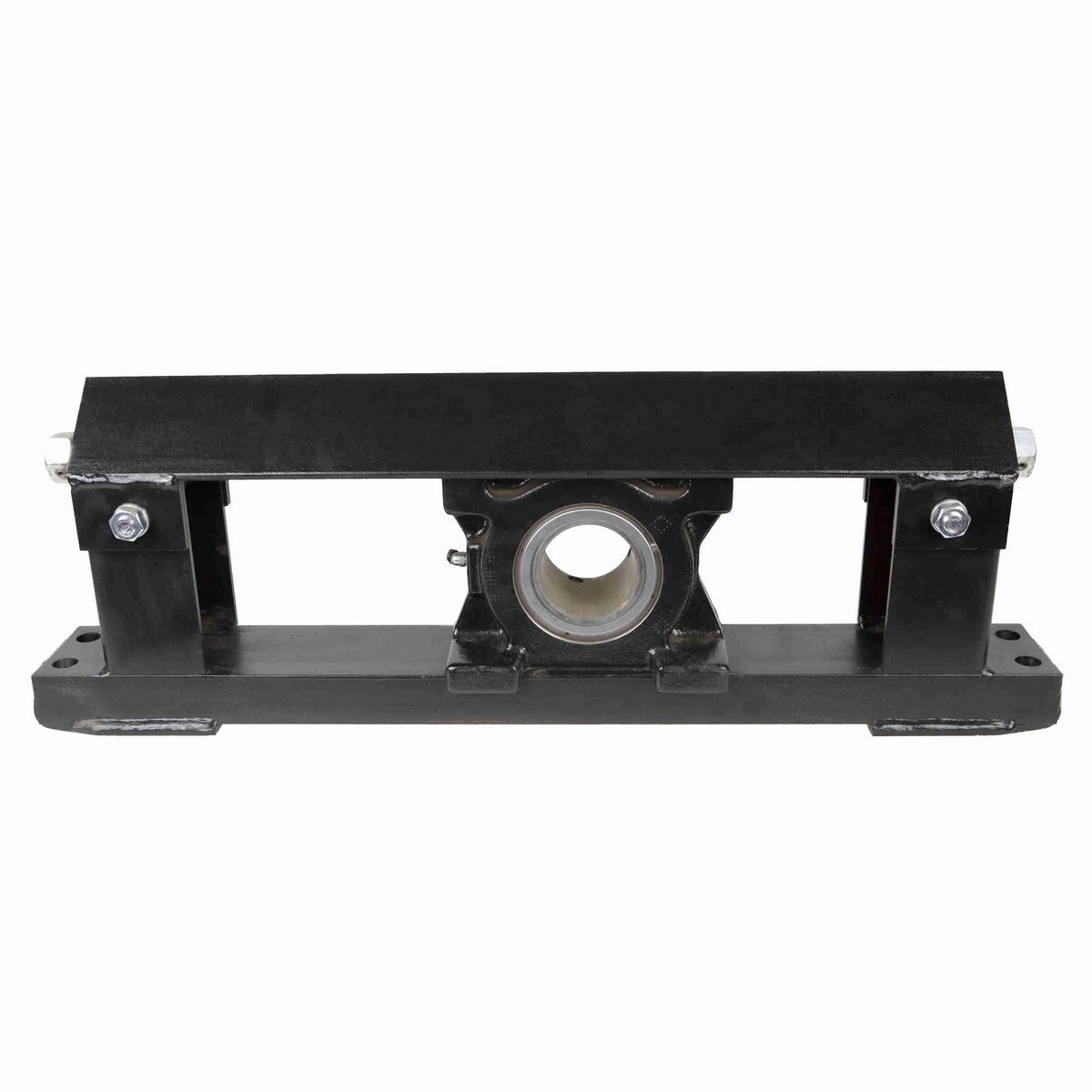

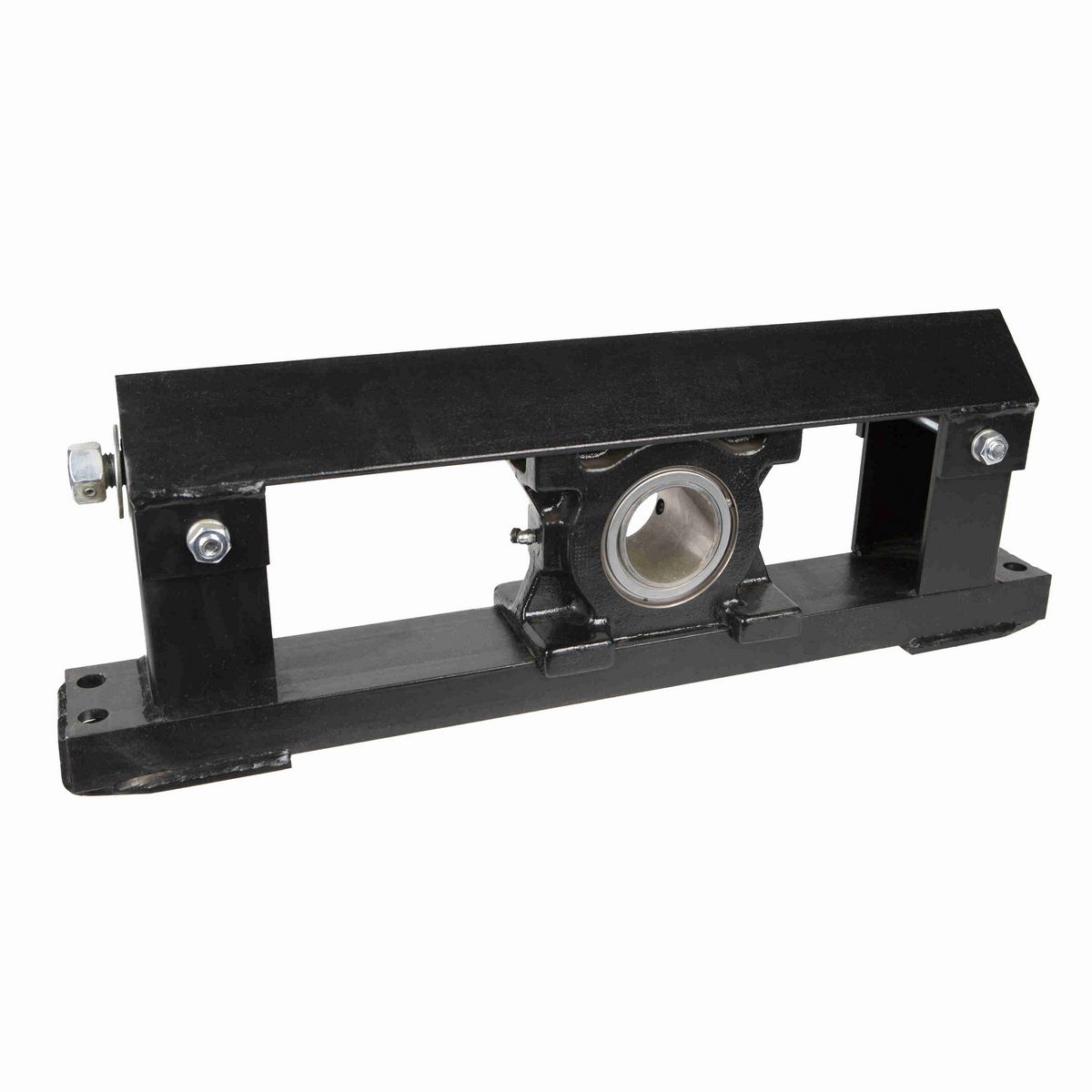

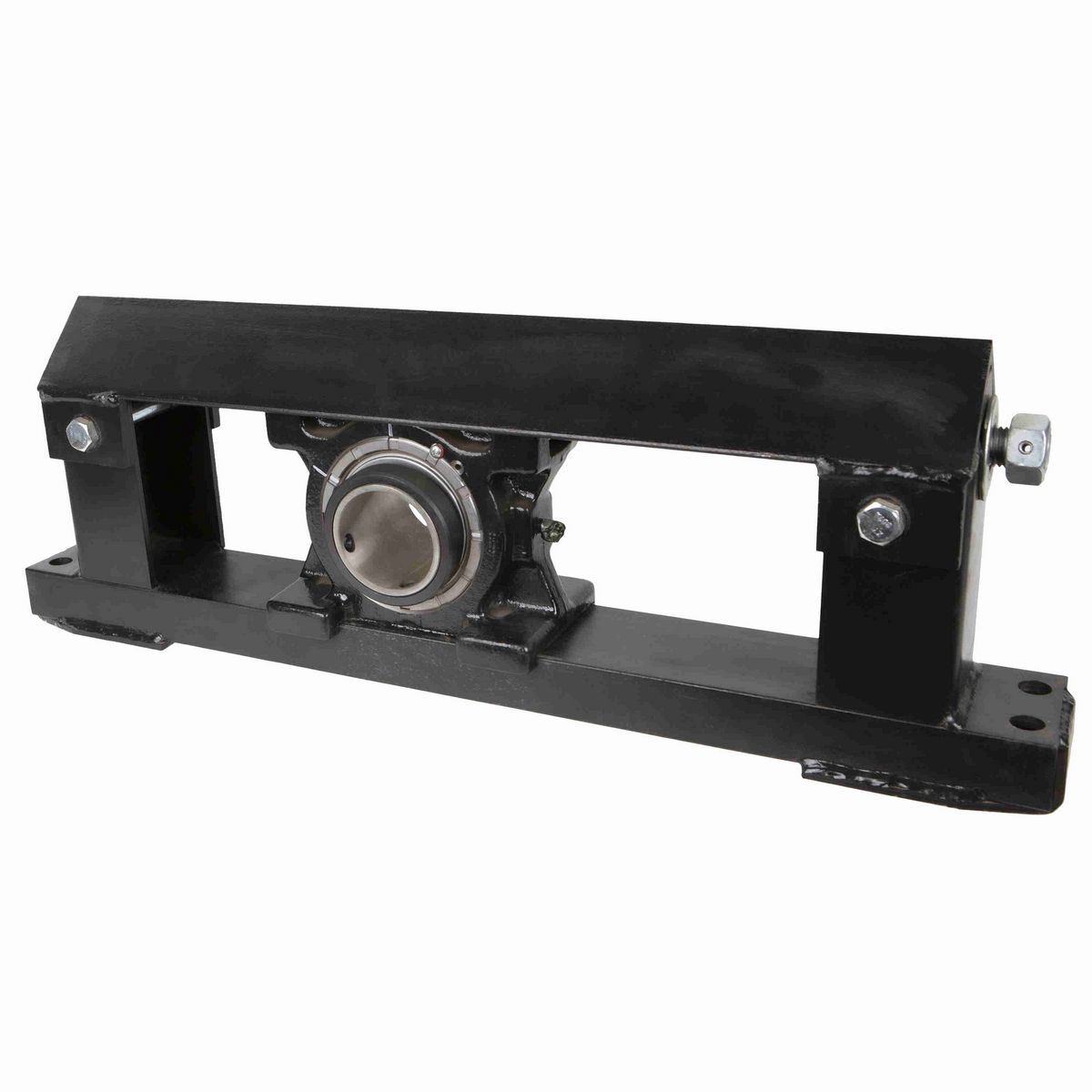

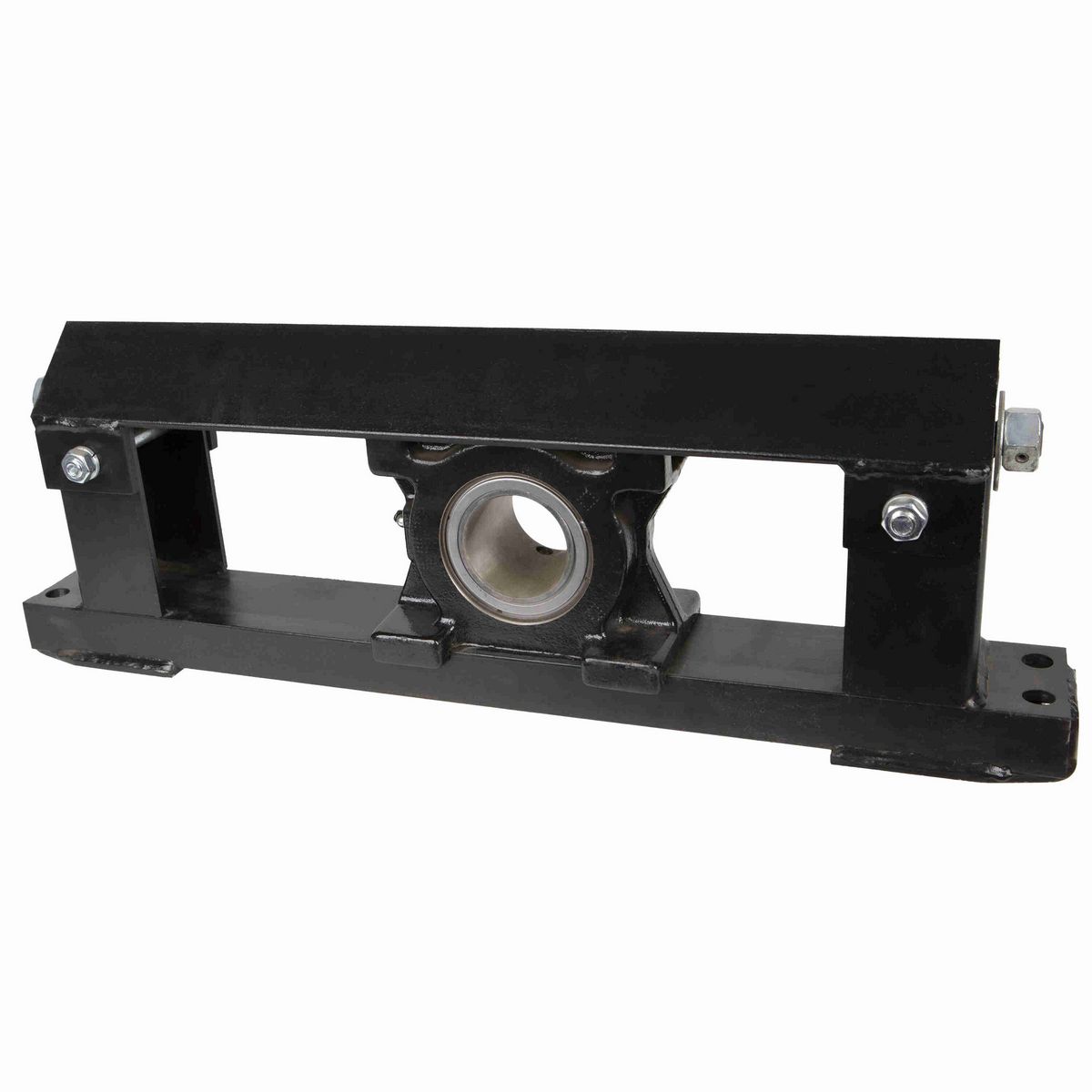

• 2 15/16" Mounted Spherical Roller Bearing, Top Angle Protected Screw Take-up Assembly, Single Setscrew Locking Collar, Clearance Seal

Dimensions

Overall Width (in)	5.06 in
Bore Diameter (in)	2.9375 in
Overall Height (in)	10.63 in
Base to Center Height (in)	5.125 in
Foot Height (in)	2 in
Bolt Size (in)	3/4 in
Overall Length (in)	32.5 in
Housing Width (in)	5.06 in
Frame Length (in)	32.5 in
Overall Rod Length (in)	30 in
Distance from Bearing Centerline to Housing Face (in)	1.56 in
Channel Width (in)	4 in
Frame Height (in)	10.63 in
Frame Width (in)	4.5 in
Travel Length (in)	12 in
Frame Bolt Hole Center to Bearing Centerline (in)	9.25 in
Centerline to Outermost Bearing Face (in)	2.44 in
Length Through Bore (in)	4 in
Bolt Spacing Width (in)	2 in
Bolt Spacing (in)	30.5 in

Technical Specifications

Housing Material	Cast Iron
Shaft Locking Type	Single Set Collar
Product	DSB22400XX
Frame Material	Welded Steel
Series	Take-up Assemblies
Seal Type	Clearance Seal
End Cap	B448DTC
Static Load Rating (lb)	71,500 lb
Housing Type	Take-Up Assembly
Radial Dynamic Load Capacity (lb)	51,100 lb
Housing Construction	Solid
Rolling Element	Spherical Roller
Housing Style	Take-Up Assembly
Fixed/Expansion	Fixed
Misalignment Type	Dynamic
Radial Clearance	C0 STANDARD
Cage Material	Steel
Frame Type	Protected Screw Take-up Assembly
Ability to Relubricate	Yes
Maximum Speed (RPM)	1950 rpm
Setscrew Torque (in-lbs)	680 in/lbs
Frame	ZNT912
Allowable Working Load [2/3 Yield Strength] (lb)	6,800 lb
Seal Kit	B448HS
Available Seal Type	E Lip Seal; H Labyrinth Seal; E7 Triple Lip Seal
Microlock Kit	B440MLK
Adjusting Screw Thread Size	1-8 NC
Misalignment Capability	±2.0° Misalignment - Dynamic
Insert	B447L
Vibration Frequency Roller Spin	0.0591 cps
Locking Device Kit	B448SC
Max Operating Temperature (C)	107 °C
Vibration Frequency Inner Ring Defect	0.1701 cps
Vibration Frequency Outer Ring Defect	0.1299 cps
Max Operating Temperature (F)	225 °F
Size Code	B448
Grease Fitting Thread Size	1/8 NPT
Replacement Take-up Block	DSB22447H
Vibration Frequency Fundamental Train	0.0072 cps
Lubricant	EXXON RONEX MP STD
Housing Coating	POWDER COATED
Primary Seal	STEEL CLEARANCE SEAL

General Specifications

UPC	662327021818
Weight	90.24 LB
HTC	8483204080
Country of Origin	United States of America
