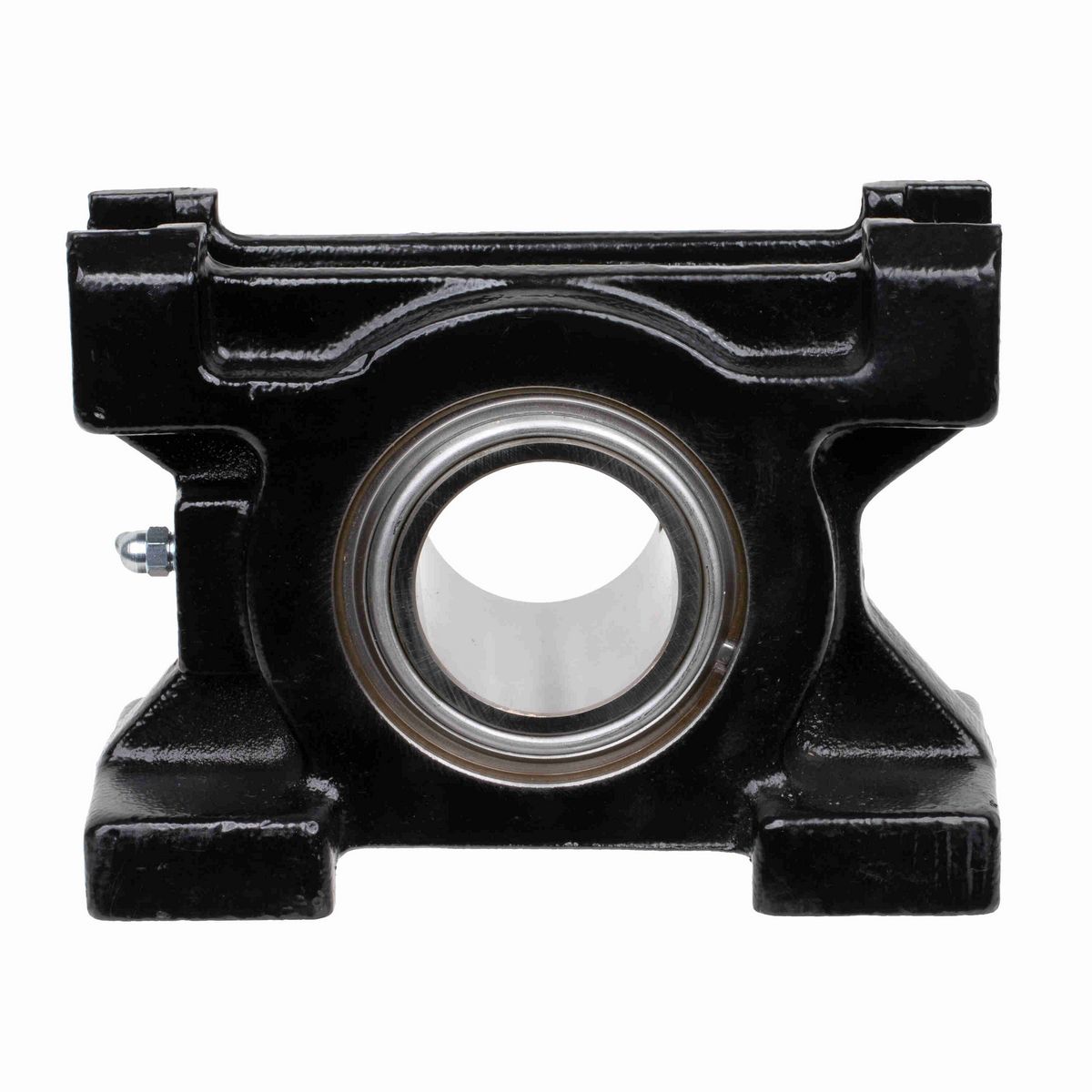

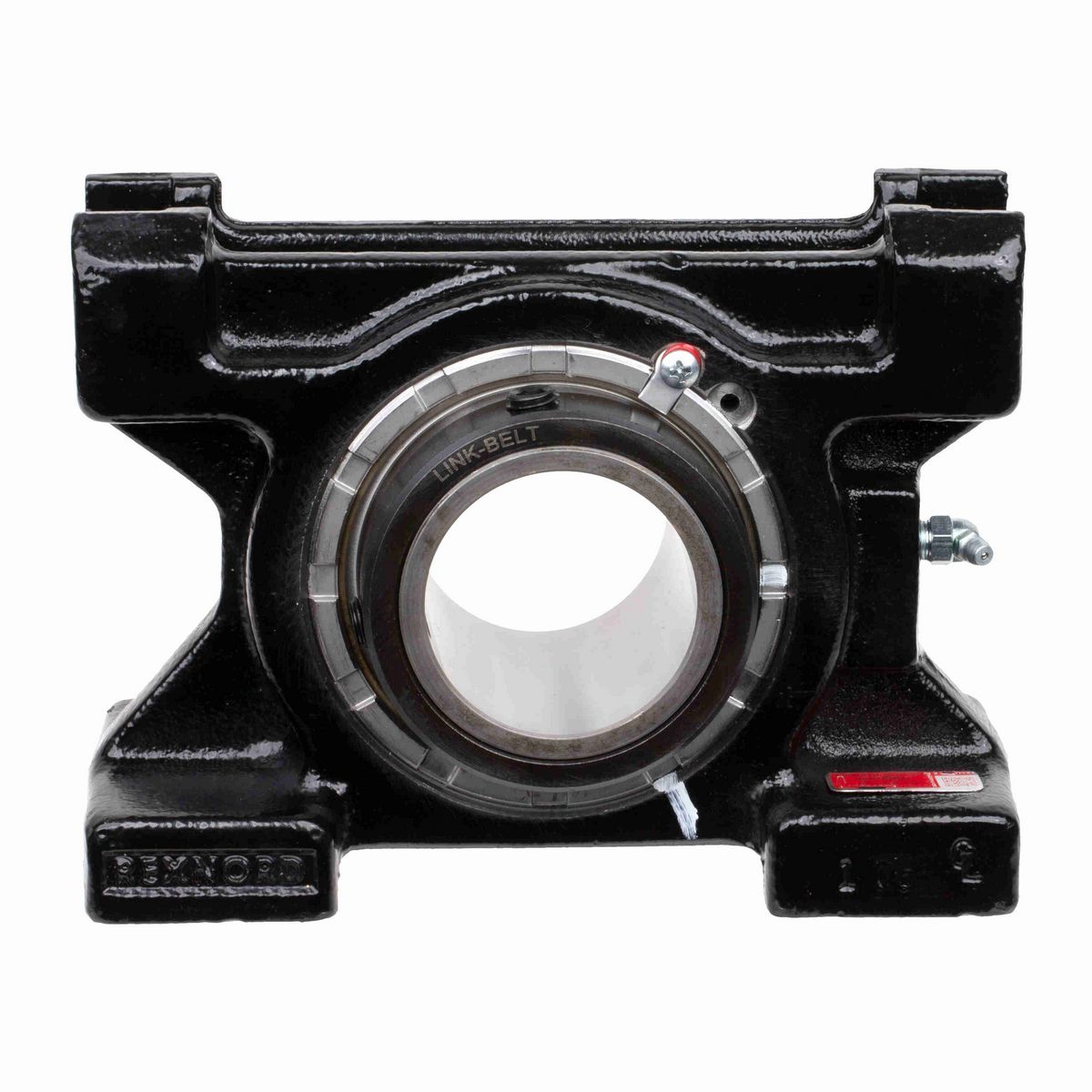

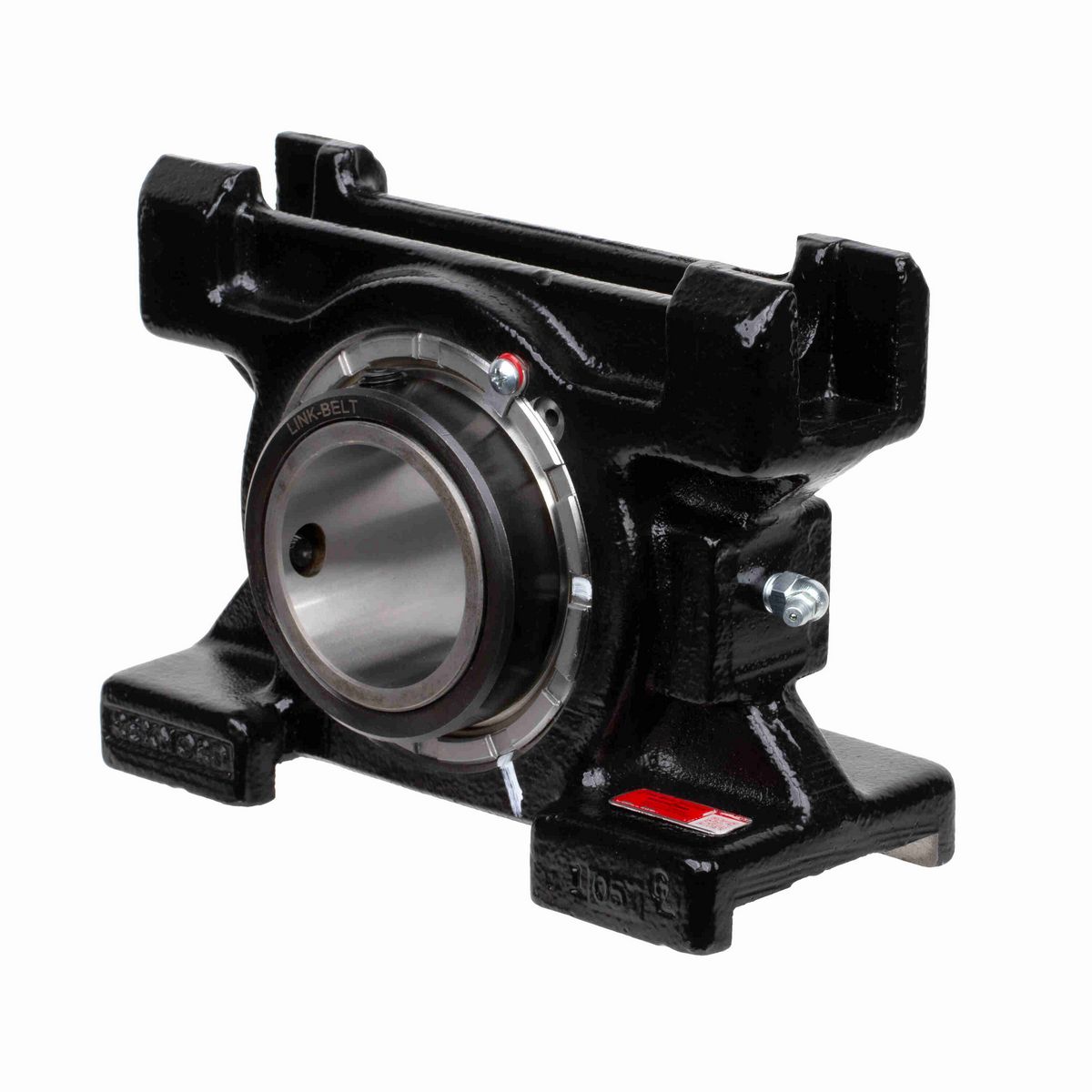

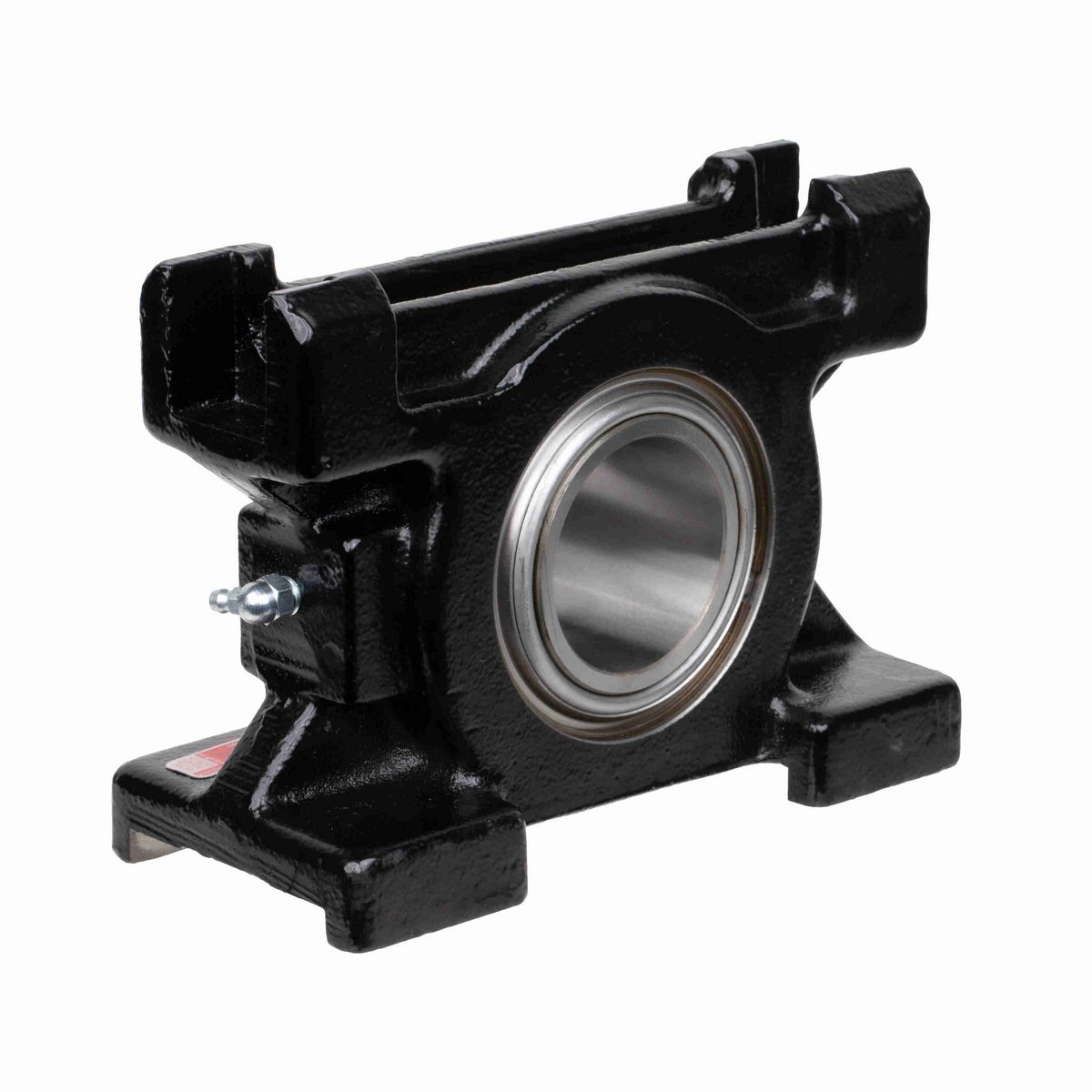

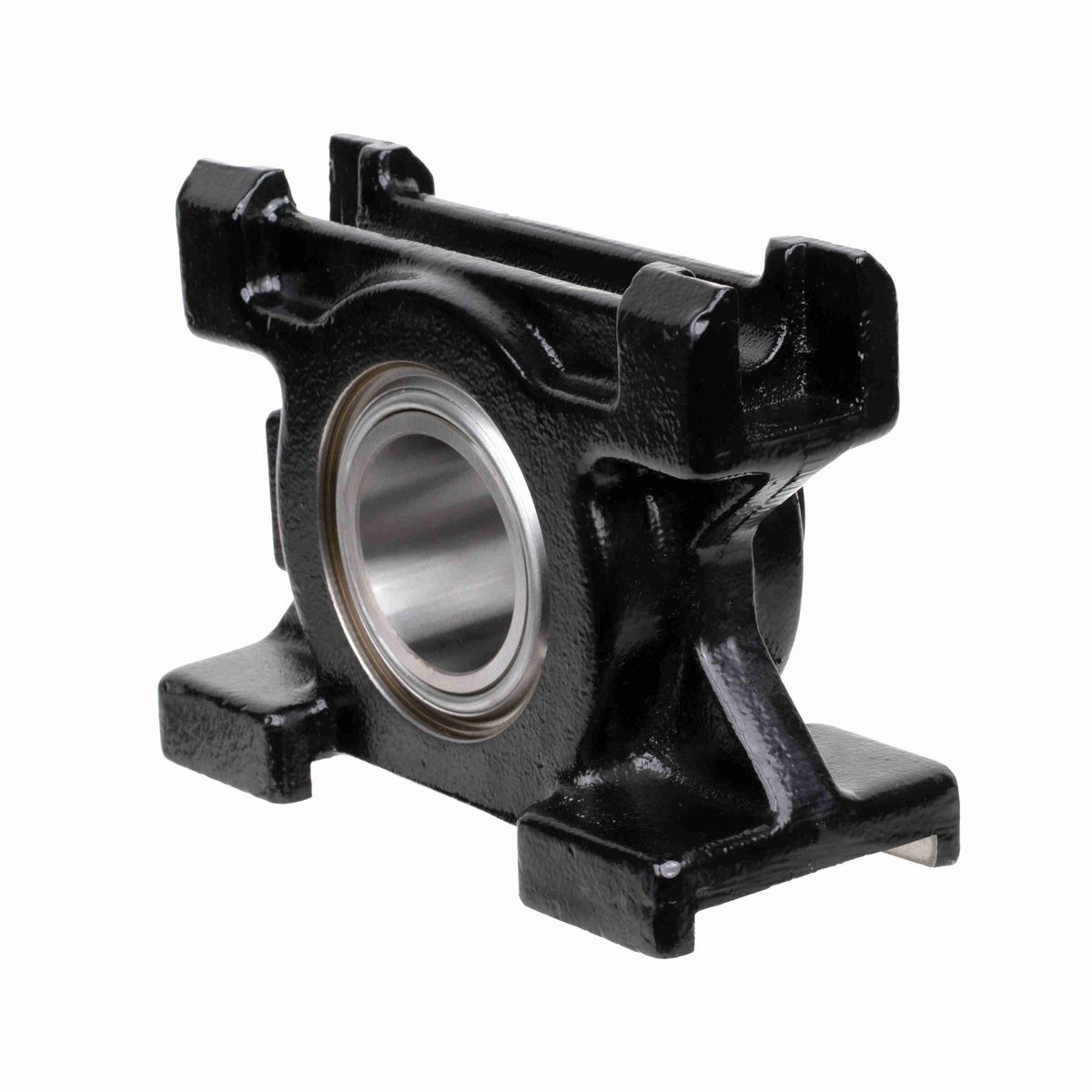

• 2 3/16" Mounted Spherical Roller Bearing, Fixed Cast Iron Take up Block, Single Setscrew Locking Collar, Clearance Seal

Dimensions

Overall Length (in)	7.56 in
Slot Length (in)	6.31 in
Overall Height (in)	5.81 in
Slot Width (in)	0.88 in
Overall Width (in)	3.81 in
Bore Diameter (in)	2.1875 in
Housing Top Width (in)	2.56 in
Adjustment Slot Width (in)	3.08 in
Slot Depth (in)	1.31 in
Locking Collar Outside Diameter (in)	3.25 in
Top Housing Length (in)	7.56 in
Bottom Housing Length (in)	7.56 in
Bottom Channel Outside Width (in)	3.81 in
Inner Ring Outside Diameter (in)	2.62 in
Bottom Take Up Slot to Centerline of Bearing (in)	2.44 in
Length Through Bore (in)	3.31 in

Technical Specifications

Rolling Element	Spherical Roller
Fixed/Expansion	Fixed
Misalignment Type	Dynamic
Seal Type	Clearance Seal
Radial Dynamic Load Capacity (lb)	32,500 lb
Product	DSB22400
Cage Material	Steel
Housing Material	Cast Iron
Housing Color	Black
Housing Type	Take Up, Top Angle
End Cap	B436DTC
Shaft Locking Type	Single Set Collar
Series	Take-up Blocks
Housing Construction	Solid
Radial Clearance	C0 STANDARD
Static Load Rating (lb)	44,400 lb
Housing Style	Take-Up Block
Maximum Speed (RPM)	2500 rpm
Seal Kit	B436HS
Microlock Kit	B436MLK
Setscrew Torque (in-lbs)	460 in/lbs
Ability to Relubricate	Yes
Misalignment Capability	±2.0° Misalignment - Dynamic
Locking Device Kit	B436SC
Lubricant	EXXON RONEX MP STD
Vibration Frequency Inner Ring Defect	0.179 cps
Vibration Frequency Fundamental Train	0.0072 cps
Max Operating Temperature (C)	107 °C
Max Operating Temperature (F)	225 °F
Primary Seal	STEEL CLEARANCE SEAL
Insert	B435L
Size Code	B436
Vibration Frequency Roller Spin	0.0606 cps
Housing Coating	POWDER COATED
Grease Fitting Thread Size	1/8 NPT
Vibration Frequency Outer Ring Defect	0.1377 cps

General Specifications

UPC	662327021535
Weight	17.00 LB
Packaged Length	9.50 IN
Packaged Width	4.50 IN
Packaged Height	9.25 IN
HTC	8483204080
Country of Origin	Mexico
