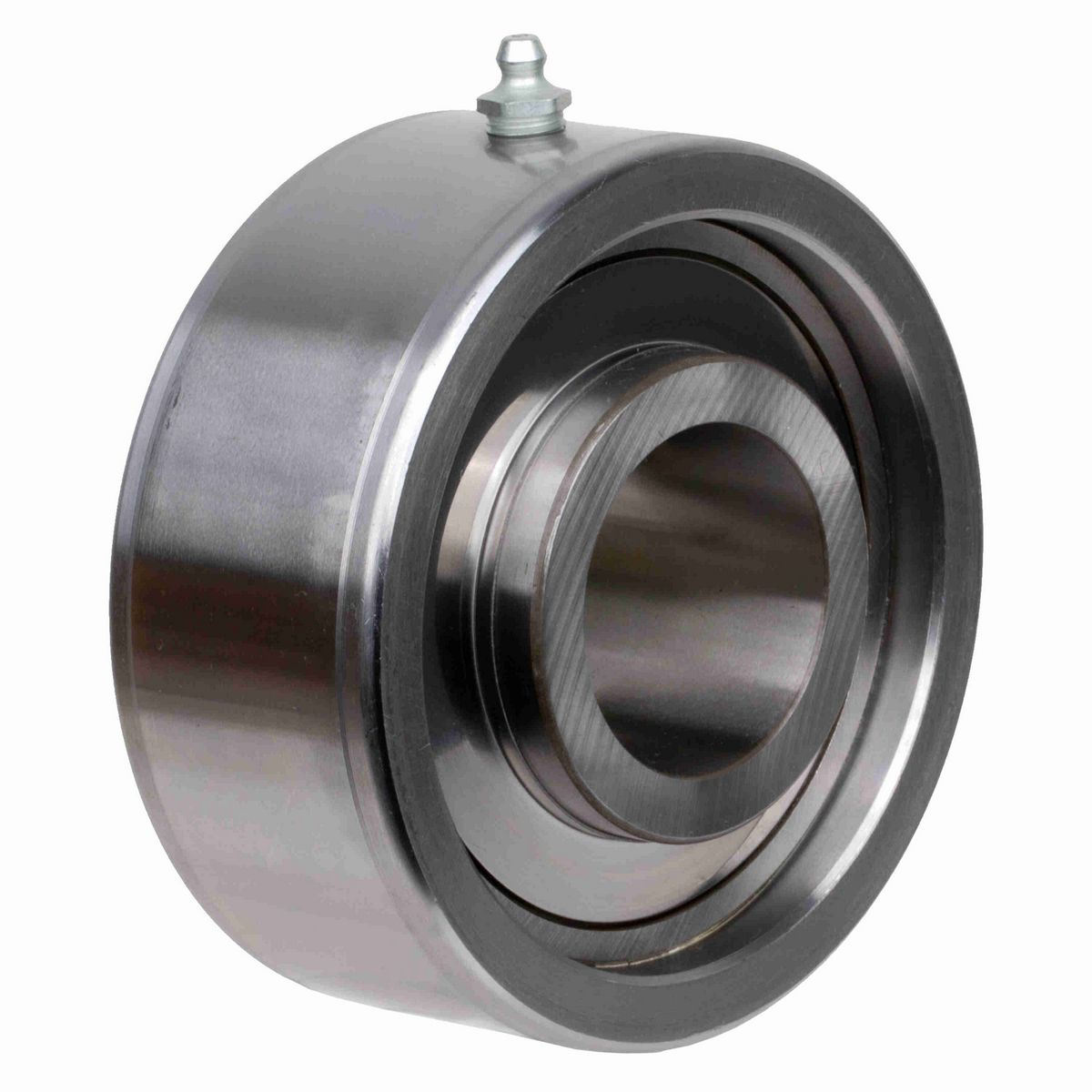

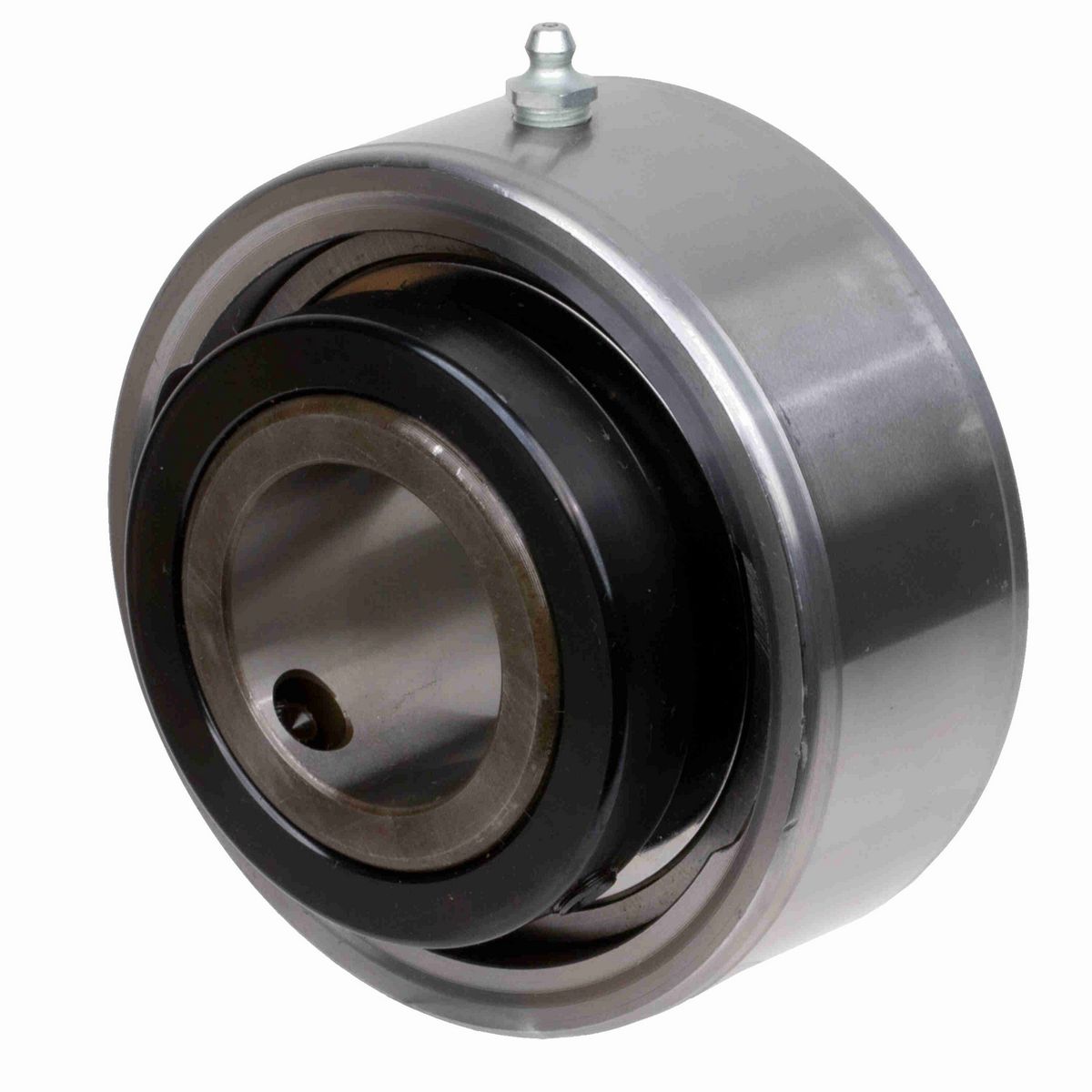

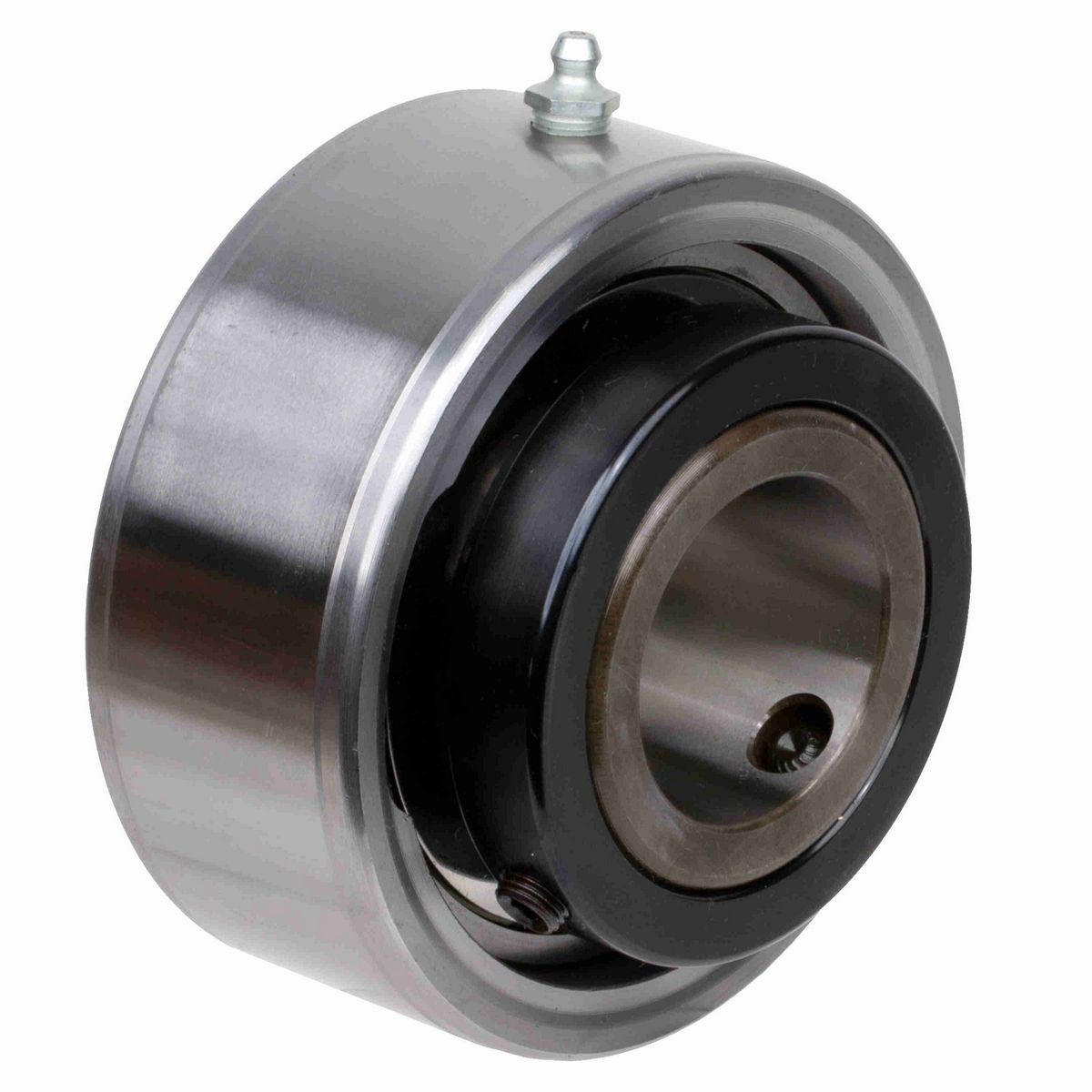

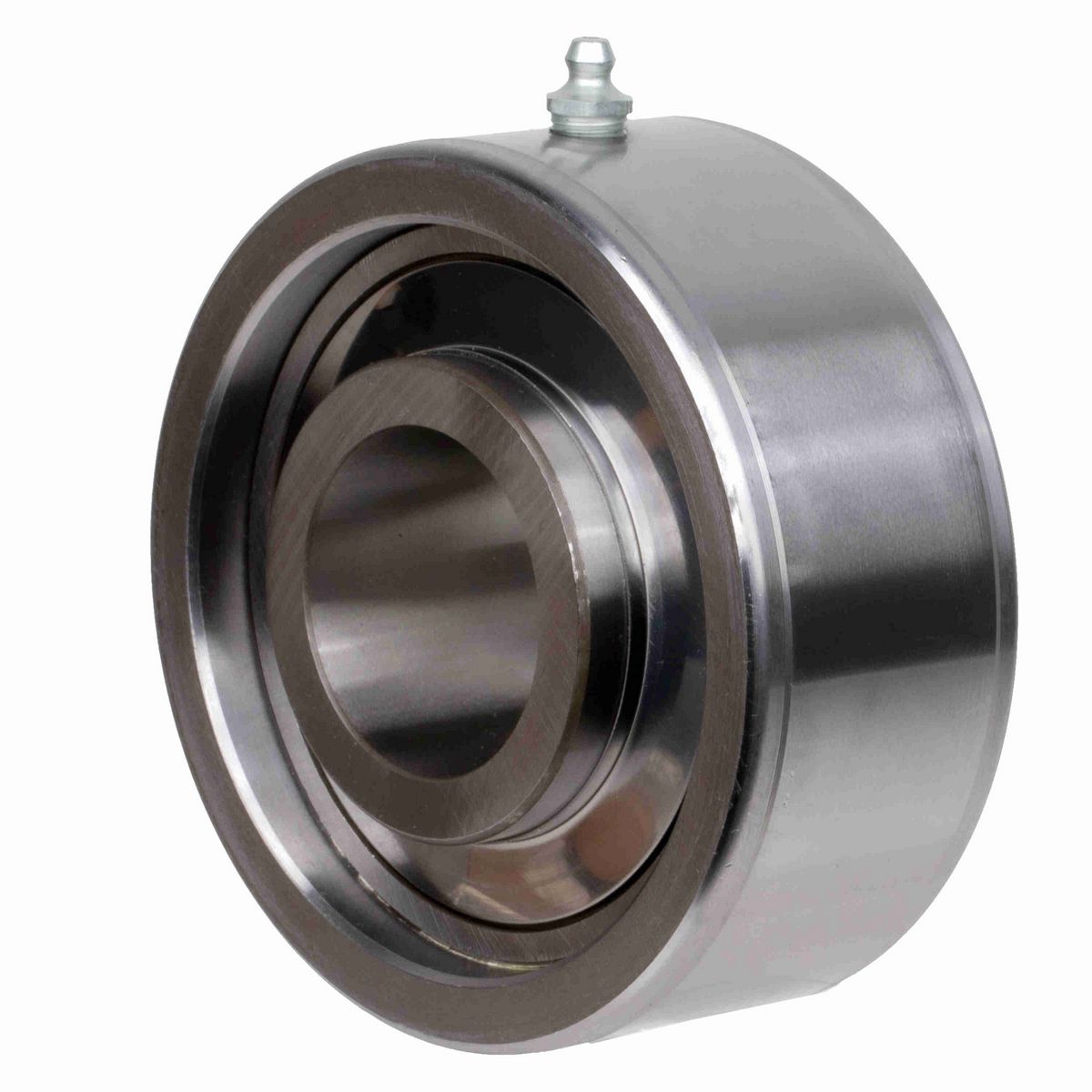

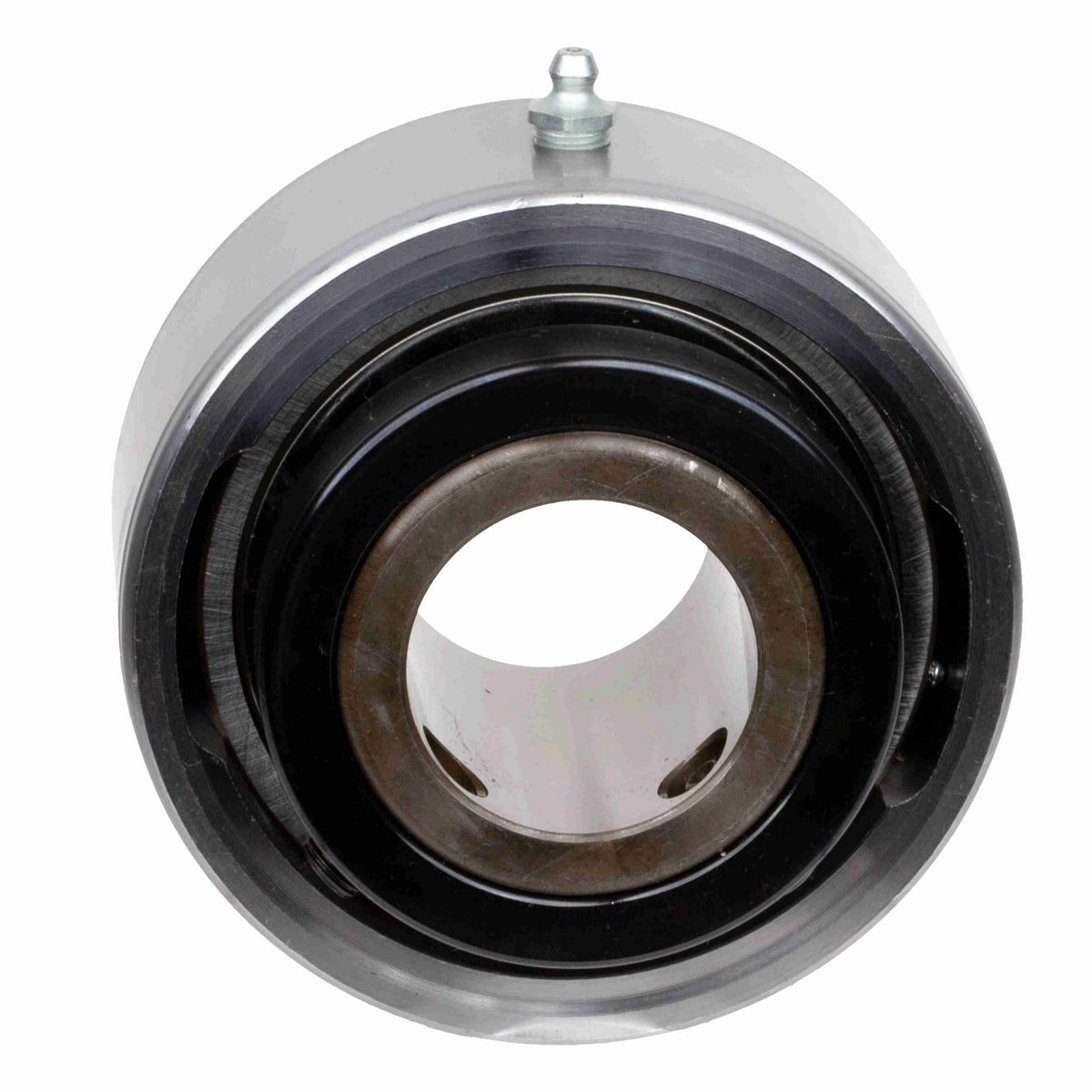

• 1 3/4" Mounted Ball Bearing, Heavy Duty, Formed Steel Fixed Cartridge Block, Setscrew Locking, Clearance Seal

Dimensions

Overall Length (in)	4.594 in
Overall Height (in)	4.594 in
Length Through Bore (in)	2.6 in
Bore Diameter (in)	1.75 in
Overall Width (in)	2.6 in
Centerline to Outermost Bearing Face (in)	1.55 in

Technical Specifications

Housing Type	Cartridge, Cylindrical
Bore Shape	Straight
Misalignment Type	Static Only
Outside Diameter (in)	4.594
Cage Material	Molded fiber glass reinforced nylon
Housing Construction	One Piece
Housing Style	Cartridge Block
Rolling Element	Ball Bearing
Outer Ring Land Profile	Standard
Locking Collar Outside Diameter (in)	3.23 in
Ability to Relubricate	Yes
Setscrew Torque (in-lbs)	290-325 in/lbs
Bearing Type	Heavy Duty
Size Code	328
Fixed vs. Expansion	Fixed
Housing Material	Steel
End Cap	U3286C
Max Operating Temperature (C)	107 °C
Locking Device Kit	U3285S
Static Load Rating (lb)	7,110 lb
Vibration Frequency Roller Spin	0.0327 cps
Insert	UG328L
Vibration Frequency Inner Ring Defect	0.0827 cps
Misalignment Capability	±2.0° Misalignment - Static Only
End Cap Available	Yes
Bearing Brand	LINK-BELT 300 SERIES HD BALL
Lubricant	EXXON RONEX MP STD
Grease Fitting Thread Size	1/8 NPT
Bearing Insert Material	52100 Bearing Steel
Cage Type	Ball Riding Retainer
Dynamic Load Rating (lb)	11,870 lb
Radial Clearance	C3 STANDARD
Vibration Frequency Fundamental Train	0.0063 cps
Maximum Speed (RPM)	6200 rpm
Max Operating Temperature (F)	225 °F
Inner Ring Outside Diameter (in)	2.443 in
Vibration Frequency Outer Ring Defect	0.0507 cps
Housing Width (in)	1.844 in

General Specifications

UPC	662327734978
Weight	6.04 LB
Packaged Length	5.00 IN
Packaged Width	5.00 IN
Packaged Height	3.00 IN
HTC	8483204040
Country of Origin	Mexico
