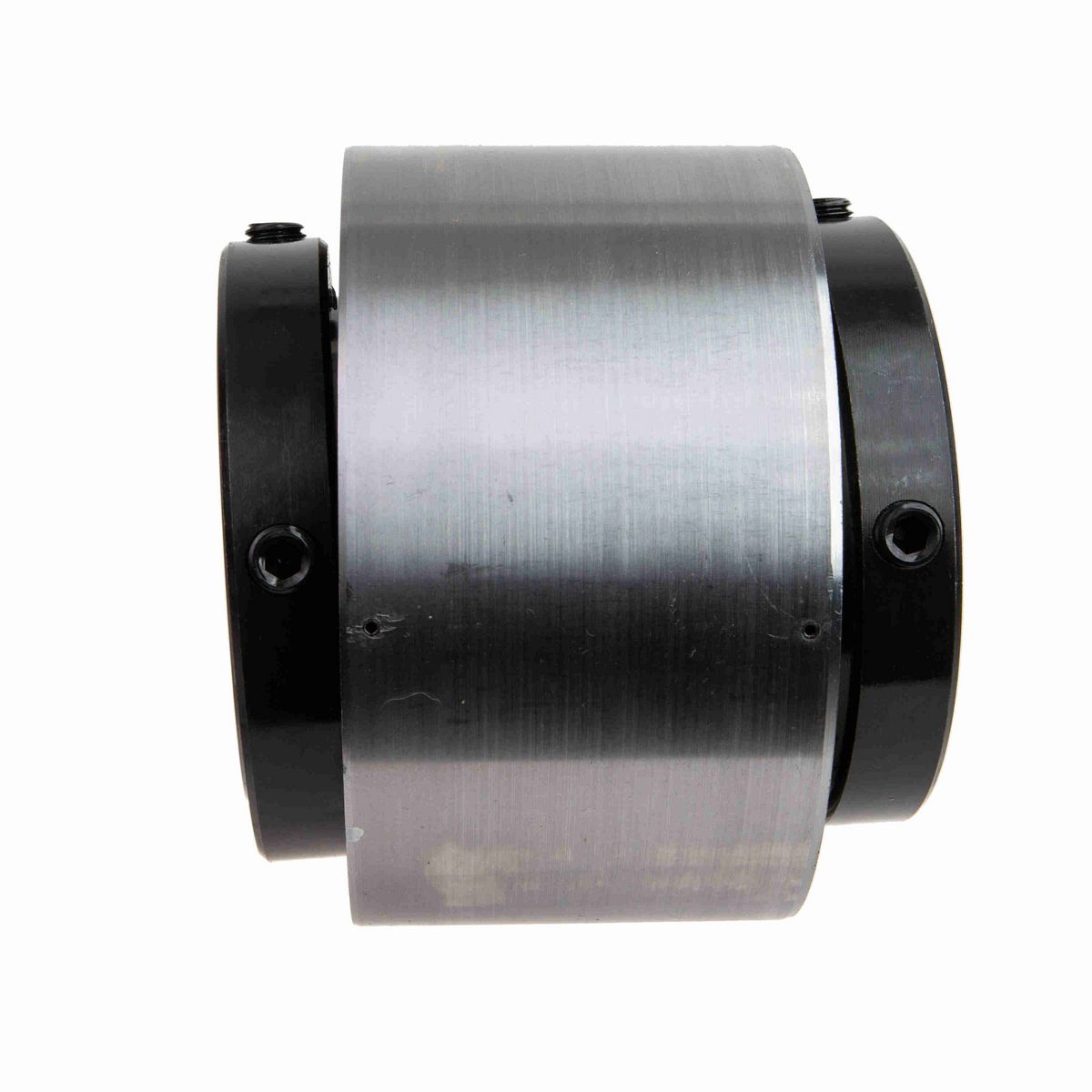

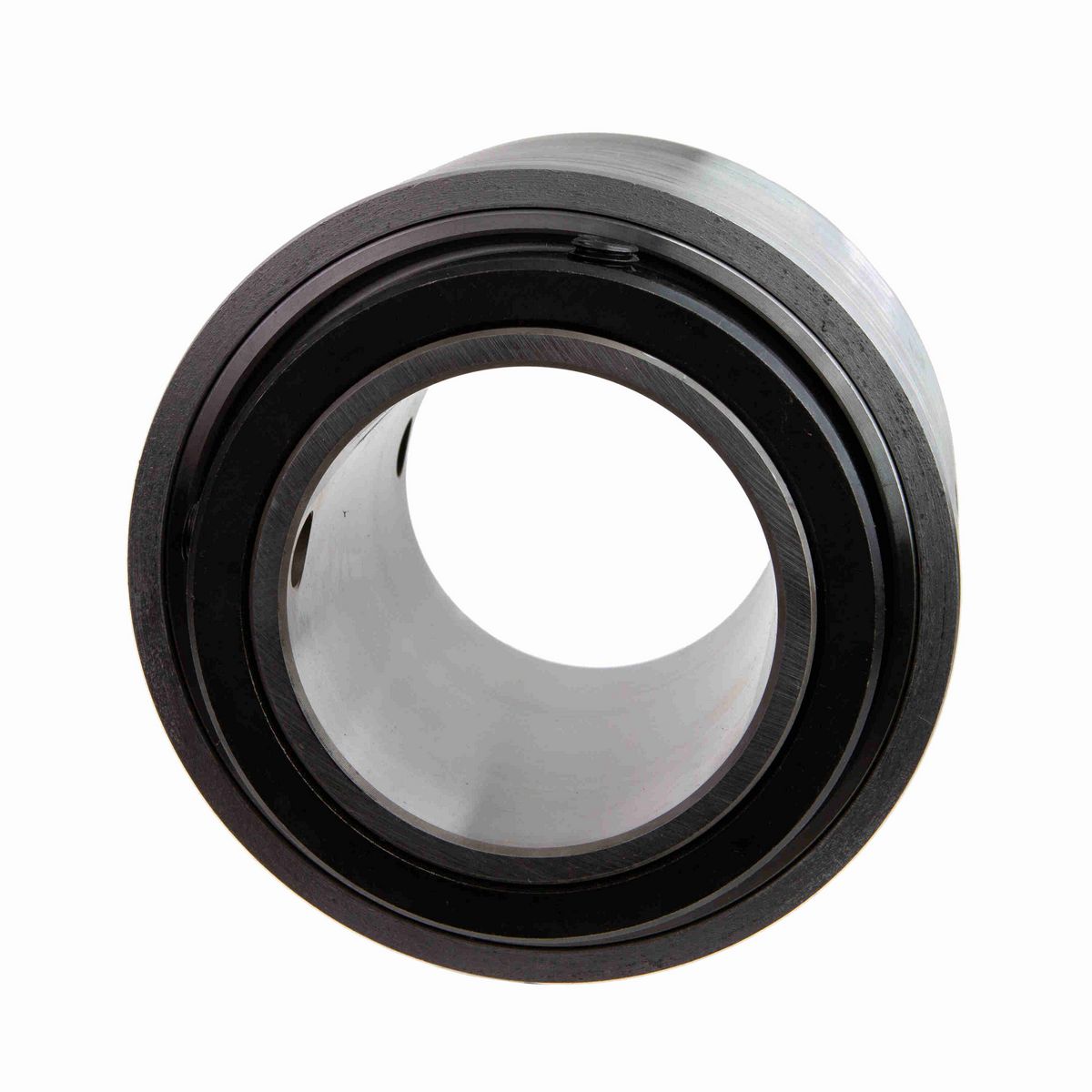

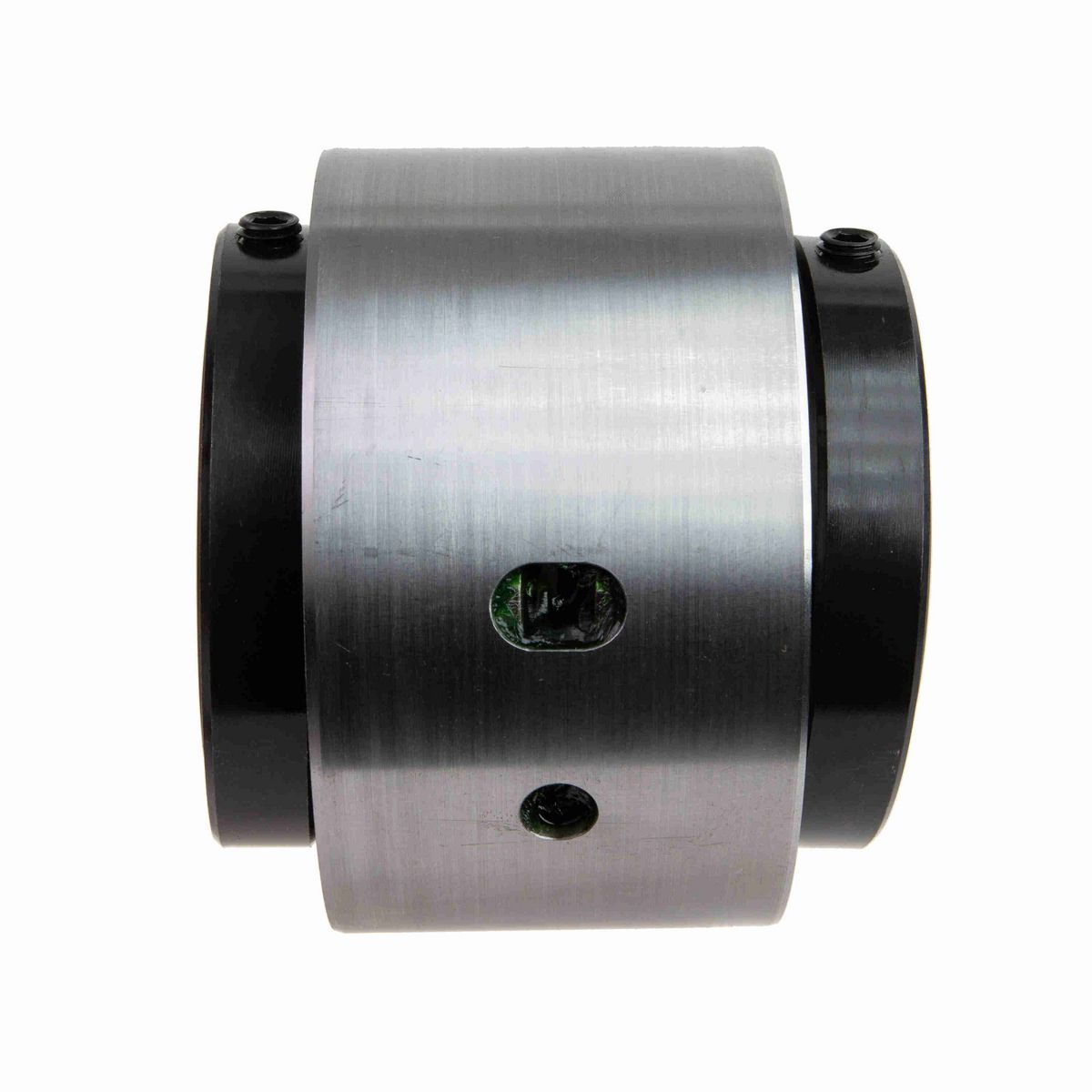

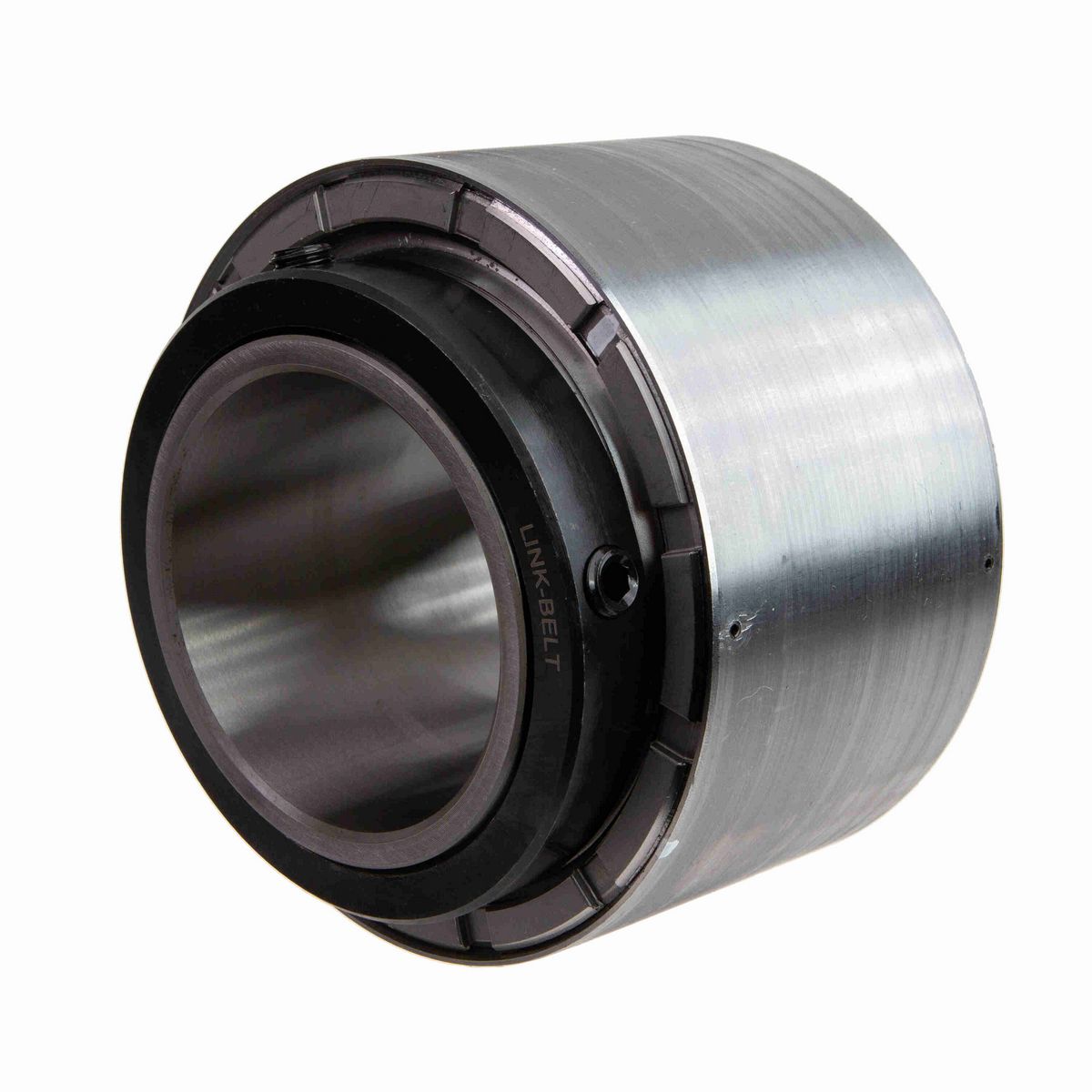

• 3 7/16" Mounted Spherical Roller Bearing, Cast Steel Cartridge Block, Double Setscrew Locking Collar, Clearance Seal

Dimensions

Overall Length (in)	6.19 in
Outside Diameter (in)	6.194 in
Bore Diameter (in)	3.4375 in
Housing Width (in)	3.44 in
Overall Height (in)	6.75 in
Overall Width (in)	5.31 in
Locking Collar Outside Diameter (in)	4.91 in
Housing Cast Face to Outermost Bearing Face (in)	0.94 in
Inner Ring Outside Diameter (in)	3.975 in
Length Through Bore (in)	5.31 in
Centerline to Outermost Bearing Face (in)	2.66 in

Technical Specifications

Shaft Locking Type	Double Set Collar
Static Load Rating (lb)	90,700 lb
Cage Material	Steel
Seal Type	Clearance Seal
Housing Material	Steel
Housing Style	Cartridge Block
Housing Construction	Solid
Radial Clearance	C0 STANDARD
Rolling Element	Spherical
Radial Dynamic Load Capacity (lb)	62,300 lb
Fixed/Expansion	Fixed
Product	CSEB22500
Series	Cartridge Blocks
Ability to Relubricate	Yes
Seal Kit	B456HS
Available Seal Type	E Lip Seal; H Labyrinth Seal; E7 Triple Lip Seal
Setscrew Torque (in-lbs)	680 in/lbs
Maximum Speed (RPM)	1650 rpm
Vibration Frequency Fundamental Train	0.0073 cps
Max Operating Temperature (C)	107 °C
Lubricant	EXXON RONEX MP STD
Max Operating Temperature (F)	225 °F
Size Code	B556
Locking Device Kit	B456SC QTY 2
Vibration Frequency Outer Ring Defect	0.1383 cps
Vibration Frequency Inner Ring Defect	0.1784 cps
Vibration Frequency Roller Spin	0.0628 cps
Misalignment Capability	±2.0° Misalignment - Dynamic

General Specifications

UPC	662327013356
Weight	21.25 LB
Packaged Length	6.50 IN
Packaged Width	6.00 IN
Packaged Height	6.38 IN
HTC	8483204080
Country of Origin	Mexico
