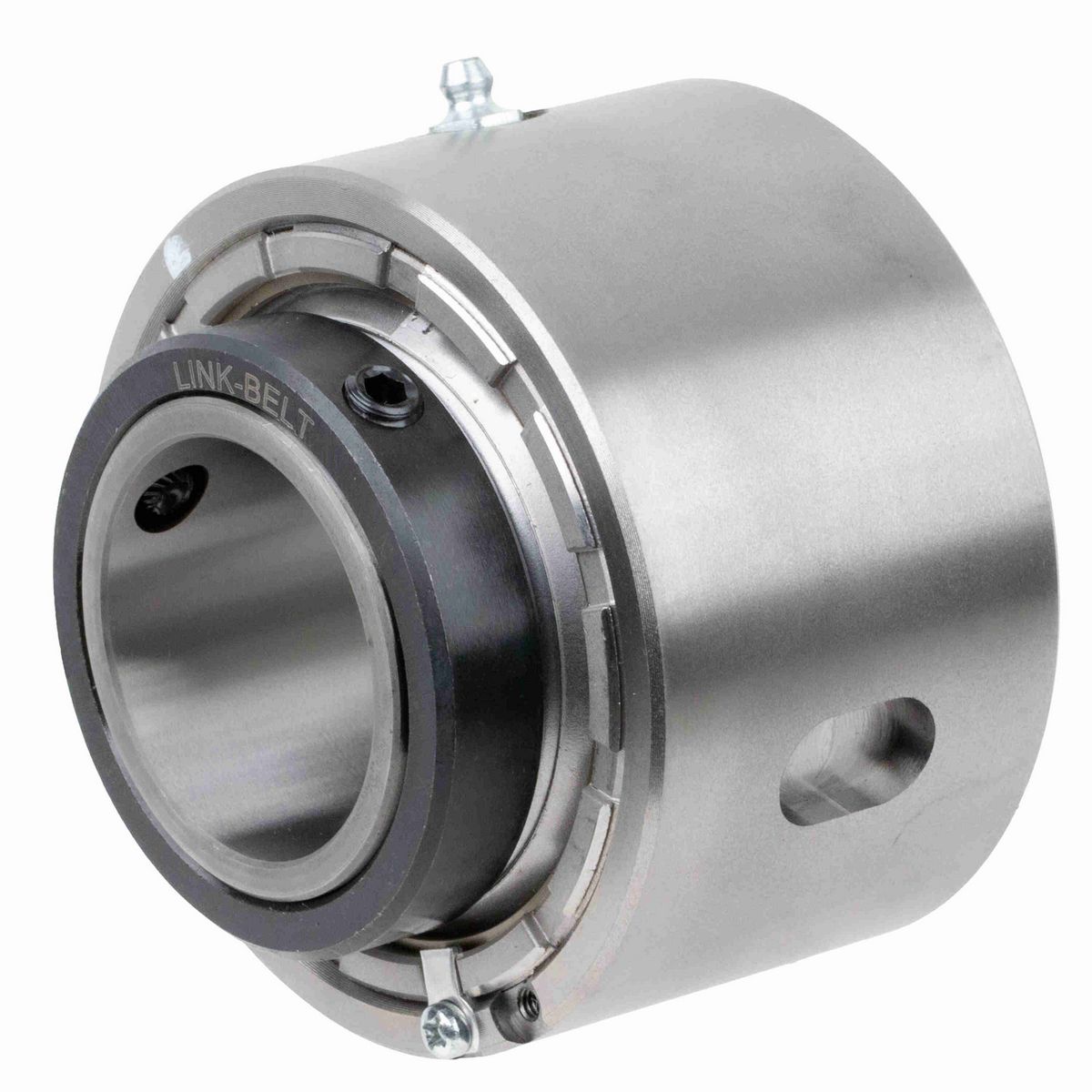

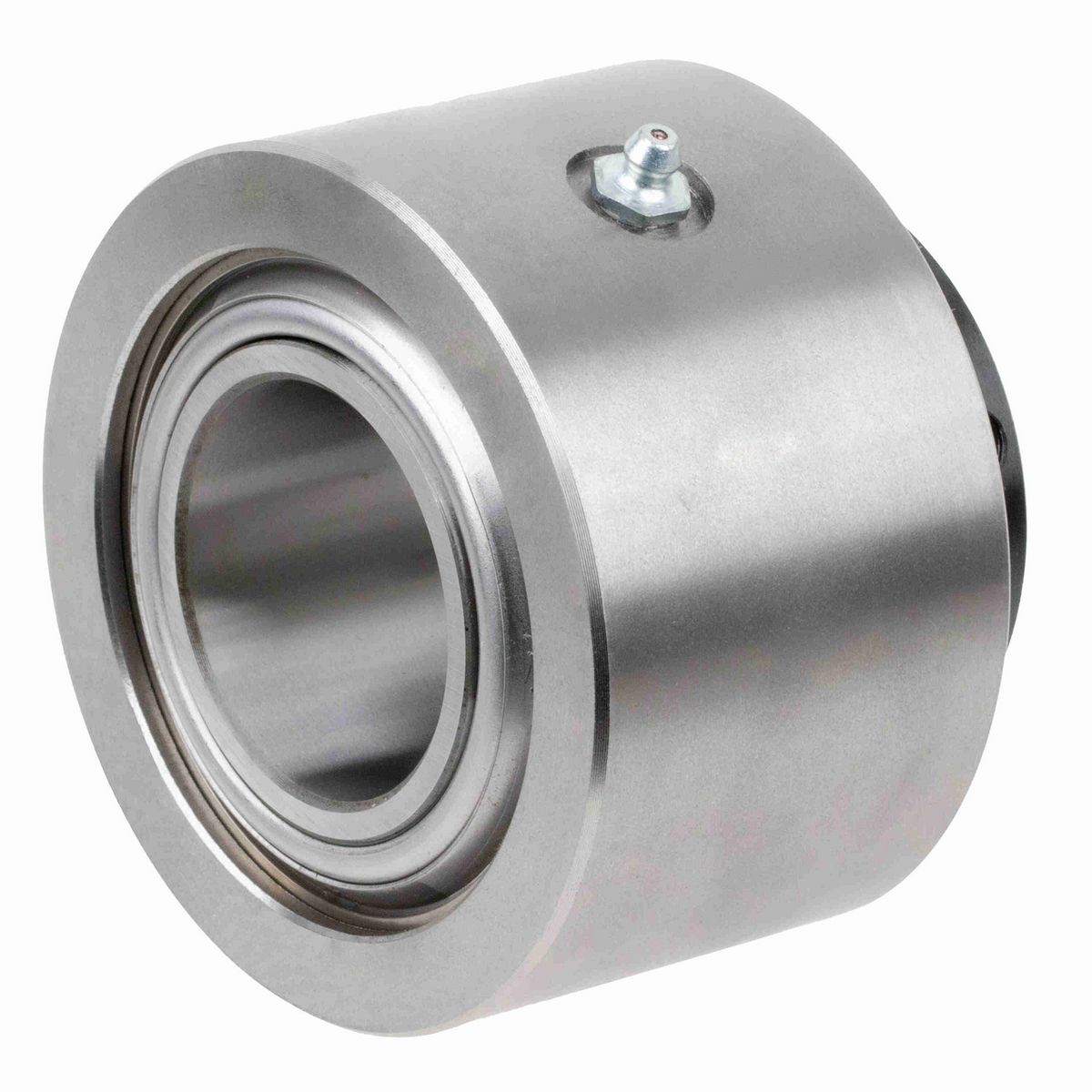

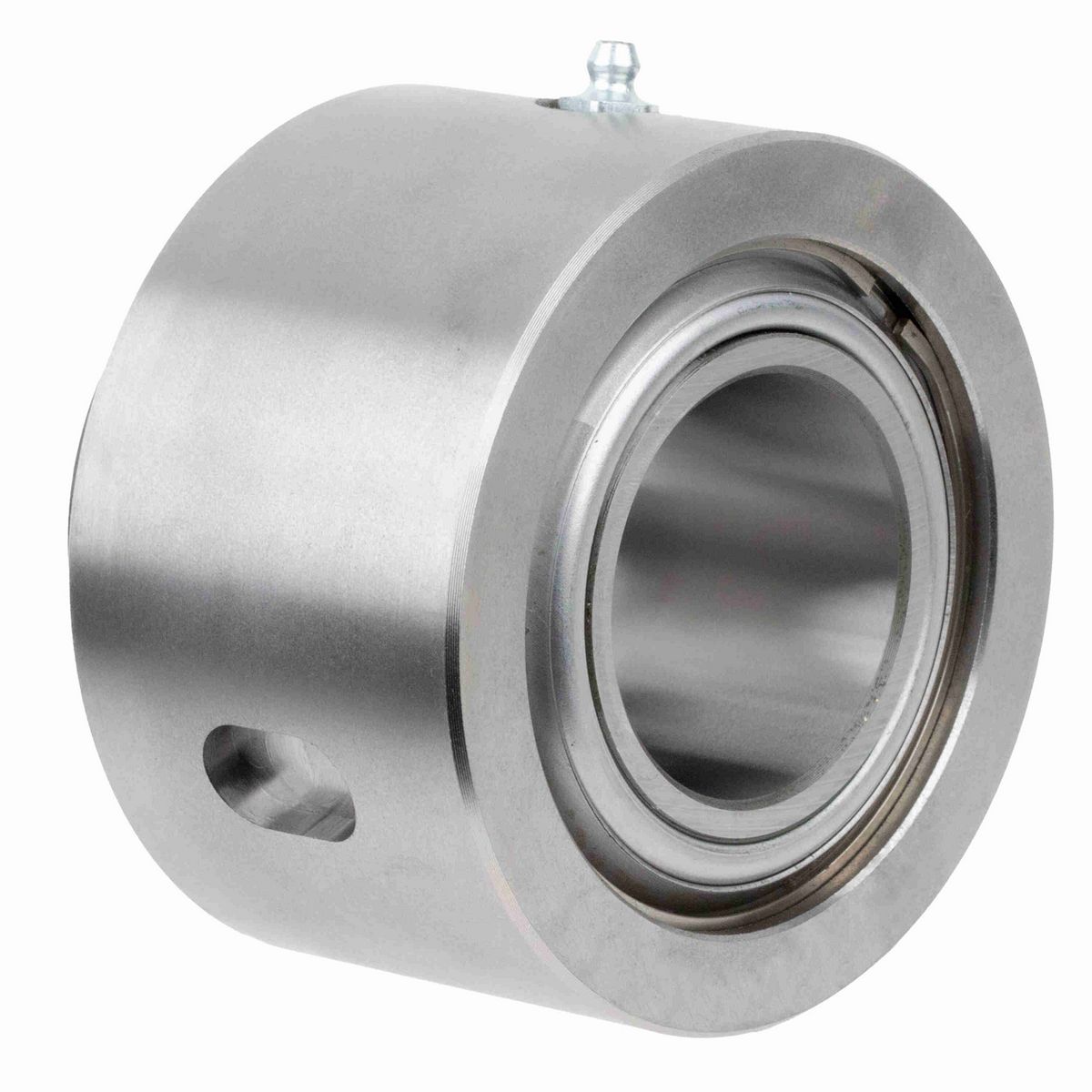

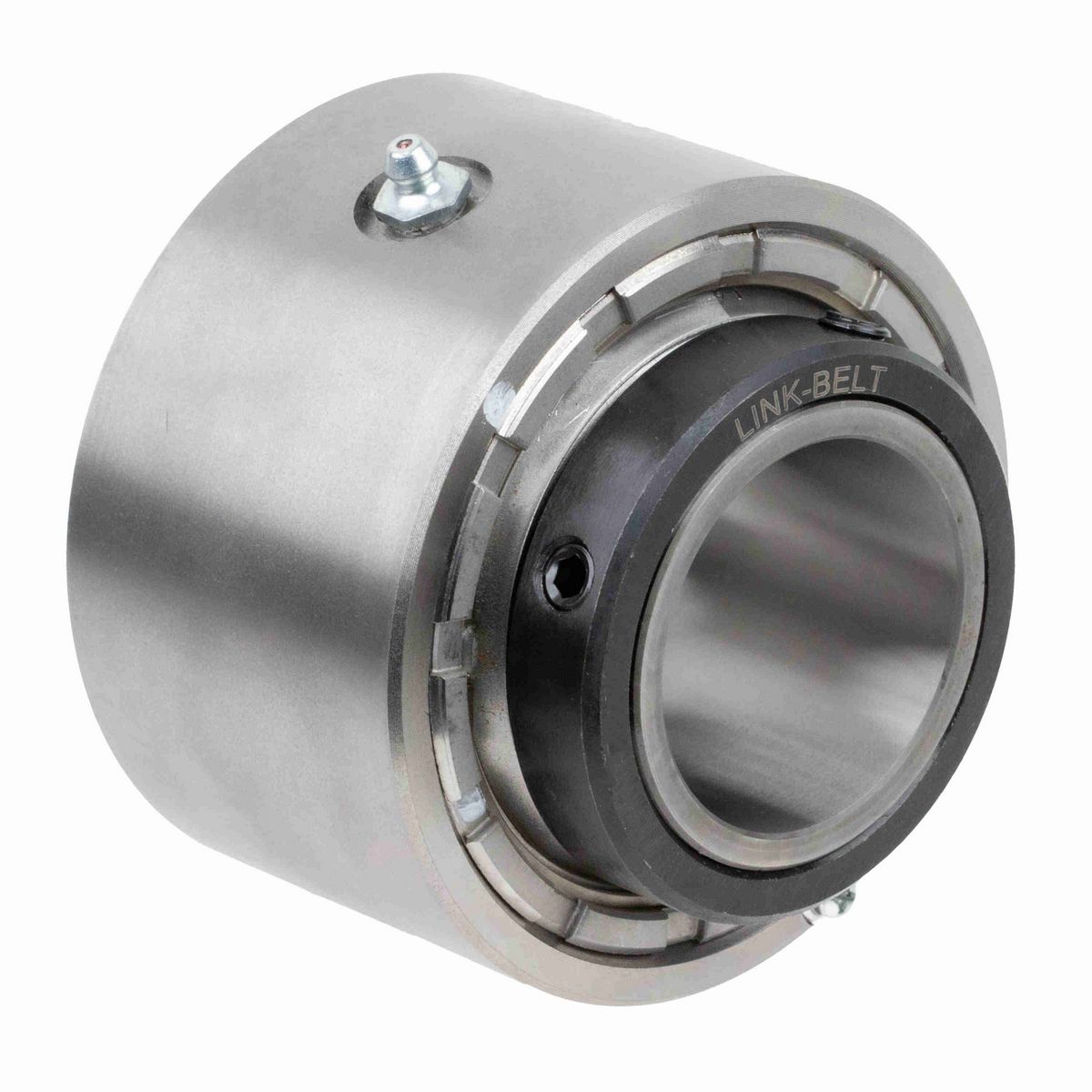

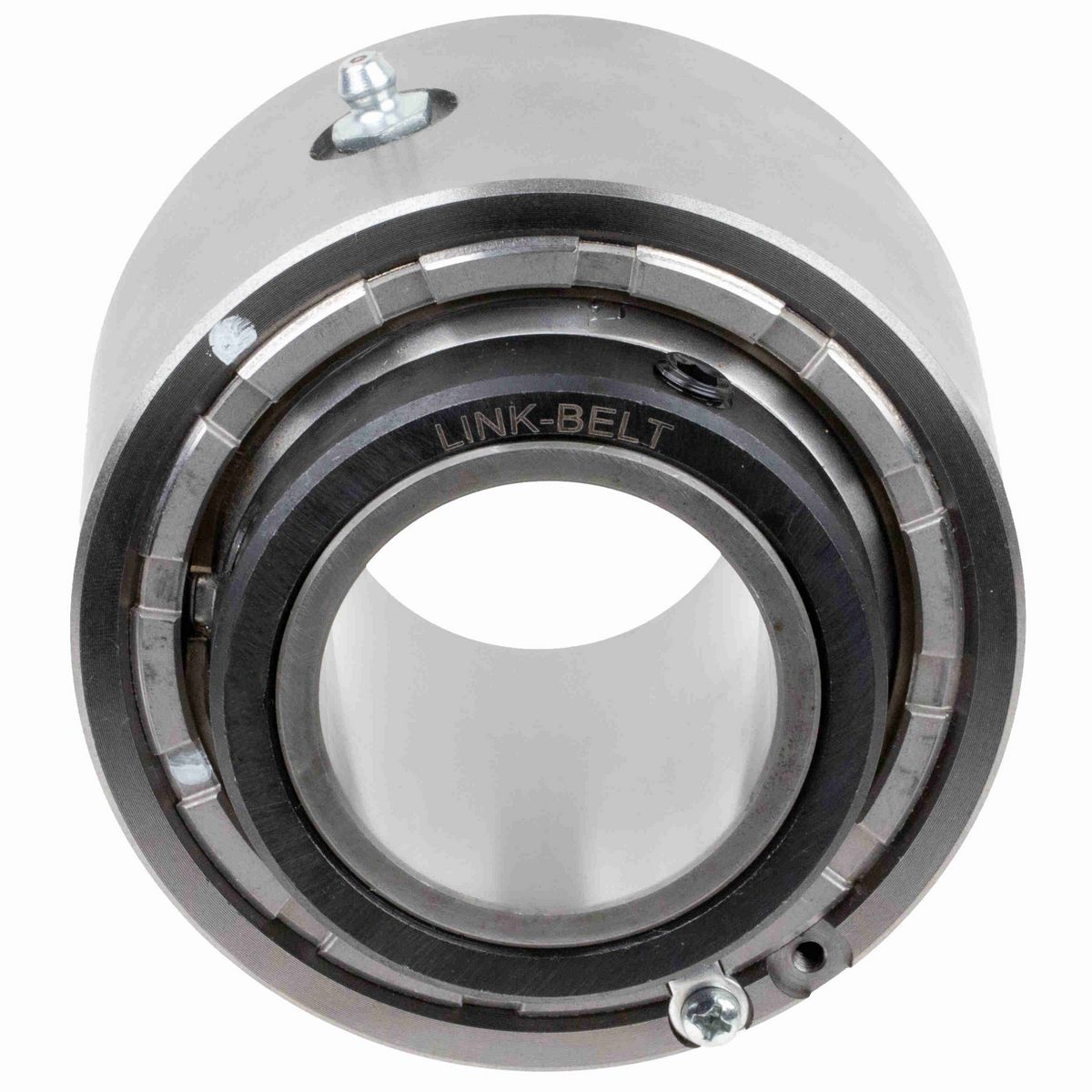

• Product Family: Roller Bearing; Line: Link-Belt Mounted

Dimensions

Outside Diameter (in)	5.875 in
Slot Length (in)	1.03 in
Overall Width (in)	4 in
Overall Height (in)	5.88 in
Housing Width (in)	3.13 in
Slot Width (in)	0.59 in
Overall Length (in)	5.88 in
Locking Collar Outside Diameter (in)	4.06 in
Slot Depth (in)	0.25 in
Housing Cast Face to Outermost Bearing Face (in)	0.88 in
Length Through Bore (in)	4 in
Inner Ring Outside Diameter (in)	3.37 in
Centerline to Outermost Bearing Face (in)	2.44 in

Technical Specifications

Housing Construction	Solid
Fixed/Expansion	Fixed
Radial Clearance	C0 STANDARD
Product	CB22400
Seal Type	Clearance Seal
Radial Dynamic Load Capacity (lb)	51,100 lb
Series	Cartridge Blocks
Shaft Locking Type	Single Set Collar
Static Load Rating (lb)	71,500 lb
Housing Material	Cast Iron
Rolling Element	Spherical
Housing Style	Cartridge Block
Cage Material	Steel
Maximum Speed (RPM)	1950 rpm
Ability to Relubricate	Yes
Vibration Frequency Inner Ring Defect	0.1701 cps
Vibration Frequency Outer Ring Defect	0.1299 cps
Vibration Frequency Roller Spin	0.0591 cps
Lubricant	EXXON RONEX MP STD
Size Code	B448
Grease Fitting Thread Size	1/8 NPT
Locking Device Kit	B448SC
Misalignment Capability	±2.0° Misalignment - Dynamic
Max Operating Temperature (F)	225 °F
Insert	B4M70L
Max Operating Temperature (C)	107 °C
Vibration Frequency Fundamental Train	0.0072 cps

General Specifications

UPC	782934970016
Weight	19.03 LB
HTC	8483204080
Country of Origin	United States of America
