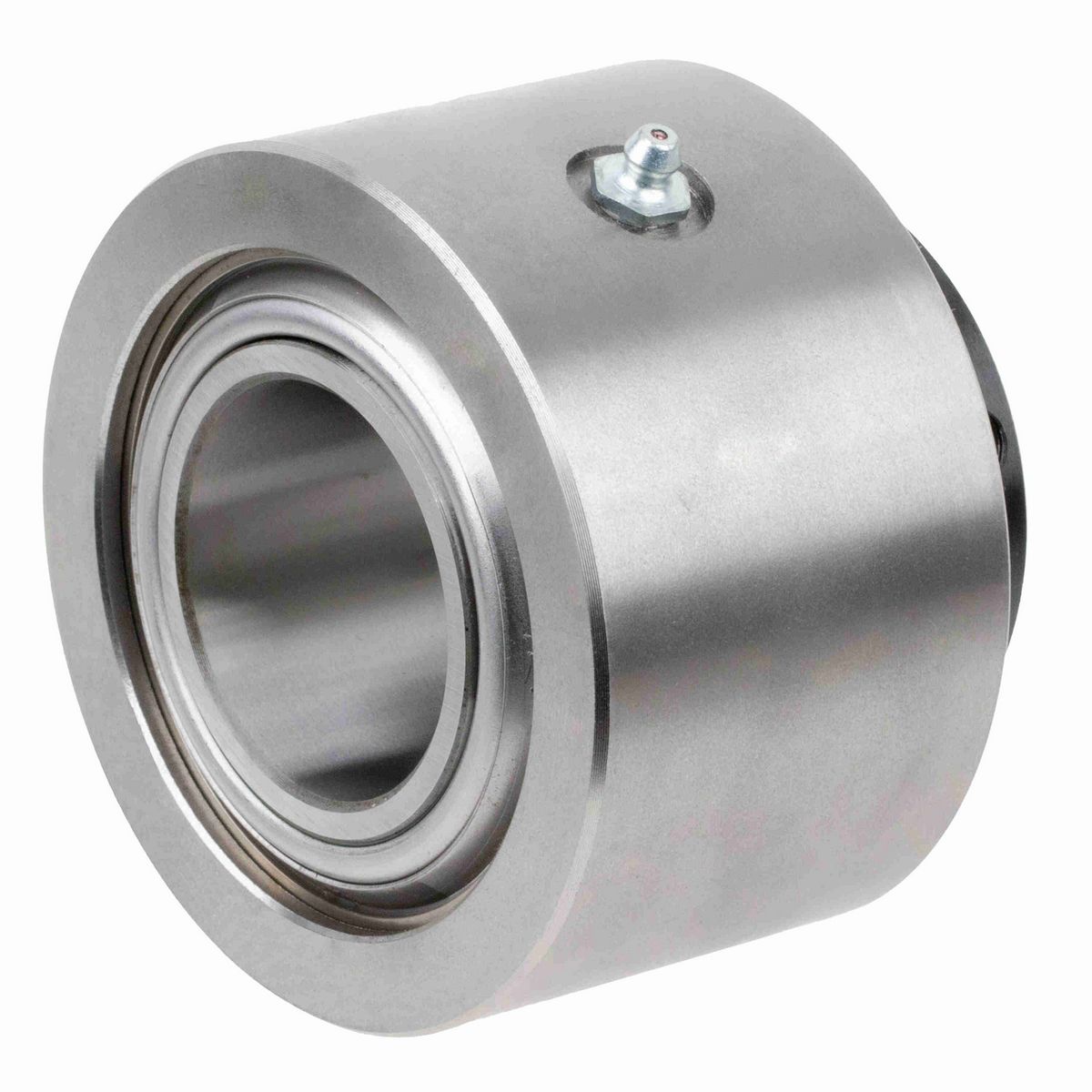

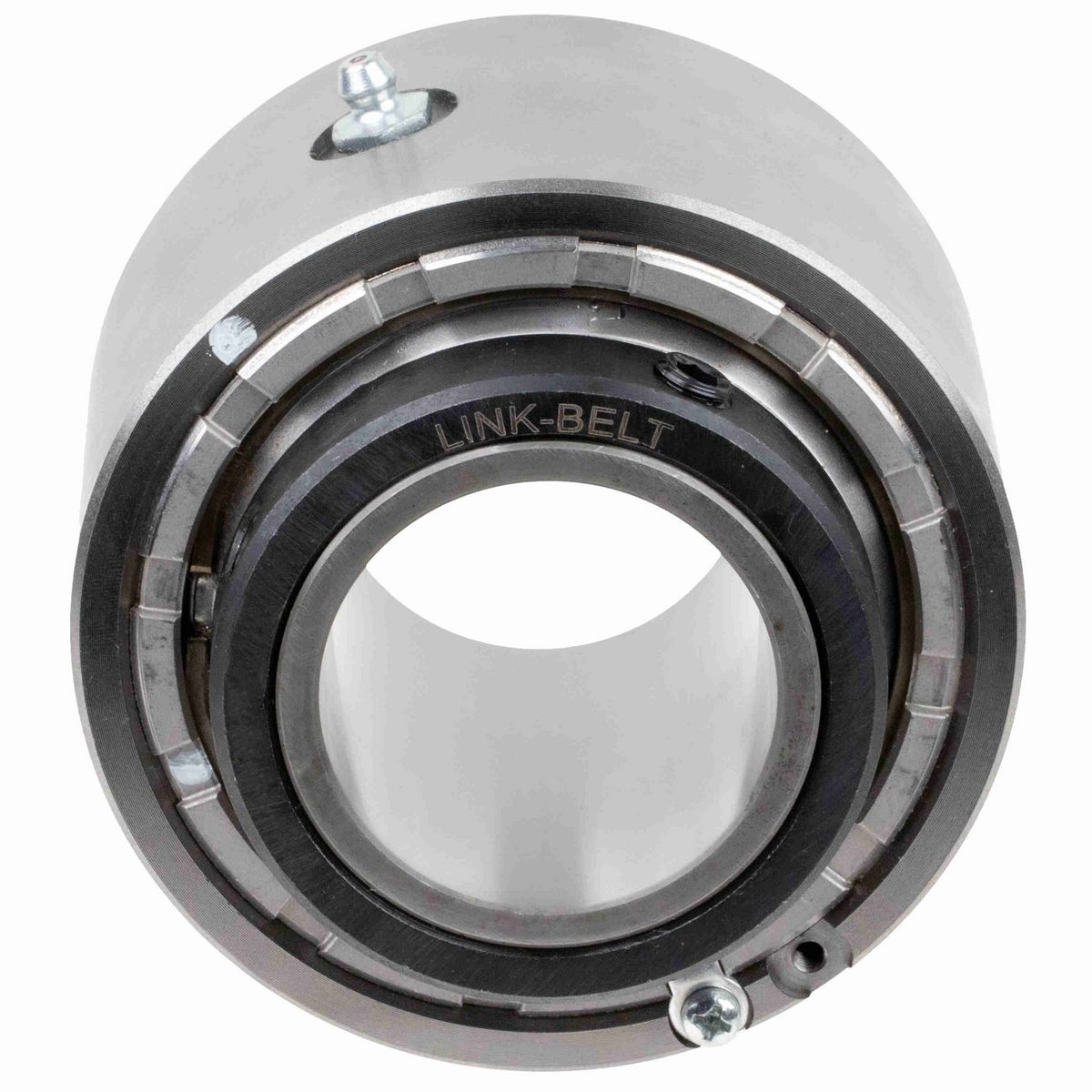

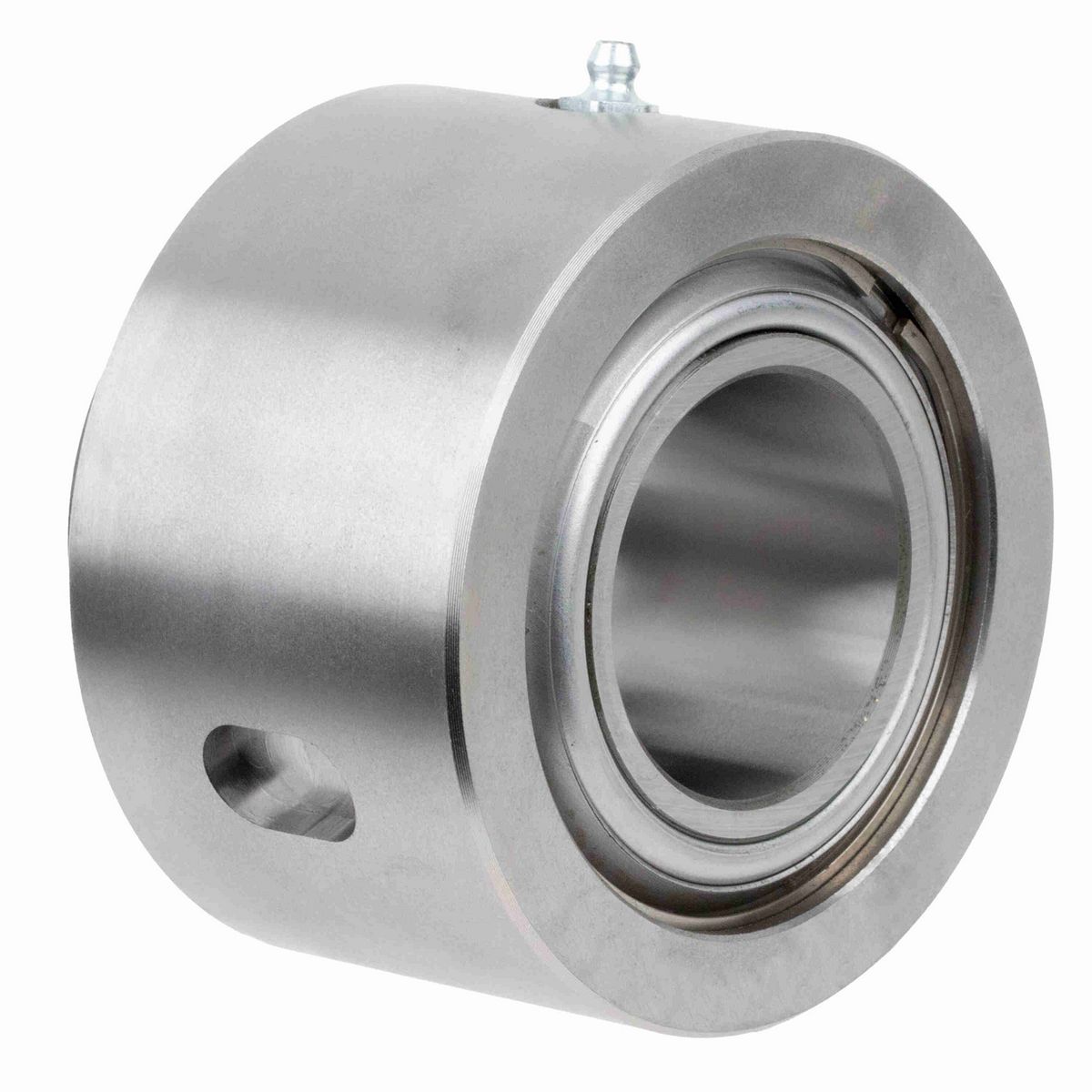

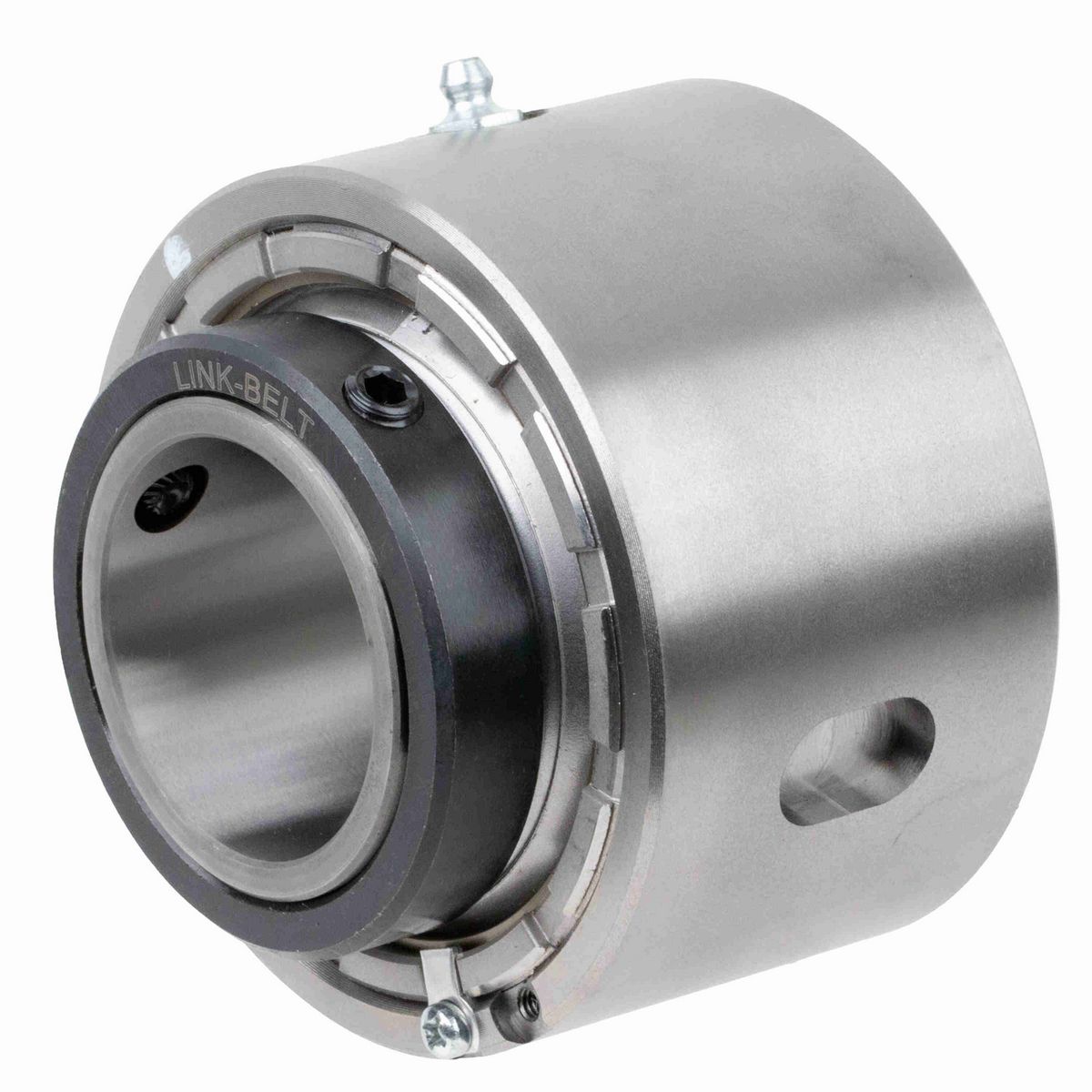

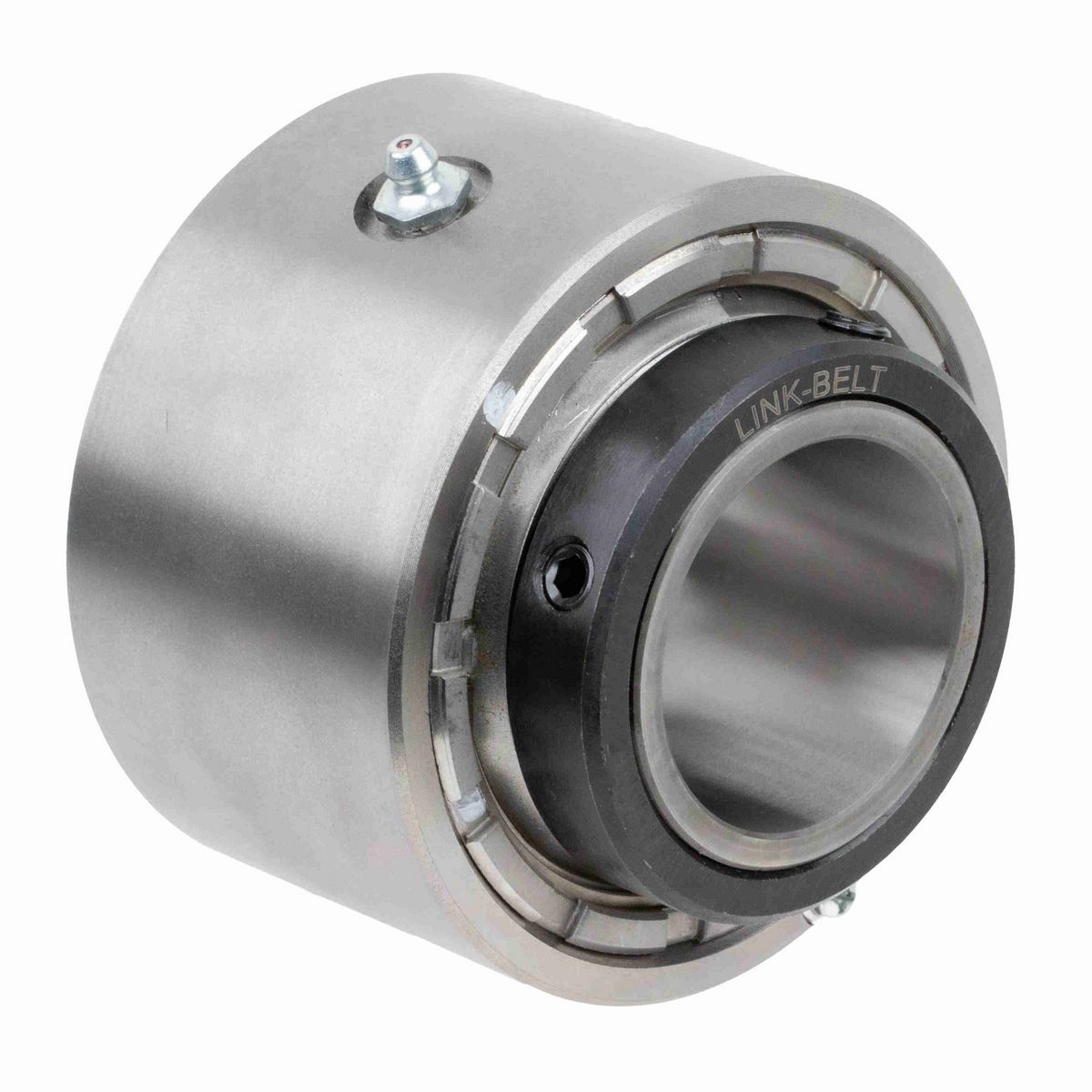

• Product Family: Roller Bearing; Line: Link-Belt Mounted

Dimensions

Overall Height (in)	5 in
Housing Width (in)	2.63 in
Bore Diameter (in)	2.4375 in
Overall Length (in)	5 in
Outside Diameter (in)	5 in
Overall Width (in)	3.5 in
Slot Length (in)	0.92 in
Slot Width (in)	0.55 in
Locking Collar Outside Diameter (in)	3.56 in
Slot Depth (in)	0.23 in
Inner Ring Outside Diameter (in)	2.901 in
Centerline to Outermost Bearing Face (in)	2.19 in
Length Through Bore (in)	3.5 in
Housing Cast Face to Outermost Bearing Face (in)	0.88 in

Technical Specifications

Fixed/Expansion	Fixed
Cage Material	Steel
Housing Material	Cast Iron
Housing Construction	Solid
Housing Style	Cartridge Block
Series	Cartridge Blocks
Product	CB22400
Shaft Locking Type	Single Set Collar
Static Load Rating (lb)	53,500 lb
Radial Dynamic Load Capacity (lb)	38,300 lb
Seal Type	Clearance Seal
Radial Clearance	C0 STANDARD
Rolling Element	Spherical
Maximum Speed (RPM)	2300 rpm
Ability to Relubricate	Yes
Max Operating Temperature (C)	107 °C
Size Code	B440
Vibration Frequency Roller Spin	0.0607 cps
Locking Device Kit	B440SC
Vibration Frequency Outer Ring Defect	0.1376 cps
Max Operating Temperature (F)	225 °F
Grease Fitting Thread Size	1/8 NPT
Vibration Frequency Fundamental Train	0.0072 cps
Lubricant	EXXON RONEX MP STD
Misalignment Capability	±2.0° Misalignment - Dynamic
Insert	B439L
Vibration Frequency Inner Ring Defect	0.1791 cps

General Specifications

UPC	662864320580
Weight	10.55 LB
HTC	8483204080
Country of Origin	Mexico
