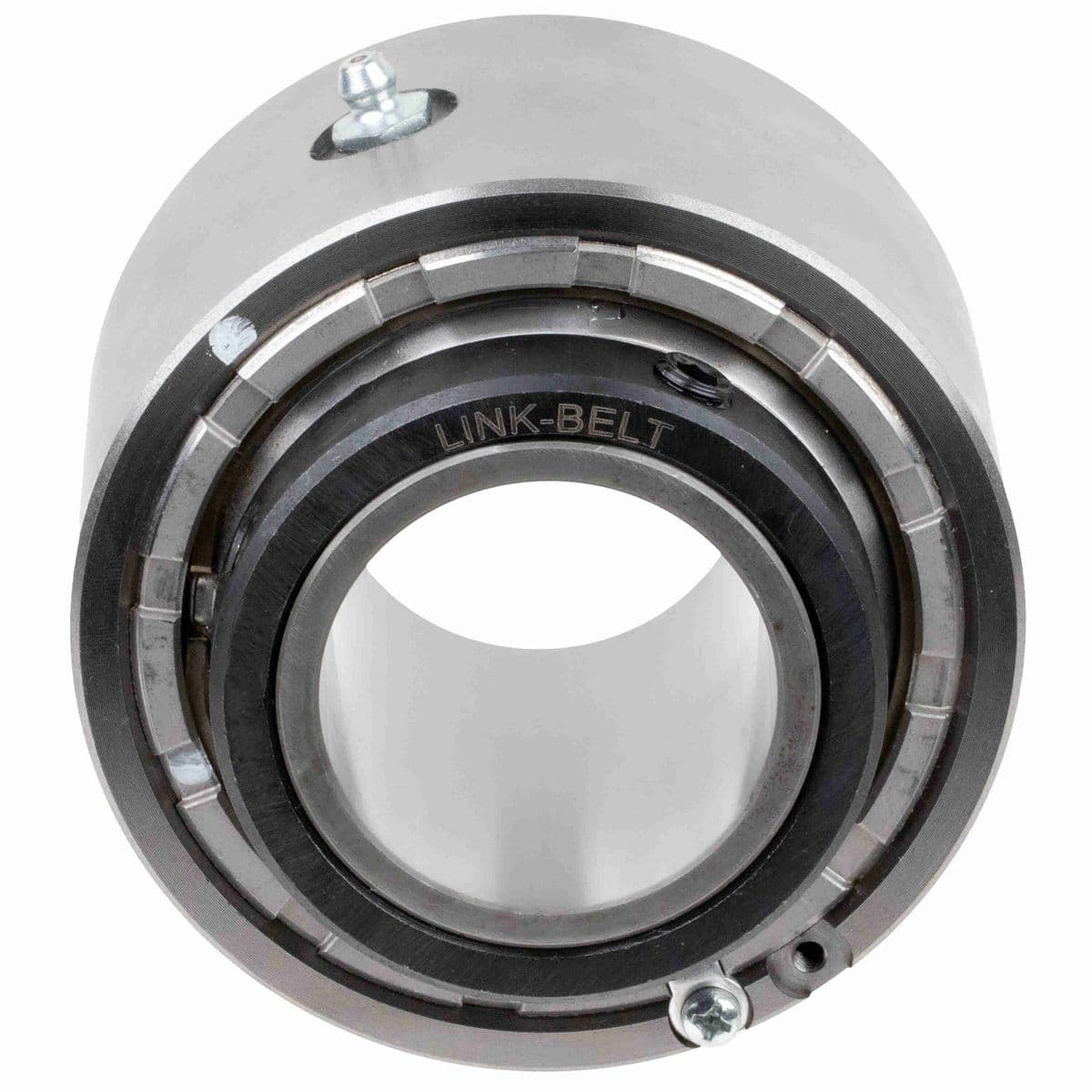

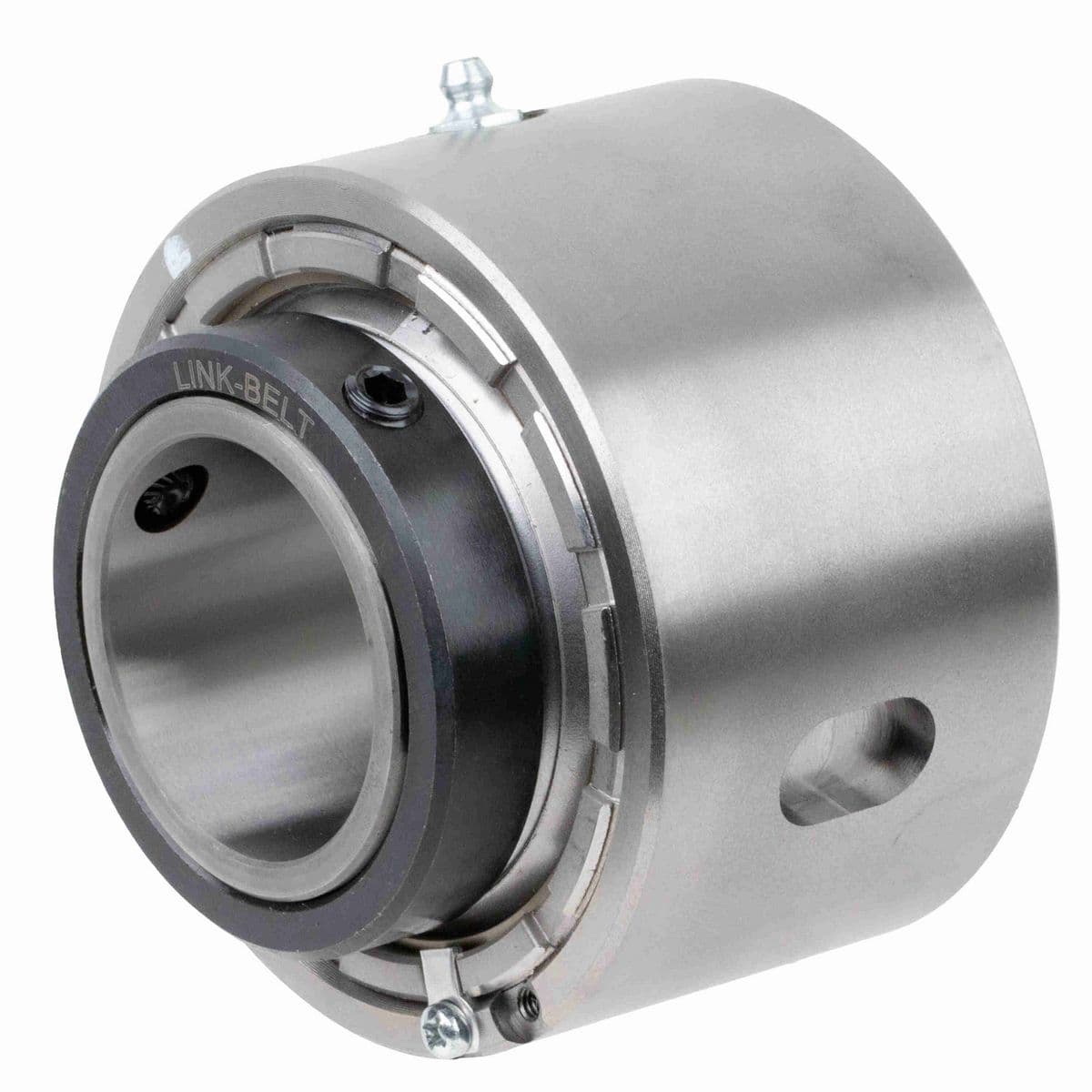

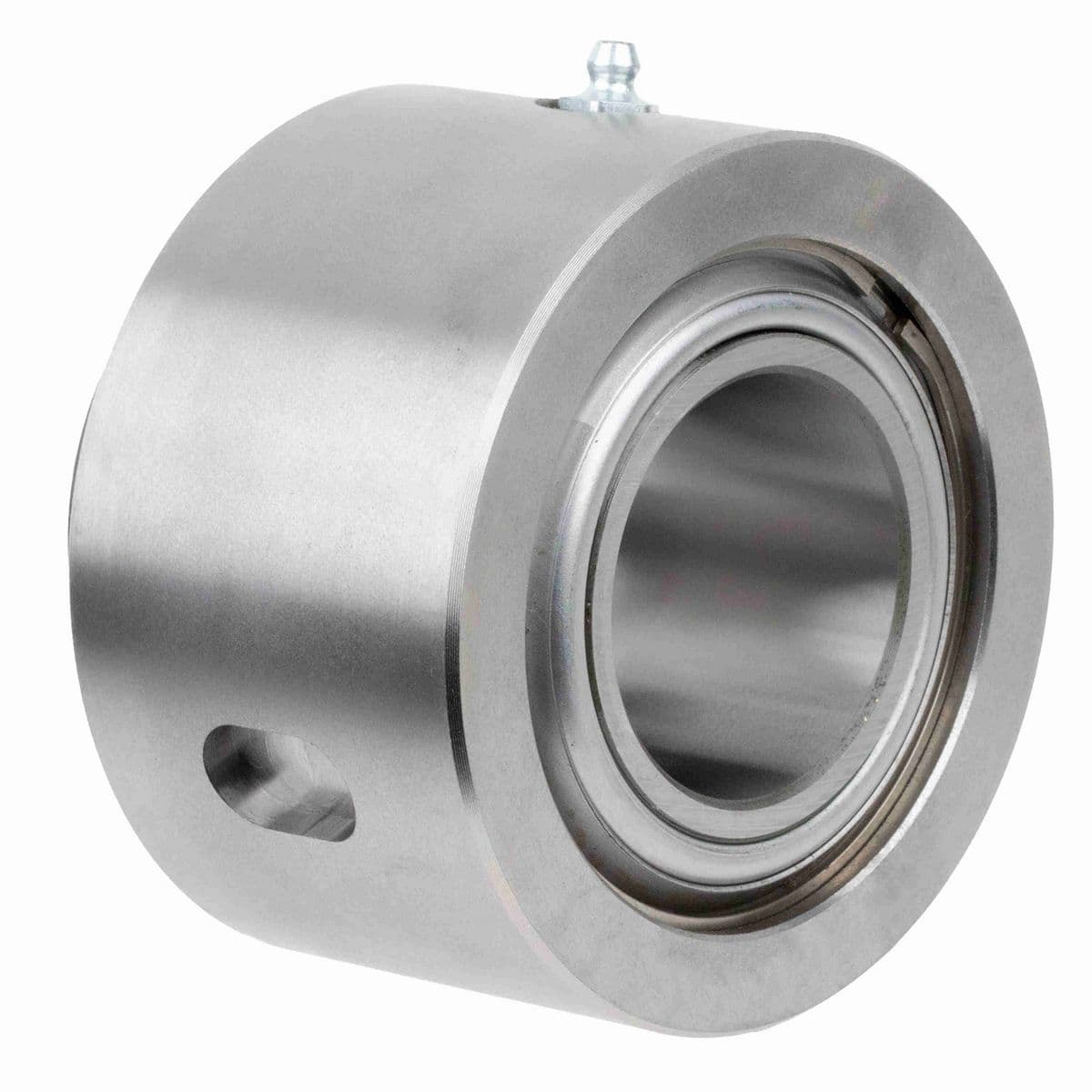

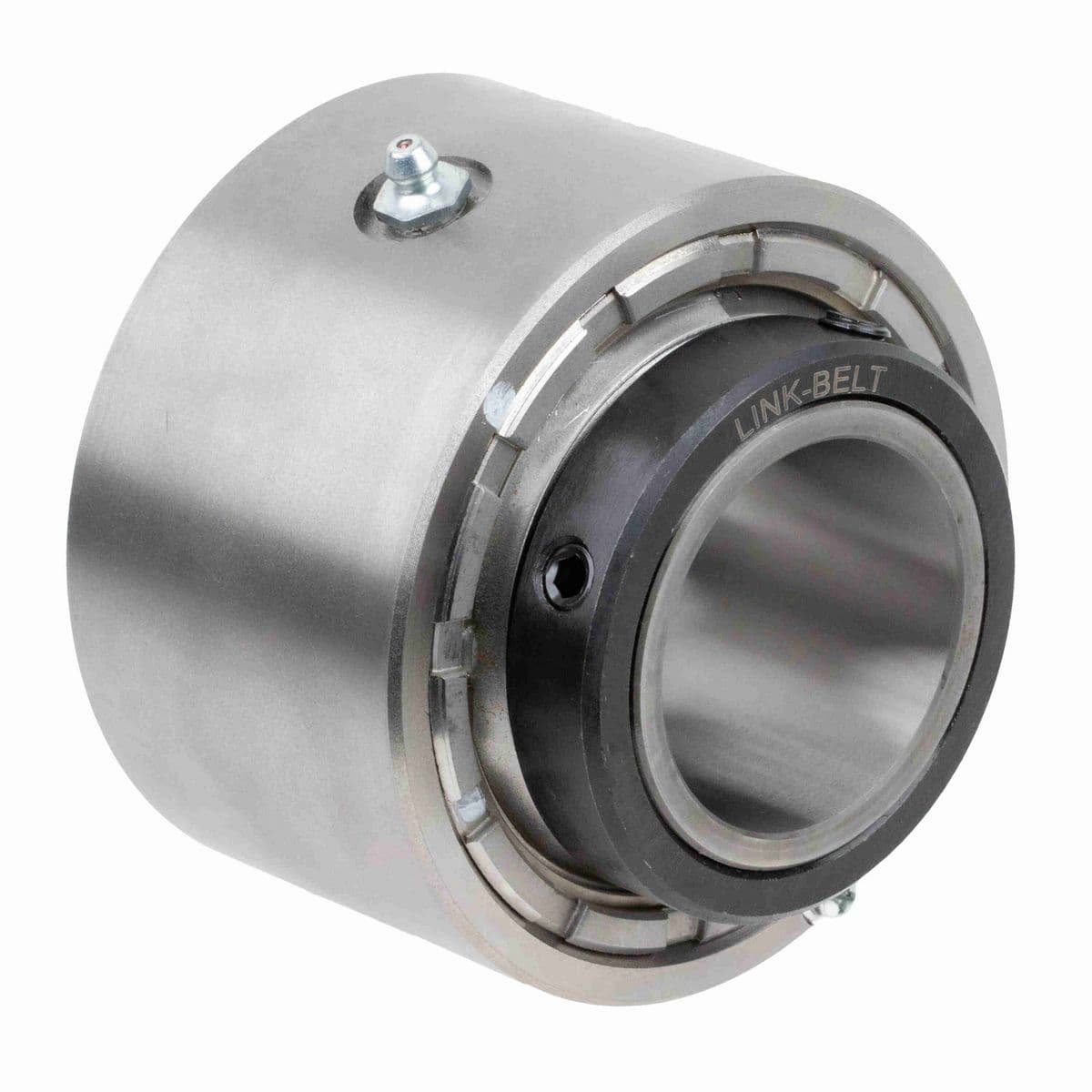

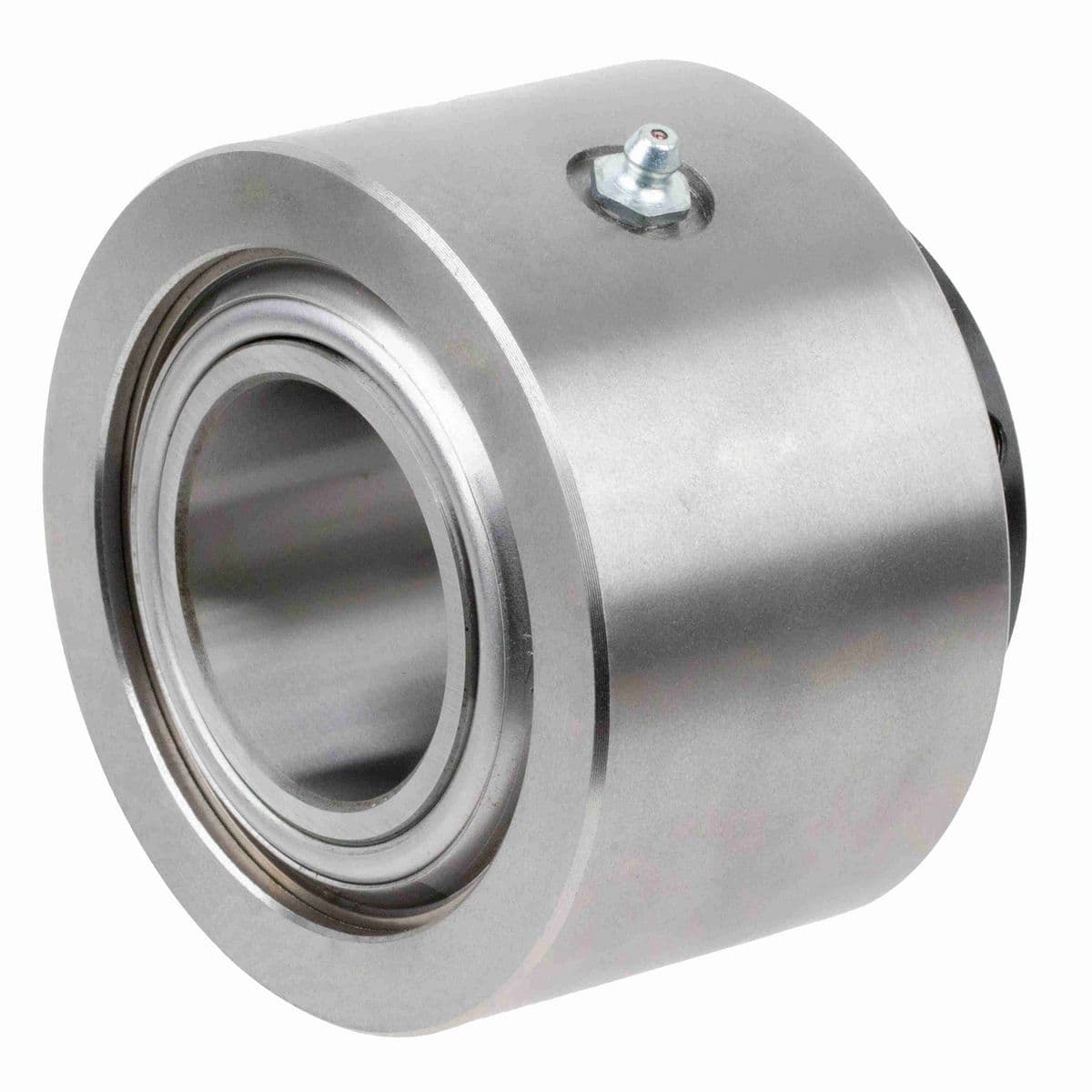

• 1 15/16" Mounted Spherical Roller Bearing, Cast Iron Cartridge Block, Single Setscrew Locking Collar, Clearance Seal

Dimensions

Housing Width (in)	2.44 in
Overall Width (in)	3.16 in
Overall Length (in)	4.13 in
Bore Diameter (in)	1.9375 in
Outside Diameter (in)	4.125 in
Overall Height (in)	4.13 in
Locking Collar Outside Diameter (in)	2.88 in
Centerline to Outermost Bearing Face (in)	1.91 in
Housing Cast Face to Outermost Bearing Face (in)	0.66 in
Inner Ring Outside Diameter (in)	2.307 in
Length Through Bore (in)	3.13 in

Technical Specifications

Housing Style	Cartridge Block
Cage Material	Steel
Seal Type	Clearance Seal
Radial Clearance	C0 STANDARD
Static Load Rating (lb)	33,200 lb
Shaft Locking Type	Single Set Collar
Fixed/Expansion	Fixed
End Cap	B432DTC
Housing Material	Cast Iron
Product	CB22400
Housing Construction	Solid
Radial Dynamic Load Capacity (lb)	25,900 lb
Rolling Element	Spherical
Series	Cartridge Blocks
Setscrew Torque (in-lbs)	325 in/lbs
Available Seal Type	E Lip Seal; H Labyrinth Seal; E7 Triple Lip Seal
Ability to Relubricate	Yes
Seal Kit	B432HS
Microlock Kit	B436MLK1
Maximum Speed (RPM)	2800 rpm
Grease Fitting Thread Size	1/8 NPT
Vibration Frequency Inner Ring Defect	0.1617 cps
Insert	B431L
Locking Device Kit	B432SC
Lubricant	EXXON RONEX MP STD
Size Code	B432
Vibration Frequency Fundamental Train	0.0072 cps
Vibration Frequency Outer Ring Defect	0.1217 cps
Max Operating Temperature (F)	225 °F
Vibration Frequency Roller Spin	0.0559 cps
Misalignment Capability	±2.0° Misalignment - Dynamic
Max Operating Temperature (C)	107 °C

General Specifications

UPC	662327010775
Weight	7.62 LB
Packaged Length	5.00 IN
Packaged Width	5.00 IN
Packaged Height	3.00 IN
HTC	8483204080
Country of Origin	United States of America
