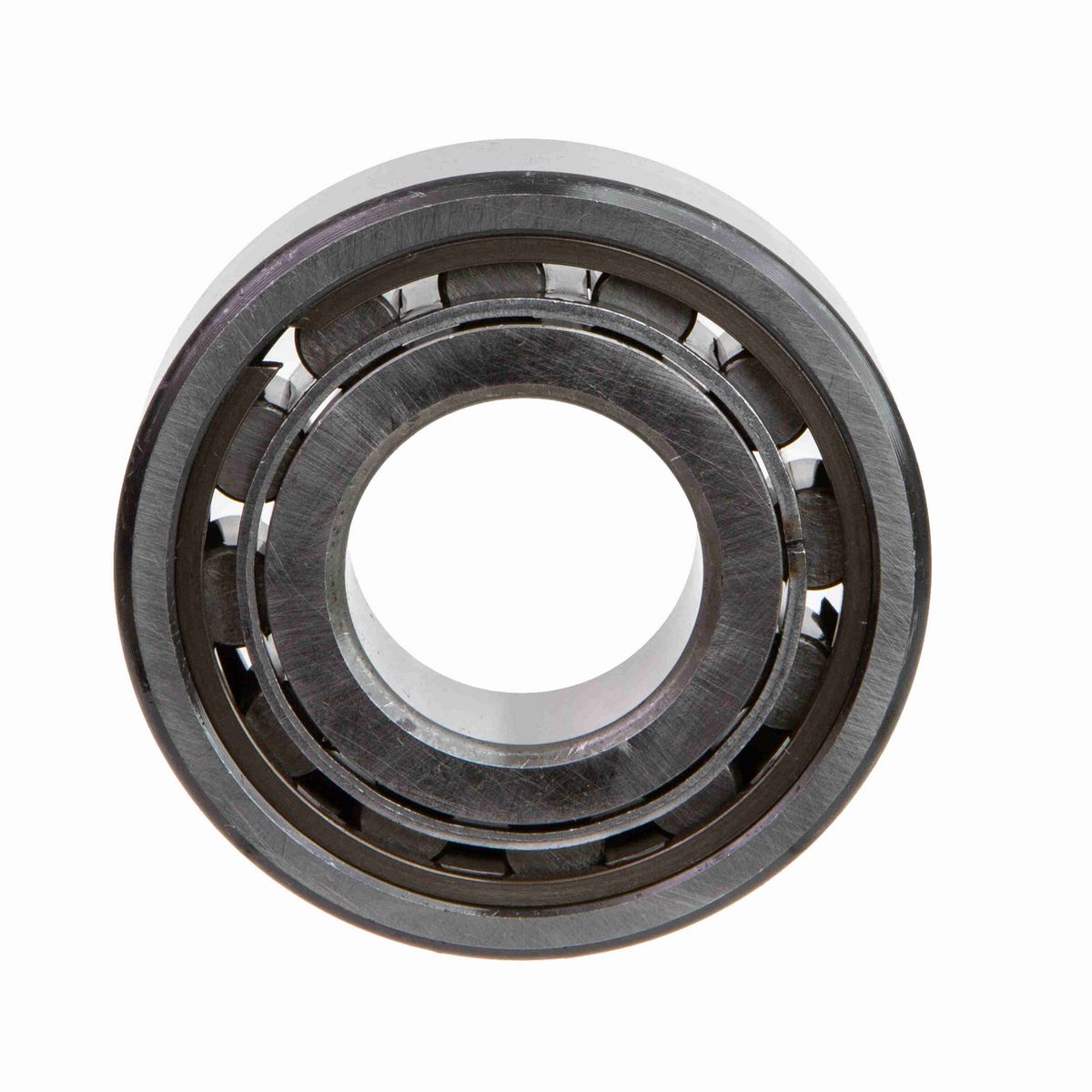

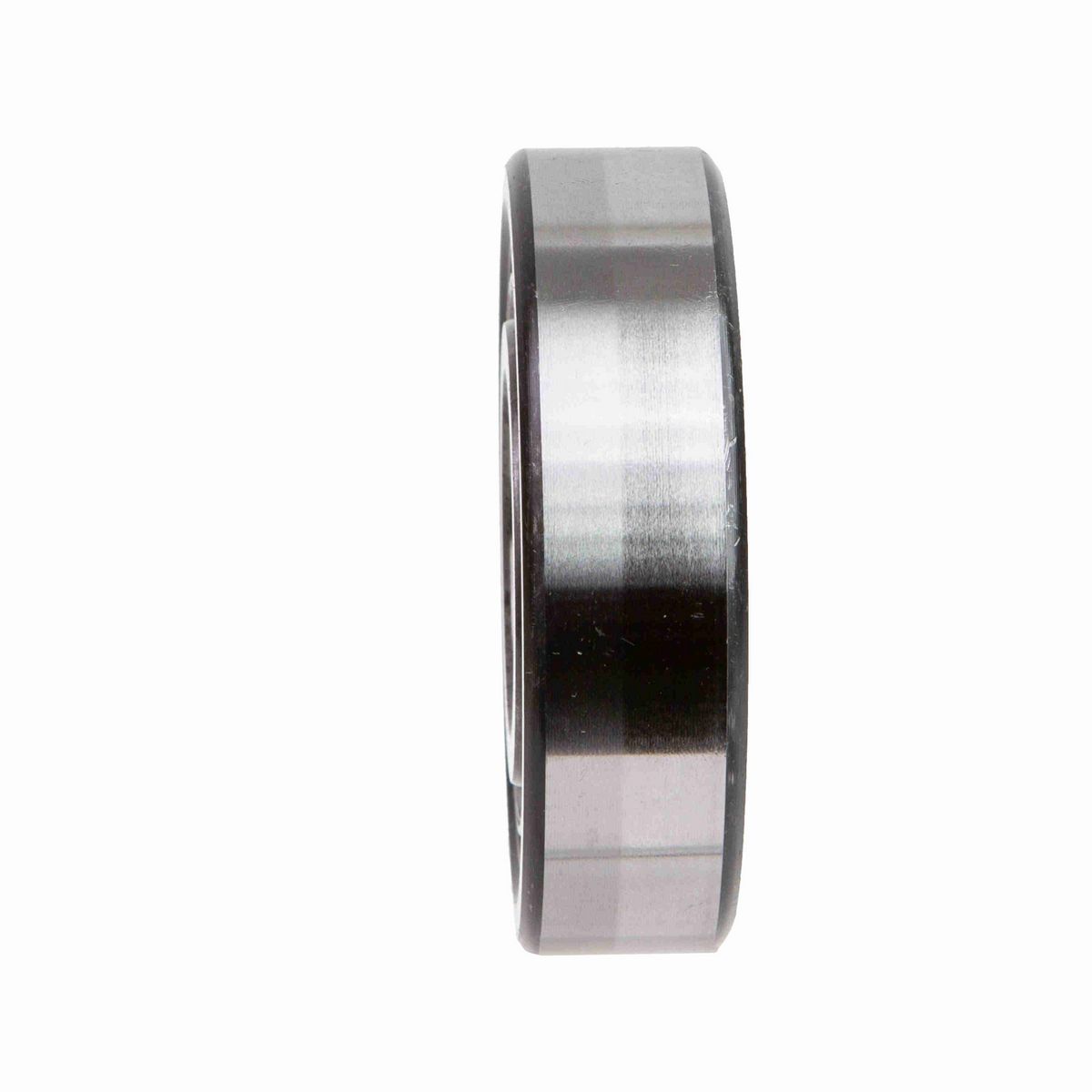

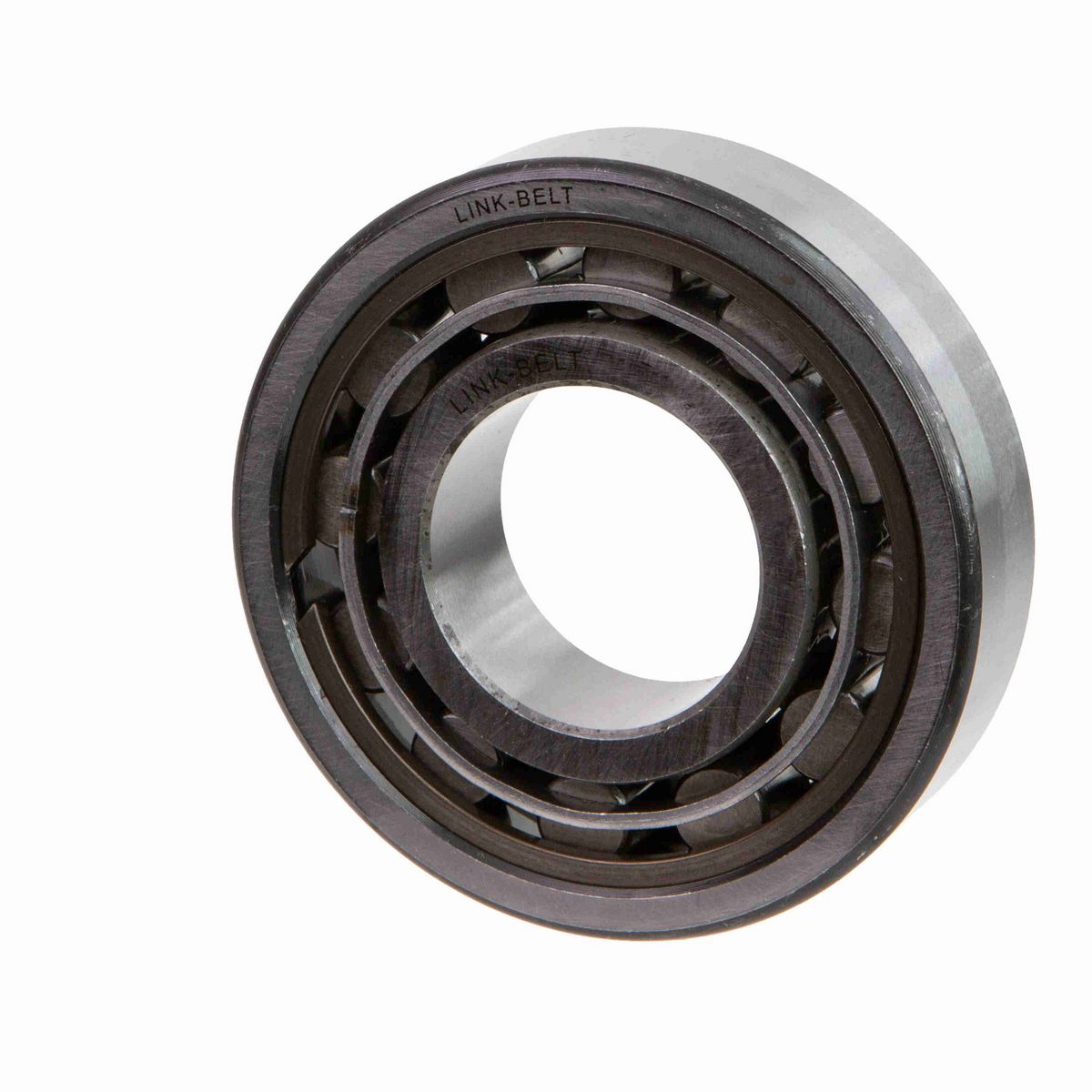

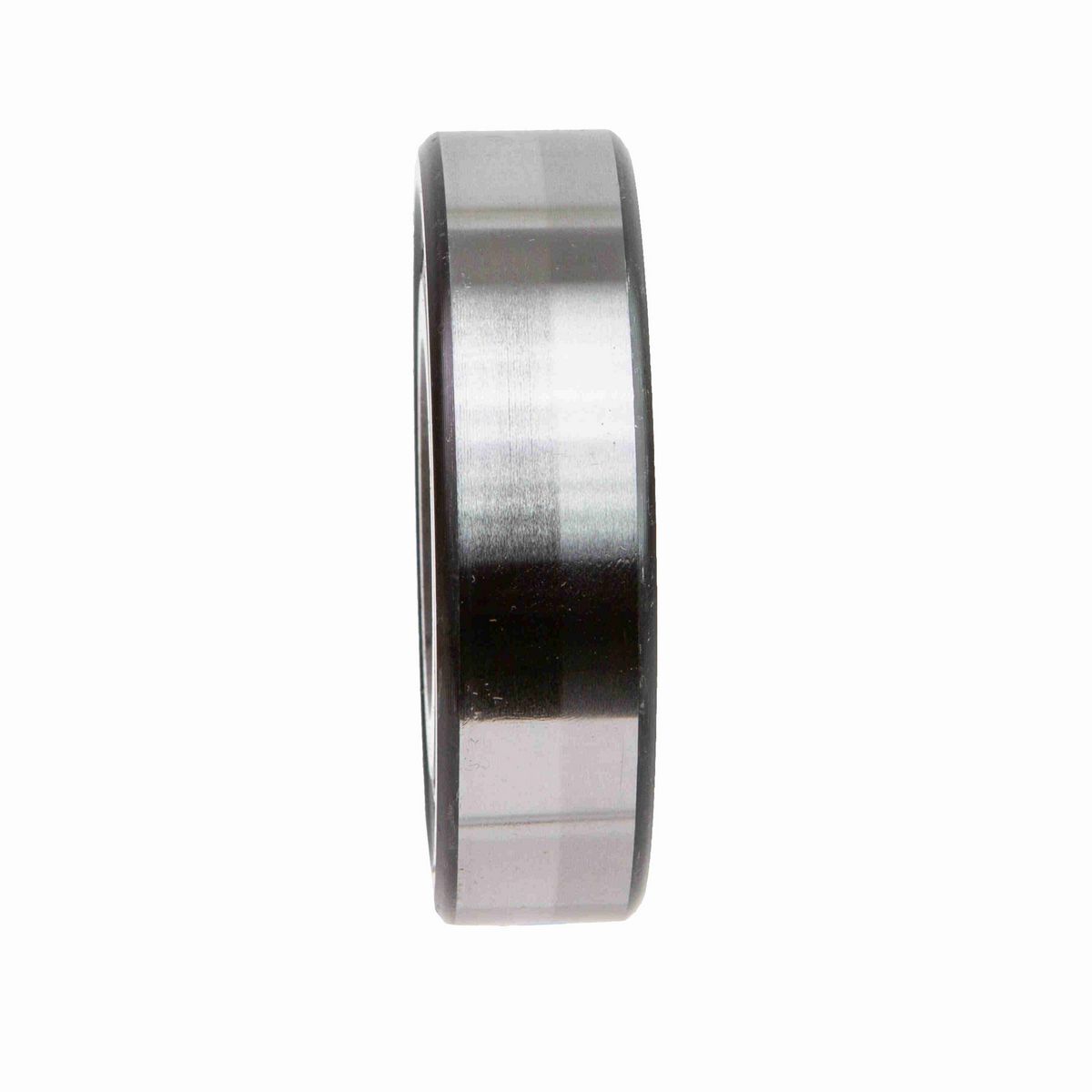

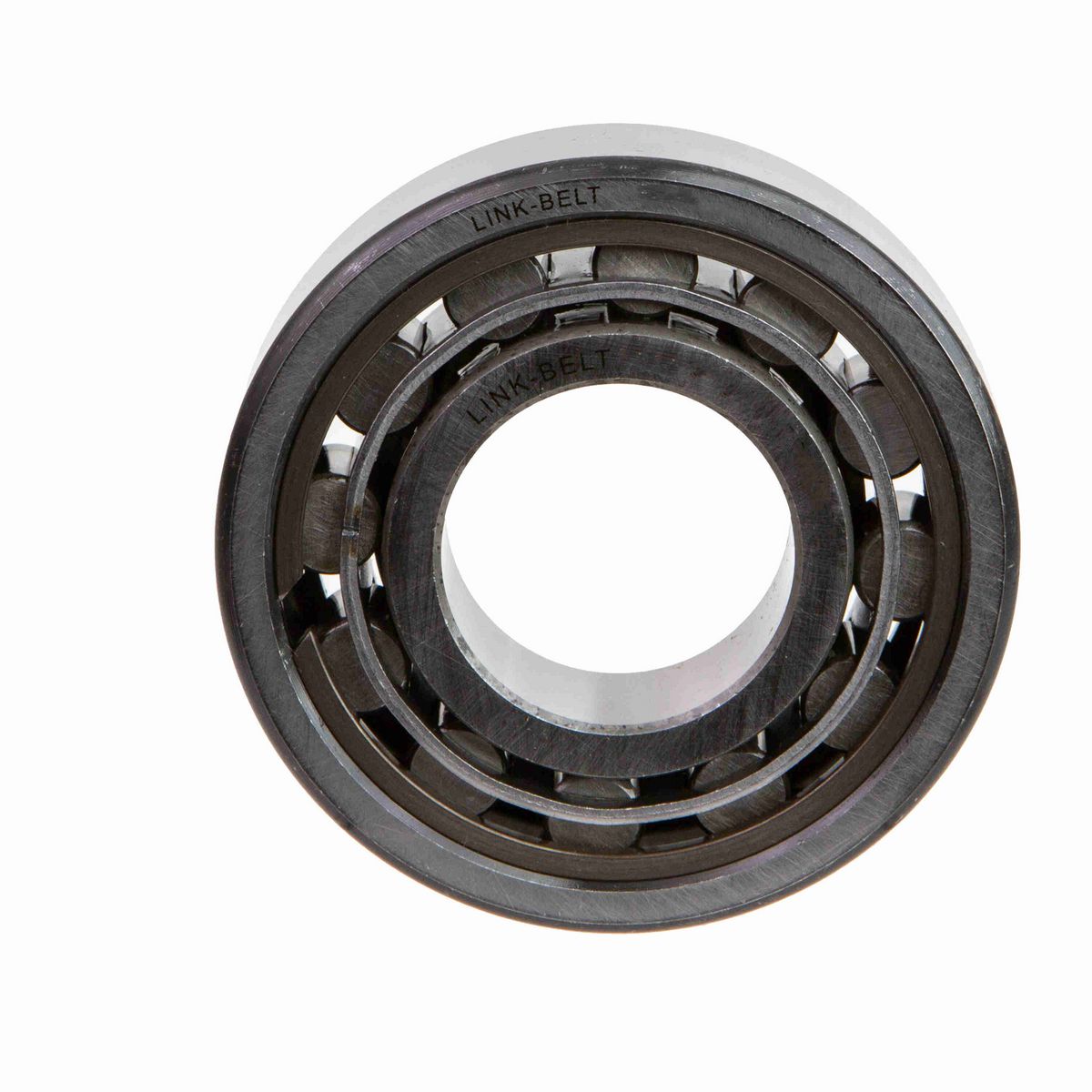

• 35 mm Cylindrical Roller Bearing with single rib inner ring, 2 retaining rings in outer ring and formed steel retainer

Dimensions

Outside Diameter (mm)	80 mm
Bore Size (mm)	35 mm

Technical Specifications

Inner Ring Type	Single Rib (R)
Mounted Clearance	SEE DESCRIPTION
Shaft Shoulder Diameter (Plain Inner Ring) [Min] (mm)	43.7 mm
Ring Width Series	Narrow (1)
C Dynamic Load Rating	CALL ENG lb
Outer Ring Rib Inside Diameter (mm)	64.46 mm
Shaft Shoulder Diameter (Ribbed Inner Ring) [Min] (mm)	46.7 mm
Housing Shoulder Diameter (Plain Outer Ring) [Max] (mm)	71.4 mm
Retainer Type	SEE DESCRIPTION
Outer Ring Type	Outer Ring With Two Retaining Rings in I.D. (T)
Vibration Frequency Fundamental Train	CALL ENG cps
Inner Ring and Roller Assembly Over Roller Diameter (mm)	62.43 mm
Bore Type	Straight
Outer Ring and Roller Assembly Under Roller Diameter (mm)	44.01 mm
Outer Ring Raceway Inside Diameter (mm)	67.94 mm
Inner Ring Raceway Outside Diameter (mm)	46.84 mm
Inner Ring Bore Radius (mm)	1.52 mm
Vibration Frequency Inner Ring Defect	CALL ENG cps
Bearing Width (mm)	21 mm
Series	Unmounted Bearings
Co Static Load Rating	CALL ENG lb
Vibration Frequency Outer Ring Defect	CALL ENG cps
Basic Bearing Number	1307
Shaft Locking	DIRECT SHAFT MOUNT
Inner Ring Rib Outside Diameter (mm)	50.67 mm
Housing Shoulder Diameter (Ribbed Outer Ring) [Max] (mm)	67.8 mm
Vibration Frequency Roller Spin	CALL ENG cps
Series Weight	Medium (3)
Rolling Element	Cylindrical
Product	Series 1300 Unmounted Bearings
Maximum Speed (RPM)	CALL ENG rpm

General Specifications

UPC	662327054953
Weight	1.12 LB
Packaged Length	0.83 IN
Packaged Width	3.15 IN
Packaged Height	1.38 IN
HTC	8482400000
Country of Origin	Mexico
