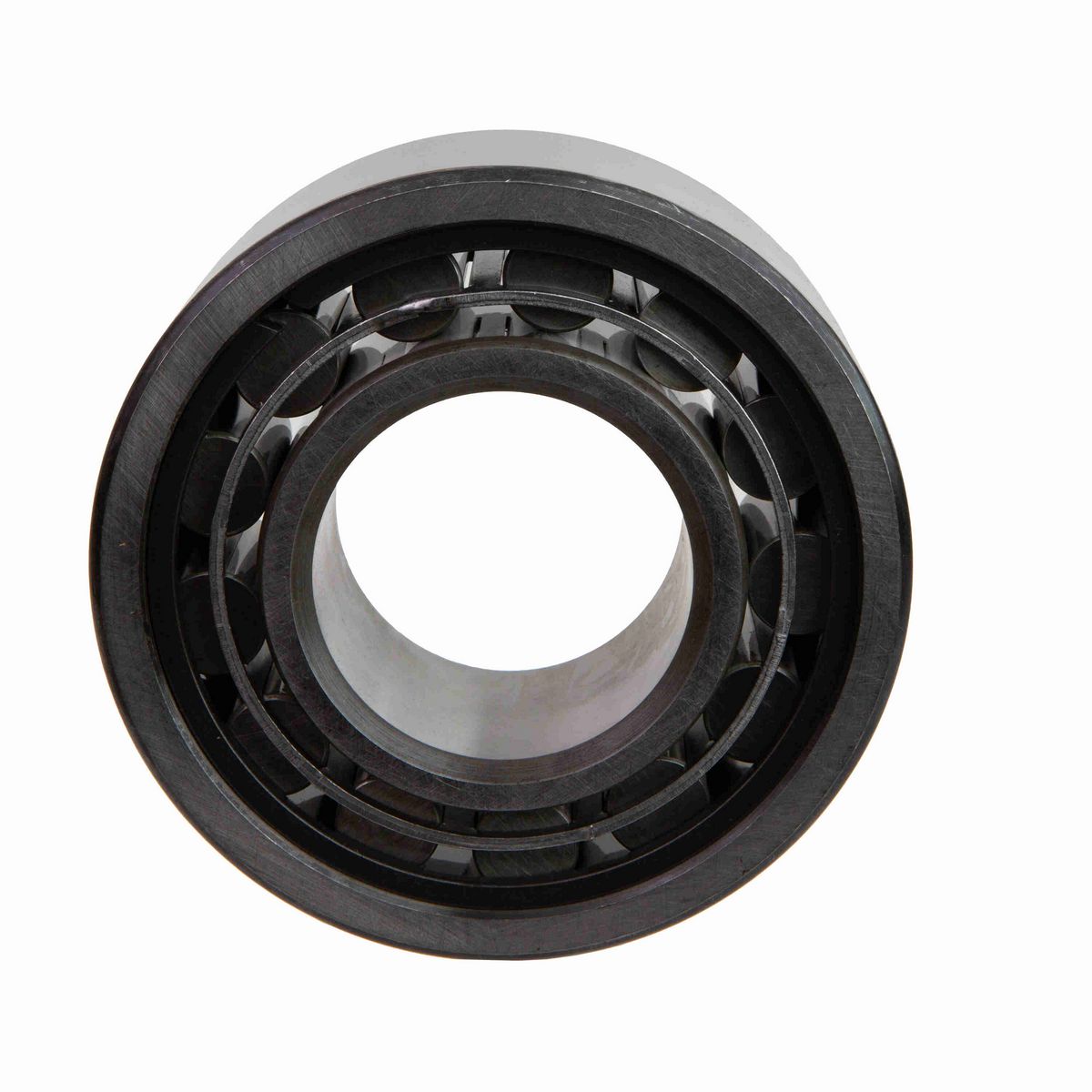

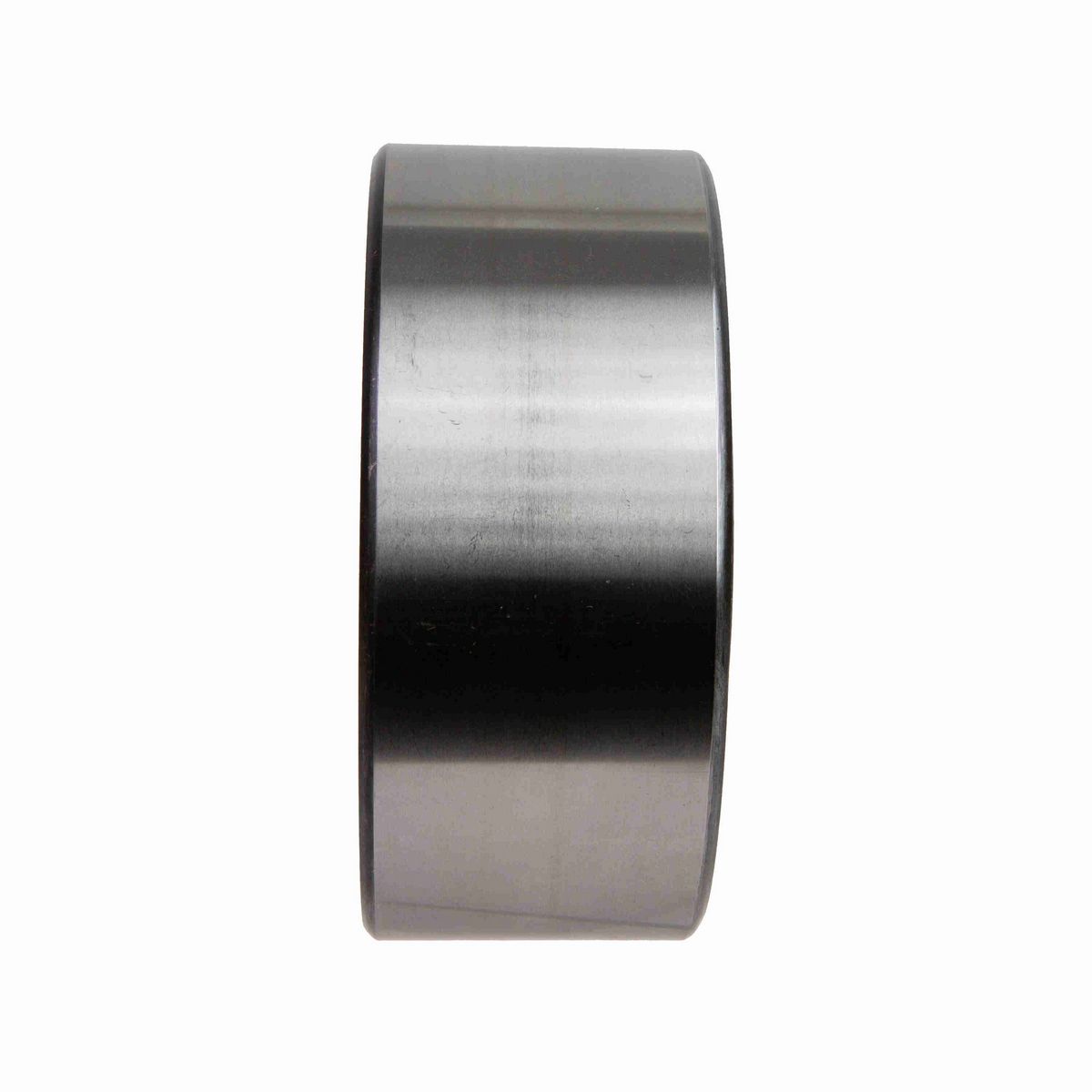

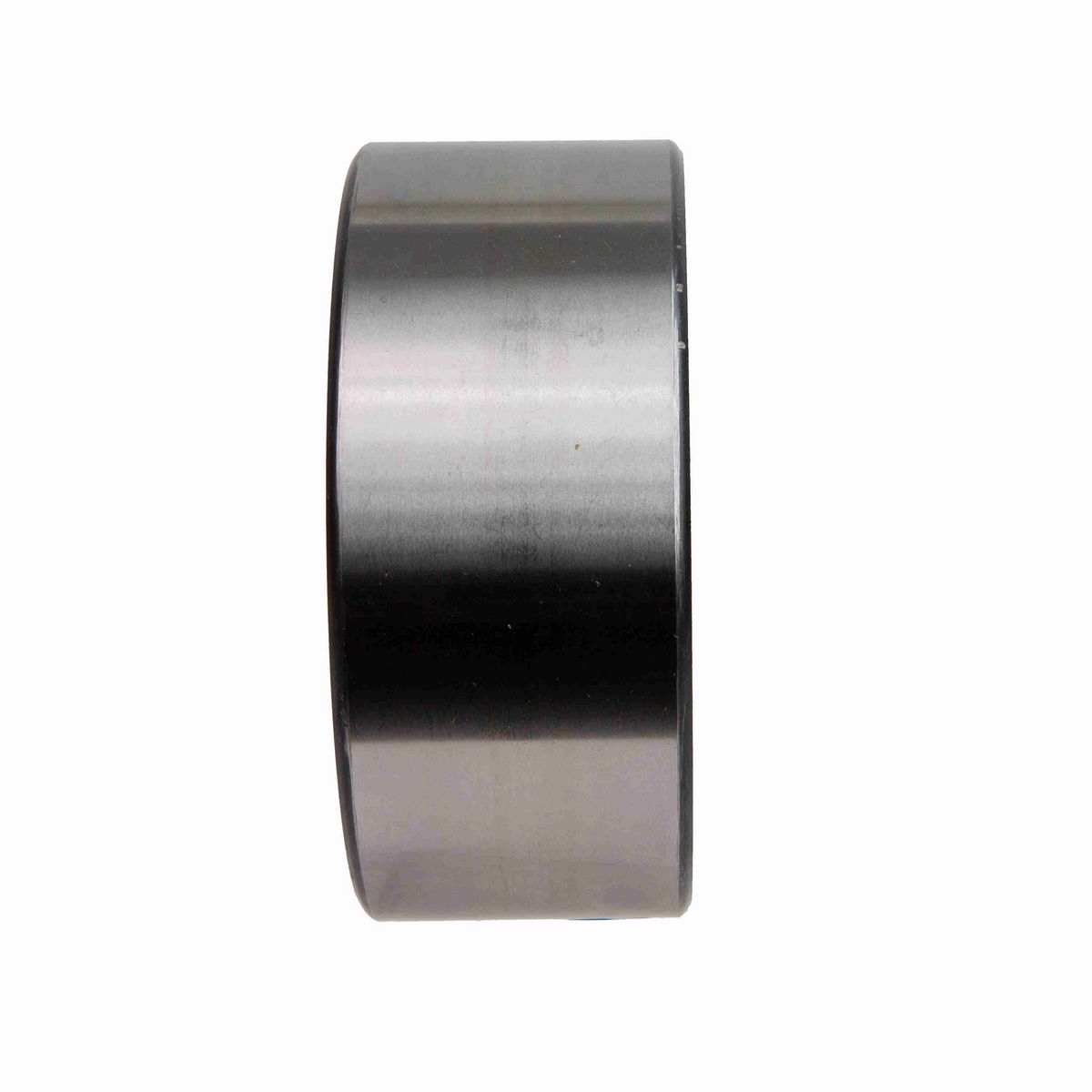

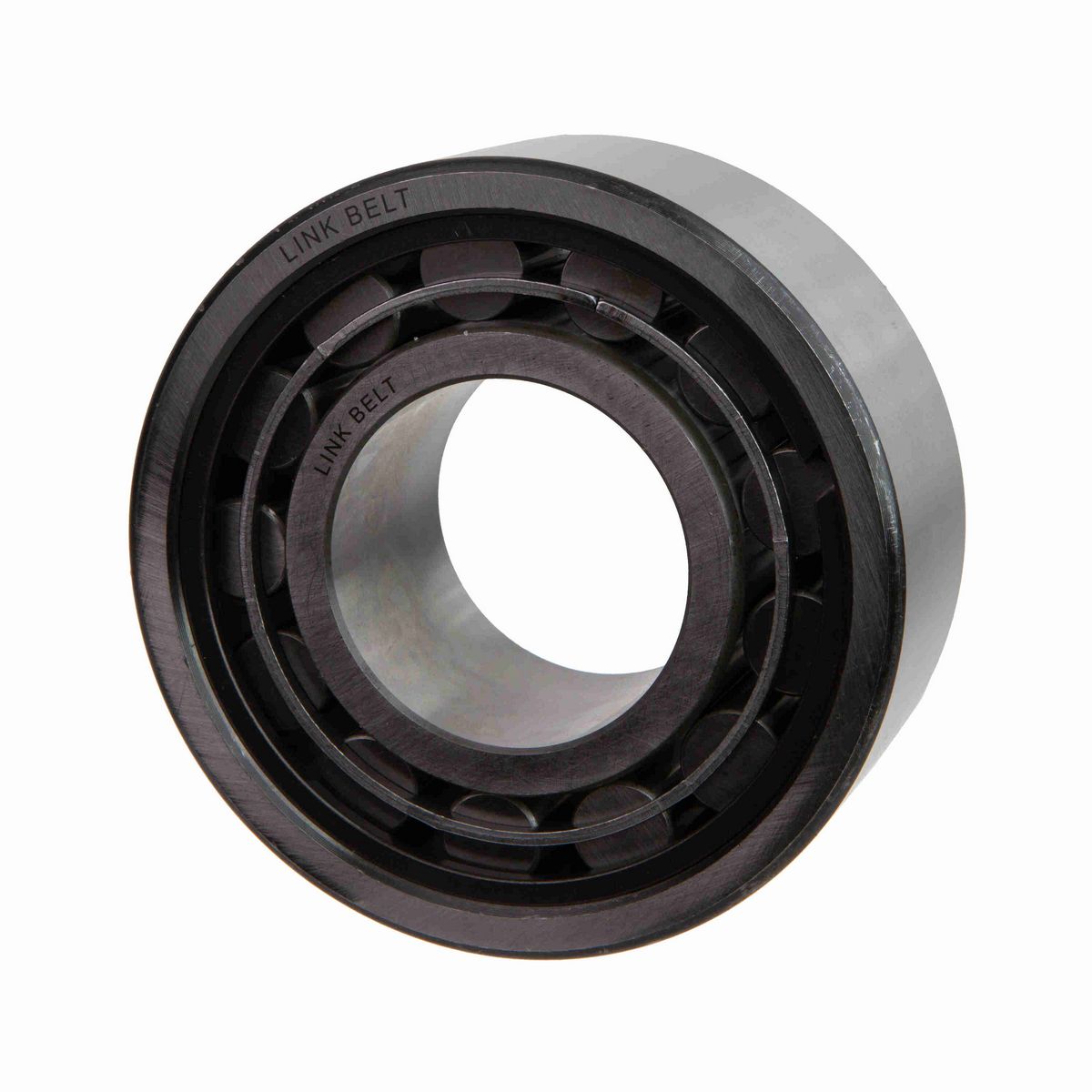

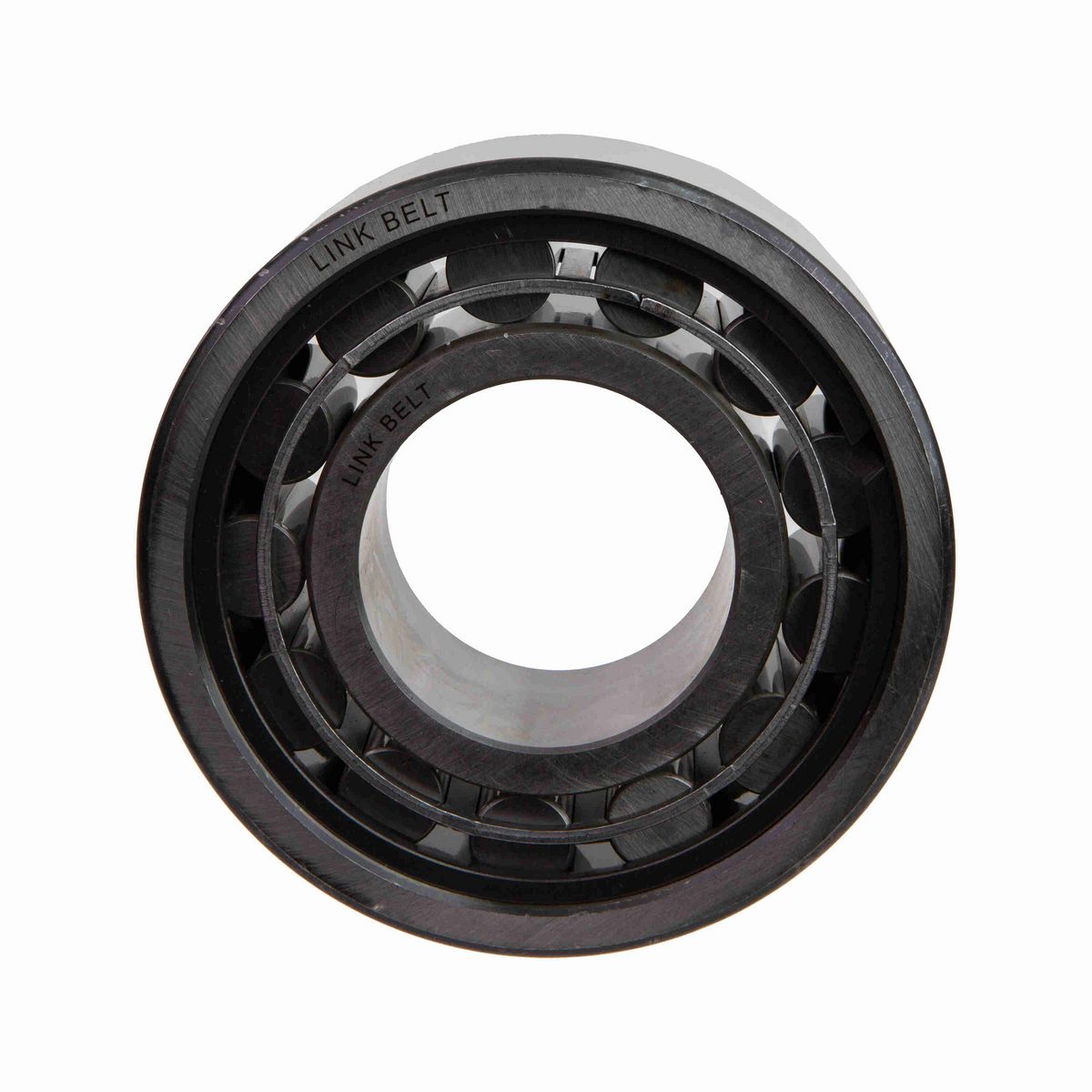

• 100 mm Cylindrical Roller Bearing with plain cylindrical inner ring, single rib and 1 retaining ring in outer ring and formed steel retainer

Dimensions

Outside Diameter (mm)	180 mm
Bore Size (mm)	100 mm

Technical Specifications

Inner Ring Bore Radius (mm)	2.03 mm
Inner Ring Type	Plain Cylindrical (A)
Shaft Shoulder Diameter (Ribbed Inner Ring) [Min] (mm)	120.9 mm
Outer Ring Type	Single Rib Outer Ring One Retaining Ring in I.D. (U)
Shaft Locking	DIRECT SHAFT MOUNT
Shaft Shoulder Diameter (Plain Inner Ring) [Min] (mm)	116.1 mm
Mounted Clearance	SEE DESCRIPTION
Outer Ring Raceway Inside Diameter (mm)	161.22 mm
Inner Ring Raceway Outside Diameter (mm)	121.01 mm
Vibration Frequency Inner Ring Defect	CALL ENG cps
Inner Ring and Roller Assembly Over Roller Diameter (mm)	161.13 mm
Ring Width Series	Narrow (1)
C Dynamic Load Rating	CALL ENG lb
Vibration Frequency Outer Ring Defect	CALL ENG cps
Outer Ring Rib Inside Diameter (mm)	154.18 mm
Co Static Load Rating	CALL ENG lb
Housing Shoulder Diameter (Plain Outer Ring) [Max] (mm)	167.1 mm
Bearing Width (mm)	34 mm
Vibration Frequency Fundamental Train	CALL ENG cps
Maximum Speed (RPM)	CALL ENG rpm
Vibration Frequency Roller Spin	CALL ENG cps
Inner Ring Rib Outside Diameter (mm)	128.45 mm
Rolling Element	Cylindrical
Outer Ring and Roller Assembly Under Roller Diameter (mm)	121.09 mm
Basic Bearing Number	1220
Series	Unmounted Bearings
Retainer Type	SEE DESCRIPTION
Series Weight	Light (2)
Housing Shoulder Diameter (Ribbed Outer Ring) [Max] (mm)	161 mm
Product	Series 1200 Unmounted Bearings
Bore Type	Straight

General Specifications

UPC	662327052102
Weight	7.87 LB
Packaged Length	1.34 IN
Packaged Width	7.09 IN
Packaged Height	3.94 IN
HTC	8482500000
Country of Origin	Mexico
