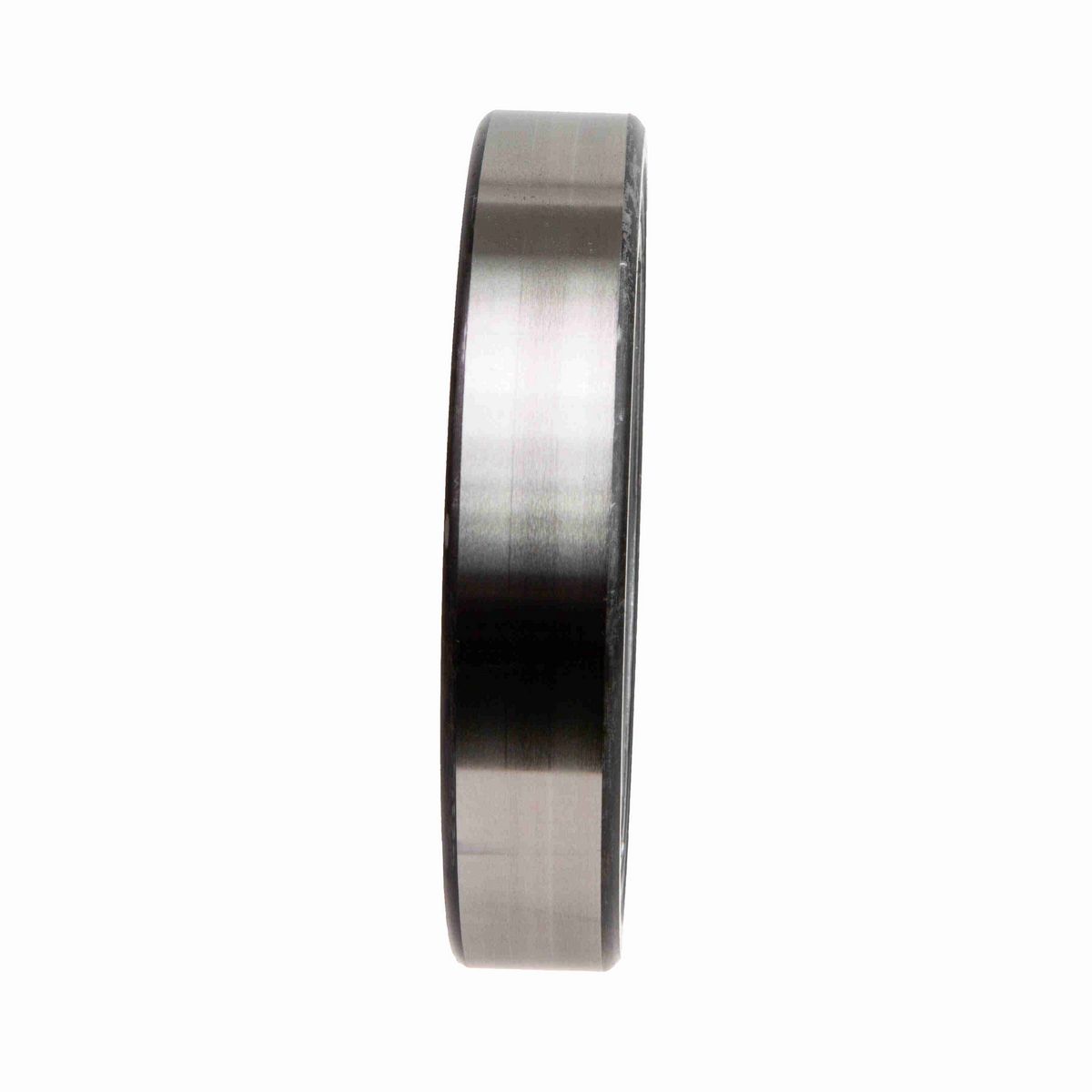

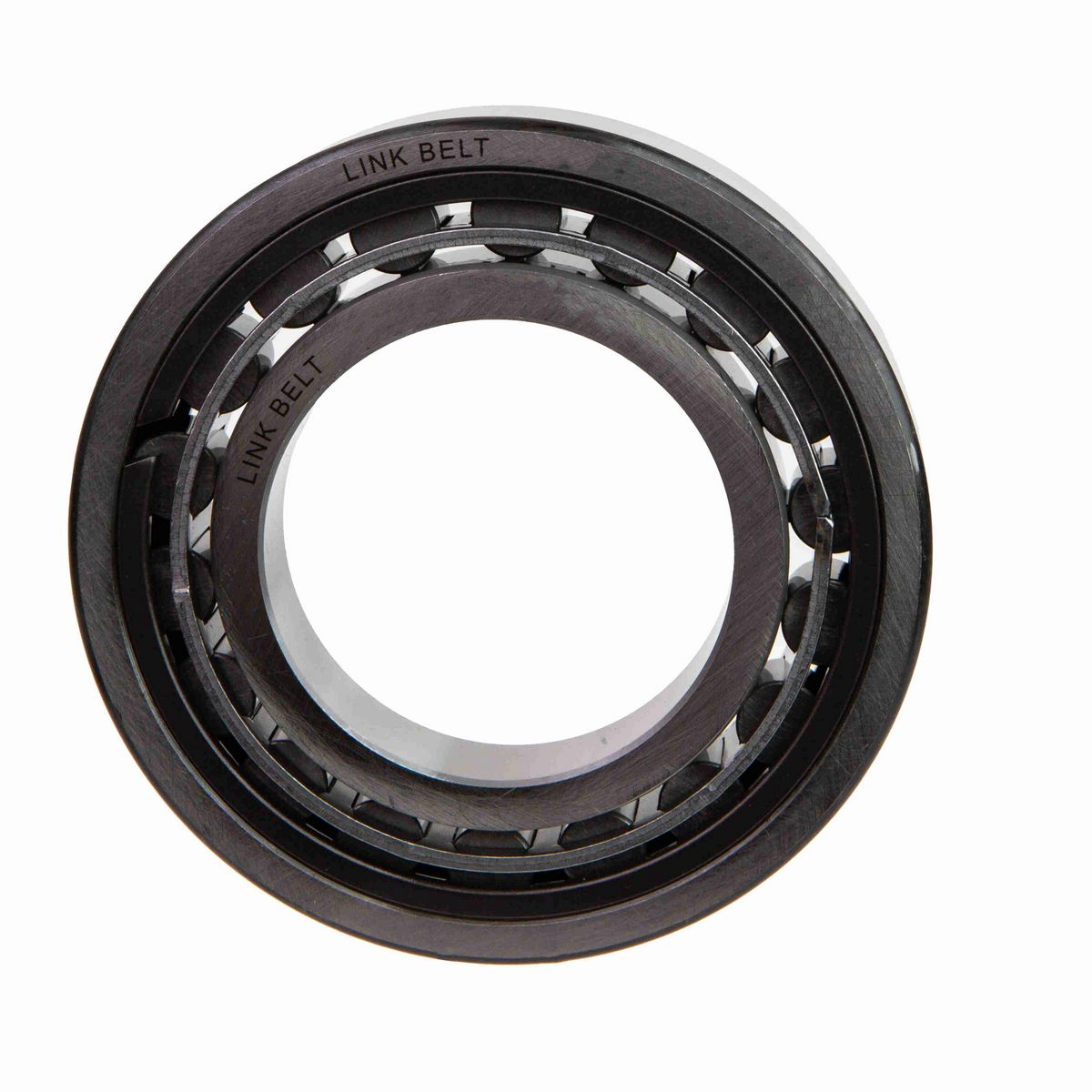

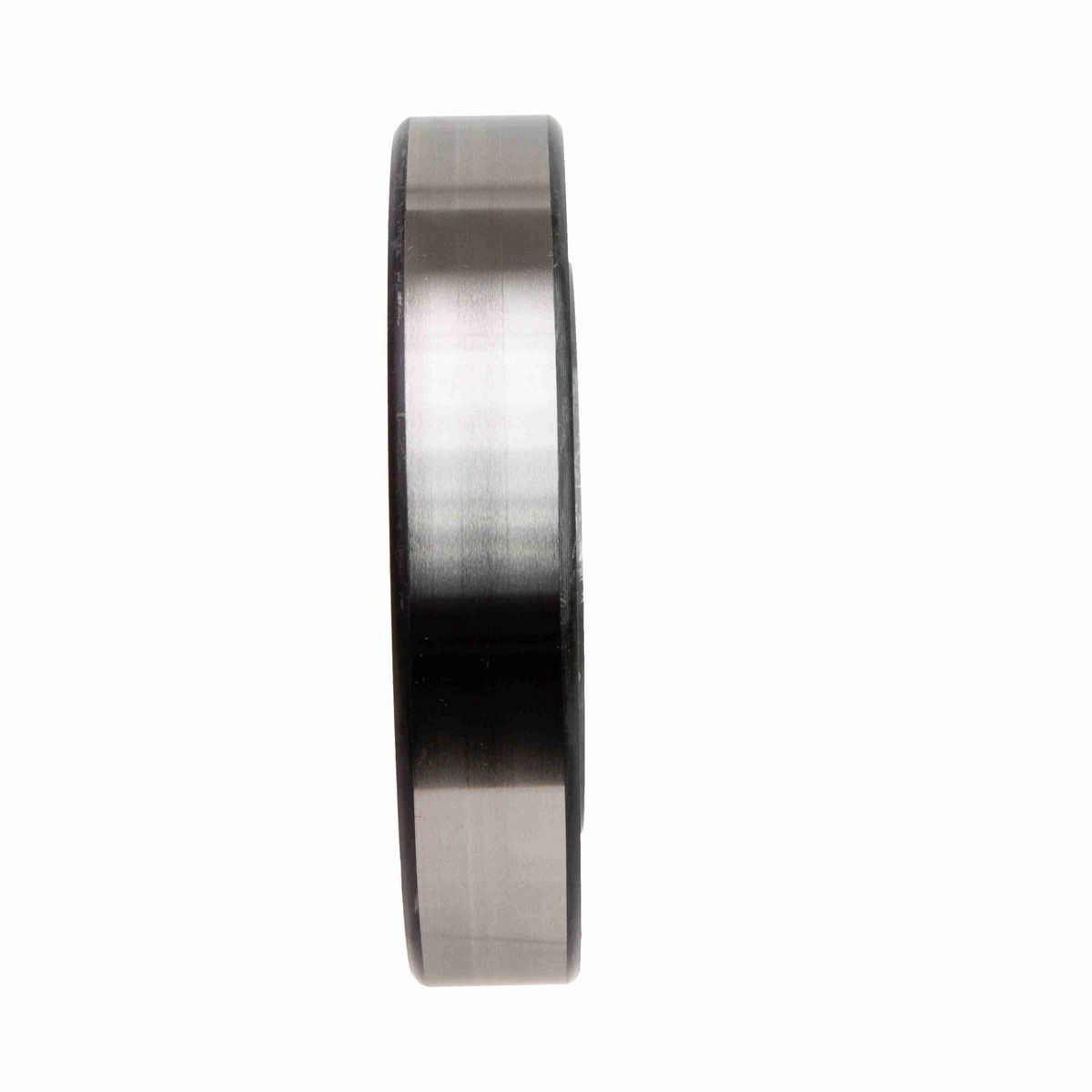

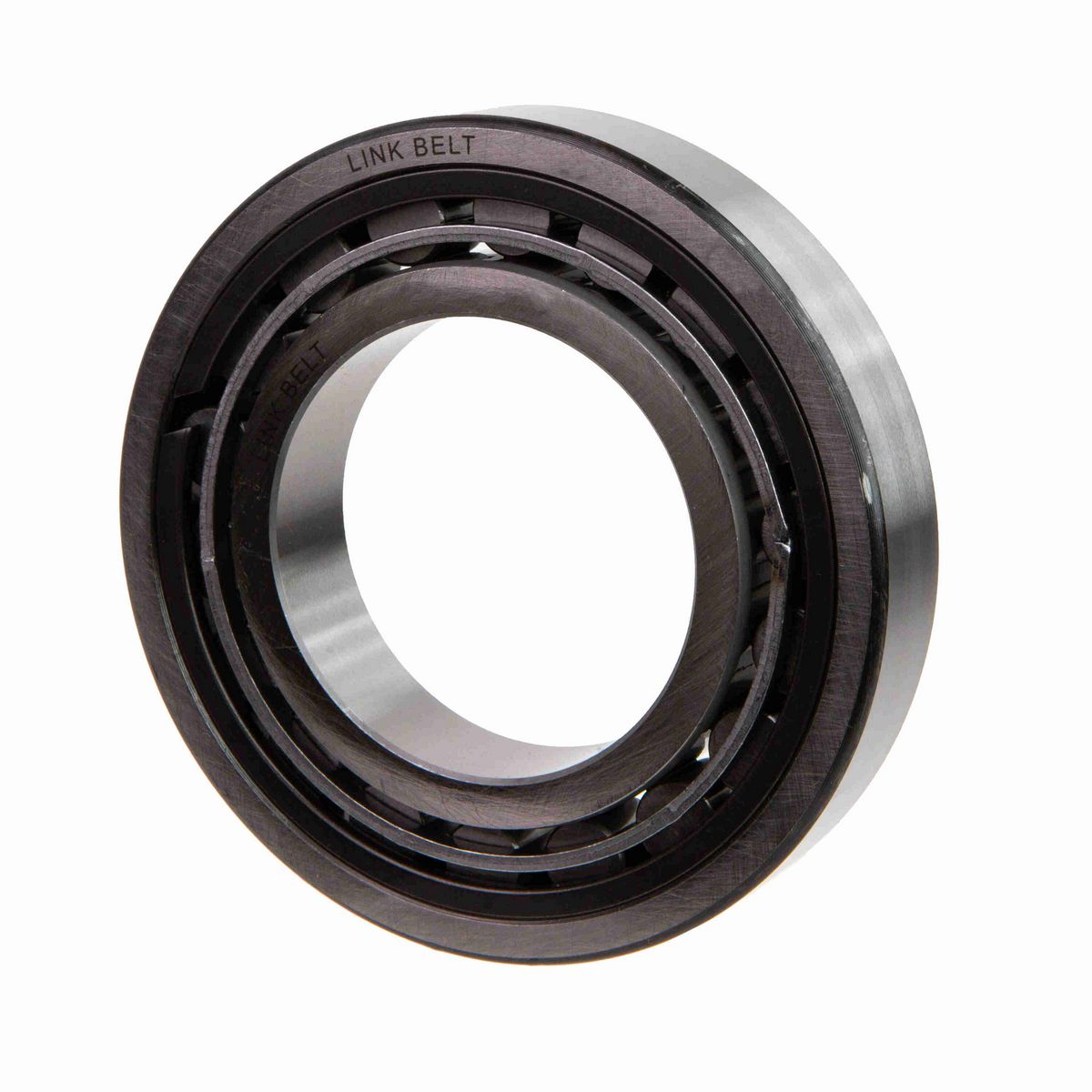

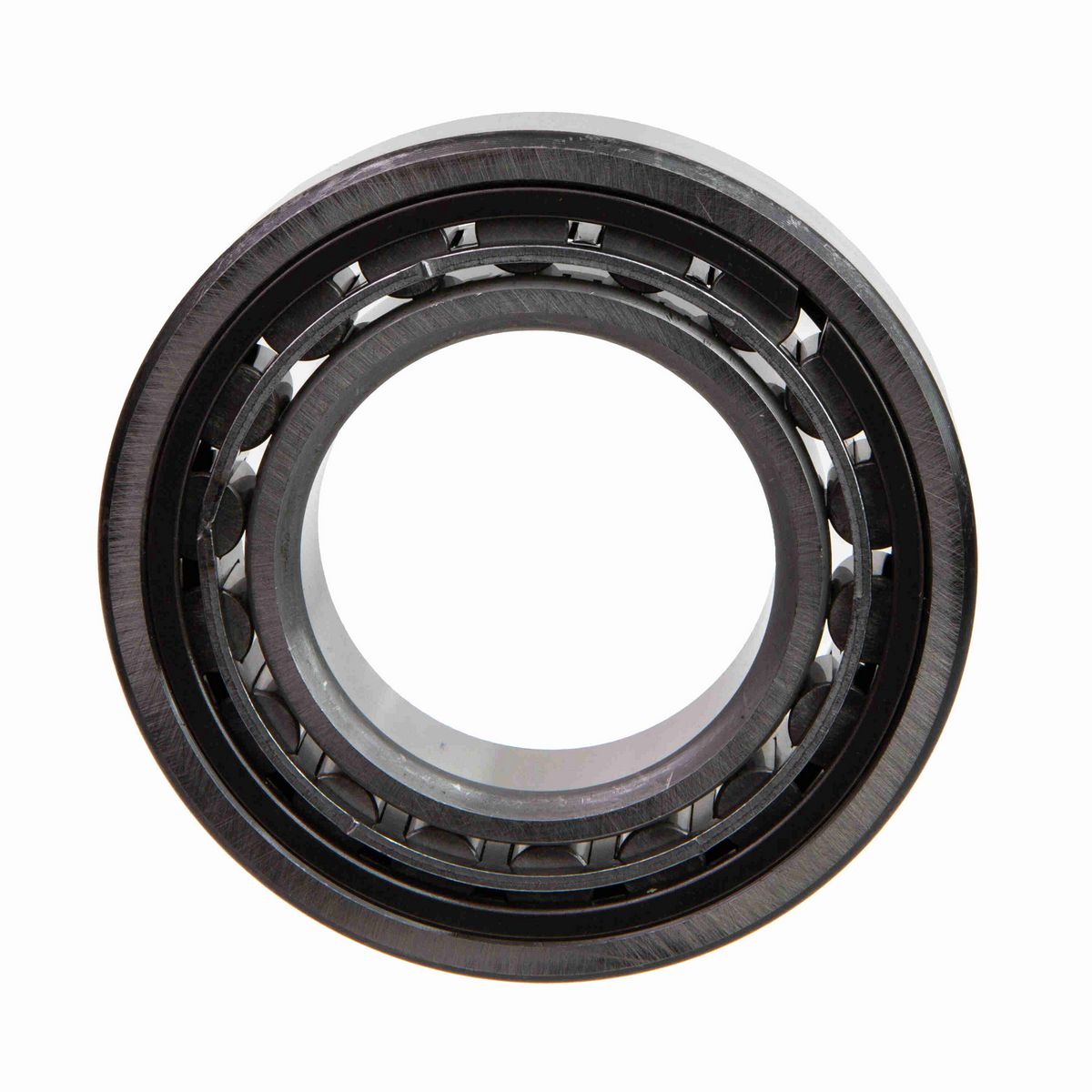

• 65 mm Cylindrical Roller Bearing with plain cylindrical inner ring, 2 retaining rings in outer ring and formed steel retainer

Dimensions

Outside Diameter (mm)	120 mm
Bore Size (mm)	65 mm

Technical Specifications

Inner Ring Rib Outside Diameter (mm)	85.34 mm
Outer Ring Rib Inside Diameter (mm)	101.24 mm
Housing Shoulder Diameter (Plain Outer Ring) [Max] (mm)	110 mm
Bore Type	Straight
Co Static Load Rating	CALL ENG lb
Inner Ring Bore Radius (mm)	1.52 mm
Bearing Width (mm)	23 mm
Maximum Speed (RPM)	CALL ENG rpm
Shaft Shoulder Diameter (Ribbed Inner Ring) [Min] (mm)	80.3 mm
Series	Unmounted Bearings
Vibration Frequency Outer Ring Defect	CALL ENG cps
Vibration Frequency Inner Ring Defect	CALL ENG cps
Vibration Frequency Fundamental Train	CALL ENG cps
Shaft Shoulder Diameter (Plain Inner Ring) [Min] (mm)	77 mm
Retainer Type	SEE DESCRIPTION
Outer Ring Raceway Inside Diameter (mm)	105.8 mm
Housing Shoulder Diameter (Ribbed Outer Ring) [Max] (mm)	105.7 mm
Series Weight	Light (2)
Rolling Element	Cylindrical
Outer Ring Type	Outer Ring With Two Retaining Rings in I.D. (T)
Inner Ring and Roller Assembly Over Roller Diameter (mm)	105.75 mm
Basic Bearing Number	1213
Outer Ring and Roller Assembly Under Roller Diameter (mm)	80.48 mm
Ring Width Series	Narrow (1)
Mounted Clearance	SEE DESCRIPTION
Inner Ring Raceway Outside Diameter (mm)	80.42 mm
Product	Series 1200 Unmounted Bearings
Inner Ring Type	Plain Cylindrical (A)
Shaft Locking	DIRECT SHAFT MOUNT
Vibration Frequency Roller Spin	CALL ENG cps
C Dynamic Load Rating	CALL ENG lb

General Specifications

UPC	662327051822
Weight	2.64 LB
Packaged Length	0.91 IN
Packaged Width	4.72 IN
Packaged Height	2.56 IN
HTC	8482500000
Country of Origin	Mexico
