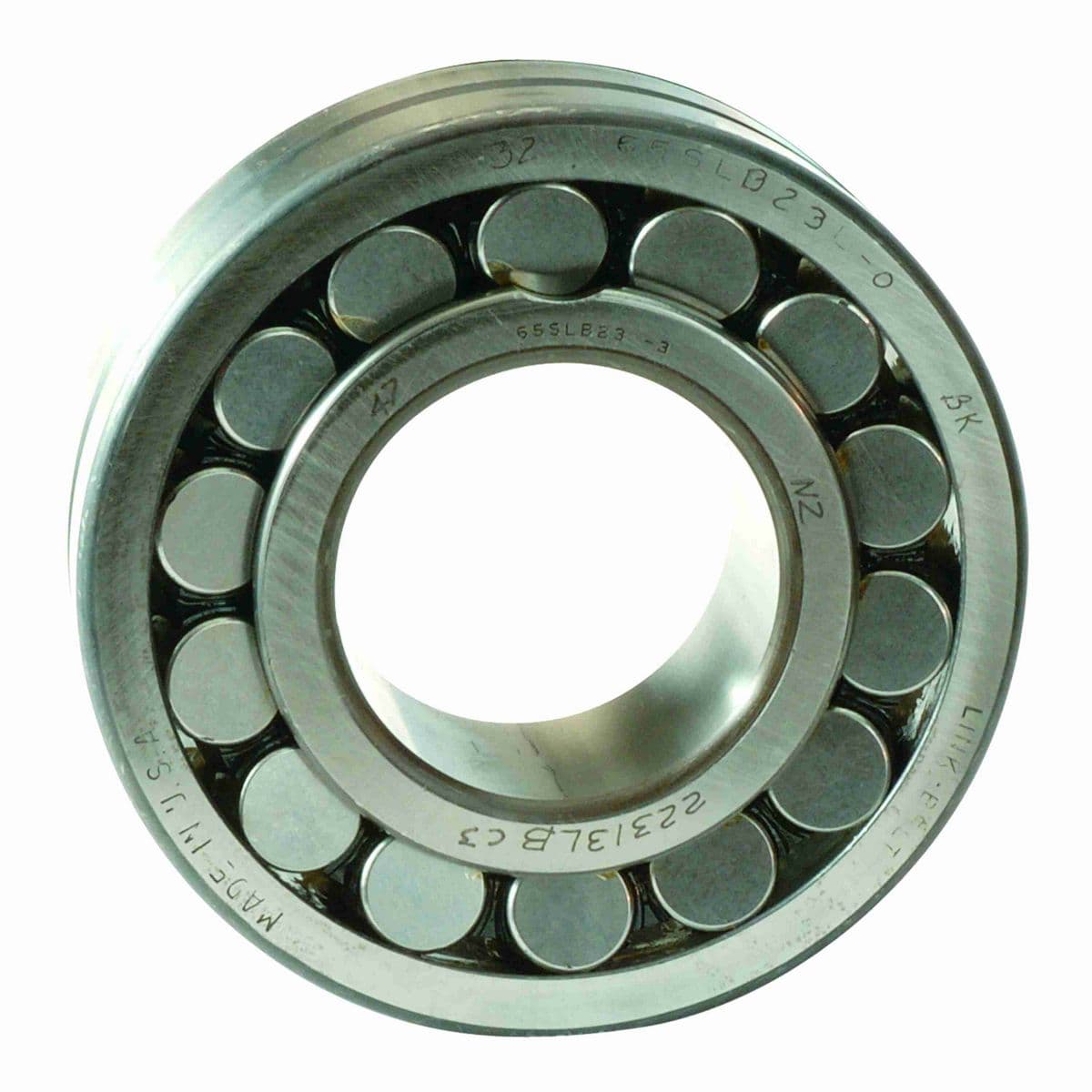

• 120 mm Unmounted Spherical Roller Bearing, Direct Shaft Mounted, Cylindrical Bore

Dimensions

Bore Size (mm)	120 mm
Bore Size (in)	4.7244 in
Outside Diameter (in)	8.46 in

Technical Specifications

Size Code	22224
Maximum Shoulder Diameter (in)	8 in
Vibration Frequency Inner Ring Defect	0.1740 cps
Product	22200LB
Vibration Frequency Roller Spin	0.0510 cps
Minimum Shoulder Diameter (in)	5.20 in
Maximum Speed Using Oil (RPM)	2300 rpm
Maximum Speed Using Grease (RPM)	1900 rpm
Vibration Frequency Fundamental Train	0.0070 cps
Mounted Clearance	C0 NORMAL
Vibration Frequency Outer Ring Defect	0.1260 cps

General Specifications

UPC	782935474346
Weight	19.60 LB
Packaged Length	10.88 IN
Packaged Width	6.13 IN
Packaged Height	5.38 IN
